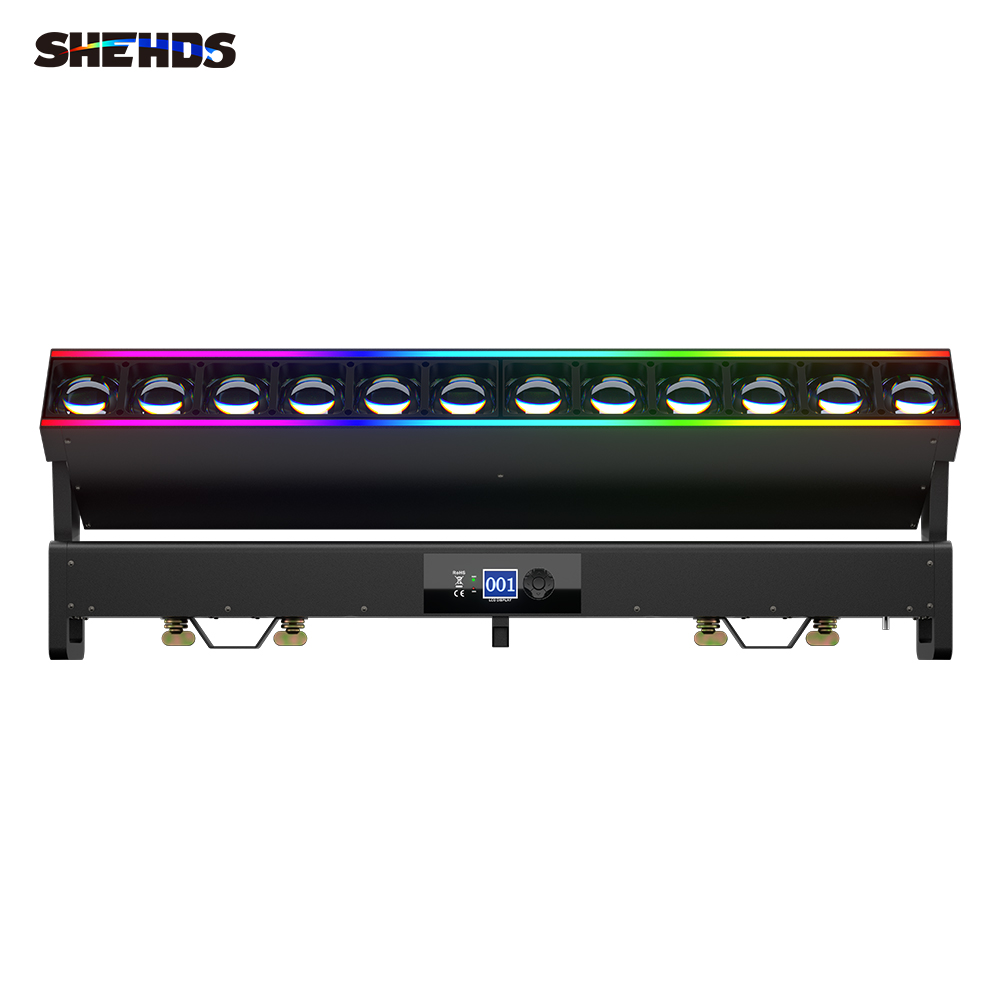

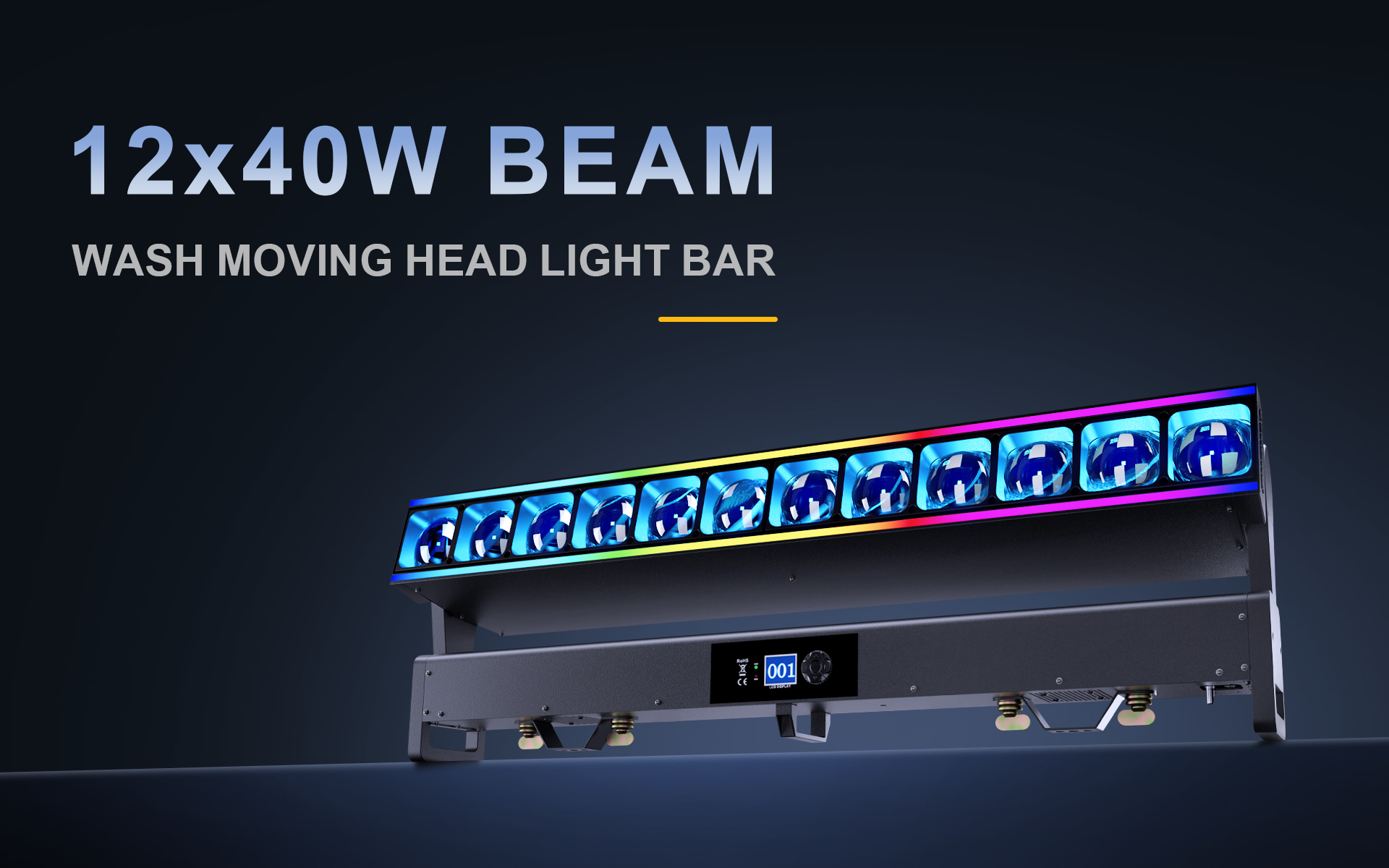

LED Zoom&Beam&Wash 12x40W RGBW Moving Head Lighting
Technical Parameter
Standby Power: 33W
Full Brightness Power: 425W
Zoom Angle: horizontal 16.7°-- 39.3°, vertical 4°-- 32.6°.
Lumen: 1128Lux@5 meters -- 12200Lux@5 meters
Zoom Oval Spot Diameter@5 meters: From Length 1.45 meters, Width 0.35 meters to Length 4.1 meters -- Width 3.2 meters.
Noise: 47db
Cooling Method: air cooling
Power Interface: PowerCon input/output
Control Interface: 3-pin and 5-pin DMX input/output
DMX Channel: 19CH

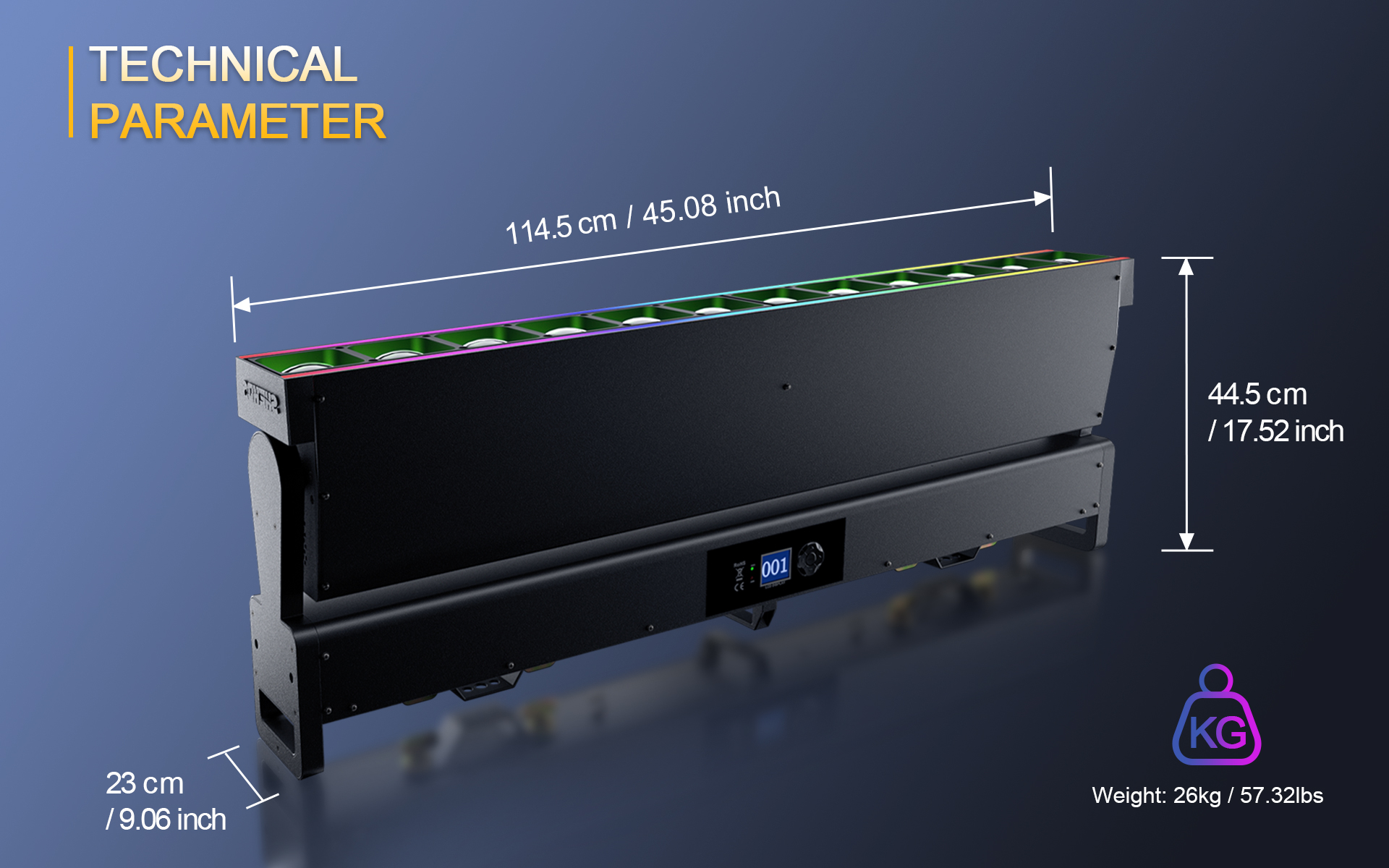

Product Size: 106.5*12.3*36cm / 41.93*4.84*14.17inch
Product Weight: 23.28kg / 51.32lbs
Package size:114.5*23*44.5cm / 45.08*9.06*17.52 inch
Package weight:24.88kg / 54.85lbs
Applicable Scene
The beams emitted by the equally spaced LED can cover a wide area, greatly meeting the lighting needs of concerts,
variety shows and other venues. Its powerful beam effect, flexible adjustment ability,
high brightness and long throw distance wash enable it to achieve the best effect in various scenes,
adding a touch of vibrant colors to your events.

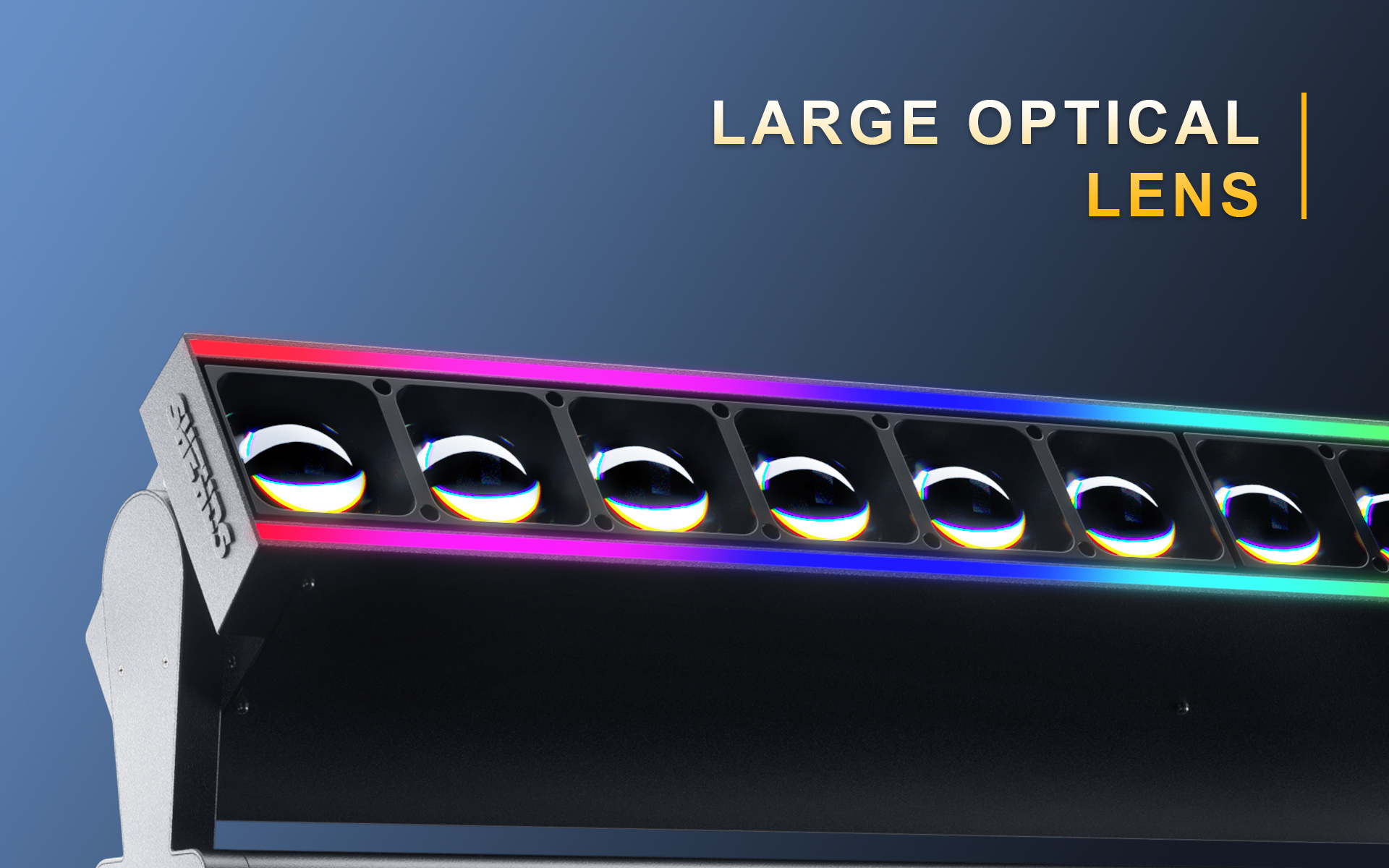

Optical Large Lens
The 12pcs 40W LEDs and 78mm optical lens project a sharper beam,
which not only improves the professionalism and artistry of stage lighting,
but also provides a wider space for expression and creative possibilities for performance creators.

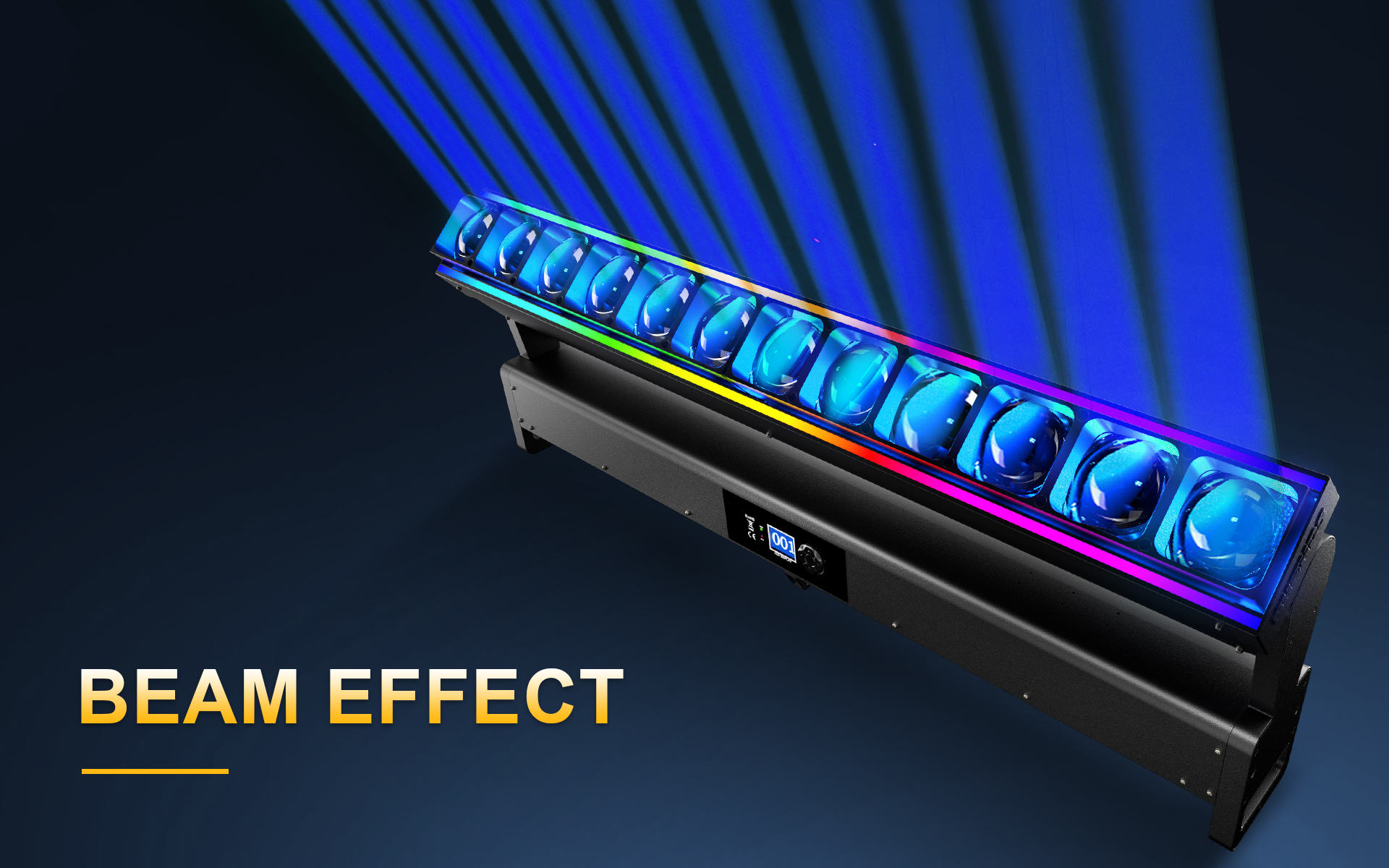

Beam effect
12 independently controlled LEDs, with outstanding RGBW color mixing function,
It not only adds color and vitality to the stage, but also brings us a whole new visual world.

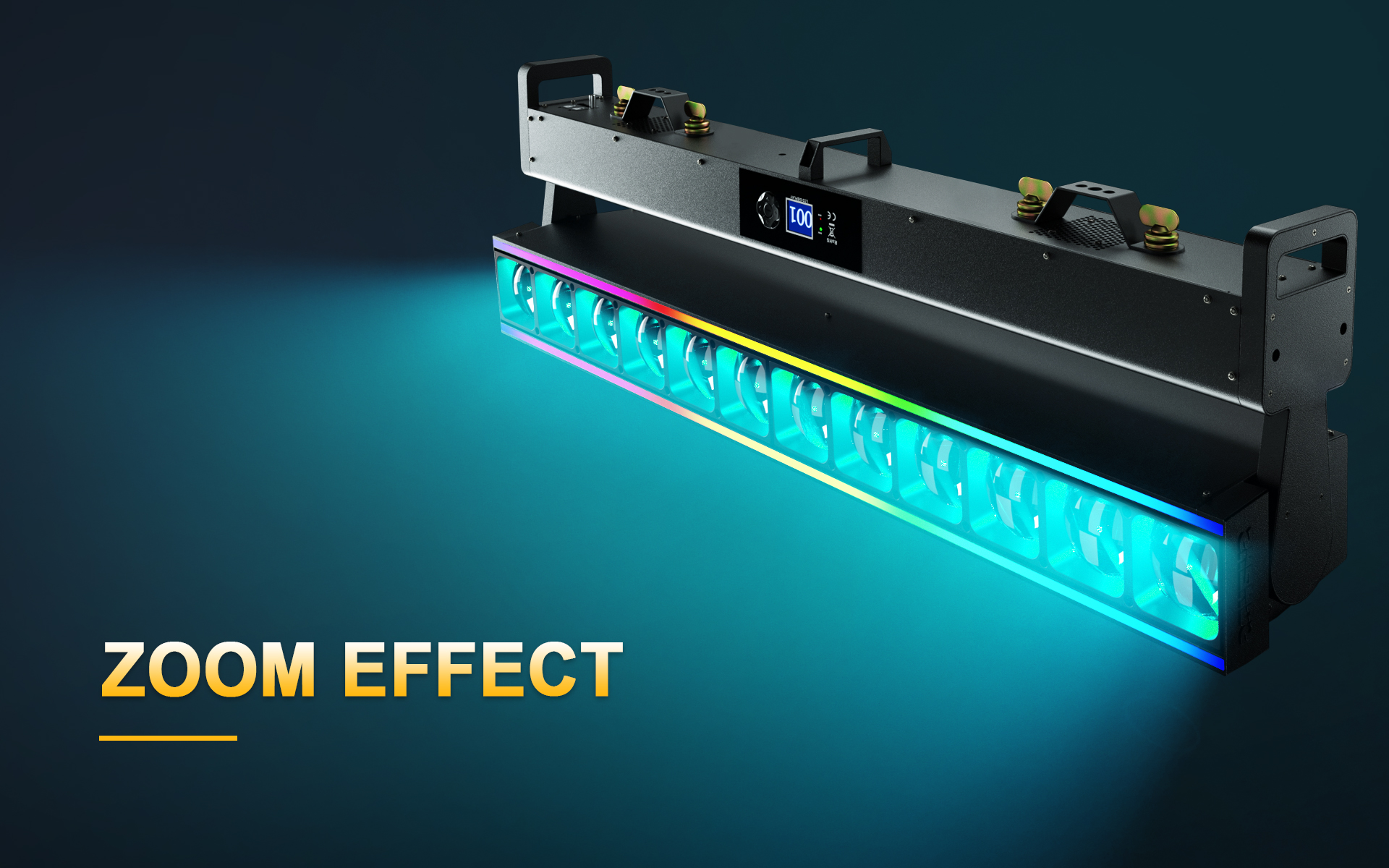

Zoom effect
It can produce parallel beams, which is very suitable for long throw projection,
making the stage instantly three-dimensional. Through the tilting head and color changing functions,
combined with the smoke effect, it can create a dreamy stage atmosphere.
Effect Display
Rich color and lighting effects, can produce a variety of pure colors and mixed colors,
enhance the visual effect and attractiveness of the scene.

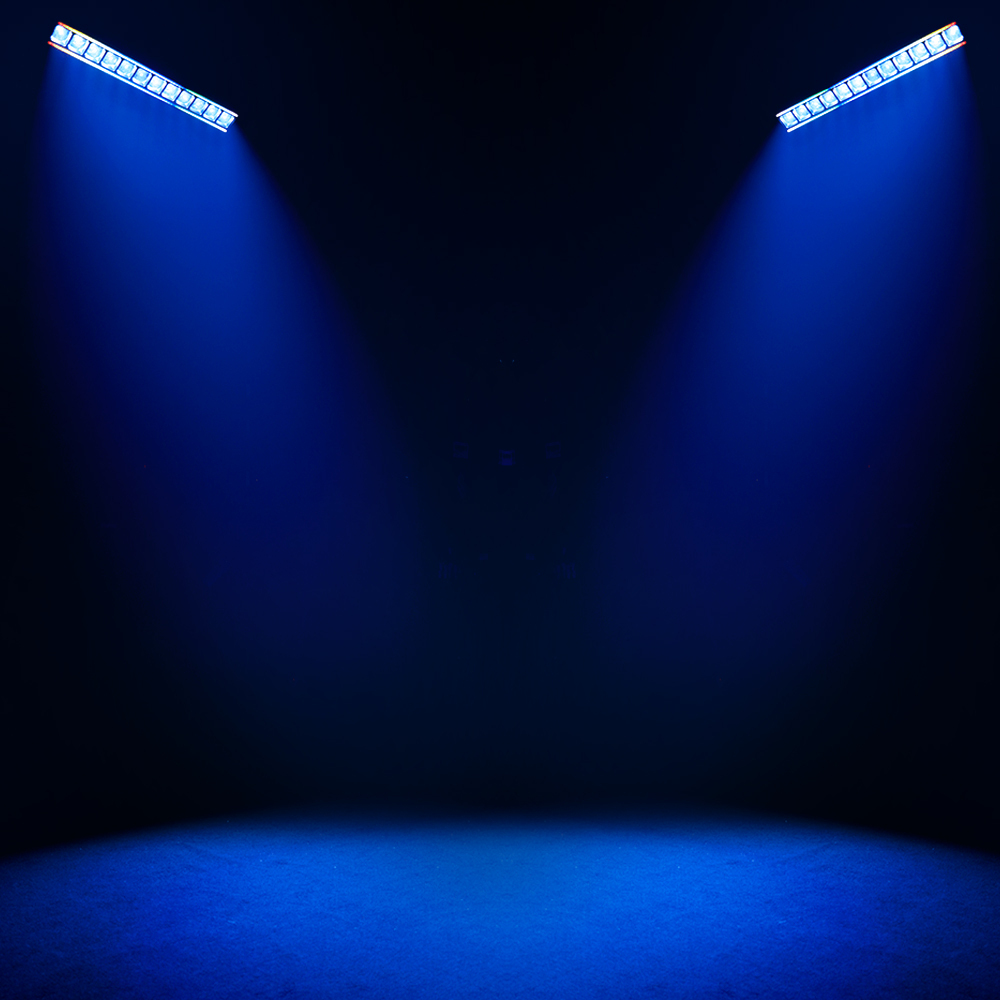

Beam Effect
To render various atmospheres and emotions by adjusting different parameters

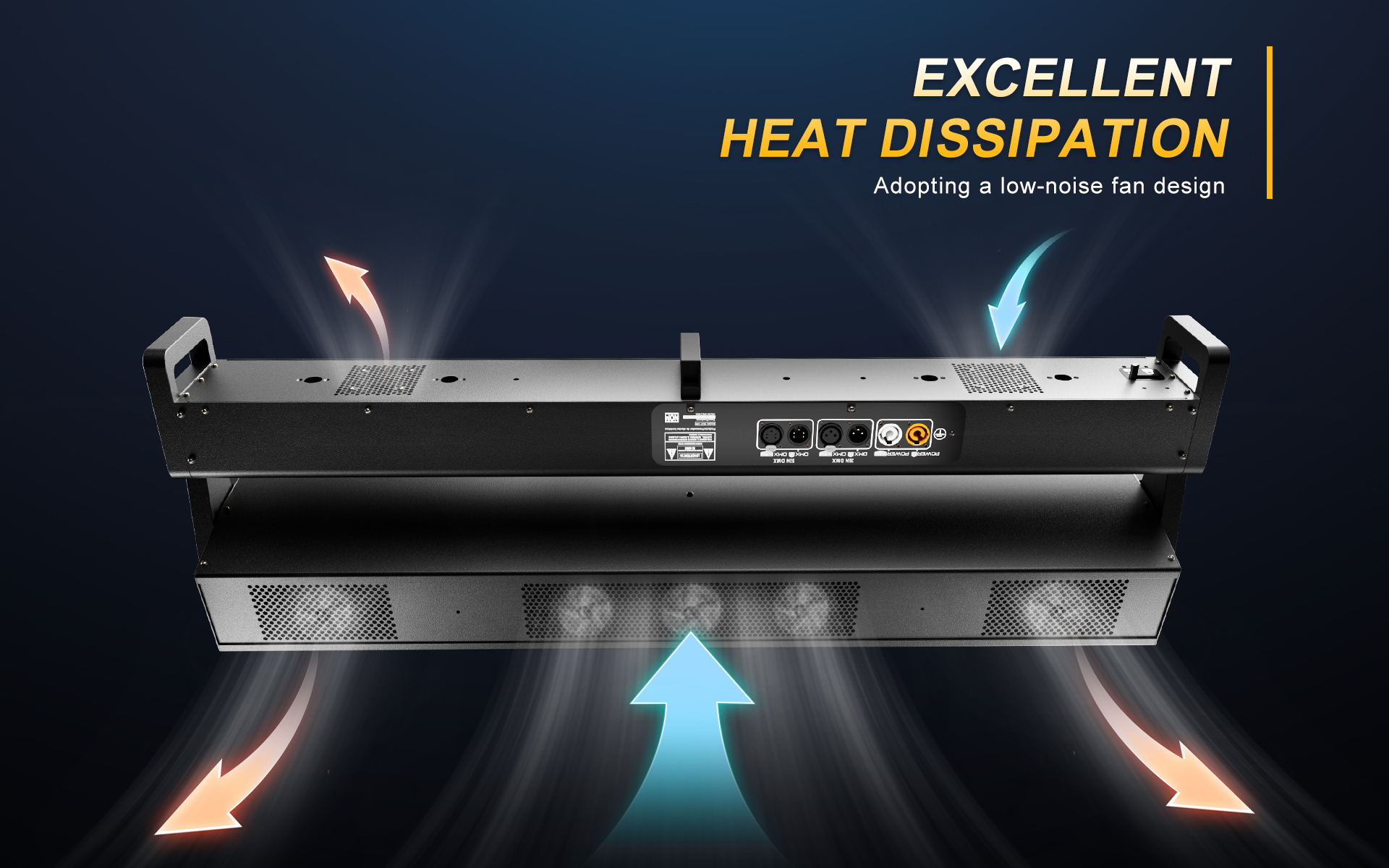

Silent Heat Dissipation
Adopting a low-noise fan design and optimized airflow channel layout,
it achieves efficient heat dissipation while minimizing operating noise.
Even in high-end applications that are sensitive to noise,
it can maintain a quiet and comfortable lighting environment, allowing for uninterrupted focus and relaxation.

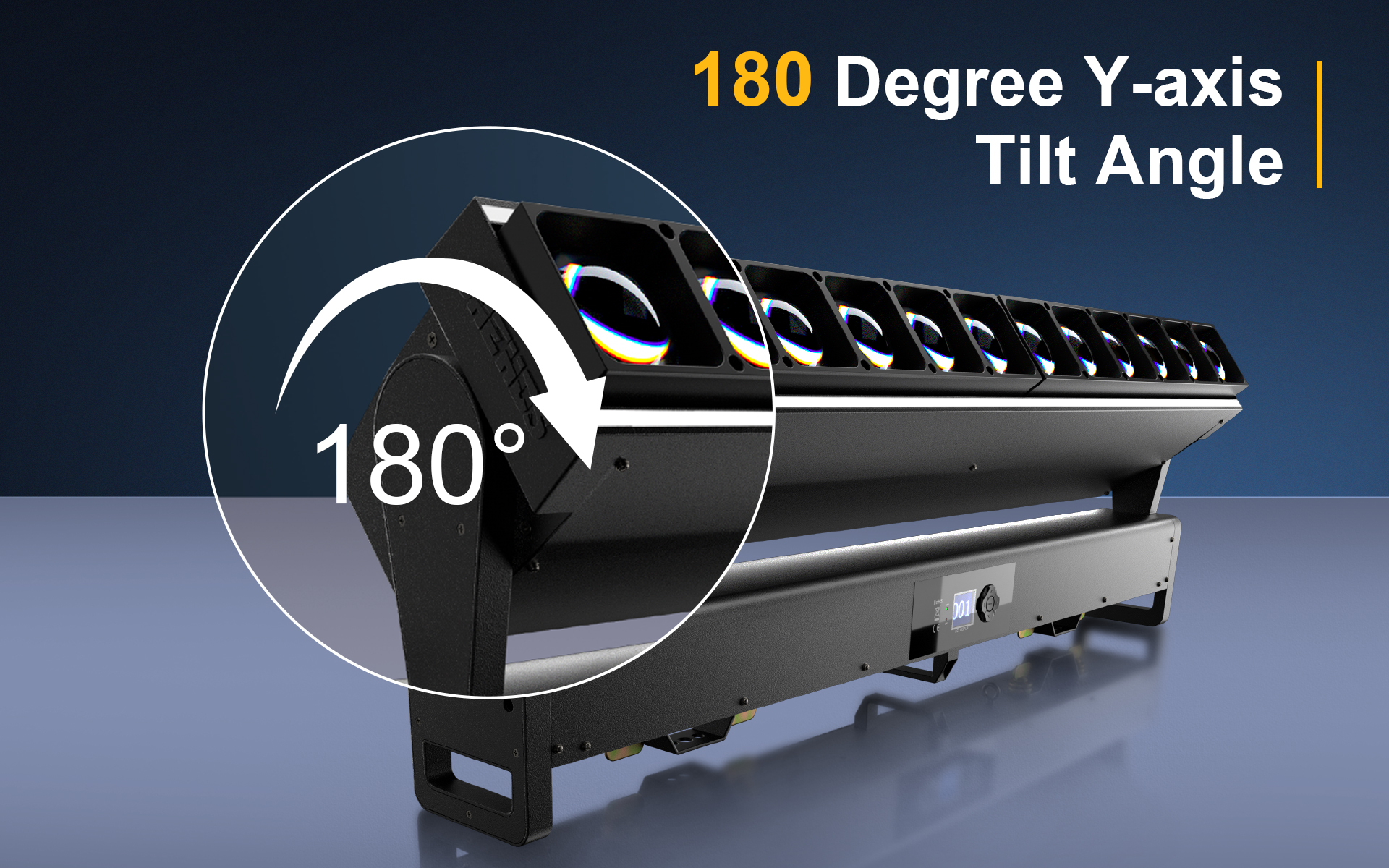

180 Degree Y-axis Shaking Angle
he illumination direction can be freely adjusted as needed, and the 180°
tilting can adapt to various complex lighting needs and create a stunning visual experience.

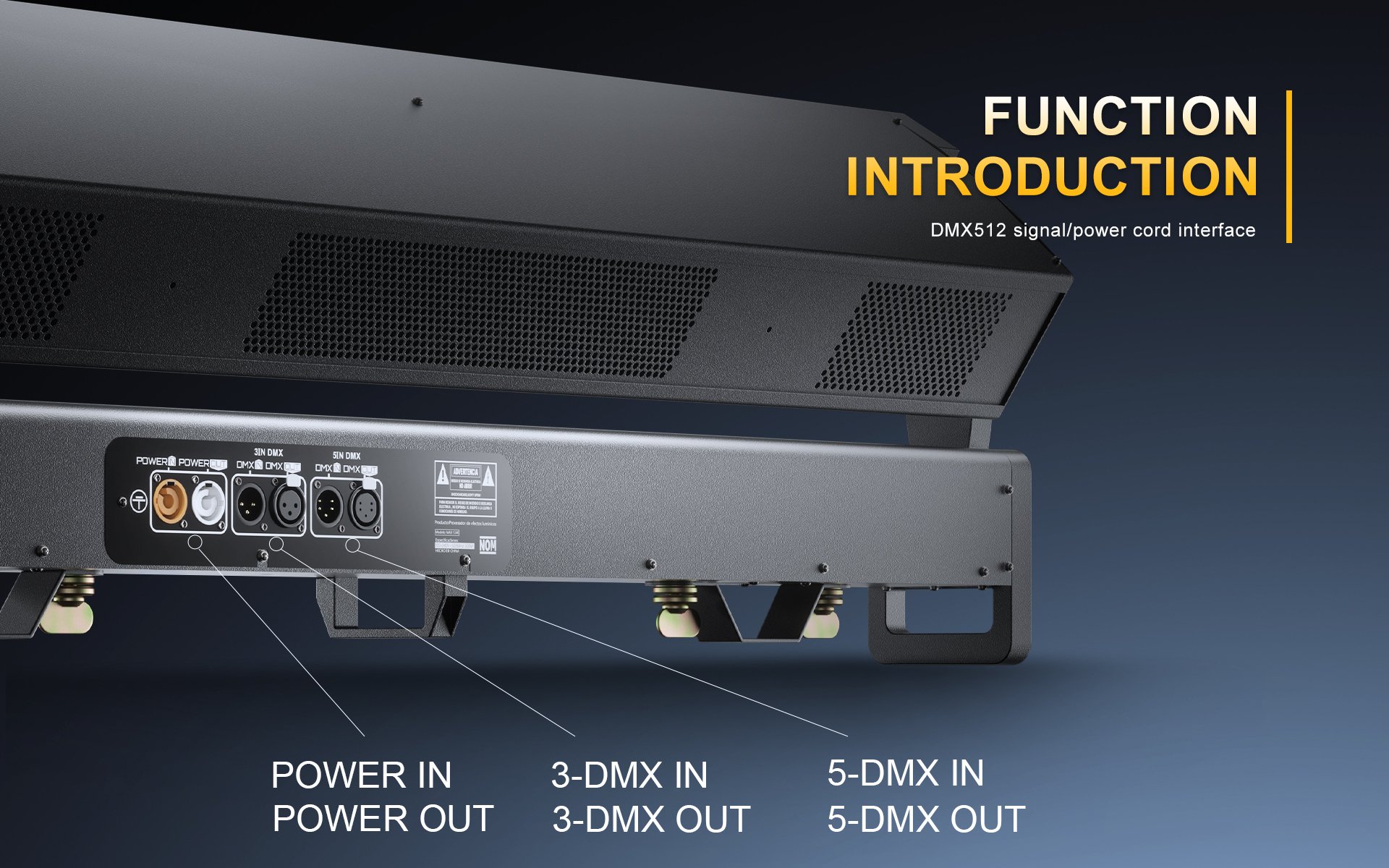

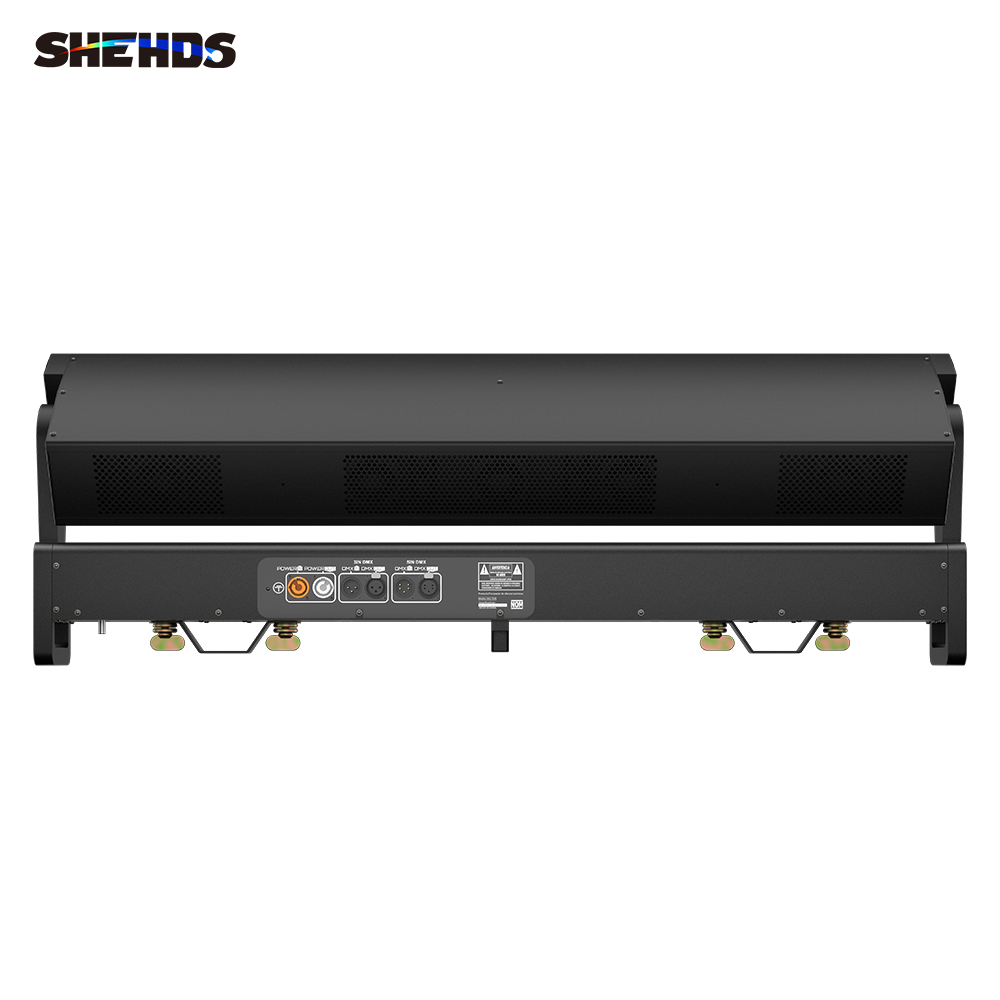

Close Up Of The Back
Supports multiple control modes such as DMX512, automatic, voice control and manual programming,
built-in multiple carefully designed lighting effect presets,
built-in fan cooling, low noise, fast heat dissipation, and extended life span.
One-button start can present a colorful stage atmosphere, greatly simplifying the lighting arrangement process,
suitable for fast-changing performance scenes. Adapt to a variety of user groups!

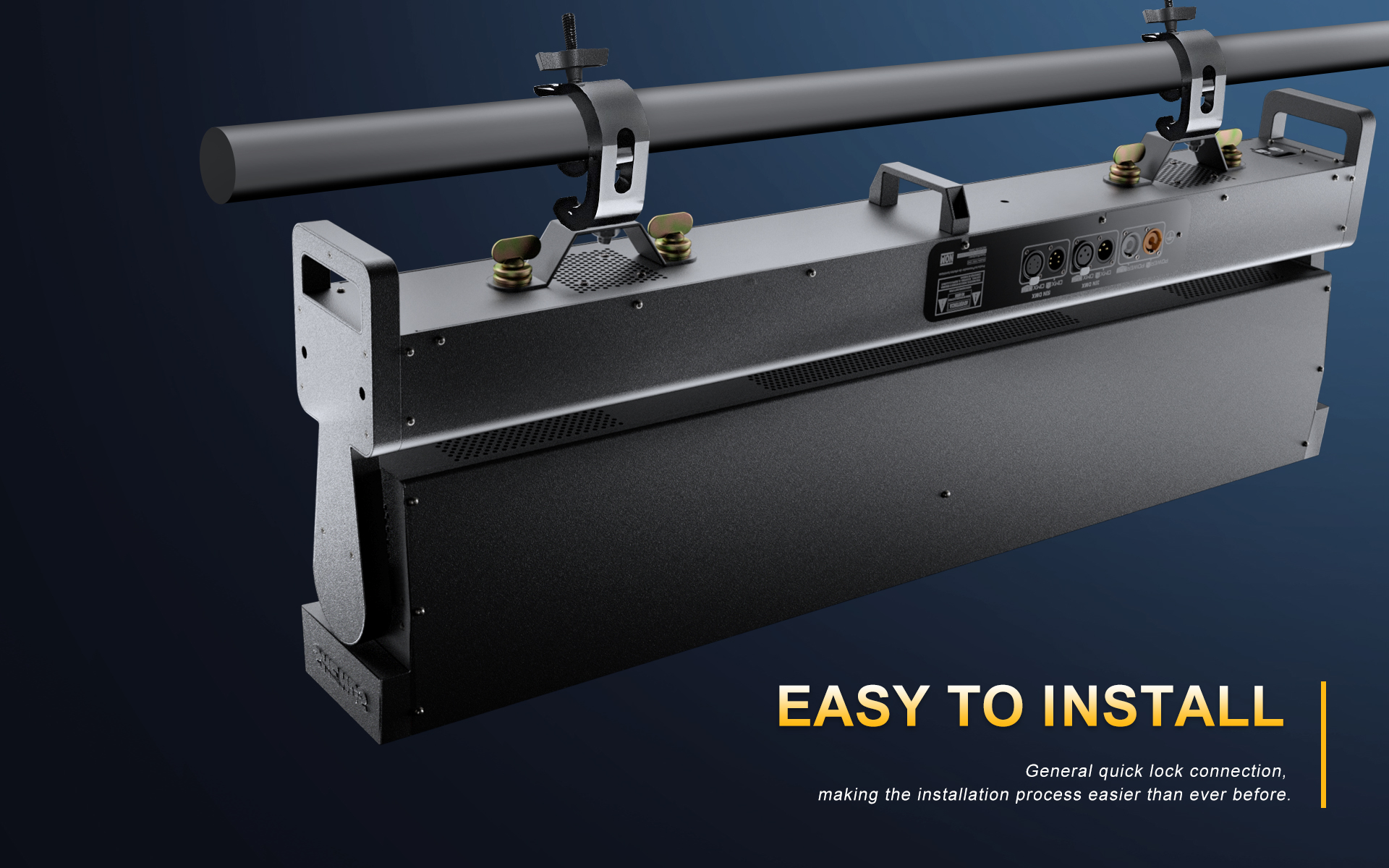

Easy to install
Supports unique quick-lock base plate design, making the installation process easier than ever before.
No complex tools or professional skills are required, and installation can be completed in just a few simple steps,
greatly saving installation time and cost.

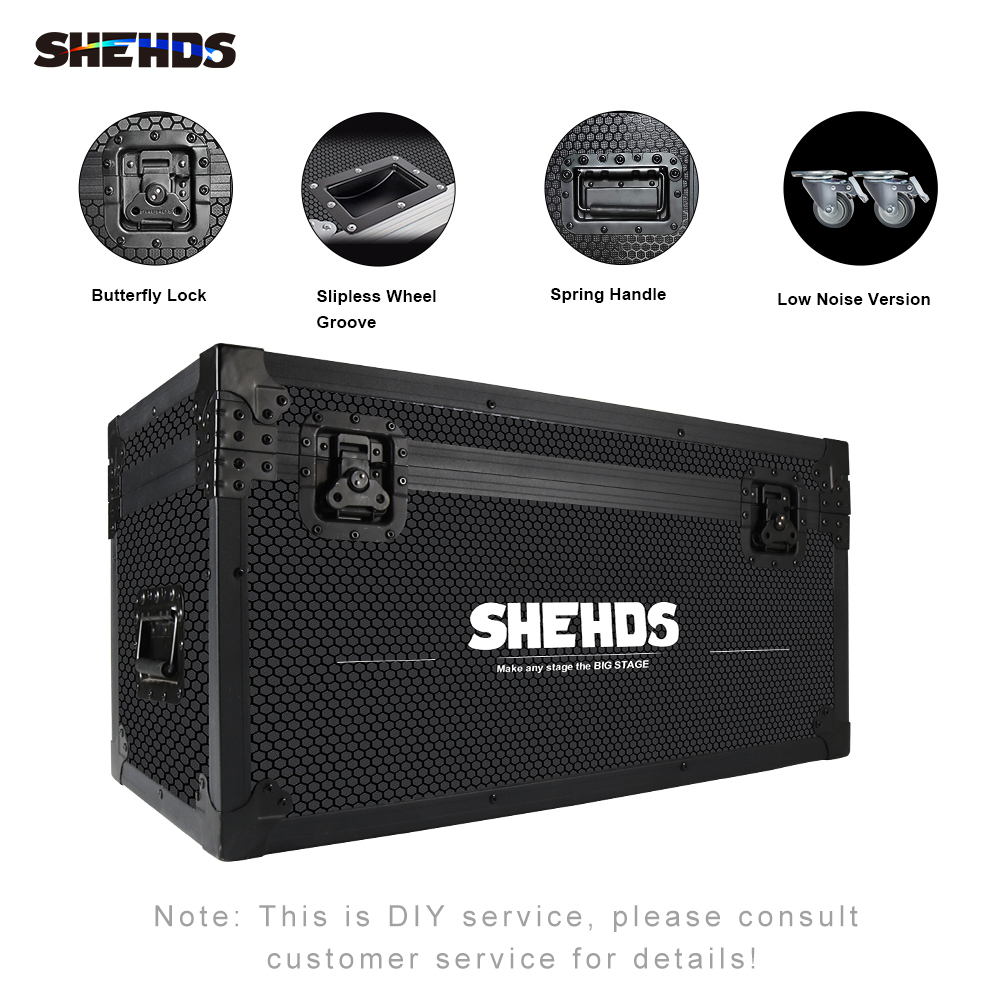

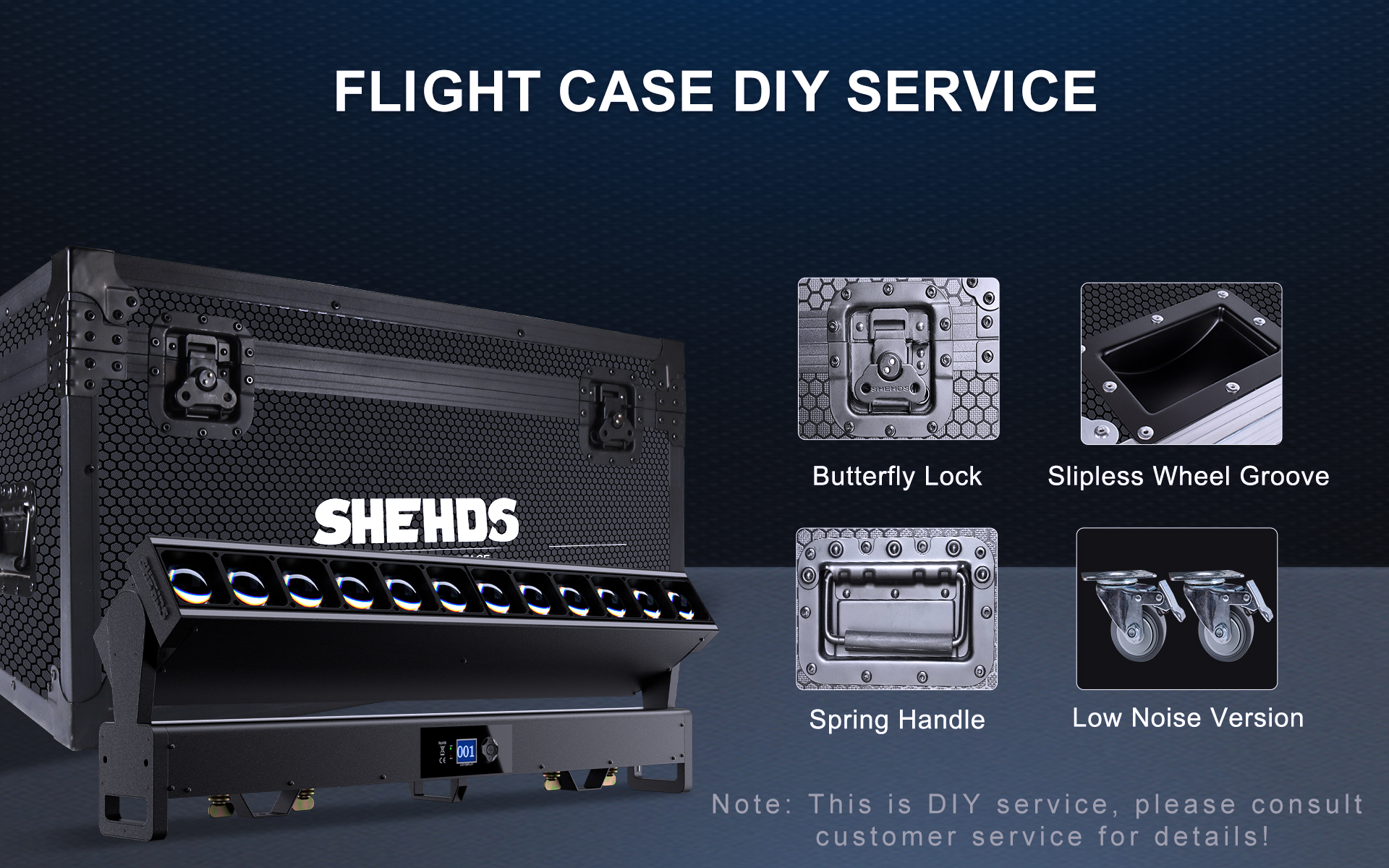

Flight Case DIY Service
It equipped with silent 360 degree wheels + brake locks.
We offer customized road cases that perfectly meet your needs. Whether precision equipment, fragile items, or valuable goods, our road case not only ensures safety protection,
but also adapts flexibly to various specifications and shapes. Each case is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products.
From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service, please consult customer service for details!

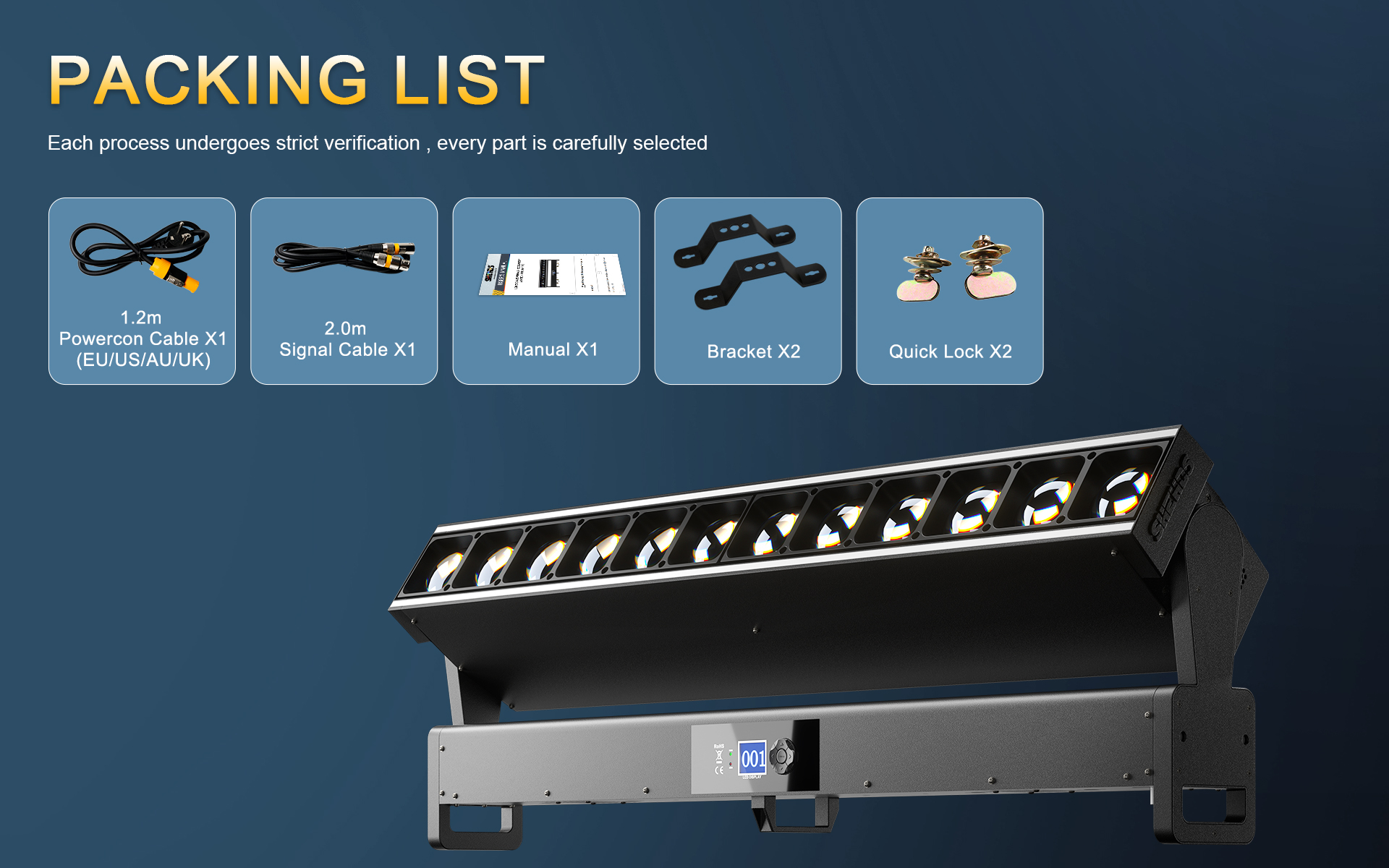

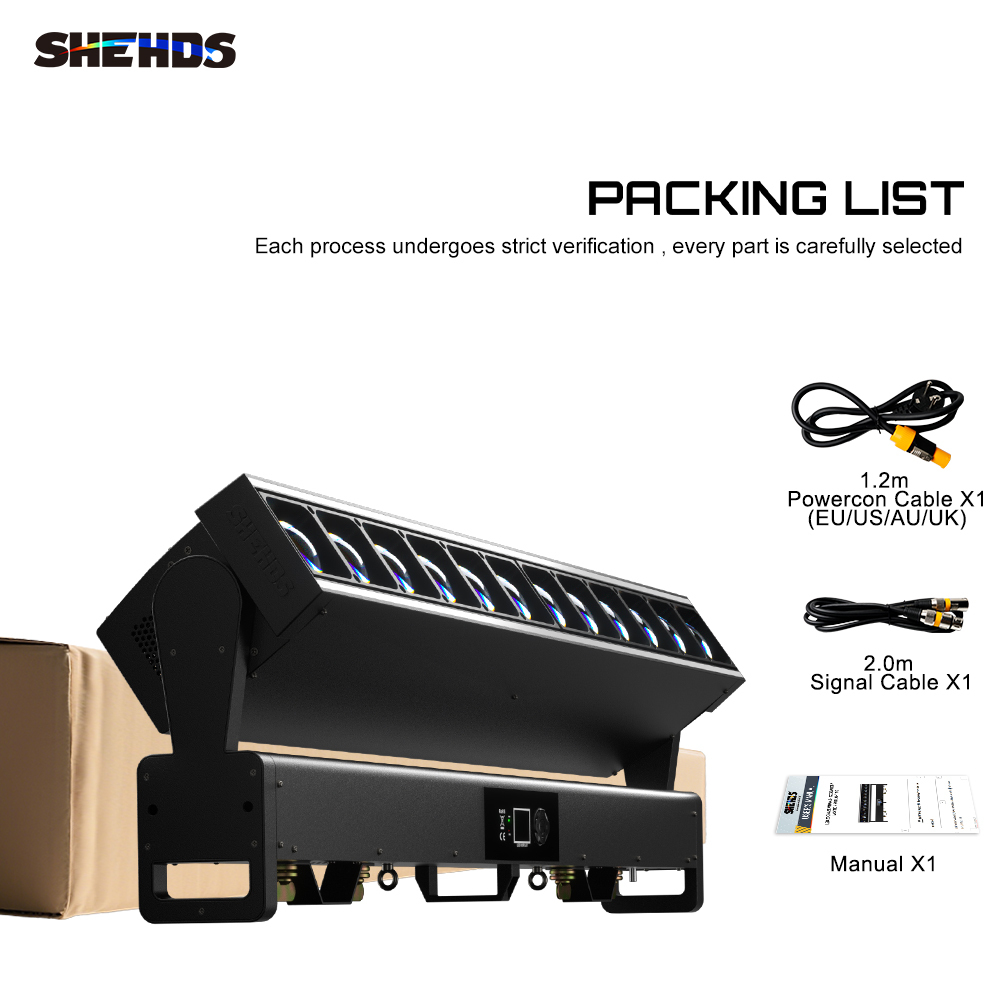

Packing List
Before leaving the factory, each of our products undergoes rigorous testing to ensure they are in perfect condition.
Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every detail.
Only those products that have gone through layers of checking can confidently leave our factory and arrive in your hands,
bringing you an excellent using experience.
Qualification Certificate
Our products comply with international safety standards and environmental requirements.
They have multiple voltage options to meet different voltage around the world.
In addition, we also provide comprehensive after-sales service and technical support to ensure that any problems you encounter during use can be promptly and effectively resolved.
