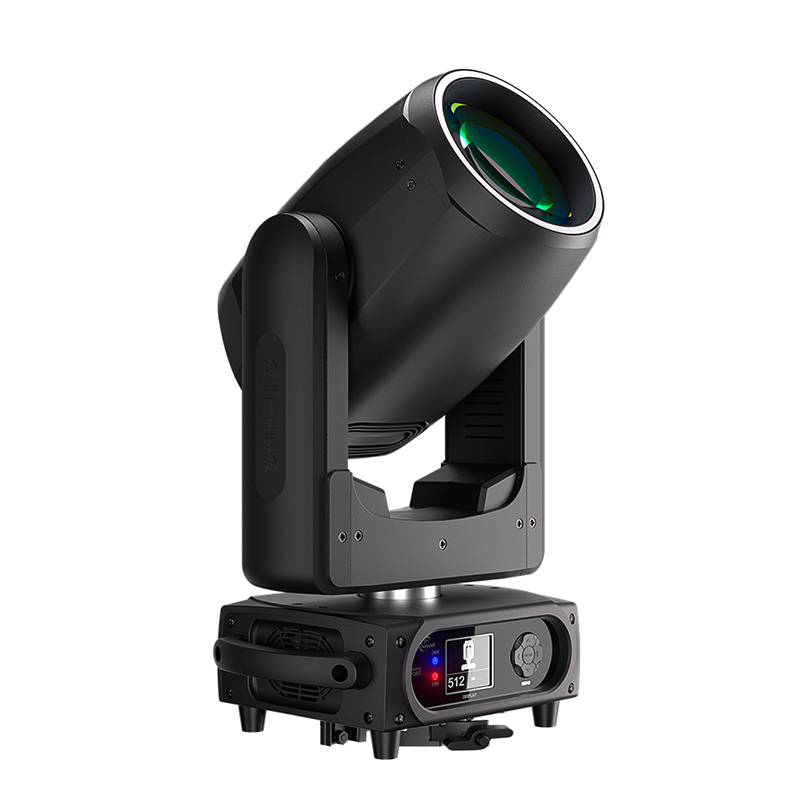

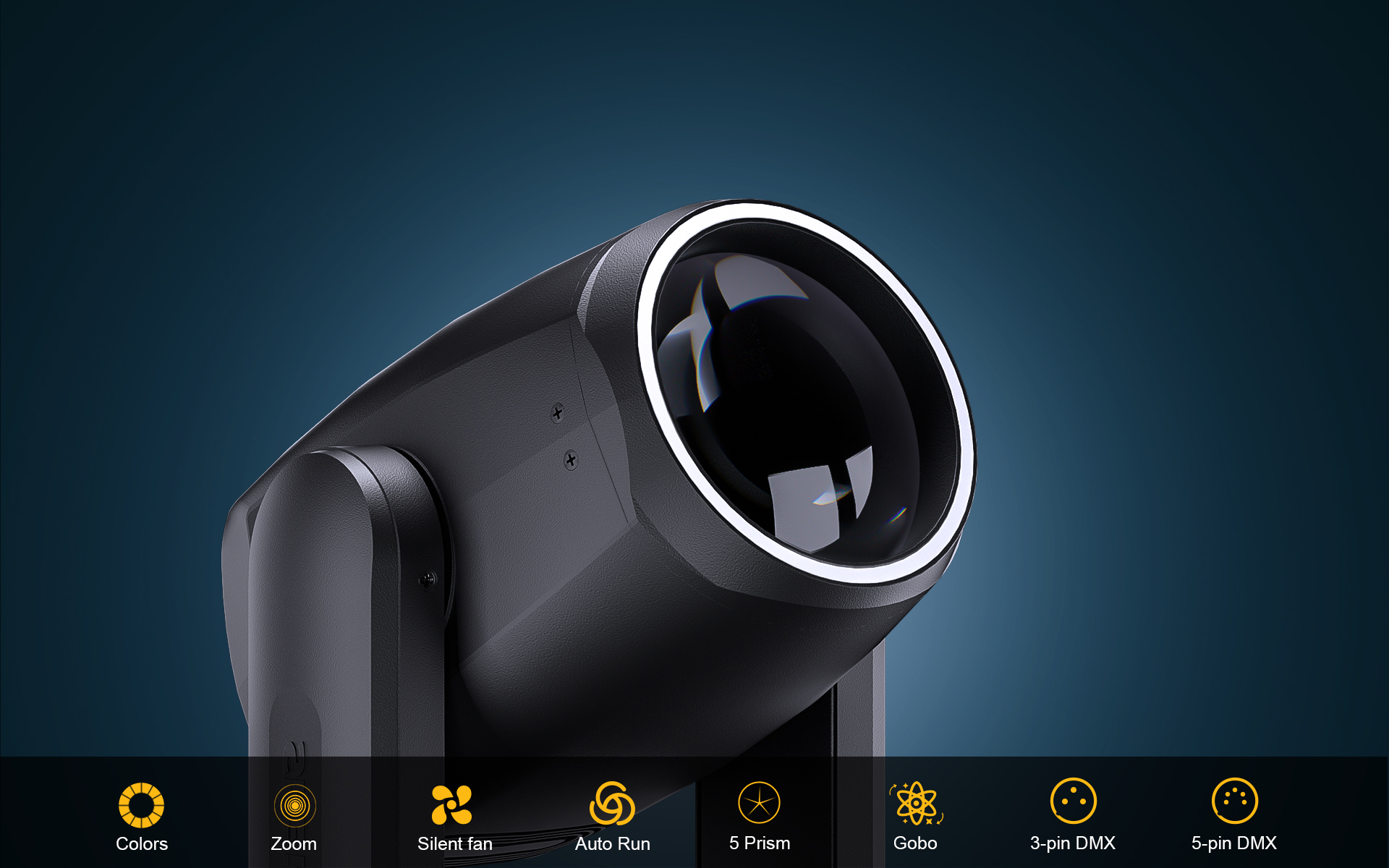

LED 300W Beam Light
LED 300W 3in1 beam light, equipped with a 300W module light engine,
significantly improves the brightness of this product compared to traditional stage lighting.
The high-power LED module of 300W ensures strong light output,
making it easy to handle even large stages or long-distance lighting needs,
ensuring that every detail on the stage is clear and visible,
bringing the audience a more delicate and realistic visual experience.
Product Features
This lamp is not only suitable for large-scale stage performances such as professional theaters, concerts,
and concerts, but also for various occasions such as wedding celebrations, corporate annual meetings,
product launches, etc. Its powerful beam effect, flexible adjustment ability, high brightness,
and long-distance illumination ability enable it to achieve the best results in various scenes,
adding a bright color to your activities。
Technical Parameter
|
Light source parameters
|
|
Light source:
|
300W LED white color
|
|
Color Temperature:
|
9100-9500K
|
|
Luminous lumens/5m:
|
180000 lx/5m
|
|
Beam Angel:
|
2°
|
|
Lifespan light source:
|
20000h
|
|
Diameter of the outgoing lens:
|
150mm
|
|
Dimming:
|
0-100% linear dimming
|
|
CRI:
|
Min.Ra 70
|
|
Optical effect
|
|
Gobos 1:
|
14 gobos + Open
|
|
Colors:
|
14 colors + Open
|
|
Prism 1:
|
8 prism
|
|
Prism 2:
|
8+16+24 prism
|
|
Frost:
|
Simple frost
|
|
Color effect:
|
6 colors
|
|
Security System
|
|
Safety Item:
|
Over current and voltage protection
|
|
Degree Of Protection:
|
IP20
|
|
Operating Temperature:
|
-15℃~45℃
|
|

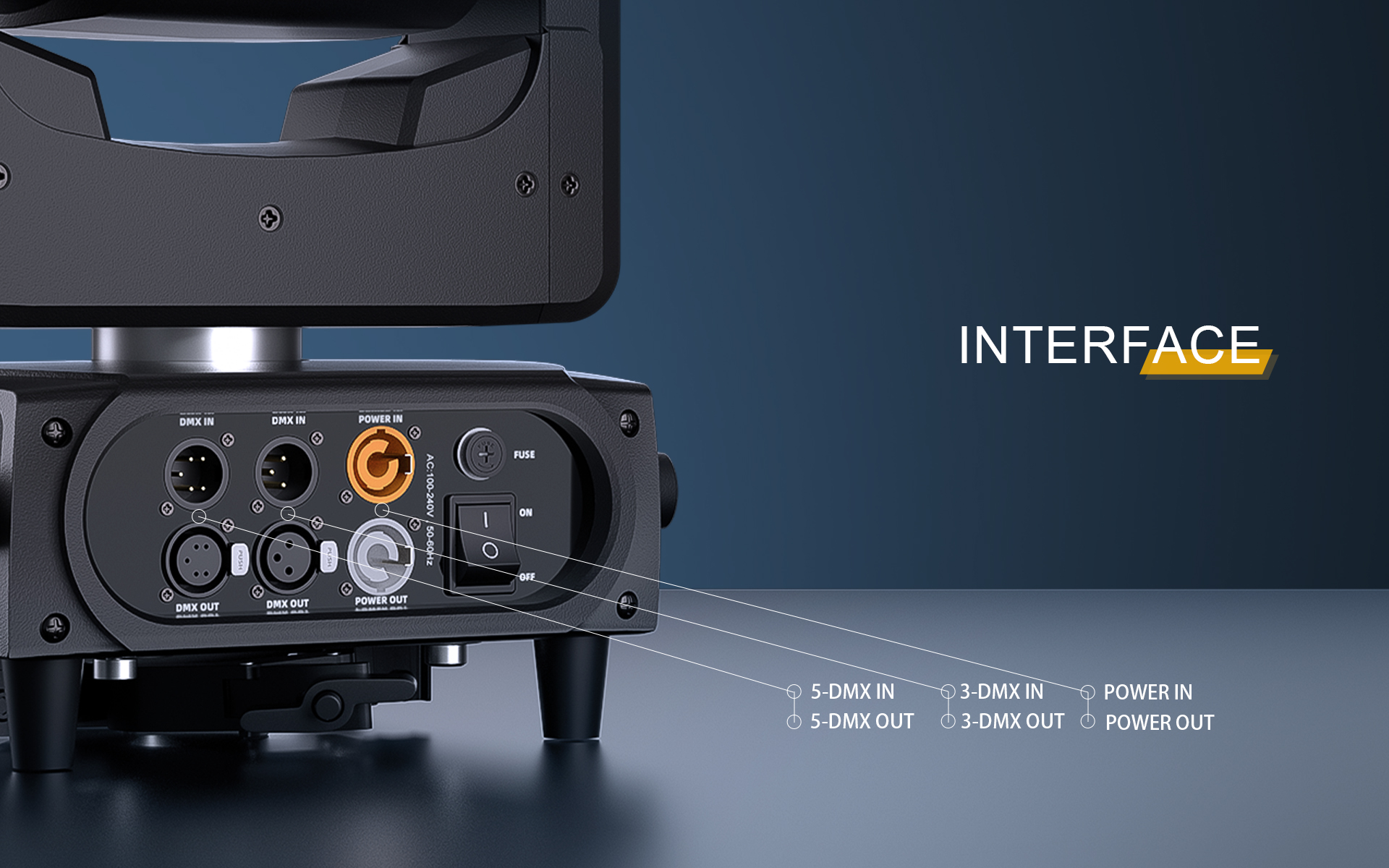

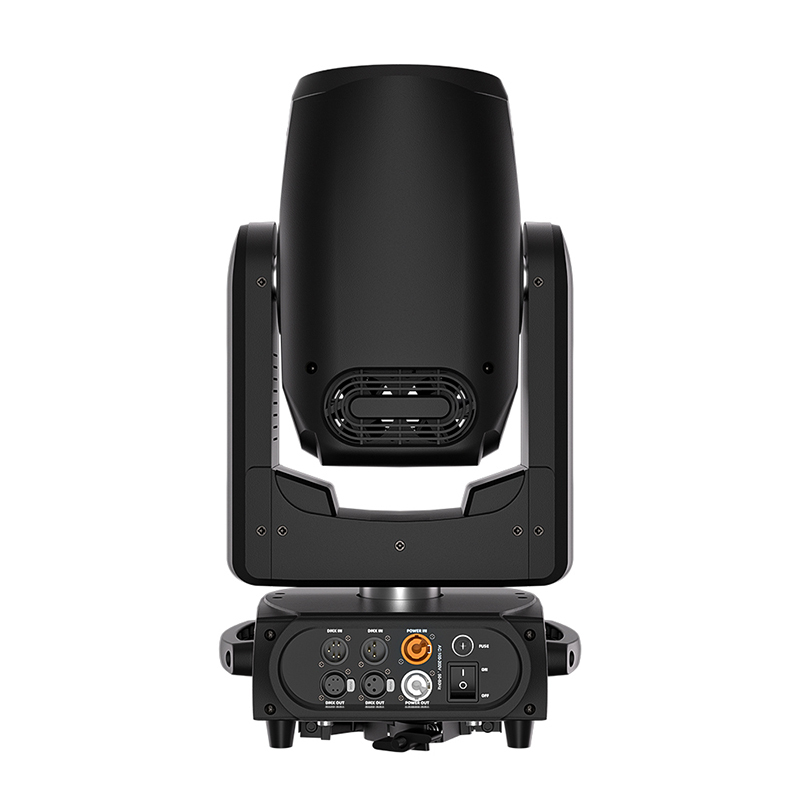

Interface And Control System
|
|
Control Interface:
|
3-pin and 5-pin XLR In/Out
|
|
DMX Channel:
|
19CH
|
|
Power Interface:
|
PowerCon in/Out
|
|
Cooling System
|
|
Cooling Method:
|
Air cooled
|
|
Structure:
|
120mm plug-in heat dissipation layer
|
|
Bentilation Fan:
|
60mm fan Inx2 & outx2
|
|
Power Consumption
|
|
Working Power:
|
100~240V AC 50/60HZ
|
|
Power Consumption:
|
Max 450W
|
|

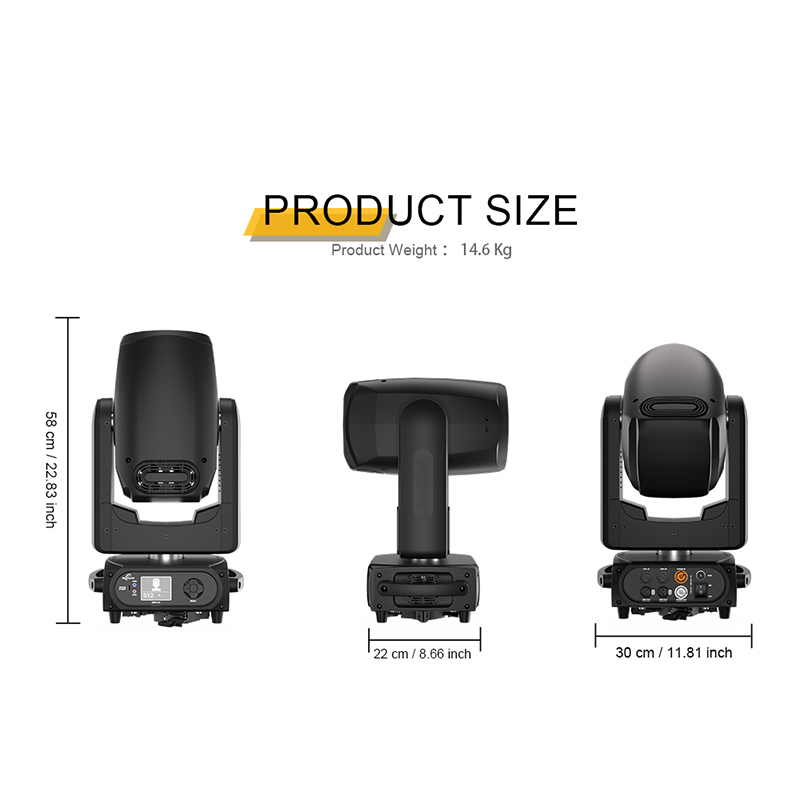

Physical Parameters
|
|

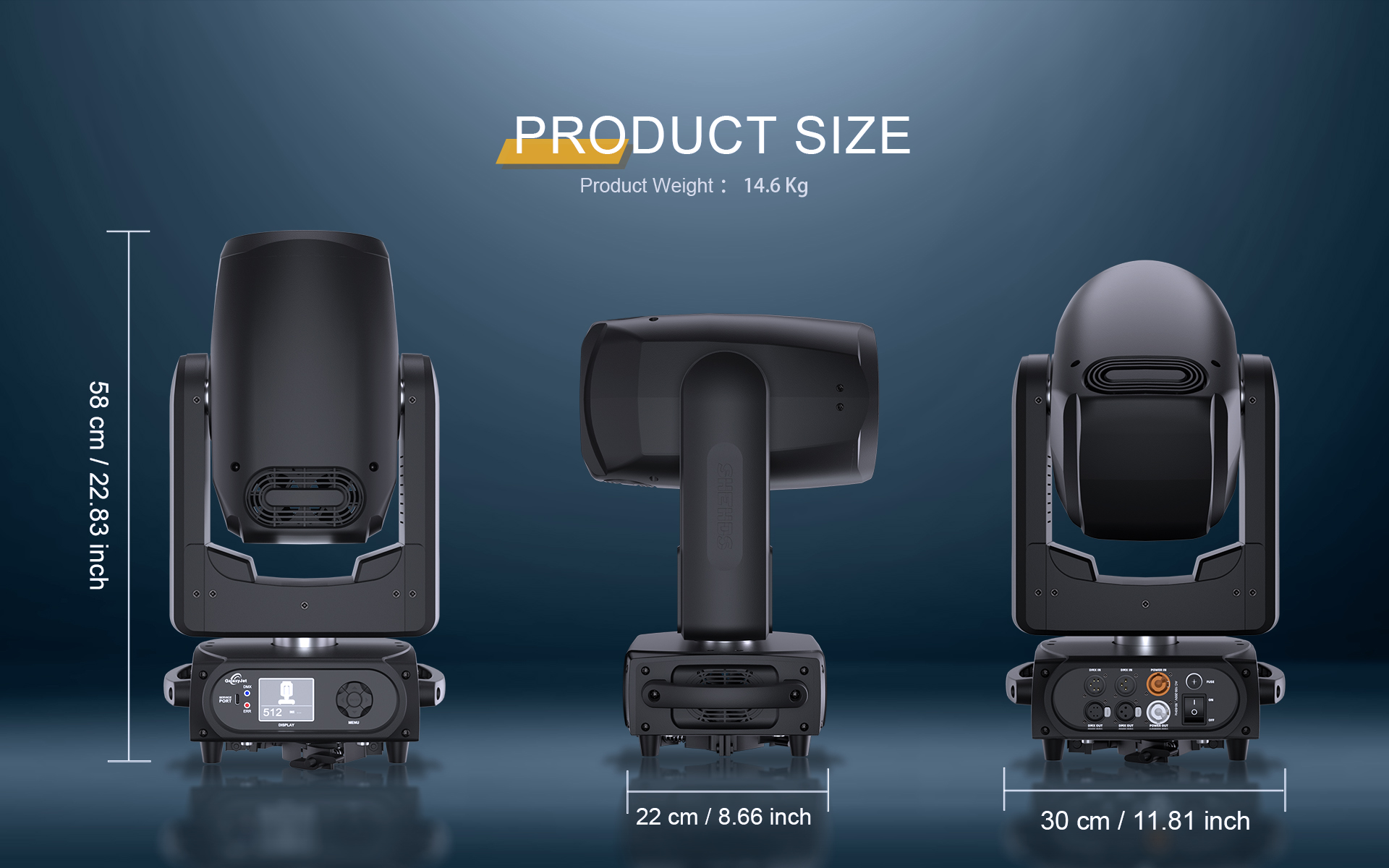

Product Size :
|
30x22x58cm / 11.8x8.6x22.8inch
|
|
Product Weight:
|
14.6 Kg
|
|
Pack Size:
|
59x41x38.5cm/23.2x16.1x15.1inch
|
|
Package Weight:
|
17.54 kg
|
Applicable Scene
Suitable for large-scale stage performances such as professional theaters, concerts, and concerts,
as well as various occasions such as wedding celebrations, corporate annual meetings, product launches, etc.
Its powerful beam effect, flexible adjustment ability, high brightness,
and long-distance illumination ability enable it to achieve the best results in various scenes,
adding a bright color to your activities.

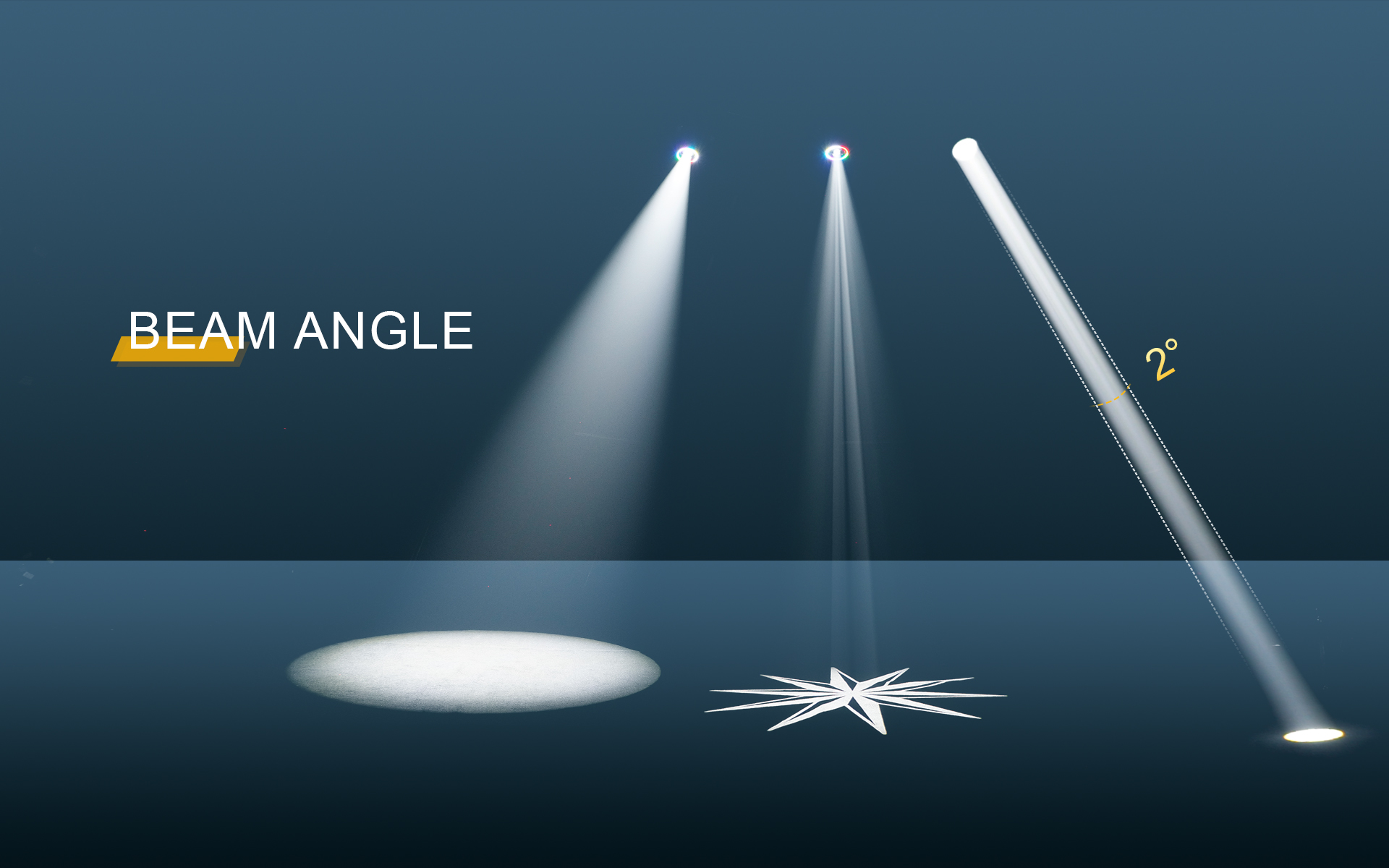

Beam Angle
The high brightness LED module, flexible shaking mechanism,
and precise optical design not only enhance the professionalism and
artistry of stage lighting with a 2 ° beam angle,
but also provide a broader space for expression and creative possibilities for performance creators.

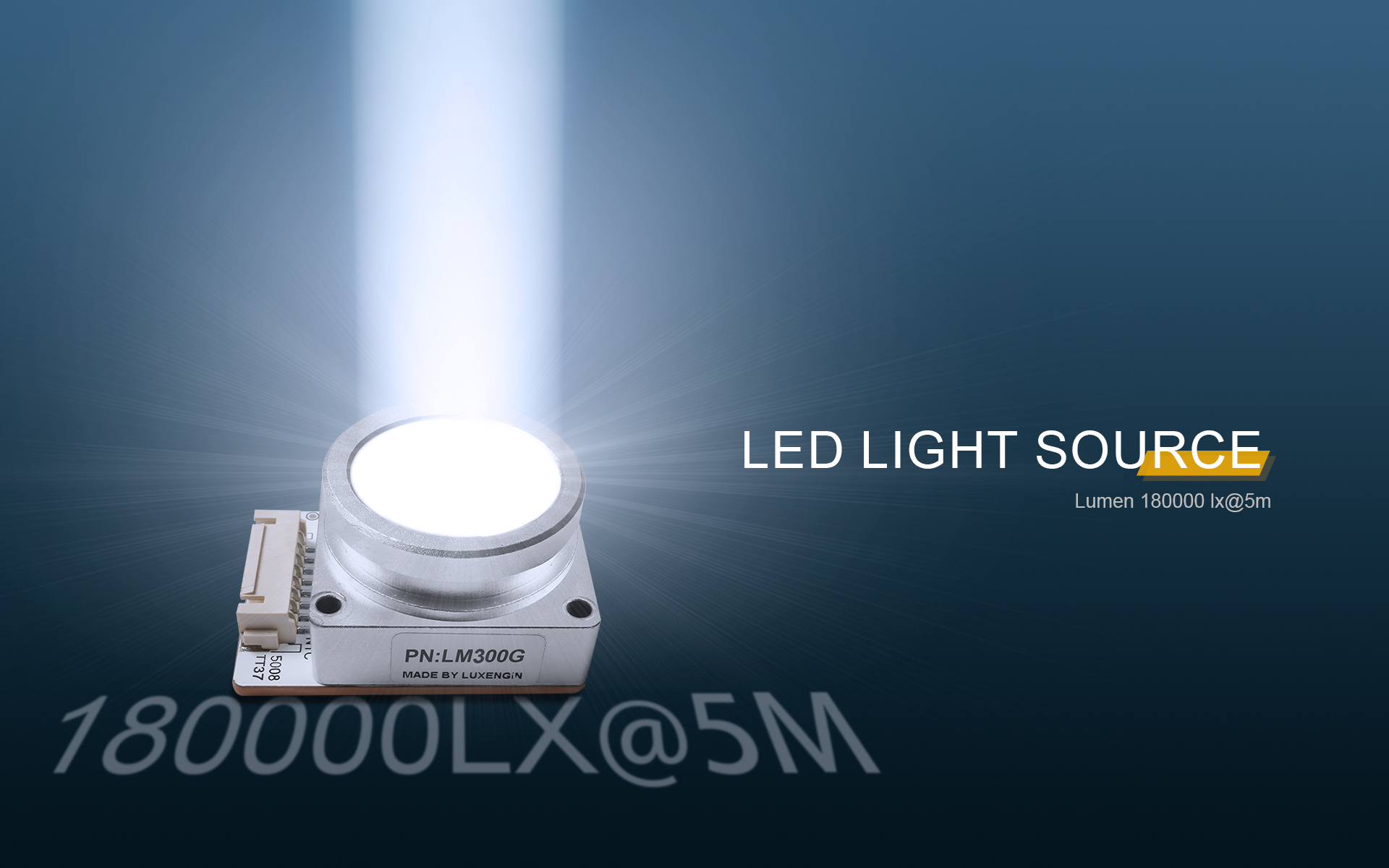

LED Light Source
The high brightness LED module adopts high-quality LED chips and packaging technology,
which can emit bright light and meet various lighting and display needs.
Having lower energy consumption and higher energy efficiency helps reduce energy consumption
and environmental pollution. It has good stability and reliability,
and can maintain stable luminous effects in various harsh environments.
Effect
The combination of 14 patterns, 14 color chips, 8 prisms and 6+16+24 prisms, unique atomization effect,
and wonderful performance of the rainbow disc bring the ultimate light and
shadow effect to the stage performance.
The flexible application and combination of these effects not only enrich the visual level of the stage,
but also enhance the infectiousness and artistic expression of the performance.

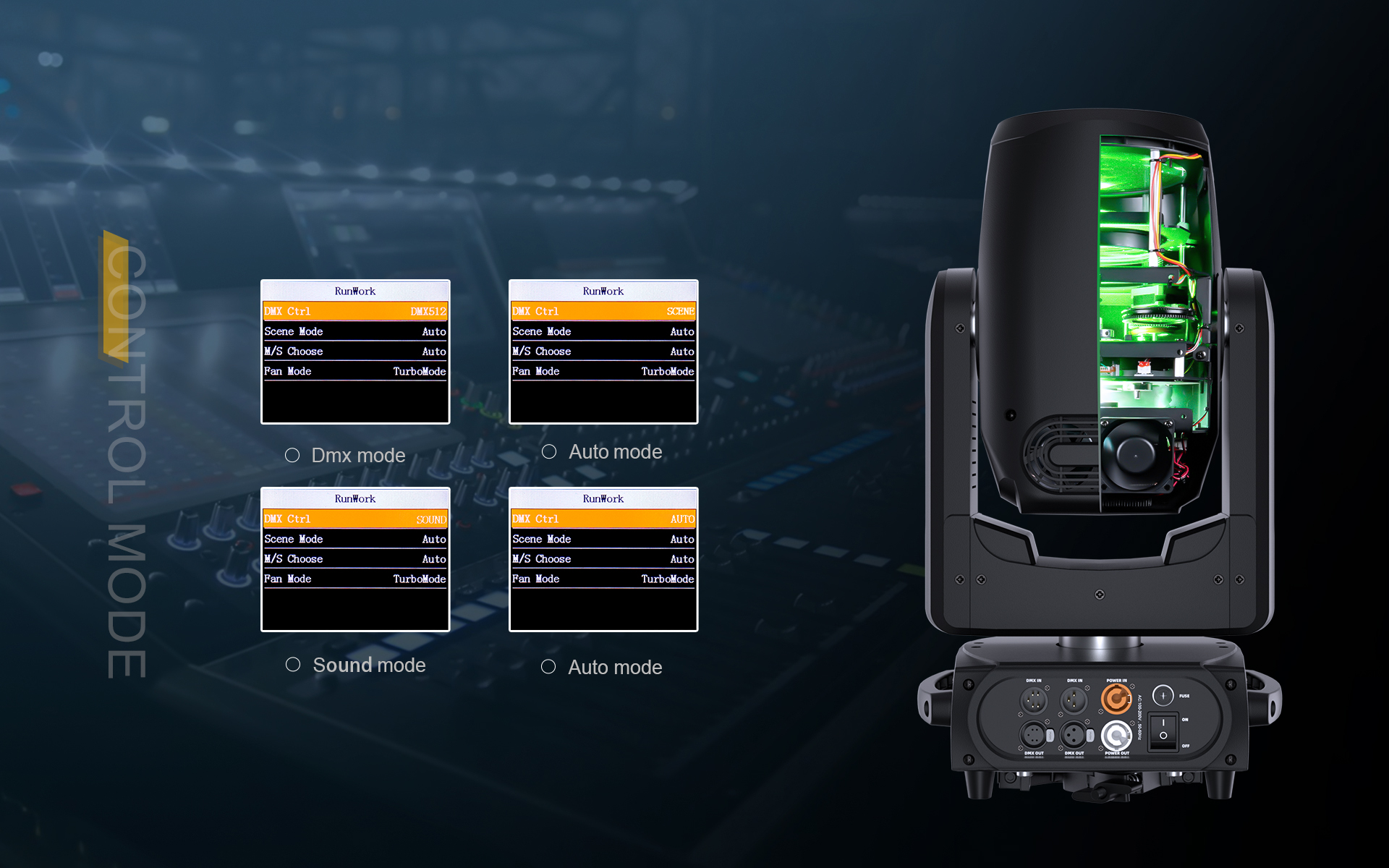

Control Mode
Supports multiple control modes such as DMX512, automatic, voice control, and manual programming,
with built-in carefully designed lighting effect presets. With just one click,
it can present a rich and colorful stage atmosphere,
greatly simplifying the lighting layout process and
suitable for rapidly changing performance scenes. Adapt to multiple user groups!

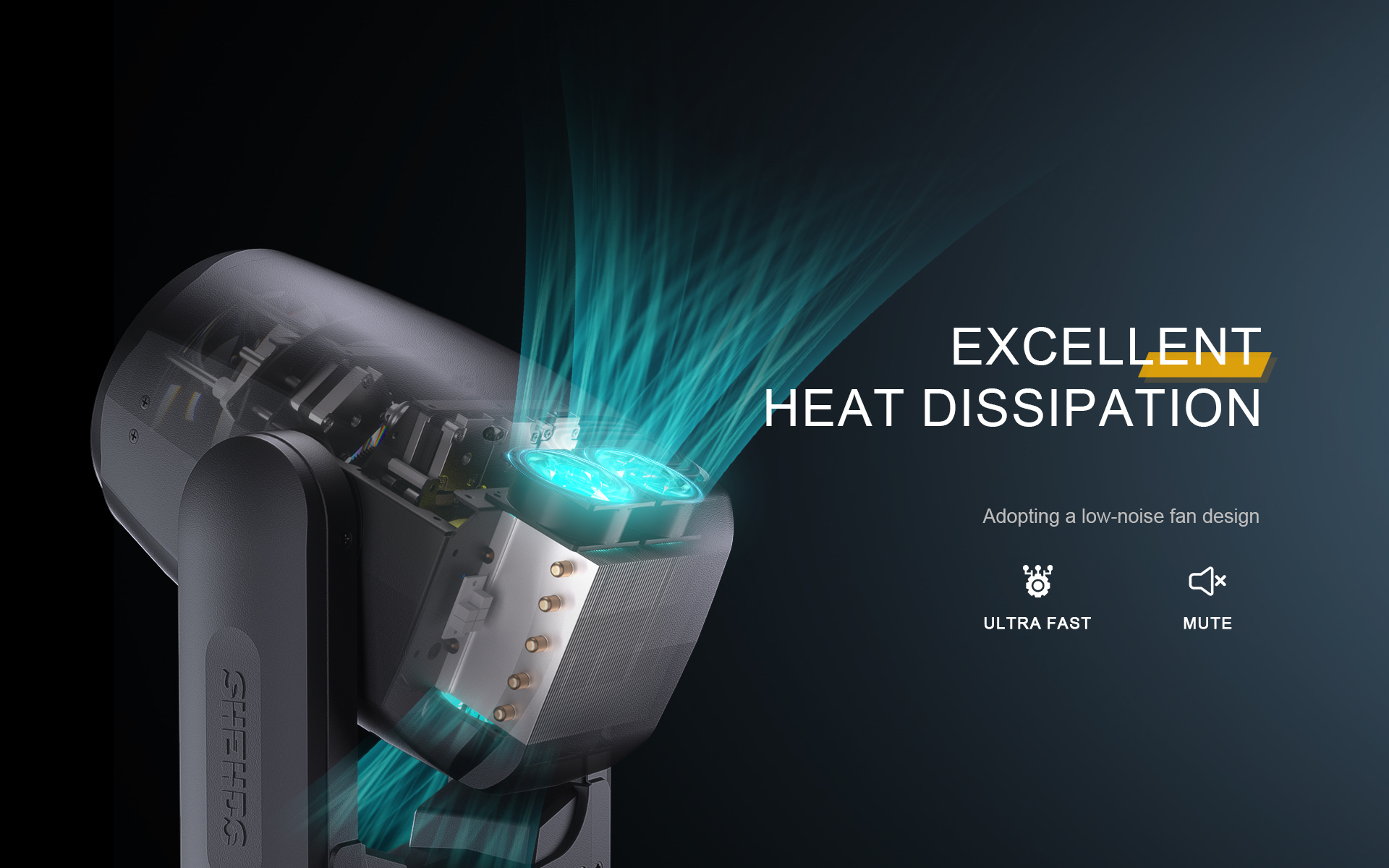

Split Heat Dissipation
Adopting a low-noise fan design and optimized airflow channel layout,
it achieves efficient heat dissipation while minimizing operating noise.
Even in high-end applications that are sensitive to noise,
it can maintain a quiet and comfortable lighting environment, allowing for uninterrupted focus and relaxation.

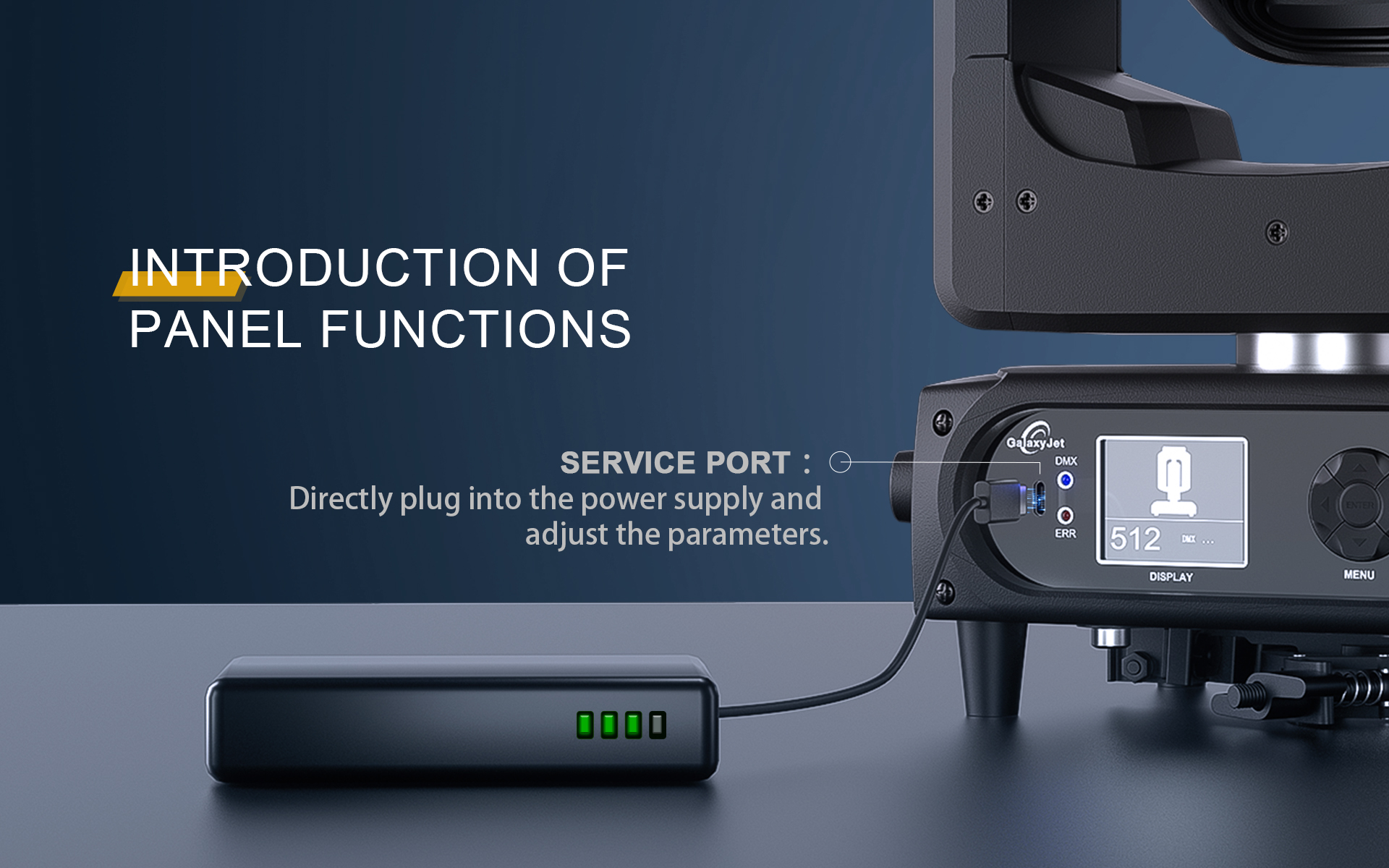

Introduction To Panel FunctionsHigh pixel display screen makes operation more convenient and intuitive.

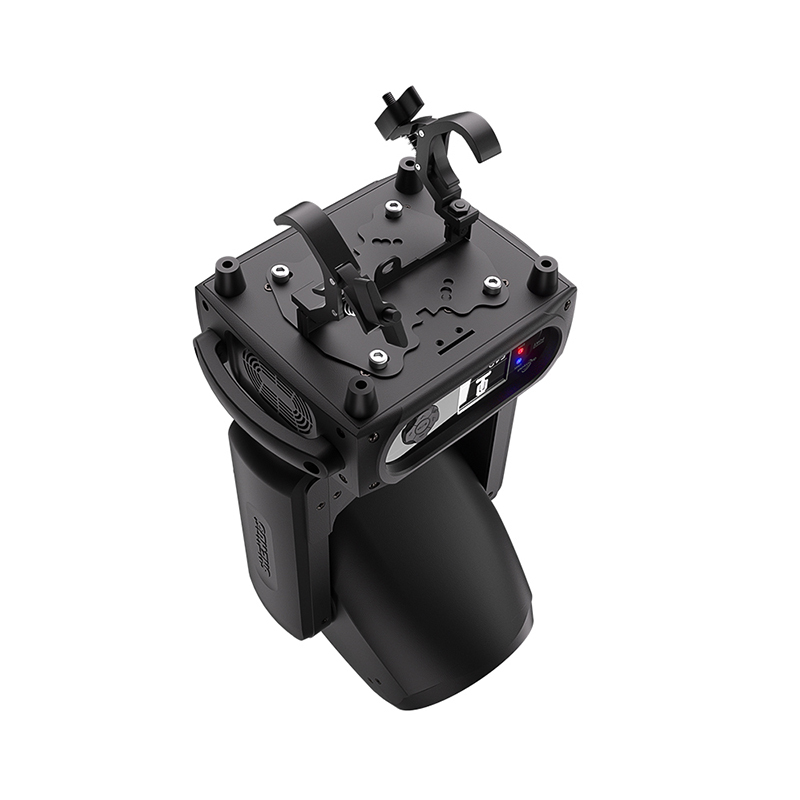

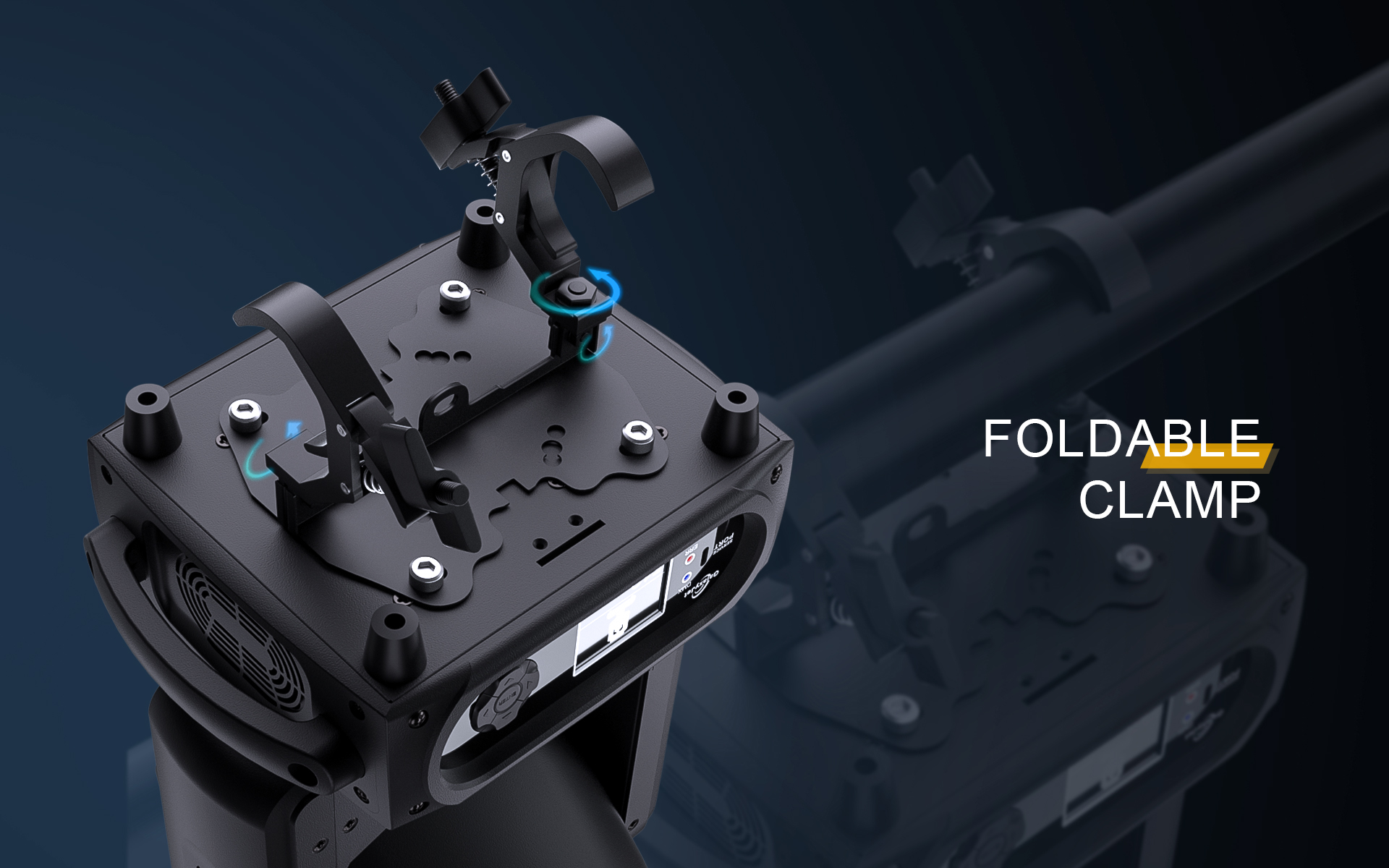

Foot Stand And Knob
The integrated folding suspension installation structure and
unique folding design make the installation process unprecedentedly easy.
No complex tools or professional skills are required,
and installation can be completed in just a few simple steps, greatly saving installation time and cost.

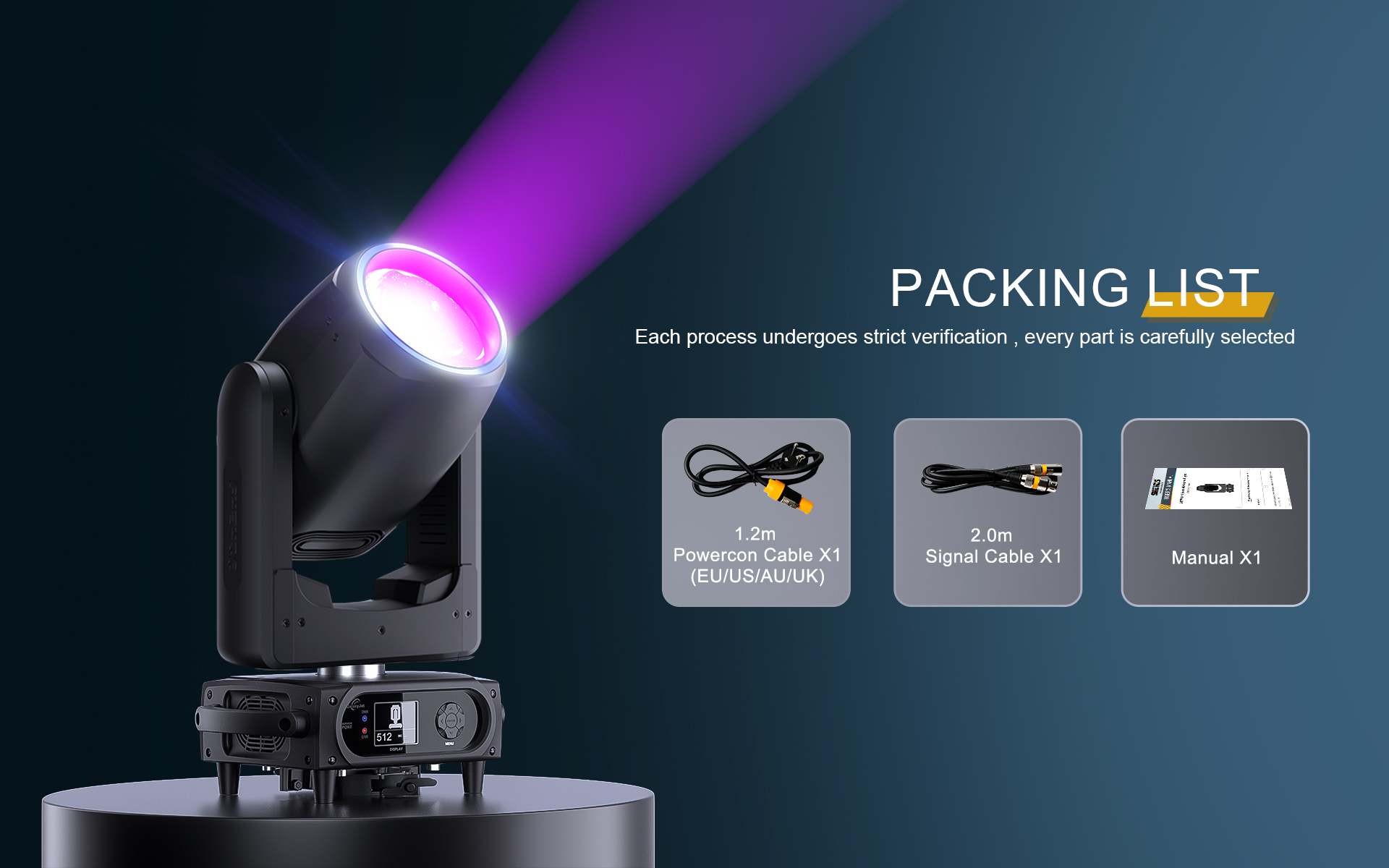

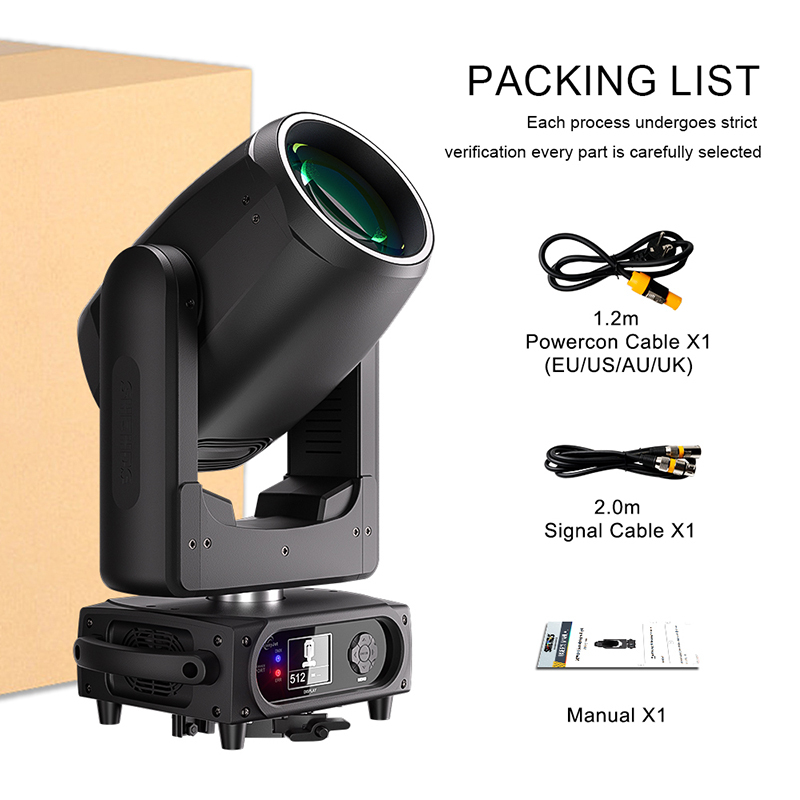

Packing List
Before leaving the factory,
each of our products undergoes rigorous testing to ensure they are in perfect condition.
Our strict control over quality is like an artist polishing their masterpiece,
striving for perfection in every detail.
Only those products that have gone through layers of checking can
confidently leave our factory and arrive in your hands,
bringing you an excellent using experience.

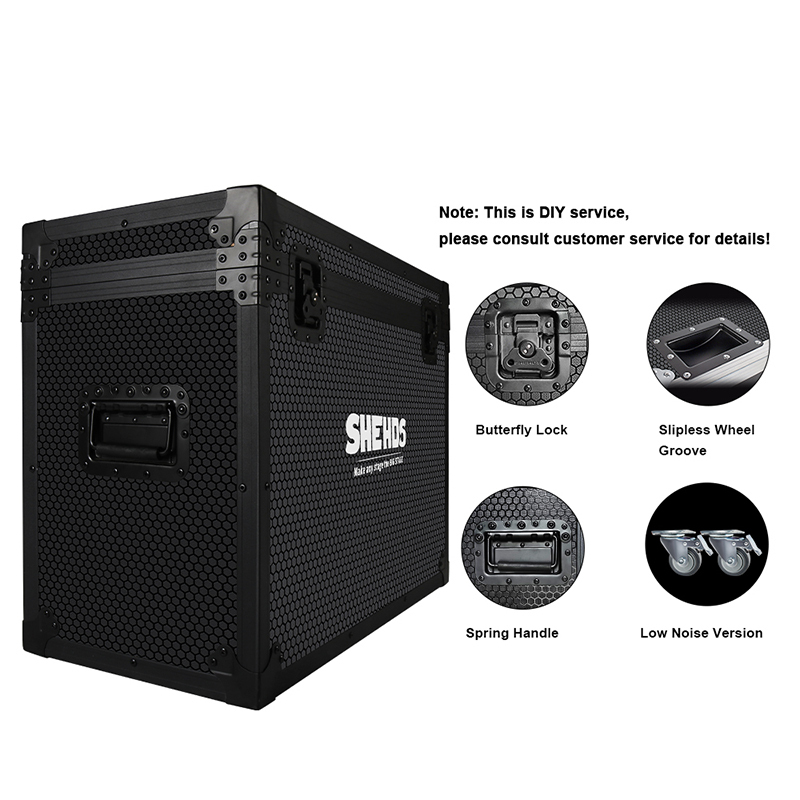

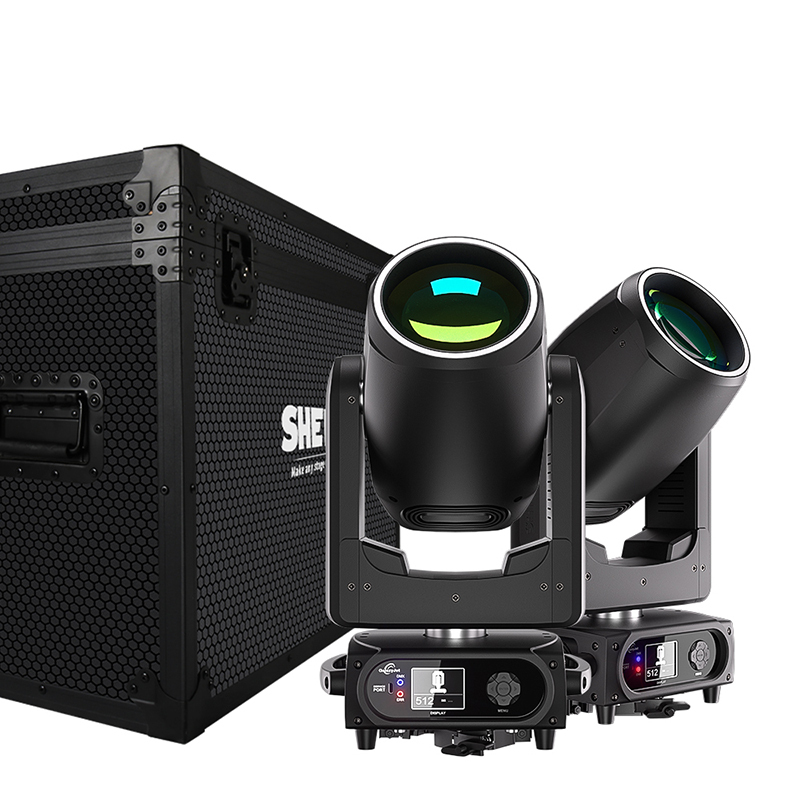

Flight Case DIY Service
It equipped with silent 360 degree wheels + brake locks.
We offer customized road cases that perfectly meet your needs.
Whether precision equipment, fragile items,
or valuable goods, our road case not only ensures safety protection,
but also adapts flexibly to various specifications and shapes.
Each case is finely crafted and made of high-quality materials,
providing excellent protection and convenient transportation experience for your products.
From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service, please consult customer service for details!
Qualification Certificate
Our products comply with international safety standards and environmental requirements.
They have multiple voltage options to meet different voltage around the world.
In addition, we also provide comprehensive after-sales service and
technical support to ensure that any problems you encounter during use can be promptly and effectively resolved.
Introduction To Panel Functions
