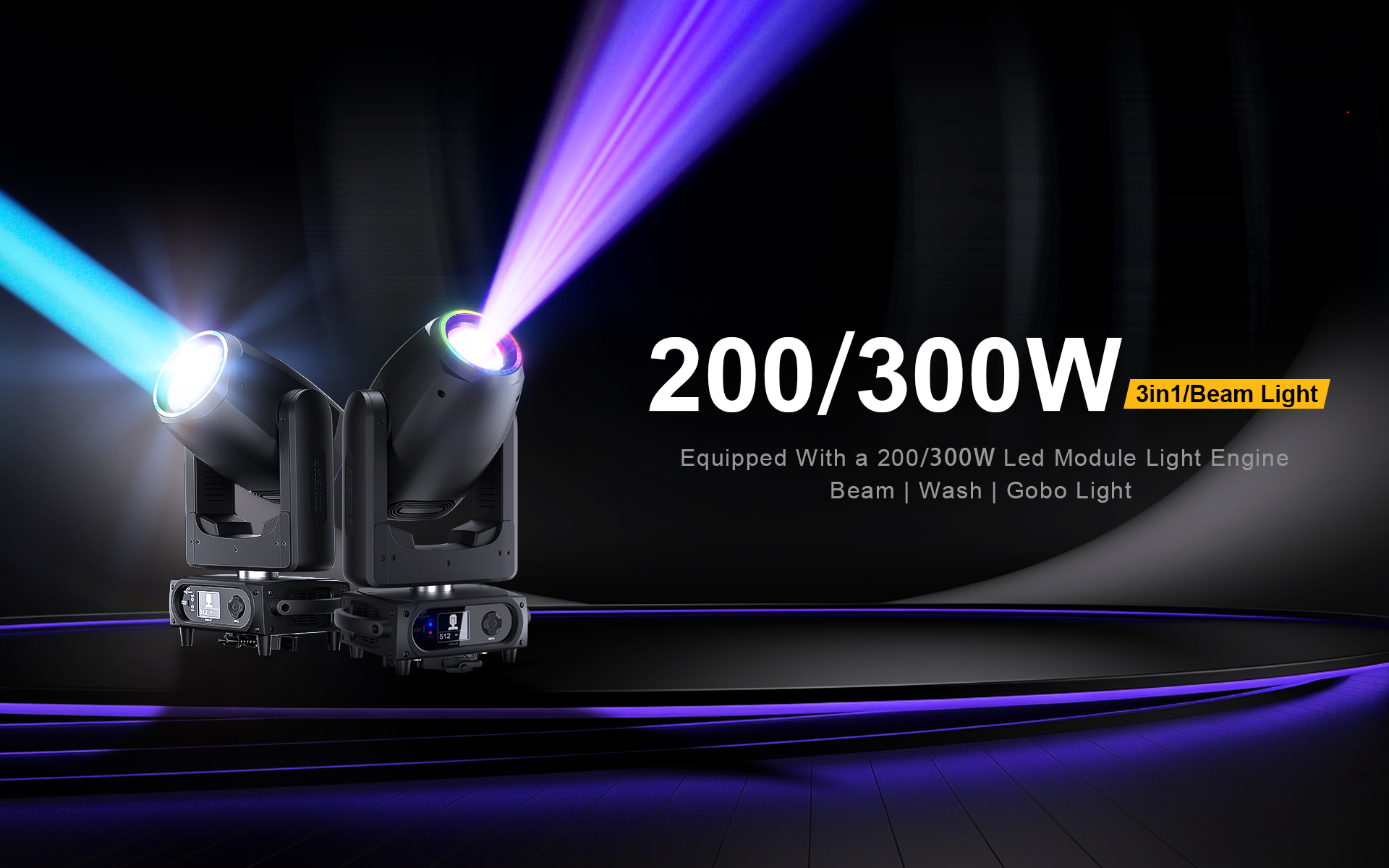

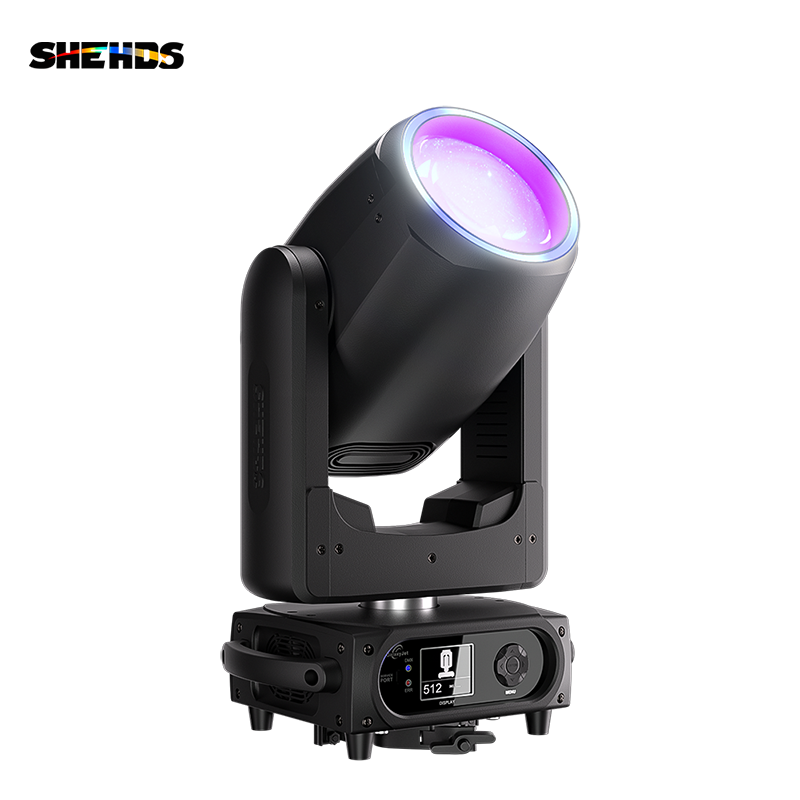

Equipped with a module light engine,
significantly improves the brightness of this product compared to traditional stage lighting.
The high-power LED module of ensures strong light output,
making it easy to handle even large stages or long-distance lighting needs,
ensuring that every detail on the stage is clear and visible,
bringing the audience a more delicate and realistic visual experience.

|
Light source parameters |
|
|
Light source: |
LED white color |
|
Color Temperature: |
Beam:9100-9500K / 3IN1:9100-9400K |
|
Luminous lumens/5m: |
200W:145000 lx / 200W 3IN1:40000lx / 300W:180000 lx / 300W 3IN1:55000lx |
|
Beam Angel: |
Beam:2° / 3IN1:2°~22° |
|
Lifespan light source: |
20000h |
|
Diameter of the outgoing lens: |
Beam:150mm / 3IN1:100mm |
|
Dimming: |
0-100% linear dimming |
|
CRI: |
Min.Ra 70 |
|
Optical effect |
|
|
Gobos 1: |
Beam:14 gobos + Open / 3IN1:5 gobos + Flame pattern + Open |
|
Gobos 2: |
3IN1:7 Gobos rotating +Open |
|

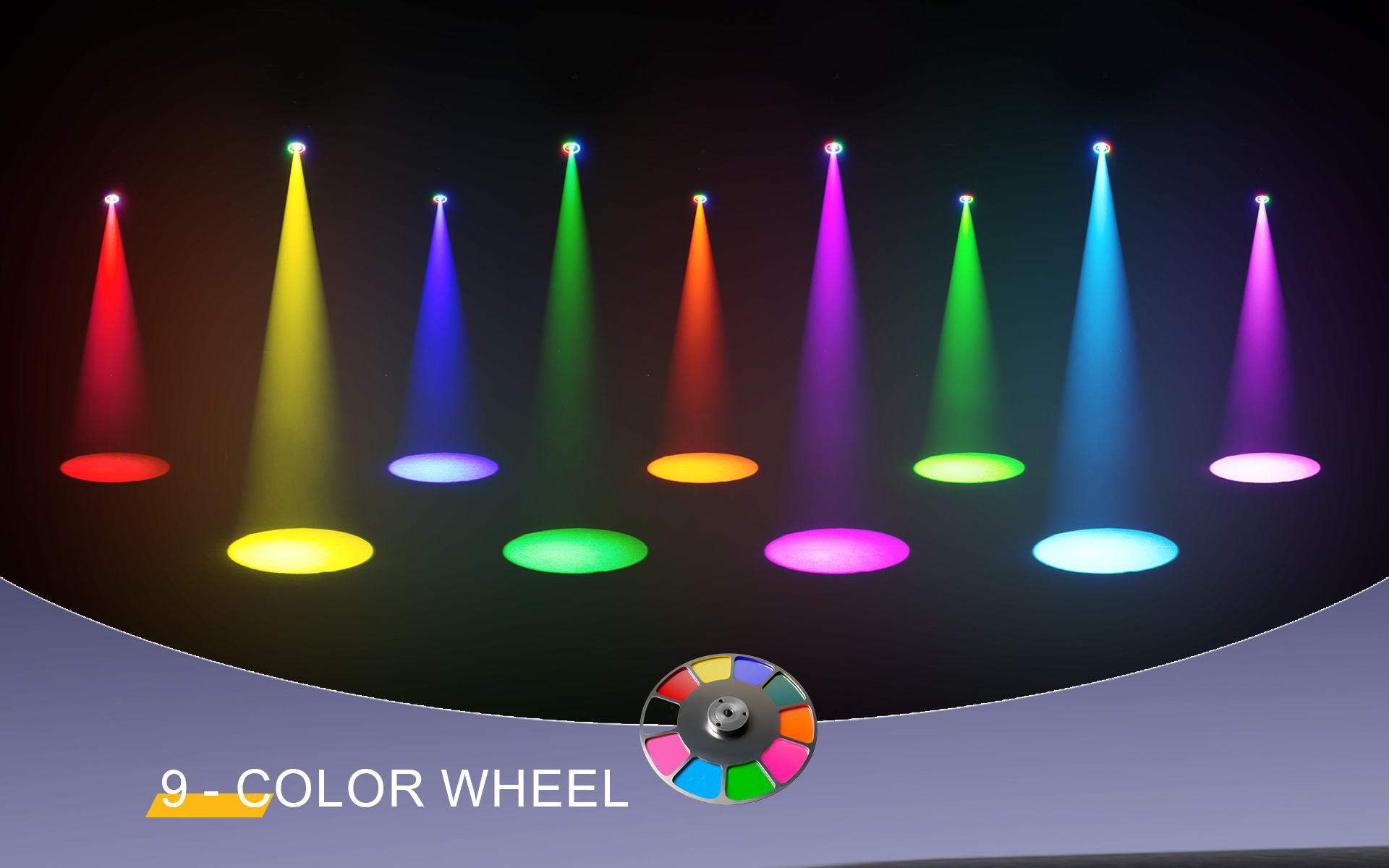

Colors: |
Beam:14 colors + Open / 3IN1:9 colors + Open |
|

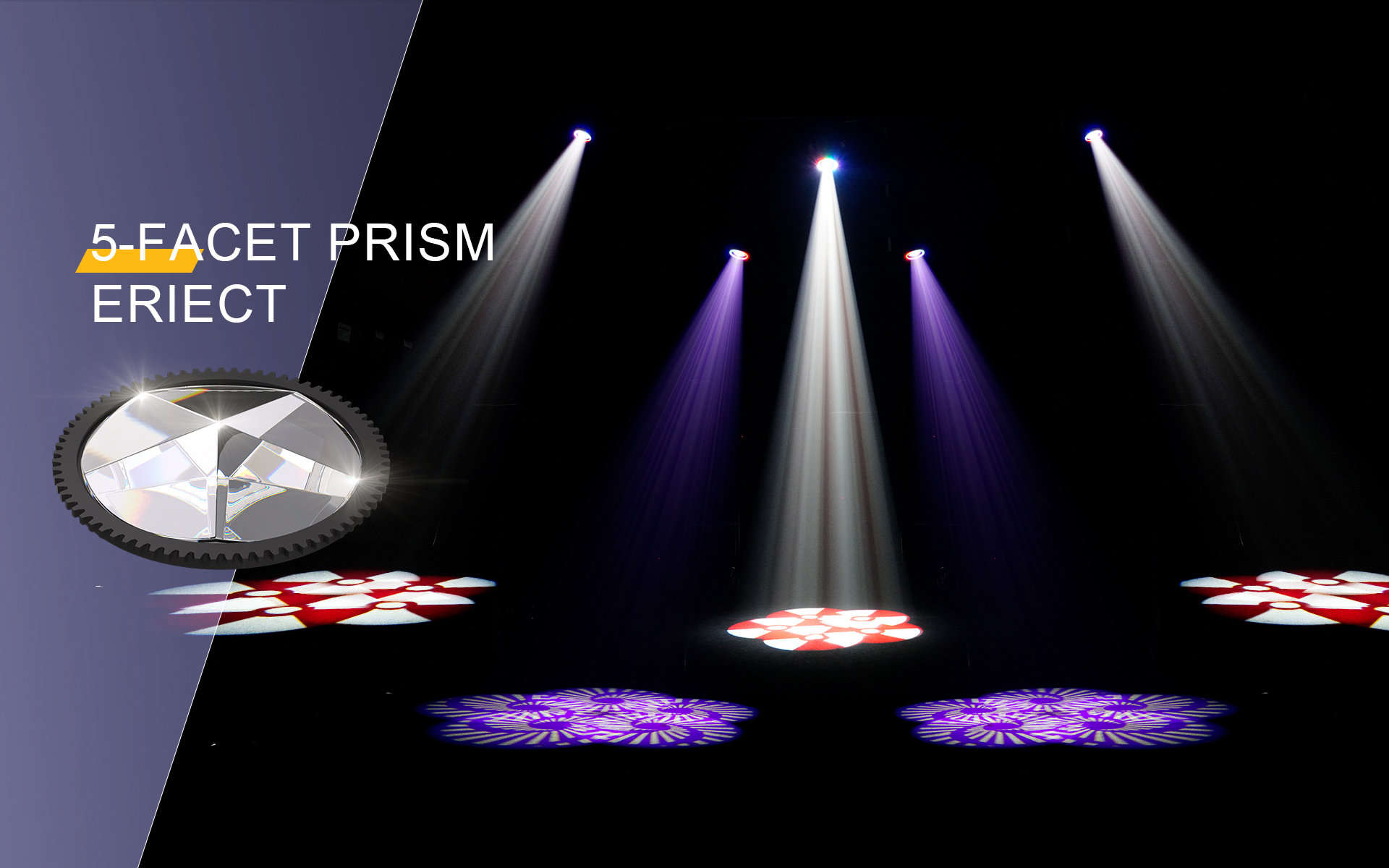

Prism 1: |
Beam:8 prism / 3IN1:5 prism |
|
Prism 2: |
Beam:8+16+24 prism |
|
Frost: |
Simple frost |
|
Color effect: |
Beam:6 colors |
|
Security System |
|
|
Safety Item: |
Over current and voltage protection |
|
Degree Of Protection: |
IP20 |
|
Operating Temperature: |
-15℃~45℃ |
|
Interface And Control System |
|
|
Control Interface: |
3-pin and 5-pin XLR In/Out |
|
DMX Channel: |
Beam:19CH / 3IN1:20/23CH |
|
Power Interface: |
Beam:PowerCon in/Out / 3IN1:PowerCon |
|
Cooling System |
|
|
Cooling Method: |
Air cooled |
|
Structure: |
120mm plug-in heat dissipation layer |
|
Bentilation Fan: |
60mm fan Inx2 & outx2 |
|
Power Consumption |
|
|
Working Power: |
100~240V AC 50/60HZ |
|
Power Consumption: |
Beam 200W:Max 350W / 200W 3IN1:Max 300W / Beam 300W:Max 450W / 300W 3IN1:Max 400W |
|

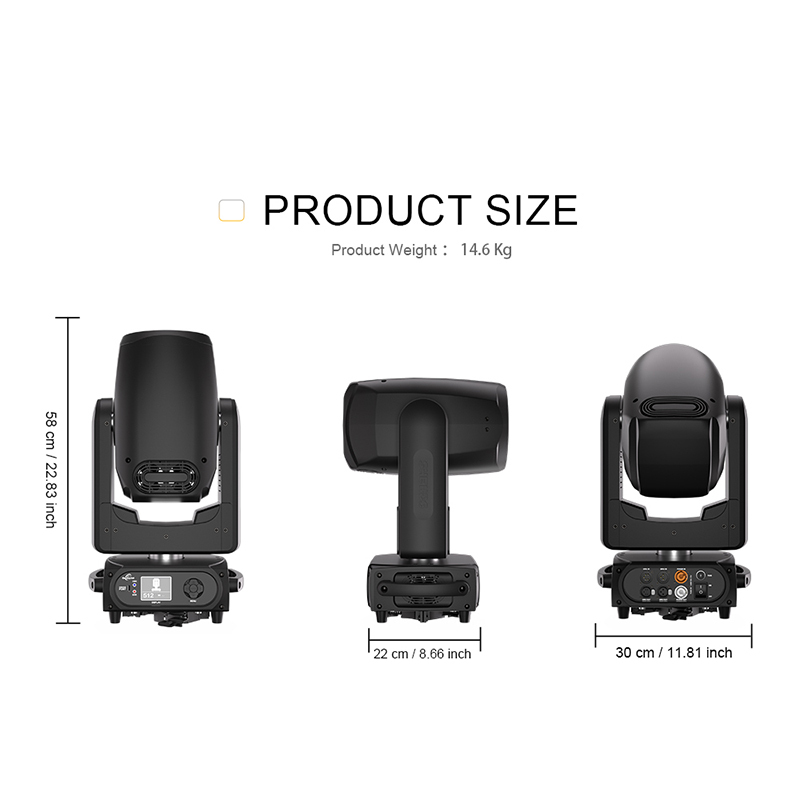

Physical Parameters |
|
|
Product Size : |
30x22x58cm / 11.8x8.6x22.8inch |
|
Product Weight: |
14.6 Kg |
|
Pack Size: |
59x41x38.5cm/23.2x16.1x15.1inch |
|
Package Weight: |
17.54 kg |

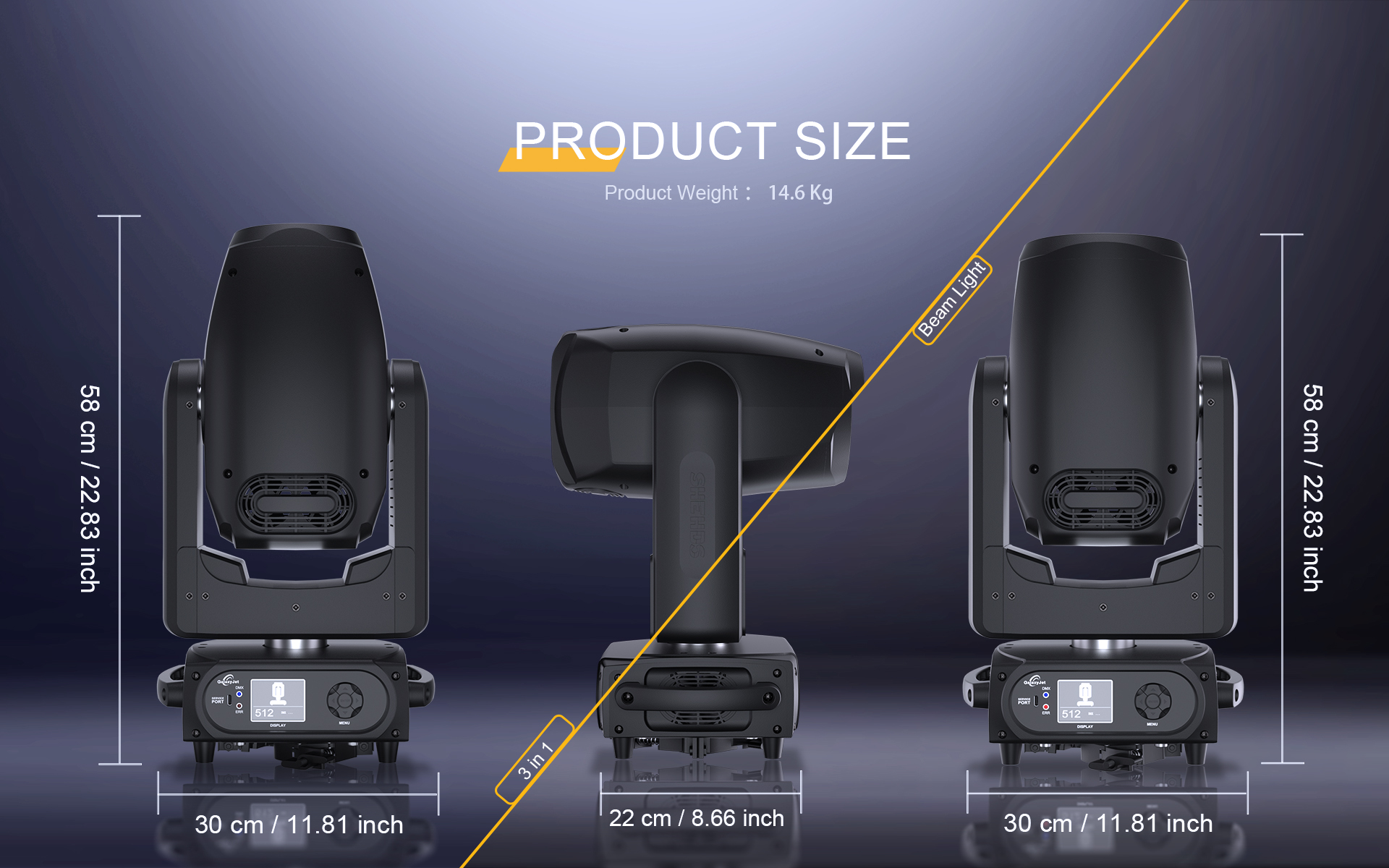

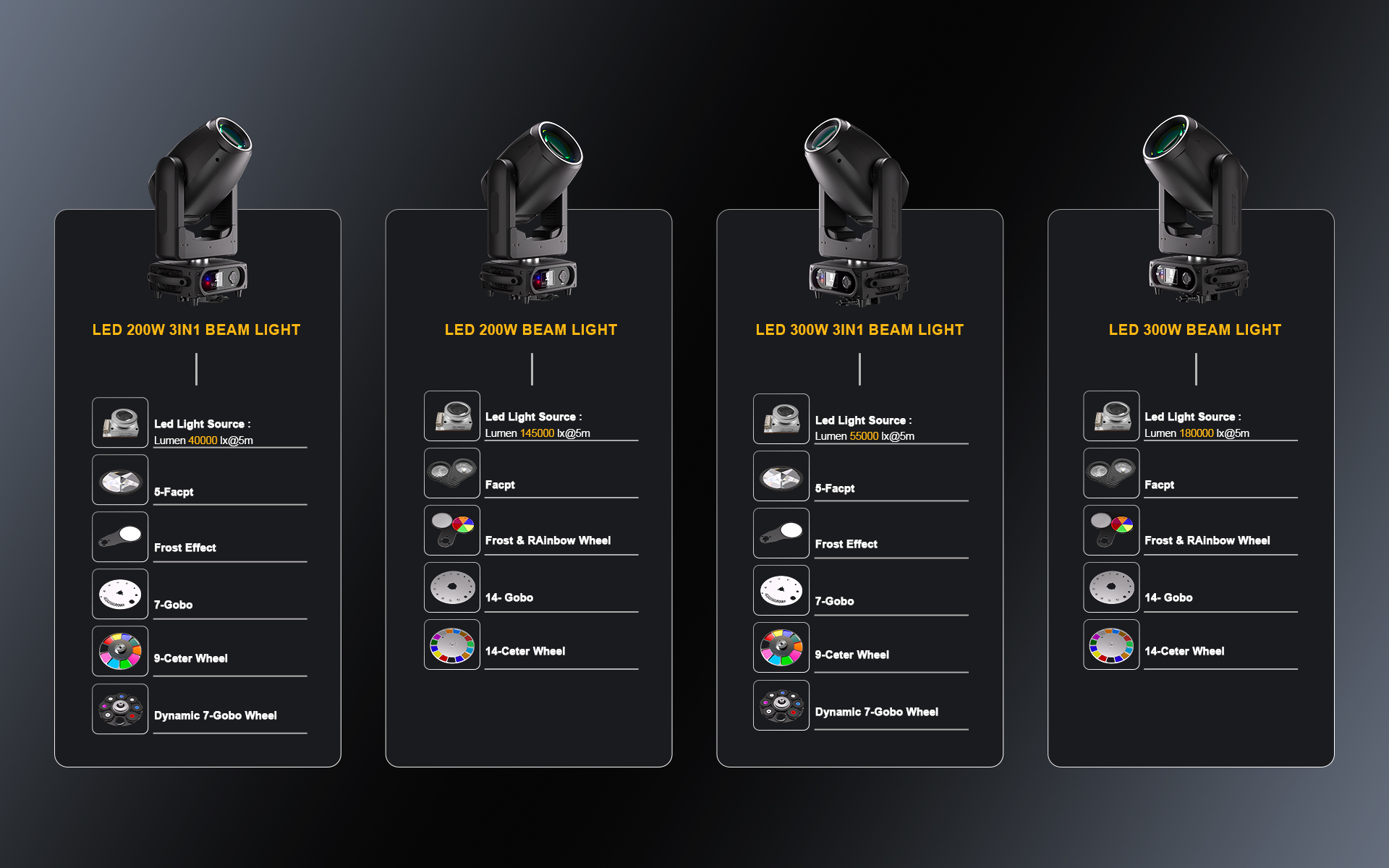

Technical Parameter Comparison

Physical Parameters
Product Size: 30x22x58cm/11.8x8.6x22.8inch
Product Weight :14.6 Kg
Pack Size: Size: 59x41x38.5cm/23.2x16.1x15.1inch
Package Weight :17.54 kg

Product Features
This lamp is not only suitable for large-scale stage performances such as professional theaters, concerts,
and concerts, but also for various occasions such as wedding celebrations, corporate annual meetings,
product launches, etc. Its powerful beam effect, flexible adjustment ability, high brightness,
and long-distance illumination ability enable it to achieve the best results in various scenes,
adding a bright color to your activities.

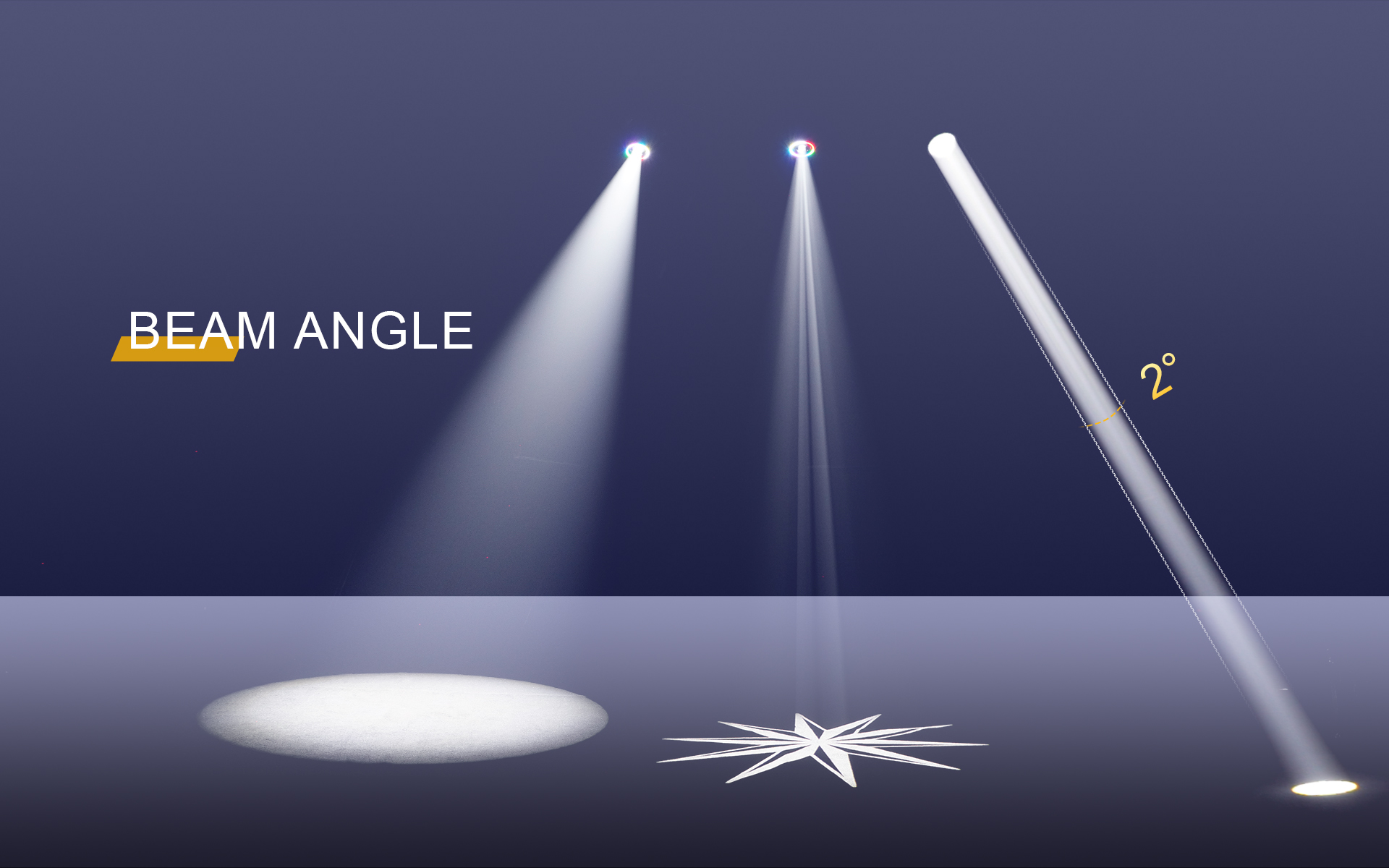

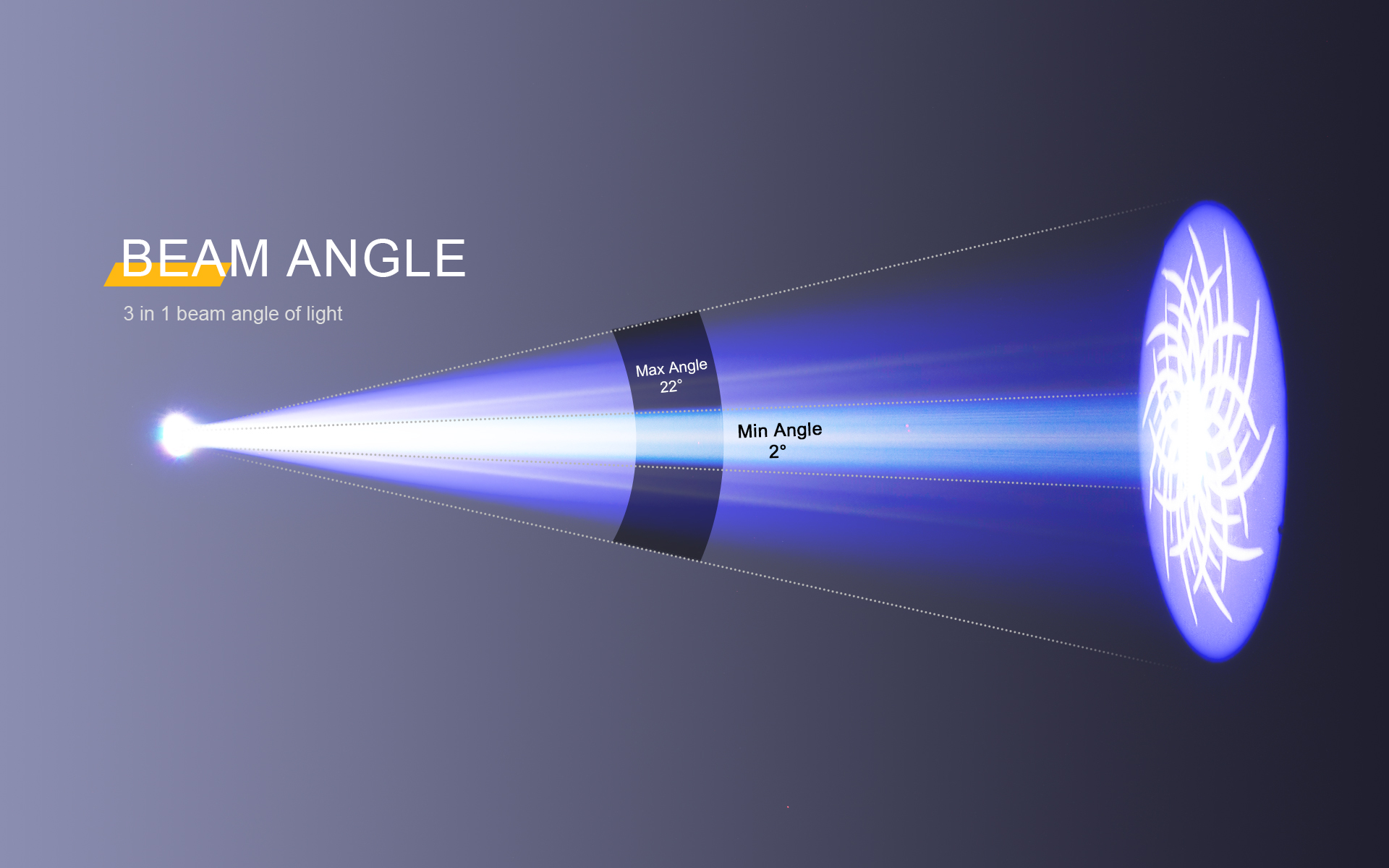

Beam Angle(3IN1 Light)
The high brightness LED module, flexible shaking mechanism,
and precise optical design not only enhance the professionalism and artistry of 3IN1 stage lighting with a 2.2°~22° beam angle,
but also provide a broader space for expression and creative possibilities for performance creators.

Beam Angle(Beam Light)
The high brightness LED module, flexible shaking mechanism,
and precise optical design not only enhance the professionalism and artistry of 3IN1 stage lighting with a 2°beam angle,
but also provide a broader space for expression and creative possibilities for performance creators.

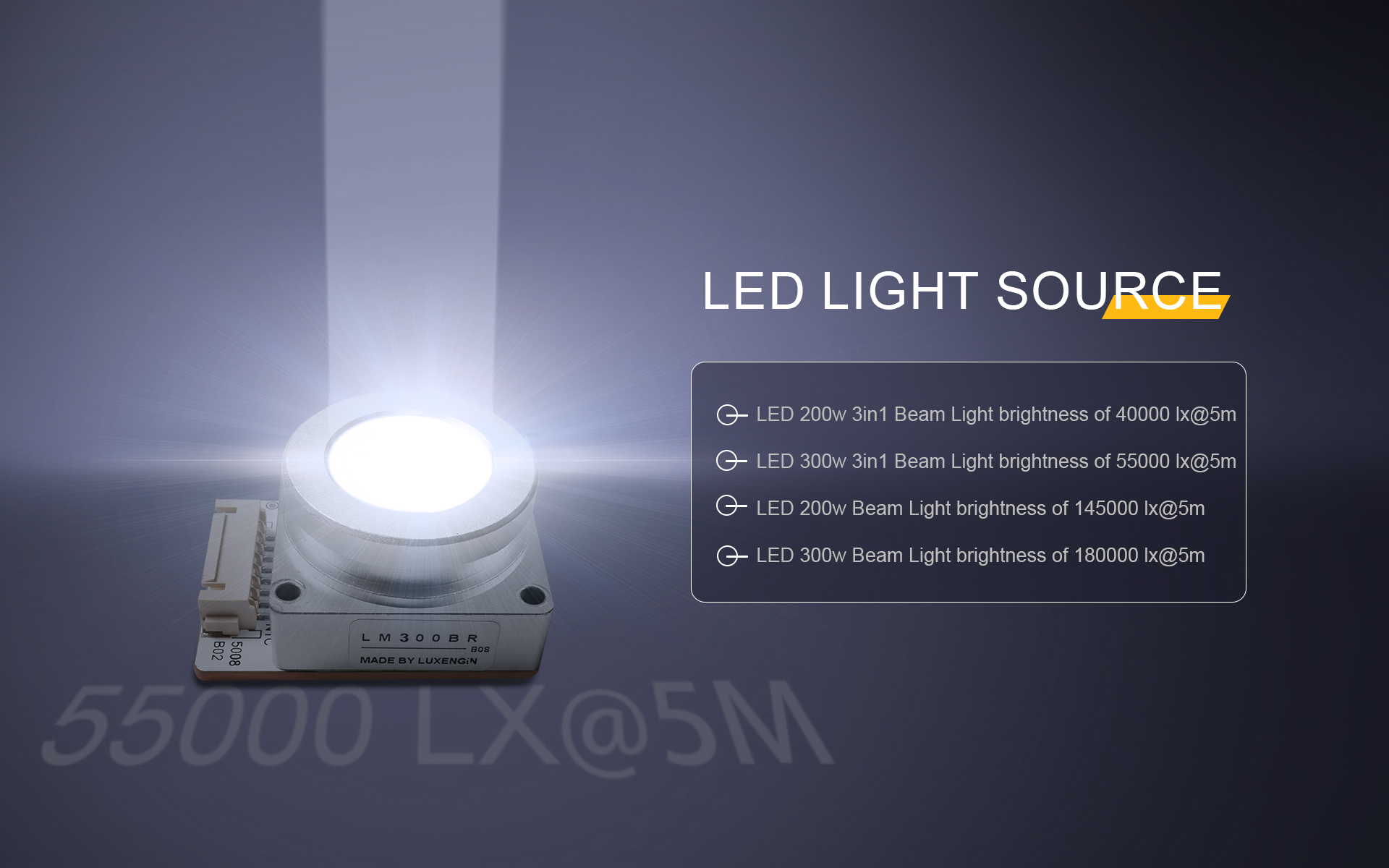

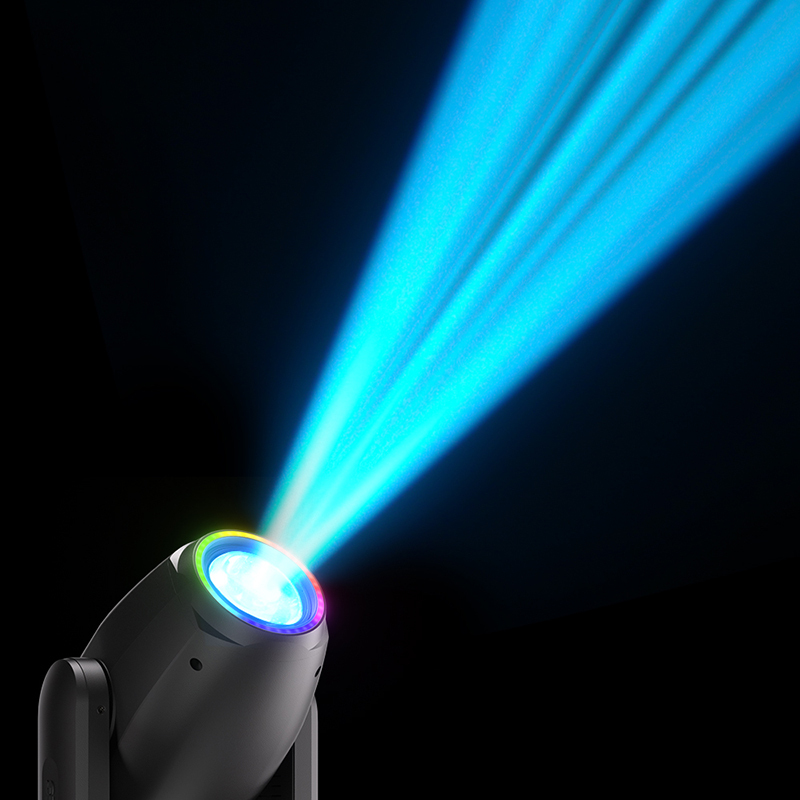

LED Light Source
The high brightness LED module adopts high-quality LED chips and packaging technology, with a brightness of 44000lx/5m, meeting various lighting and display needs.
Having lower energy consumption and higher energy efficiency helps reduce energy consumption and environmental pollution.
It has good stability and reliability, and can maintain stable luminous effects in various harsh environments.

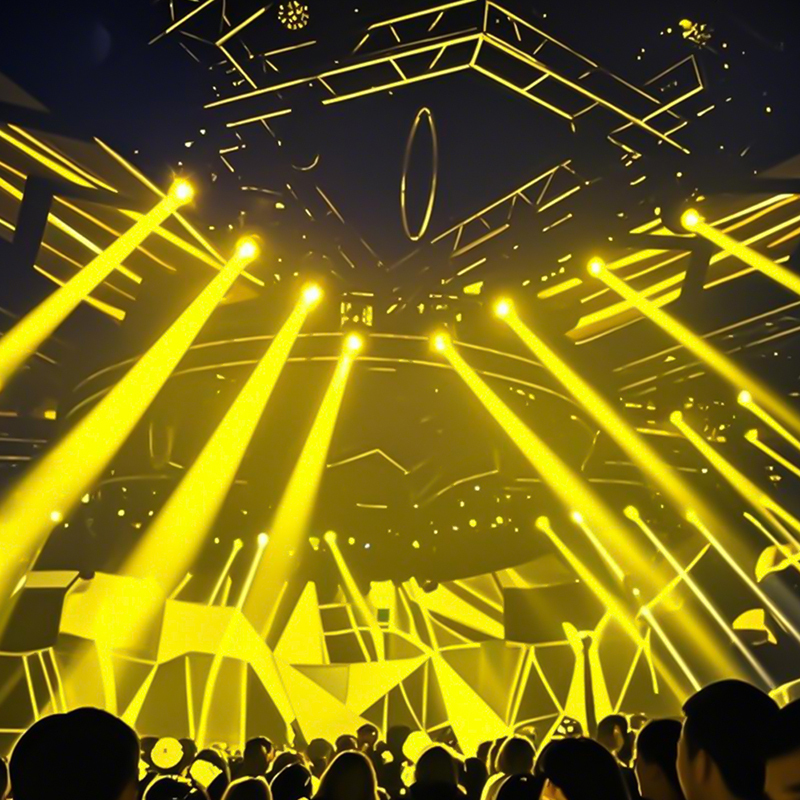

Applicable Scene
Suitable for large-scale stage performances such as professional theaters, concerts, and concerts,
as well as various occasions such as wedding celebrations, corporate annual meetings, product launches, etc.
Its powerful beam effect, flexible adjustment ability, high brightness,
and long-distance illumination ability enable it to achieve the best results in various scenes,
adding a bright color to your activities.

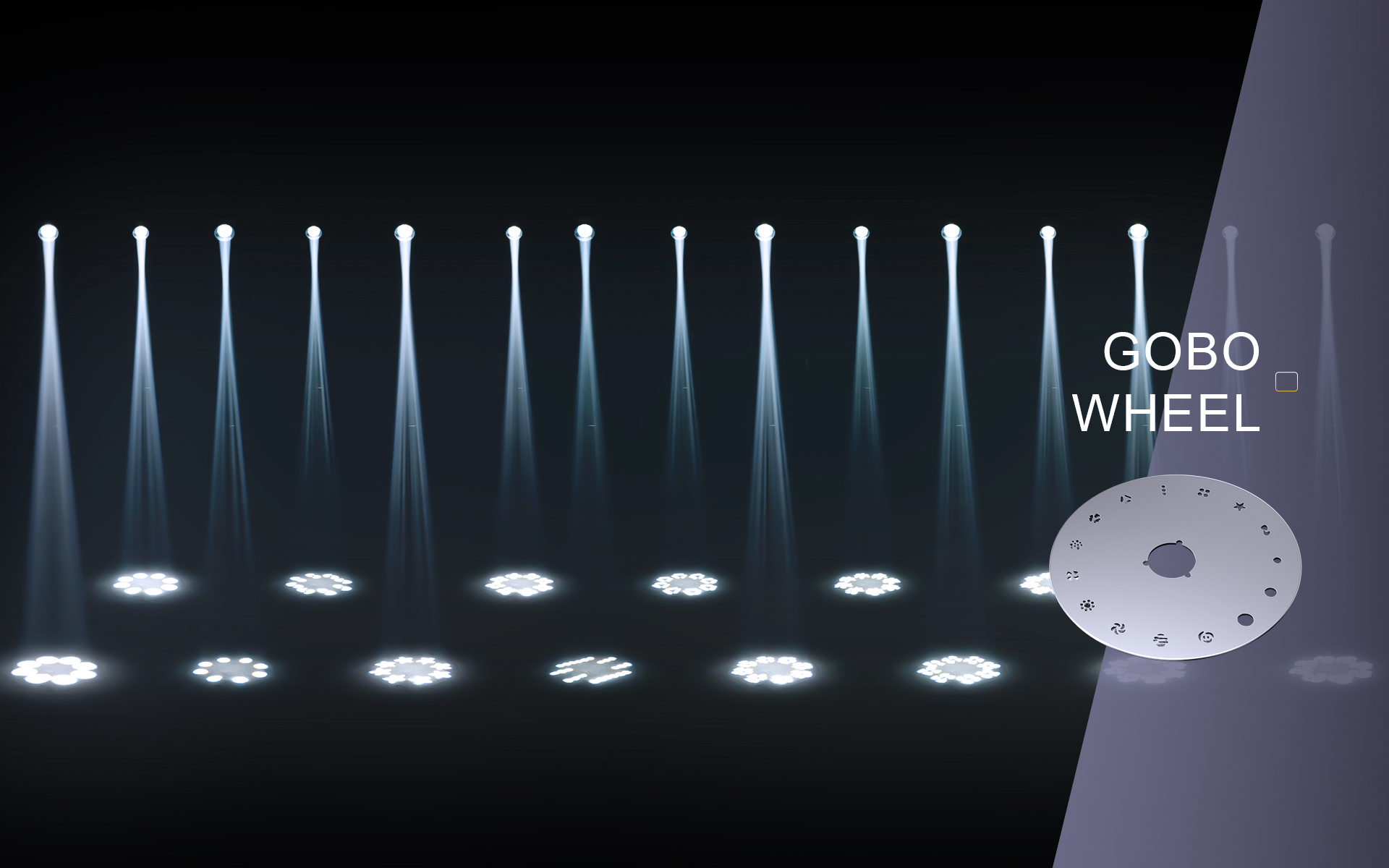

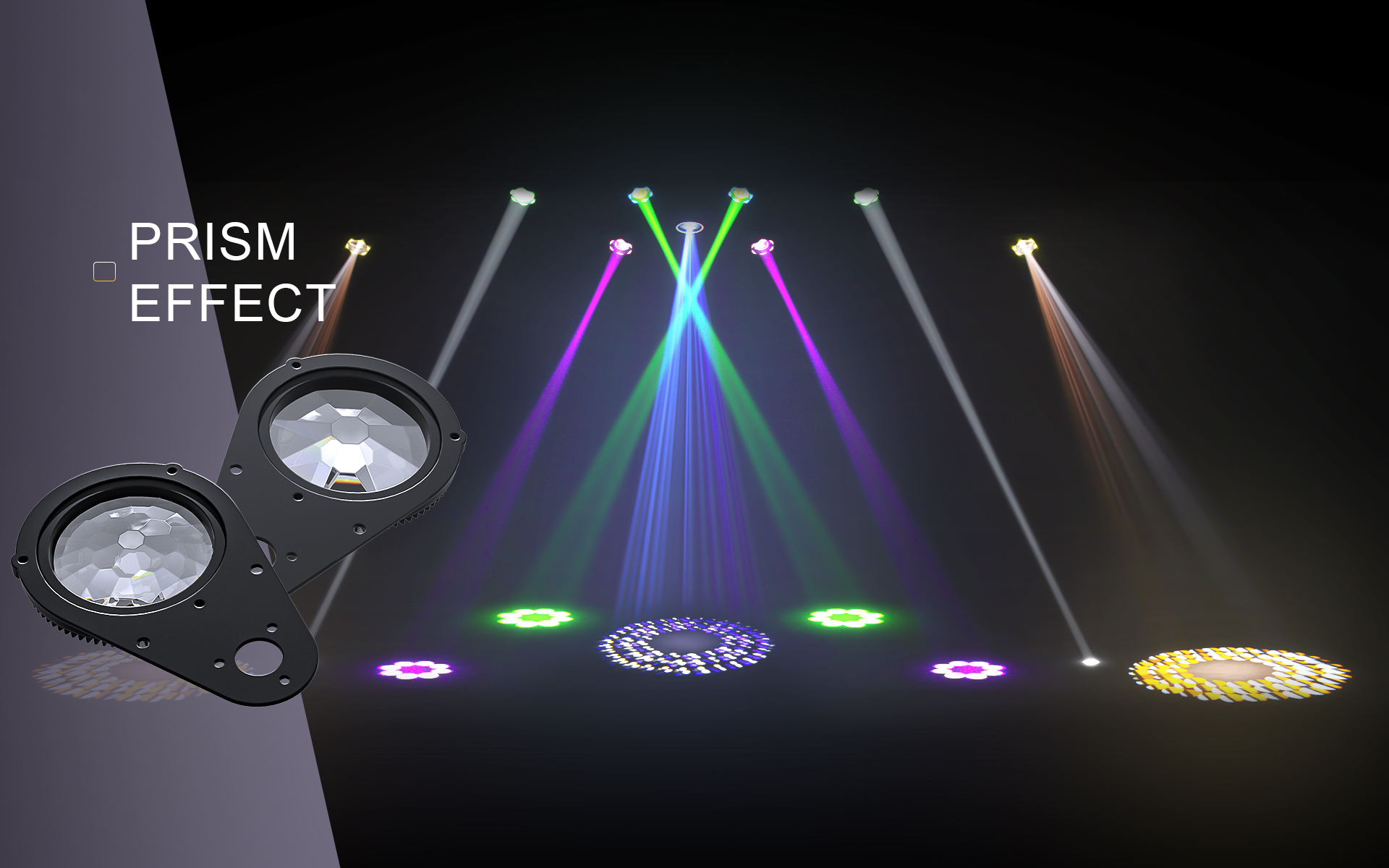

The combination of 14 patterns, 14 color chips, 8 prisms and 6+16+24 prisms, unique atomization effect,
and wonderful performance of the rainbow disc bring the ultimate light and shadow effect to the stage performance.
The flexible application and combination of these effects not only enrich the visual level of the stage,
but also enhance the infectiousness and artistic expression of the performance.

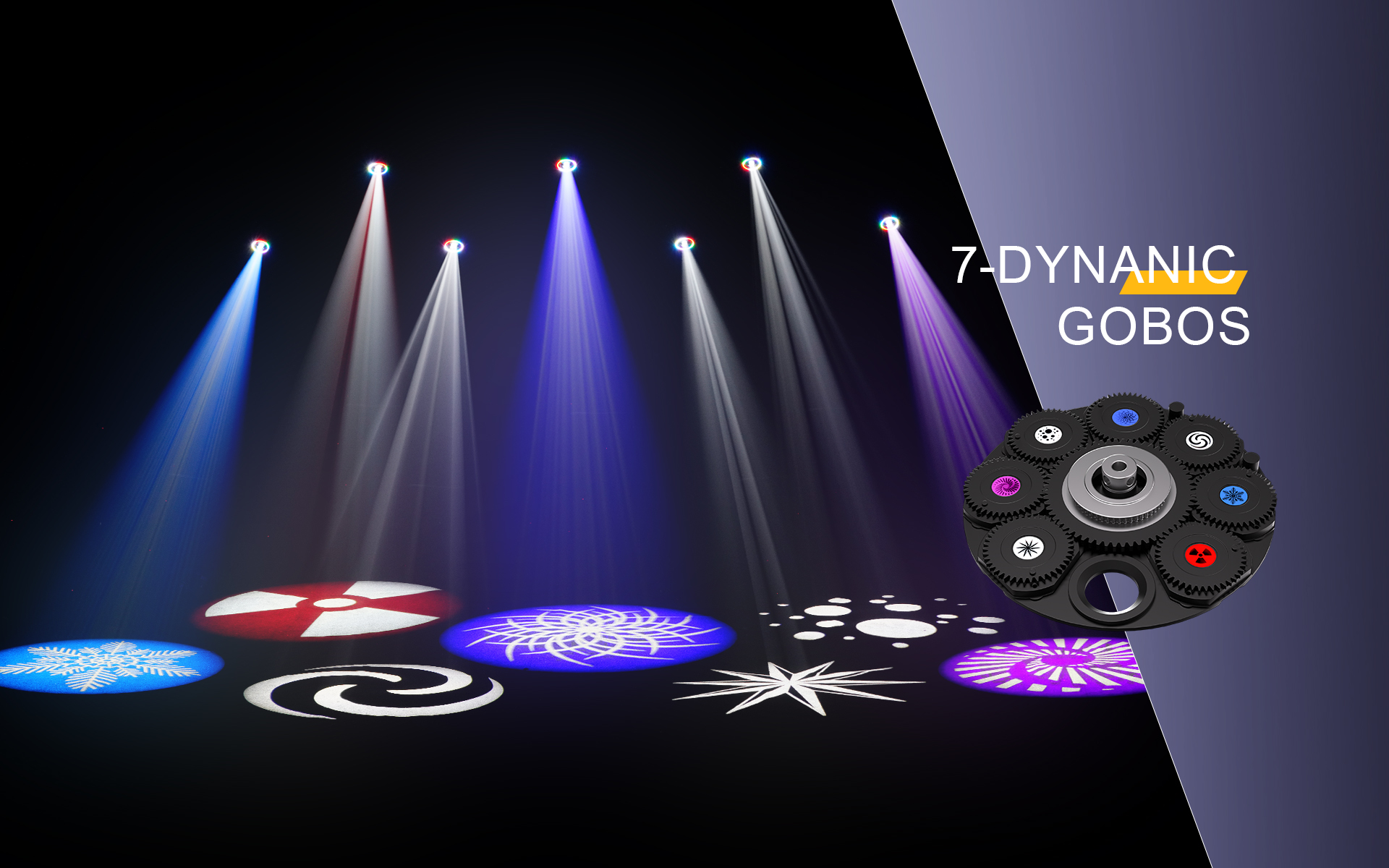

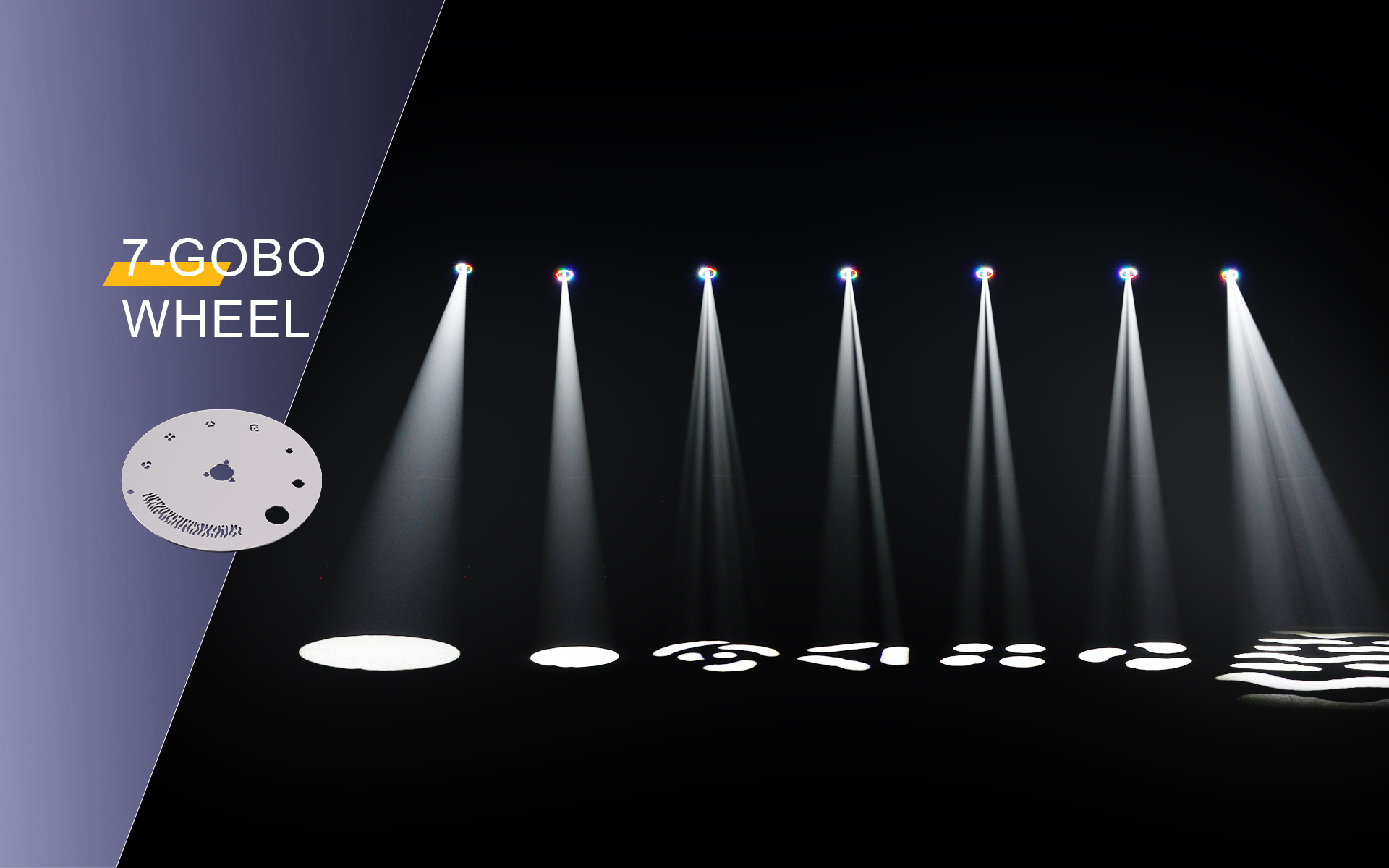

The combination of 7 gobos + Flame pattern + Open, 7 Gobos rotating、9 colors , 5 prism, and Simple frost,
and wonderful performance of the rainbow disc bring the ultimate light and shadow effect to the stage performance.
The flexible application and combination of these effects not only enrich the visual level of the stage,
but also enhance the infectiousness and artistic expression of the performance.

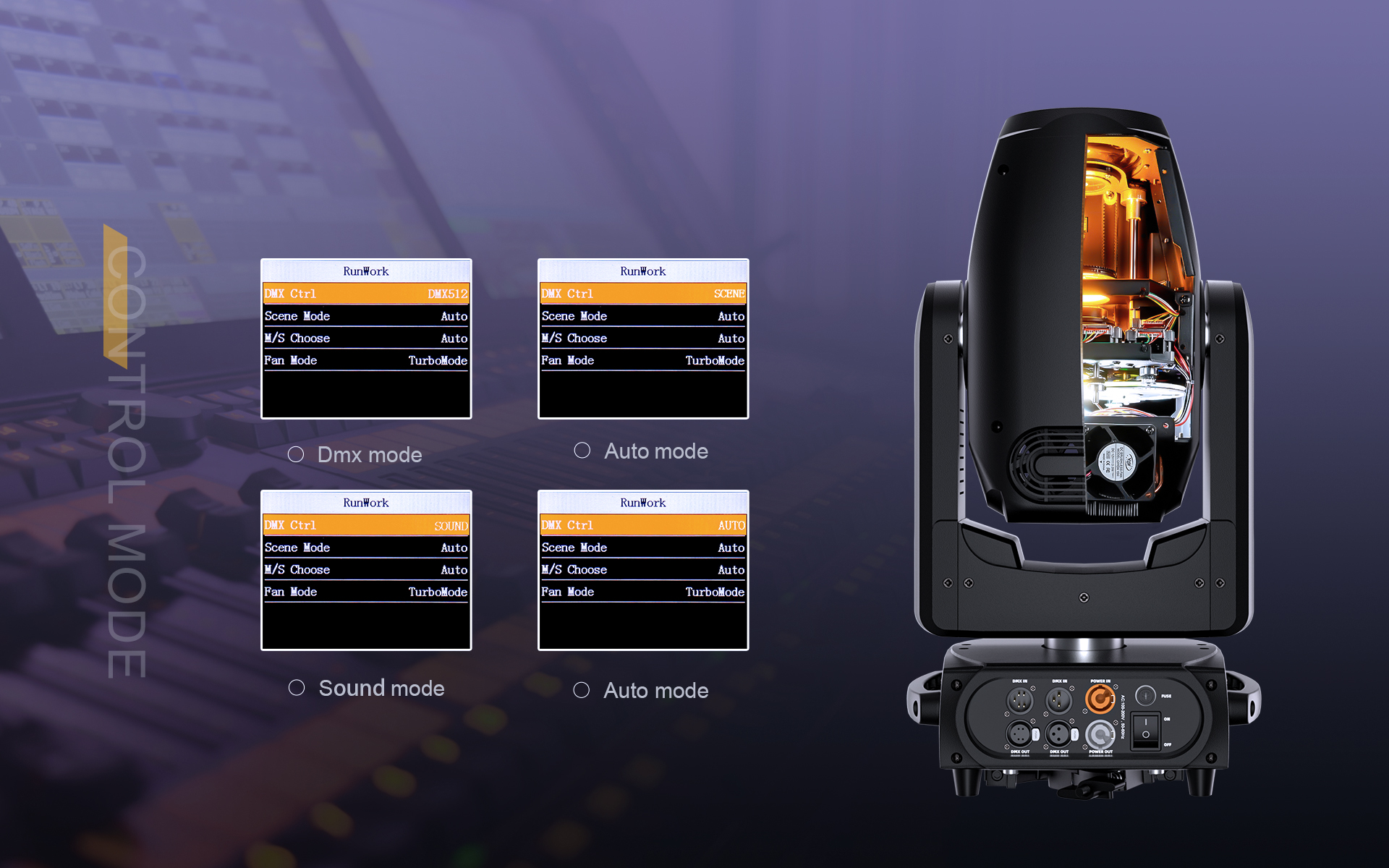

Control Mode
Supports multiple control modes such as DMX512, automatic, voice control, and manual programming,
with built-in carefully designed lighting effect presets. With just one click,
it can present a rich and colorful stage atmosphere, greatly simplifying the lighting layout process and suitable for rapidly changing performance scenes. Adapt to multiple user groups!

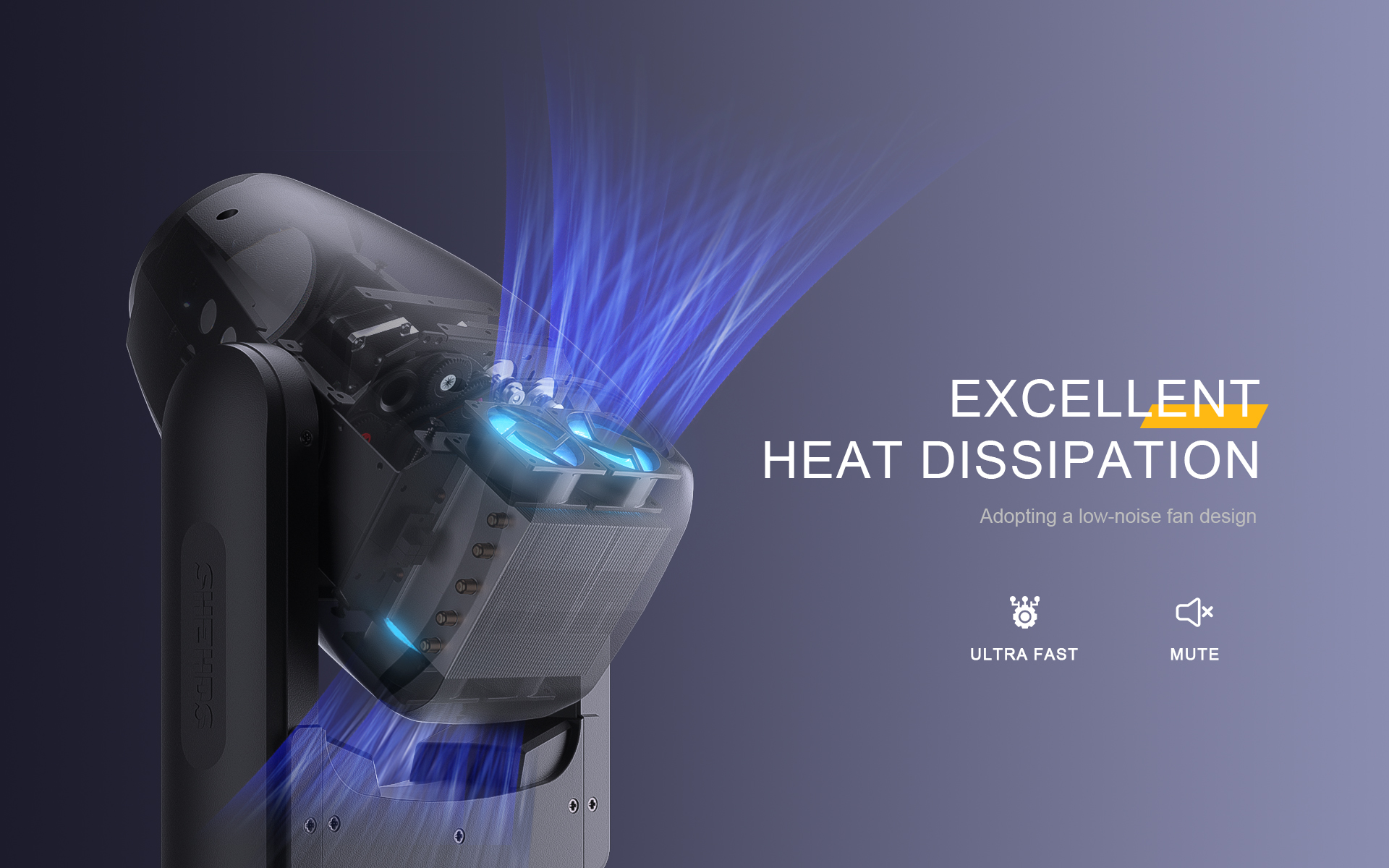

Split Heat Dissipation
Adopting a low-noise fan design and optimized airflow channel layout,
it achieves efficient heat dissipation while minimizing operating noise.
Even in high-end applications that are sensitive to noise,
it can maintain a quiet and comfortable lighting environment, allowing for uninterrupted focus and relaxation.

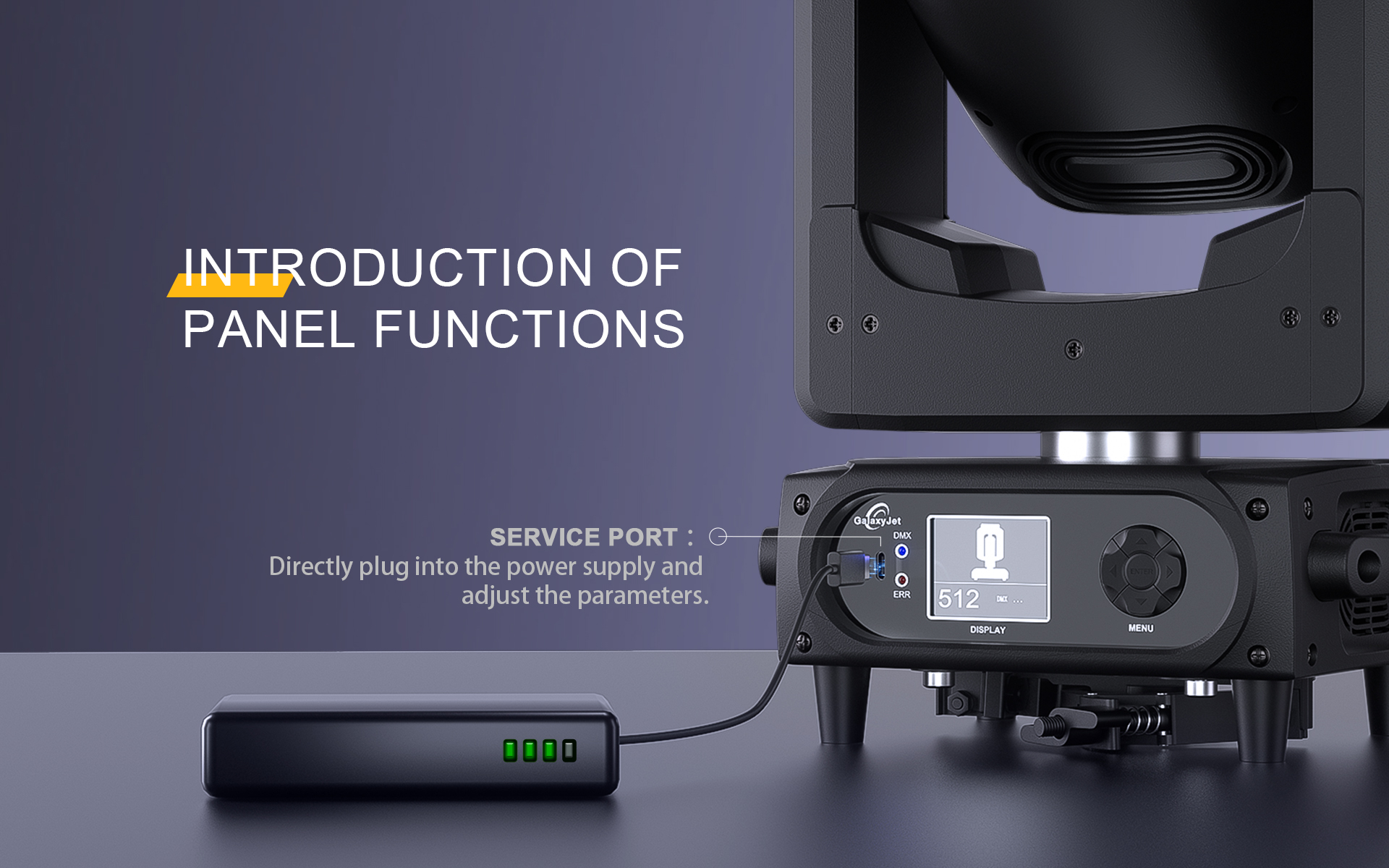

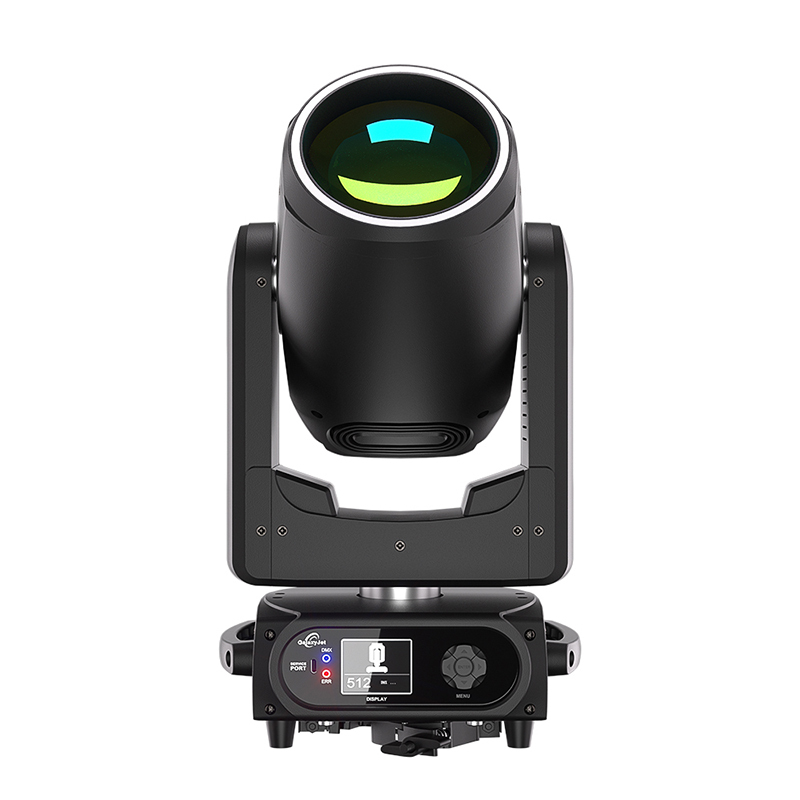

Introduction To Panel Functions
High pixel display screen makes operation more convenient and intuitive.

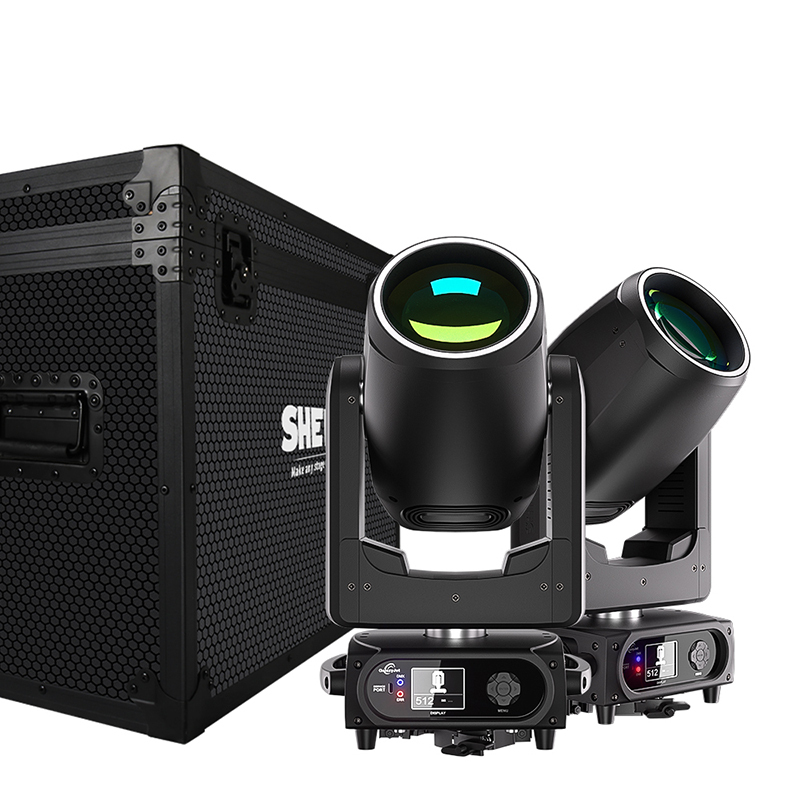

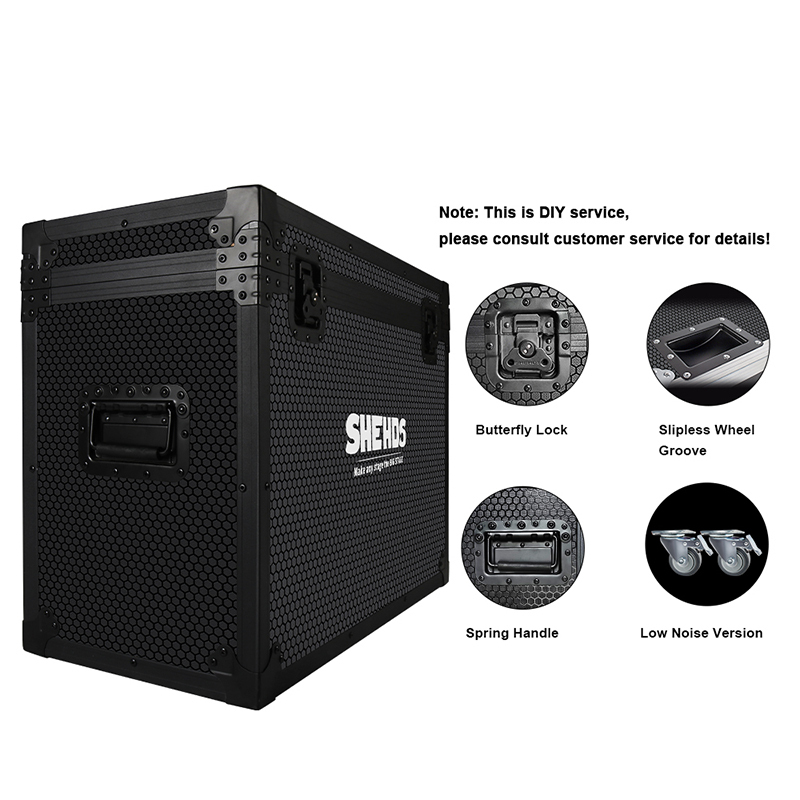

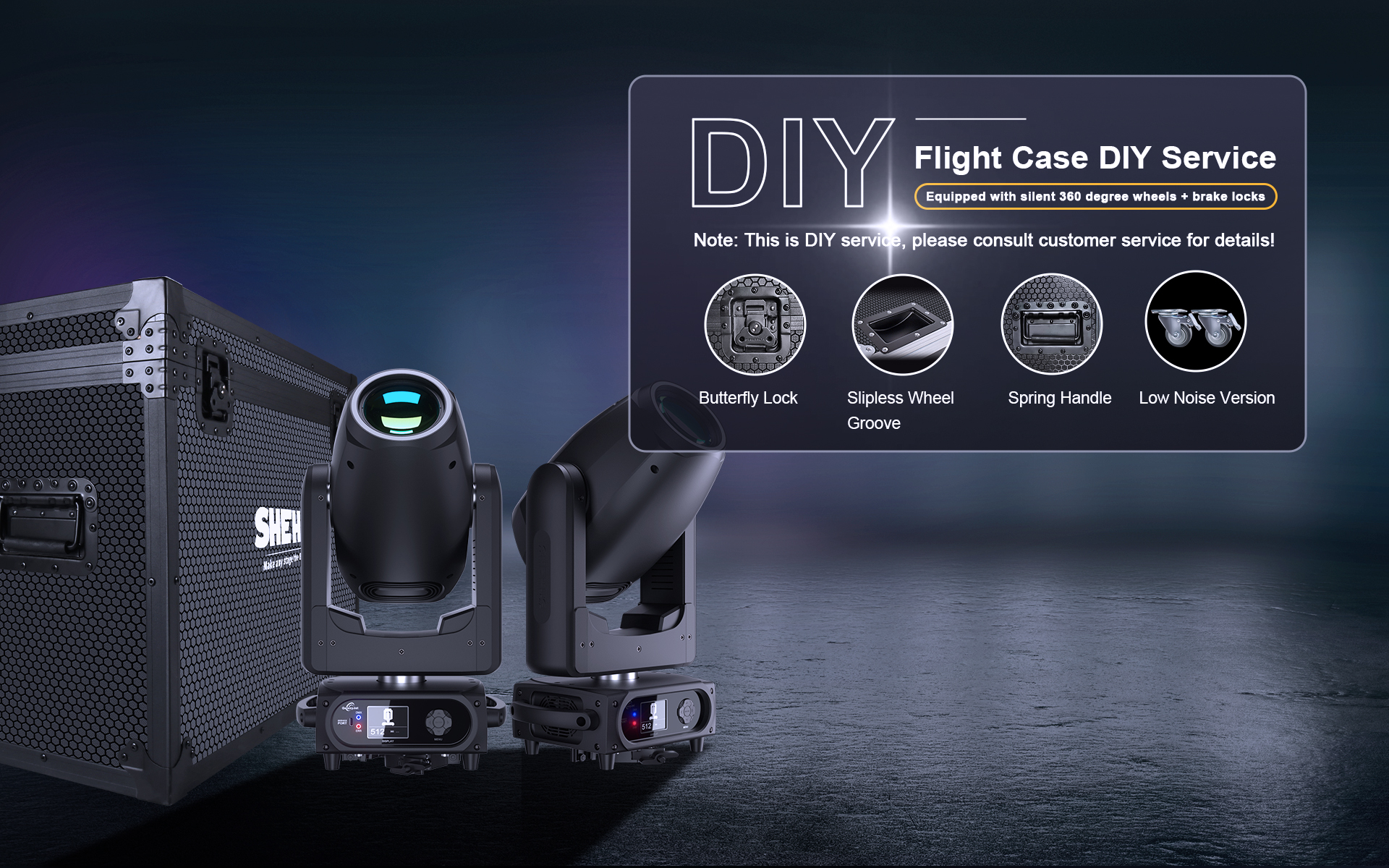

Flight Case DIY Service
It equipped with silent 360 degree wheels + brake locks.
We offer customized road cases that perfectly meet your needs. Whether precision equipment, fragile items, or valuable goods, our road case not only ensures safety protection,
but also adapts flexibly to various specifications and shapes. Each case is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products.
From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service, please consult customer service for details!

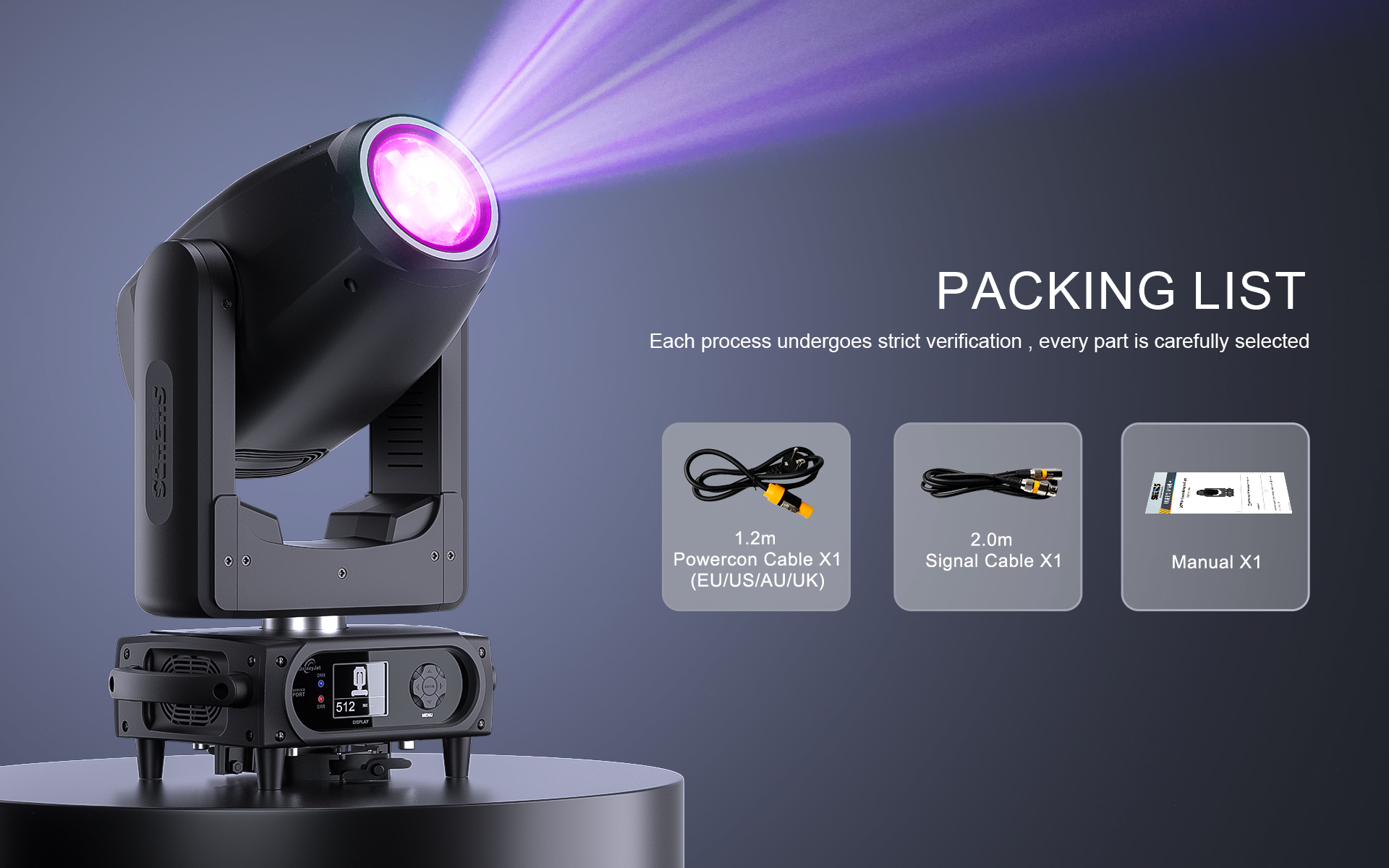

Packing List
Before leaving the factory, each of our products undergoes rigorous testing to ensure they are in perfect condition.
Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every detail.
Only those products that have gone through layers of checking can confidently leave our factory and arrive in your hands,
bringing you an excellent using experience.
