Product Features
Multiple channel modes are available, allowing the lights to dance to the music,
The lighting engineer can flexibly switch colors, angles, and lighting effects.
Technical Parameter
|
-Electrical specification and connections |
|
|
Power supply: |
640W electronic auto-ranging |
|
Input voltage range: |
100-240 V, 50/60 Hz |
|
Power in connector: |
Neutrik powerCON |
|
Signal input/output: |
Waterproof 3-pin XLR head socket |
|
-Source |
|
|
Light source type: |

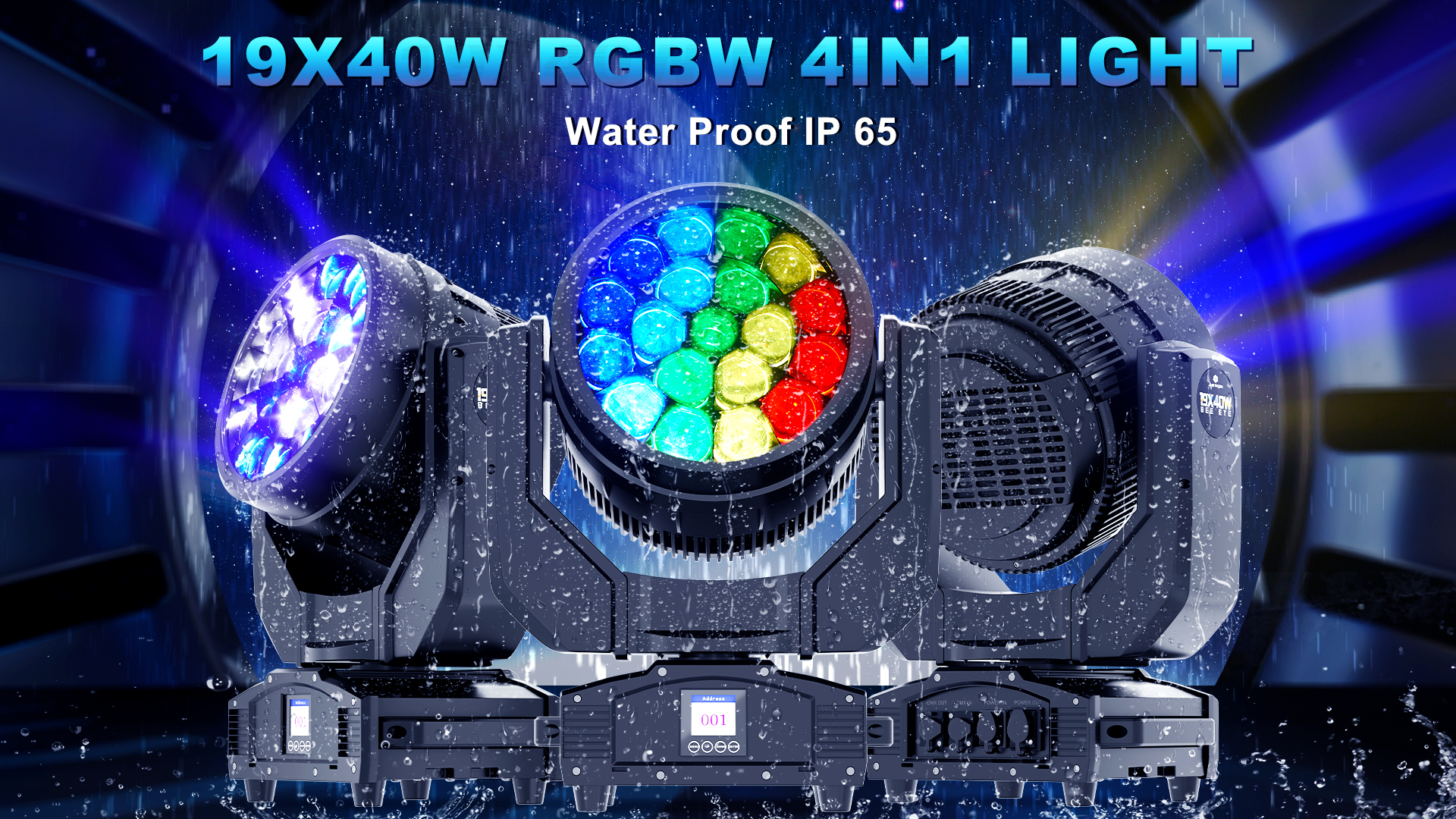

LED 19x40W RGBW 4in1 color mixing |
|
Colour temperature output: |
Linear CTO 2500-8500K |
|
LED life expectancy: |
50000 hours |
|
-Optical system |
|
|
Zoom: |
3x efficient zoom optical system |
|
Moving head range: |
Pan:450° Tilt：270° and 16 bit |
|
Zoom angle: |
3.5°- 50° |
|
Dimmer: |
0~100% linear dimming |
|
Lens diameter: |
250 mm |
|
-Control and programming |
|
|
Protocols: |
DMX512，RDM |
|
DMX Channel Mode： |
23/25/35/78/92/97/99CH |
|
Display: |
1.8 inch TFT color LCD display screen, 180 degree rotatable |
|
Feature： |
Auto mode ,sound mode,manual programming scenarios |
|
-Mechanical specification |
|
|
Housing : |
High temperature resistant and flame retardant plastic housing |
|
Heat dissipation method: |
Overheat protection, efficient heat dissipation system |
|

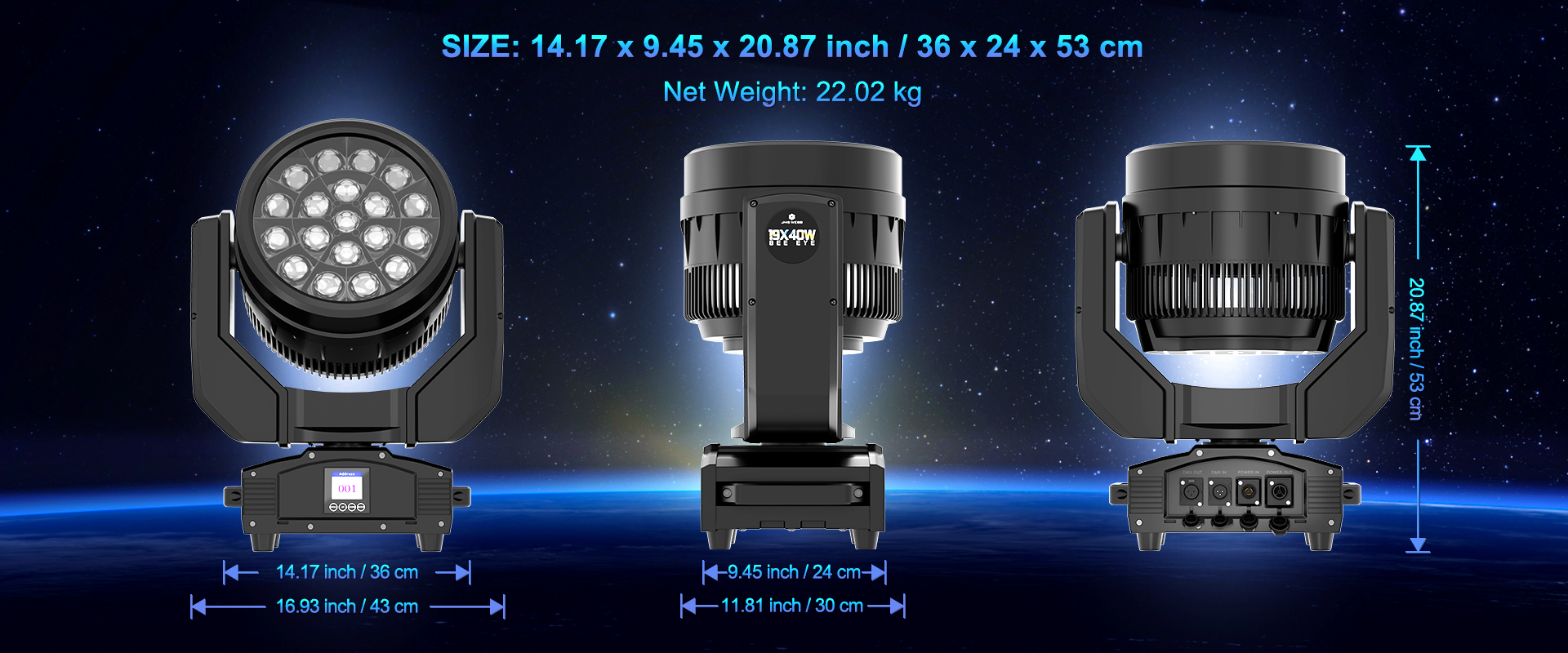

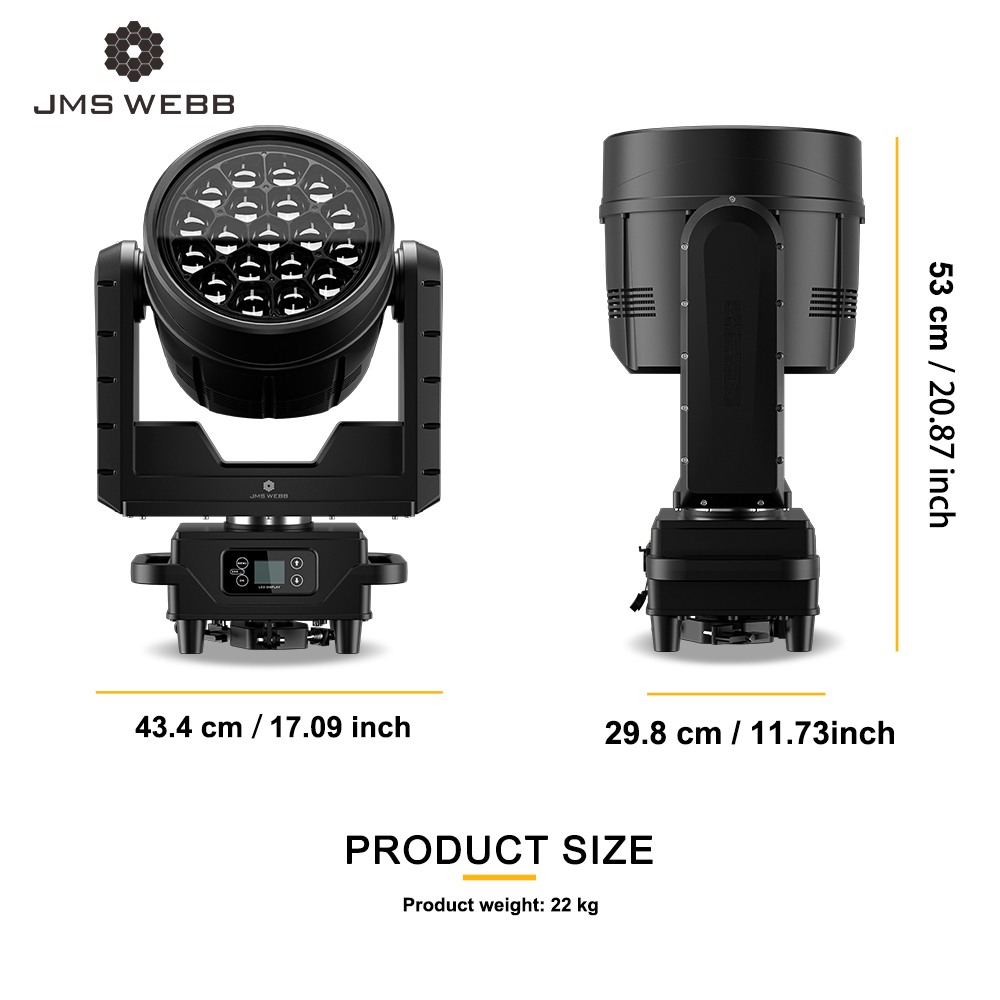

Product size： |
17.09 * 11.73 * 20.87 inch / 43.4 * 29.8 * 53 cm |
|
Product weight: |
22 kg |
|
Package size: |
22.05 * 16.54 * 25.20 inch / 56 * 42 * 64cm |
|
Package weight: |
26.2 kg |
|
Operating temperature: |
-20~60℃ |
|
Ingress protection rating: |
IP65 |

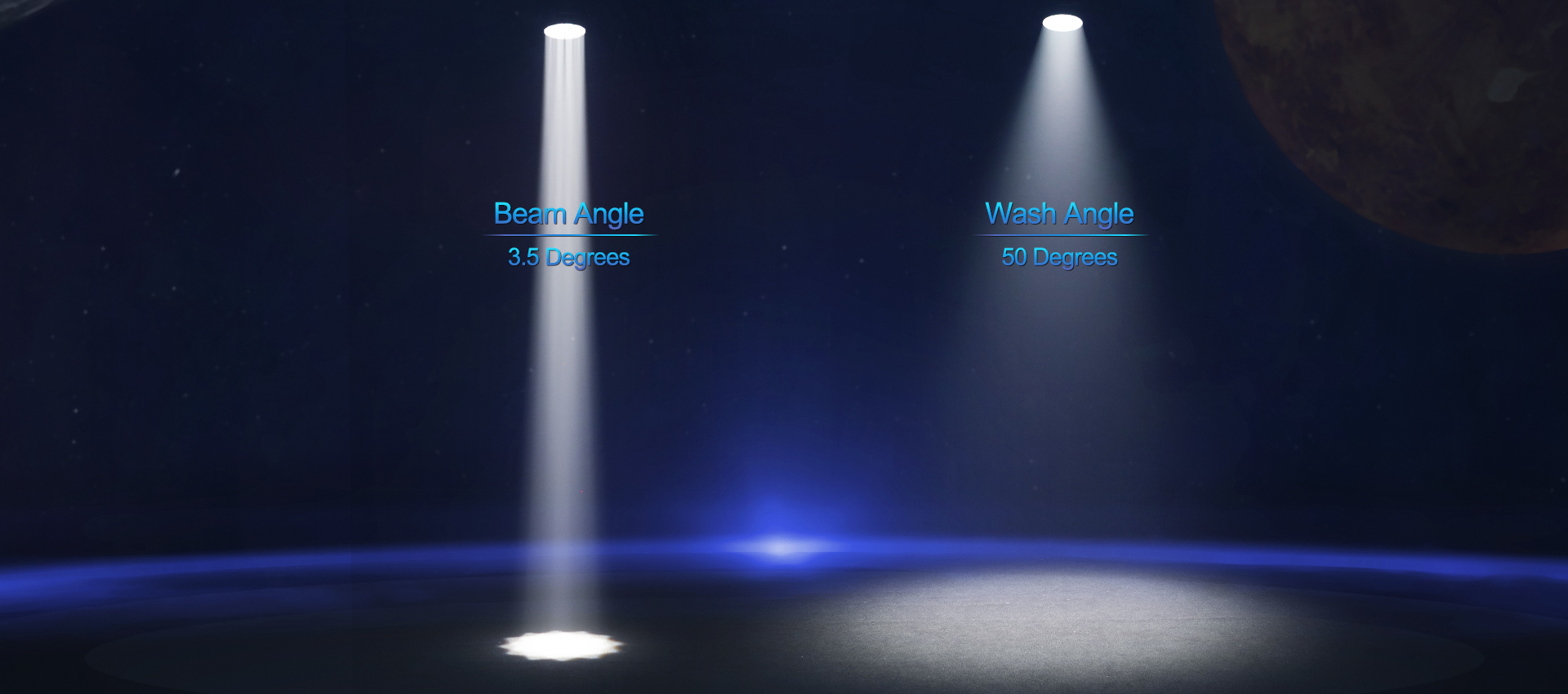

Beam Angle
3.5 ° beam angle - 50 °wash angle

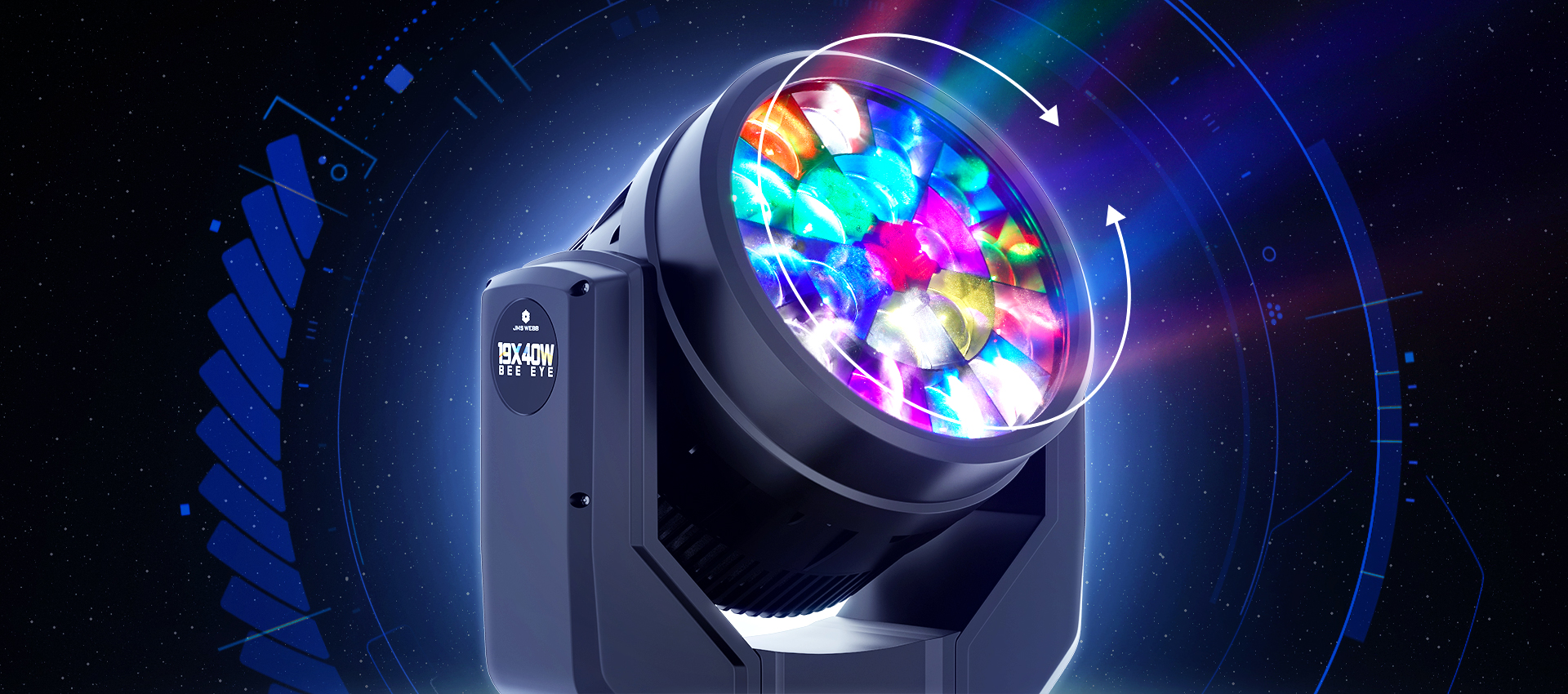

Optical Lens Display
Clockwise and counterclockwise 360 °rotation
Integrating Powerful Beam
And Wash Functions
A linear focusing system with a beam angle of 3.5 ~50 °, multiple speed strobe effects,
and a smooth dimming function of 0-100%,
Can produce a variety of dynamic psychedelic lighting effects, fully adapting to different stage application needs.
Zoom Effect
Adjust lighting through the lens to enhance the atmosphere of the scene.

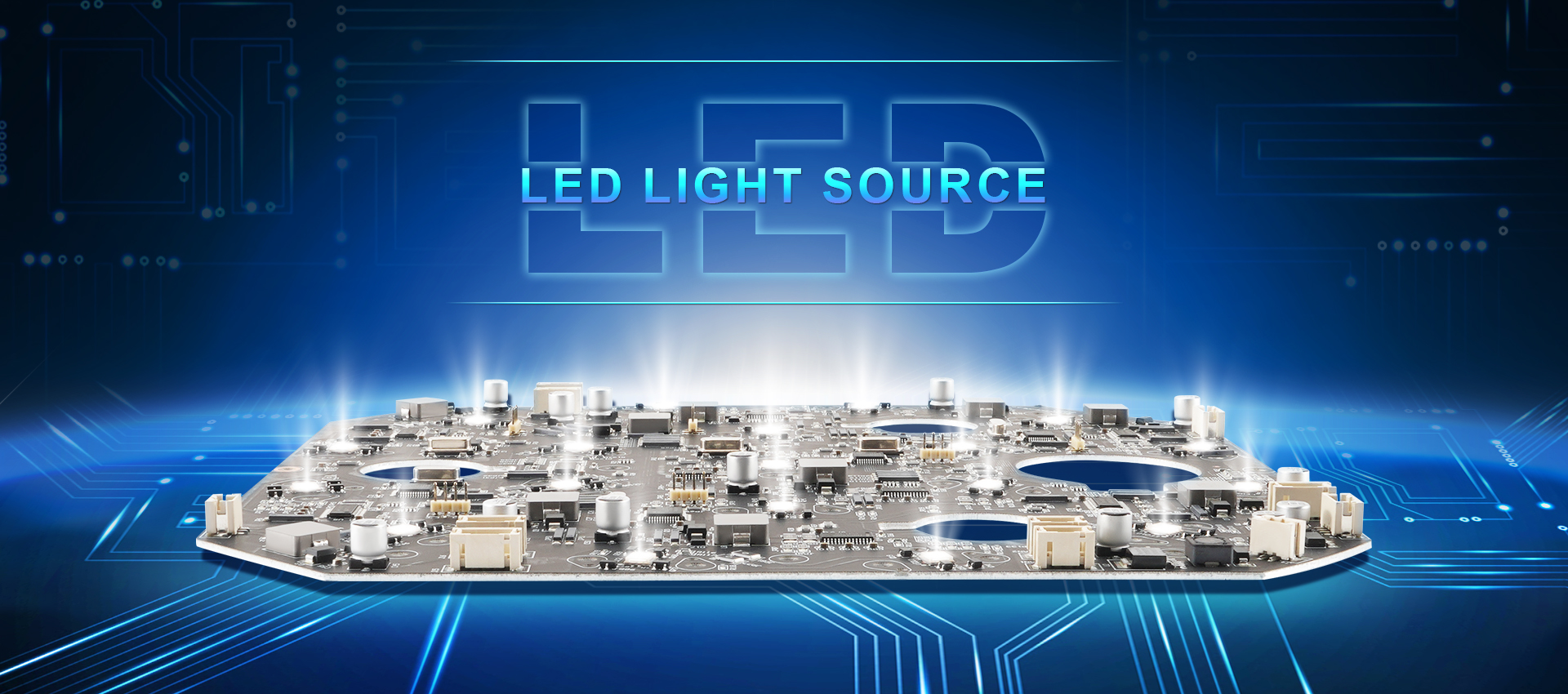

Light Source
Smart LED Light Particles
-5mm Thick pure copper load panel -
- RGBW MIX COLOR -
Multiple Effects
23/25/35/78/92/97/99CH channel mode available,
Built-in multiple static, dynamic, and customizable lighting effects,
allowing for easy adjustment of lighting effects

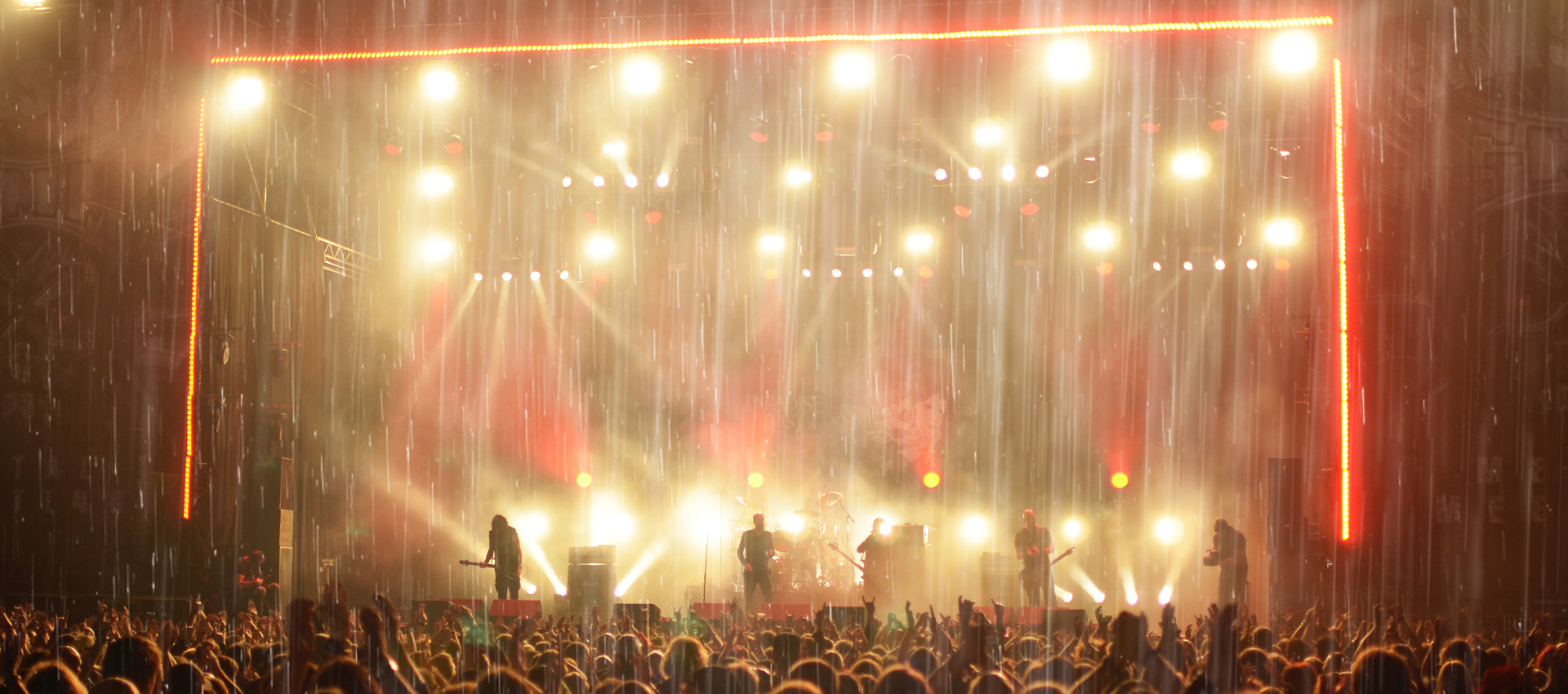

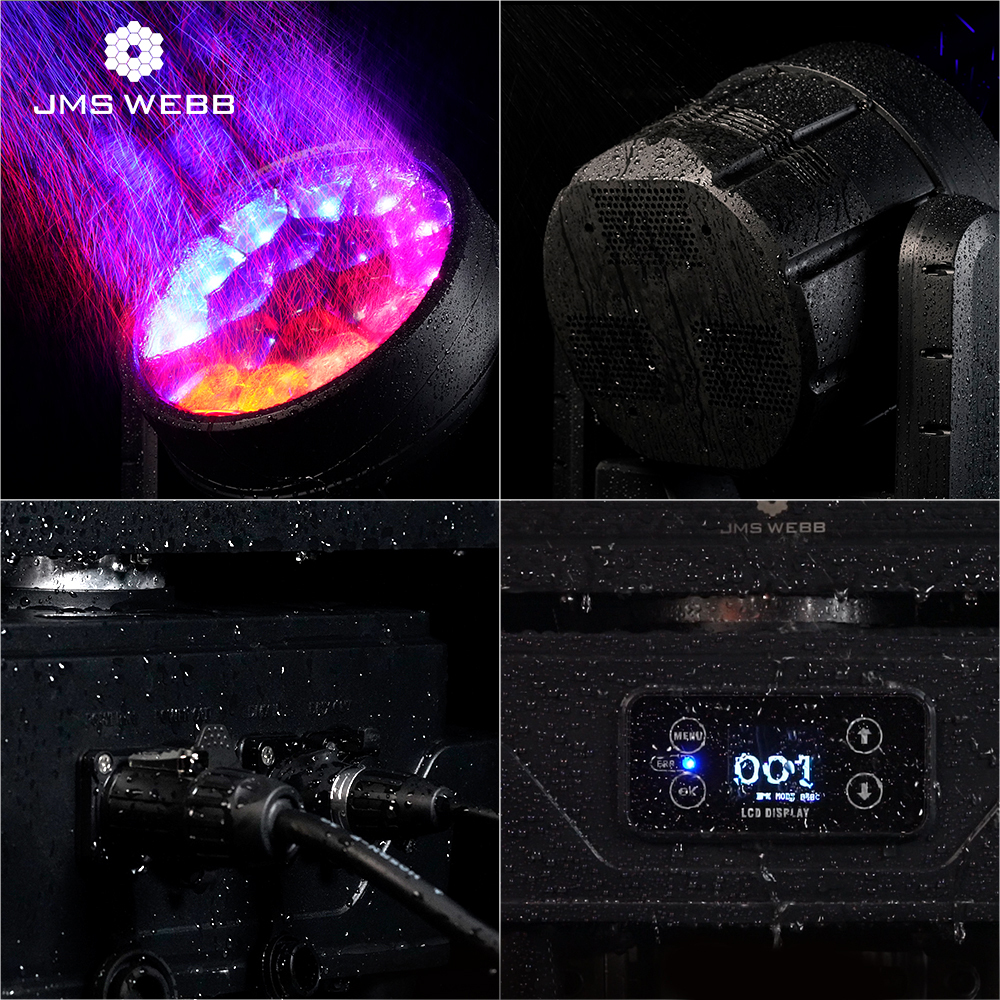

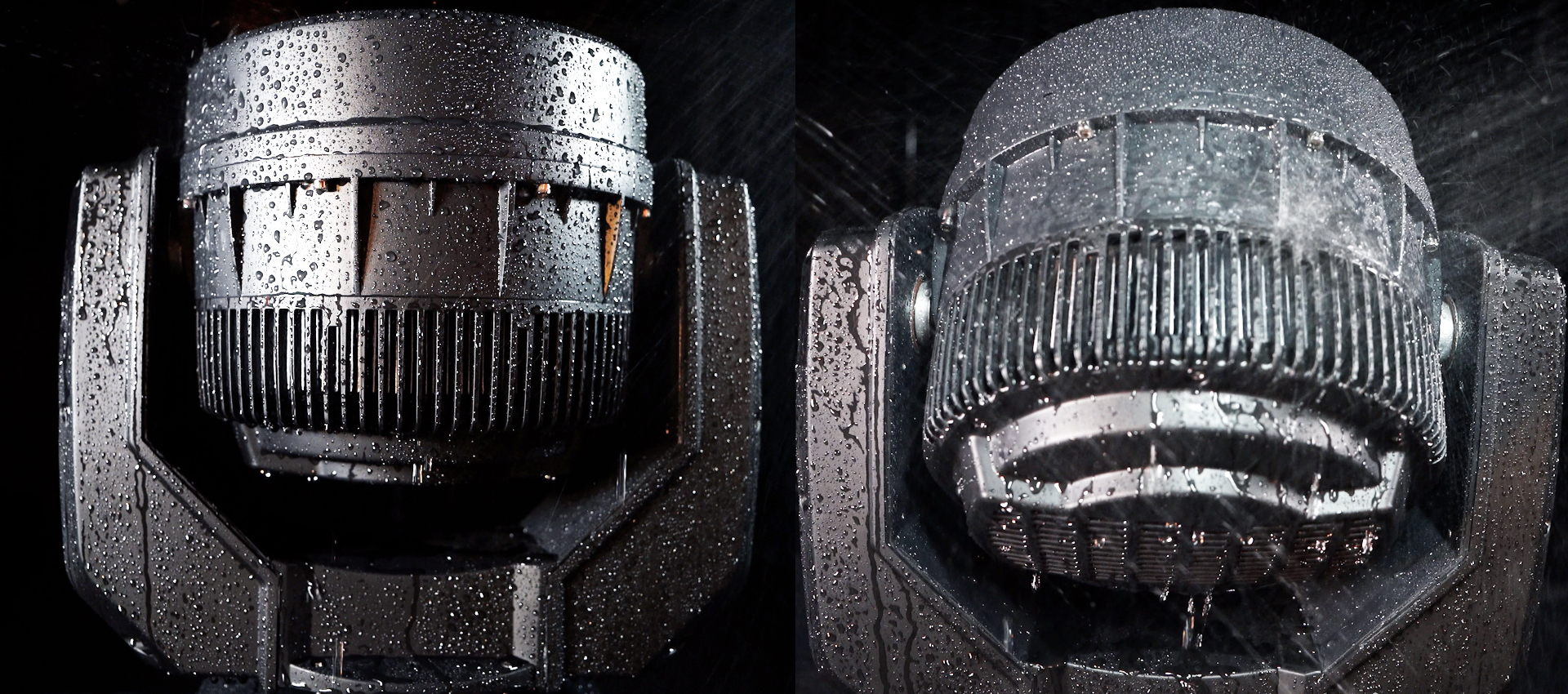

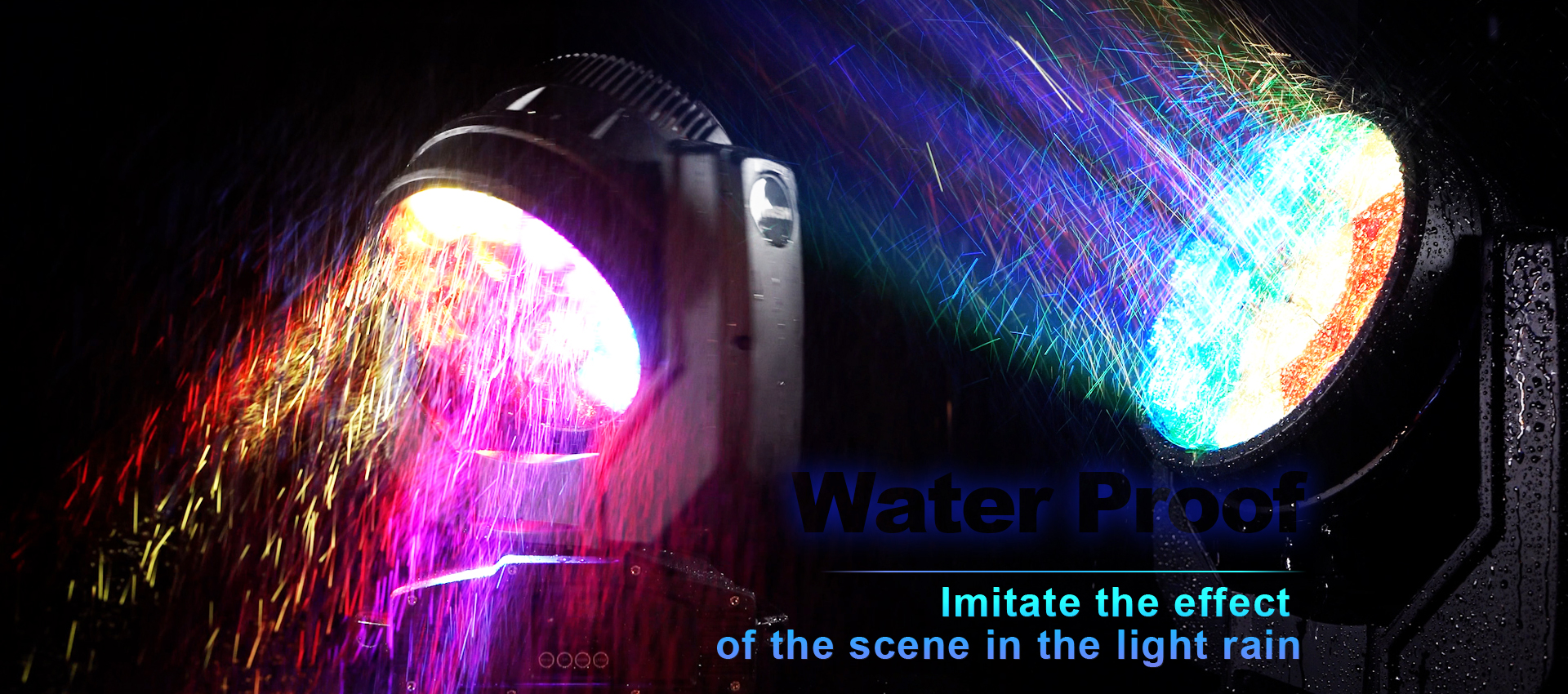

Waterproof Effect Test
Imitate the effect of the scene in the light rain

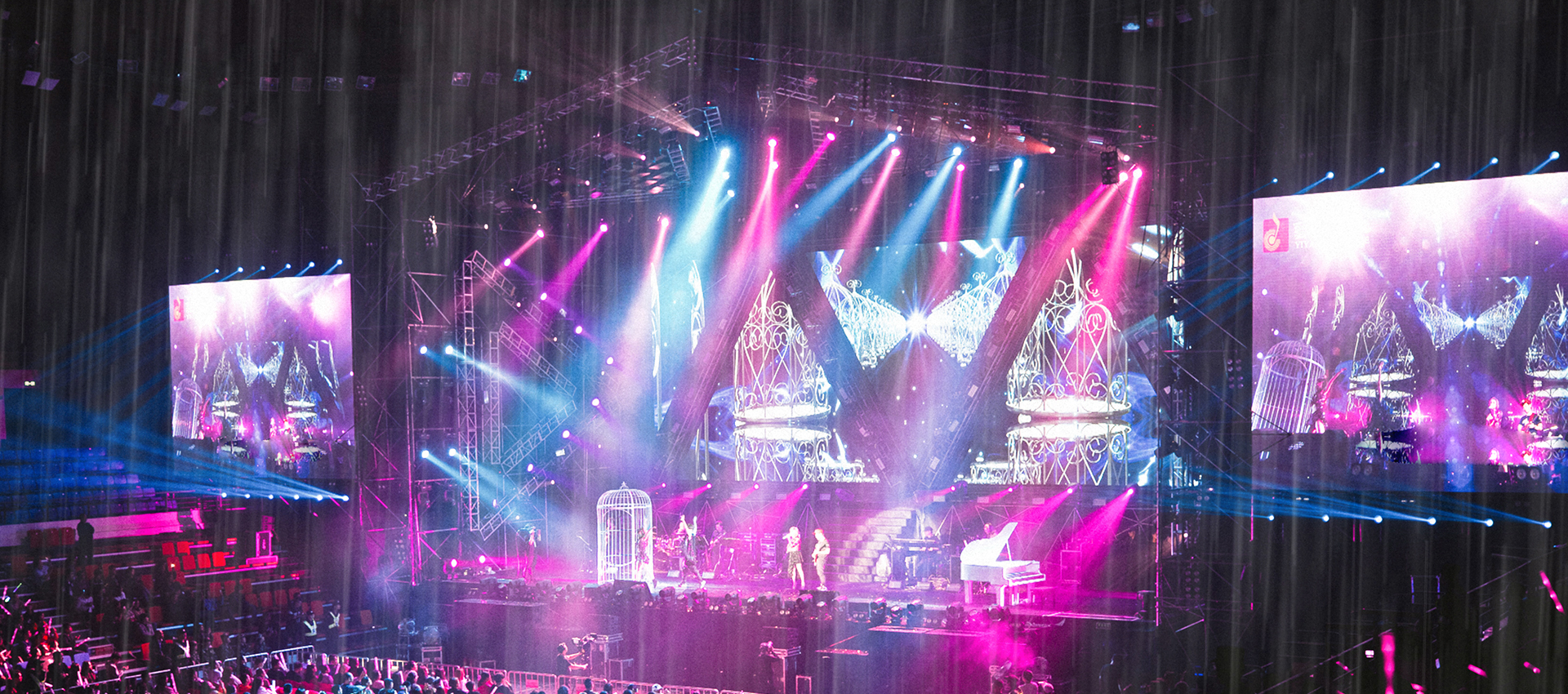

Applicable Scene
These lights are perfect for creating stunning visual effects in bars and clubs,
enhancing the vibrant atmosphere of any venue.

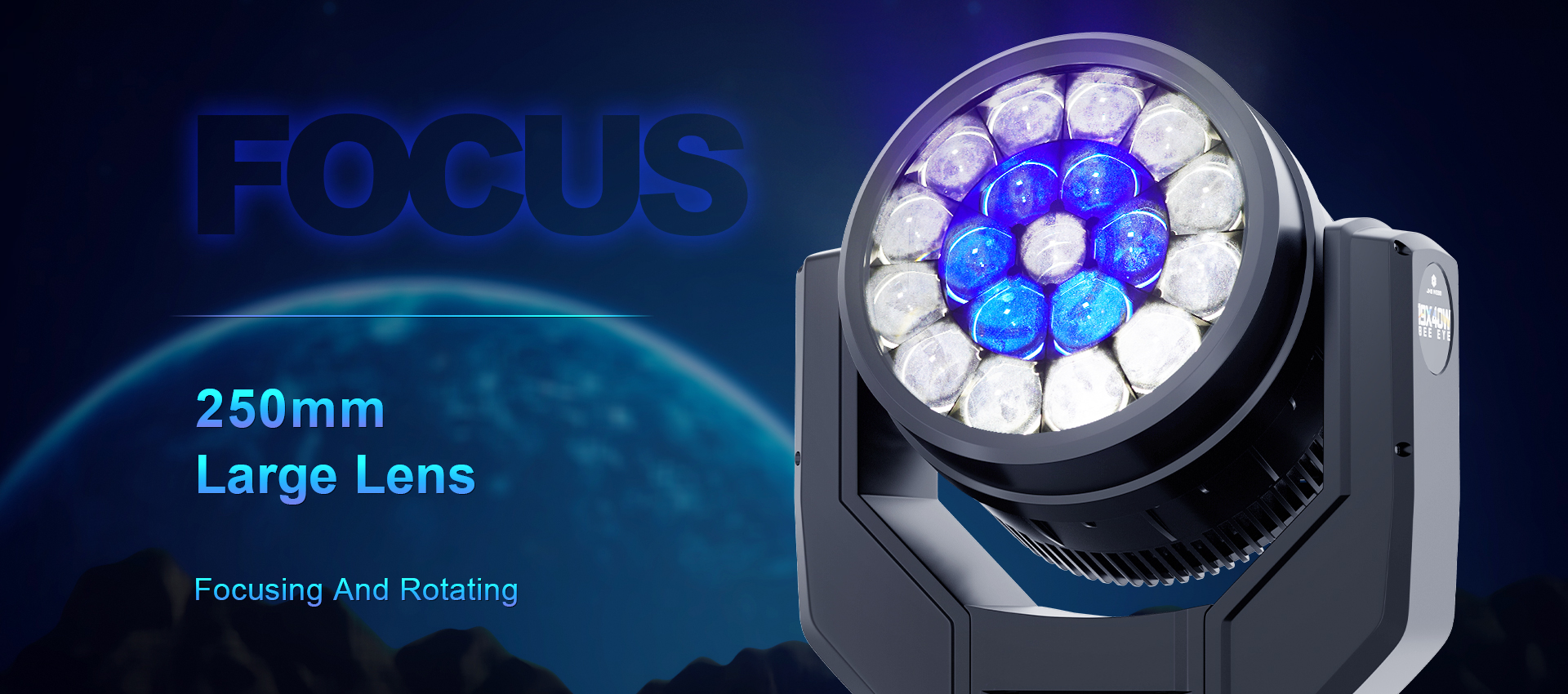

250mm Large Lens
Provide better lighting effects, color representation, and lighting control capabilities,
adding more visual impact and artistic sense to stage performances

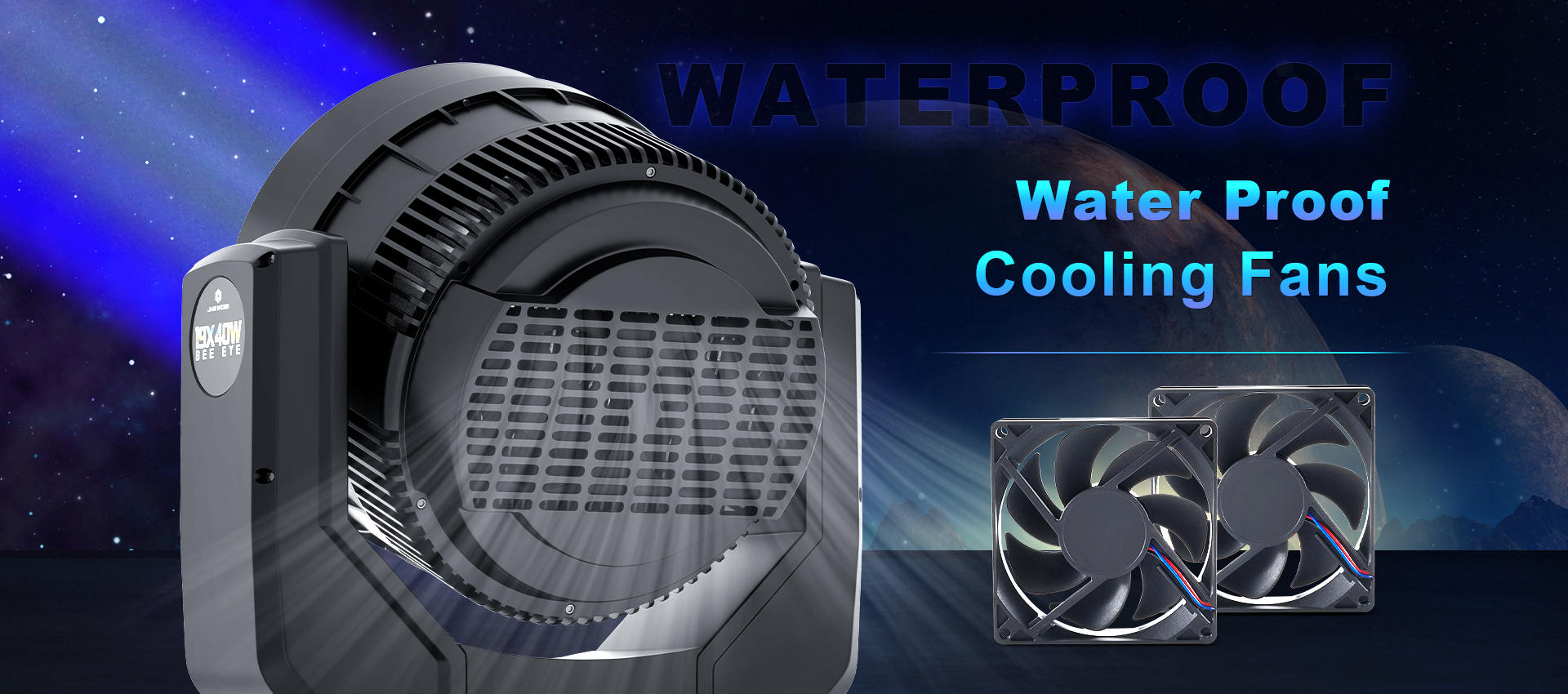

Split Heat Dissipation
Independent isolation compartment heat dissipation method, dual insulation and sealing protection measures,
high-performance waterproof fan with intelligent temperature control adjustment

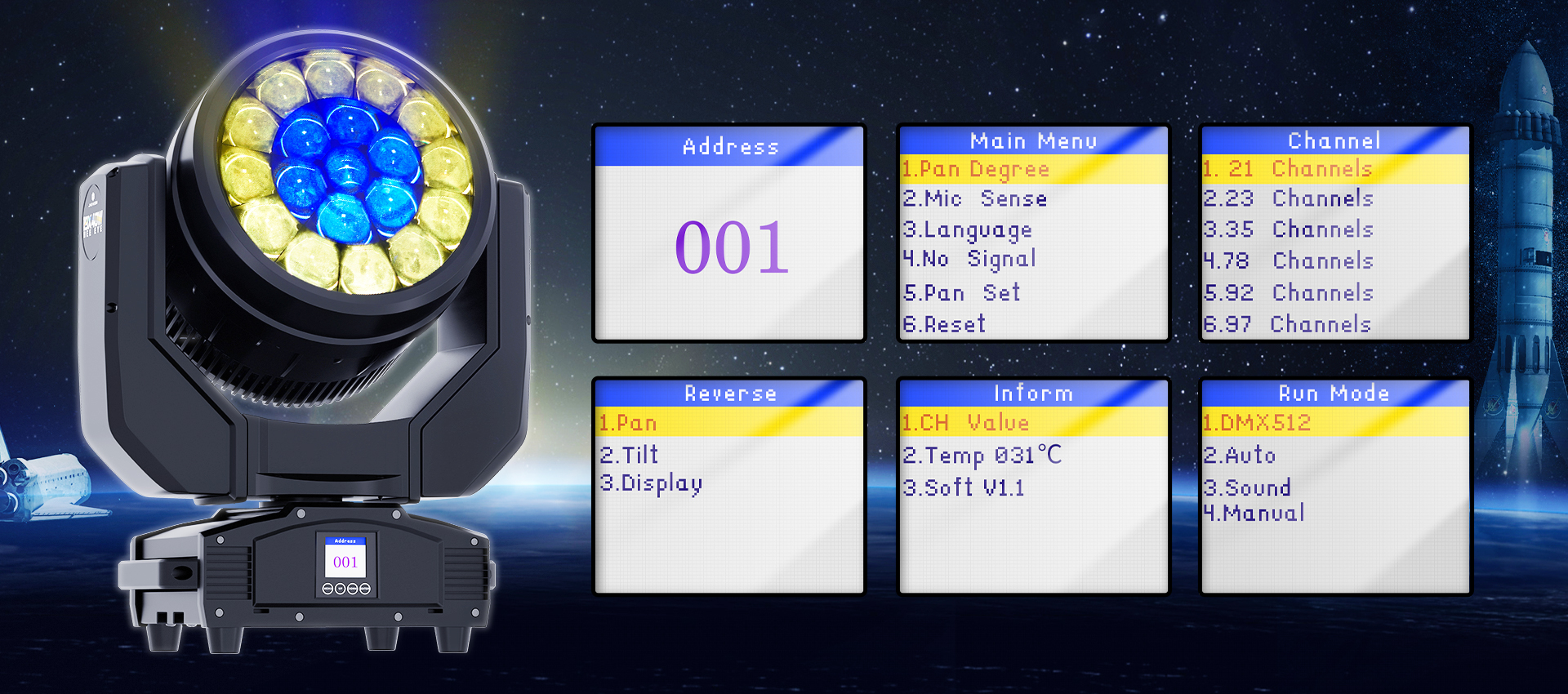

Introduction To Panel Functions
Contains multiple interactive function programs to visually display the operating status and mode of the lighting fixtures
Built-in lamp operation status sensing and monitoring system, which can check the operation status of the lamp at any time for easy parameter adjustment

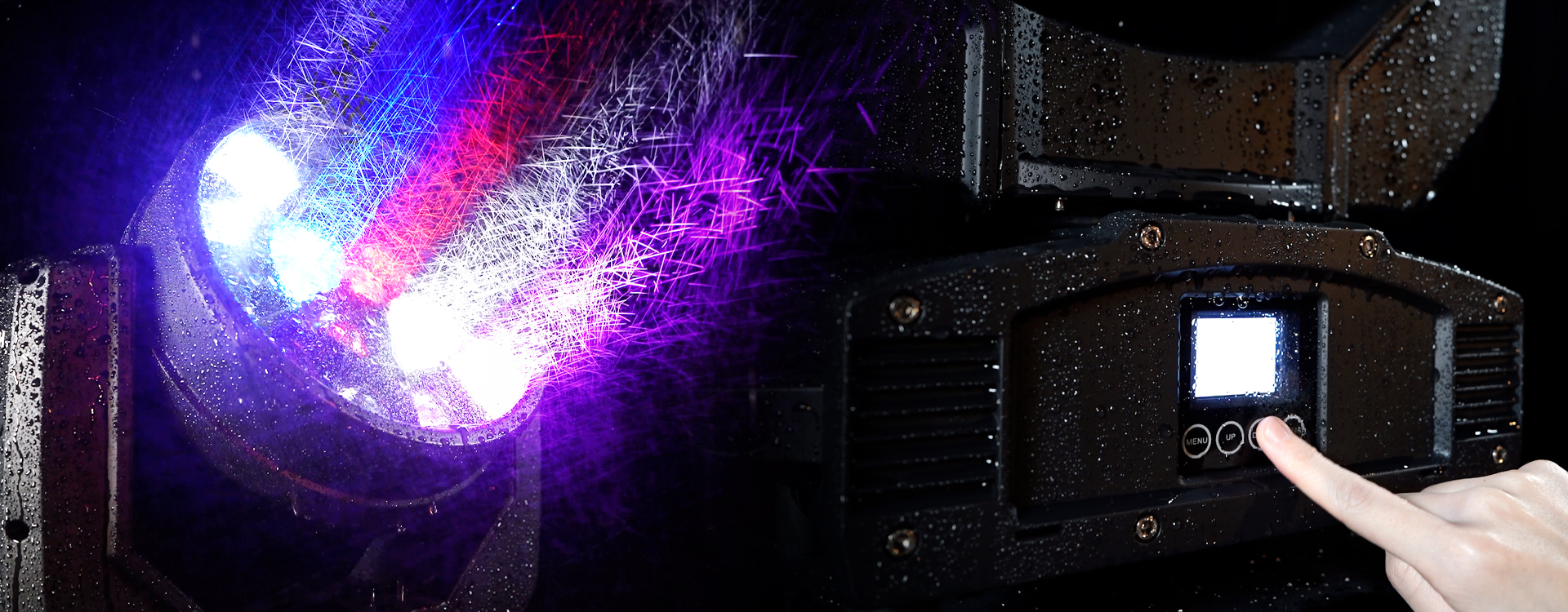

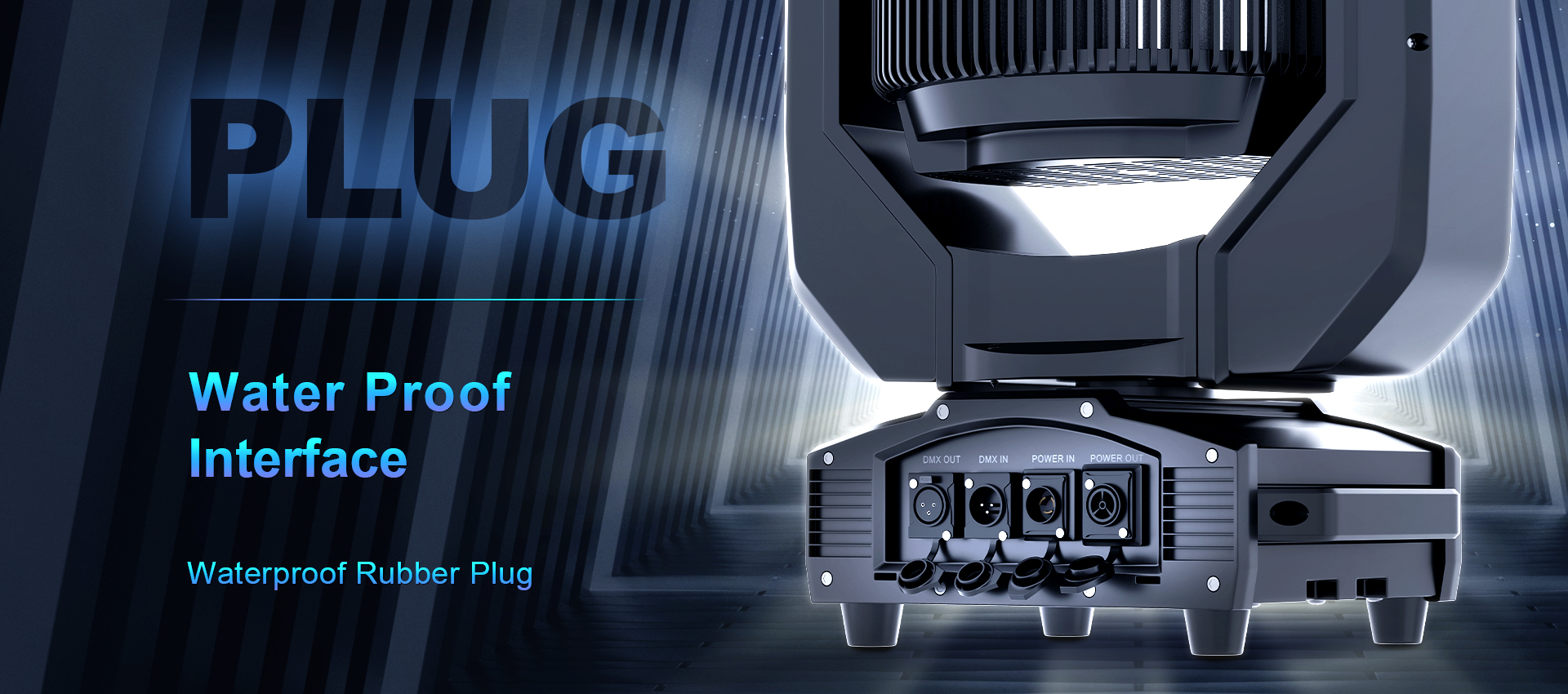

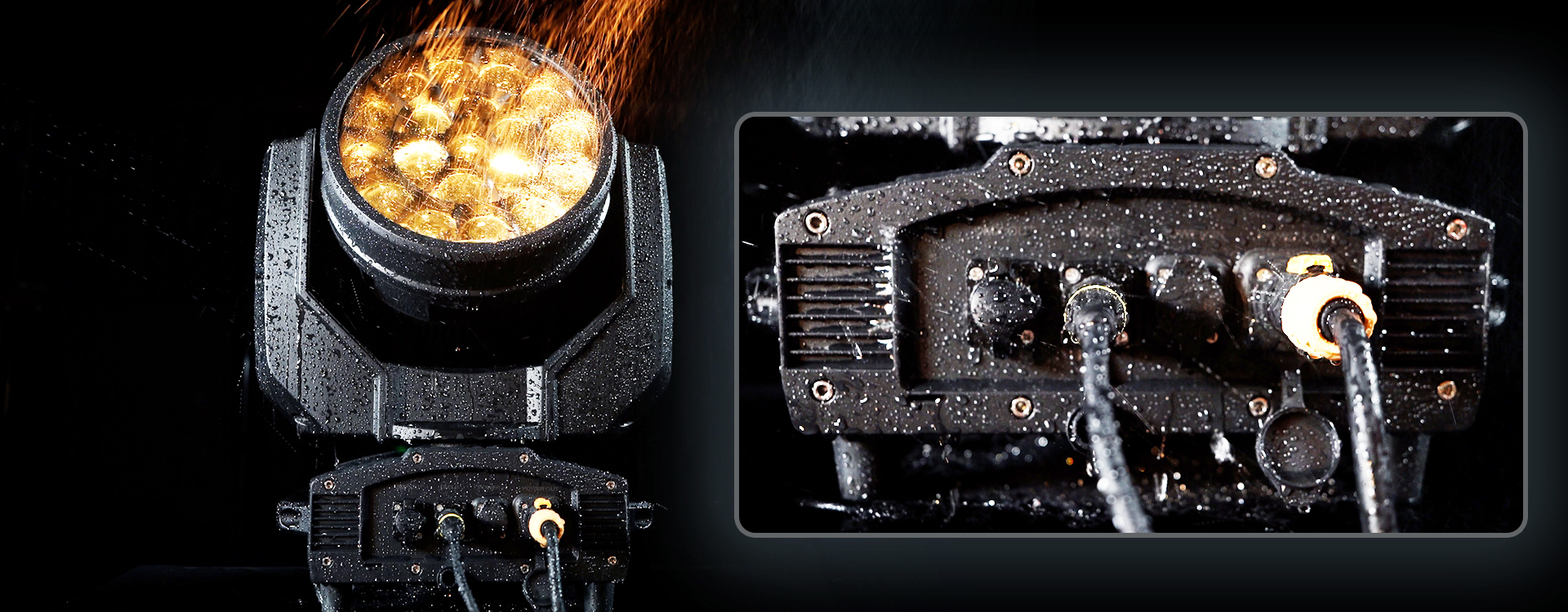

Waterproof Interface
All Weather Protective Beam Light
All weather protective beam light, waterproof power connector input/output, can be used outdoors all year round.
The carefully designed heat dissipation performance ensures the waterproofing and heat dissipation of high-power light bulbs,
ensuring the lifespan and smooth operation of the lamps.

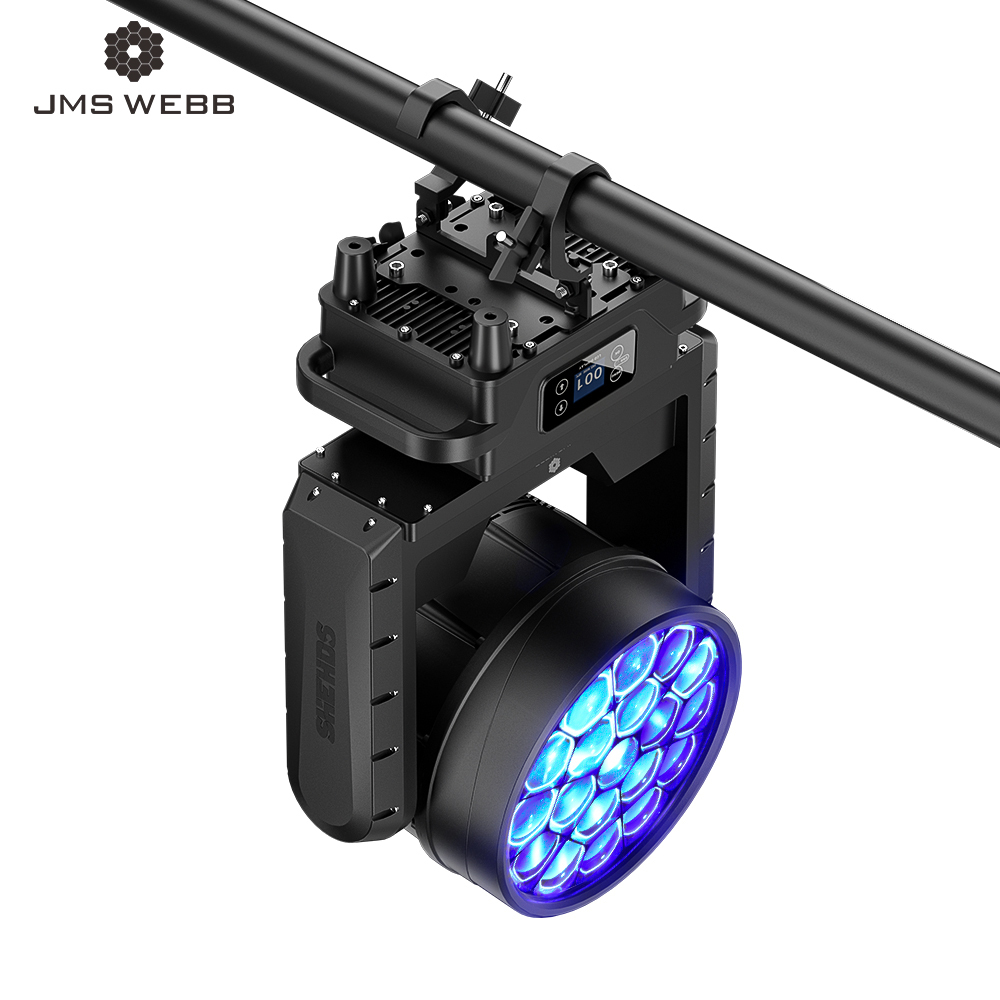

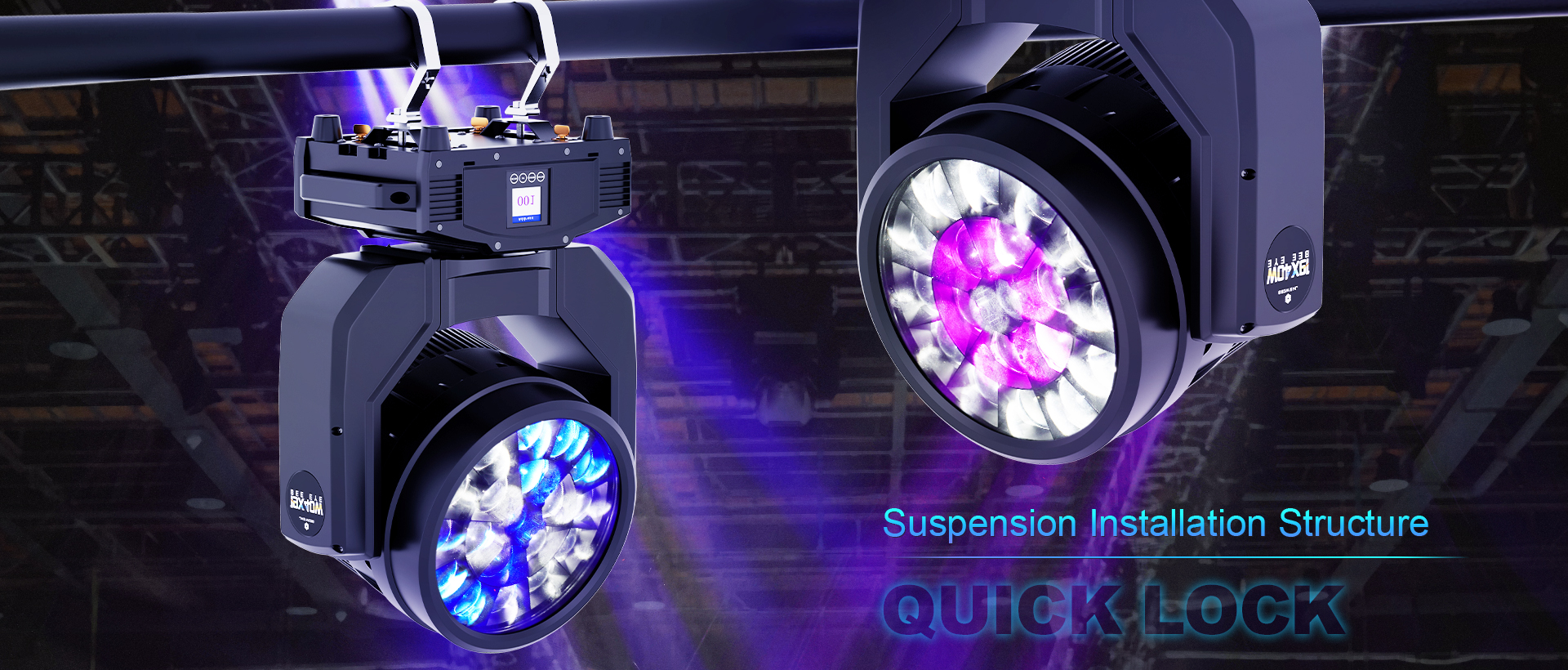

Suspension Installation Structure
Reserve installation position and quick lock for safety rope

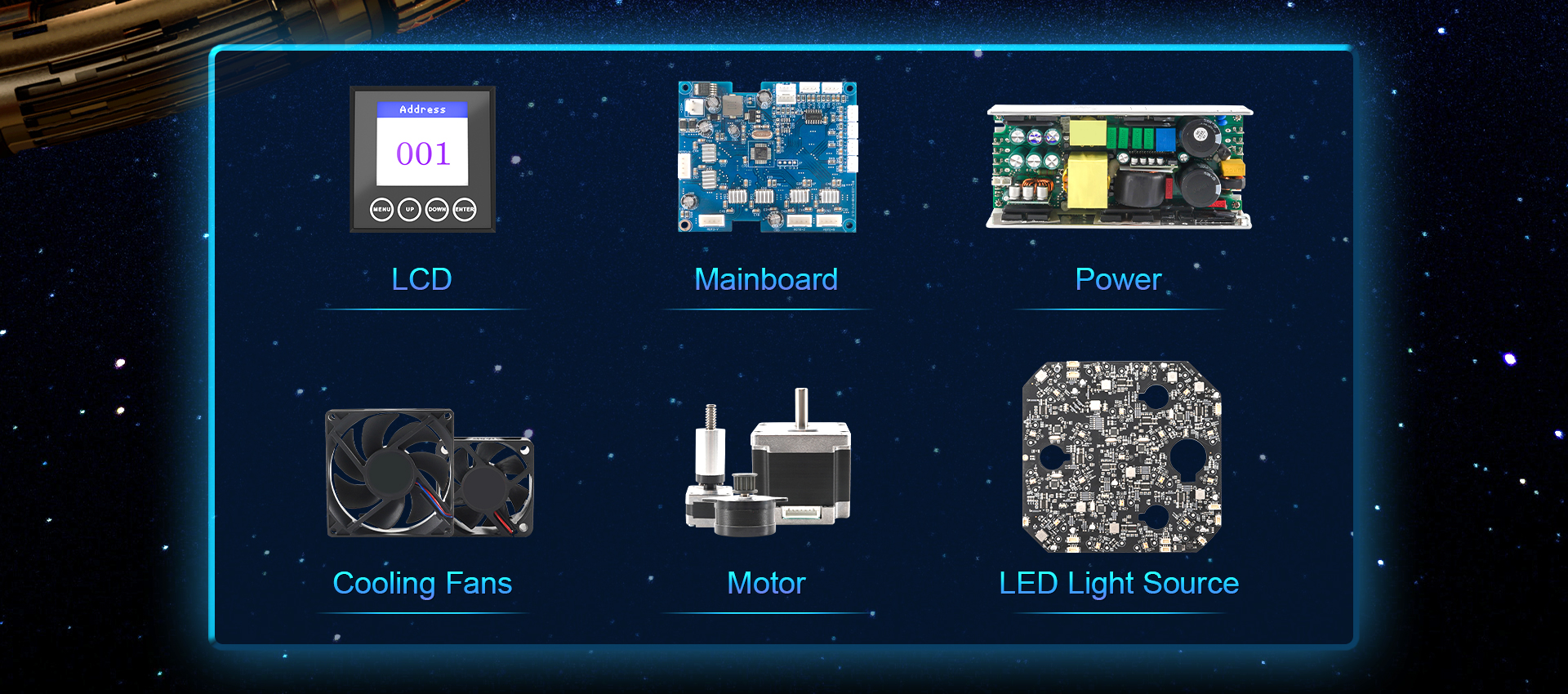

Carefully Select Excellent Accessories

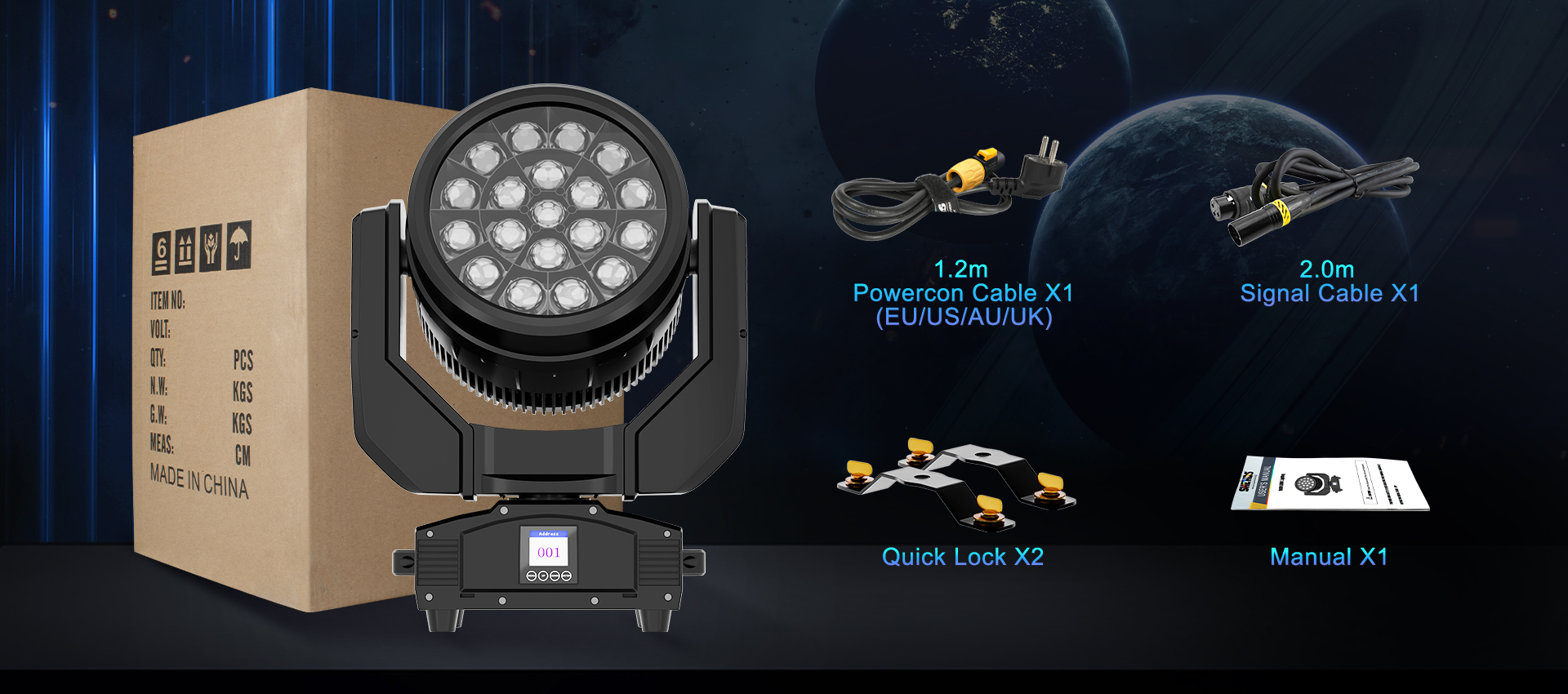

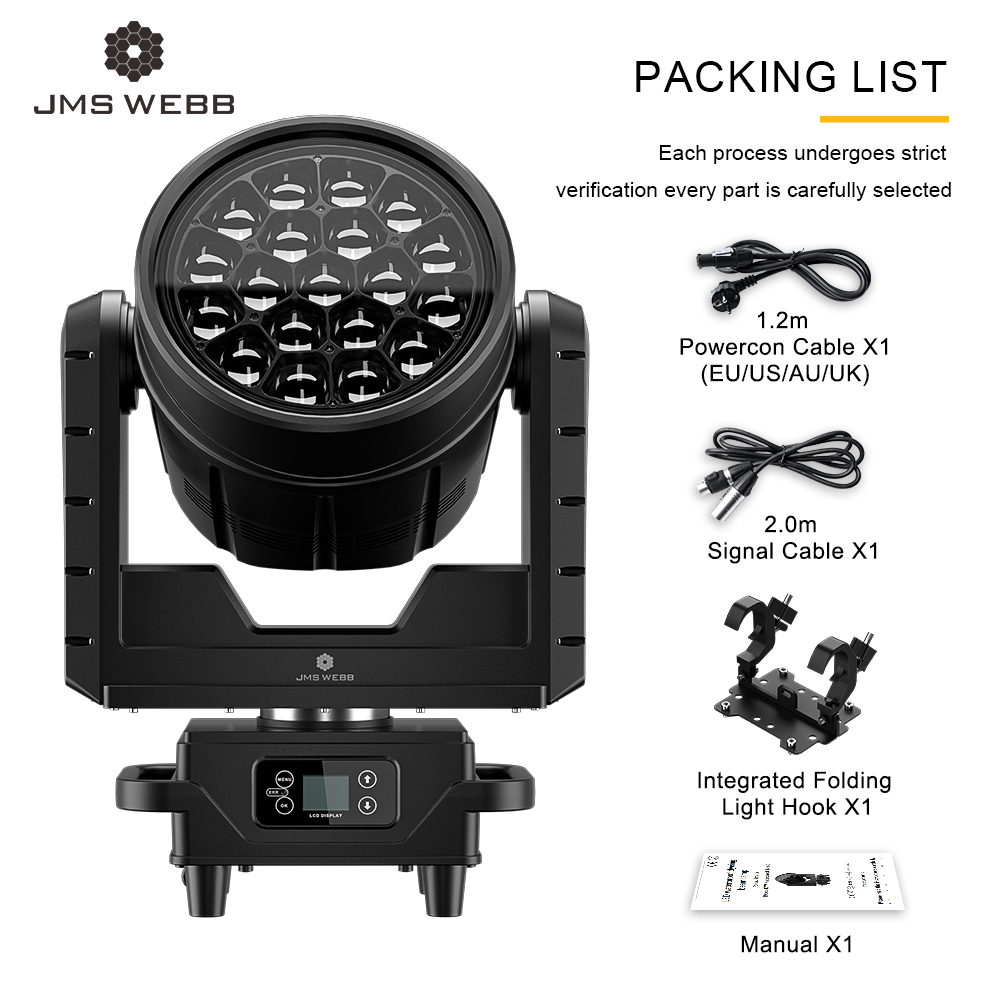

Packing List
Each process undergoes strict verification
Every part is carefully selected

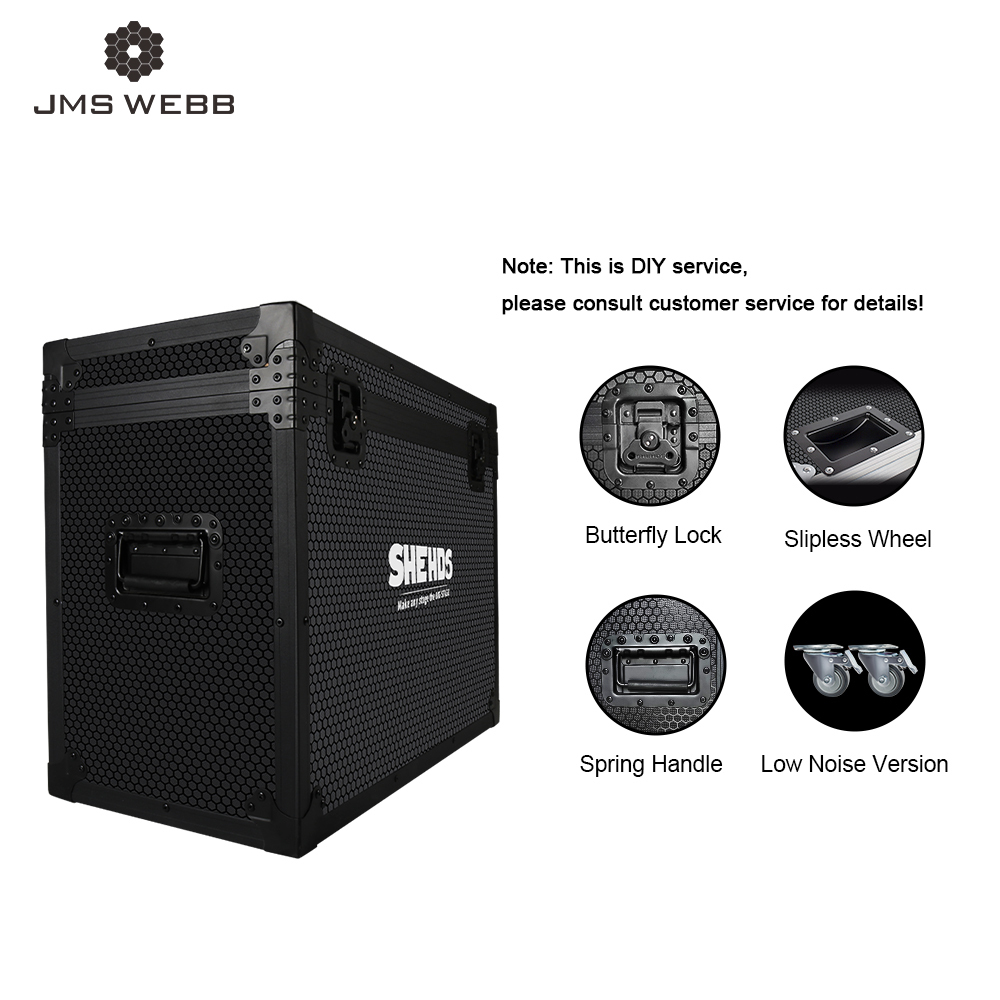

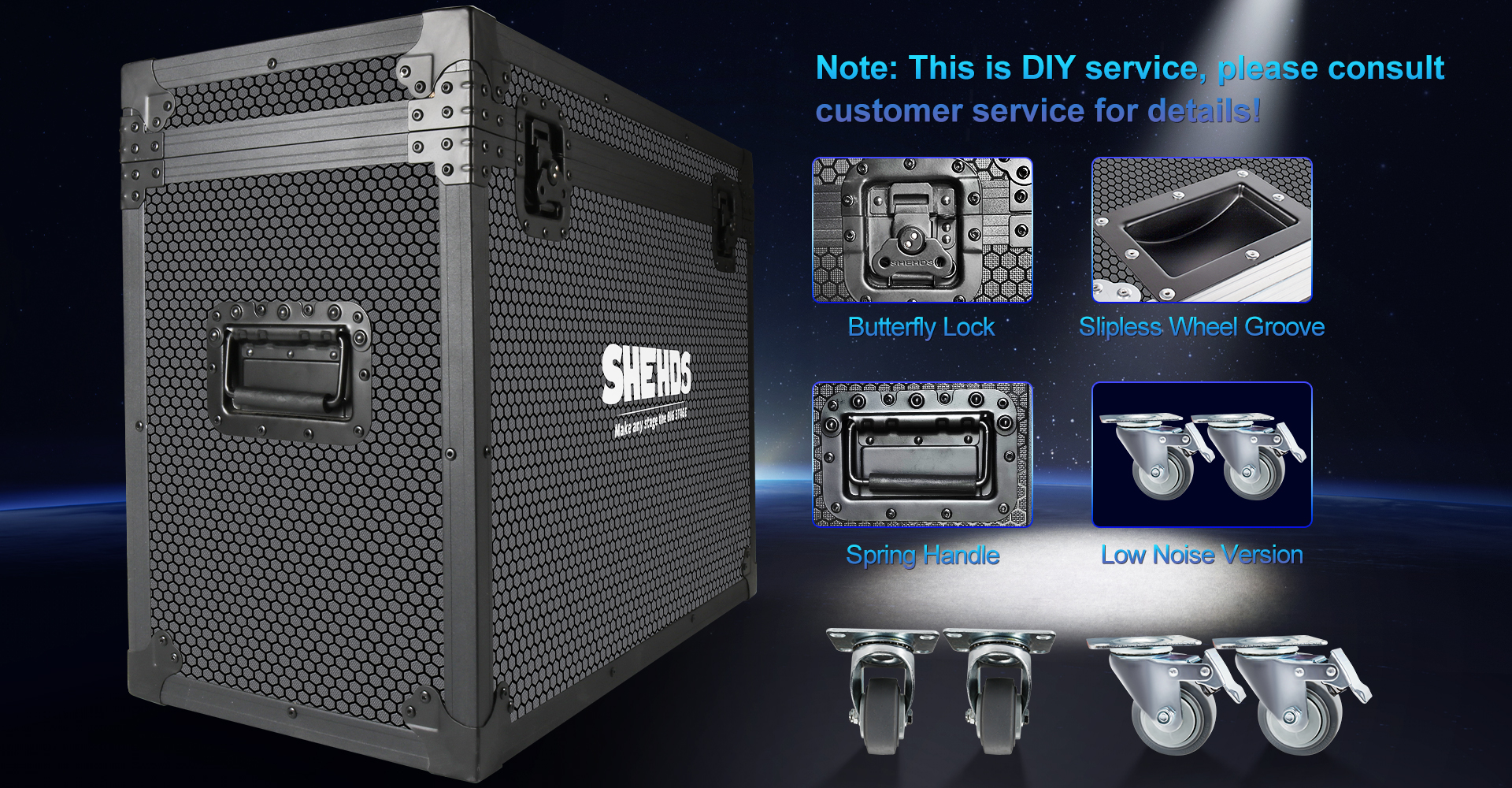

Flight Case DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service, please consult customer service for details!
Qualification Certificate
International organizations Authority certification
