Technical Parameter
| Light source parameters |
| Laser Wavelength: |
R-640nm, G-520nm, B-457nm |
| Laser Power: |
R-0.8W, G-0.8mW, B-1.5W |
| Spot Size (laser window spot) |
5.5mm |
| Light Source Divergence Angle |
＜1.5mrad |
| Modulation Mode |
0~5V analog, up to 2khz/TTL |
| Laser Class |
Class IV |
| Imaging system |
| Laser Color |
Red, green, blue mixed colors |
| Evenness |
>98% |
| Lens Horizontal Offset |
-30% to +30% |
| Lens Vertical Offset |
-30% to +30% |
| Imaging Mode |
3D/2D pattern and animation (with software) |
| Projection Distance |
＜20M The best distance is 20~50M |
| Playback Rate |
20 KPPS |
| Playback Angle |
Max60° |
| Fail-safe system |
| Safety standards |
Follow the IEC60825 standard |
| Security project |
Over current and voltage protection |
| Class of protection |
IP20 |
| Operating temperature |
-15℃~45℃ |
| Interface and control systems |
| Control interface |
DMX In/Out ,ILDA In/Out |
| DMX channel |
26CH |
| Power supply interface |
PowerCon |
| Power Consumption |
| Power of operation |
100~240V AC 50/60HZ |
| Power supply |
Max 42W |
| Physical property |

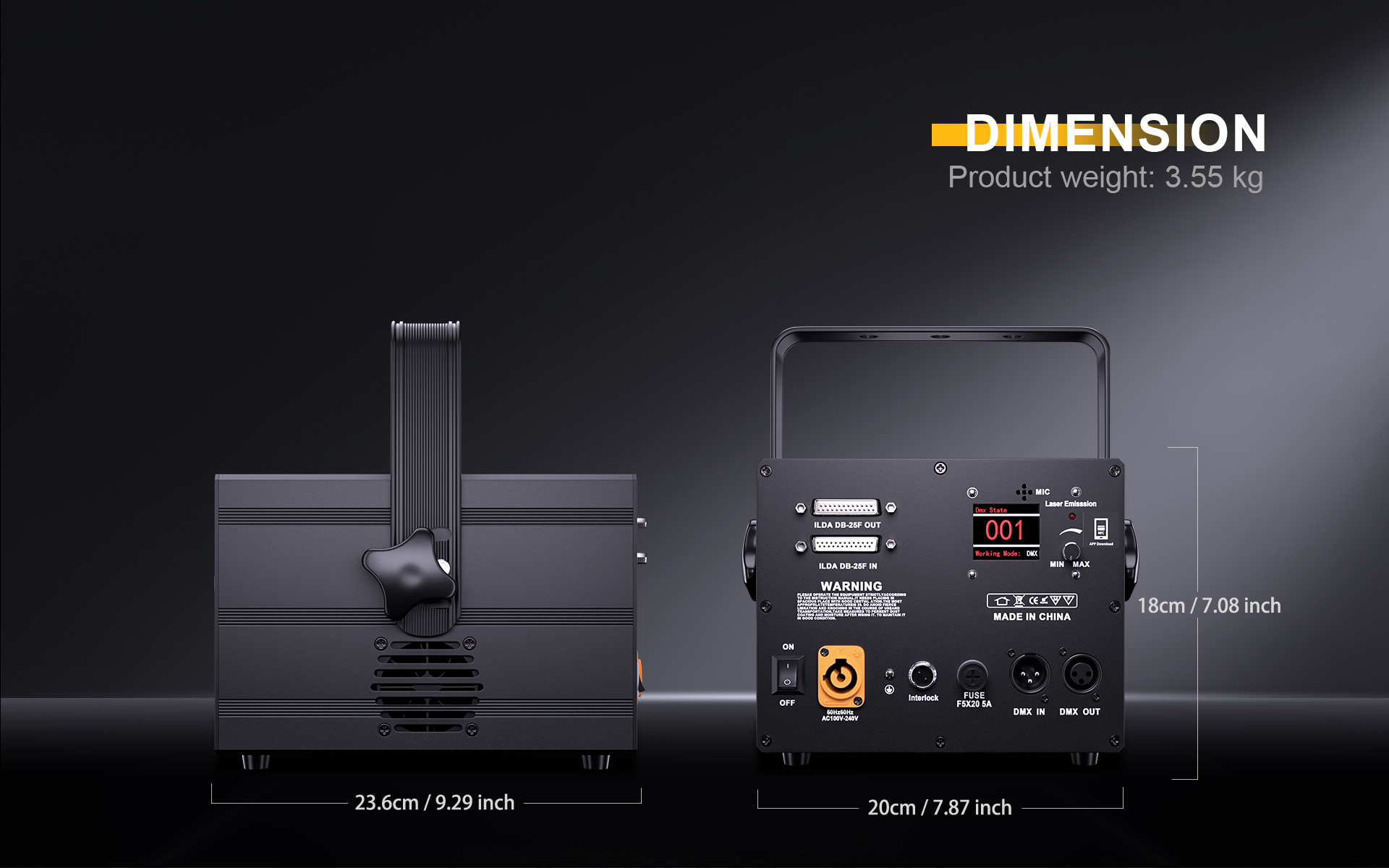

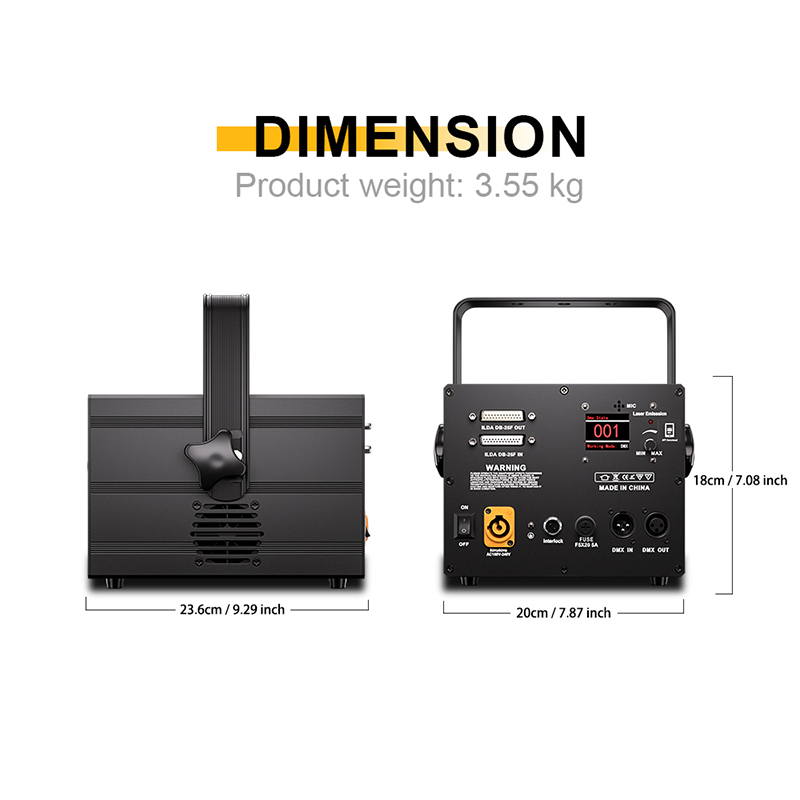

| Product size: |
23.6*20*18cm |
| Product weight: |
3.55kg |

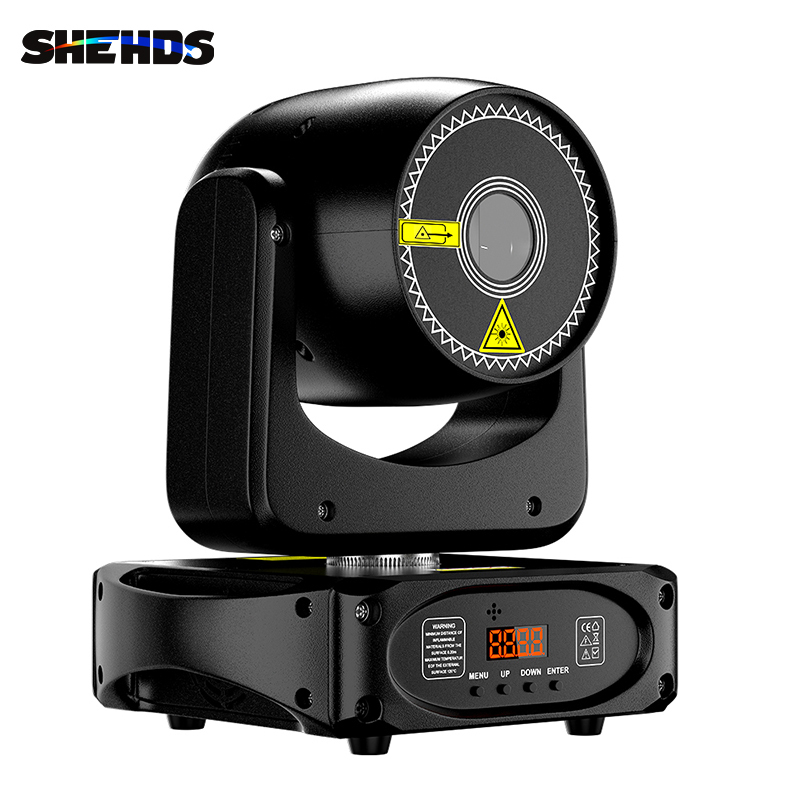

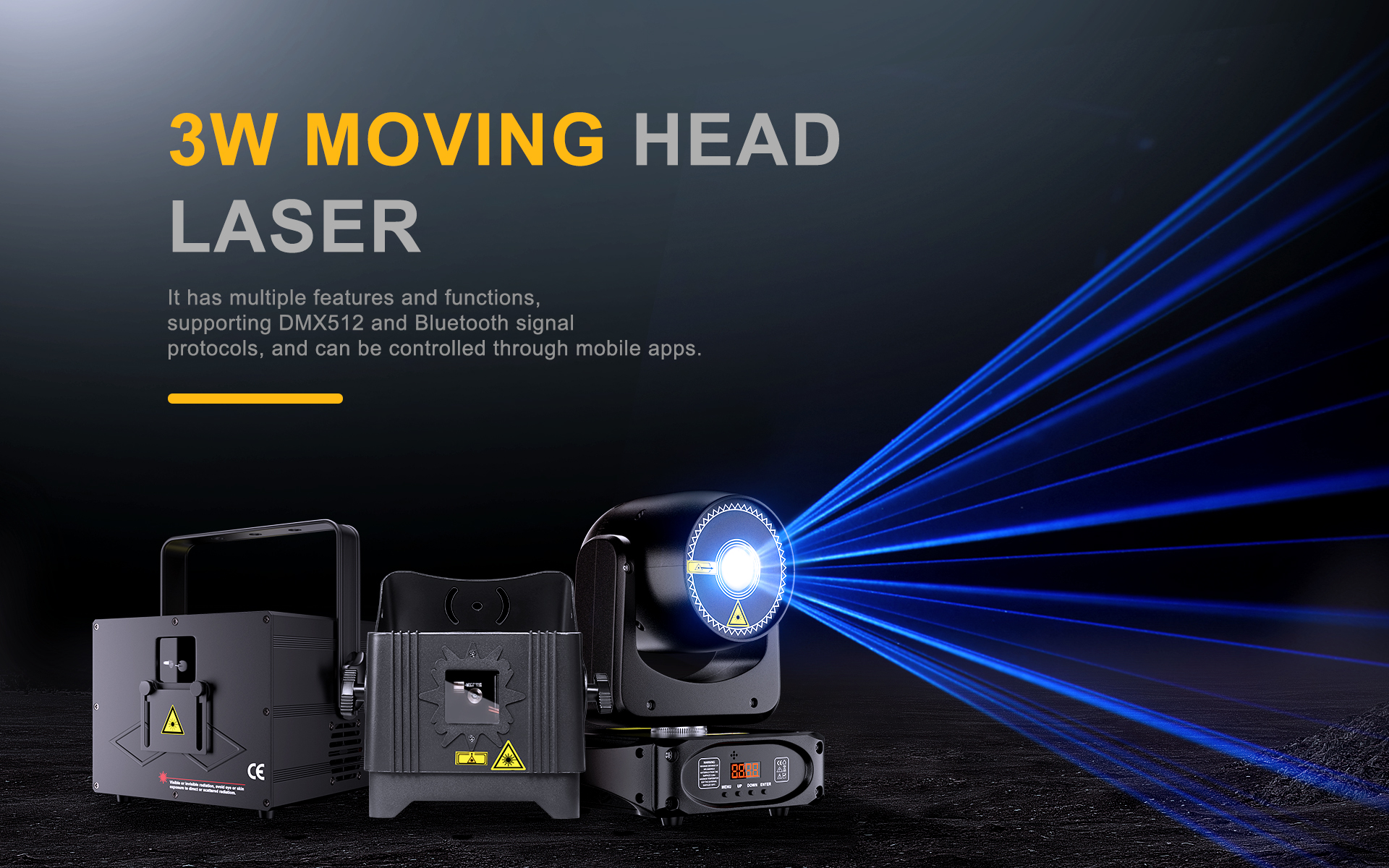

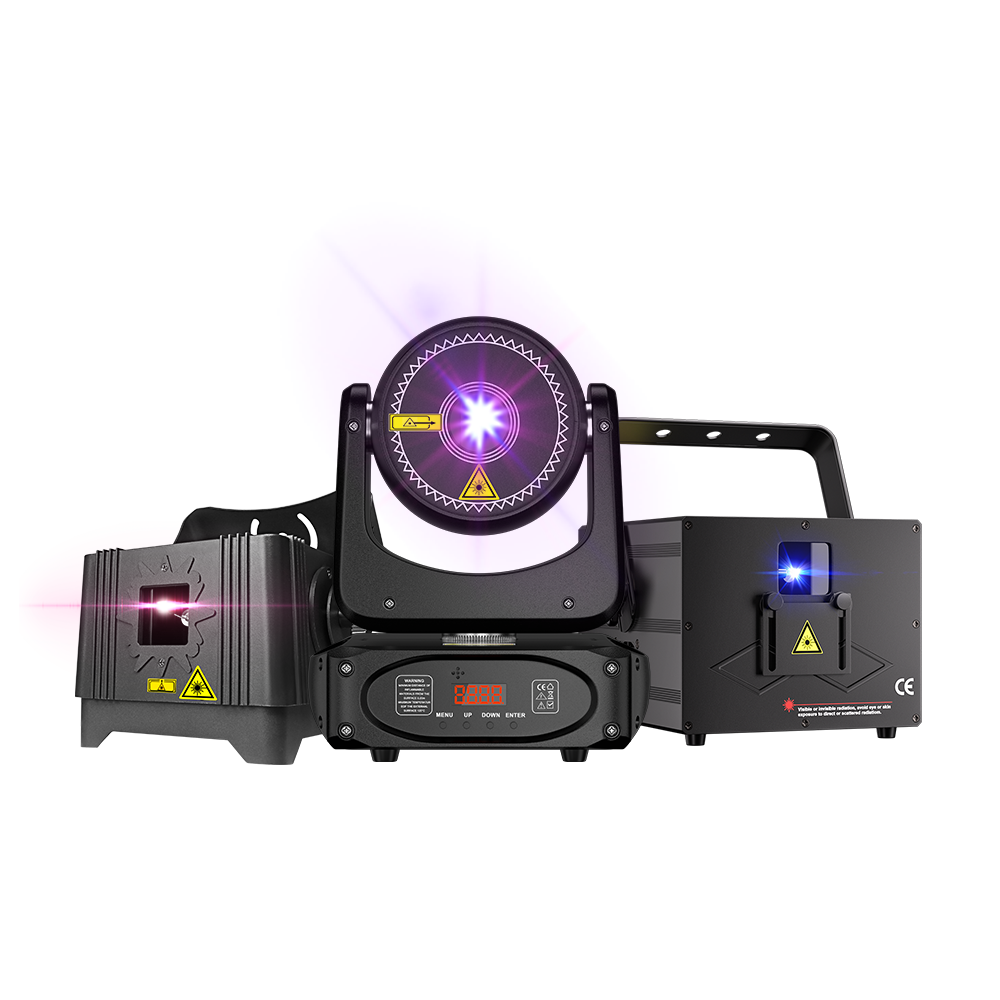

3W MOVING HEAD LASER
Constellation Laser Series
The origin of constellations can be traced back to prehistoric times.
People use them to tell stories about their beliefs, experiences,
creations and myths. Our designers have created a variety of laser stage lights under the name of "Constellation Laser".
Like stars that light up nebula in the dark, our laser lights light up every stage.

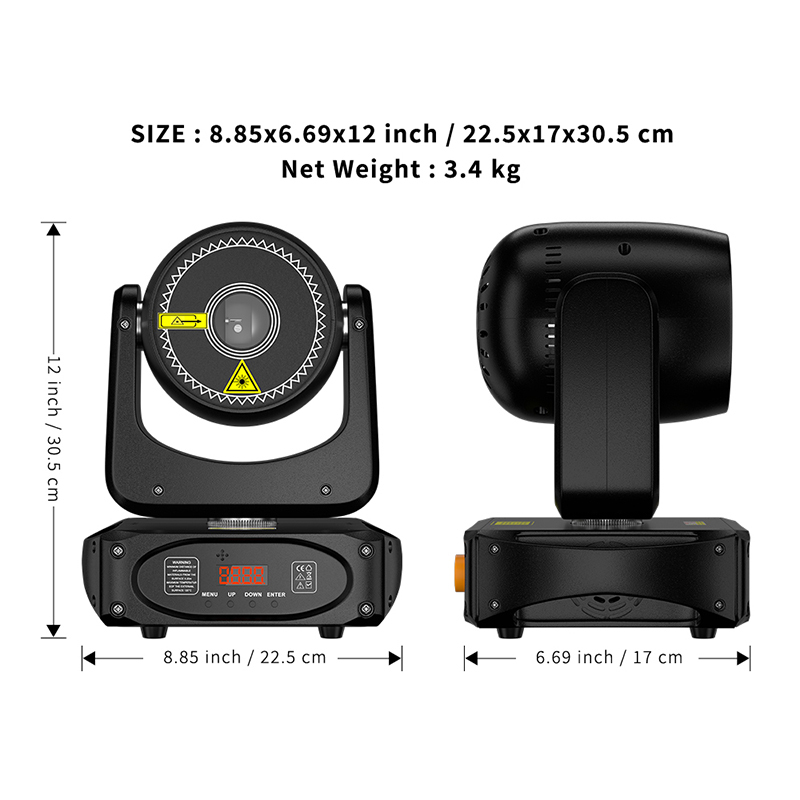

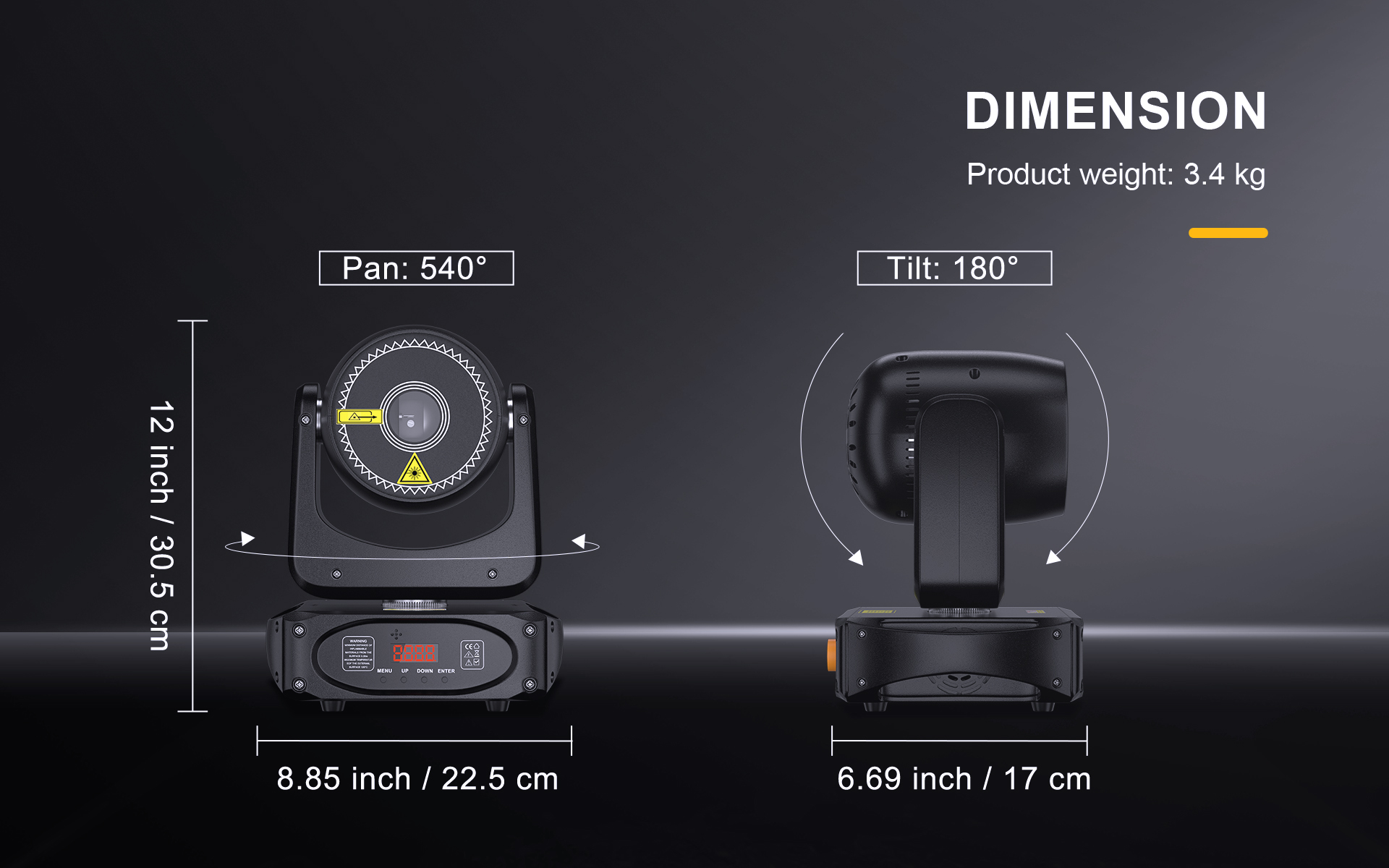

Product Size
Product size : 8.85x6.69x12 inch / 22.5x17x30.5 cm
Product weight: 3.4 kg
Pack size: 13.85x10.63x9.45 inch / 34x27x24 cm
Package weight: 4.41 kg

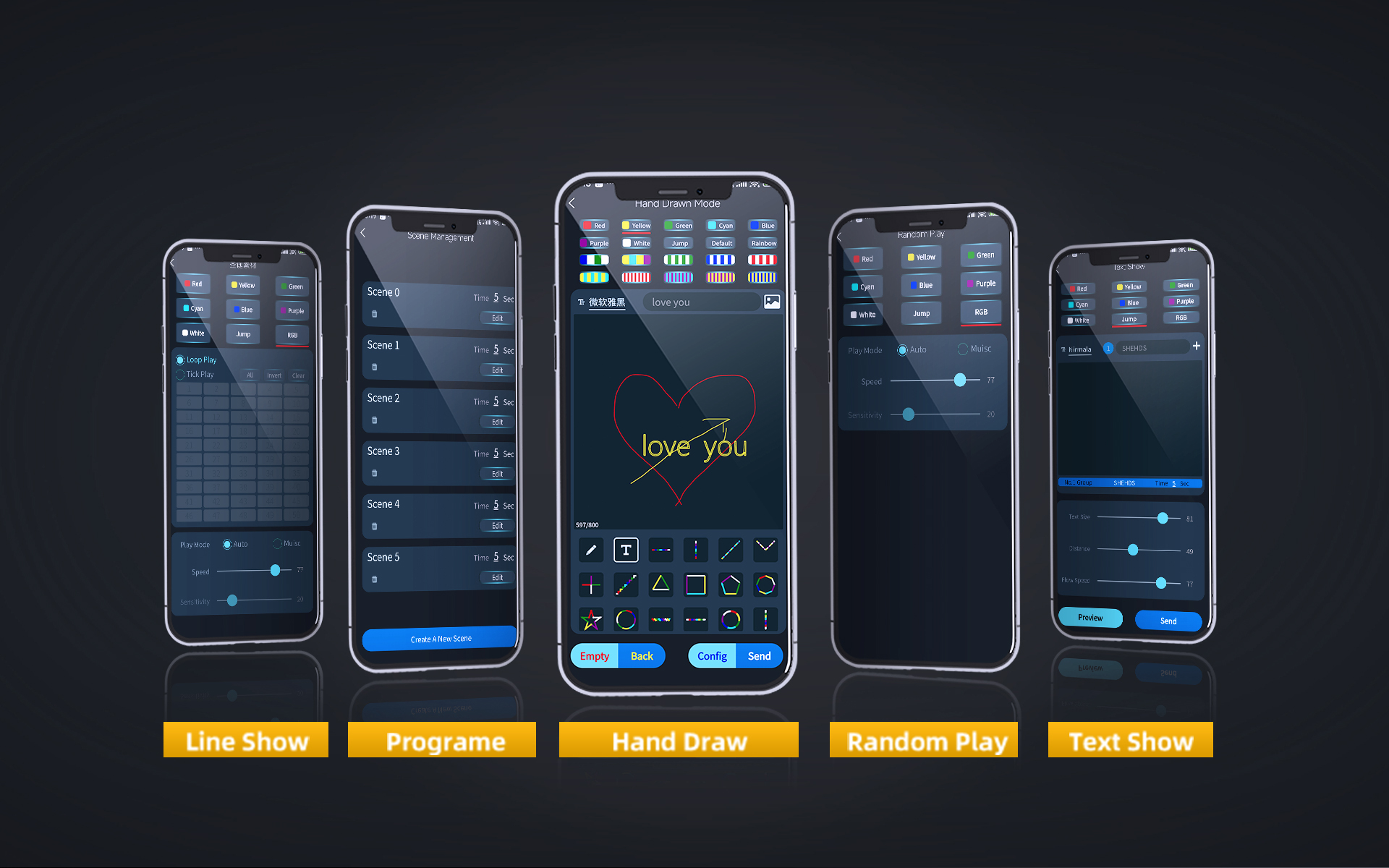

APP Conctrol
Support wireless remote control of laser
for Android and Apple system apps for laser output and setting menu options.
Control Model
The best feature of this laser light is its programmability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
At the same time, it also supports sound mode and auto mode,
which can change freely according to the music and environment to bring more outstanding effec ts to the stage performance.

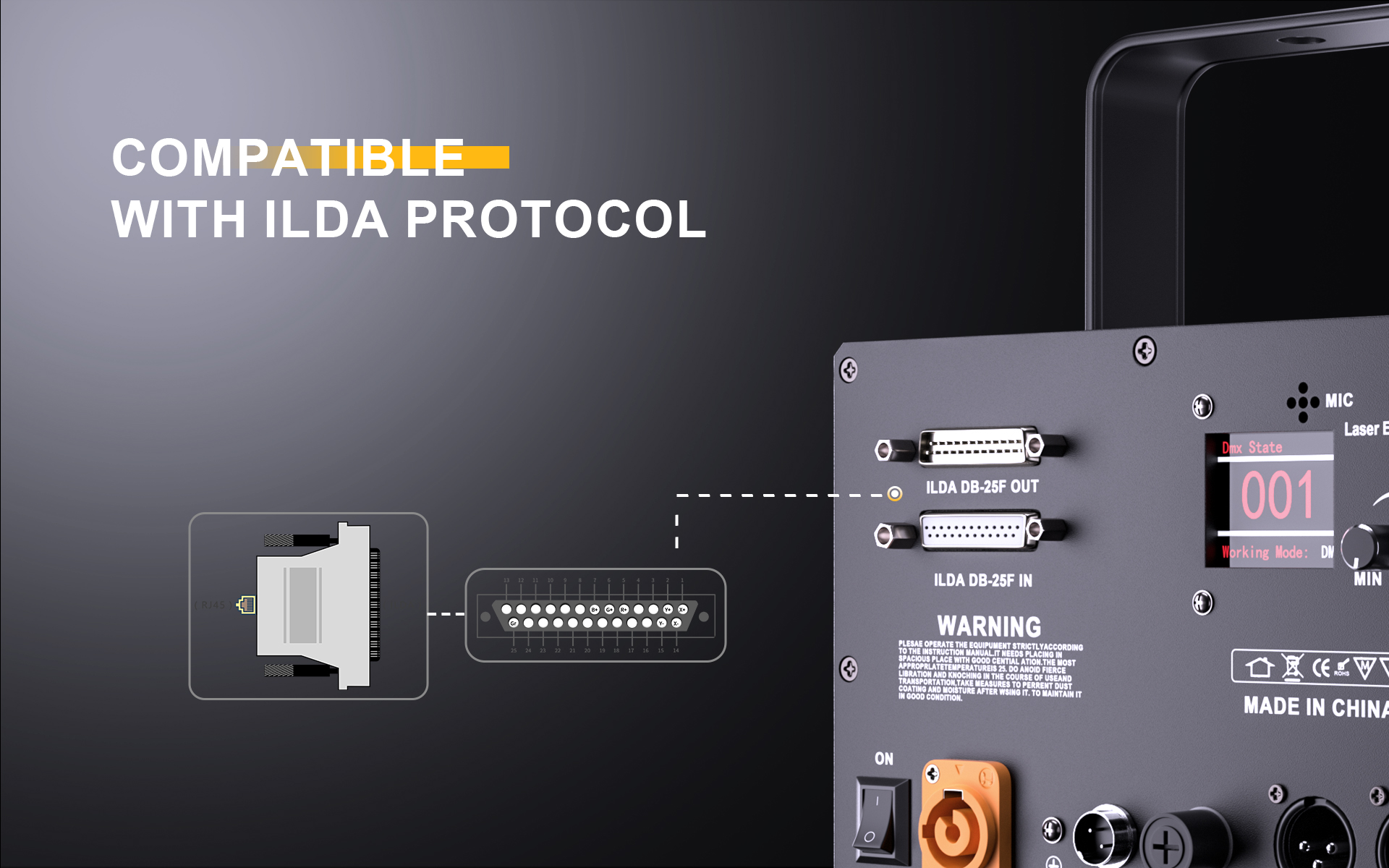

Compatible With ILDA Protocol
Support ILDA signal protocol for device input control, such as professional laser control software compatible with Beyond QuickShow FB3/FB4!
With Beyond QuickShow FB3/FB4, you'll have access to a vast library of pre-programmed laser effects,
as well as the ability to customize and create your own unique visuals.
From captivating beam shows to intricate graphics, the possibilities are endless with our ILDA-compatible laser lights.
Laser operation indicator light
The laser operation indicator light continuously lights up or flashes, reminding operators to pay attention to the presence of laser radiation and avoid direct exposure to the laser beam, thereby protecting the safety of operators.
RGB Laser Source
Using semiconductor laser diode light source, the standard full-color analog laser uses three primary colors: red, green, and blue.
The RGB can be mixed to create multiple brilliant colors,
like Magenta, Yellow，Cyan，White!
Laser Effect
The laser beam exhibits bright, sharp, and pure lines, with extremely high directionality and spectral purity. These beams can present stunning visual effects through precise beam manipulation and multi-dimensional projection in specific stage environments, creating intoxicating interweaving effects of light and shadow. Whether in large-scale performances, exhibitions, or events, the application of laser technology will bring unparalleled visual impact, enhance the overall atmosphere, and immerse the audience in a dreamlike audio-visual enjoyment.

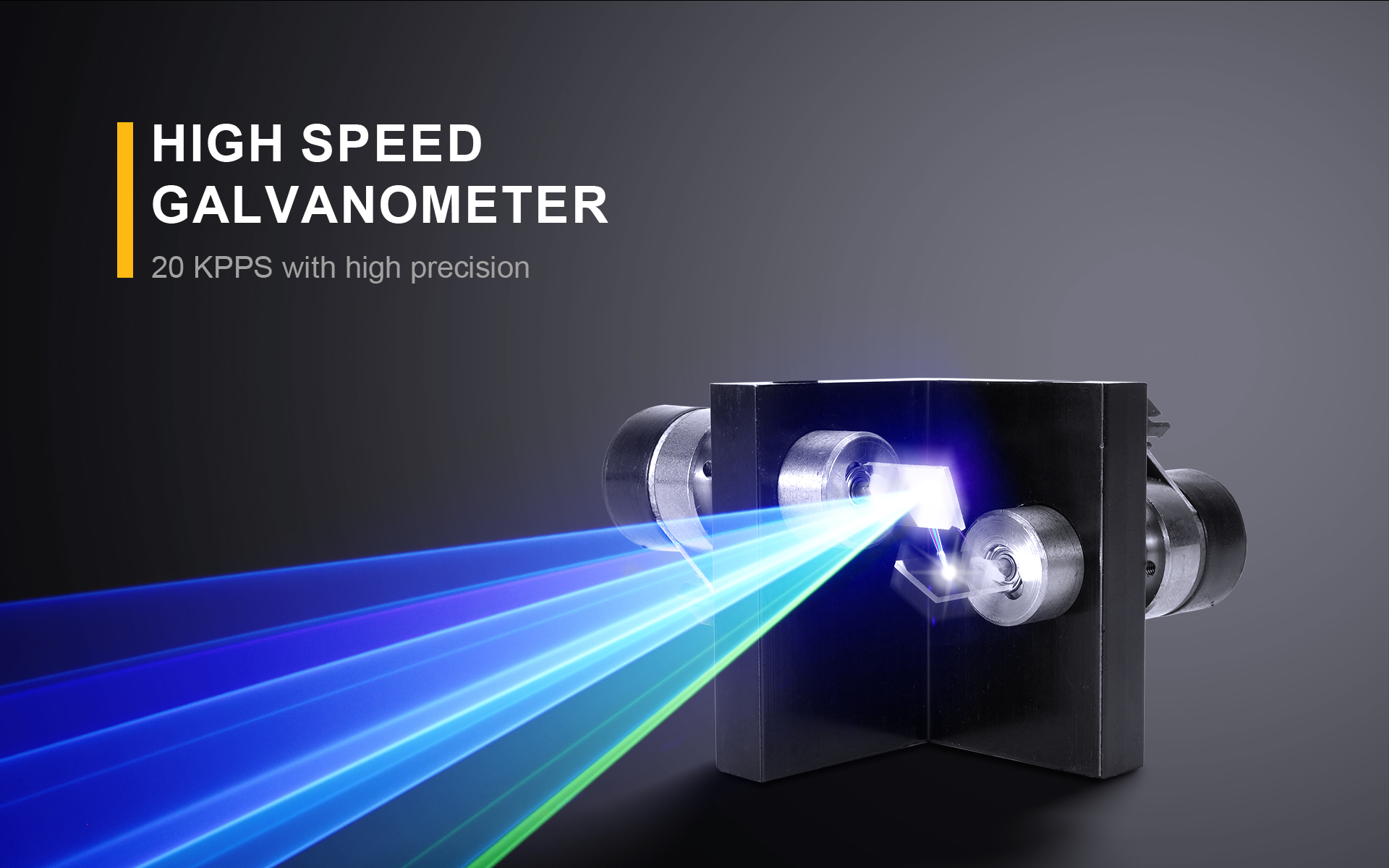

High Speed Galvanometer
High frequency scanning galvanometer technology can accurately capture every detail through fast and continuous laser scanning,
achieving smooth transitions and seamless connections of patterns. This technology not only enhances the smoothness of visual effects,
but also makes the presentation of patterns more three-dimensional and vivid, as if taking the audience into a dreamlike world where light and shadow intertwine.
The Aurora Effects
Presenting a dreamy and colorful visual effect like the northern light,
providing more possibilities and creative space for various performance occasions.
Compatible with ILDA
The control system is compatible with mainstream ILDA control software such as Pangolin Beyond and Lasershow Designer.

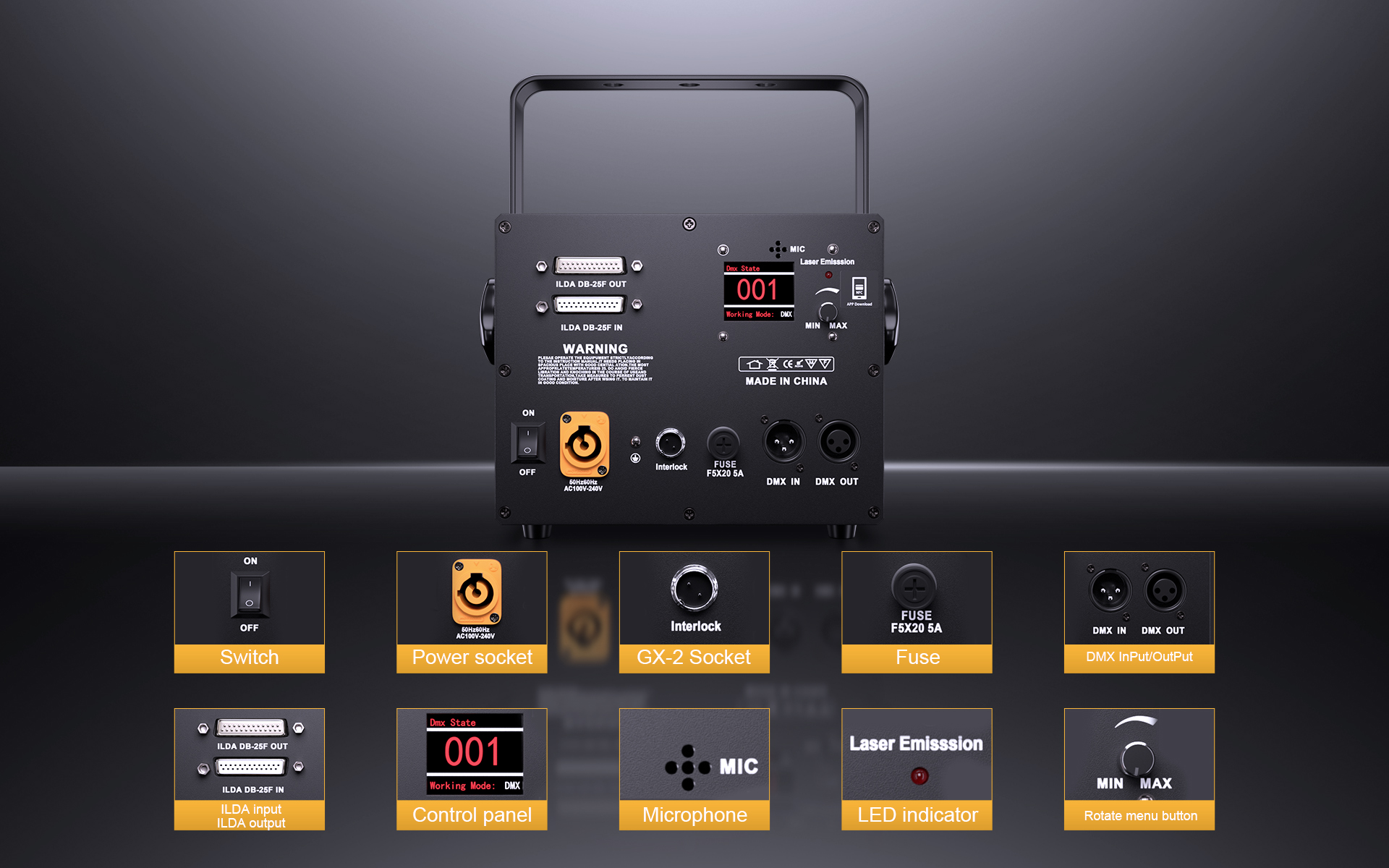

Introduction To Panel Functions
The laser equipment panel includes a high-definition display screen and simple menu buttons, which can intuitively display the interactive design of layered menus.
Multiple Pattern Effects
Supporting multiple color blends and gradients, making local patterns more colorful and vibrant in color.
Dynamic effects such as rapid transformation, rotation, and scaling of patterns can be achieved according to preset programs or voice commands, bringing viewers a more vivid visual experience.
Applicable Scene
The device itself integrates multiple interfaces, which not only improves the performance and security of the device, but also brings users a more convenient and efficient operating experience.
SAFETY TIPS
During the use of a laser source,
Do not look directly at the light source.
The effect of stage laser lights is formed by high-speed scanning of the laser
beam through high-speed galvanometers or low-speed stepper motors.
The harm to the human body is mainly reflected in the harm to the eyes,
and prolonged exposure can lead to blindness.

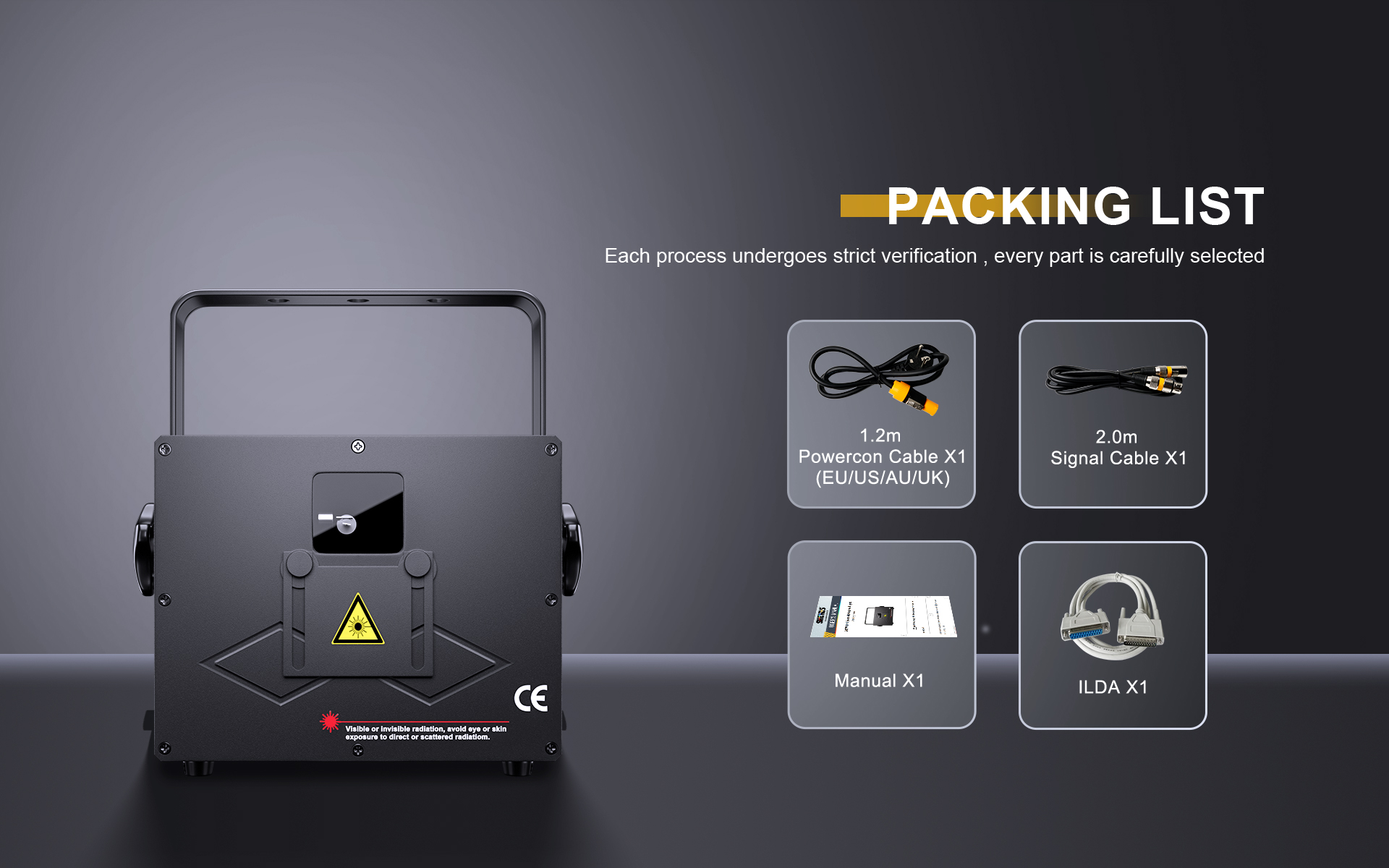

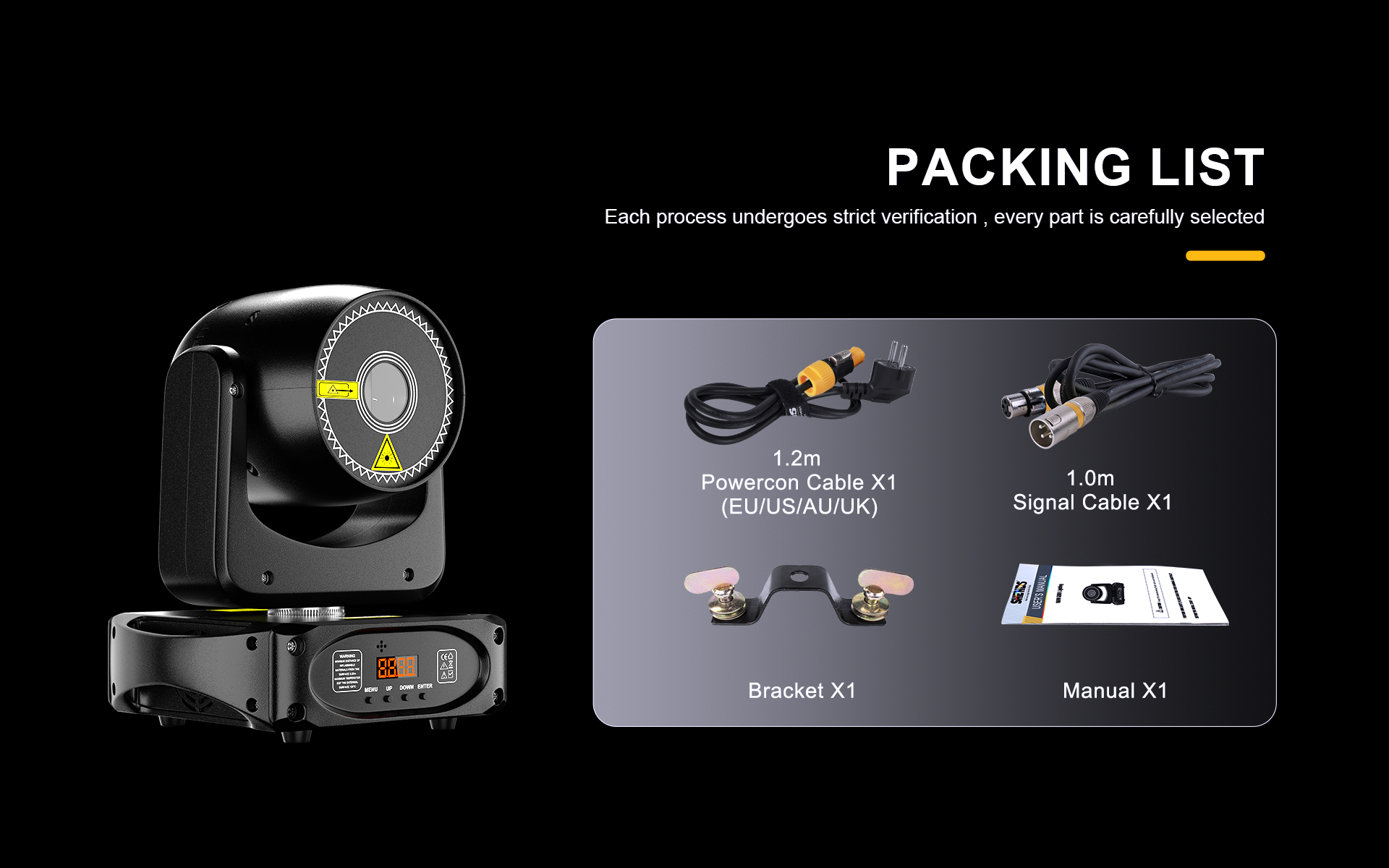

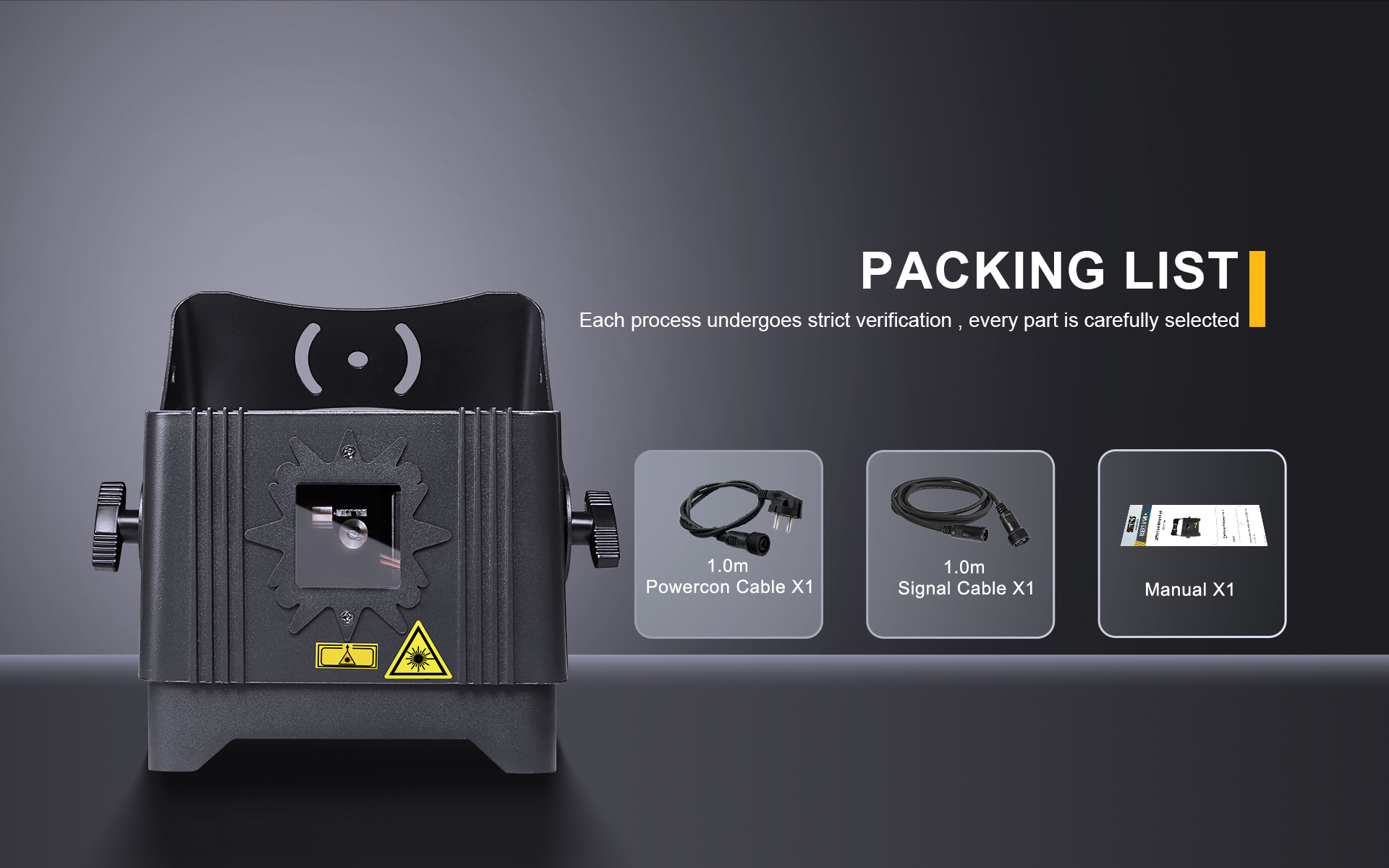

Packing List
Before packing, each of our products undergoes rigorous testing to ensure they are in perfect condition. Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every details. Only products that have gone through layers of scrutiny can confidently leave our factory and arrive in your hands with unparalleled quality, bringing you an excellent user experience.

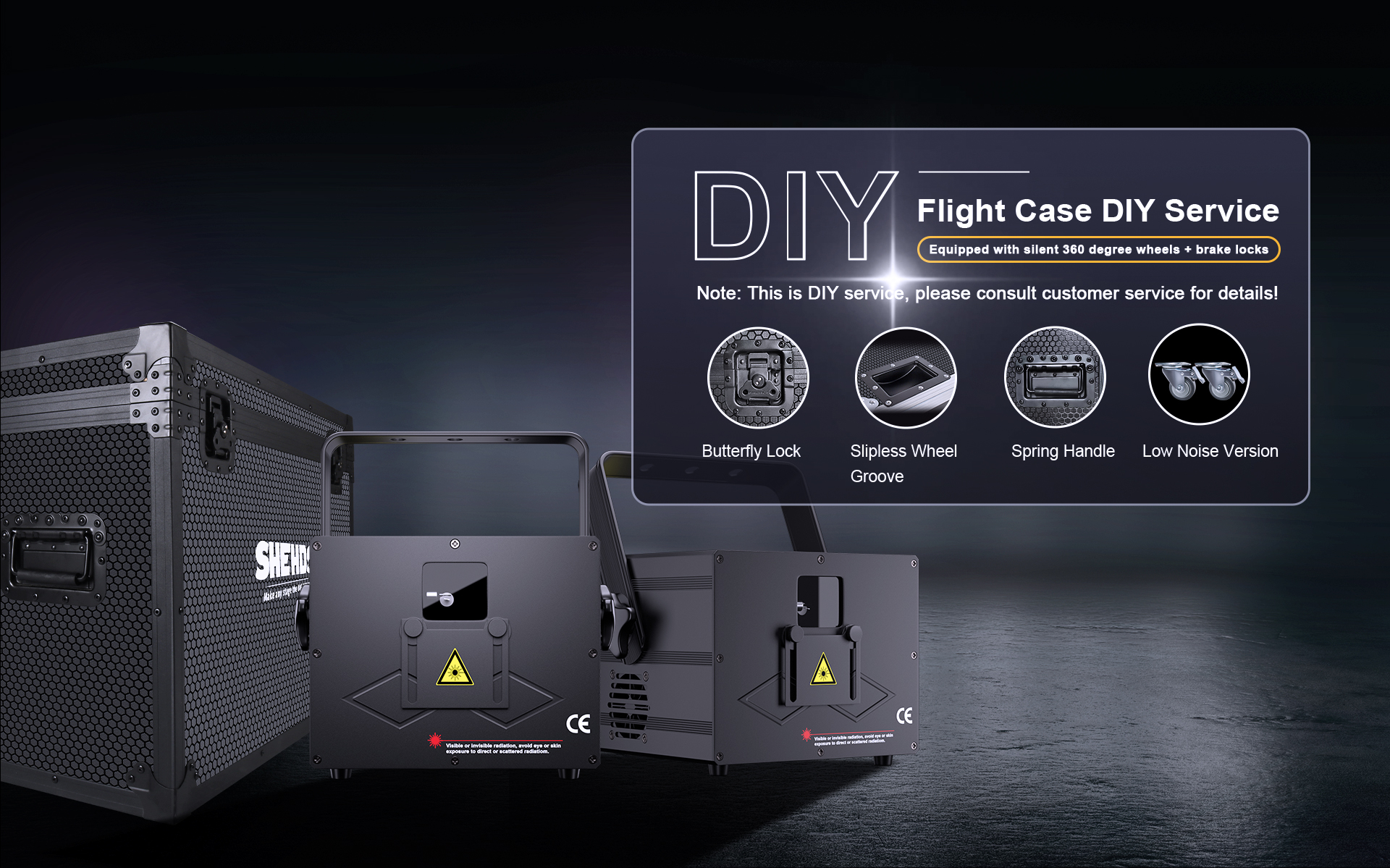

Flight Case DIY Service
Equipped with silent 360 degree wheels + brake lockers
We offer customized aviation cases that perfectly meet your product needs. Whether it's precision equipment, fragile items, or valuable goods, our aviation box design not only ensures safety protection, but also adapts flexibly to various specifications and shapes. Each box is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products. From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service, please consult customer service for details!
Qualification Certificate
Our laser equipment has not only obtained certification from the international authoritative organization FDA, but also passed the deviation application authorization certification for laser special equipment, ensuring that every device meets the strictest safety standards. This is not only a recognition of our technical strength, but also a commitment to your peace of mind when using it. Behind every laser beam is our pursuit of quality and safety, allowing you to feel at ease and enjoy efficiency and excellence when using it.
