| -Light source parameters |
| Laser wavelength: |
R-638nm, G-520nm, B-450nm |
| Spot size (laser window spot): |
5.5mm |
| Light source divergence angle : |
＜1.2mrad |
| Modulation mode: |
0~5V analog, up to 50khz/TTL |
| Laser class: |
Class IV |
| -Imaging system |
| Imaging color: |
Red, green, blue mixed colors |
| Evenness: |
>98% |
| Lens Horizontal Offset: |
-30% to +30% |
| Lens Vertical Offset:: |
-30% to +30% |
| Imaging mode: |
3D/2D pattern and animation (with software) |
| Projection distance: |
<200M The best distance is 20~50M |
| Playback rate: |
25 KPPS |
| Playback angle: |
Max60° |
| -Security system |
| Safety standard: |
Follow the IEC-60825-1:2014 standard, FDA regulations and TUV Laser Safety |
| Safety item: |
Over current and voltage protection |
| Degree of protection: |
IP20 |
| Operating temperature: |
15℃~45℃ |

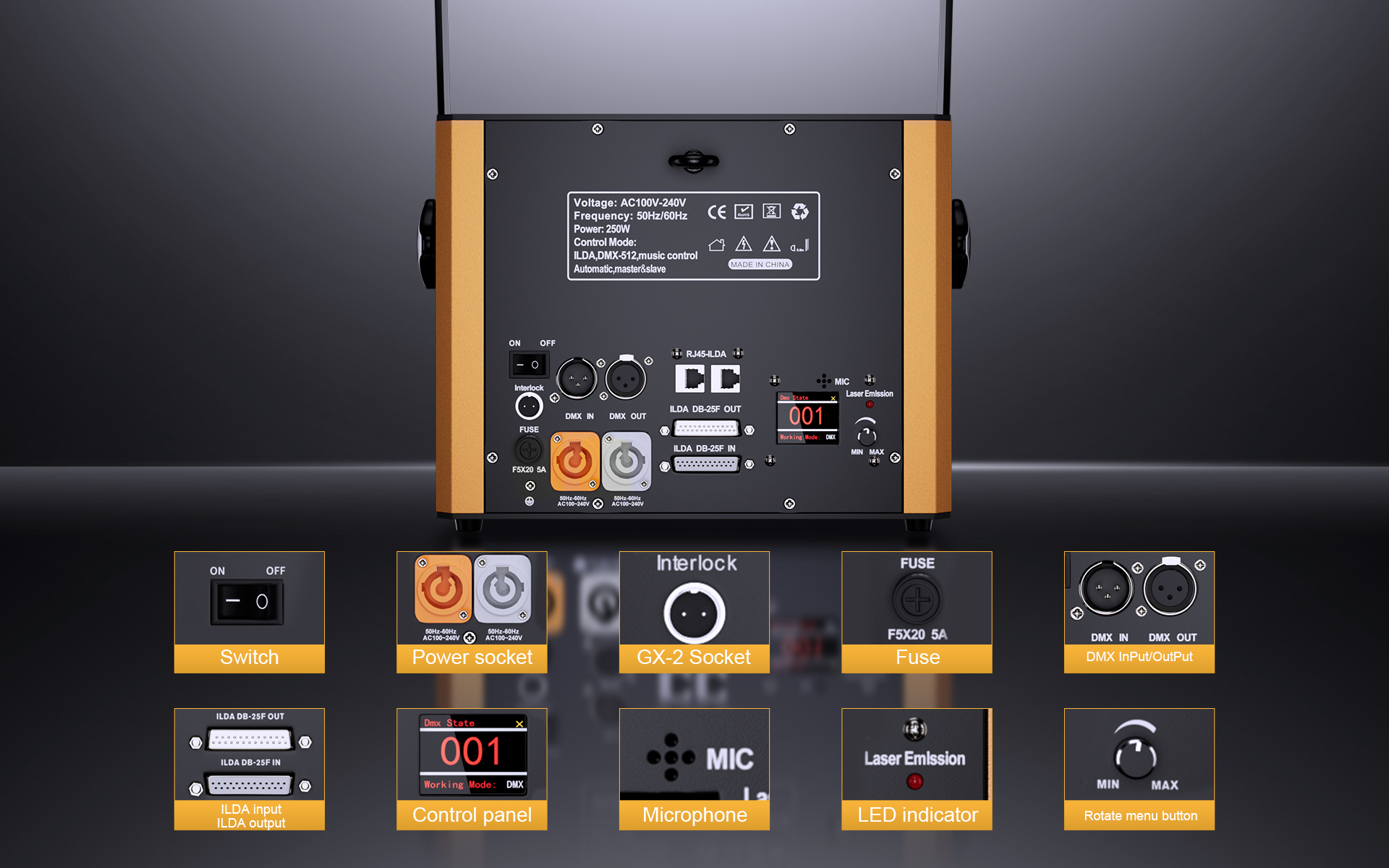

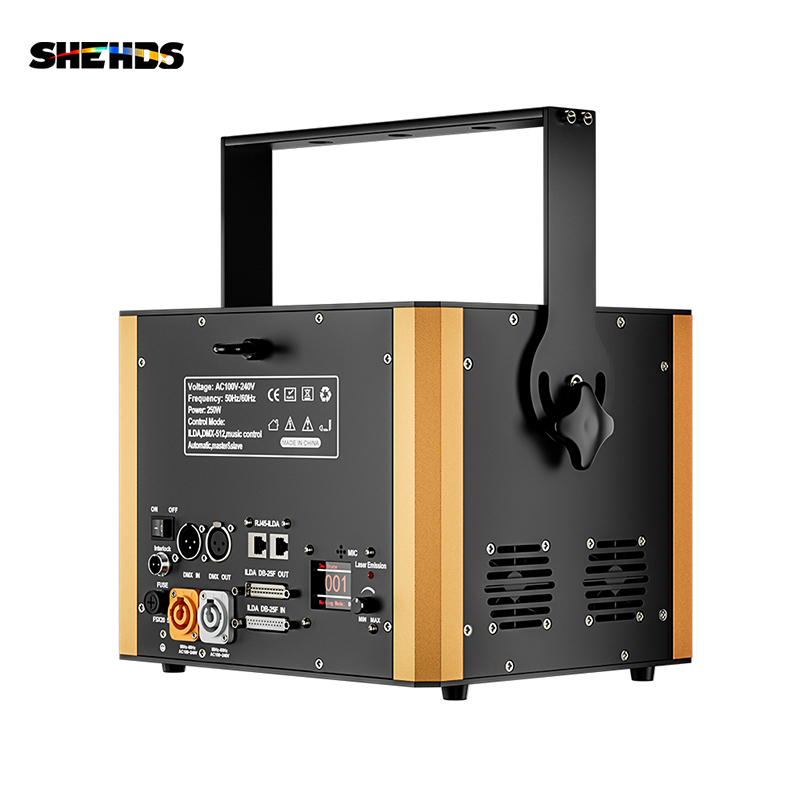

| -Interface and Control System |
| Control interface: |
ILDA In/Out , DMX In/Out ,RJ45 In/Out |
| DMX channel: |
16/20CH |
| Power interface: |
PowerCon |
| -Cooling system |
| Cooling method: |
Air cooled |
| Structure: |
60mm plug-in heat dissipation layer |
| Ventilation fan: |
60mm fan in* 2 , 60mm fan out* 2 |
| -Power consumption |
| Working power: |
100~240V AC 50/60HZ |
| Power consumption: |
Max 250W |
| -Physical parameters |
| Product size : |
13.97x11.02x13.77 inch / 35.5x28x35 cm |
| Product weight: |
7.38 Kg |
| Pack size: |
15.75x10.24x13.39 inch / 40x26x34 cm |
| Package weight: |
9 Kg |

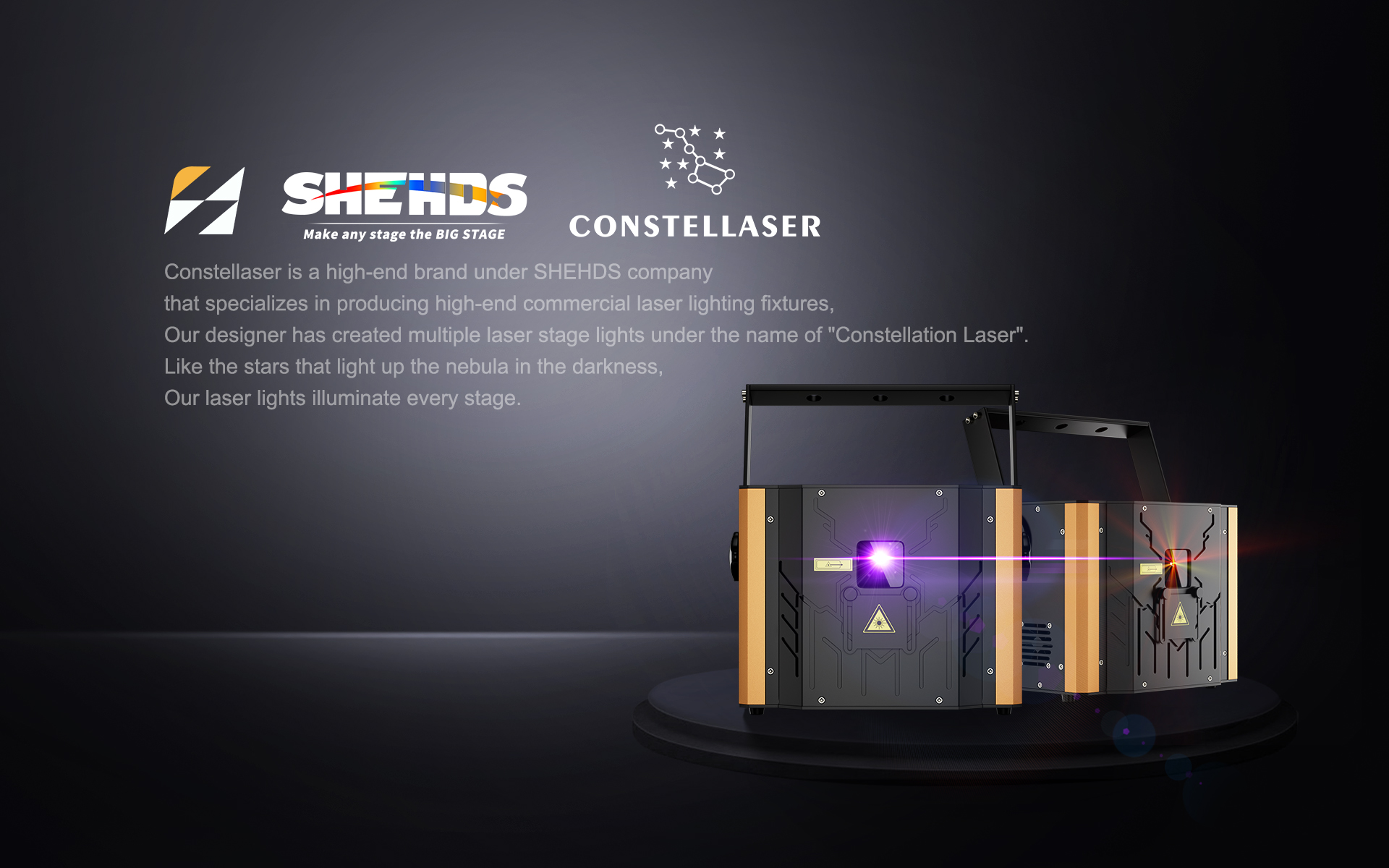

Constellation Laser SeriesThe origin of constellations can be traced back to prehistoric times.
People use them to tell stories about their beliefs, experiences,
creations and myths. Our designers have created a variety of laser stage lights under the name of "Constellation Laser".
Like the stars that light up the nebula in the dark, our laser lights light up every stage.

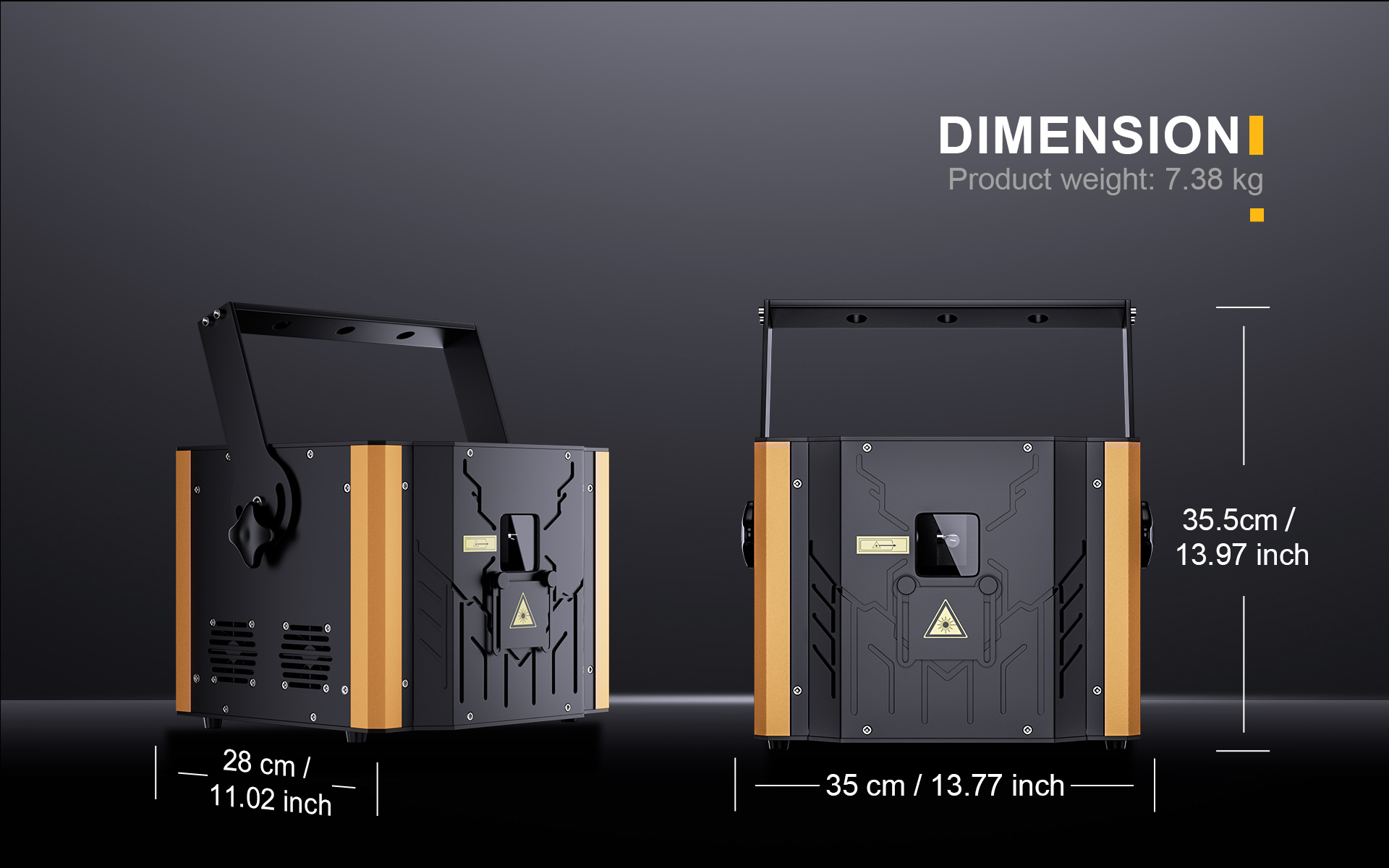

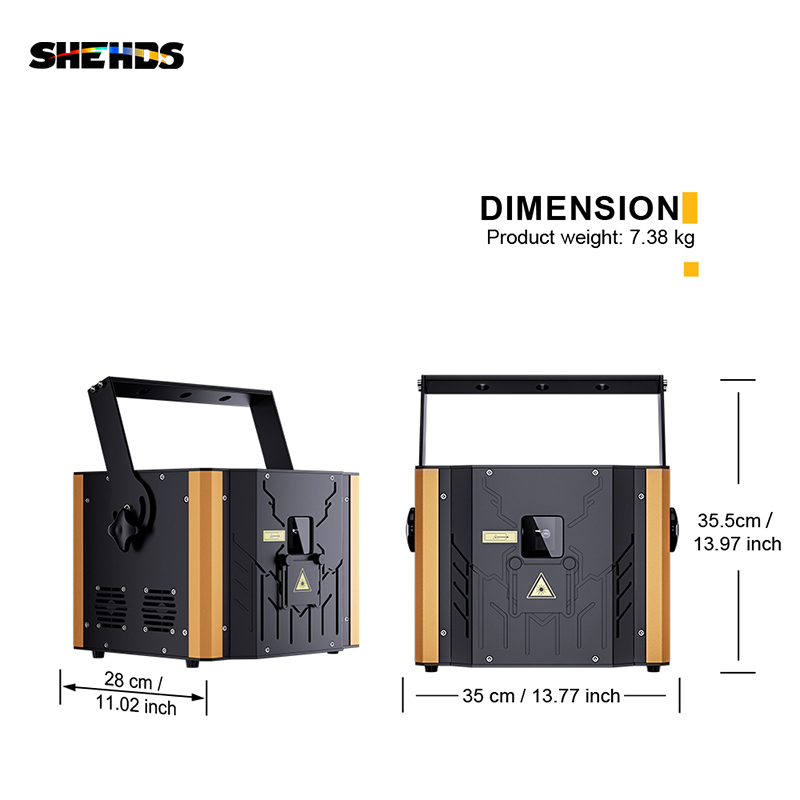

Product SizeProduct size : 13.97x11.02x13.77 inch / 35.5x28x35 cm
Product weight: 7.38 Kg
Pack size: 15.75x10.24x13.39 inch / 40x26x34 cm
Package weight: 9 Kg

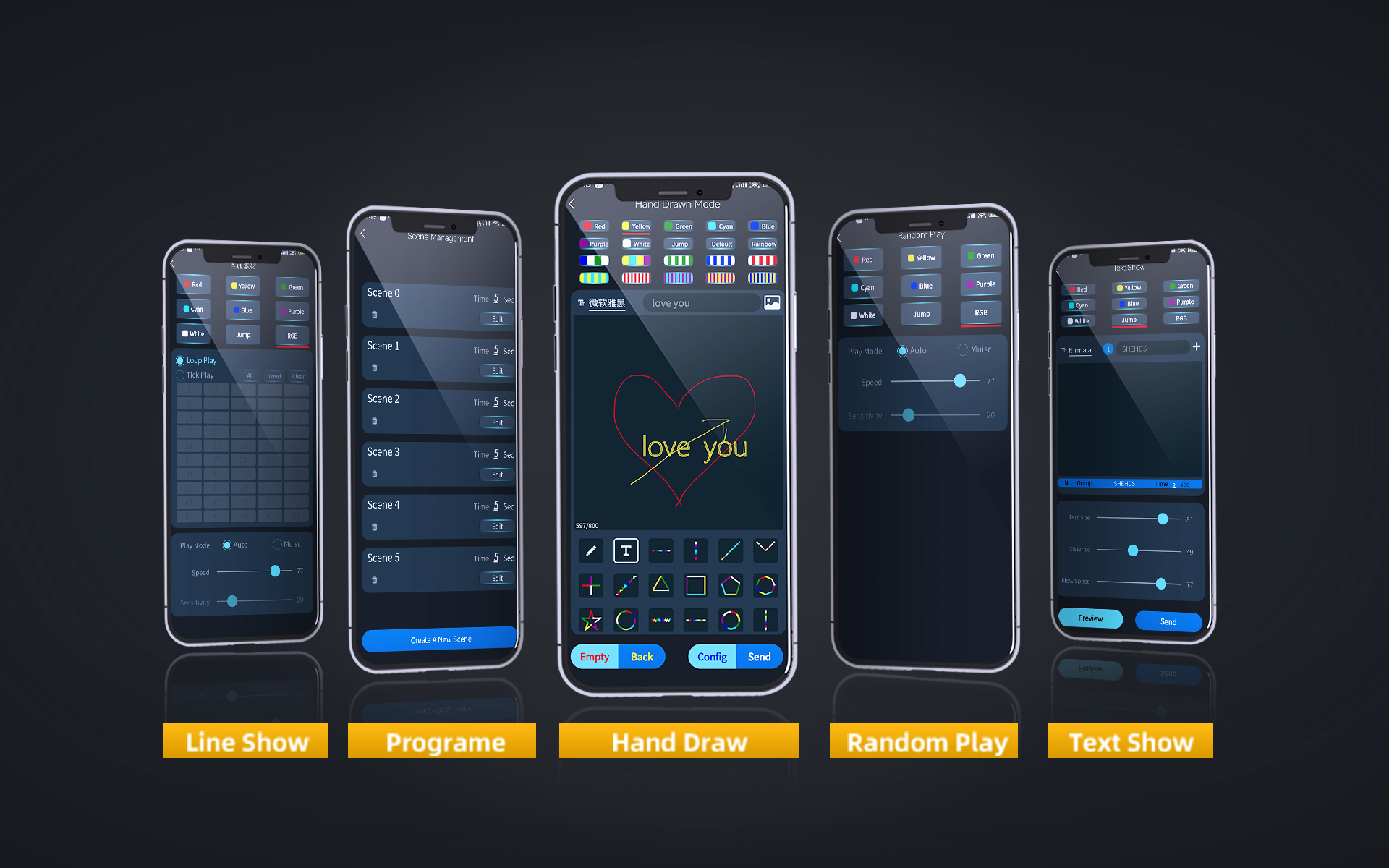

APP ConctrolSupport wireless remote control of laser
for Android and Apple system apps for laser output and setting menu options.

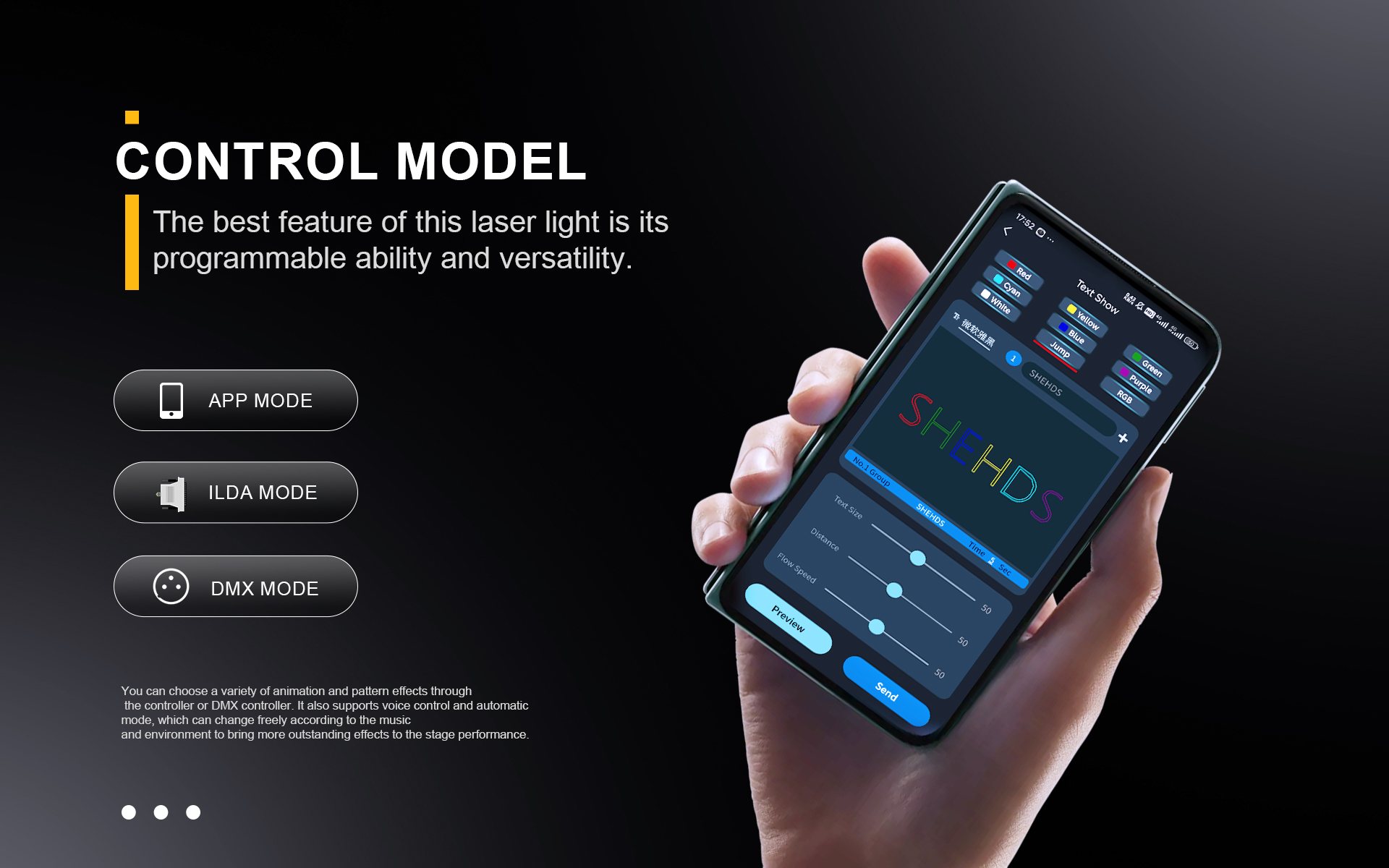

Control ModelThe best feature of this laser light is its programmability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
At the same time, it also supports sound mode and auto mode,
which can change freely according to the music and environment to bring more outstanding effec ts to the stage performance.

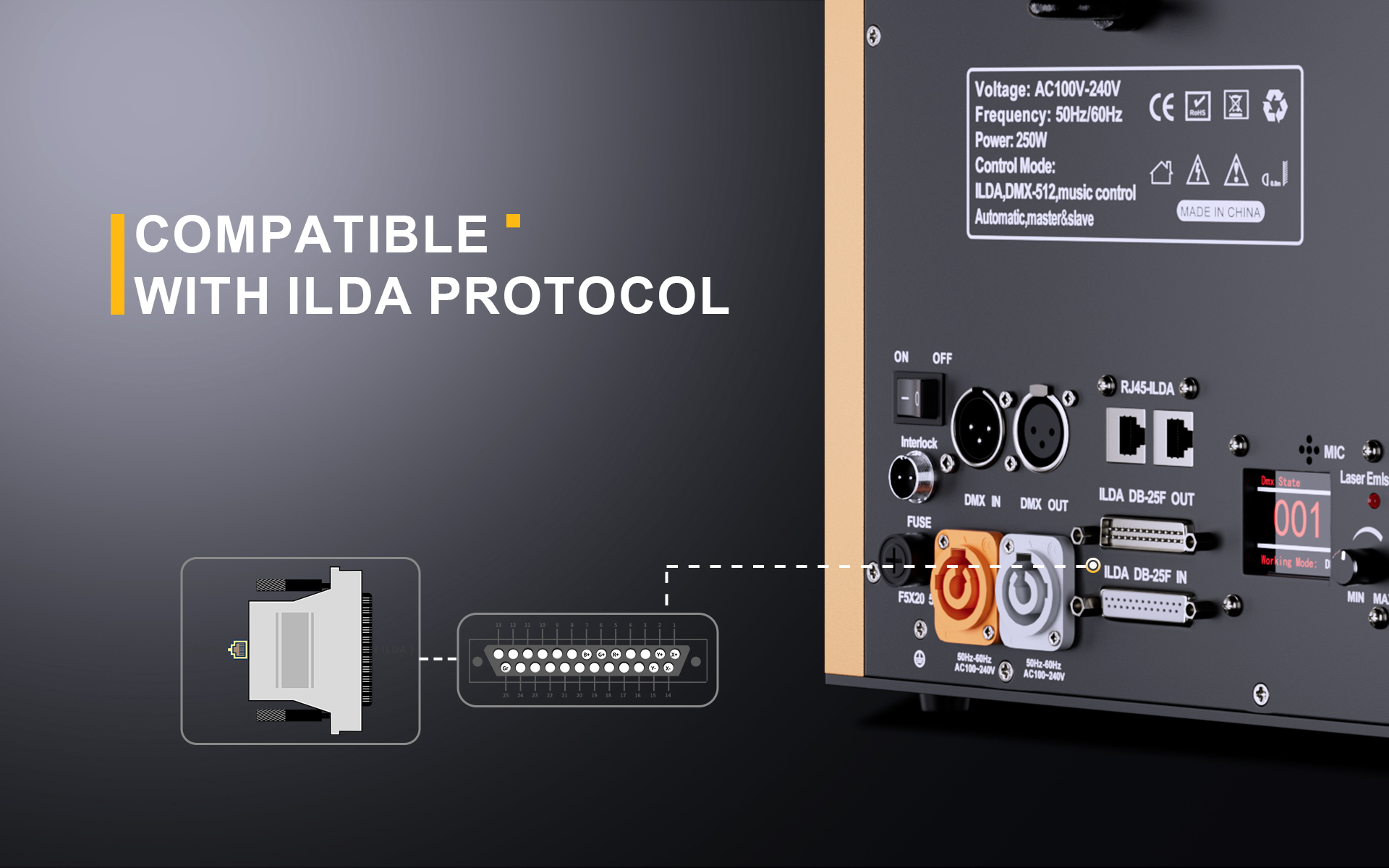

Compatible With ILDA ProtocolSupport ILDA signal protocol for device input control, such as professional laser control software compatible with Beyond QuickShow FB3/FB4!
With Beyond QuickShow FB3/FB4, you'll have access to a vast library of pre-programmed laser effects,
as well as the ability to customize and create your own unique visuals.
From captivating beam shows to intricate graphics, the possibilities are endless with our ILDA-compatible laser lights.
Analog ModulationRGB- Analog TTLSimulated modulation supports linear adjustment of brightness, which can achieve gradient effects and provide richer visual effects for laser performances.

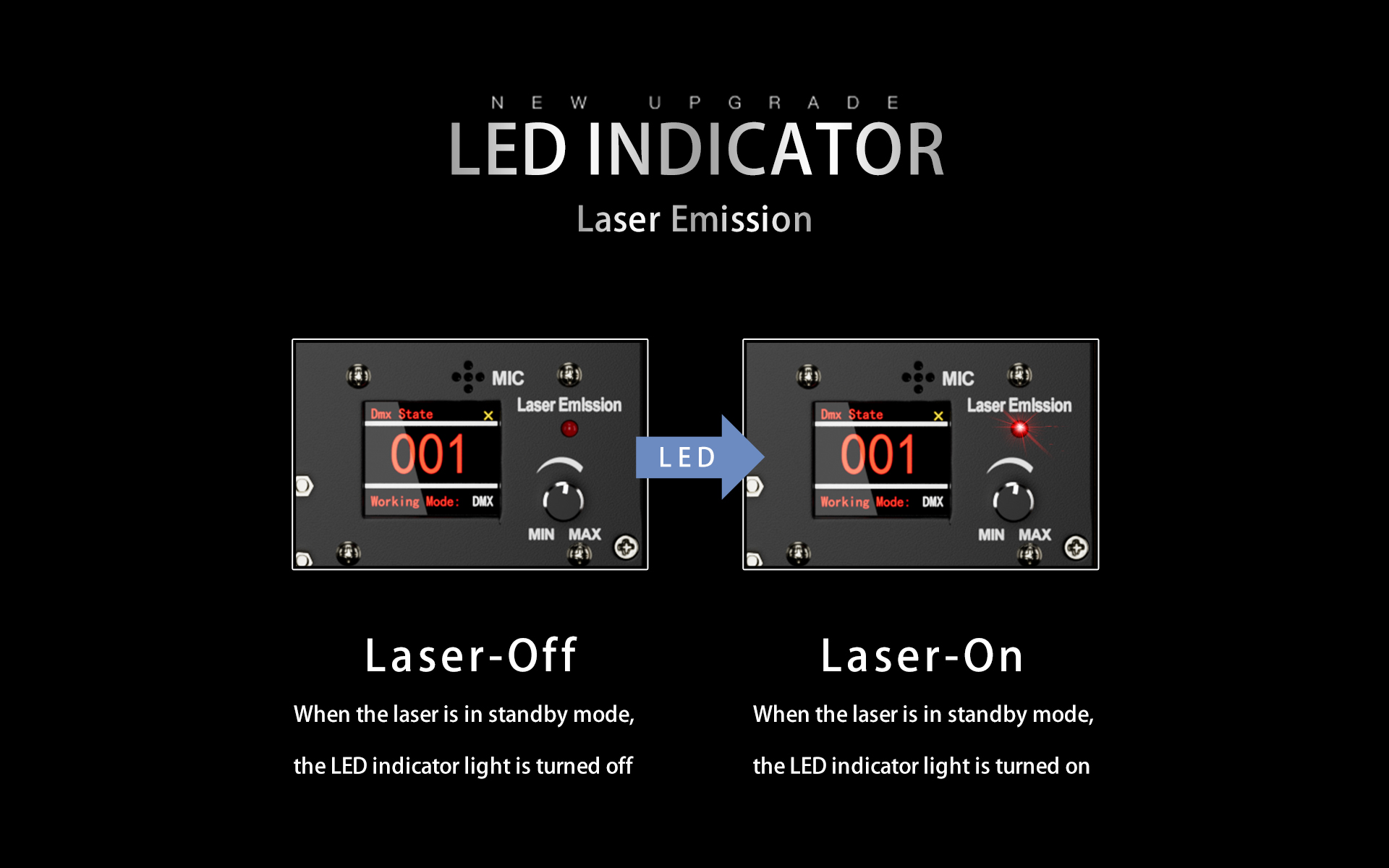

Laser operation indicator light
The laser operation indicator light continuously lights up or flashes, reminding operators to pay attention to the presence of laser radiation and avoid direct exposure to the laser beam, thereby protecting the safety of operators.
RGB Laser SourceUsing semiconductor laser diode light source, the standard full-color analog laser uses three primary colors: red, green, and blue.
Can mix multiple brilliant colors!
For example, Magenta, Yellow，Cyan，White
Laser EffectThe laser beam exhibits bright, sharp, and pure lines, with extremely high directionality and spectral purity.
These beams can present stunning visual effects through precise beam manipulation and multi-dimensional projection in specific stage environments, creating intoxicating interweaving effects of light and shadow.
Whether in large-scale performances, exhibitions, or events, the application of laser technology will bring unparalleled visual impact,
enhance the overall atmosphere, and immerse the audience in a dreamlike audio-visual enjoyment.
High Speed Galvanometer20 KPPS with high precision
High frequency scanning galvanometer technology can accurately capture every detail through fast and continuous laser scanning,
achieving smooth transitions and seamless connections of patterns. This technology not only enhances the smoothness of visual effects,
but also makes the presentation of patterns more three-dimensional and vivid, as if taking the audience into a dreamlike world where light and shadow intertwine.
The Northern Lights Canopy EffectsPresenting a dreamy and colorful visual effect similar to the auroram,
Providing more possibilities and creative space for various performance occasions.
Compatible With ILDA ProtocolSupport ILDA signal protocol for device input control, such as professional laser control software compatible with Beyond QuickShow FB3/FB4!
With Beyond QuickShow FB3/FB4, you'll have access to a vast library of pre-programmed laser effects,
as well as the ability to customize and create your own unique visuals.
From captivating beam shows to intricate graphics, the possibilities are endless with our ILDA-compatible laser lights.
Control ModelBuilt in with a rich variety of patterns and animation effects, from dazzling rainbows and twinkling stars to dynamic waves and cool geometric shapes,
each effect has been carefully designed to meet the needs of different scenes and atmospheres. Whether it's a romantic proposal scene,
a passionate music festival, or a peaceful night stroll, our laser equipment can create an unforgettable world of light and shadow.
Multiple Pattern EffectsSupporting multiple color blends and gradients, making local patterns more colorful and vibrant in color.
Dynamic effects such as rapid transformation, rotation, and scaling of patterns can be achieved according to preset programs or voice commands, bringing viewers a more vivid visual experience.

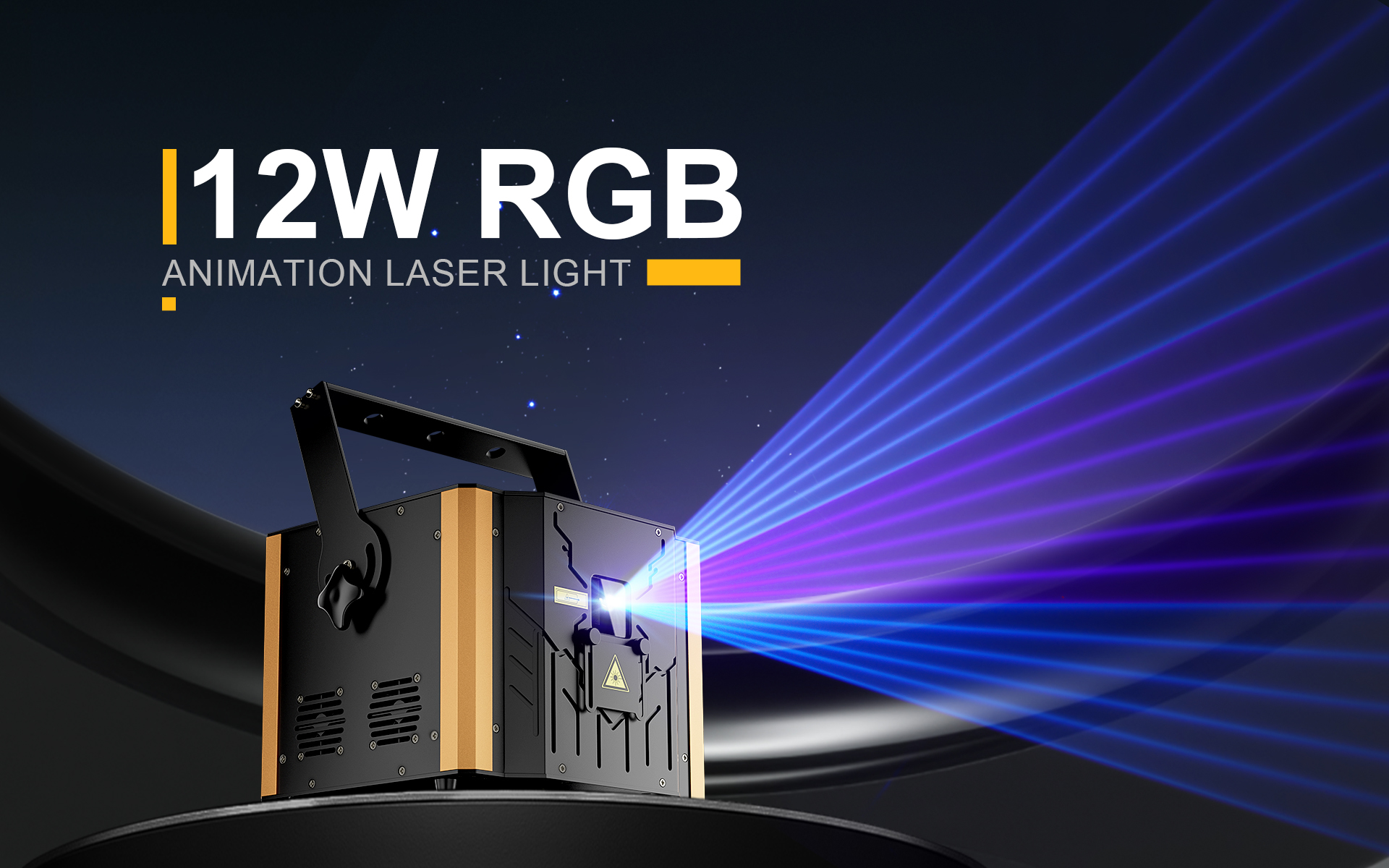

Applicable SceneThe 12W laser lights are perfect for creating stunning visual effects in bars and clubs,
enhancing the vibrant atmosphere of any venue.
Function IntroductionSAFETY TIPSDuring the use of a laser source,
Do not look directly at the light source.
The effect of stage laser lights is formed by high-speed scanning of the laser
beam through high-speed galvanometers or low-speed stepper motors.
The harm to the human body is mainly reflected in the harm to the eyes,
and prolonged exposure can lead to blindness.

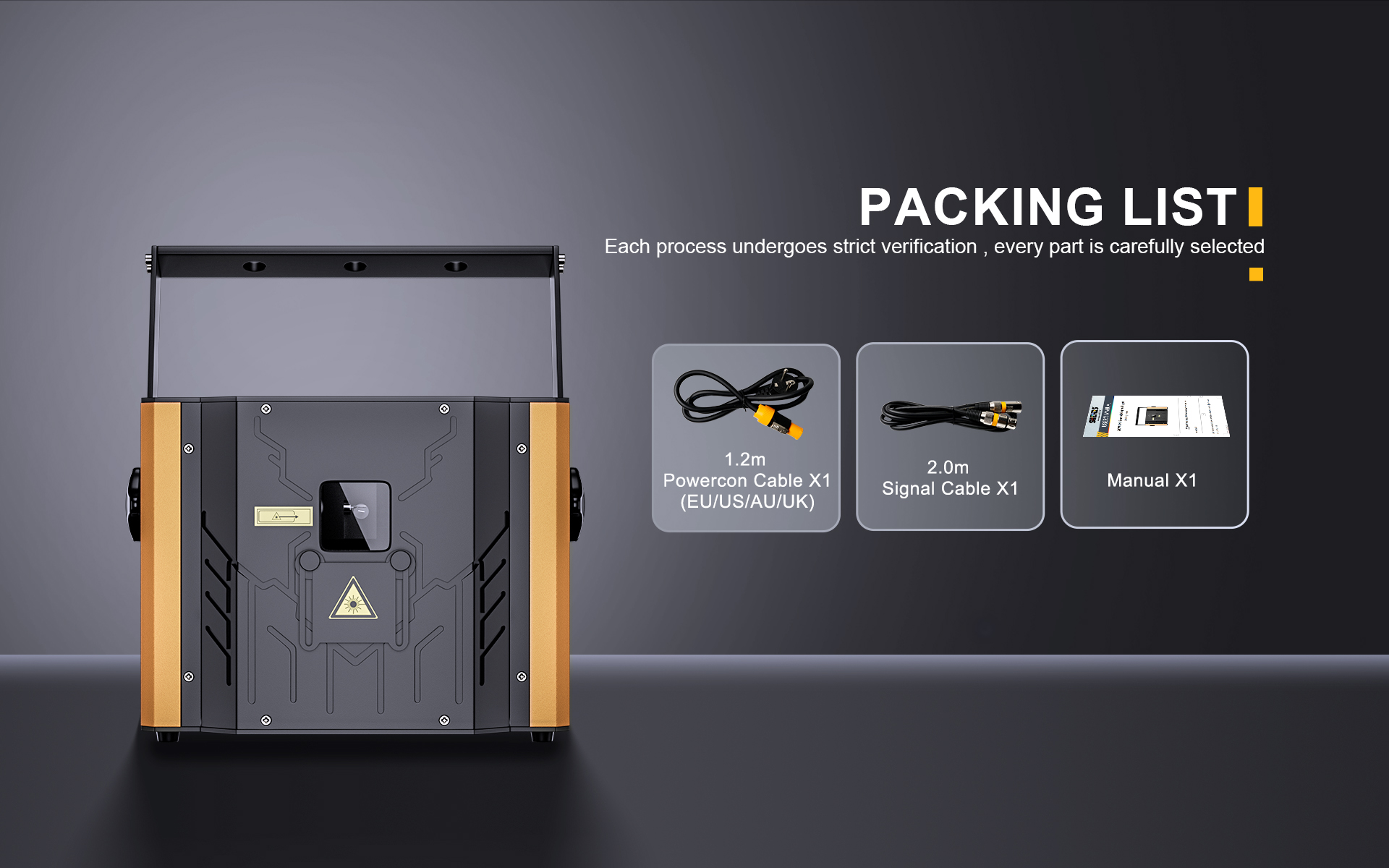

Packing ListBefore leaving the factory, each of our products undergoes rigorous testing to ensure they are in perfect condition before being shipped out. Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every detail. Only products that have gone through layers of scrutiny can confidently leave our factory and arrive in your hands with unparalleled quality, bringing you an excellent user experience.

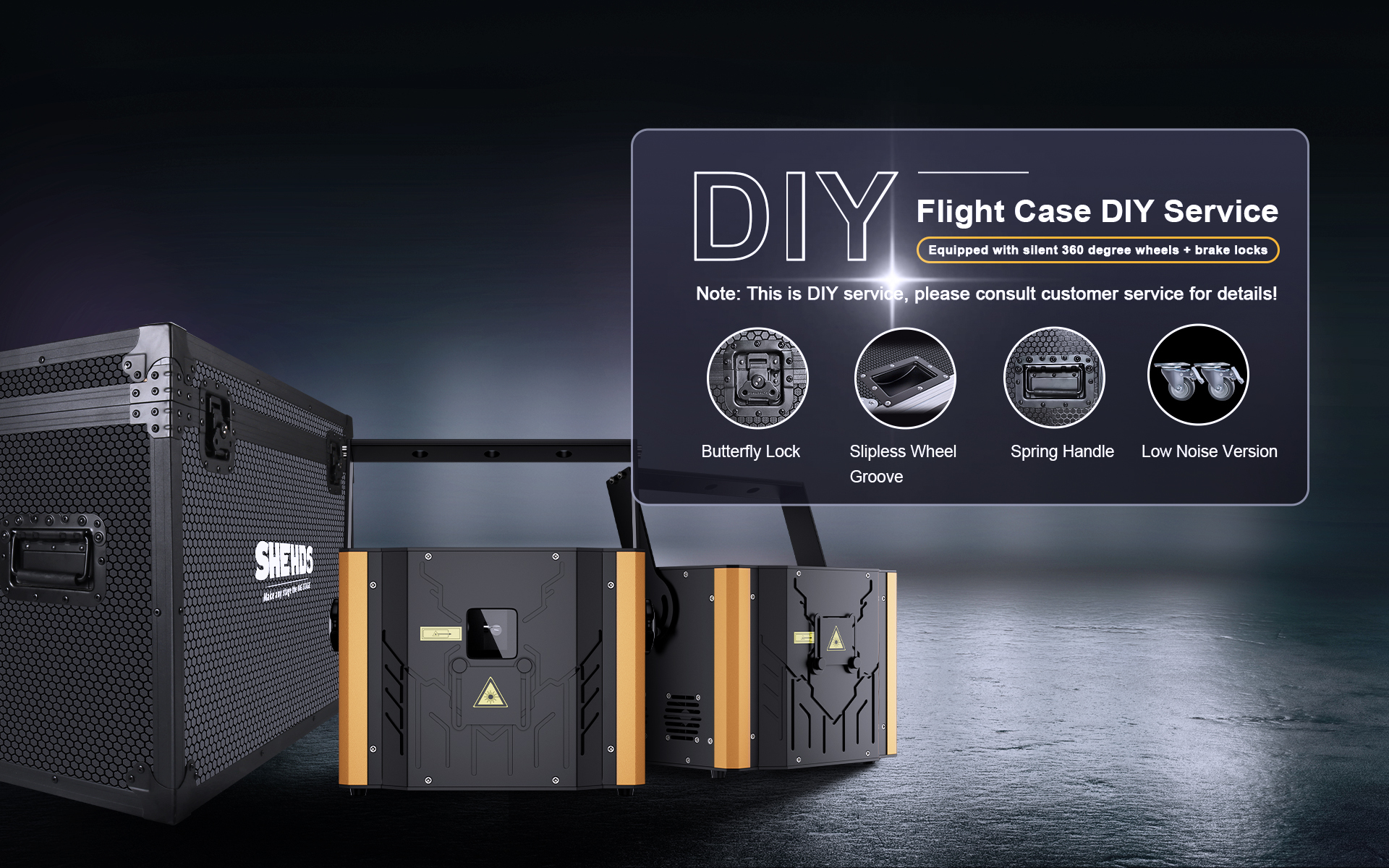

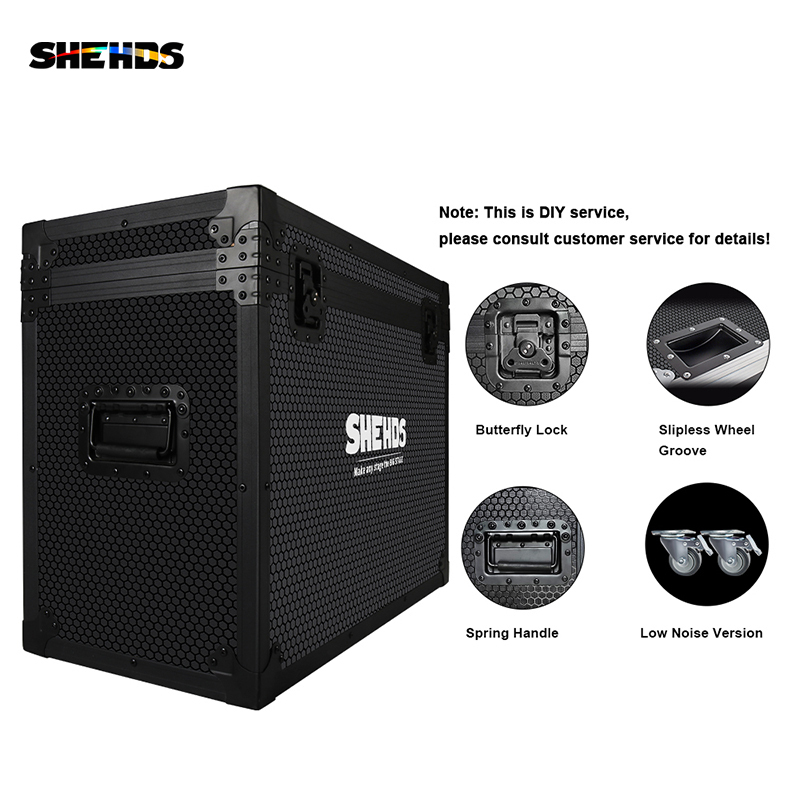

Flight Case DIY ServiceEquipped with silent 360 degree wheels + brake lockers
We offer customized aviation cases that perfectly meet your product needs. Whether it's precision equipment, fragile items, or valuable goods, our aviation box design not only ensures safety protection, but also adapts flexibly to various specifications and shapes. Each box is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products. From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service,
please consult customer service for details!
