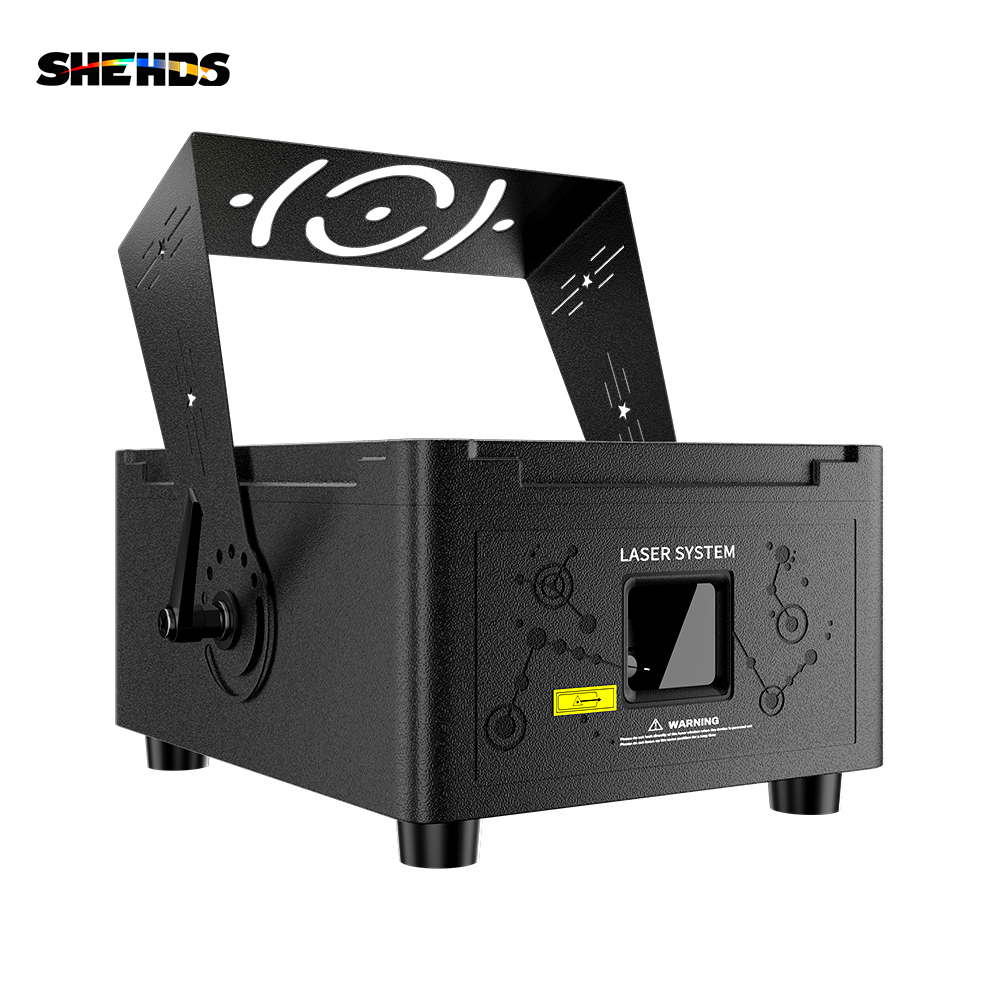

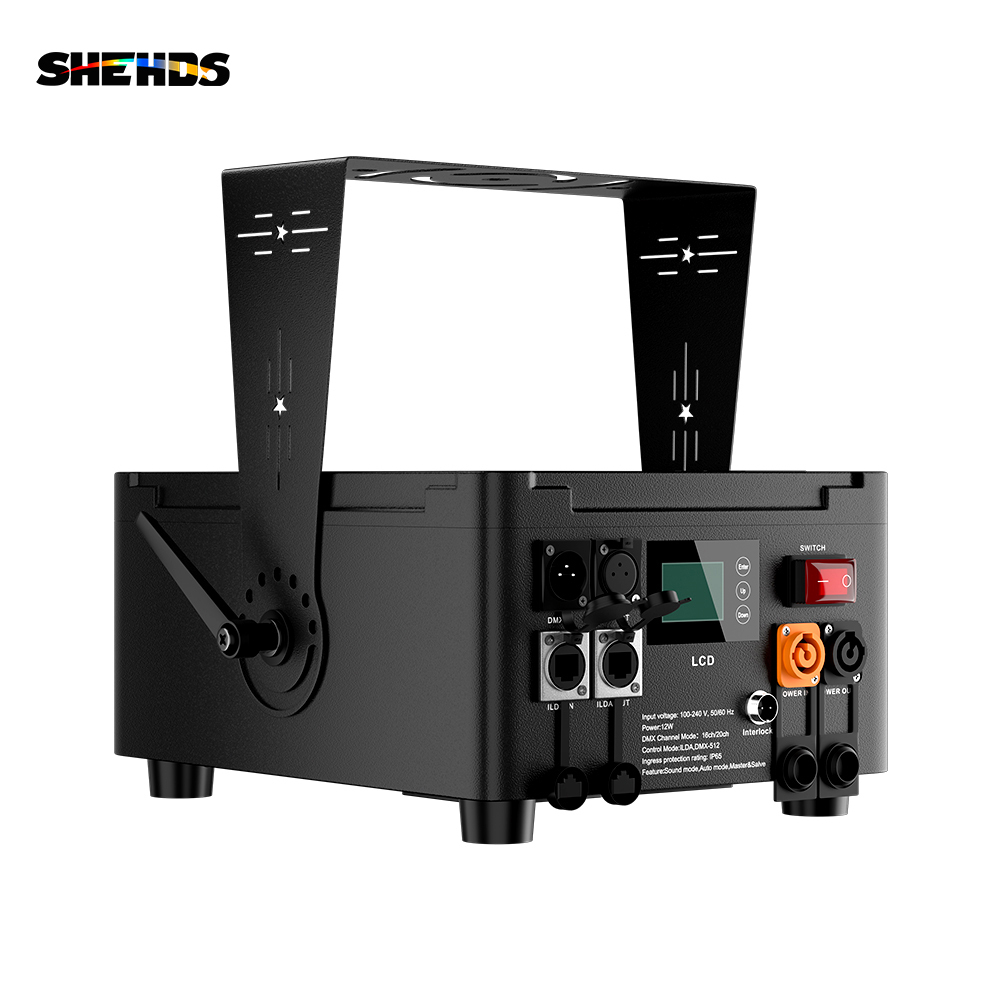

12W RGB Animation Laser Light
IP65 waterproof type
Constellation Laser Series
The origin of constellations can be traced back to prehistoric times.
People use them to tell stories about their beliefs, experiences,
creations and myths. Our designers have created a variety of laser stage lights under the name of "Constellation Laser".
Like stars that light up nebula in the dark, our laser lights light up every stage.
Technical Parameter
|
-Light source parameters
|
|
Laser wavelength:
|
R-638nm, G-520nm, B-450nm
|
|
Spot size (laser window spot):
|
5.5mm
|
|
Light source divergence angle :
|
＜1.2mrad
|
|
Modulation mode:
|
0~5V analog, up to 50khz/TTL
|
|
Laser class:
|
Class IV
|
|
-Imaging system
|
|
Imaging color:
|
Red, green, blue mixed colors
|
|
Evenness:
|
>98%
|
|
Lens Horizontal Offset:
|
-30% to +30%
|
|
Lens Vertical Offset::
|
-30% to +30%
|
|
Imaging mode:
|
3D/2D pattern and animation (with software)
|
|
Projection distance:
|
<200M The best distance is 20~50M
|
|
Playback rate:
|
25 KPPS
|
|
Playback angle:
|
Max60°
|
|
-Security system
|
|
Safety standard:
|
Follow the IEC60825 standard，FDA regulations and TUV Laser Safety
|
|
Safety item:
|
Over current and voltage protection
|
|
Ingress Protection Rating
|
IP65
|
|
Operating temperature:
|
15℃~45℃
|
|
-Interface and Control System
|
|
Control interface:
|
DMX In/Out ,RJ45 In/Out
|
|
DMX channel:
|
10/18CH
|
|
Power interface:
|
PowerCon
|
|
-Cooling system
|
|
Cooling method:
|
Air cooled and thickened passive heat dissipation module
|
|
Structure:
|
60mm plug-in heat dissipation layer
|
|
-Power consumption
|
|
Working power:
|
100~240V AC 50/60HZ
|
|
Power consumption:
|
Max 150W
|
|
-Physical parameters
|
|

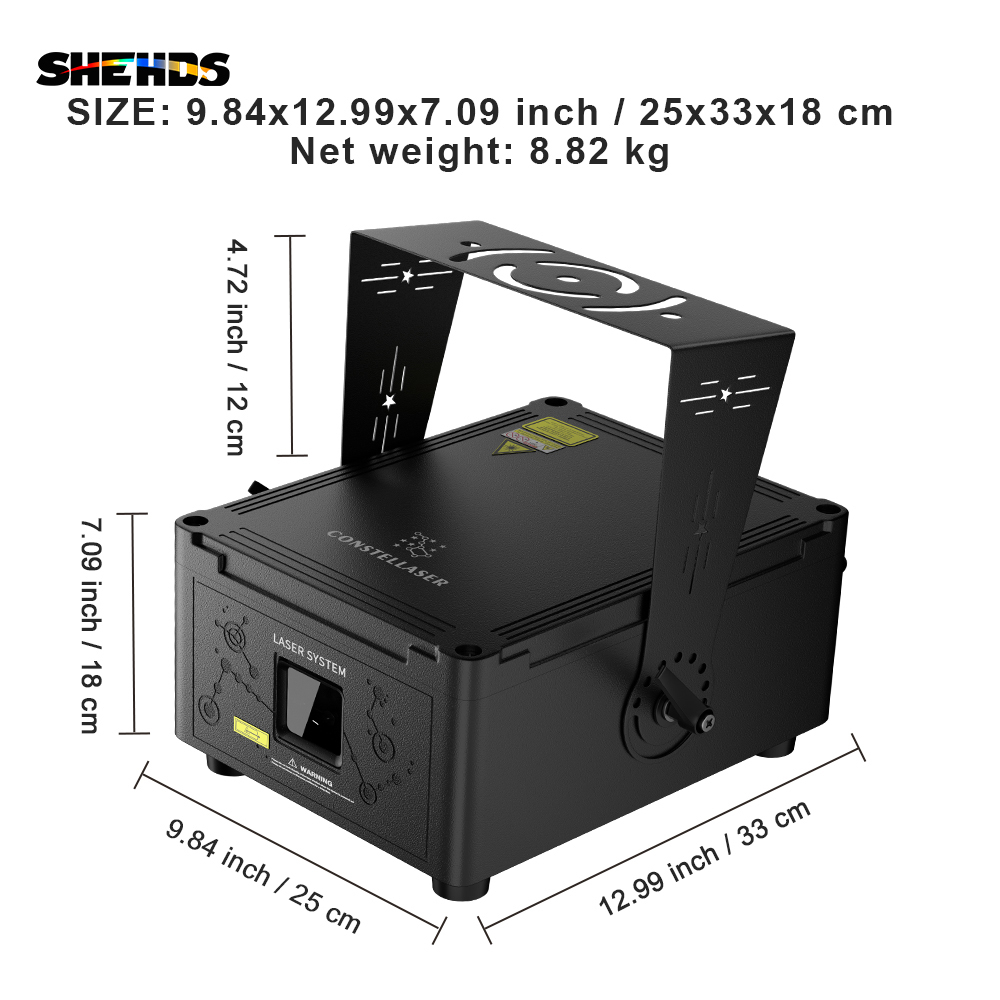

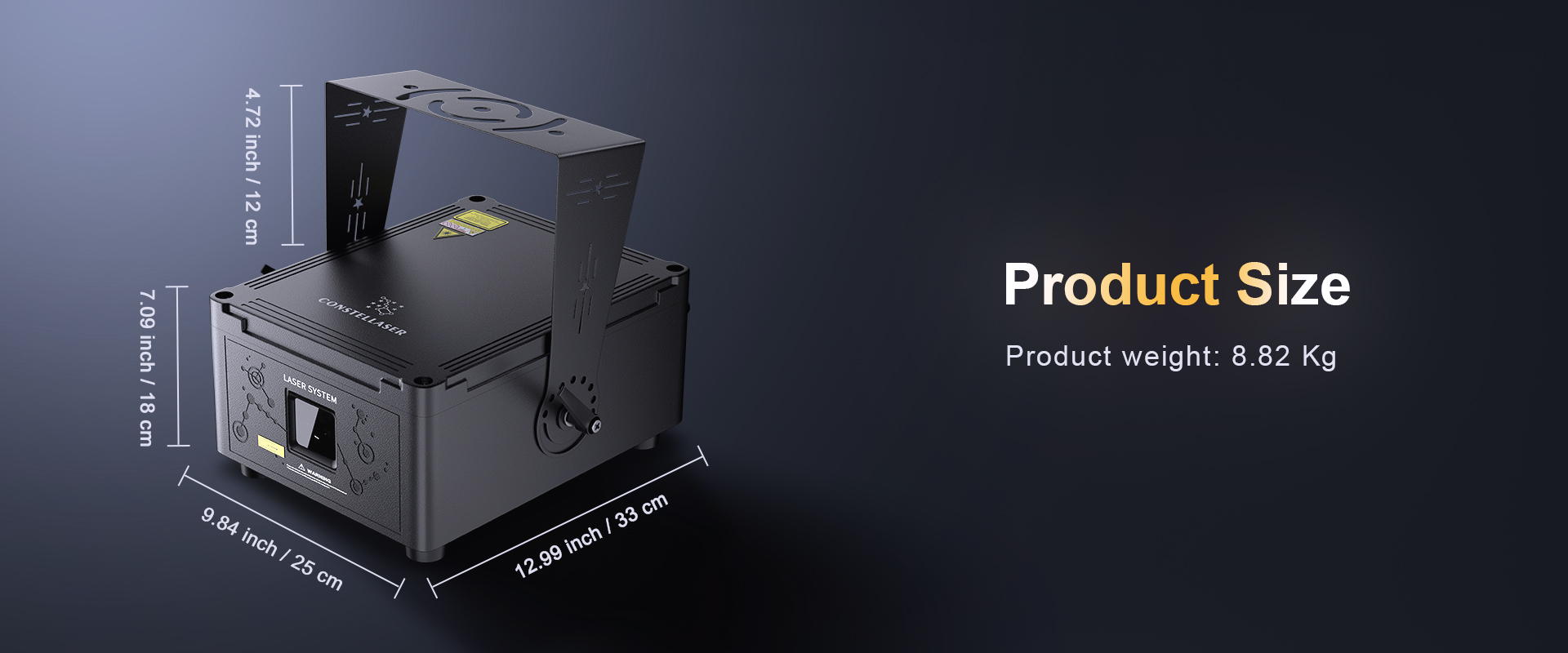

Product size :
|
9.84x12.99x7.09 inch / 25x33x18 cm
|
|
Product weight:
|
8.82 Kg
|
|
Package size:
|
14.17x14.96x8.27 inch / 36x38x21 cm
|
|
Package weight:
|
10.5 Kg
|

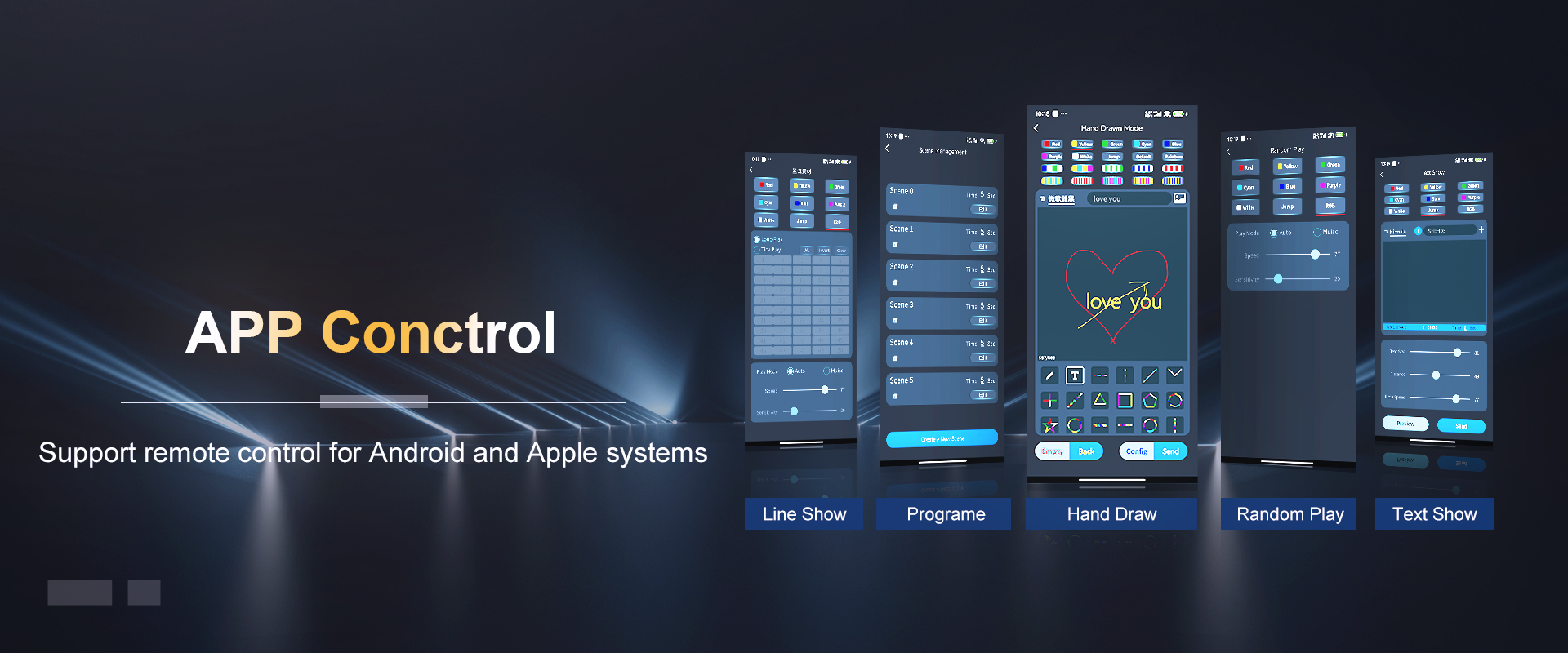

APP Control
The laser can be controlled by Android and Apple apps for most of the functions even without DMX console.

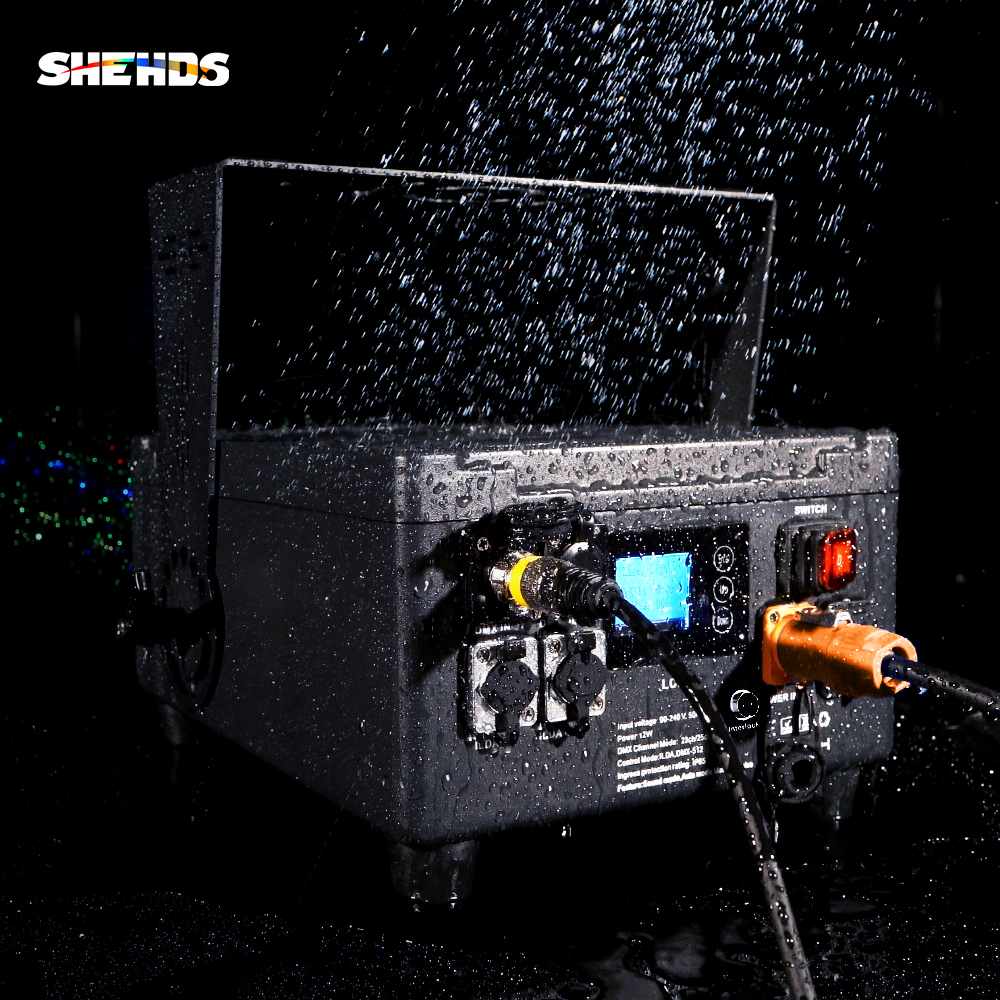

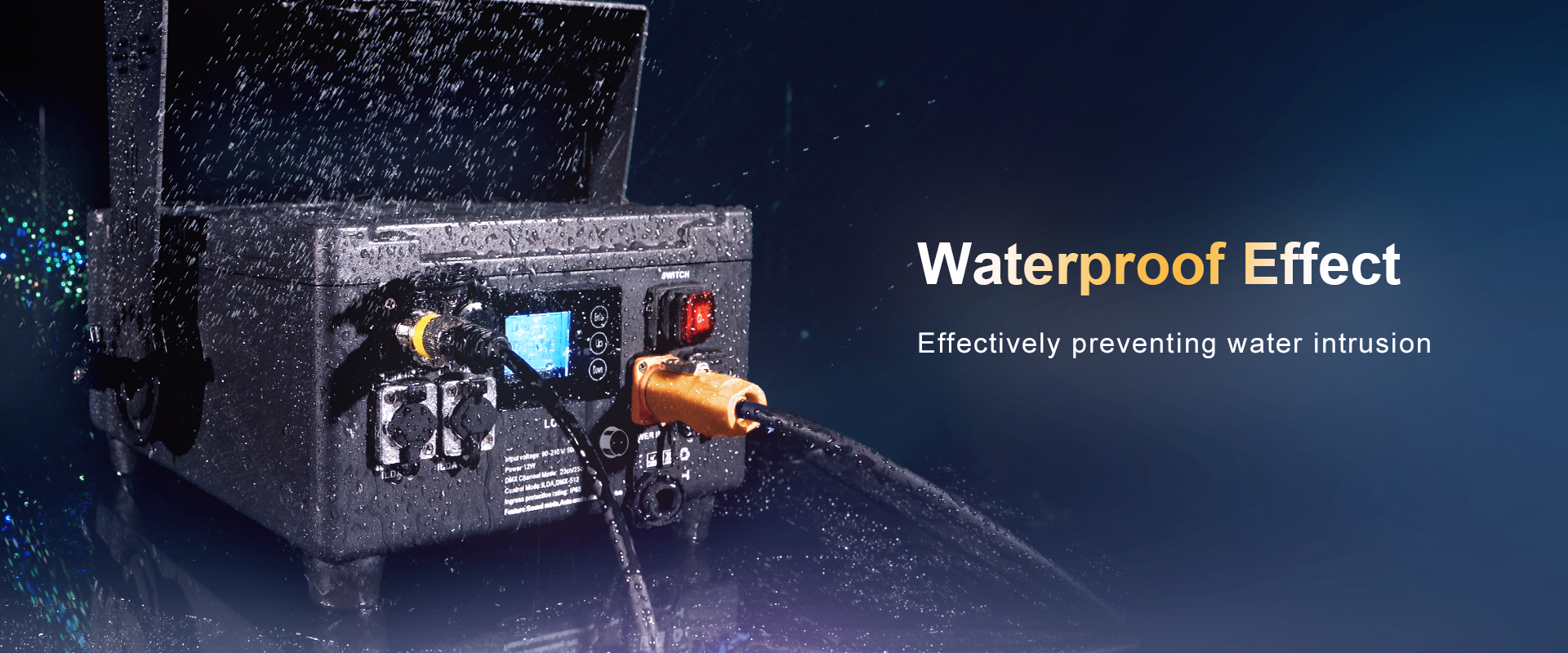

Waterproof Effect
It’s tailored for rainy outdoor applications with its thick aluminum alloy housing and stunning outdoor lighting effects.
The 12W waterproof laser not only perfectly resists of rain, ensuring stable operation in various humid environments,
but also displays dazzling lighting effects in outdoor environments.
Whether it's an event held on rainy days or an outdoor space decoration, it can bring you an unprecedented visual feast.

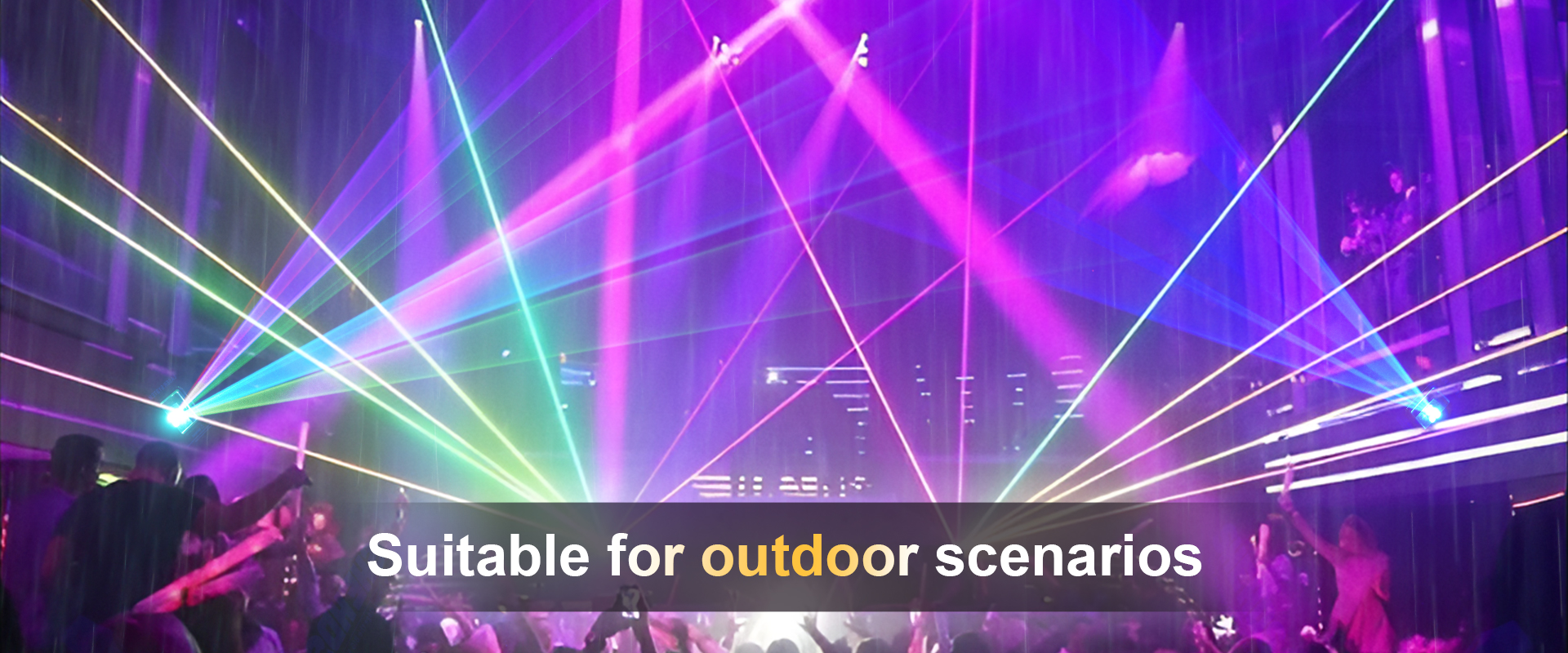

Suitable for outdoor scenarios
Our laser equipment, with its excellent waterproof performance and stunning outdoor lighting effects, has become an ideal choice for rainy outdoor activities.
Whether it's an event held on rainy days or an outdoor space decoration, it can bring you an unprecedented visual feast

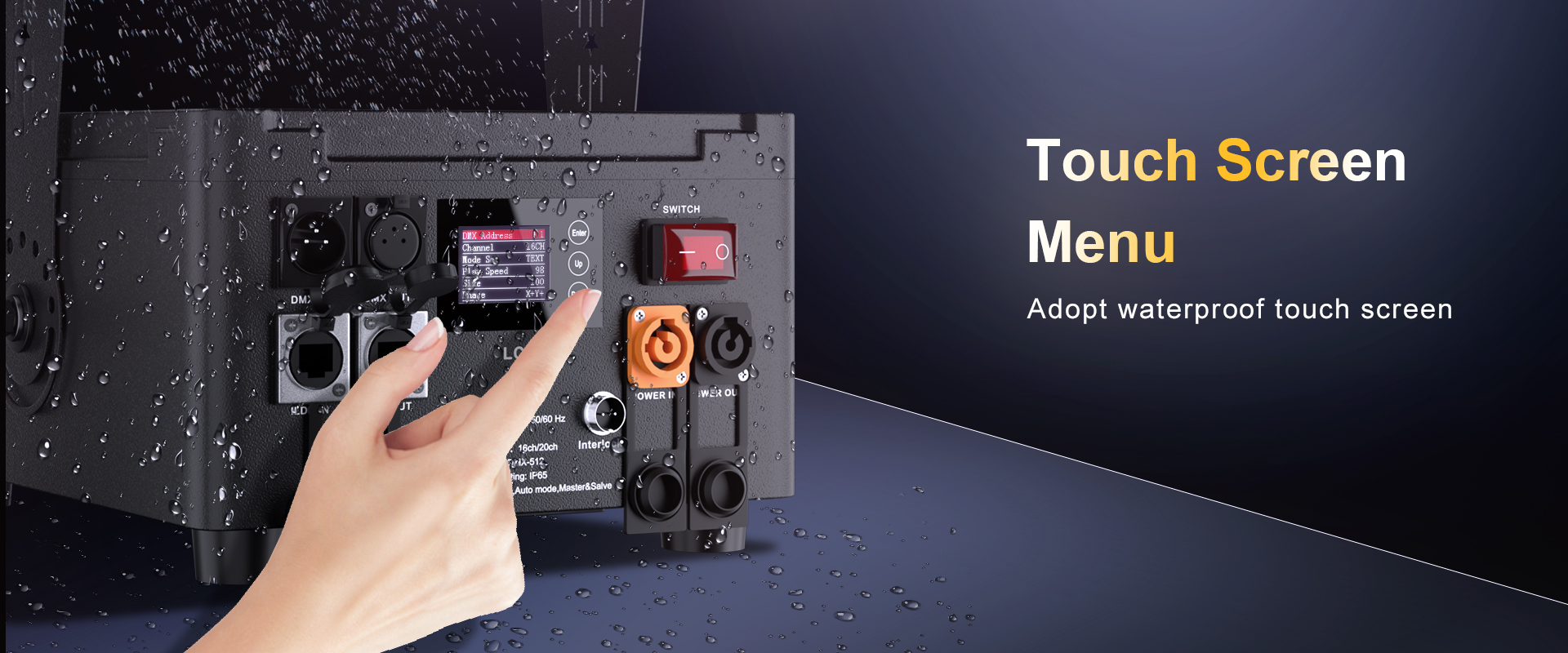

Touch Screen Menu
Adopting a waterproof touch screen menu, it can maintain sensitive response even in humid outdoor environments.
Whether it's rainy days or humid nights, the device settings can be easily adjusted without worrying about waterdrop or moisture on the touch screen.

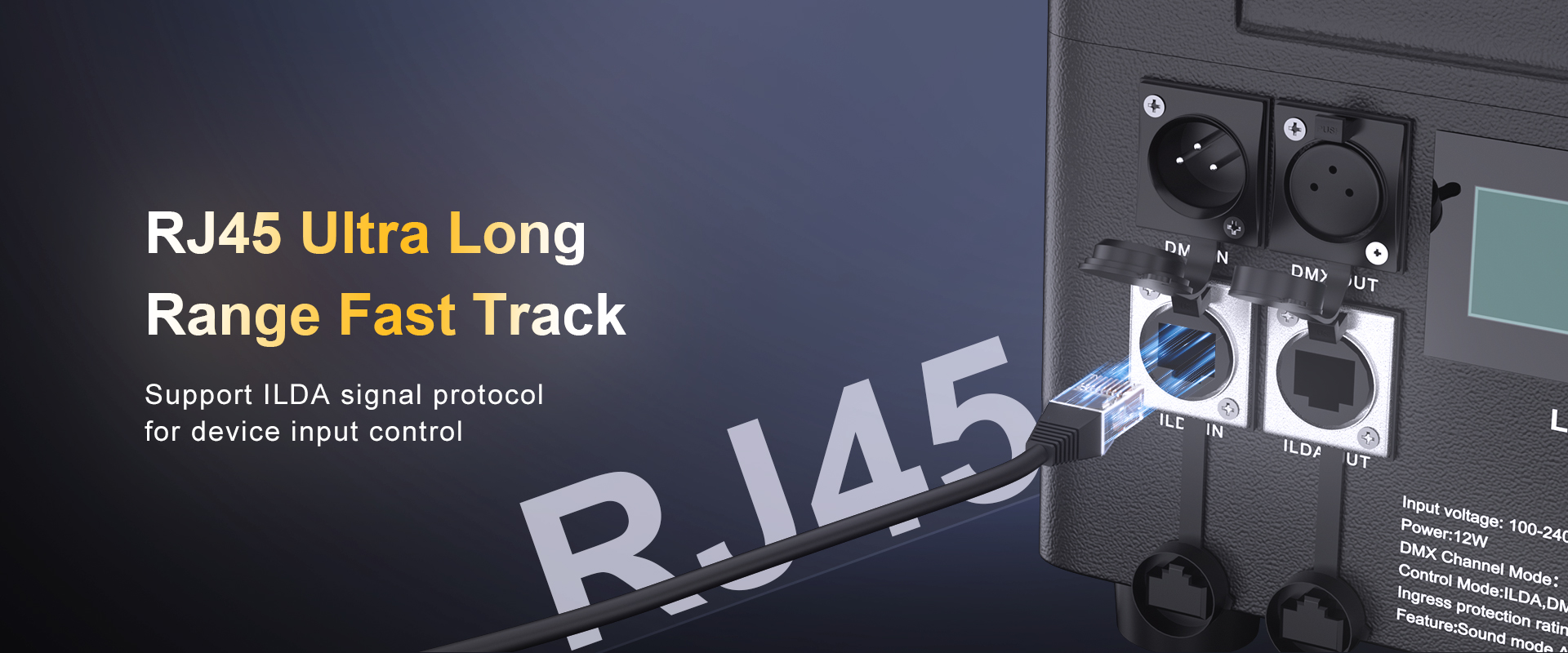

RJ45 Ultra Long Range Fast Track
This laser supports ILDA signal input. It can be controlled by laser software such as professional software Beyond QuickShow FB3/FB4!
With Beyond QuickShow FB3/FB4, you'll have access to a vast library of pre-programmed laser effects,
as well as the ability to customize and create your own unique visuals.

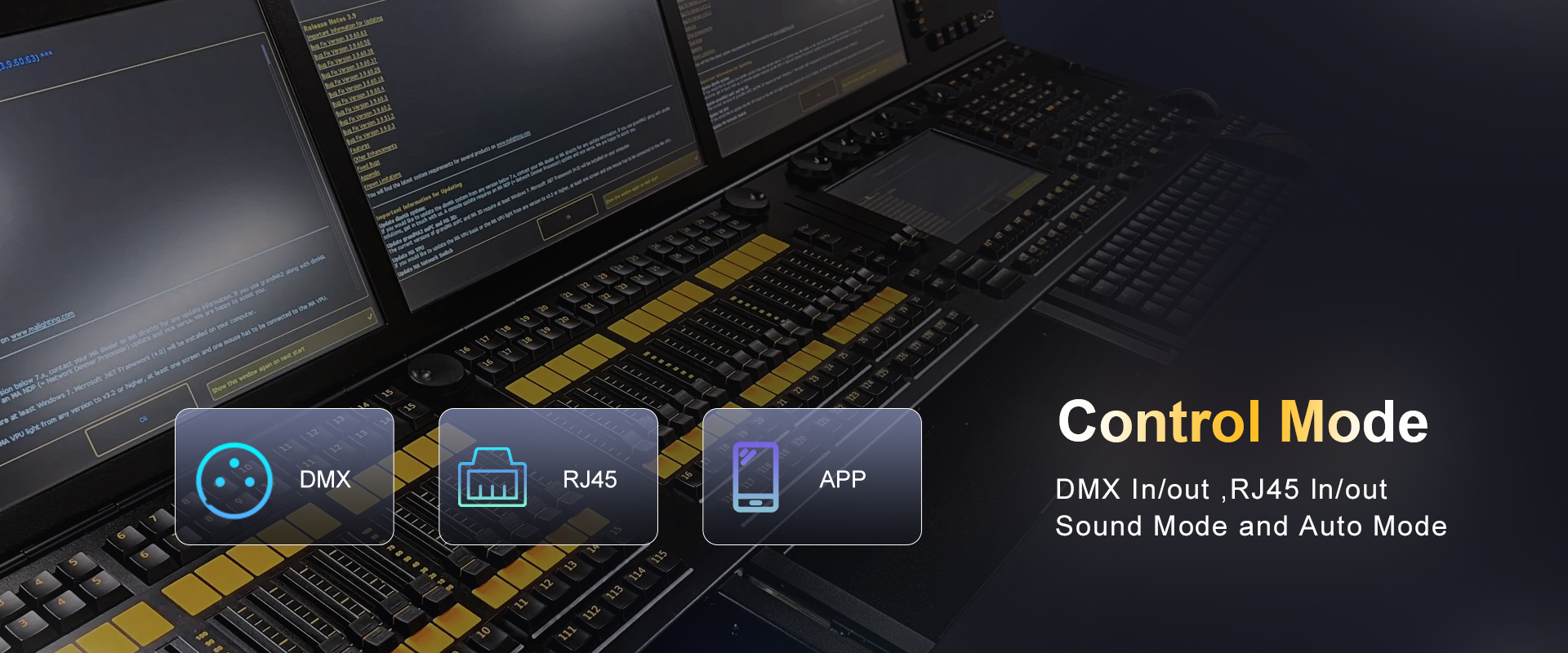

Control Mode
The best feature of this laser light is its programmable ability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
It also supports voice control and automatic mode,
which can change freely according to the music and environment to bring more outstanding effects to the stage performance.
RGB Laser Source
Using semiconductor laser diode light source, the standard full-color analog laser uses three primary colors: red, green, and blue.
The RGB can be mixed to create multiple brilliant colors,
like Magenta, Yellow，Cyan，White!
Laser Effect
With build in a rich variety of patterns and animation effects, from dazzling rainbows and twinkling stars to dynamic waves and cool geometric shapes,
each effect has been carefully designed to meet the needs of different scenes and atmospheres. Whether it's a romantic proposal scene,
a passionate music festival, or a peaceful night stroll, our laser equipment can create an unforgettable world of light.

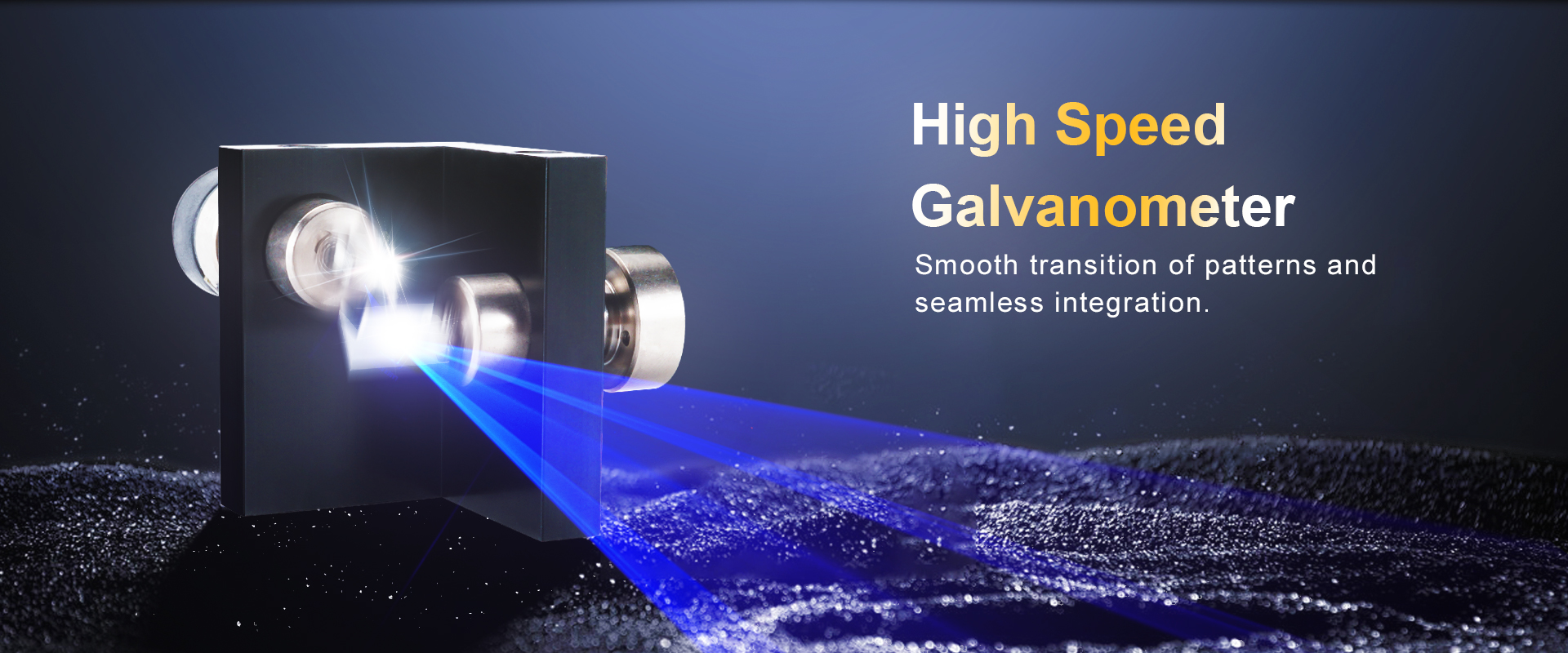

High Speed Galvanometer
25 KPPS with high precision
High frequency scanning galvanometer technology can accurately capture every detail through fast and continuous laser scanning,
achieving smooth transitions and seamless connections of patterns. This technology not only enhances the smoothness of visual effects,
but also makes the presentation of patterns more three-dimensional and vivid, as if taking the audience into a dreamlike world where light and shadow intertwine.
The Aurora Effects
Presenting a dreamy and colorful visual effect like the northern light,
providing more possibilities and creative space for various performance occasions.

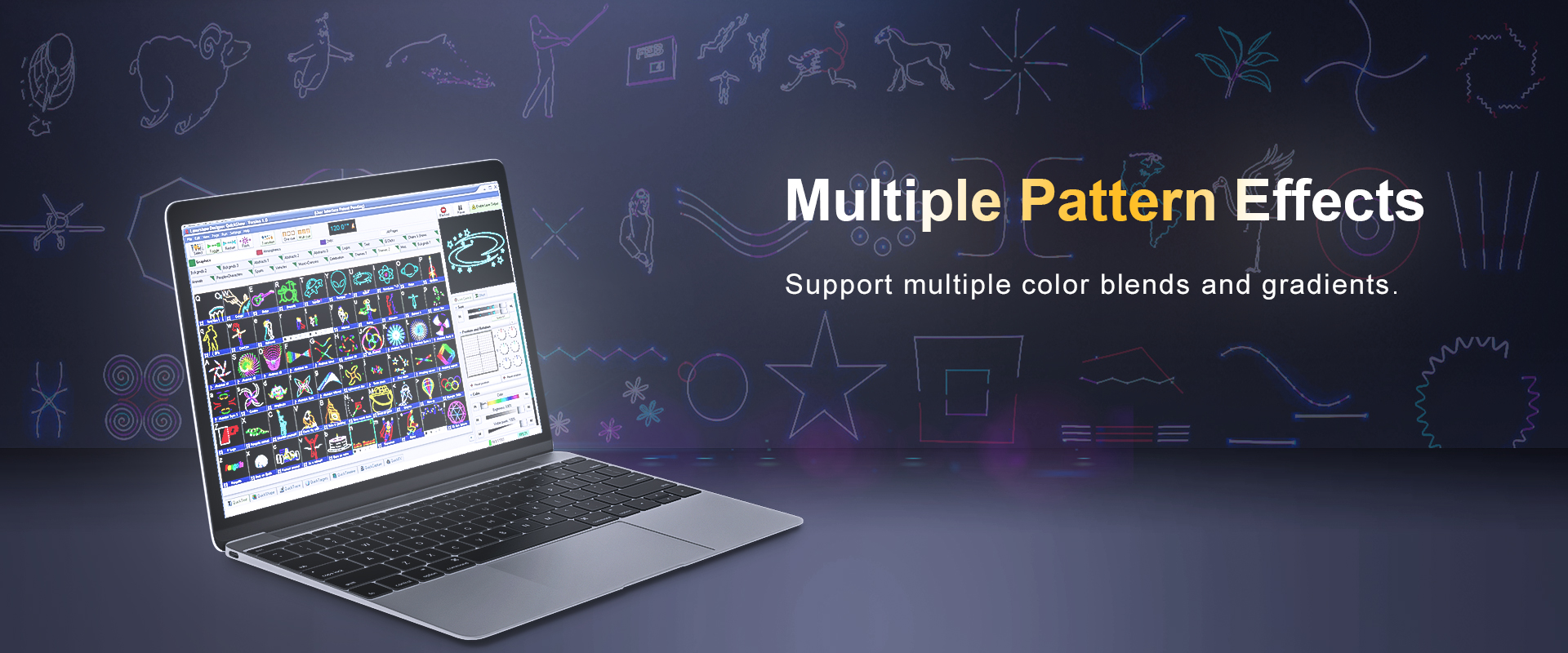

Multiple Pattern Effects
Supporting color mixing and color breathing, making patterns more colorful and vibrant in color.
Dynamic effects such as rapid transformation, rotation, and scaling of patterns can be achieved according to preset programs or voice commands, bringing audience more vivid visual experiences.
Applicable Scene
With its excellent visual effects, intelligent control mode, and introduction of high-frequency scanning technology, undoubtedly it dominates the focus of show.
Whether it's a commercial performance, festival celebration, family gathering, or outdoor adventure, it can attract and retain the attention of every audience with its unique light and shadow charm,
adding endless fun and surprises to the audience.
SAFETY TIPS
During the use of a laser source,
Do not look directly at the light source.
The effect of stage laser lights is formed by high-speed scanning of the laser
beam through high-speed galvanometers or low-speed stepper motors.
The harm to the human body is mainly reflected in the harm to the eyes,
and prolonged exposure can lead to blindness.

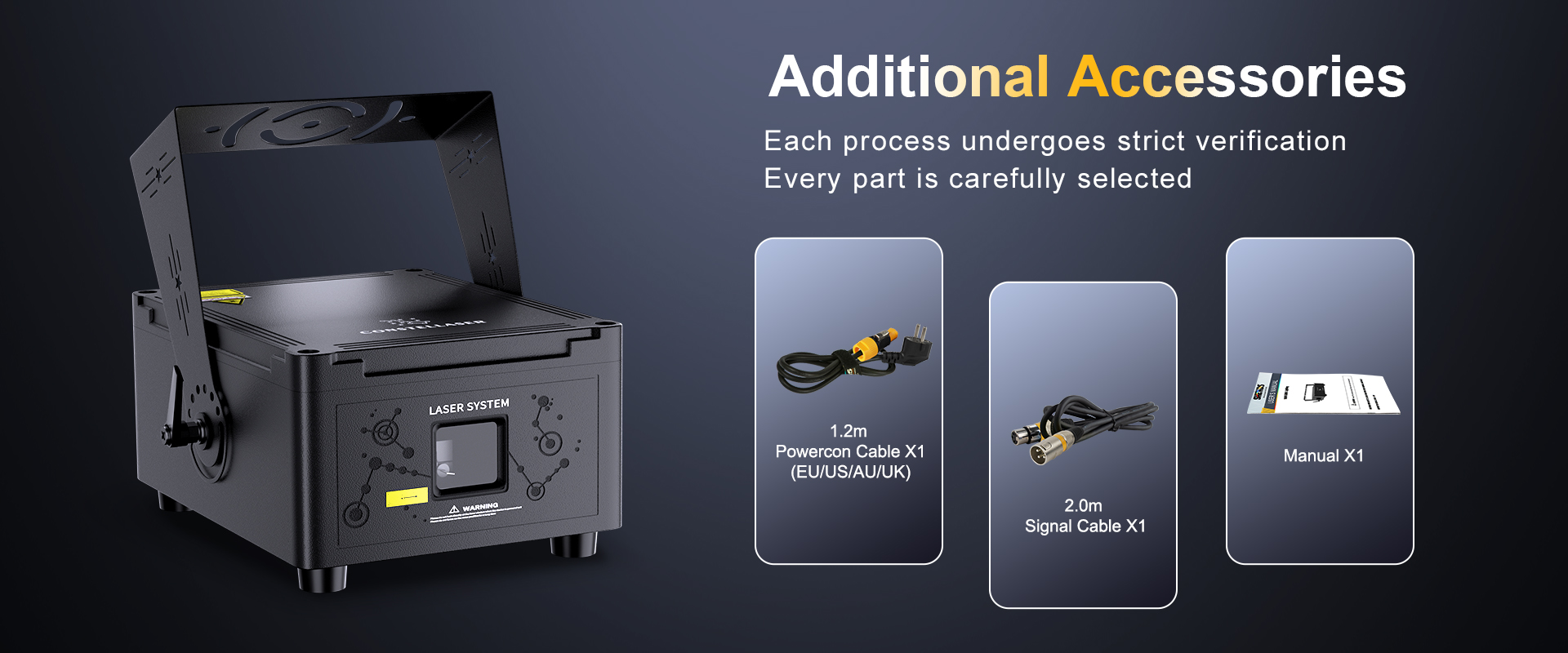

Additional Accessories
Before packing, each of our products undergoes rigorous testing to ensure they are in perfect condition. Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every details. Only products that have gone through layers of scrutiny can confidently leave our factory and arrive in your hands with unparalleled quality, bringing you an excellent user experience.

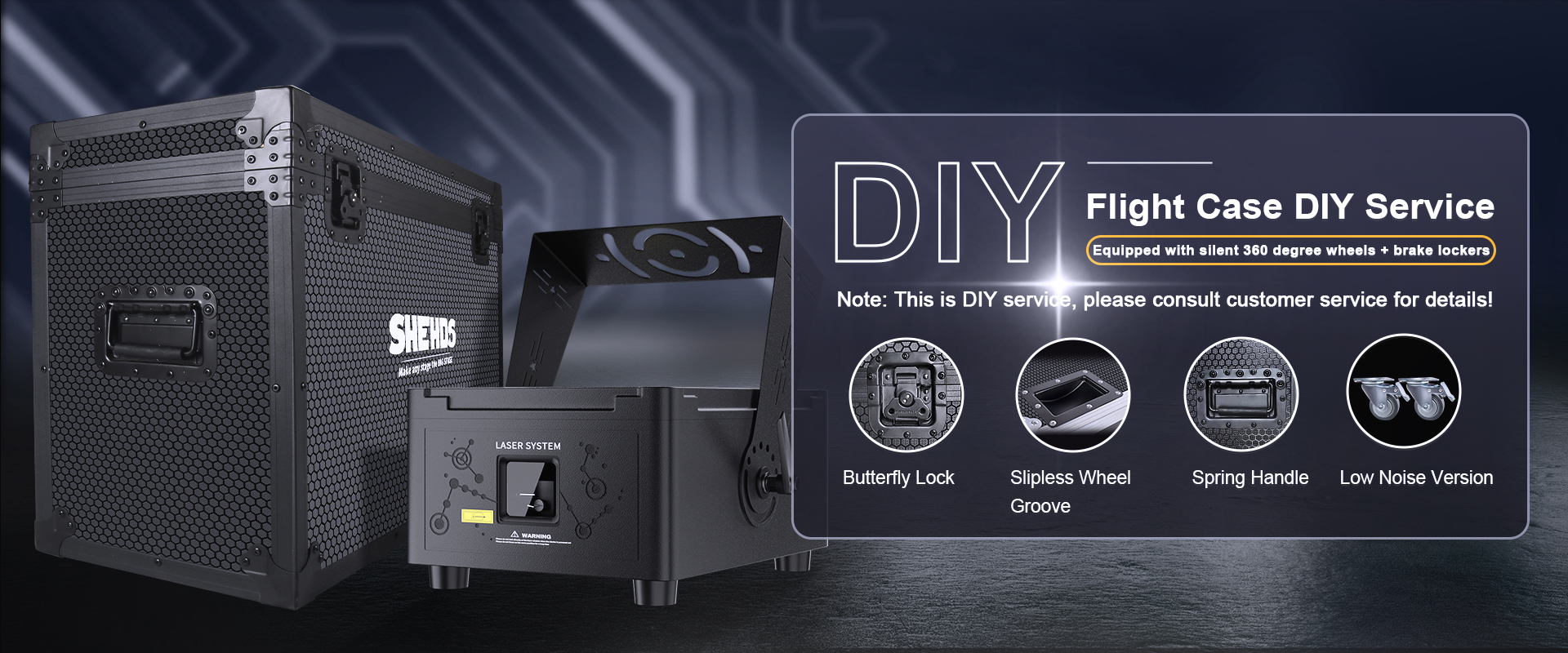

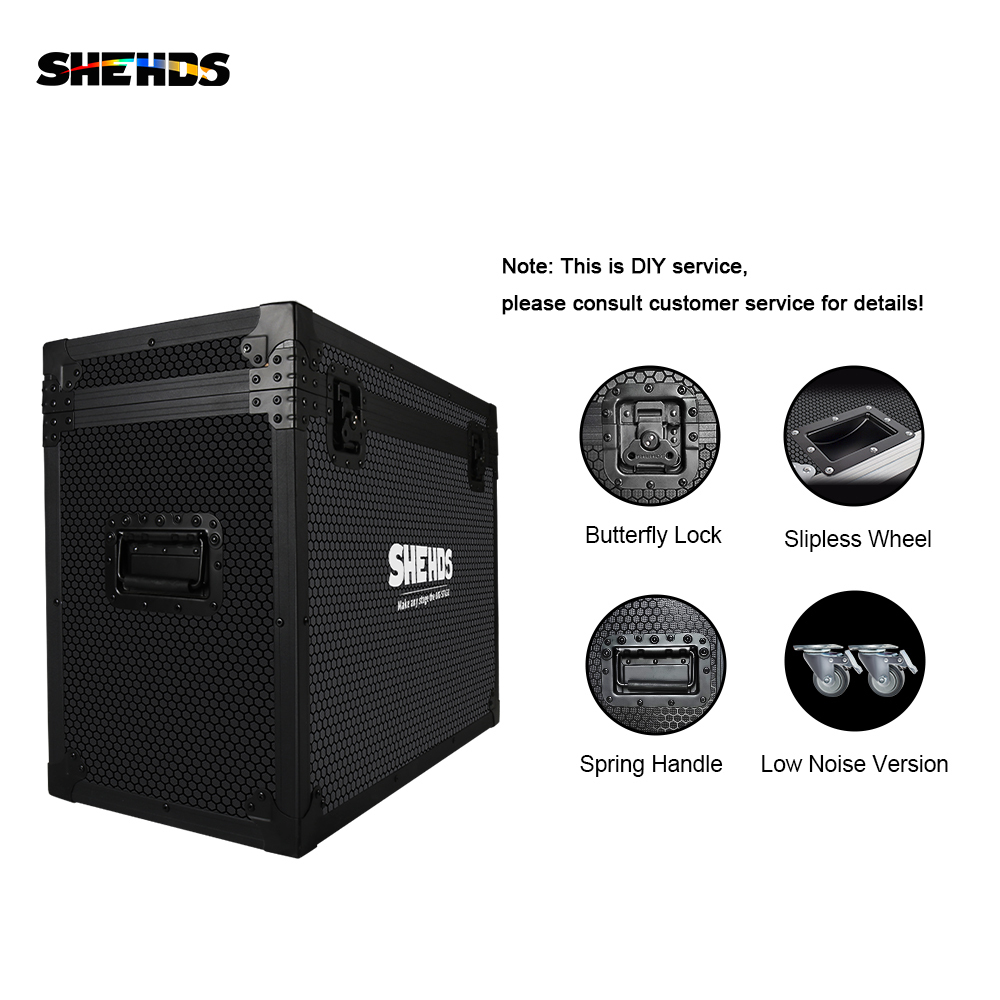

Flight Case DIY Service
Equipped with silent 360 degree wheels + brake lockers
We offer customized aviation cases that perfectly meet your product needs. Whether it's precision equipment, fragile items, or valuable goods, our aviation box design not only ensures safety protection, but also adapts flexibly to various specifications and shapes. Each box is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products. From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service, please consult customer service for details!
Qualification Certificate
International organizations Authority certification
