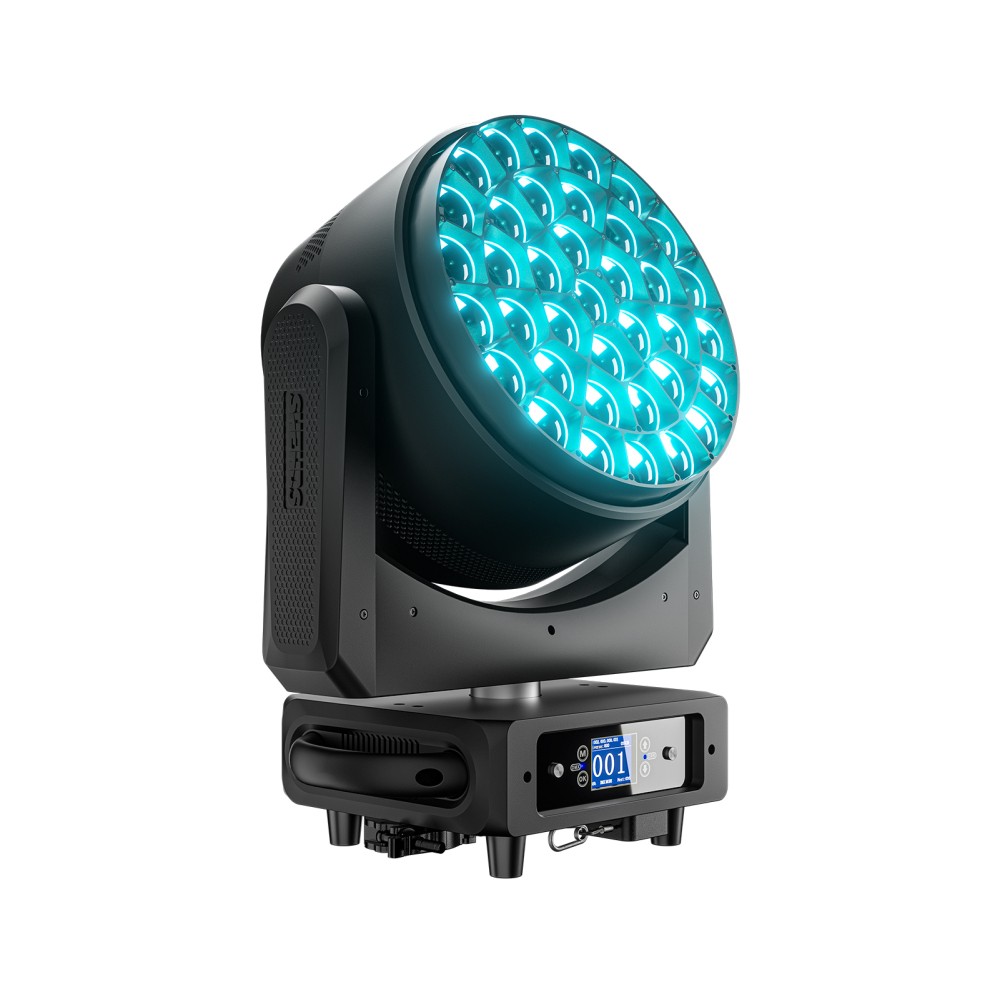

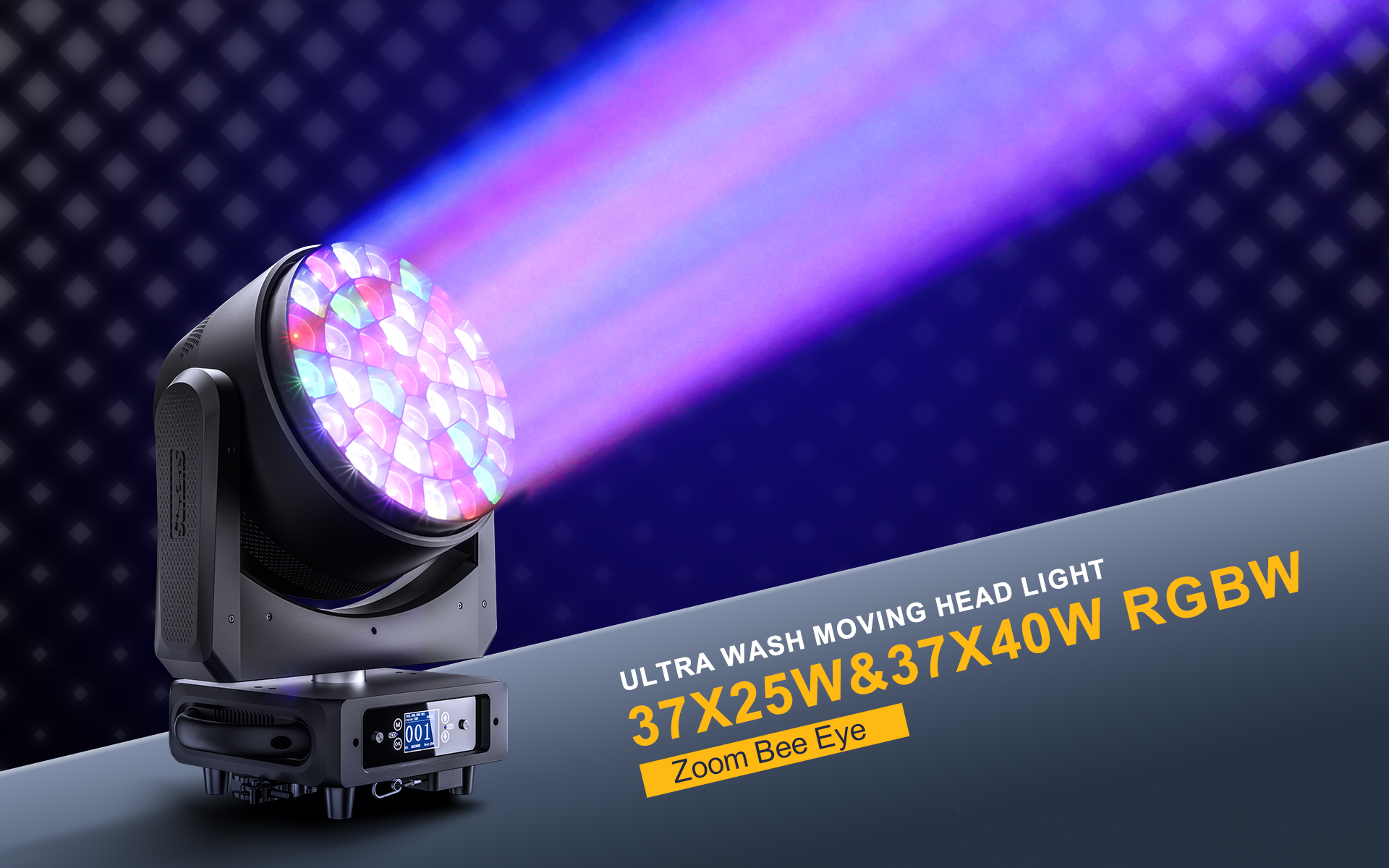

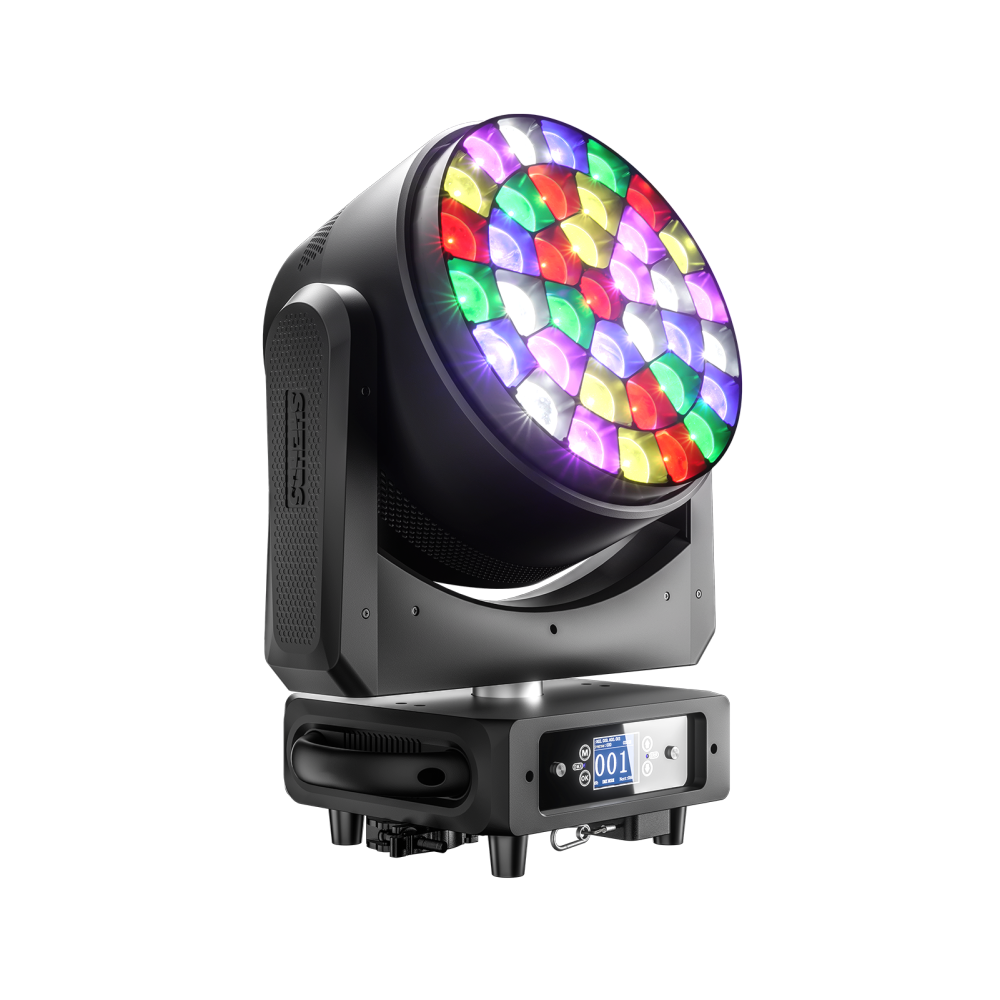

The Ultra Wash is the most powerful in the JMS WEBB wash series.
It equipped with a high-performance 40-Watt/25-Watt LED source with RGB+W additive colour synthesis.

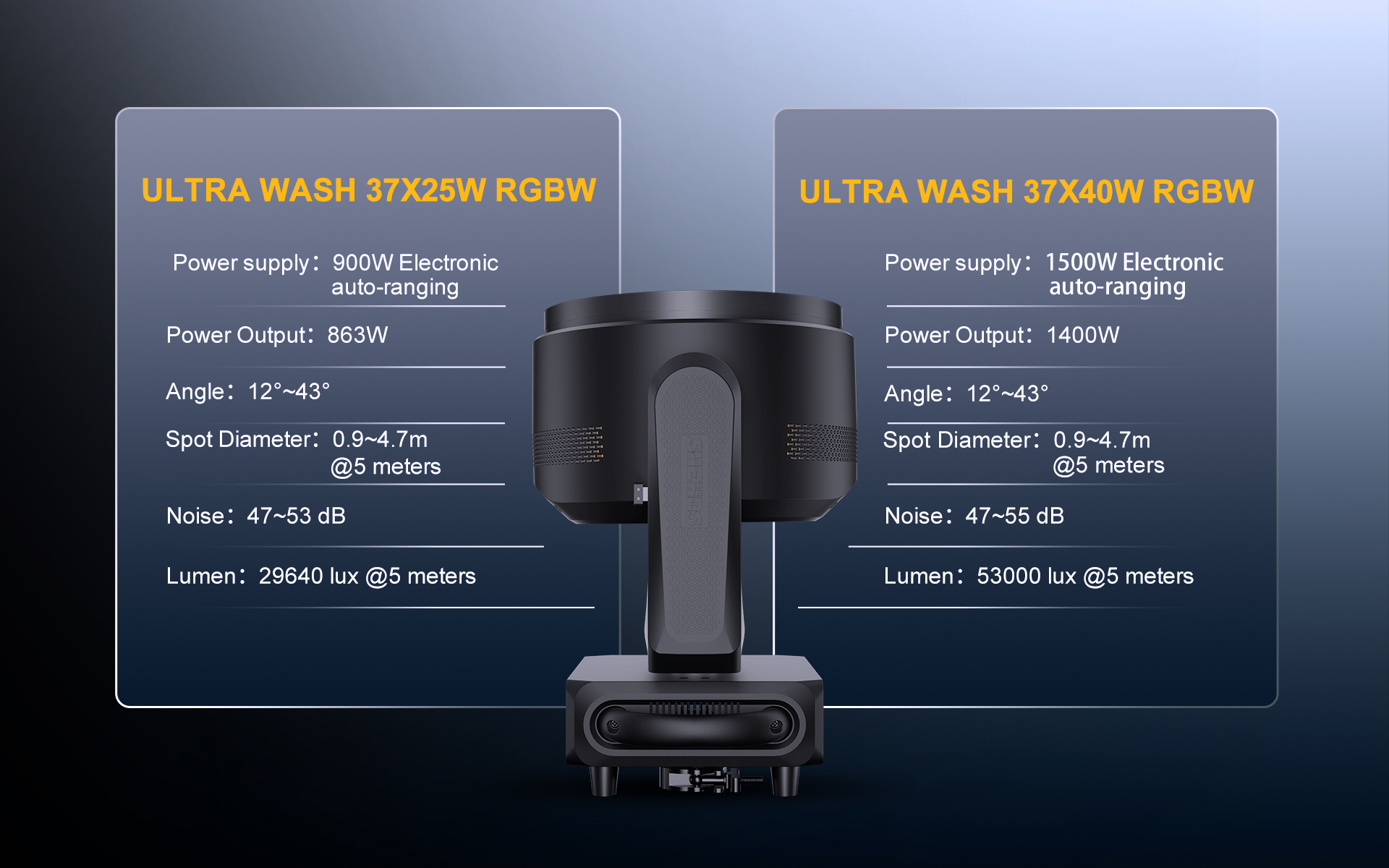

Ultra Wash 37x25W VS 37x40W
|
|
Ultra Wash 37x25W |
Ultra Wash 37x40W |
|
Power supply: |
900W Electronic auto-ranging |
1500W Electronic auto-ranging |
|
Power Output: |
863W |
1400W |
|
Angle |
12-43° |
12°-43° |
|
Spot Diameter |
0.9-4.7m at 5meters |
0.9-4.7m at 5meters |
|
Cooling noise： |
47~53 dB |
47~55 dB |
|
Lumen |
29640lux@5 meters |
53000lux@5 meters |
a zoom ratio of 3.6:1 and a wide zoom range of 12 ° to 43 °.
The careful colour mixing of the LEDs allows for perfect colour reproduction.
You can control each concentric circle to adjust the size of the emitting surface and the luminaire’s power.
|
-Electrical specification and connections （37X25w） |
|
|
Power supply: |
900W Electronic auto-ranging |
|
Power Output: |
863W |
|
Input voltage range: |
100-240 V, 50/60 Hz |
|
Power in connector: |
Seetronic PowerCON In&Out |
|
Signal input/output: |
3-pin and 5-pin XLR head socket |
|
-Source |
|
|
Light source type: |
LED 37X30W RGBW Mixing（Material specifications） |
|
Colour temperature output: |
Linear CTO |
|
LED life expectancy: |
20000 hours |
|
-Optical system |
|
|
Zoom: |
6x efficient zoom optical system |
|
Illuminance\5m |
29640/5m |
|
Zoom angle: |
12° ~ 43° |
|
Dimmer: |
32bit 0~100% linear dimming |
|
Strobe frequency |
1~30 Hz |
|
Lens diameter: |
7.8 mm |
|
-Control and programming |
|
|
Protocols: |
DMX512,RDM |
|
DMX Channel Mode： |
21/35/132/146/169/183 CH |
|
Feature： |

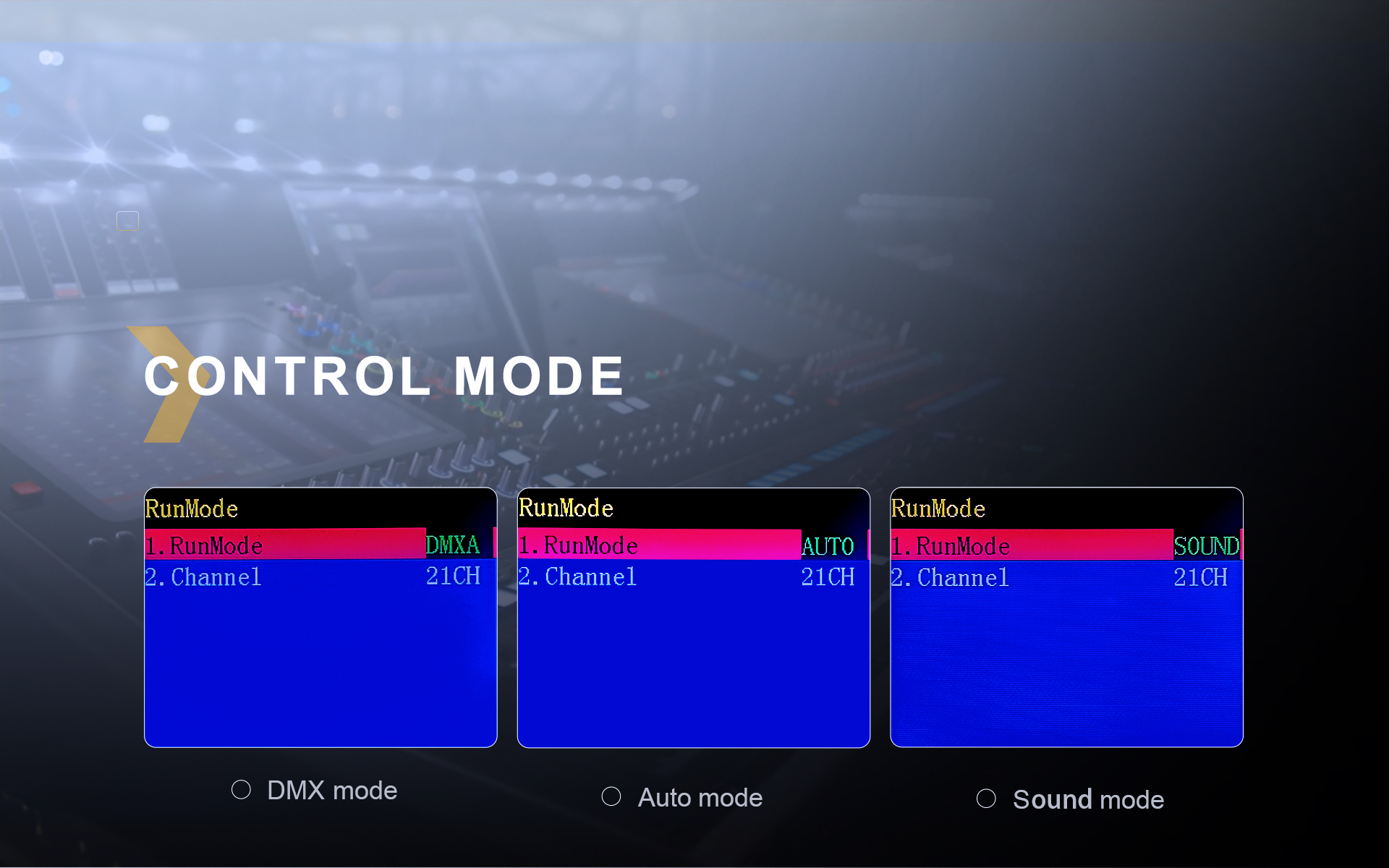

Auto mode ,sound mode,Manual programming scenarios |
|
-Mechanical specification |
|
|
Pan/Tilt: |
540°/270° / 16bit |
|
Housing : |
High temperature resistant and flame retardant plastic housing |
|
Cooling noise： |
47~53 dB |
|

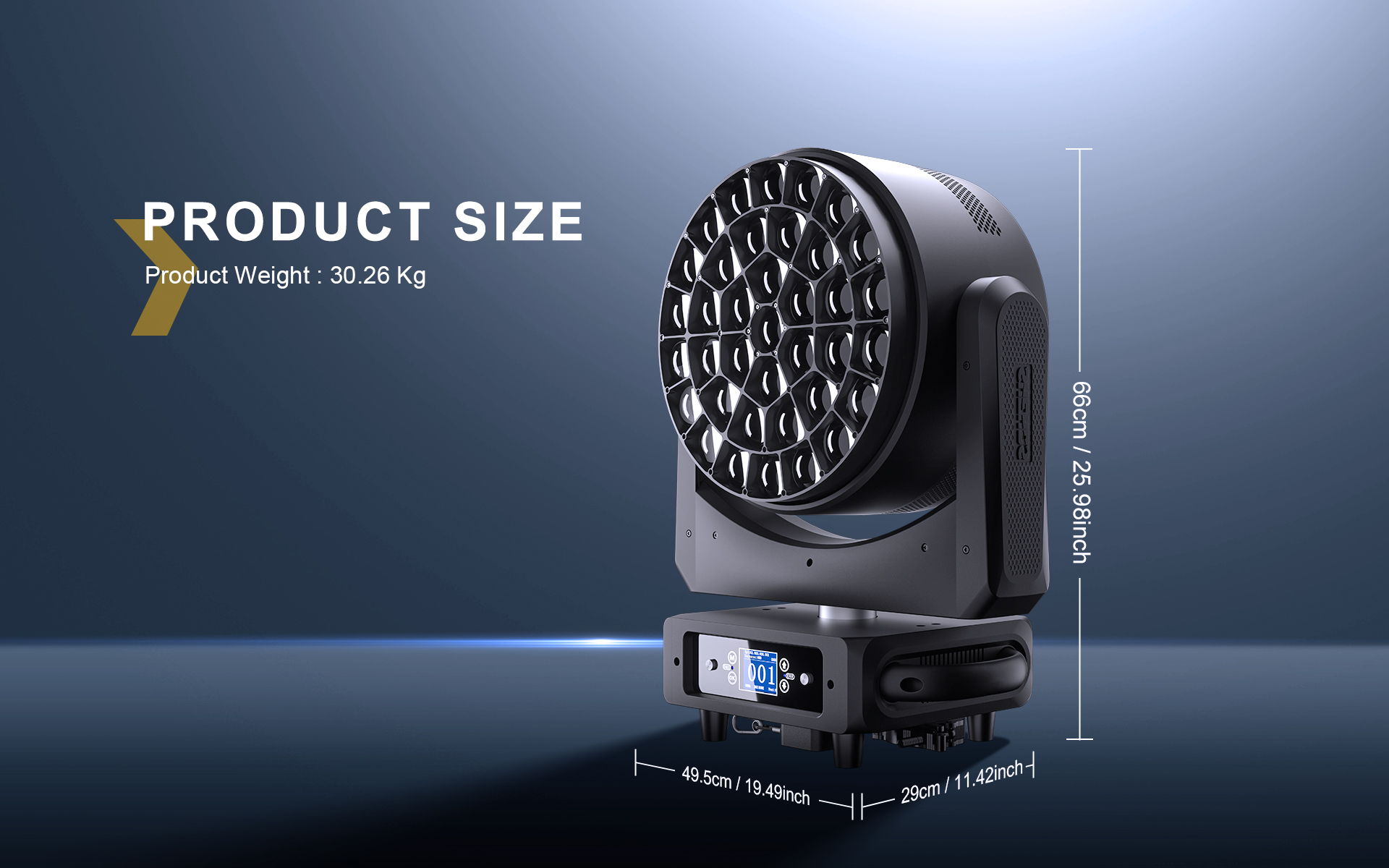

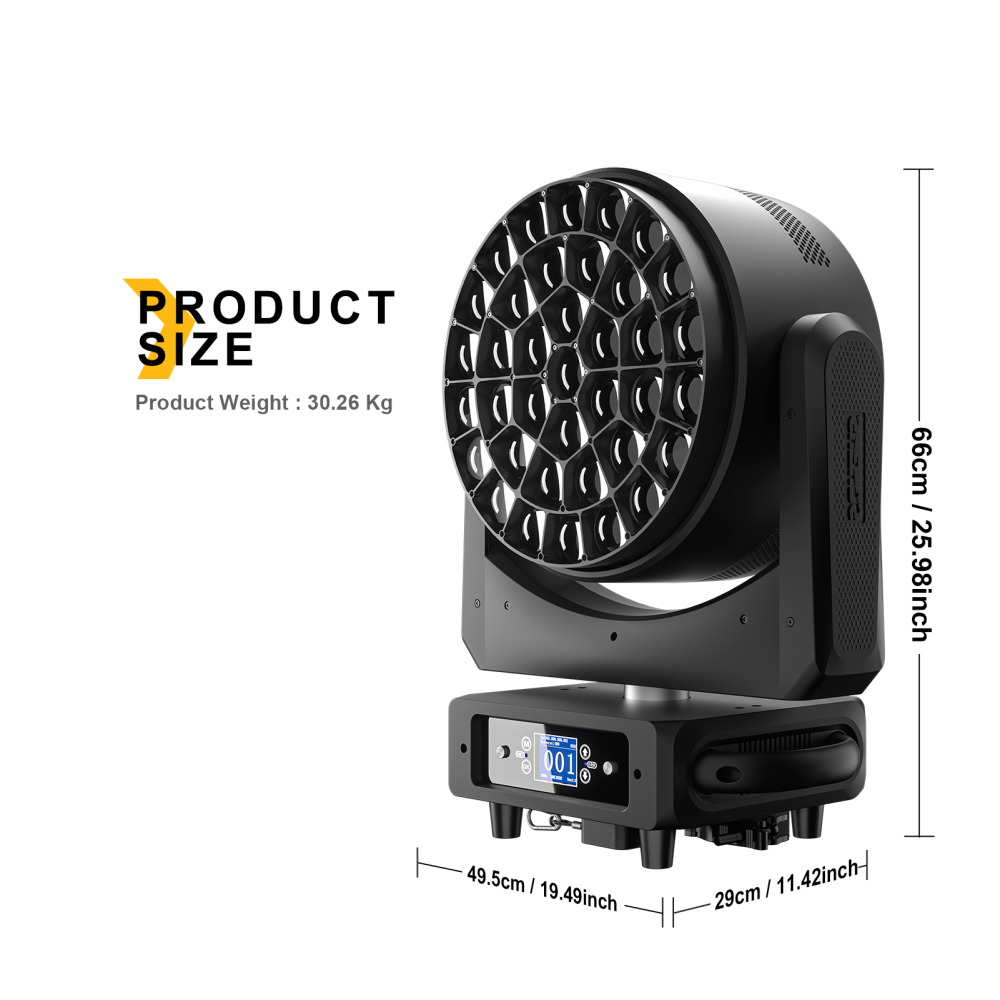

Product size： |
66x49.5x29cm/25.98x19.49x11.42 inch |
|
Product weight: |
30.26kg |
|
Package size: |
64x59x49cm/25.19x23.22x19.29 inch |
|
Package weight: |
34.2kg |
|
Operating temperature: |
-20~60℃ |
|
Ingress protection rating: |
IP20 |
|
-Electrical specification and connections （37X40w） |
|
|
Power supply: |
1500W Electronic auto-ranging |
|
Power Output: |
1400W |
|
Input voltage range: |
100-240 V, 50/60 Hz |
|
Power in connector: |
Seetronic PowerCON In&Out |
|
Signal input/output: |
3-pin and 5-pin XLR head socket |
|
-Source |
|
|
Light source type: |
LED 37X40W RGBW Mixing |
|
Colour temperature output: |
Linear CTO |
|
LED life expectancy: |
20000 hours |
|
-Optical system |
|
|
Zoom: |
6x efficient zoom optical system |
|
Illuminance\5m |
53000/5m |
|
Zoom angle: |
12° ~ 43° |
|
Dimmer: |
32bit 0~100% linear dimming |
|
Strobe frequency |
1~30 Hz |
|
Lens diameter: |
7.8 mm |
|
-Control and programming |
|
|
Protocols: |
DMX512,RDM |
|
DMX Channel Mode： |
21/35/132/146/169/183 CH |
|
Feature： |
Auto mode ,sound mode,Manual programming scenarios |
|
-Mechanical specification |
|
|
Pan/Tilt: |
540°/270° / 16bit |
|
Housing : |
High temperature resistant and flame retardant plastic housing |
|
Cooling noise： |
47~55 dB |
|
Product size： |
66x49.5x29cm/25.98x19.49x11.42 inch |
|
Product weight: |
30.26kg |
|
Package size: |
64x59x49cm/25.19x23.22x19.29 inch |
|
Package weight: |
34.2kg |
|
Operating temperature: |
-20~60℃ |
|
Ingress protection rating: |
IP20 |
making it perfect for dynamic concerts, immersive theatrical productions, and energetic disco events.
Endowed with a 50mm truncated transmitting lens, Ultra Wash can obtain a wide wash with
a zoom ratio of 3.6:1 and a wide zoom range of 12 ° to 43 °.

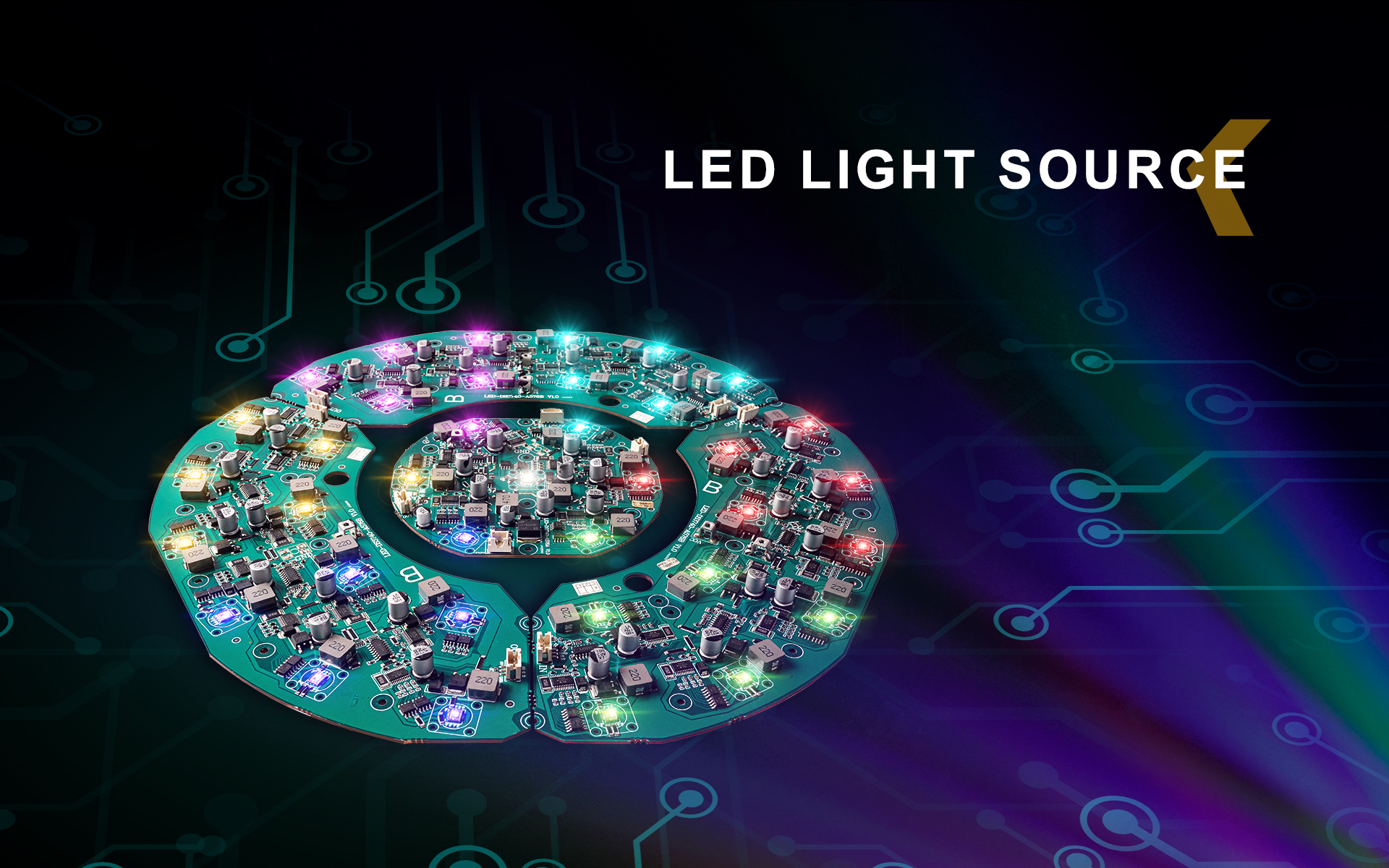

This LED modual system combination can produce powerful light output of
27300(37x25W)/55200(37x40W) lumens and a perfectly homogeneous mixture of pastel and saturated colours.
The perfectly crisp separation between the light sources helps to reinforce the level of contrast.

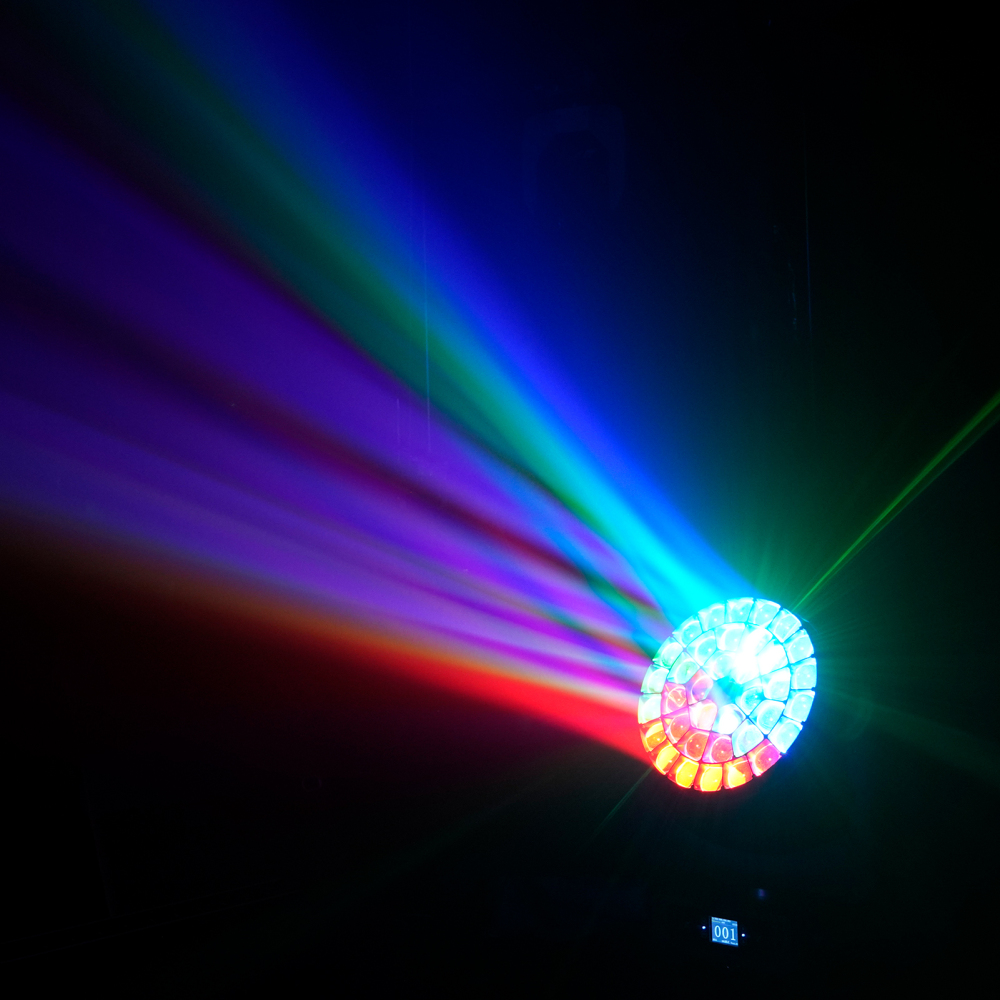

The color mixing of this stage light is stunningly smooth and vibrant, seamlessly blending rich hues into breathtaking visual effects by top-quality LED chips.

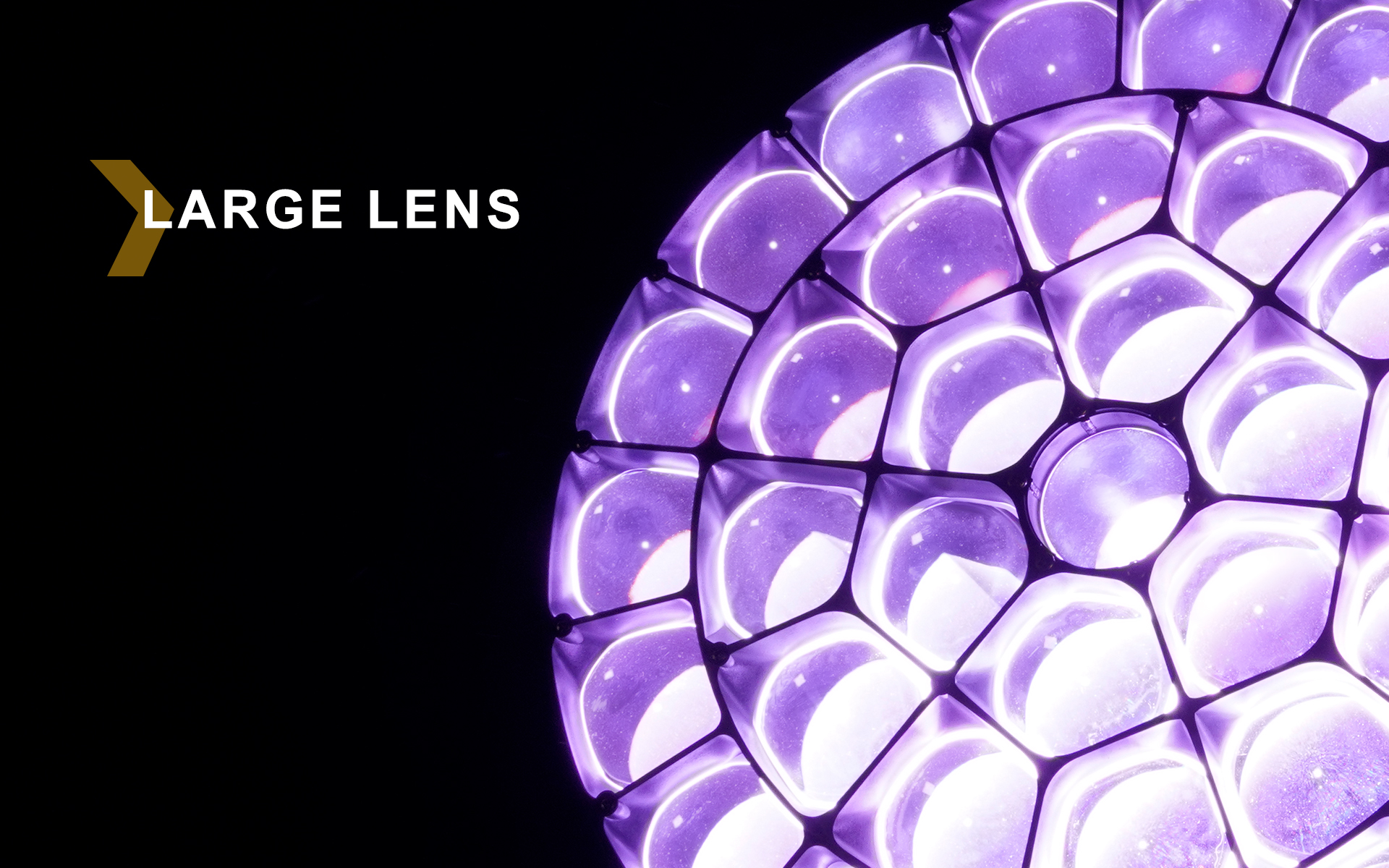

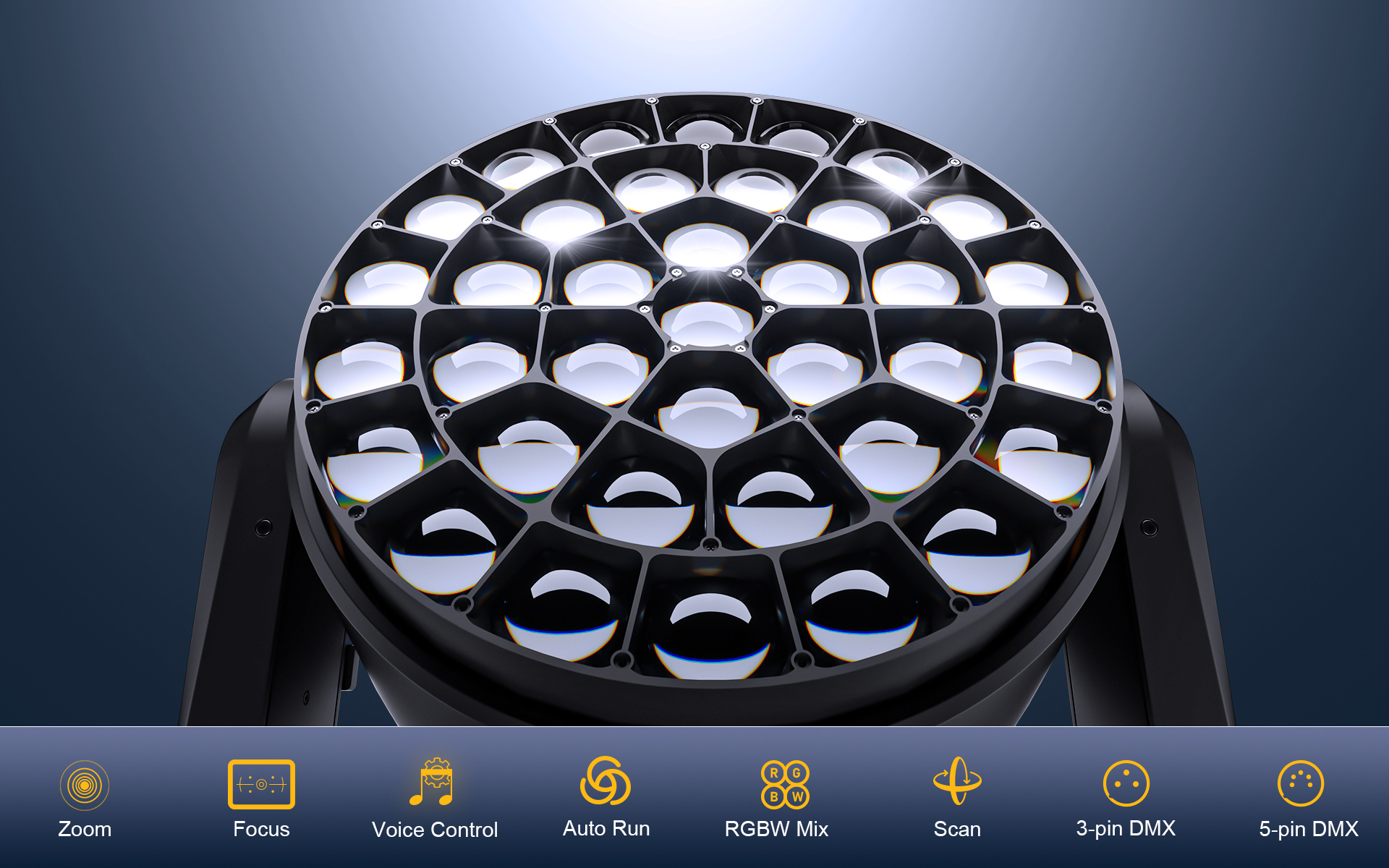

This fixture offers a proprietary optical system consisting of a wide dial of 37 lenses in PMMA,
370 mm in diameter of the whole size.

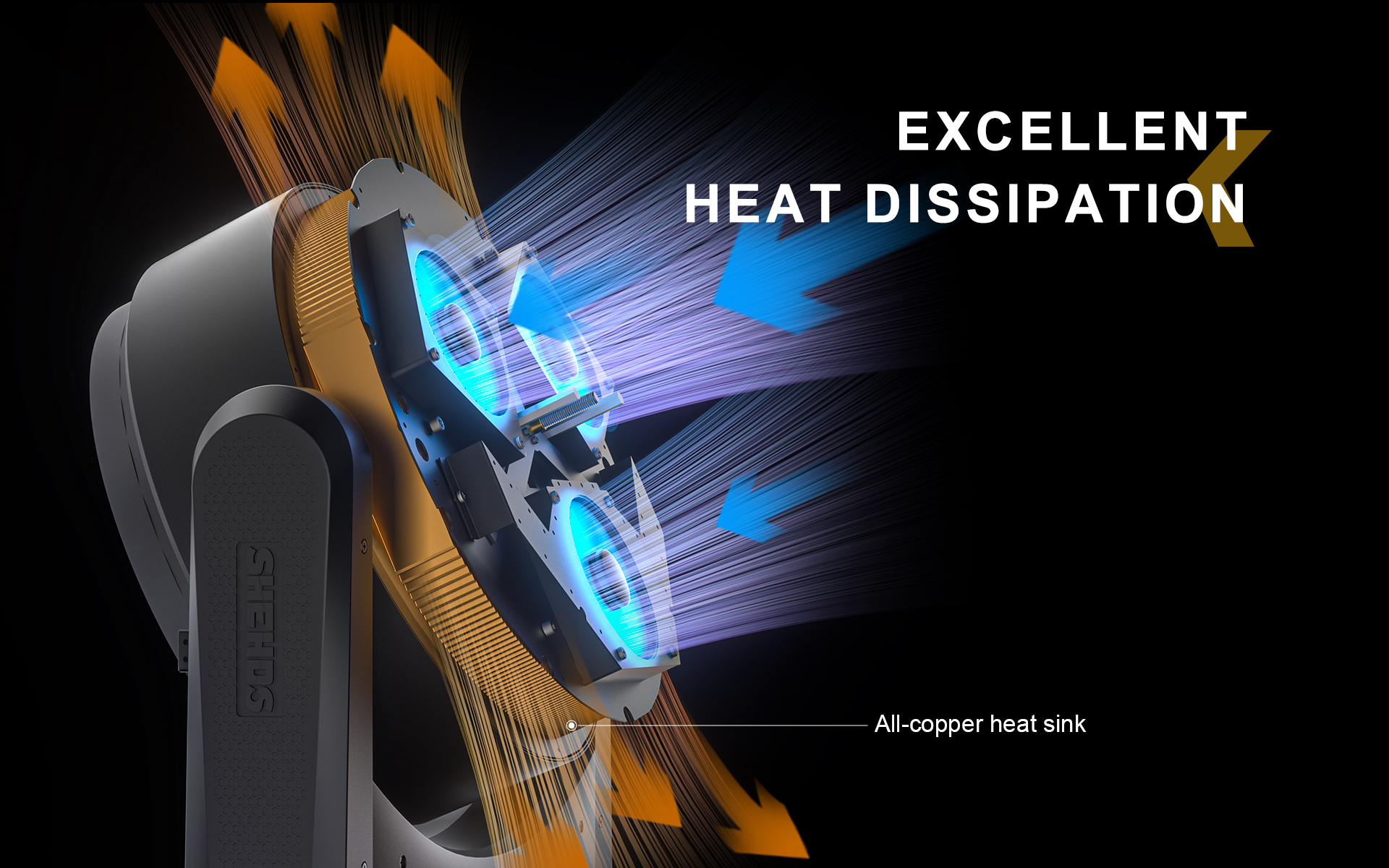

This stage light features a high-cost true copper heat sink,
ensuring exceptional heat dissipation for long-lasting, reliable performance.

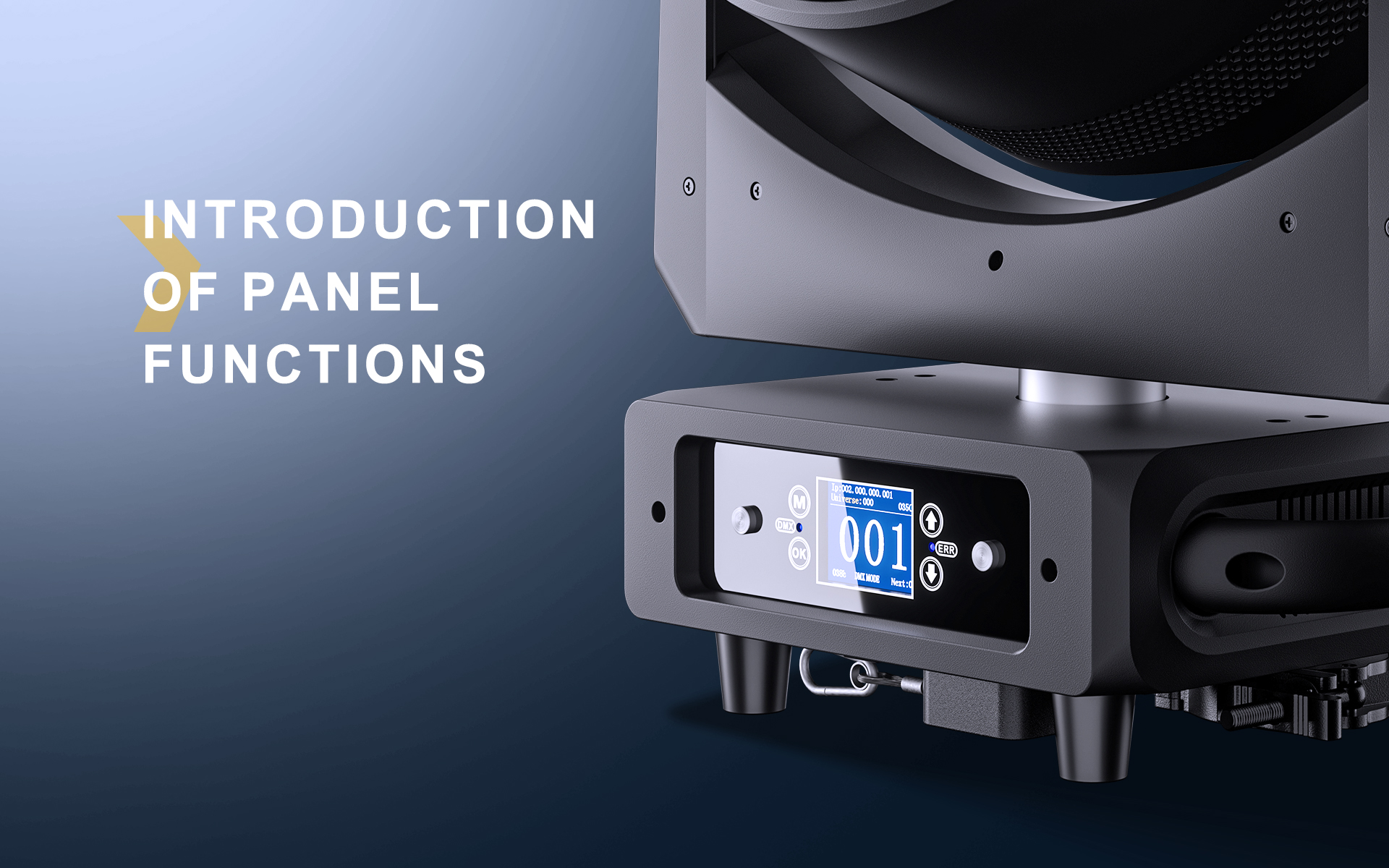

This stage light is equipped with an easy-to-use control panel and a clear LCD display,
making setup and operation simple and intuitive.

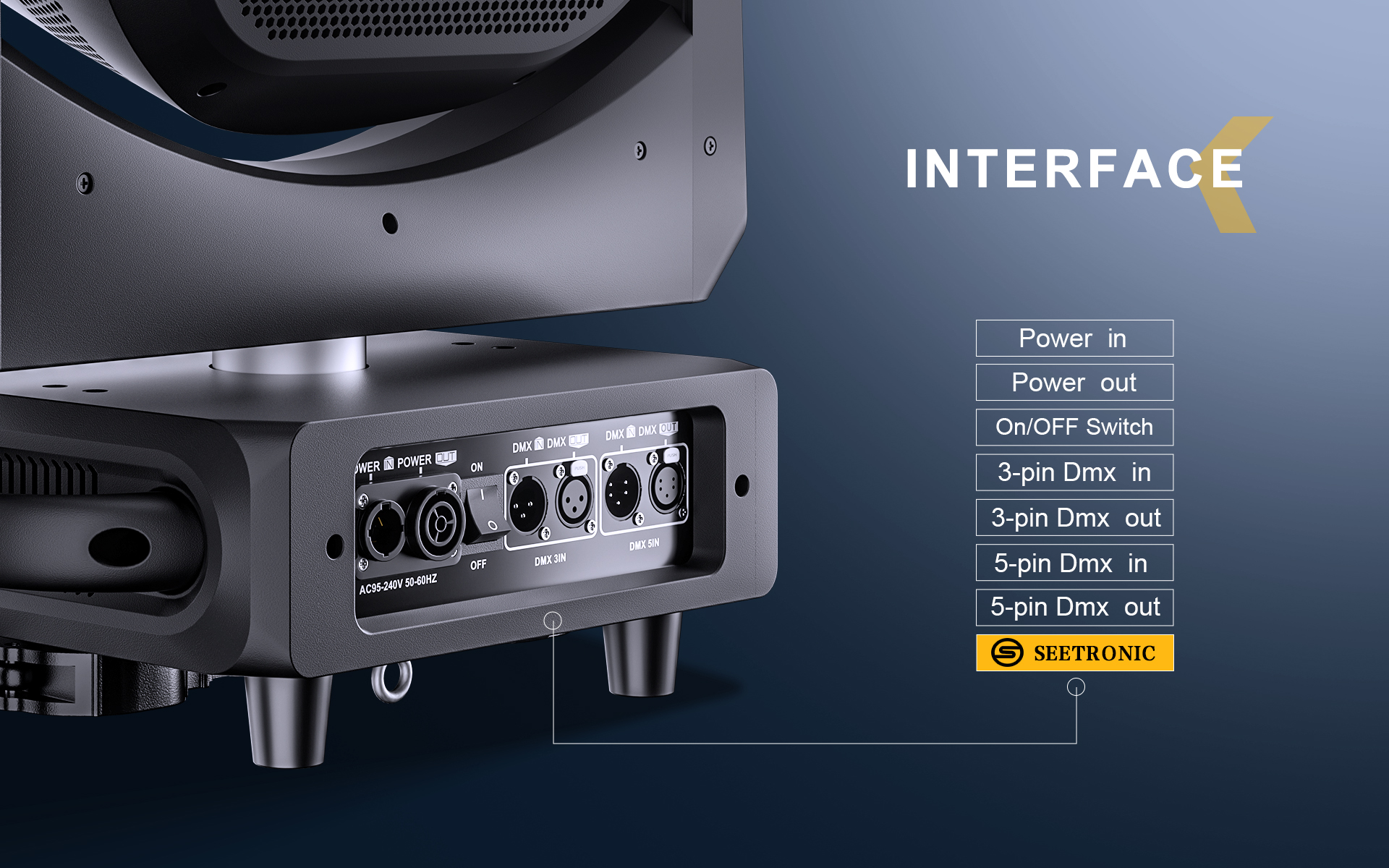

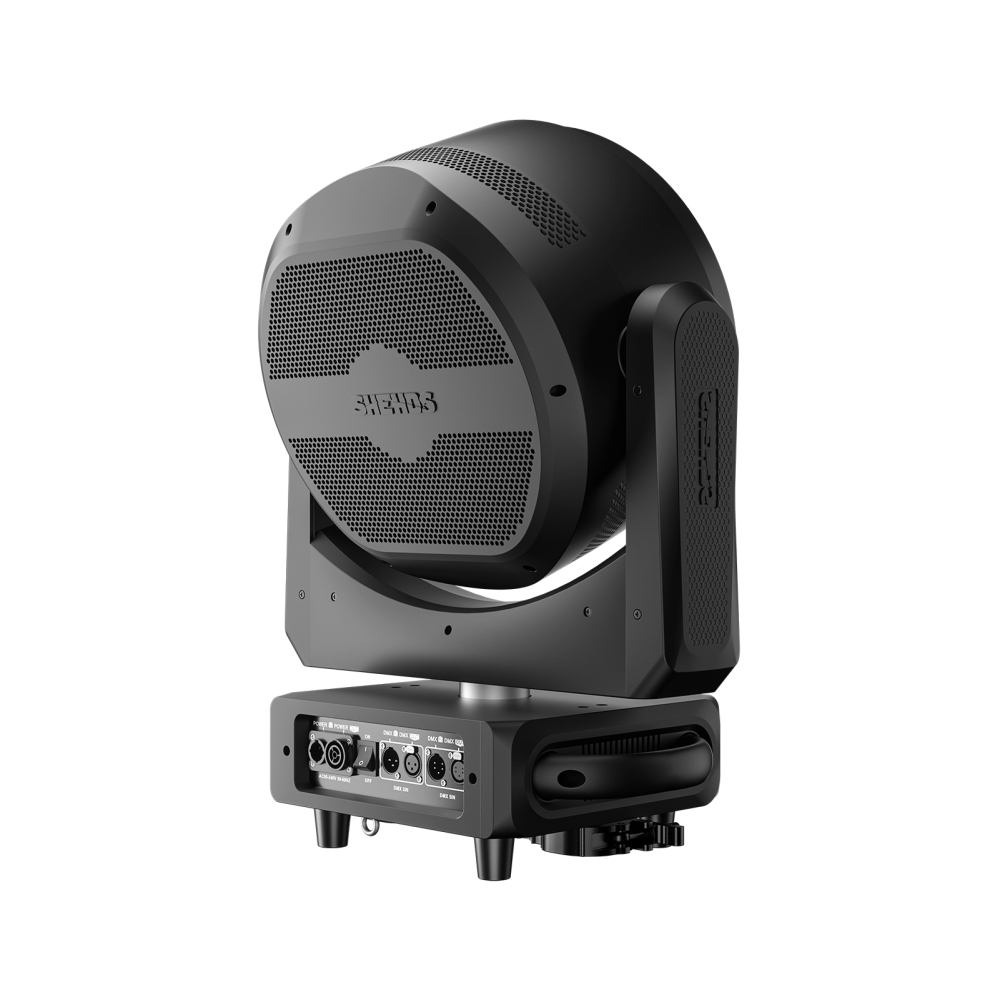

The Ultra Wash offers versatile connectivity with SEETRONIC power in/out, both 3-pin and 5-pin DMX in/out,
and a convenient on/off switch for seamless integration into any setup.

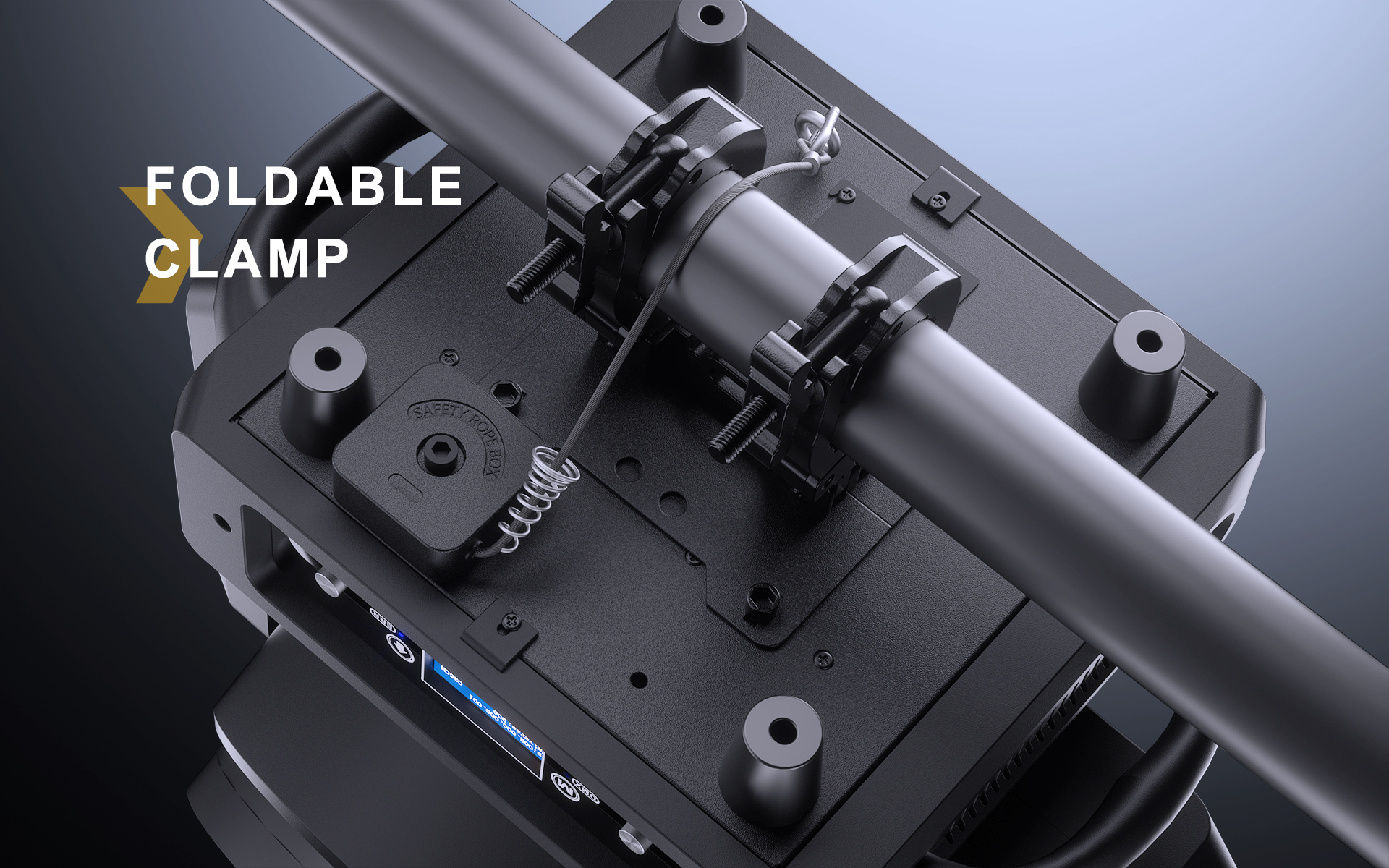

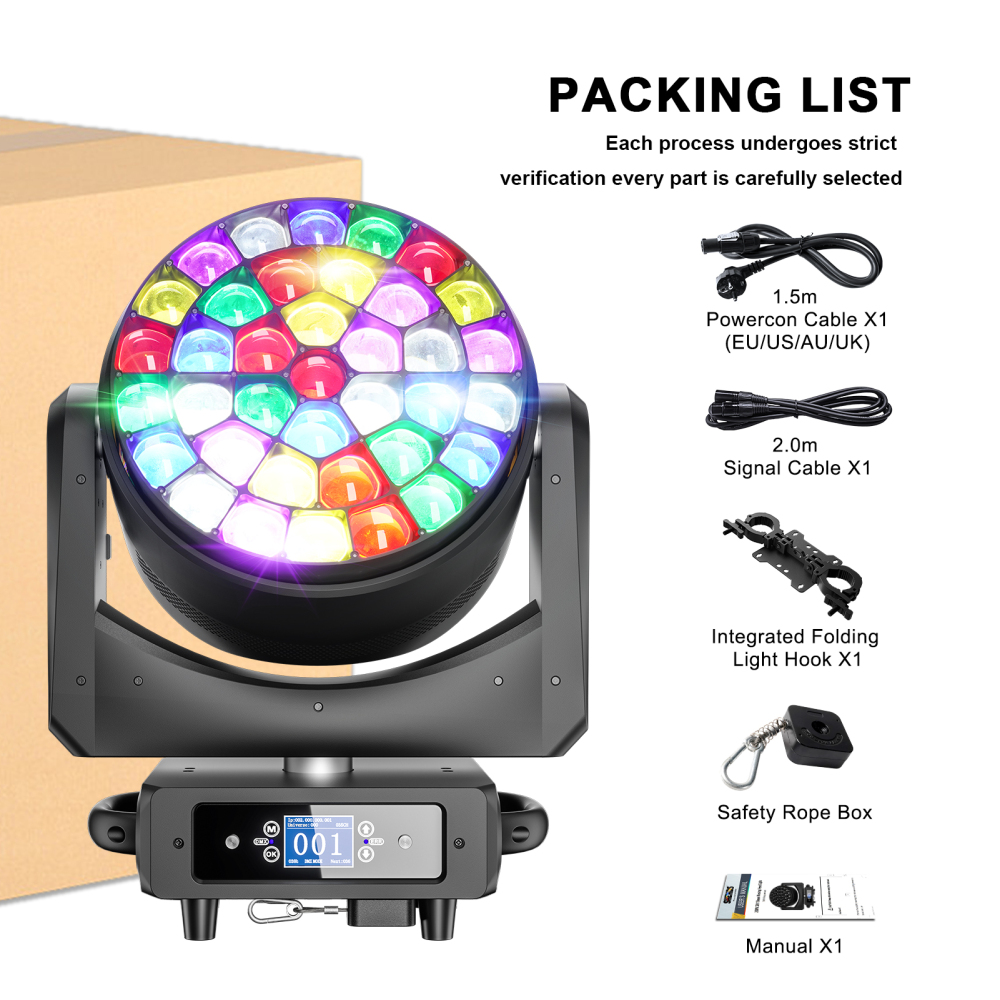

It comes with 2 strong foldable clamps, making installation quick,
space-saving, and convenient for transport or storage.

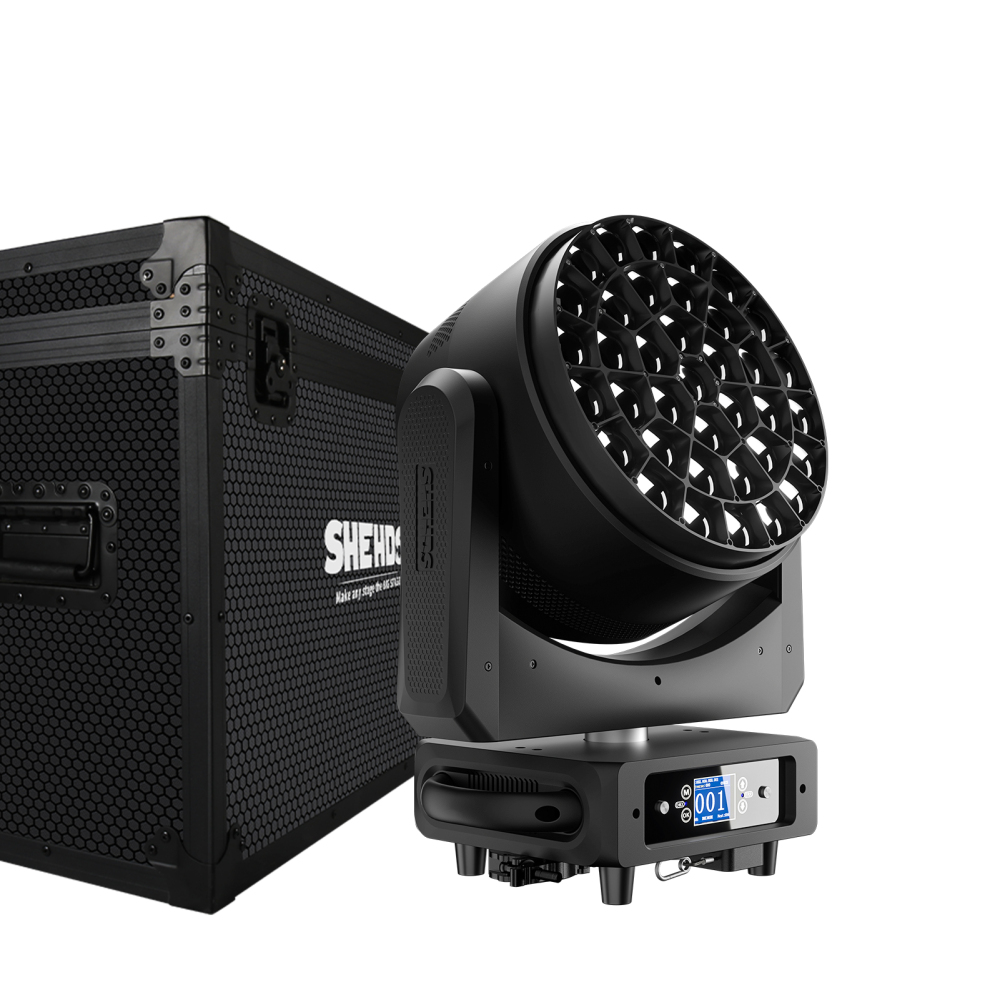

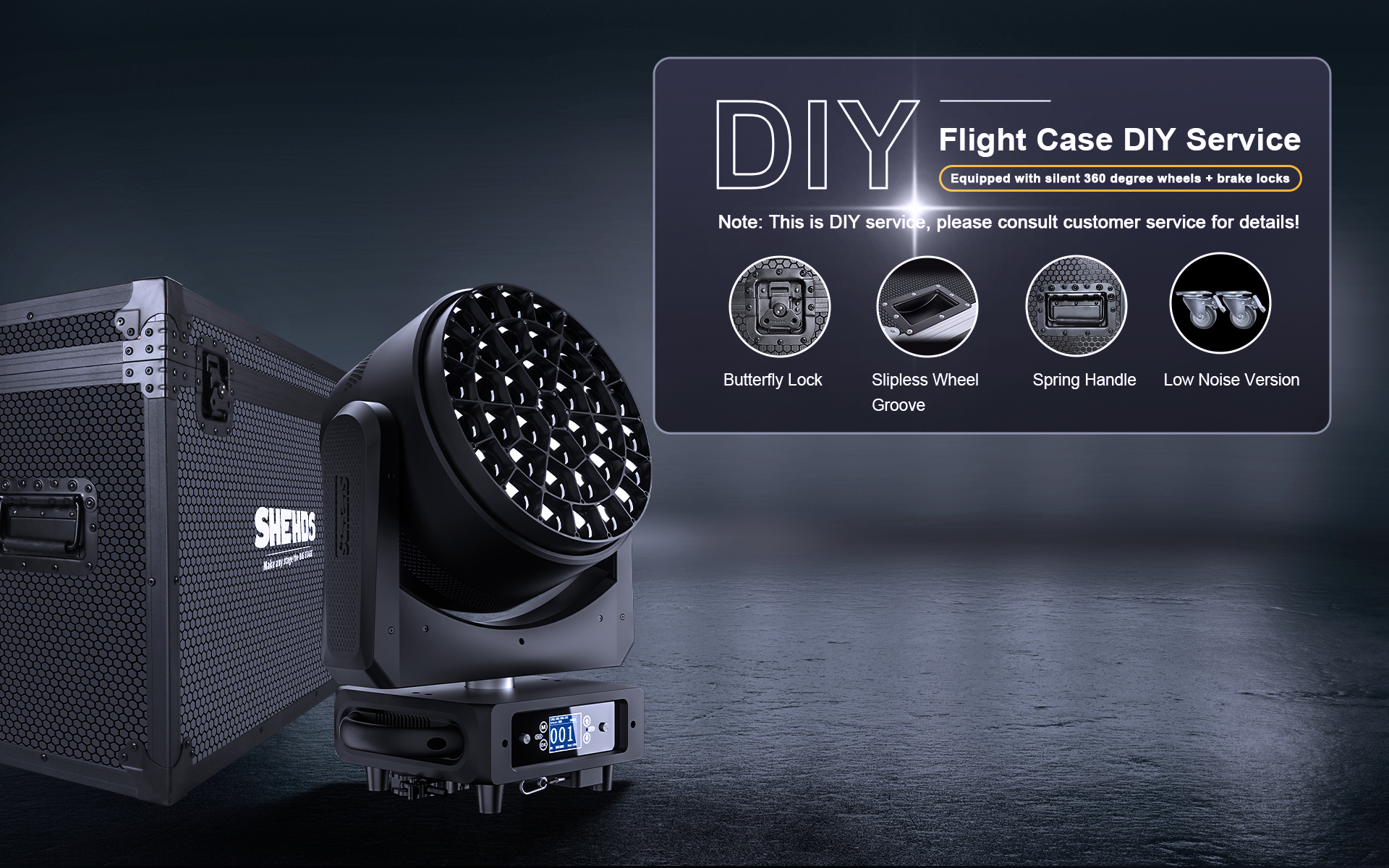

Flight Case DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service, please consult customer service for details!
Qualification Certificate
International organizations Authority certification
