| Light source parameters | |
| Laser wavelength: | R-640nm, G-520nm, B-450nm |
| Spot size (laser spot) | 5.5mm |
| Angle of divergence of light source | ＜1.2mrad |
| Modulation mode | 0~5V analog, up to 25khz/TTL |
| Laser Class | Class 4 |
| Laser Power | R-1W / G-2W / B-3W |
| Pulse width | 22μs |
| Repetition frequency | 412Hz |
| Imaging system | |
| Laser color | Red, green, blue mixed colors |
| Evenness | >98% |
| The camera is offset horizontally | -30% to +30% |
| The lens is offset vertically | -30% to +30% |
| Imaging mode | 3D/2D pattern and animation (with software) |
| Projector distance | ＜200M The best distance is 20~50M |
| Galvanometer rate | 25 KPPS |
| Galvanometer Angle | Max50° |
| Fail-safe system | |

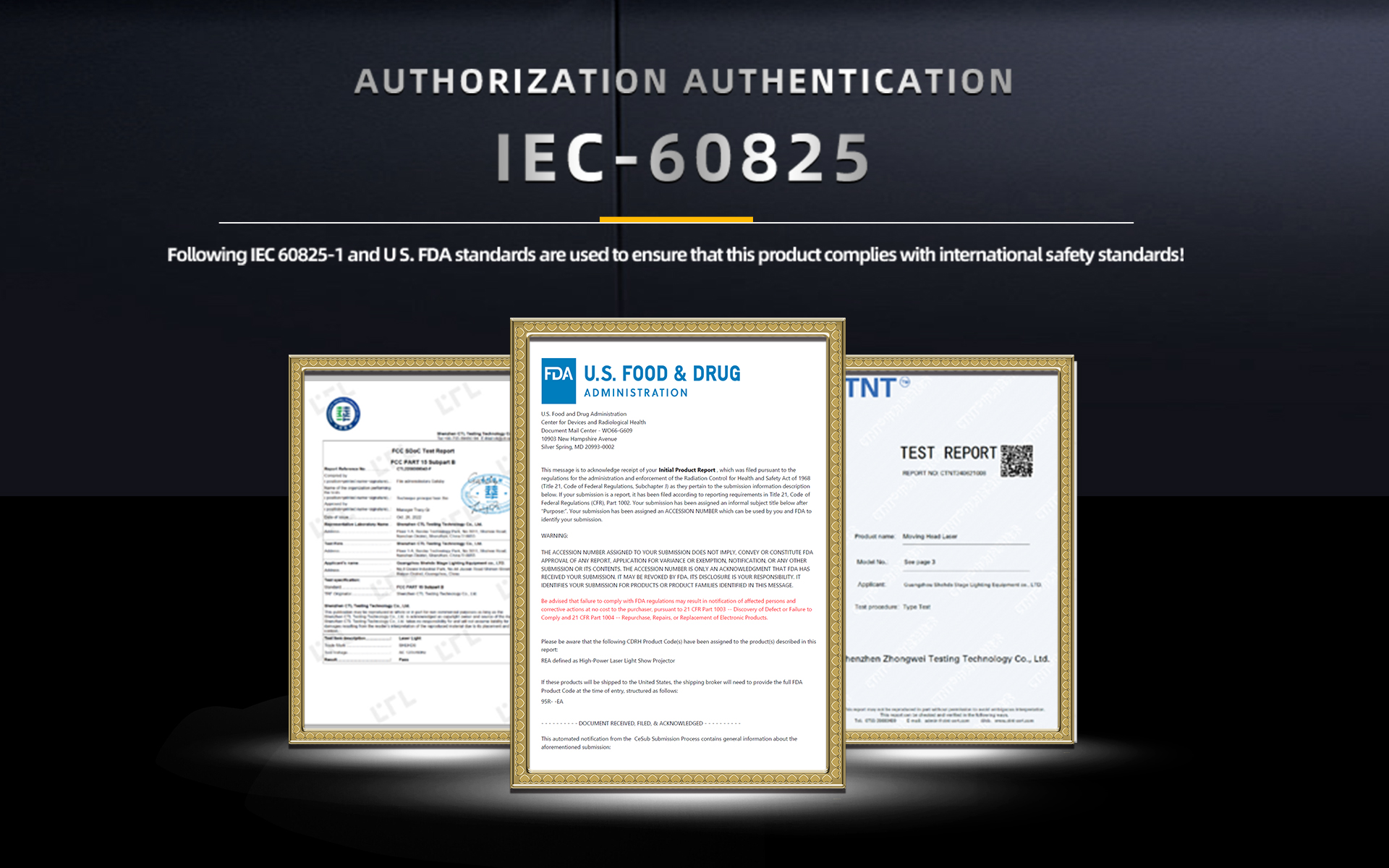

| Safety standards | Follow the IEC60825 standard |
| Security project | Overcurrentand voltage protection |
| Class of protection | IP65 |
| Operating temperature | -15℃~45℃ |
| Interface and control systems | |
| Control interface | DMX In/Out ,RJ45 In/Out |
| DMX channel | 16/20CH |
| Power supply interface | Neutrik PowerCon |
| Cooling system | |
| Cooling mode | Air cooled |
| Cooling structure | 60mm plug-in heat dissipation layer |
| Heat dissipation fan | 60mm fan out* 1 |
| Power Consumption | |
| Power of operation | 100~240V AC 50/60HZ |
| Power supply | Max 60W |
| Battery capacity | 10000 mAh / 12V DC |

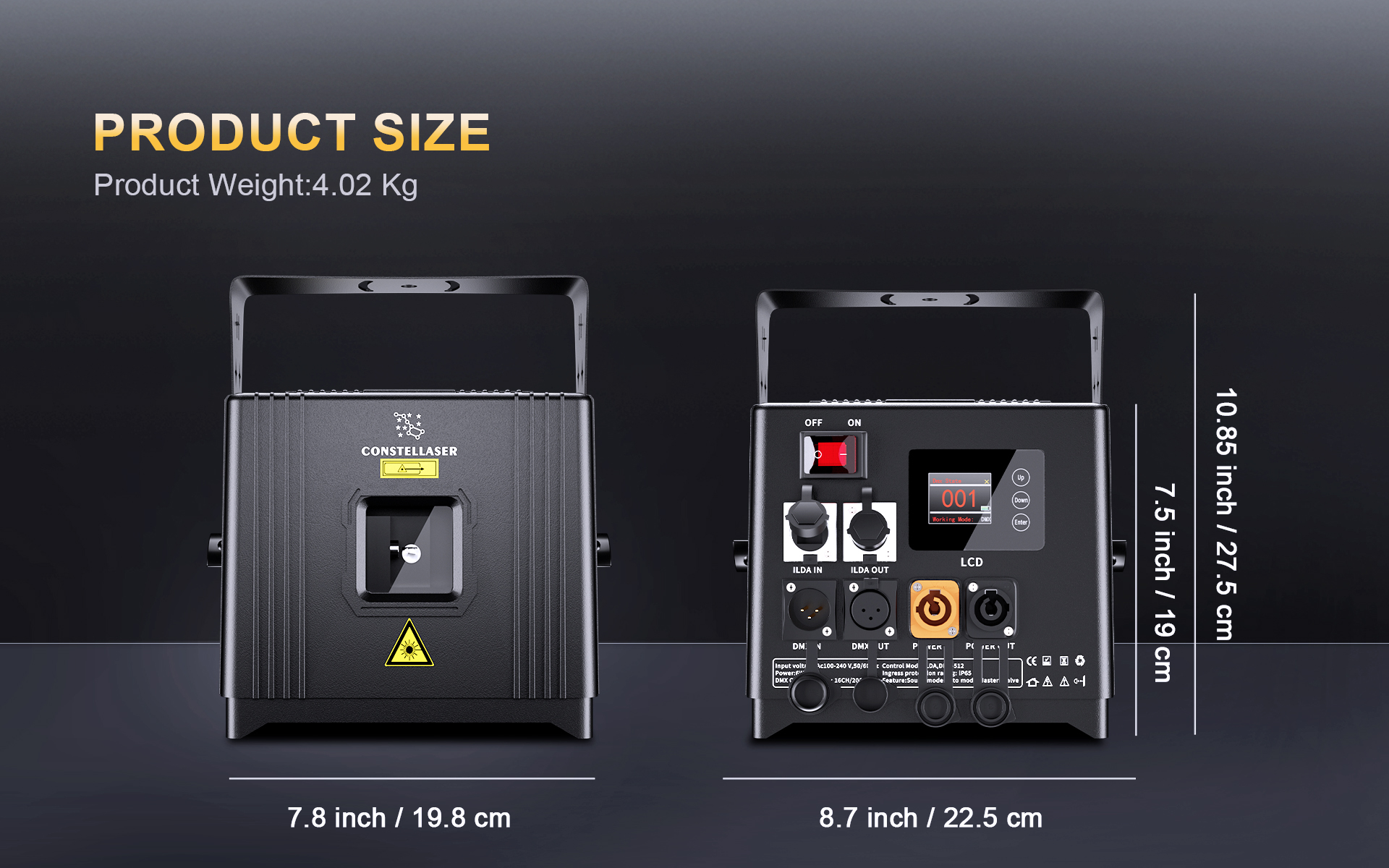

| Physical parameter | |

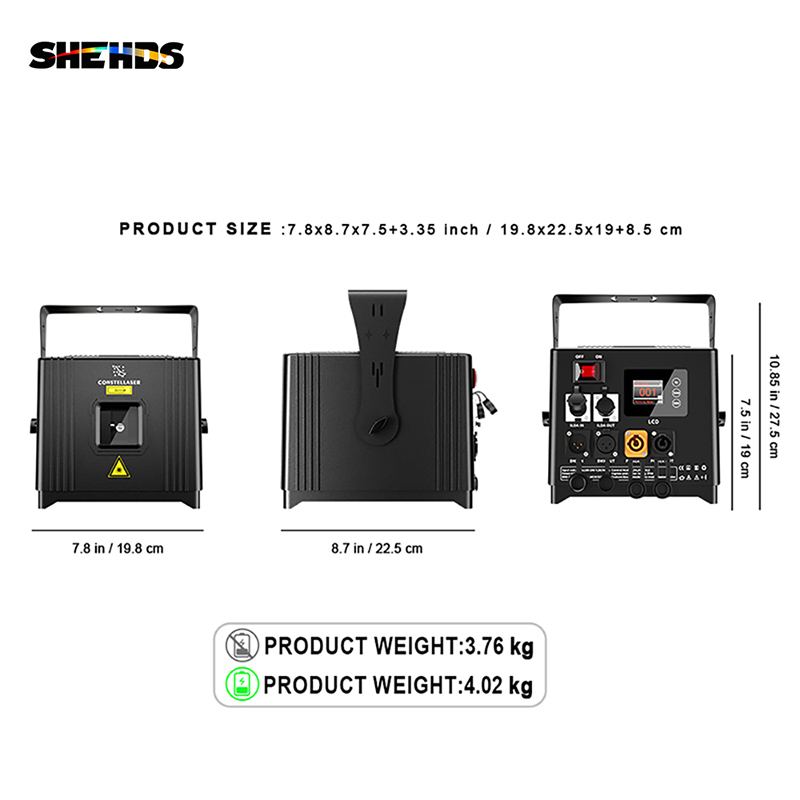

| Dimensions of products | 19.8 x 22.5 x19 cm |
| Weight of product | 4.02 Kg |
| Dimensions of package | 34.5 x30.5 20 cm |
| Weight of package | 4.74 kg |
| Package Weight | 4.48 kg |
Laser Effect
The laser beam exhibits bright, sharp, and pure lines, with extremely high directionality and spectral purity. These beams can present stunning visual effects through precise beam manipulation and multi-dimensional projection in specific stage environments, creating intoxicating interweaving effects of light and shadow. Whether in large-scale performances, exhibitions, or events, the application of laser technology will bring unparalleled visual impact, enhance the overall atmosphere, and immerse the audience in a dreamlike audio-visual enjoyment.
Outdoor Performances
Even on rainy days, due to the scattering effect of water droplets on light, the laser beam can still maintain its concentration and form a bright beam.

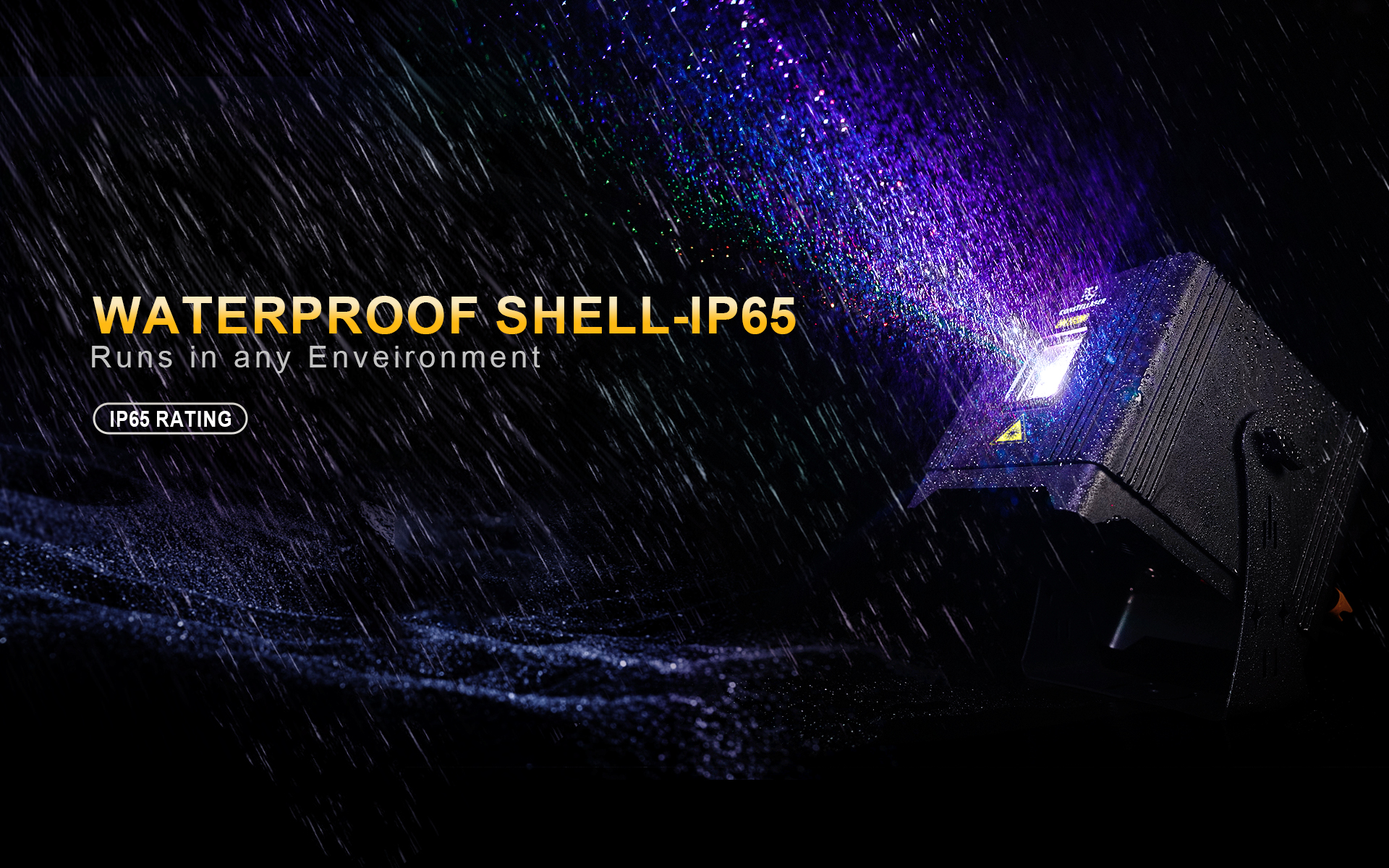

Waterproof shell-IP65
The shell is usually made of corrosion-resistant and weather resistant materials to ensure safe and reliable operation in humid or rainy environments.

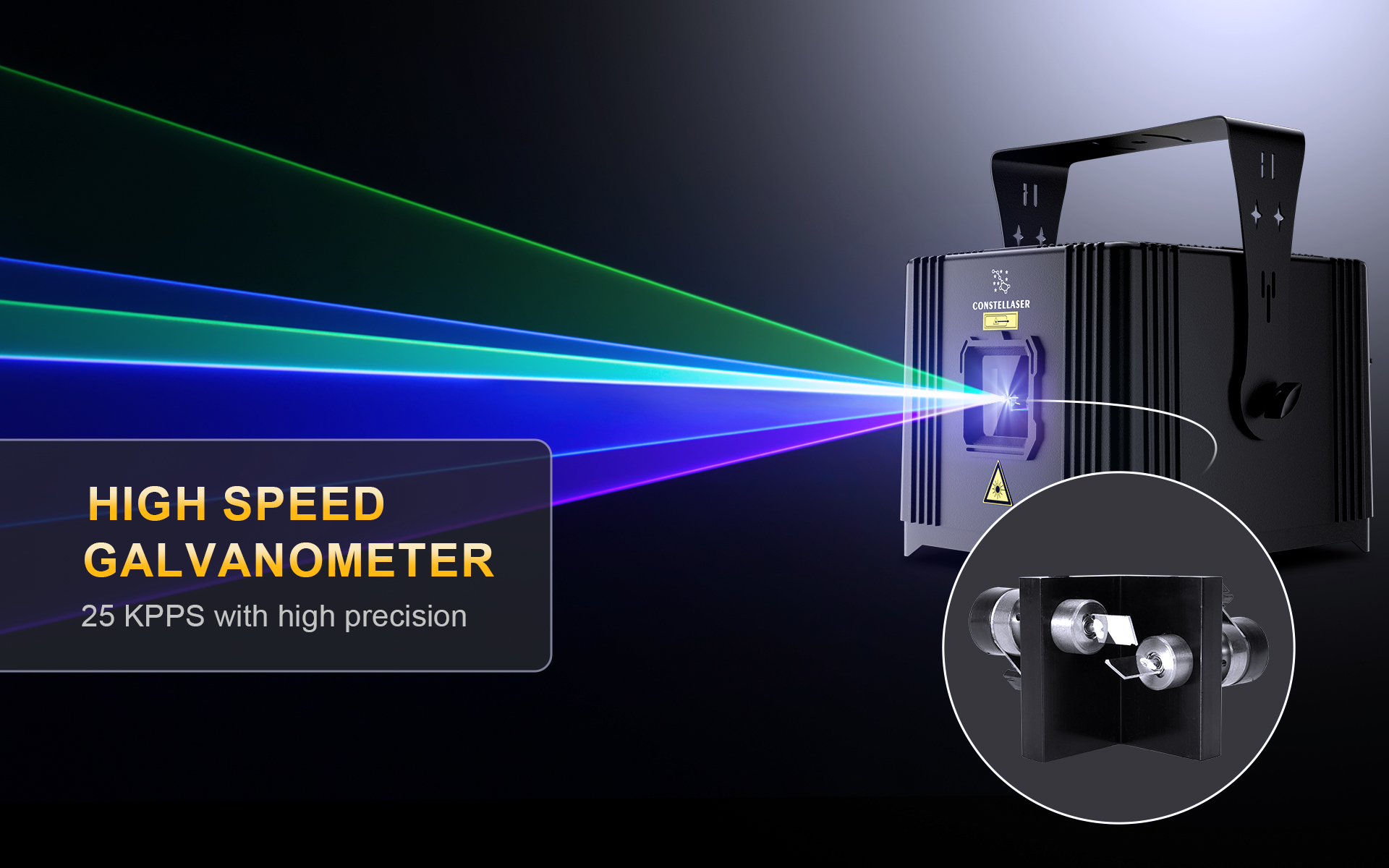

High Speed Galvanometer
25 KPPS with high precision
The high-frequency scanning technology ensures a smooth and seamless display of laser patterns,
with sharp and precise movements that are sure to captivate any audience
The Northern Lights Canopy Effects
Presenting a dreamy and colorful visual effect similar to the aurora.

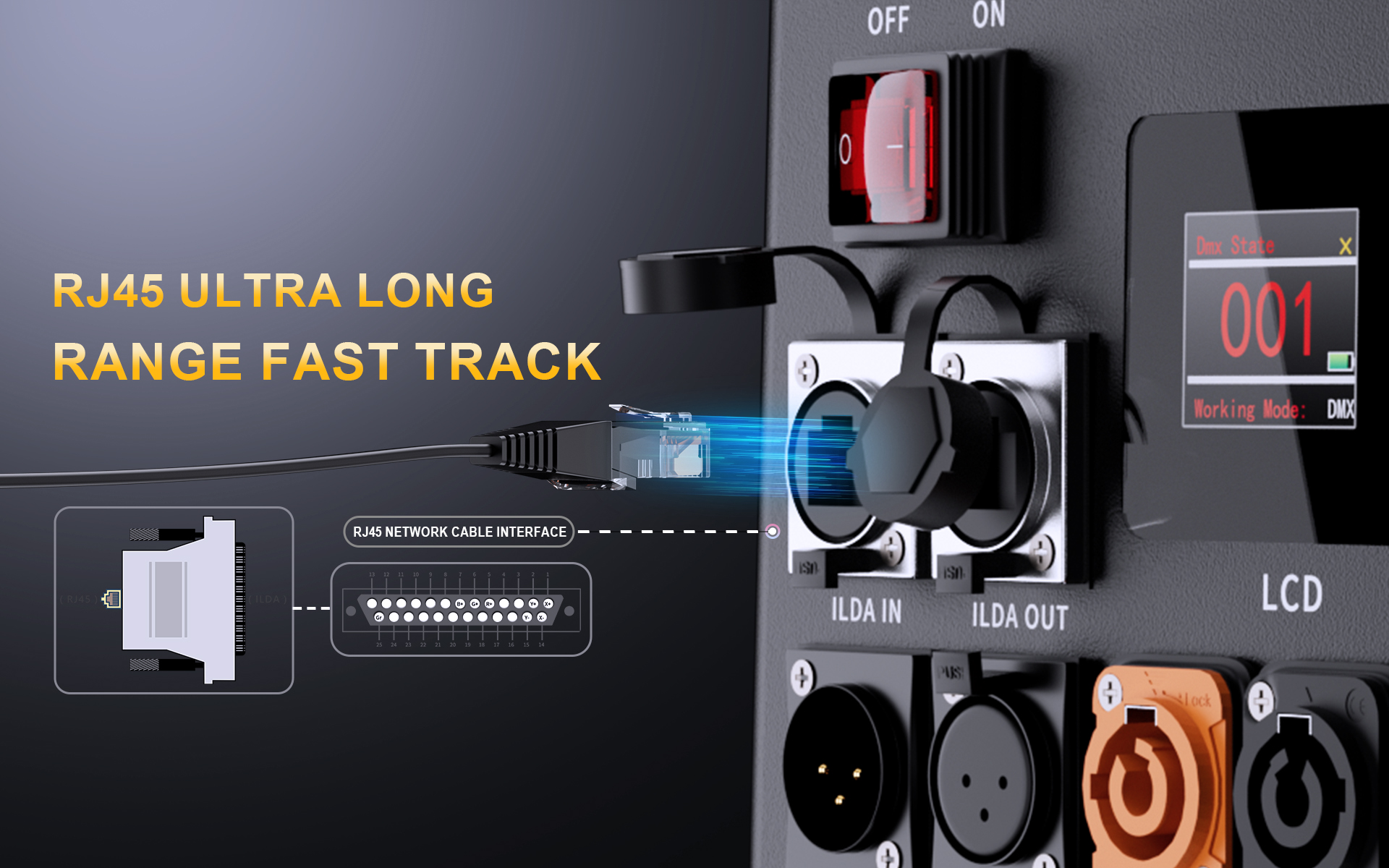

RJ45 Ultra Long Range Fast Track
The RJ45 network cable interface can help you quickly and stably transmit optical signals,
as well as provide you with broader data transmission space
and more efficient signal transmission speed, making your stage lighting, stage lighting,
and theater more eye-catching.

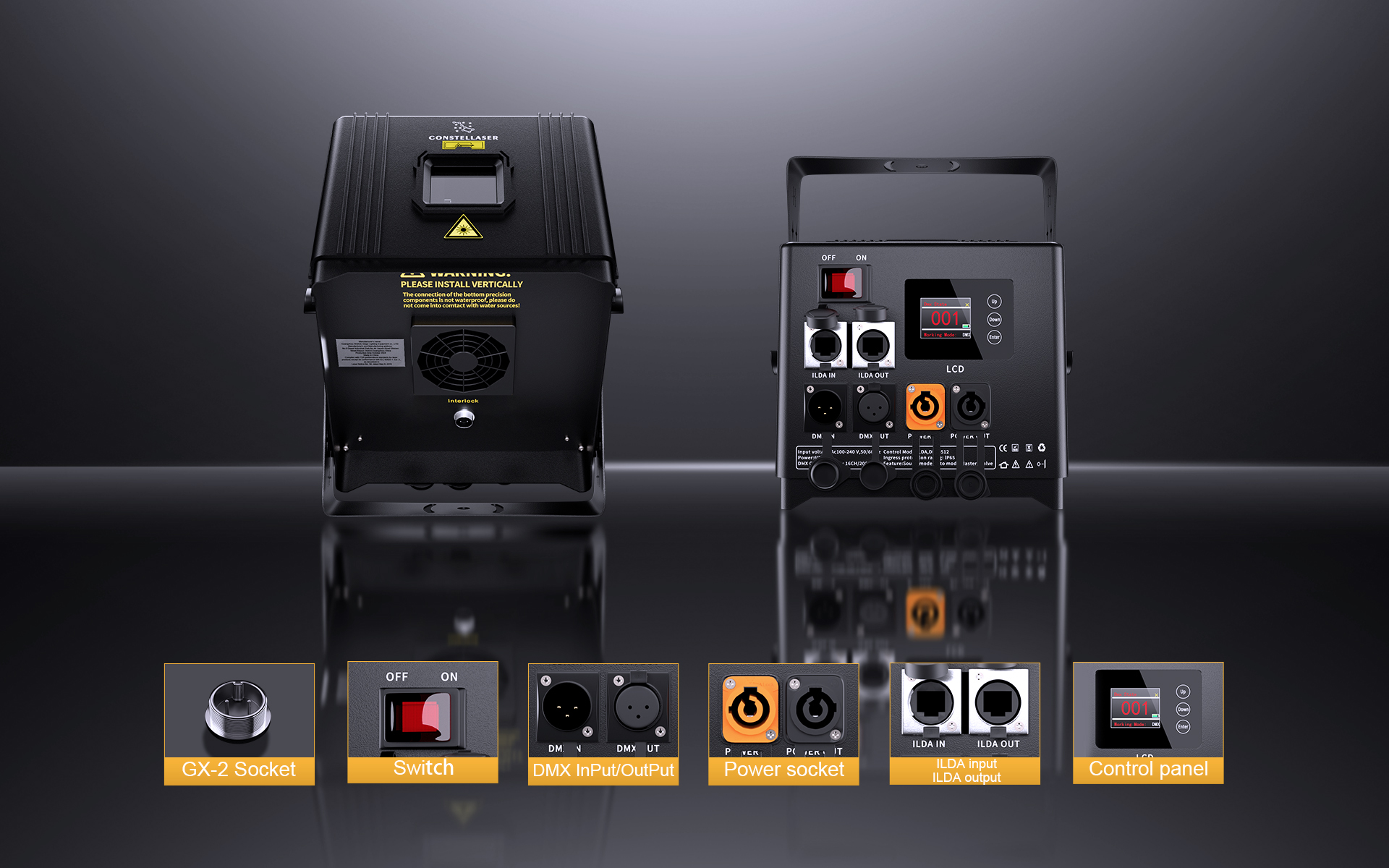

Introduction To Panel Functions
The laser equipment panel includes a high-definition display screen and simple menu buttons, which can intuitively display the interactive design of layered menus

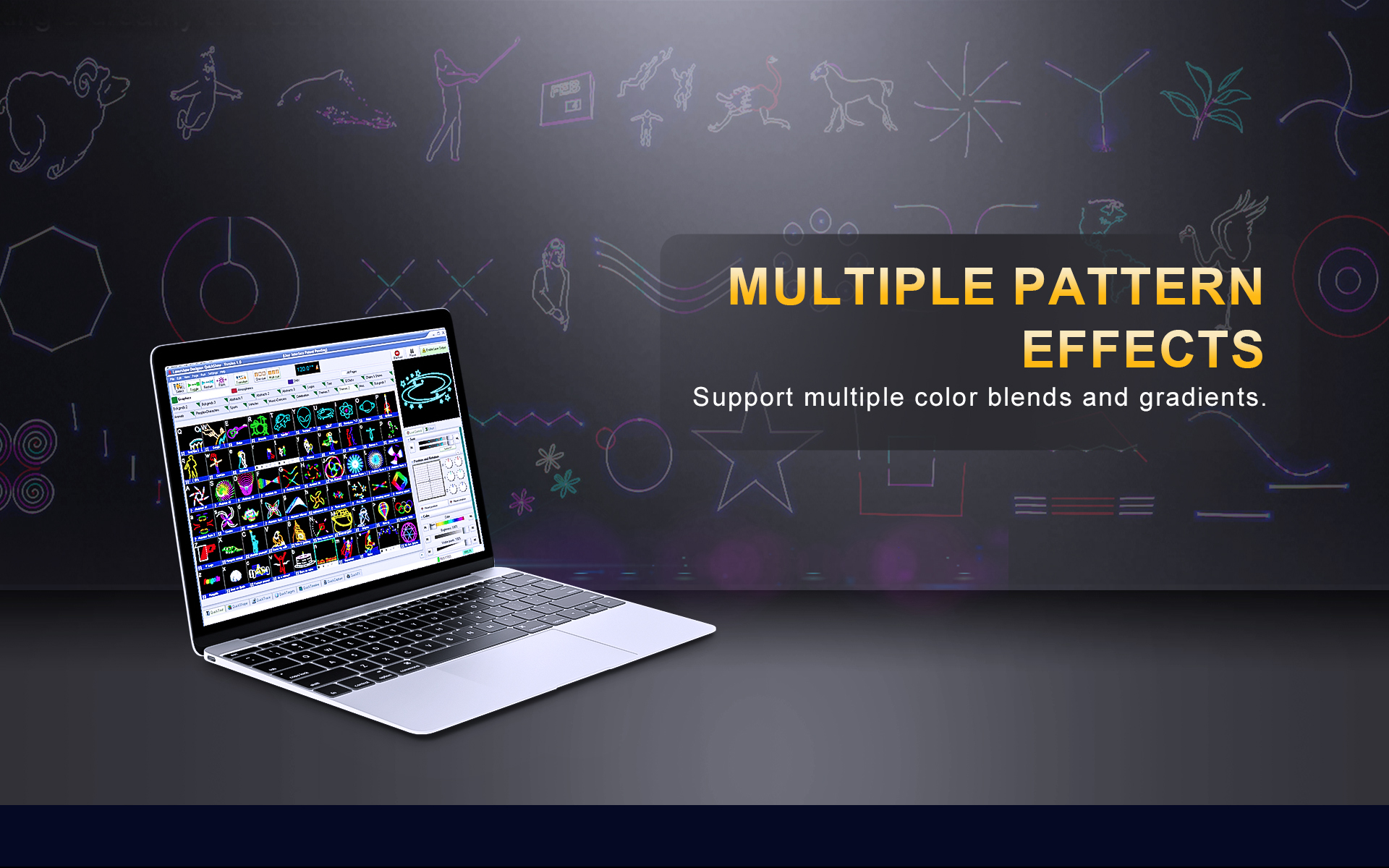

Multiple Pattern Effects
Partial pattern display, more pattern effects waiting for you

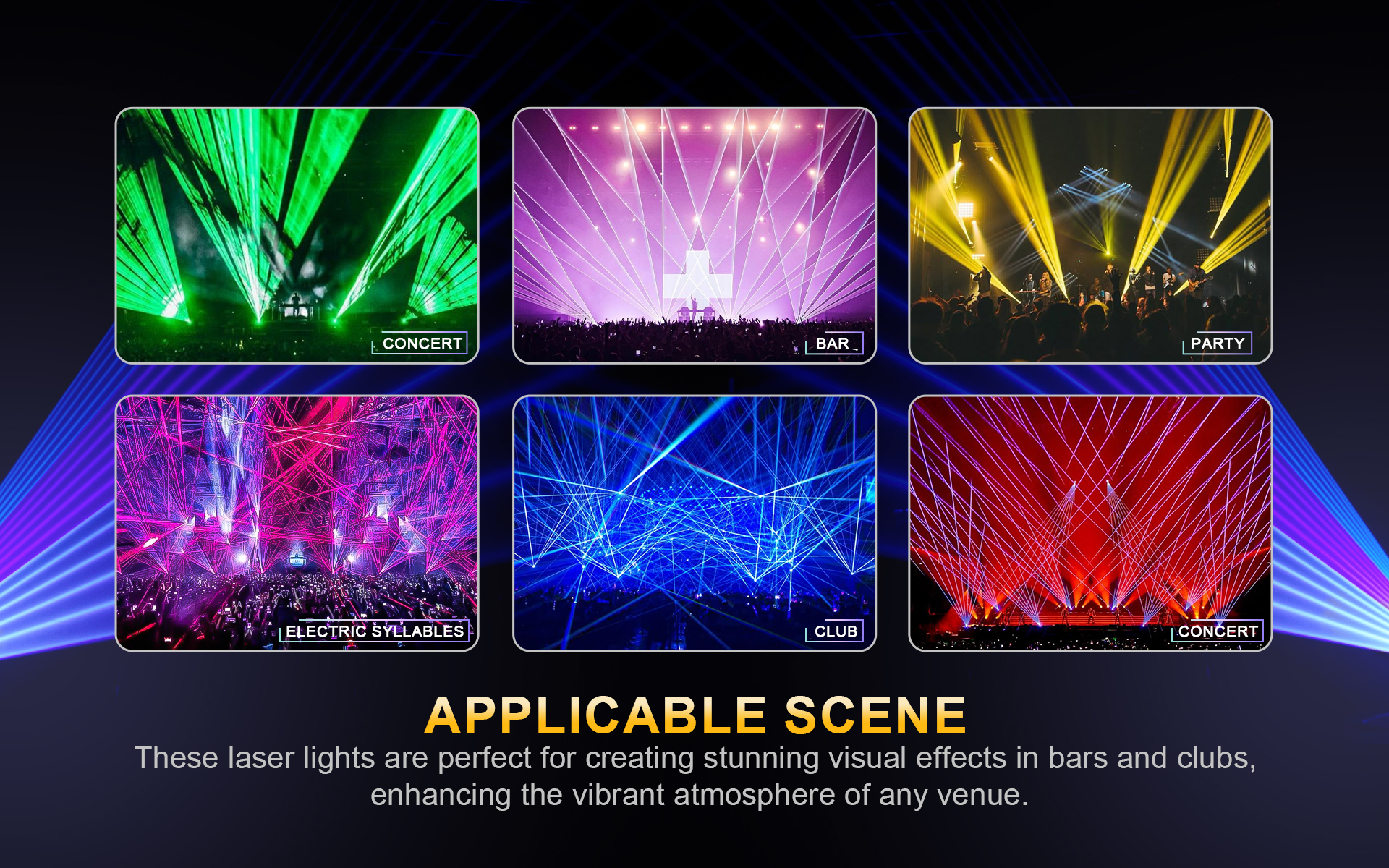

Applicable Scene
The 12W laser lights are perfect for creating stunning visual effects in bars and clubs,
enhancing the vibrant atmosphere of any venue.
SAFETY TIPS
During the use of a laser source,
Do not look directly at the light source.
The effect of stage laser lights is formed by high-speed scanning of the laser
beam through high-speed galvanometers or low-speed stepper motors.
The harm to the human body is mainly reflected in the harm to the eyes,
and prolonged exposure can lead to blindness.

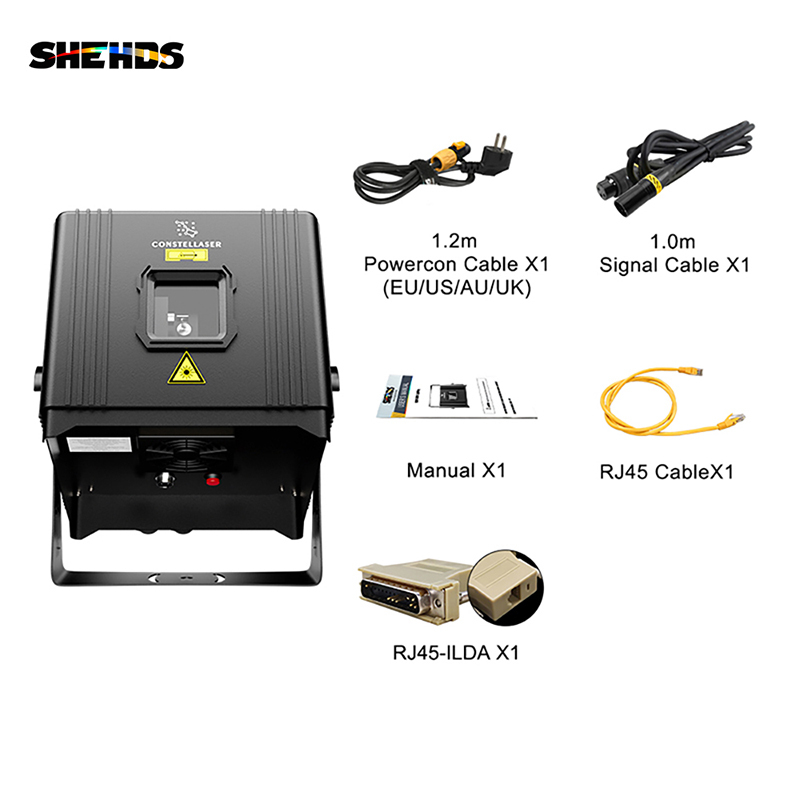

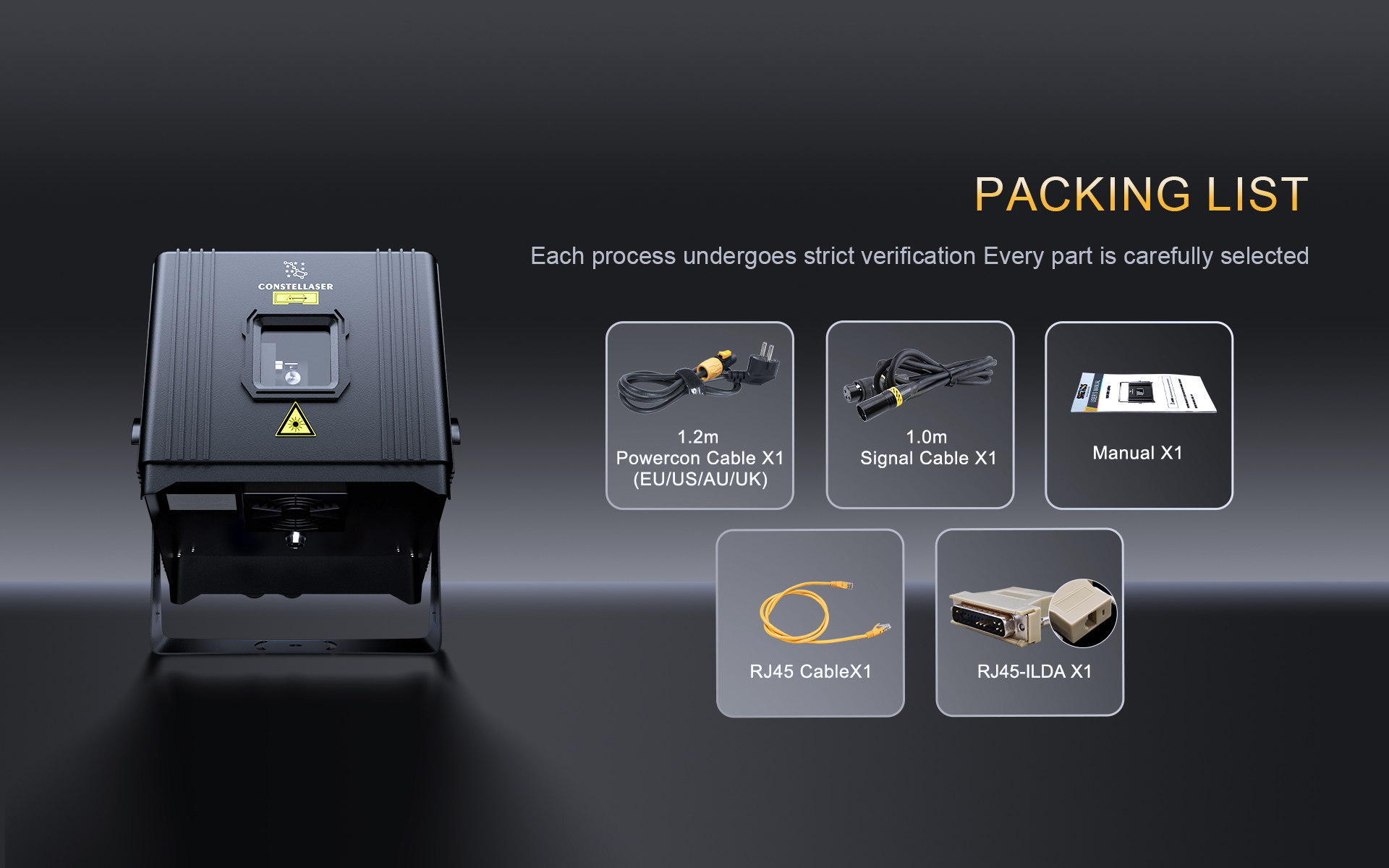

Packing List
Before leaving the factory, each of our products undergoes rigorous testing to ensure they are in perfect condition before being shipped out. Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every detail. Only products that have gone through layers of scrutiny can confidently leave our factory and arrive in your hands with unparalleled quality, bringing you an excellent user experience.

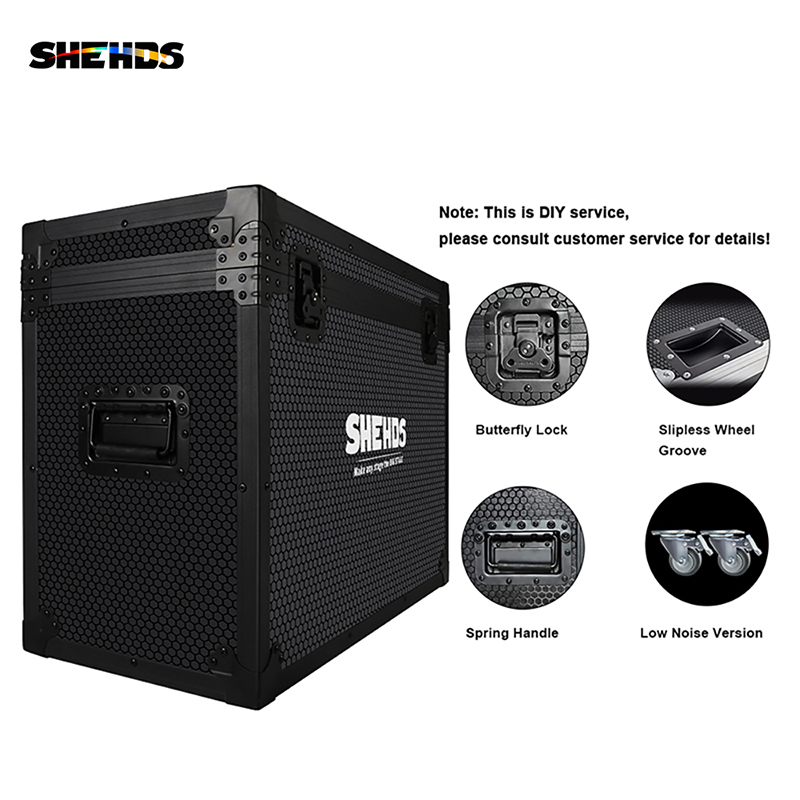

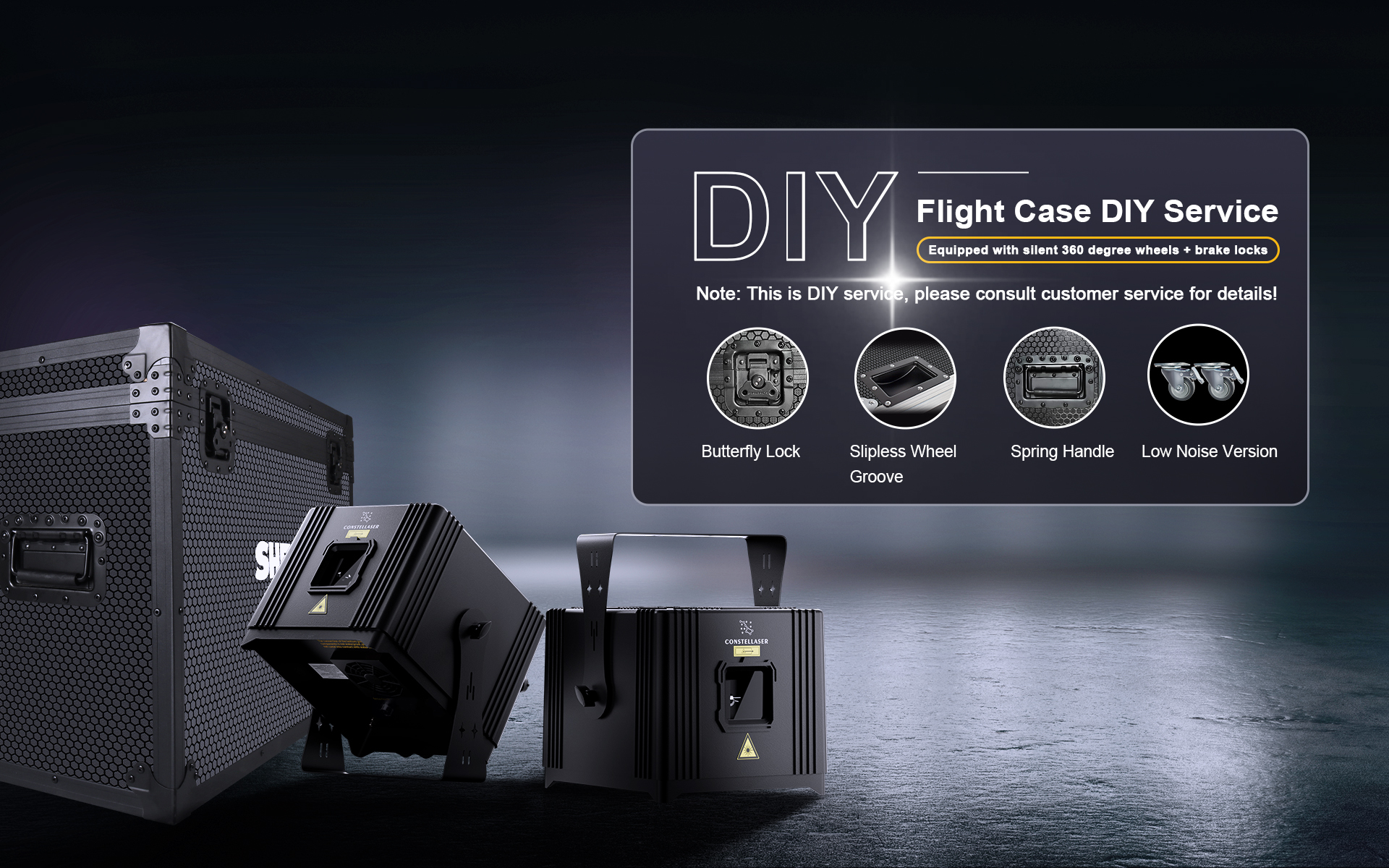

Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
We offer customized aviation cases that perfectly meet your product needs. Whether it's precision equipment, fragile items, or valuable goods, our aviation box design not only ensures safety protection, but also adapts flexibly to various specifications and shapes. Each box is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products. From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service,
please consult customer service for details!
