| Light source parameters |
| LED source power: |
10X20W |
| Dimmer: |
0-100% linear dimmer |
| Colour temperature output: |
1919K |
| CRI: |
39.2 |
| 5m Beam Illuminance: |
230 lux@5m |
| Life expectancy: |
min. 50000 hours |
| Interface And Control System |
| Control Interface |
100cm 3-pin DMX512 in&out |
| DMX Channel |
5CH、11CH、14CH、24CH、70CH |
| Signaling protocol: |
DMX512/RDM |
| Power Interface |
100cm Power con in&out(IP65) |
| Cooling System |
| Cooling Method |
Fanless passive heat dissipation |
| Power Consumption |
| Power supply: |
250W+24V+12V |
| Input voltage range: |
100-240V，50/60Hz |
| Working Power |
220W |
| Physical Parameters |
| Material: |
Aluminum alloy |
| Ingress protection rating: |
IP65 |
| Product Size |
104cmx9.5cmx11.4cm |
| Product Weight |
4.9 kg |
| Package Size |
109cm*15cm*17.5cm |
| Package Weight |
5.18kg |

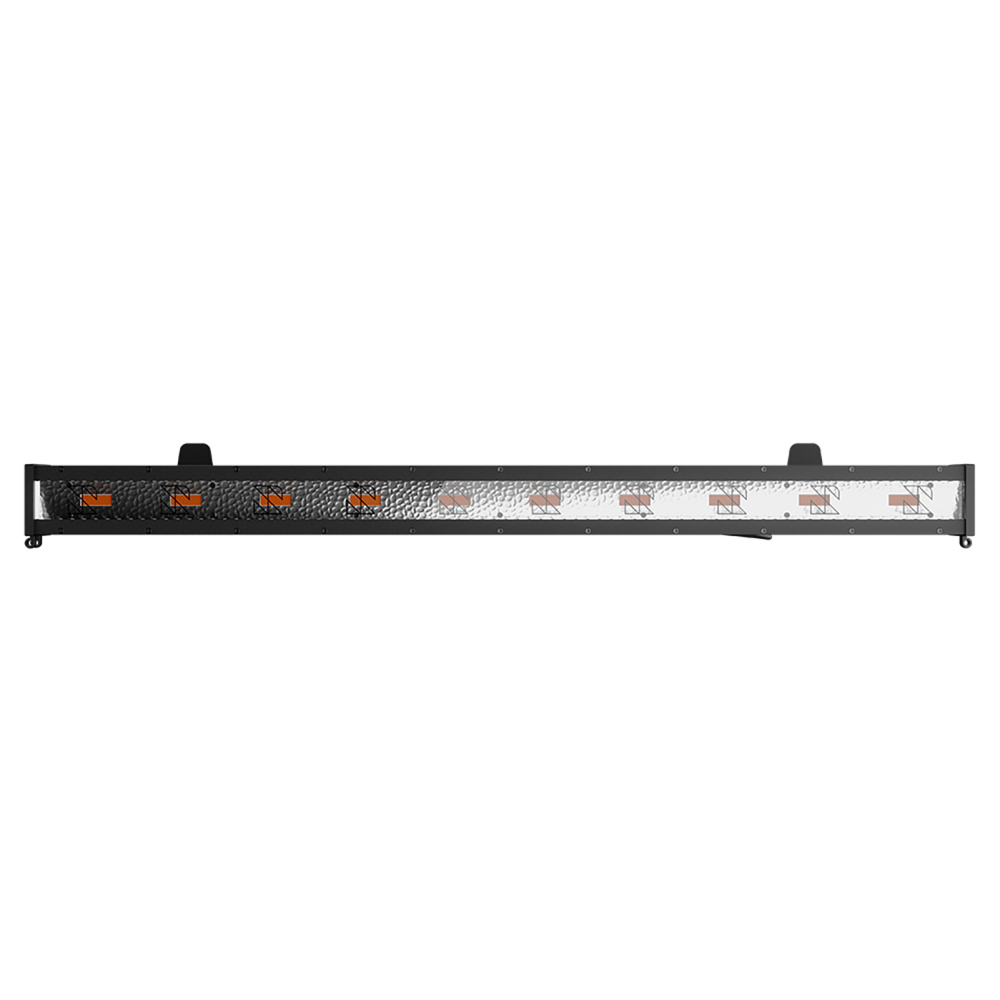

Waterproof LED Retro 10x30W Amber Strobe Lighting
Combining retro aesthetics with modern waterproof technology, this strip stage light features a classic industrial style design, injecting a timeless charm into stages, bars, and commercial spaces.
Product Features
IP65 protection ensures stable operation in complex environments such as humidity and outdoor conditions. The high brightness LED light source and flexible installation method meet the dual requirements of creative lighting and practical performance.

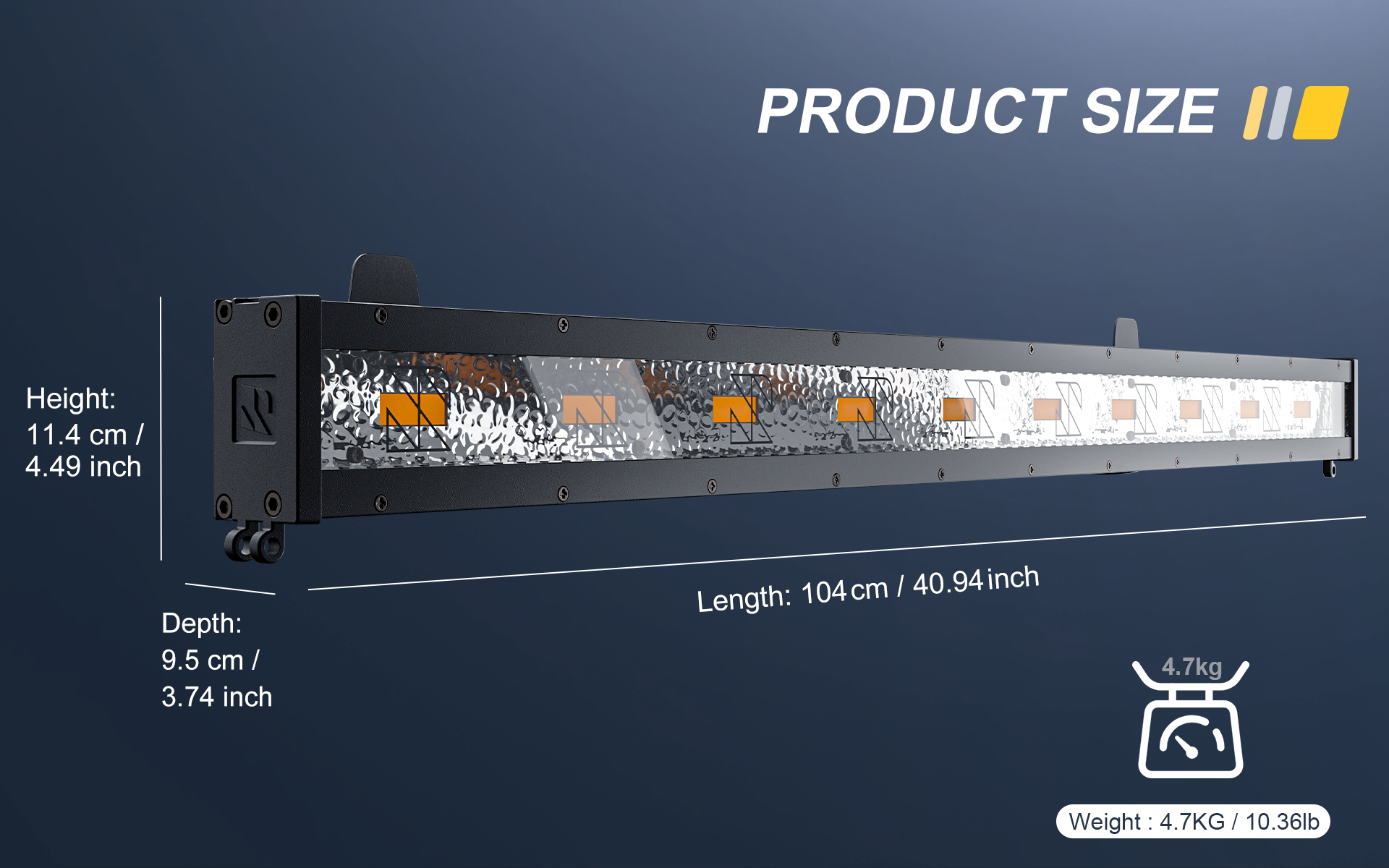

Product Size
Package Size: 104cmx9.5cmx11.4cm
Package Weight: 4.9kg

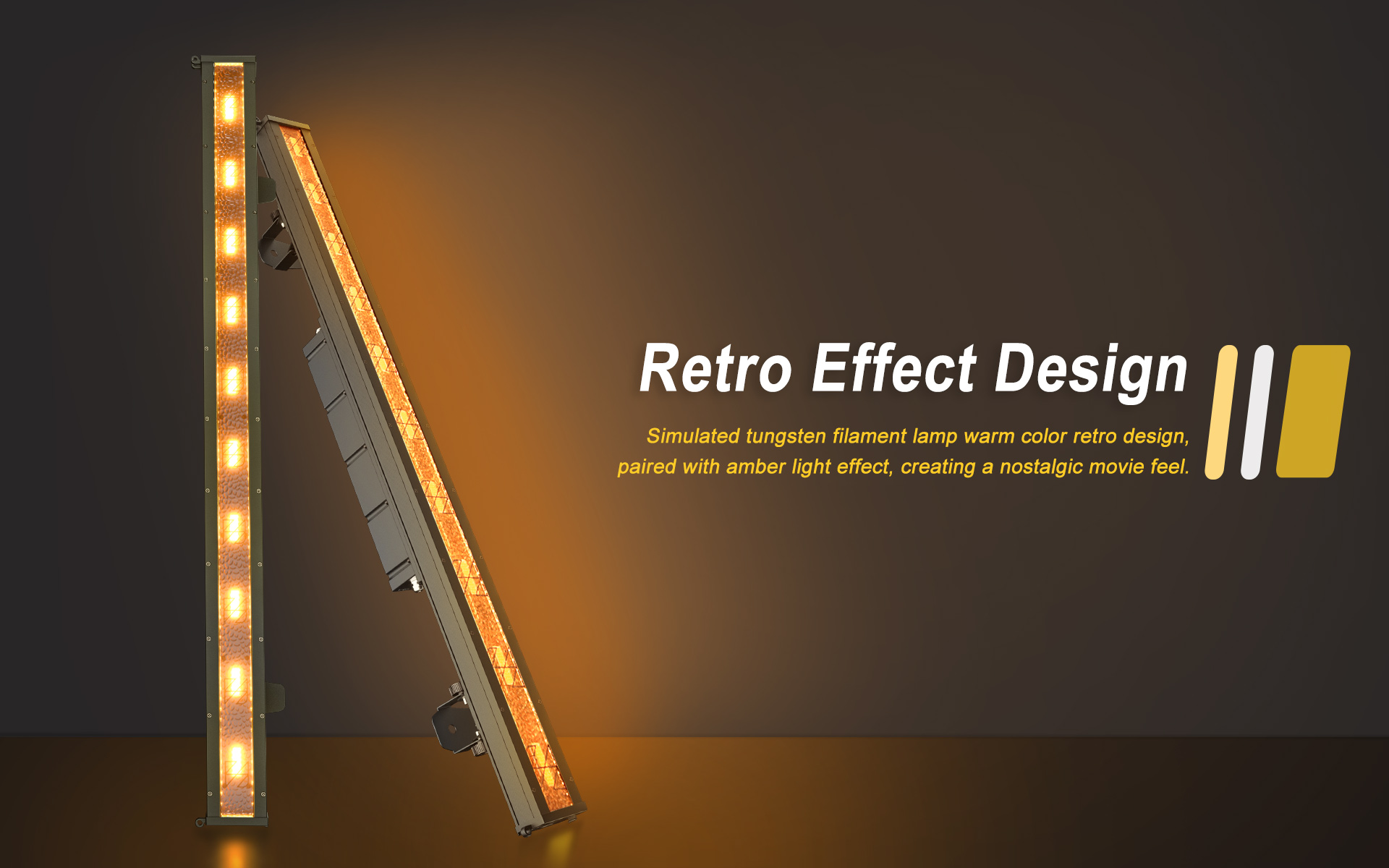

Retro Effect Design
Simulated tungsten filament lamp warm color retro design, paired with amber light effect, creating a nostalgic movie feel.

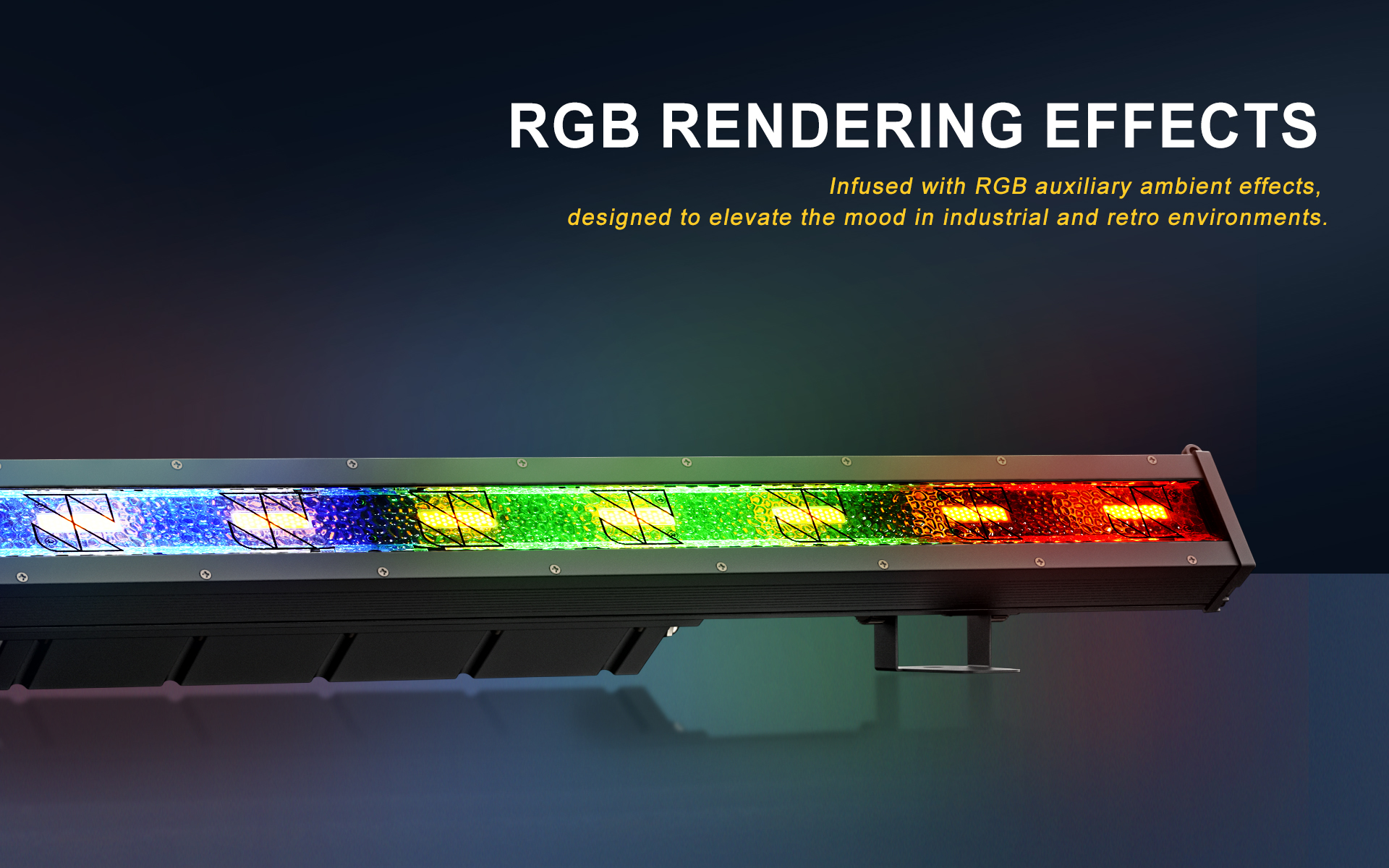

RGB Rendering Effects
Paired with RGB auxiliary atmosphere rendering lighting effects, featuring a minimalist bar structure that can be installed horizontally or vertically, suitable for industrial and retro spaces.

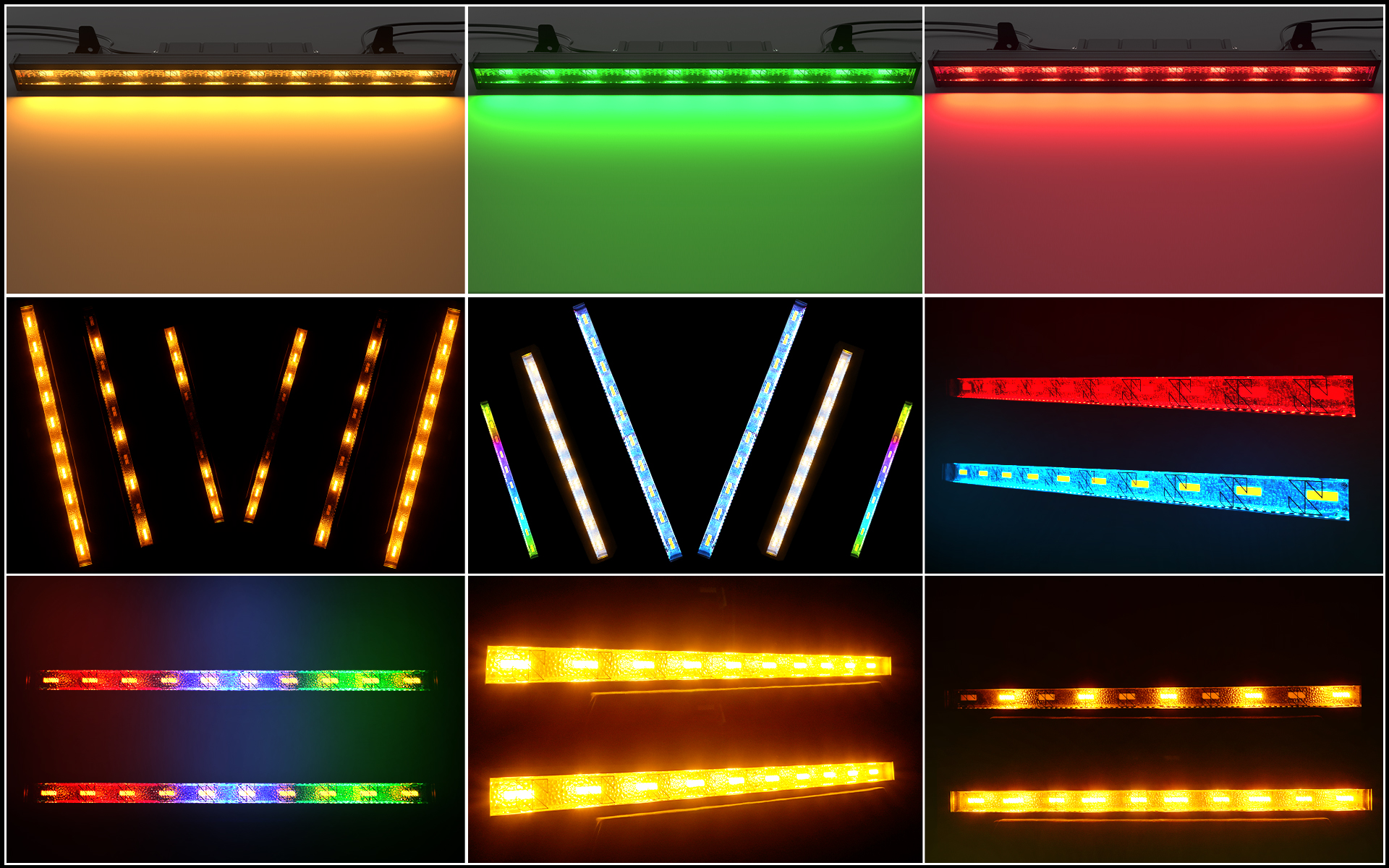

Automatic Combination Of Light Effects
Multiple modes are available (constant light/flicker/gradient), suitable for dynamic scenes such as stage plays, concerts, and bar performances.

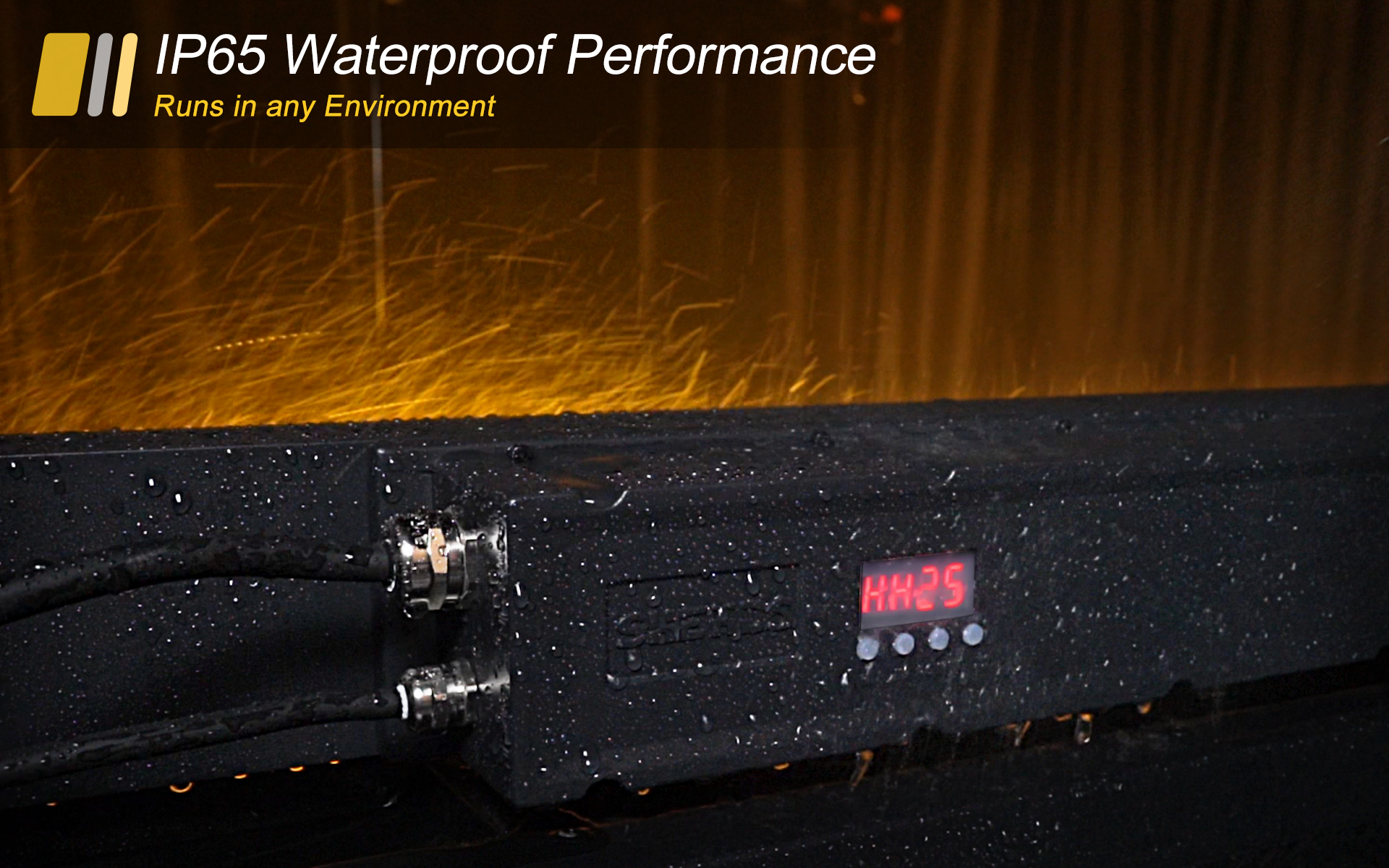

Waterproof performance
Through rigorous laboratory testing, it can work continuously in environments ranging from -20 ℃ to 50 ℃ and adapt to different climatic conditions in the north and south.Whether the outdoor music festival encounters rainstorm or the humid environment near the bar fountain, the lights can operate stably.

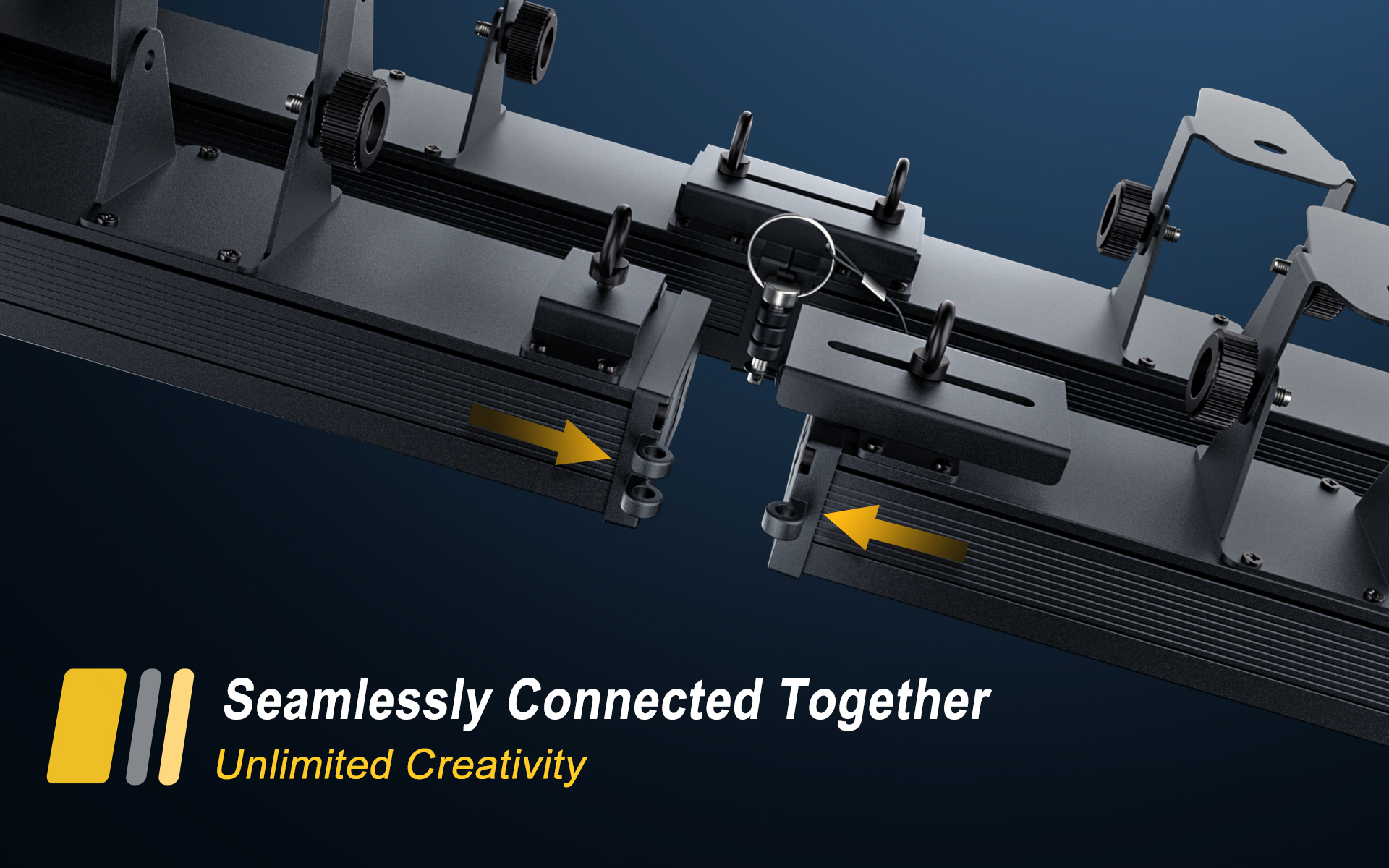

Free Splicing, Unlimited Creativity
The stage wall washing lamp supports horizontal or vertical splicing installation, making it more convenient for you to arrange the stage.
Whether it's a large theater or a small performance, you can easily handle it and create the ideal light and shadow effect in your mind.
LED Light Source
Equipped with 10 pieces of 20W LED bulbs, which are designed with special optical lenses to mimic the soft halo of tungsten filament lamps while eliminating the glare associated with traditional high-power lamps, the fixture features an aviation-grade aluminum fin-type heat dissipation structure, ensuring stable performance without attenuation during prolonged operation at 20W power and a lifespan exceeding 50,000 hours.
Applicable Scene
Stage performances - background lighting effects for dramas, dances, and concerts to enhance visual depth;
Commercial space - retro themed decorative lighting for bars, restaurants, and cafes;
Outdoor landscape - gardens, building facades, and night scenes of swimming pool areas illuminated;
Function Introduction
Introduction To Panel Functions
Equipped with a 1.8-inch touchscreen menu panel, the operation is simple and intuitive.
You can easily adjust parameters such as lighting color, brightness,
and mode to achieve personalized stage effects.

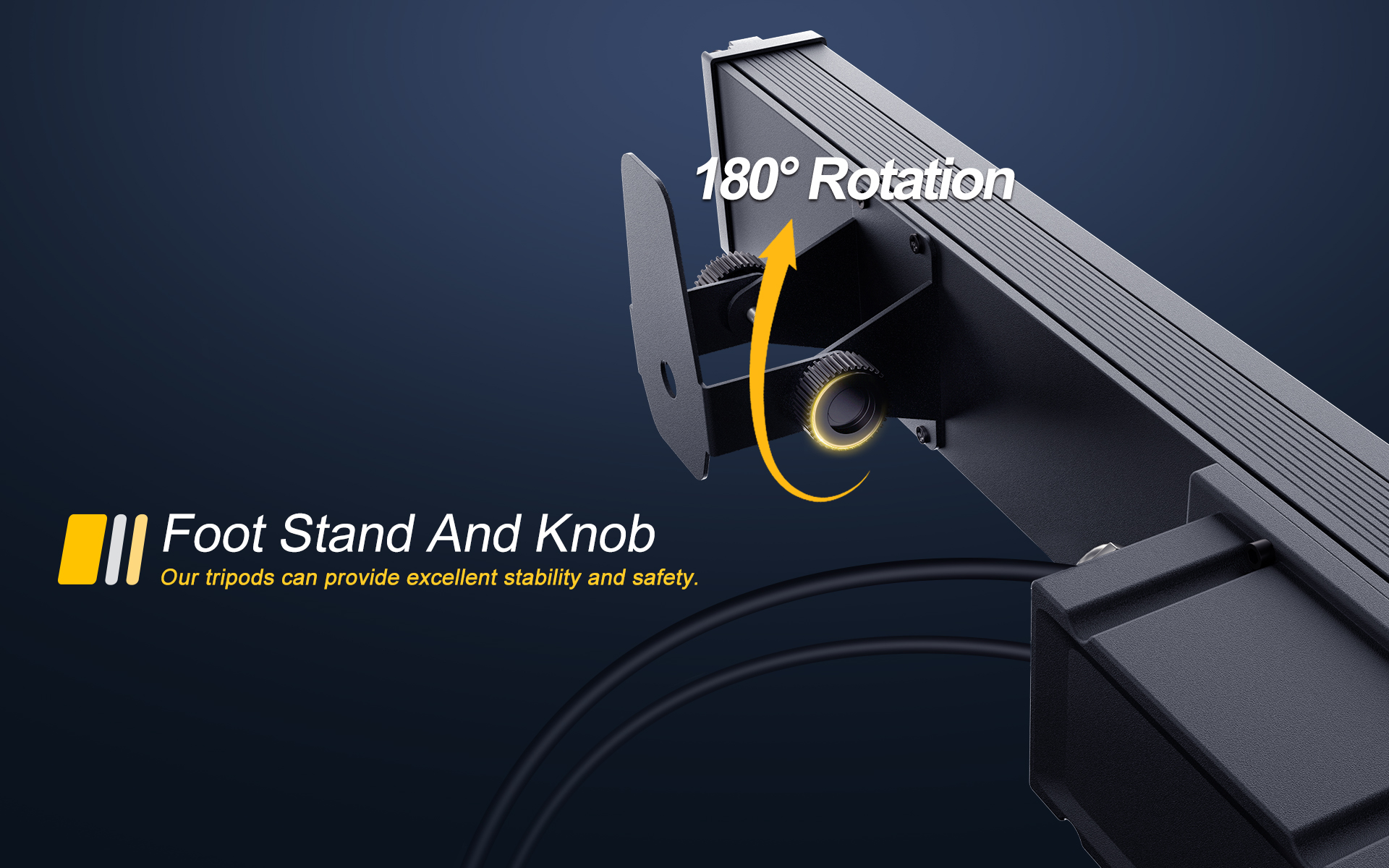

Foot Stand And Knob
Our tripods can provide excellent stability and safety.
The limit design can effectively prevent the tripod from slipping in unexpected situations,
ensuring that your device remains stable at all times.

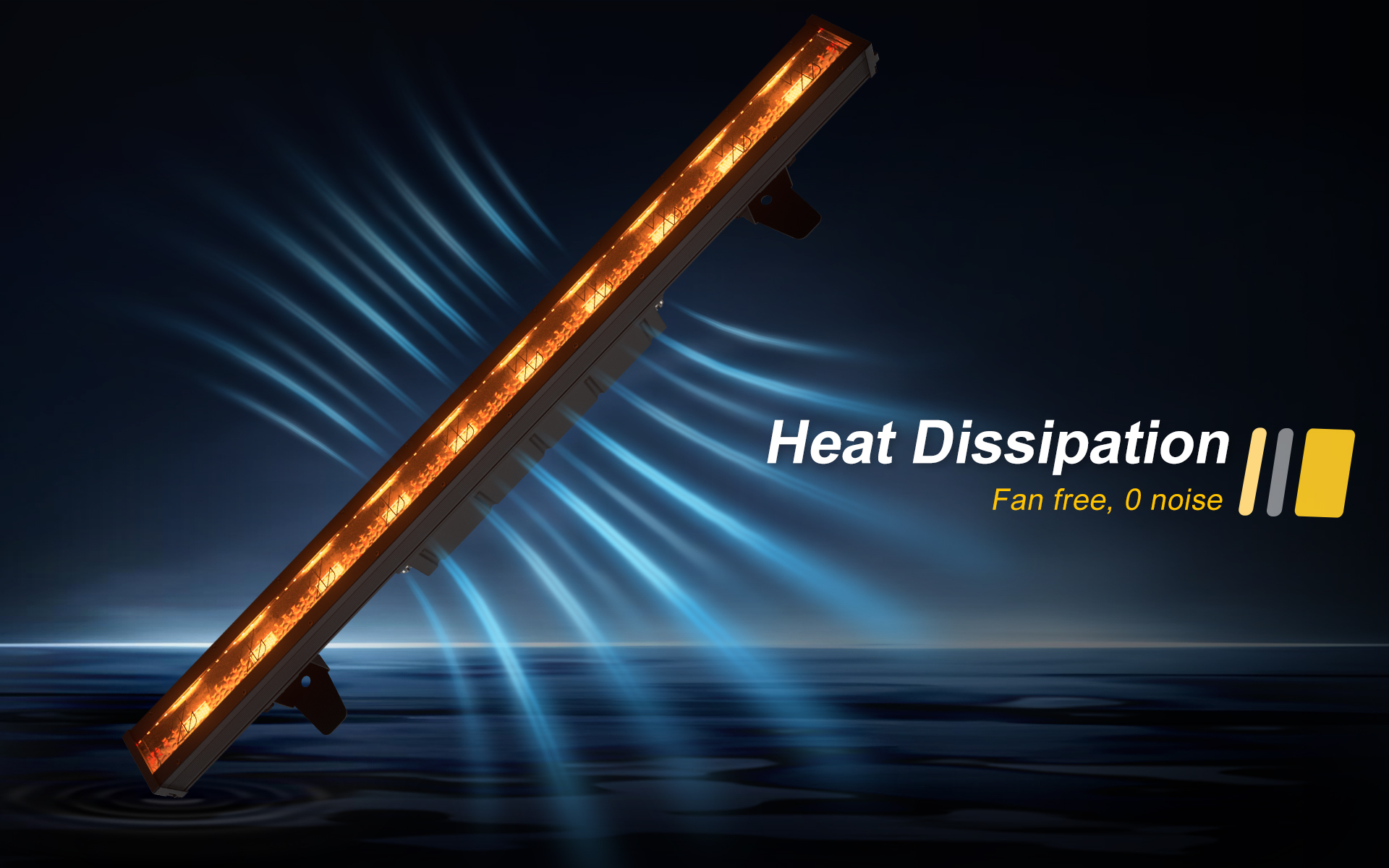

0 Noise Heat Dissipation
Aviation aluminum fin type heat dissipation structure, fanless passive heat dissipation, achieving zero noise operation and long service life! Eliminate fan noise interference in the original sound performance.

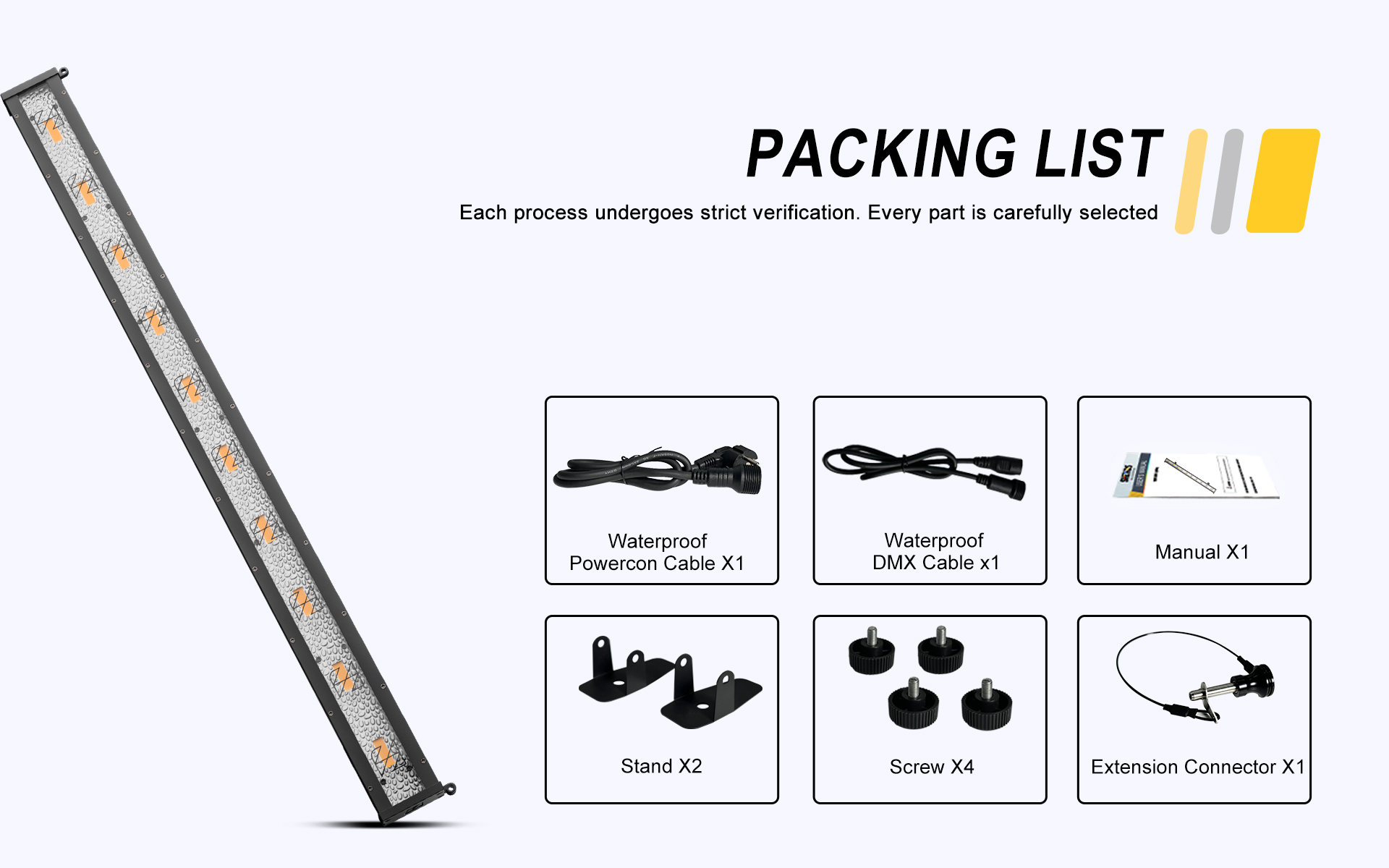

Packing List
Before leaving the factory, each of our products undergoes rigorous testing to ensure they are in perfect condition.
Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every detail.
Only those products that have gone through layers of checking can confidently leave our factory and arrive in your hands,
bringing you an excellent using experience.

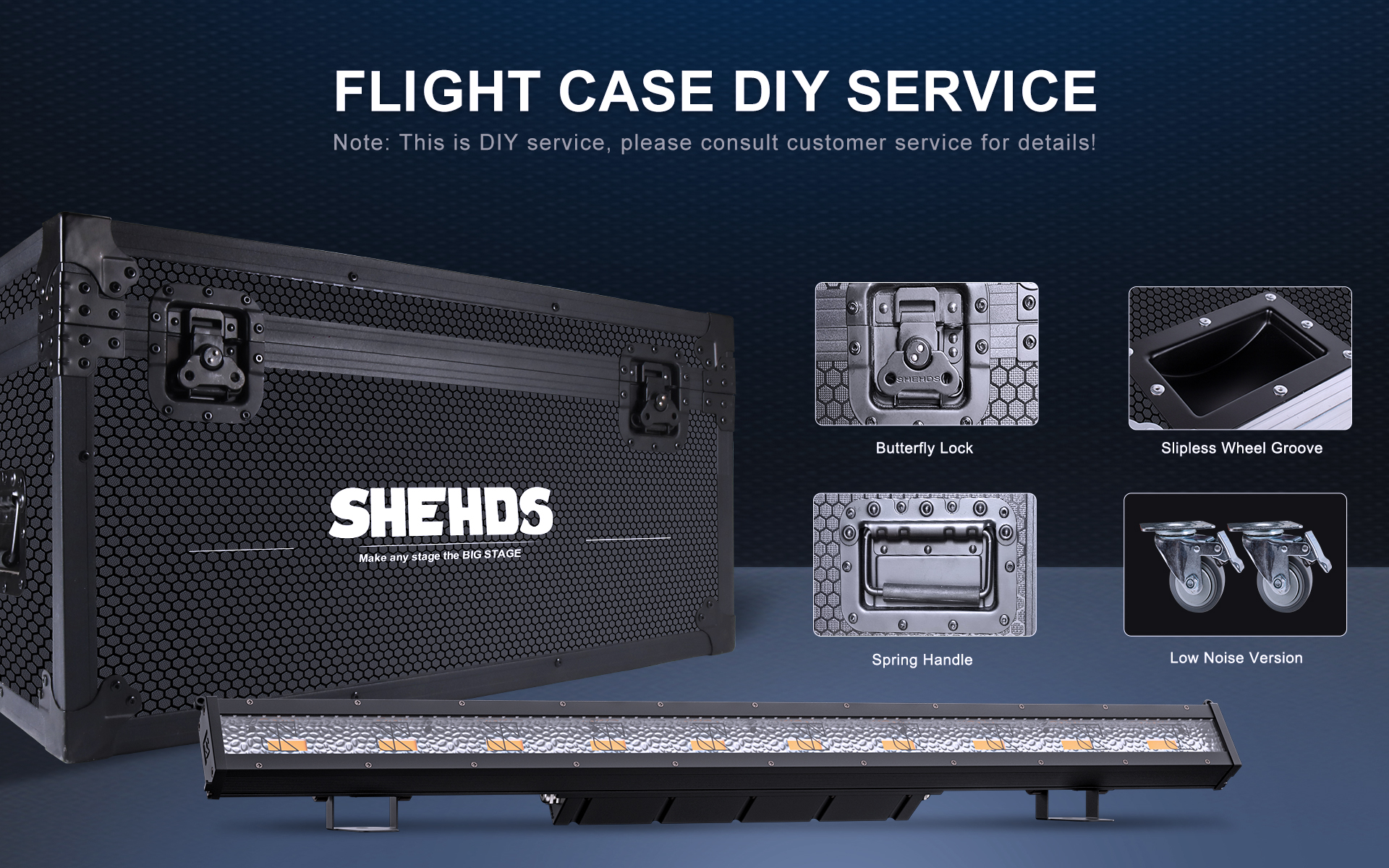

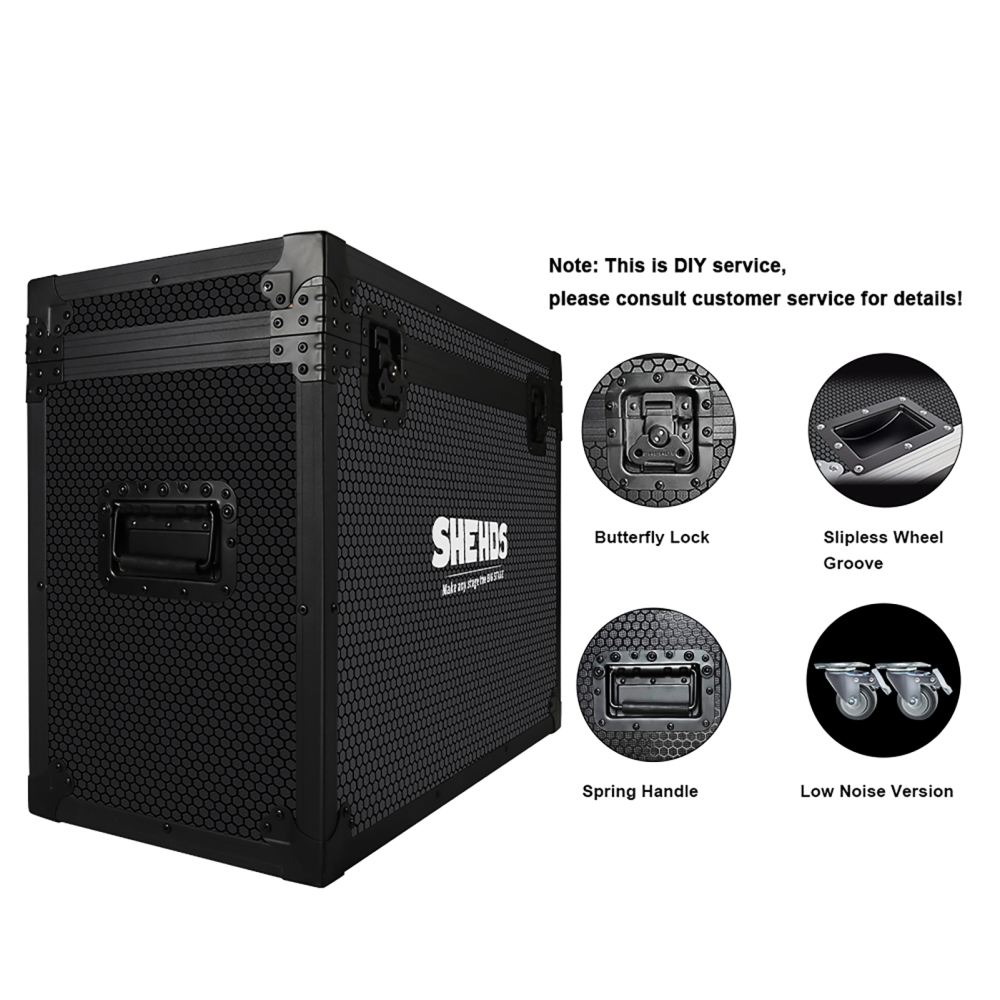

Flight Case
DIY Service
It equipped with silent 360 degree wheels + brake locks.
We offer customized road cases that perfectly meet your needs. Whether precision equipment, fragile items, or valuable goods, our road case not only ensures safety protection,
but also adapts flexibly to various specifications and shapes. Each case is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products.
From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service, please consult customer service for details!
