CRI color rendering index
LEKO Zoom 350W and LEKO 350W delivers a high CRI of up to 92, ensuring vivid, natural, and true-to-life color rendering on stage.
Technical Parameter
|
Parameters |
LEKO Zoom 350W |
||||
|
Light source type: |
LED RGBLAC |
RGBWA+UV |
RGBL |
RGBW |
Warm & Cool White |
|
Colour temperature output: |
3,000-14,000K |
5,500K |
3,000-14,000K |
7,000K |
4500K, 6500K |
|
CRI: |
90 |
90 |
90 |
90 |
92 |
|
Lux（350W）: |
19500/2m |
19800/2m |
28900/2m |
27990/2m |
32300/2m |
|
LED Life expectancy: |
min. 30000 hrs |
||||
|
Zoom Range: |
19°–46° |
||||
|
Dimmer: |
Electronic 16bit Dimmer |
||||
|
Shutter: |
4 blades manual framing system |
||||
|
Lens diameter: |
100mm High Resolution Glass |
||||
|
Protocols: |
DMX512,RDM |
||||
|
DMX Channel Mode： |
6/10 CH |
6/10 CH |
4/8 CH |
6/10 CH |
2/6 CH |
|
XLR: |
3 pin DMX connector |
||||
|
Feature： |
Auto mode , Manual, Programming |
||||
|
Noise: |
55db |
||||
|
Operating Voltage: |
100-120V / 200-240V, 50/60Hz |
||||
|
Housing : |
Magnesium alloy full die-casting |
||||
|

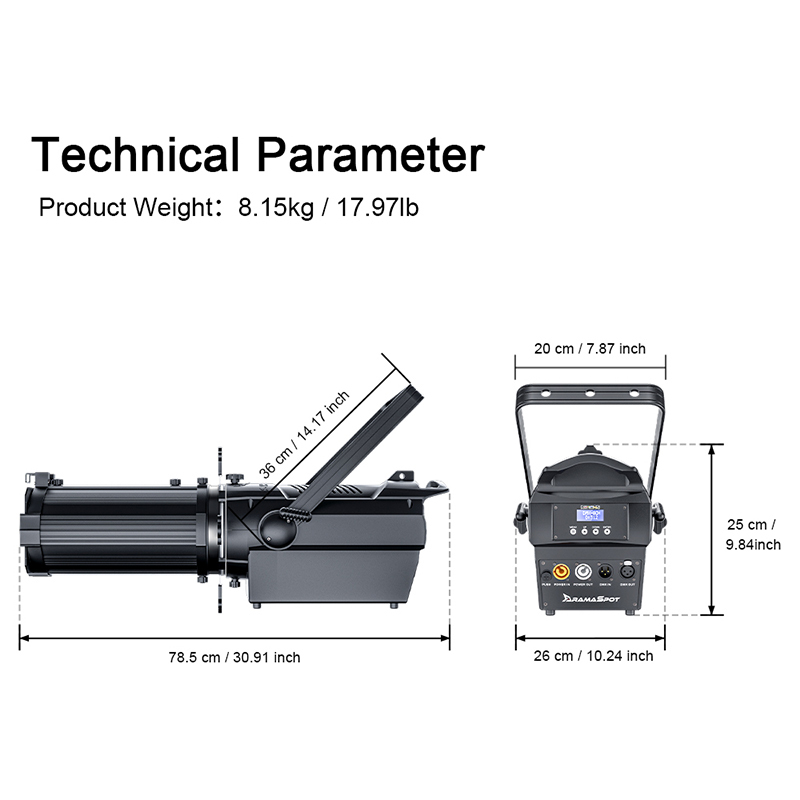

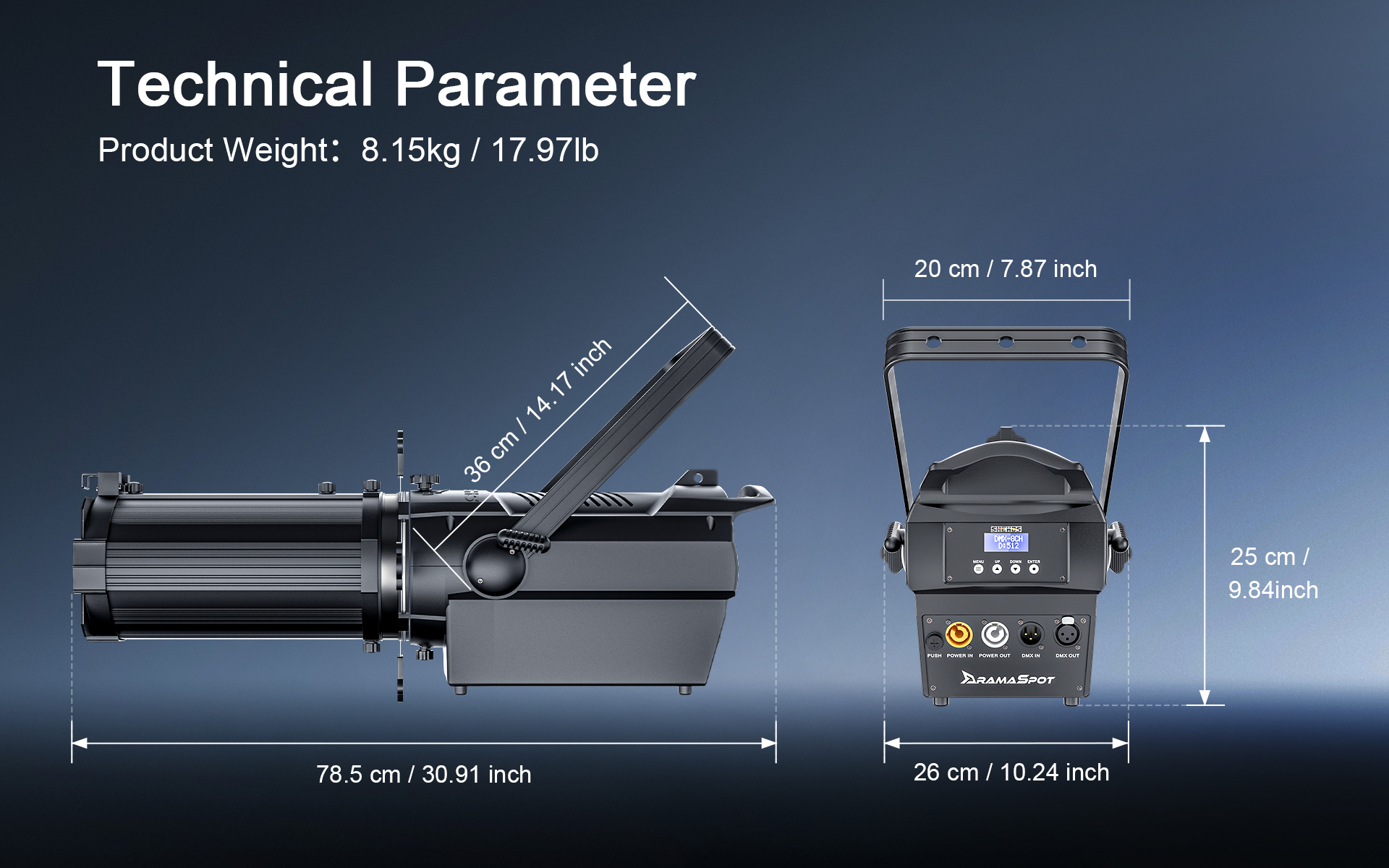

Product size： |
78.5 x 26x 25 cm |
||||
|
Product weight: |
8.15kg |
||||
|
Package size: |
80.5x32x30 |
||||
|
Package weight: |
9.55 kg |
||||
|
Operating temperature: |
-10-45° |
||||
Technical Parameter
|
Parameters |
Leko 350W |
||||
|
Light source type: |
RGBLAC |
RGBWA+UV |
RGBL |
RGBW |
Warm & Cool White |
|
Colour temperature output: |
3,000-14,000K |
5,500K |
3,000-14,000K |
7,000K |
4500K, 6500K |
|
CRI: |
90 |
90 |
90 |
90 |
95 |
|
Lux(350W): |
18600lux/2m |
14860lux/2m |
17790lux/2m |
14630lux/2m |
27000lux/2m |
|
LED Life expectancy: |
min. 30000 hrs |
||||
|
Zoom Range: |
19° |
||||
|
Dimmer: |
Electronic 16bit Dimmer |
||||
|
Shutter: |
4 blades manual framing system+ filter holder |
||||
|
Lens diameter: |
100mm High Resolution Glass |
||||
|
Protocols: |
DMX512,RDM |
||||
|
DMX Channel Mode： |
6/10 CH |
6/10 CH |
2/6 CH |
4/8 CH |
4/8 CH |
|
XLR: |
3 pin DMX connector |
||||
|
Feature： |
Auto mode , Manual, Programming |
||||
|
Noise: |
55db |
||||
|
Operating Voltage: |
100-120V / 200-240V, 50/60Hz |
||||
|
Housing : |
Magnesium alloy full die-casting |
||||
|
Product size： |
78.5 x 26x 25 cm |
||||
|
Product weight: |
8.15kg |
||||
|
Package size: |
80.5x32x30 |
||||
|
Package weight: |
9.55 kg |
||||
|
Operating temperature: |
-10-45° |
||||
Applicable Scene
This ellipsoidal is ideal for theaters, studios, concerts, and stage productions,
where precise beam control, rich colors, and smooth dimming are essential.

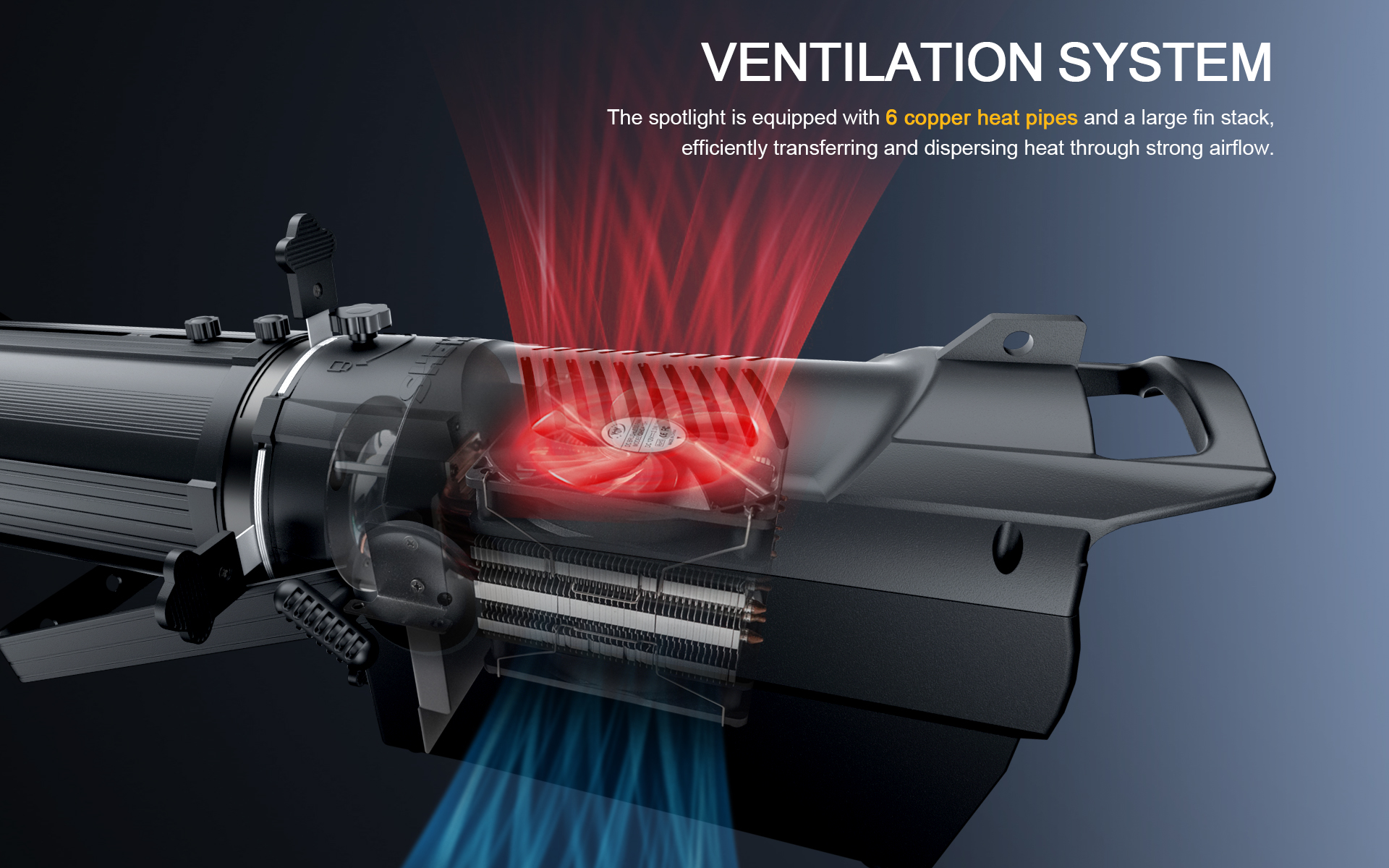

Ventilation System
The spotlight is equipped with 6 copper heat pipes and a large fin stack,
efficiently transferring and dispersing heat through strong airflow.
Its intelligent temperature tracking system continuously monitors internal heat levels
and automatically adjusts the fan speed. This ensures stable performance while keeping
noise to a minimum during operation.

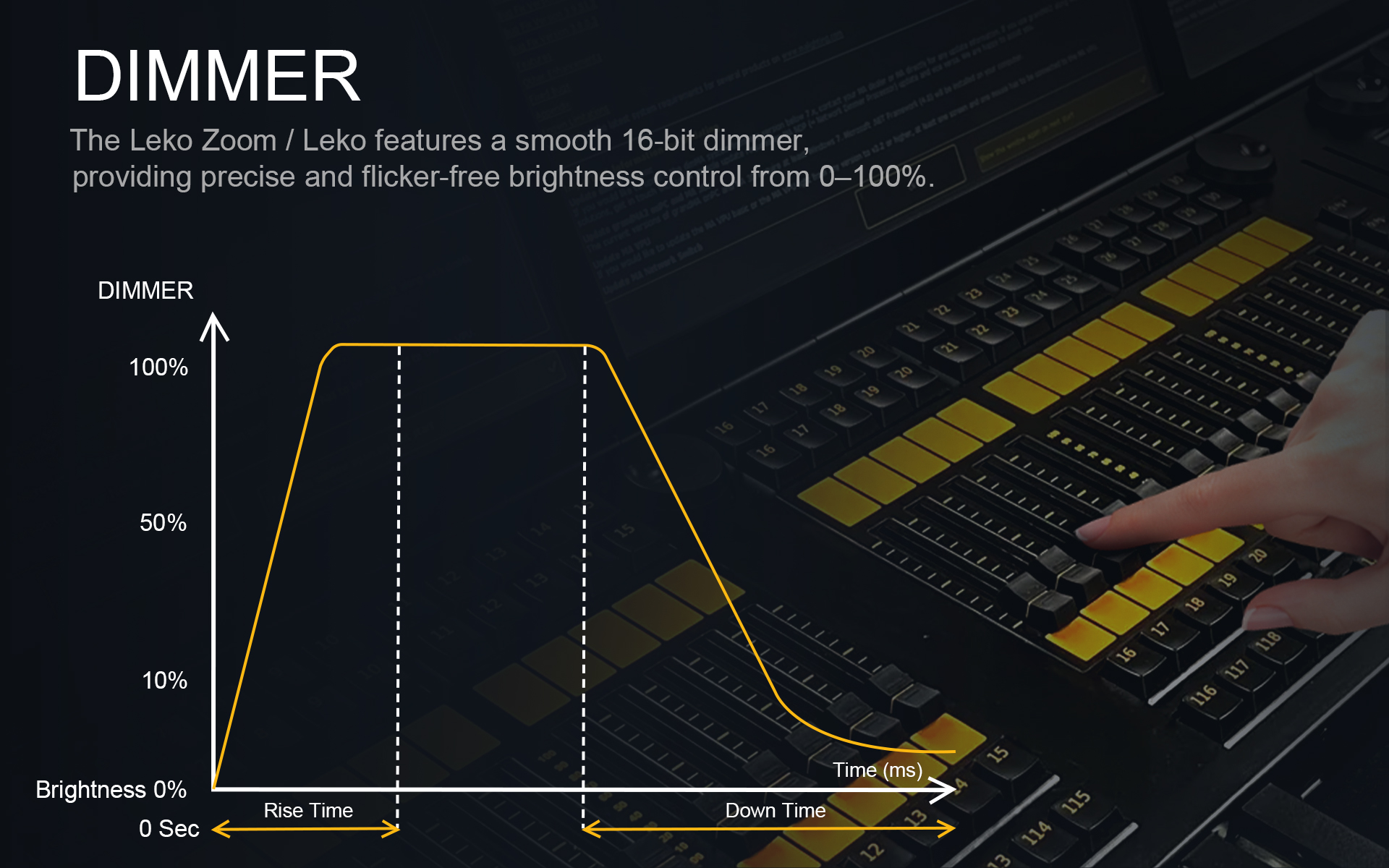

Dimmer

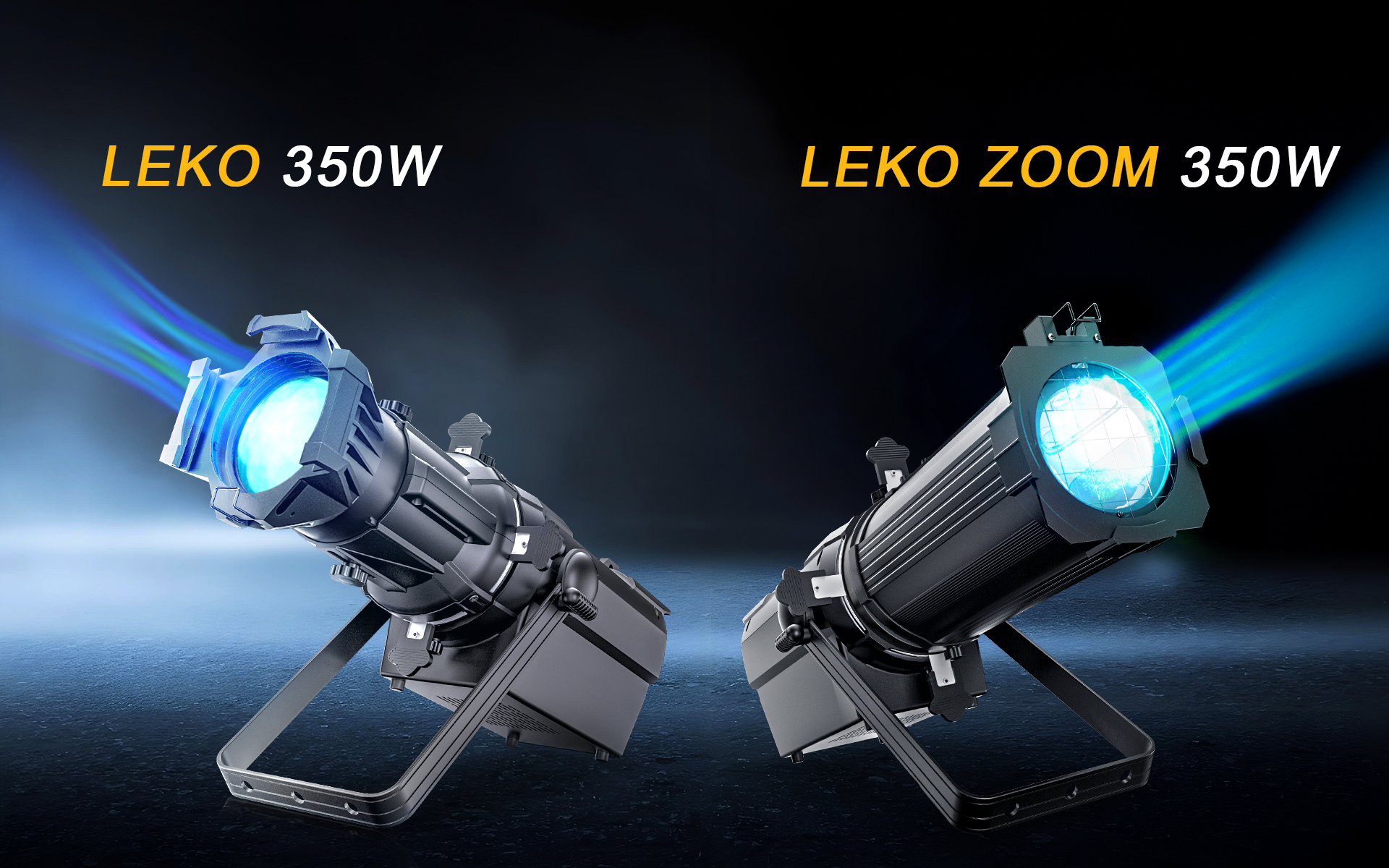

LEKO Zoom 350W and LEKO 350W features a smooth 16-bit dimmer, providing precise and flicker-free brightness control from 0–100%.

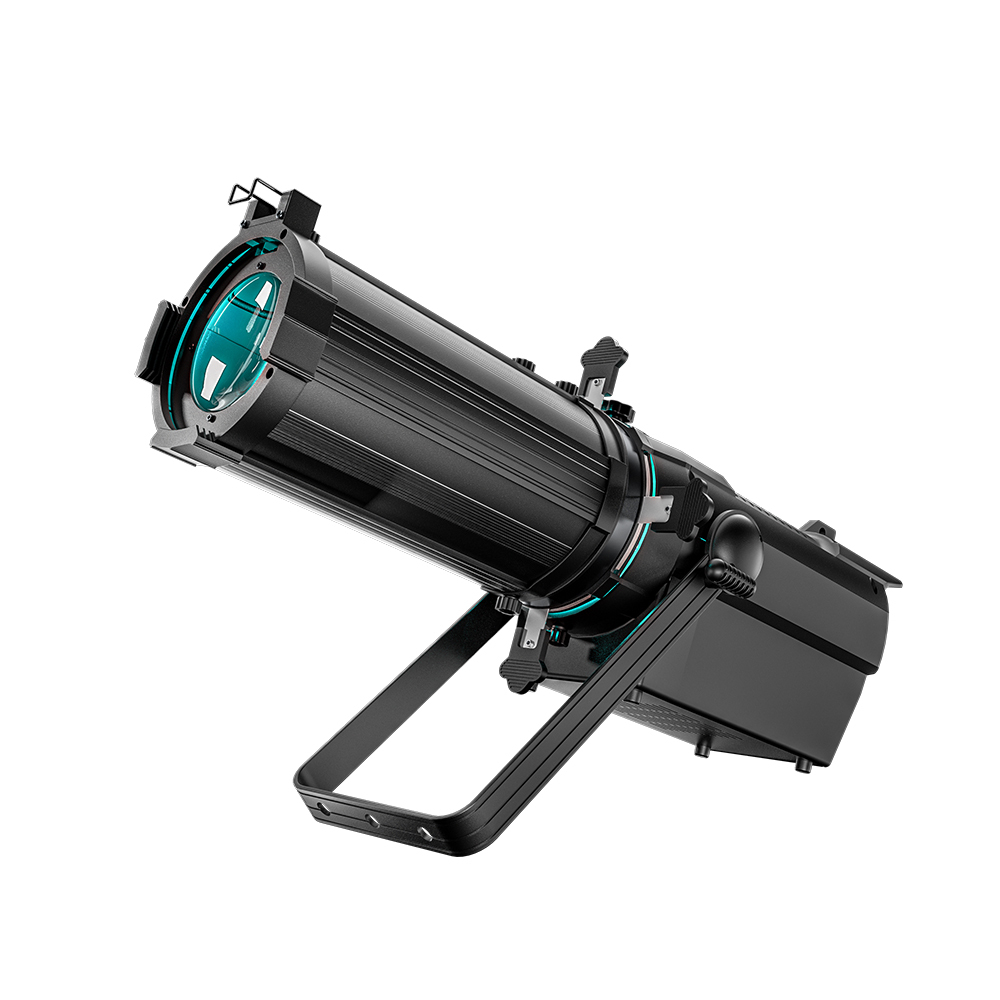

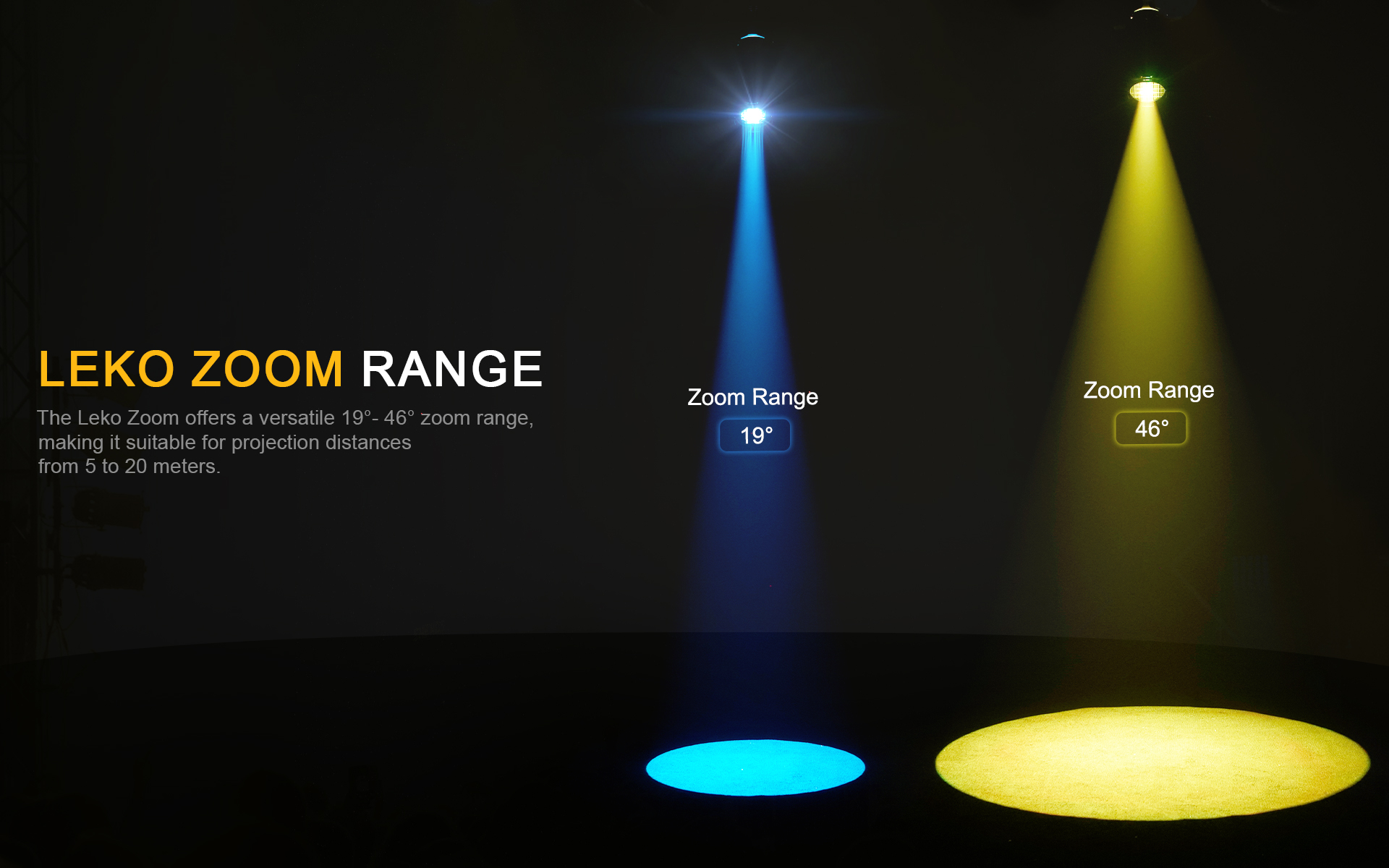

Zoom Range
The LEKO Zoom 350W offers a versatile 19°–46° zoom range,
making it suitable for projection distances from 5 to 20 meters.
Beam Angle
The 19°beam angle of the LED 350W Leko is ideal for focused spotlights and precise lighting effects,
making it perfect for theatrical performances, concerts, and live events that demand sharp, defined lighting.
Coverage Width=2×Distance×tan(19°/2)
White Color Temp Effect Display
It offers an adjustable color temperature range from warm 2800K to cool 10,000K,
providing versatile lighting for different atmospheres and scenes.
High PWM, Flickering Free
The LEKO Zoom 350W and LEKO 350W features a high PWM frequency,
ensuring flicker-free performance when recording video or live streaming.

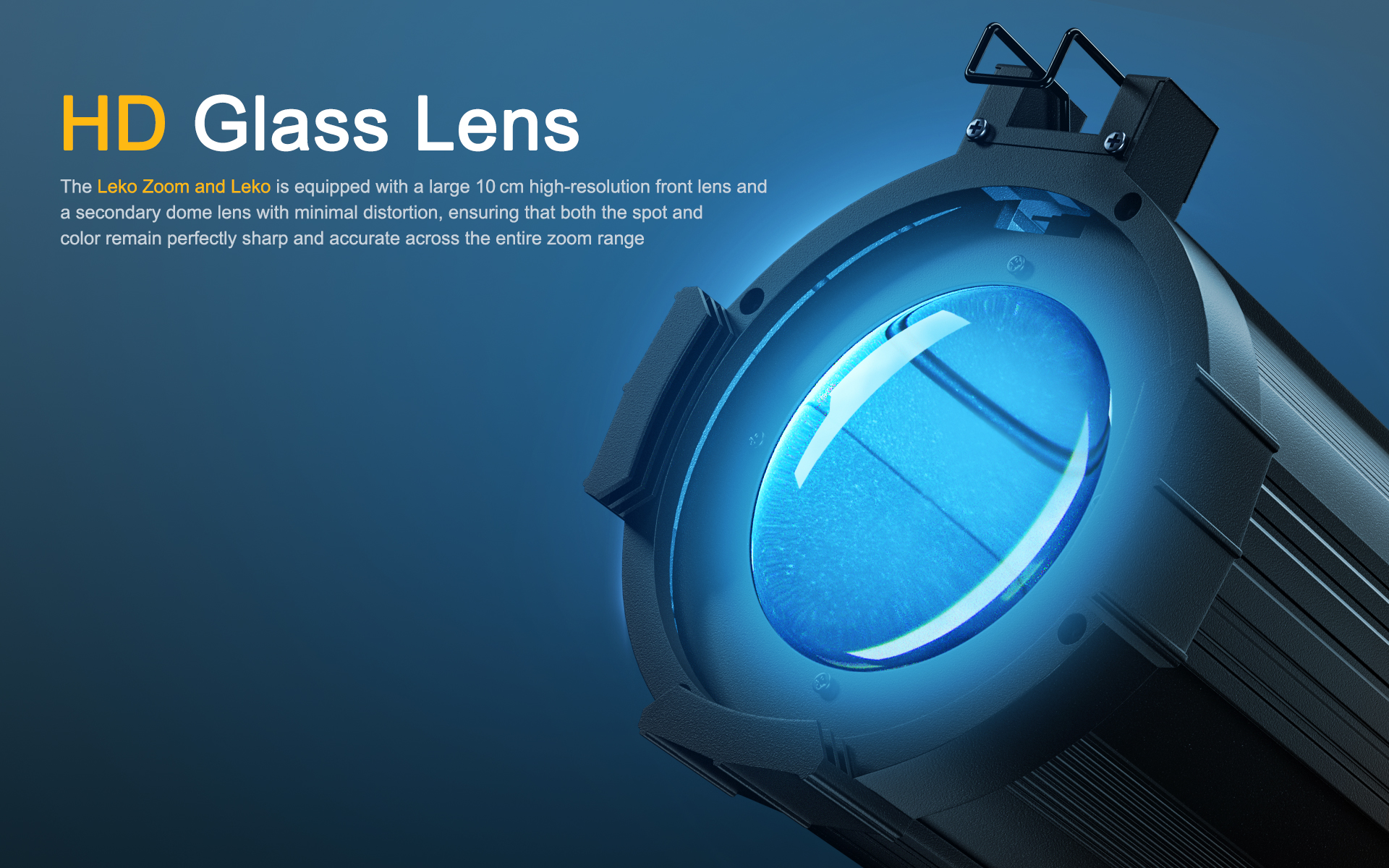

HD Glass Lens
The LEKO Zoom 350W and LEKO 350W is equipped with a large 10 cm high-resolution front lens and a secondary dome lens with minimal distortion,
ensuring that both the spot and color remain perfectly sharp and accurate across the entire zoom range.

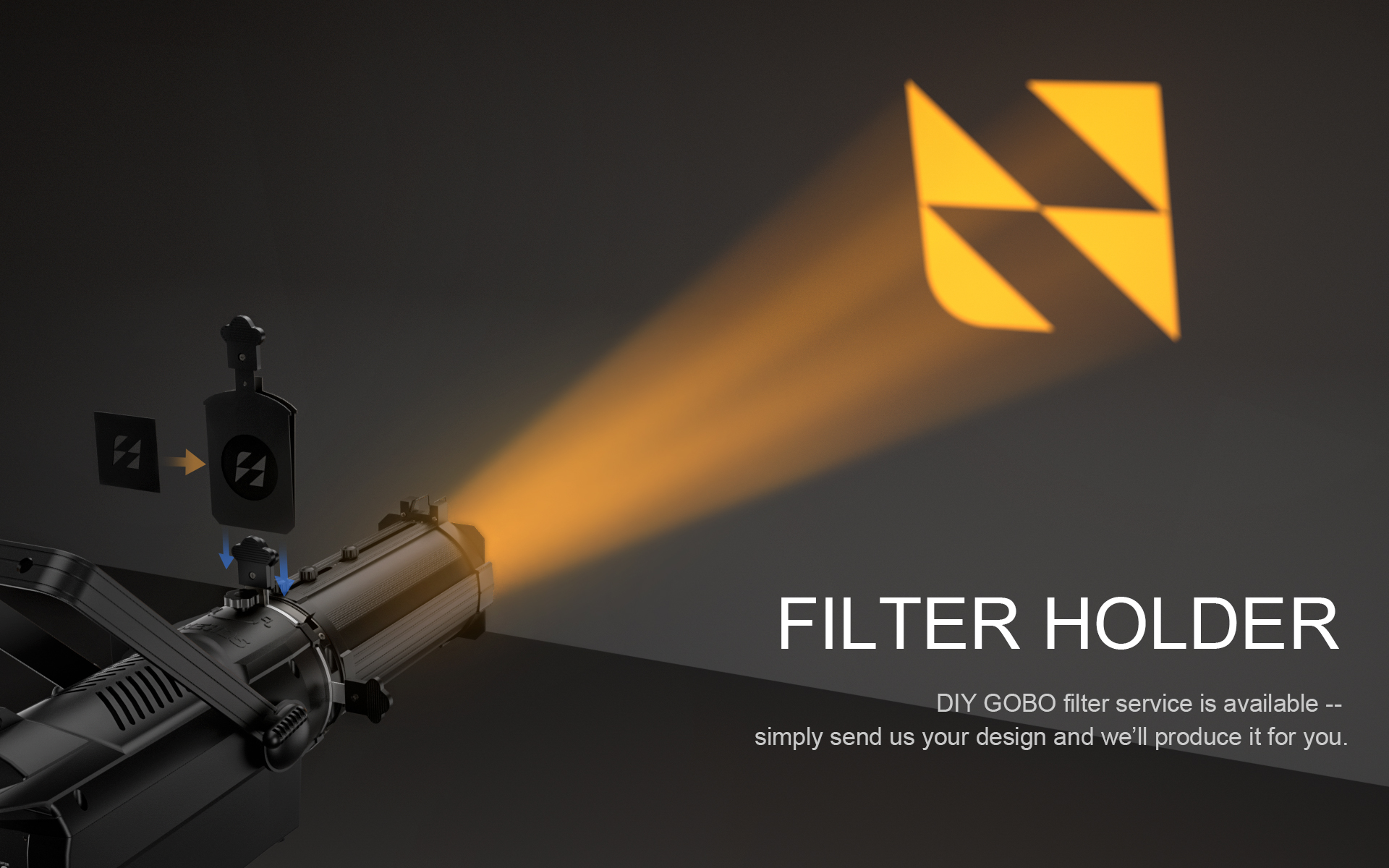

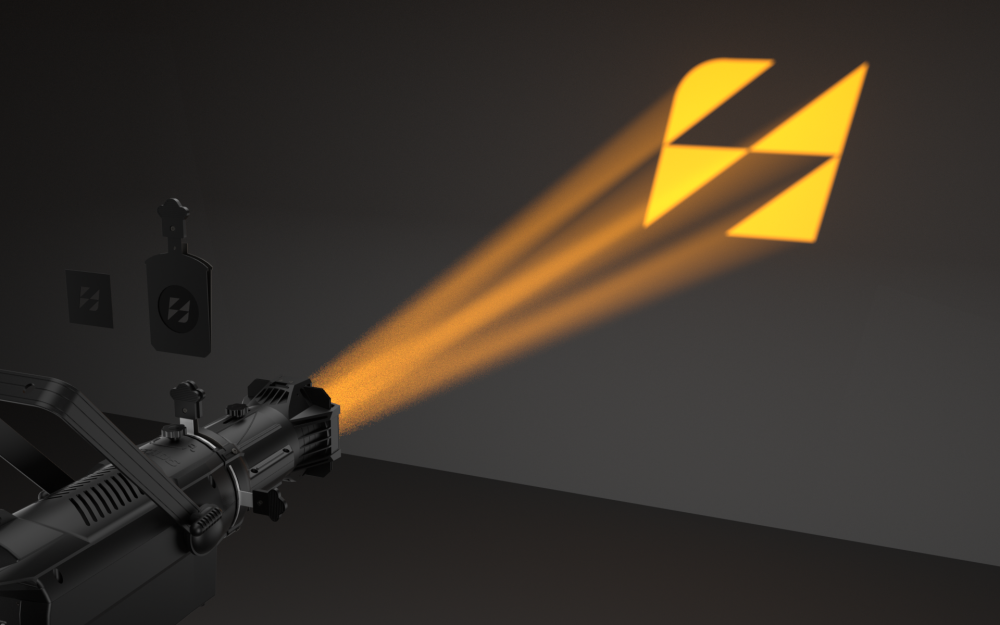

Filter Holder
The LEKO Zoom 350W and LEKO 350W includes a filter holder, allowing you to insert gobo,
frost, or color filters to create stunning special effects.

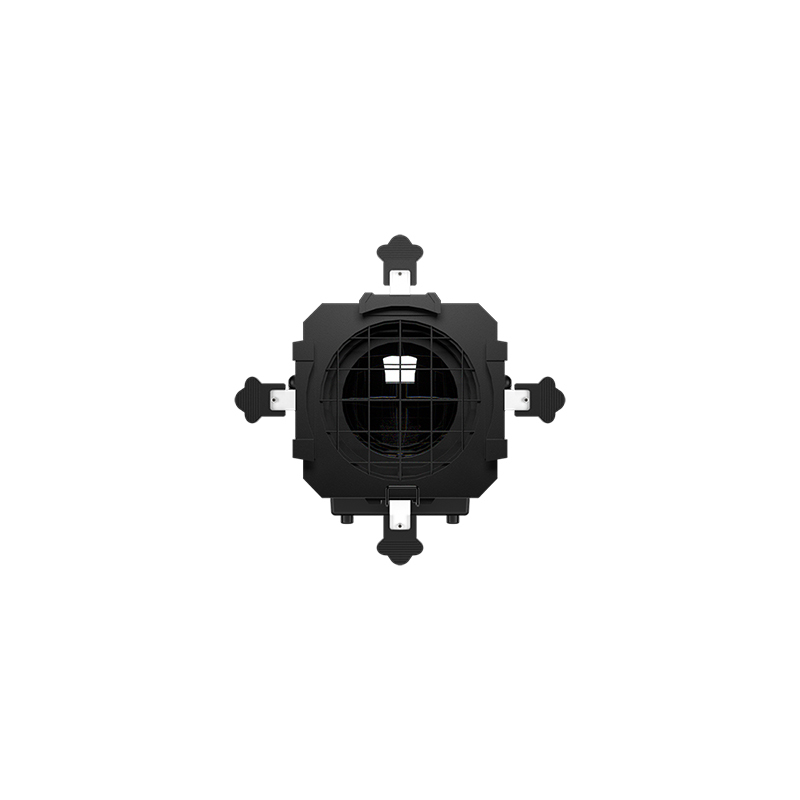

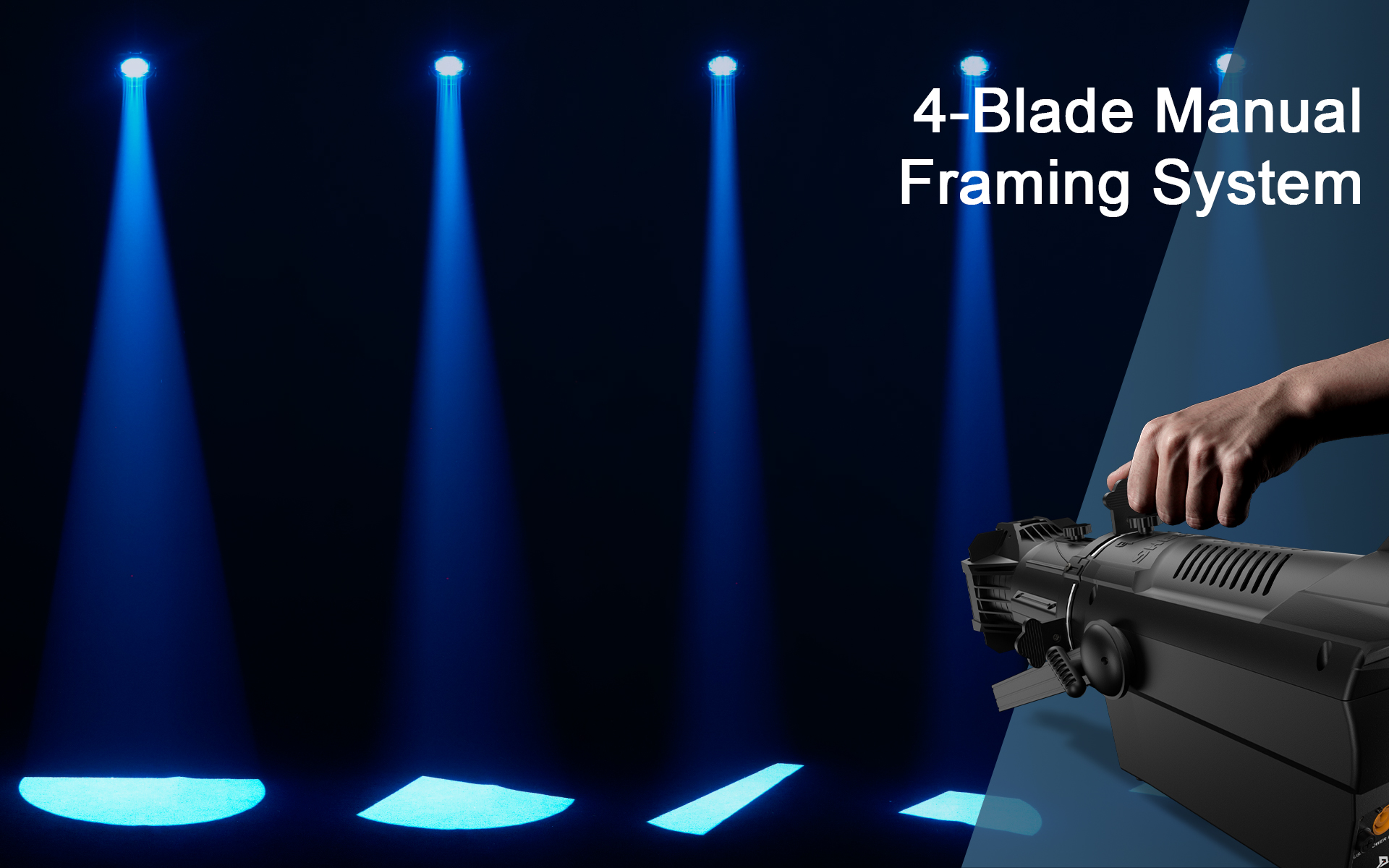

4-Blade Framing System
The LEKO Zoom 350W and LEKO 350W features a 4-blade manual framing system,
allowing precise shaping of the light beam to create a wide variety of custom light patterns.

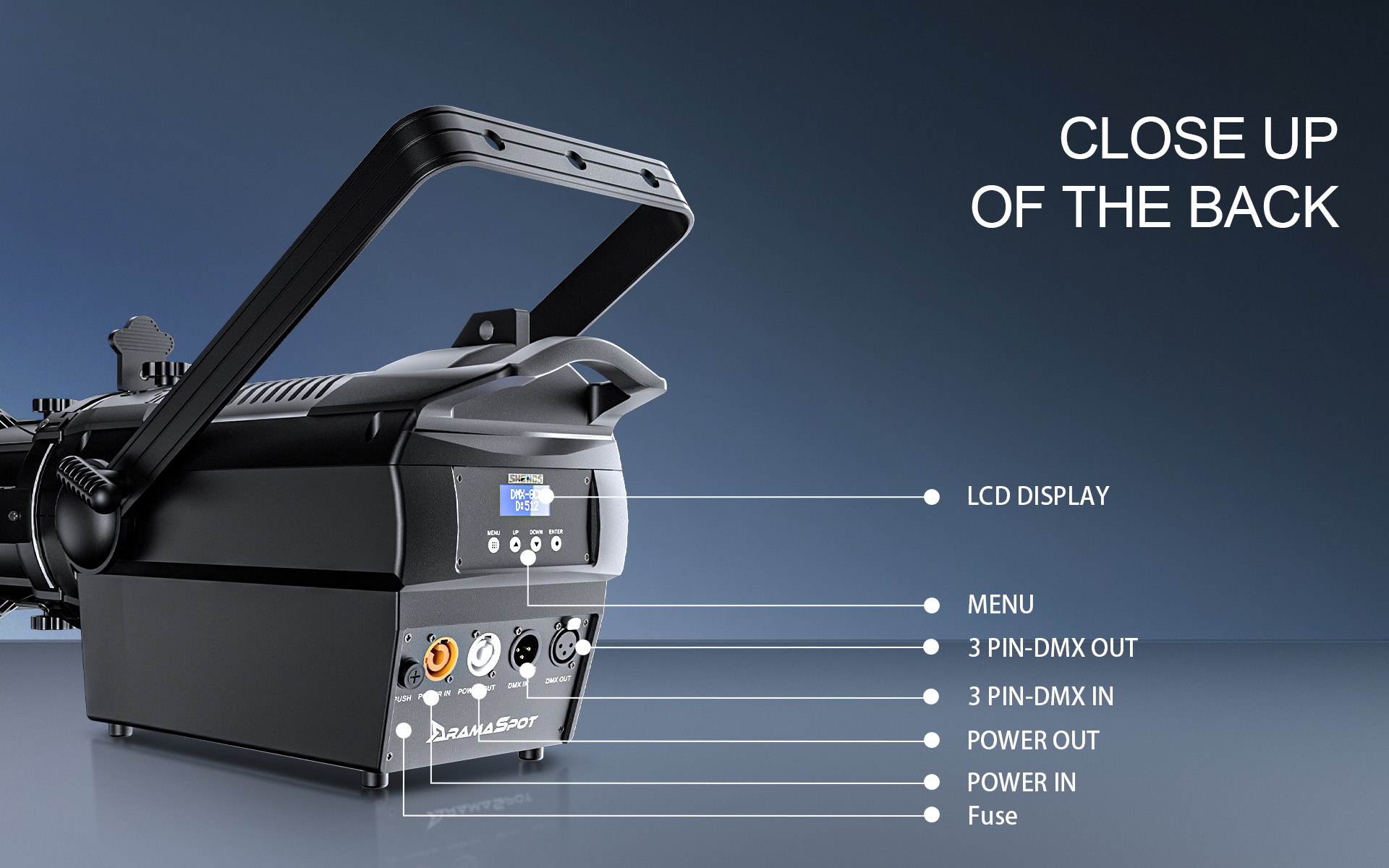

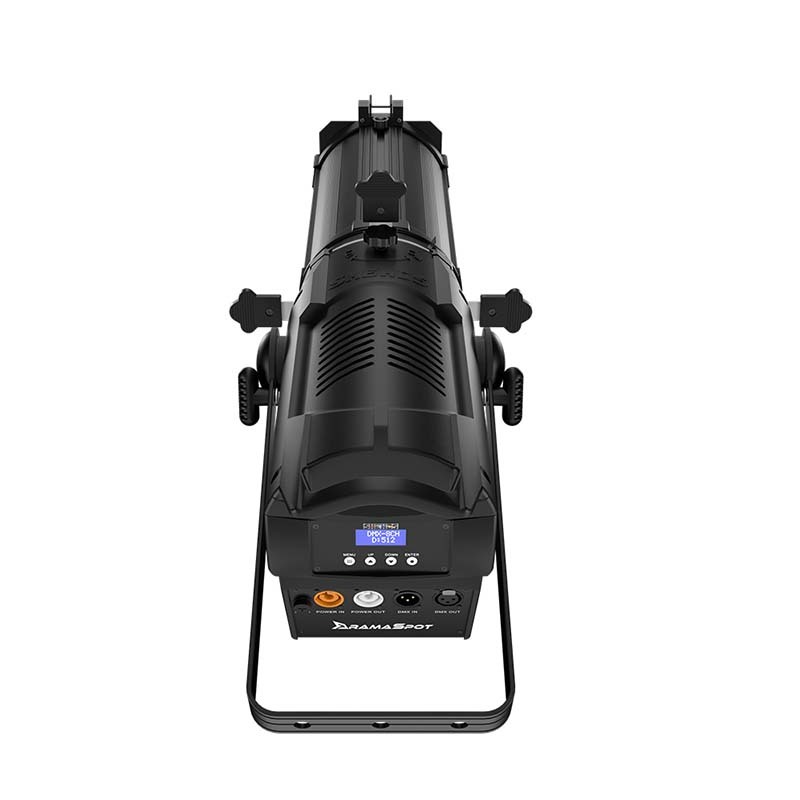

Close Up Of The Back
The back of the ellipsoidal features a clear LCD display screen with
4 intuitive touch buttons for easy operation and settings adjustment.
It is equipped with power in/out and 3-pin DMX in/out ports,
ensuring reliable connections and durability in any environment.

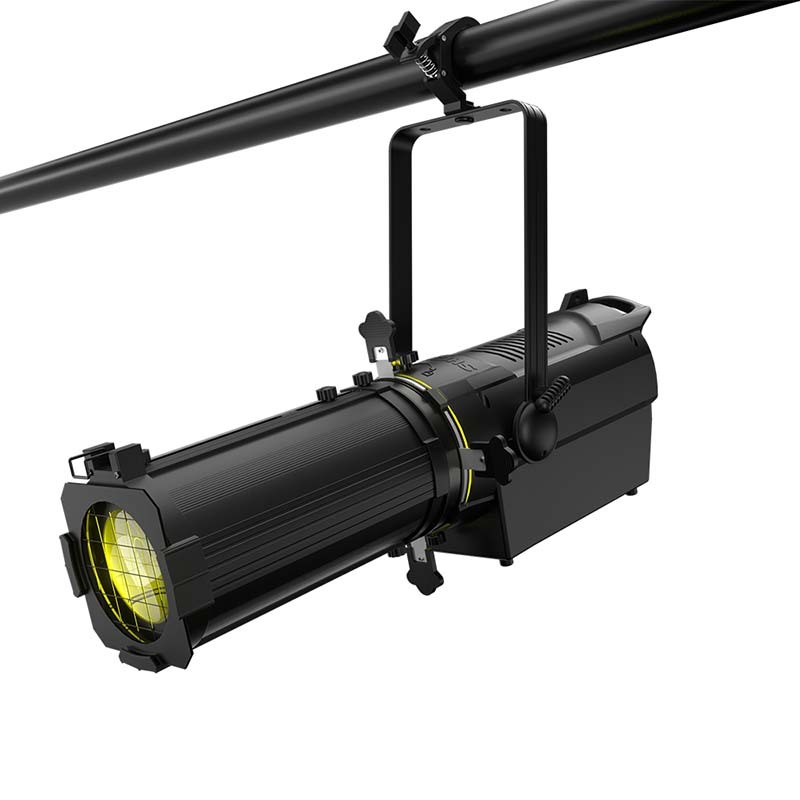

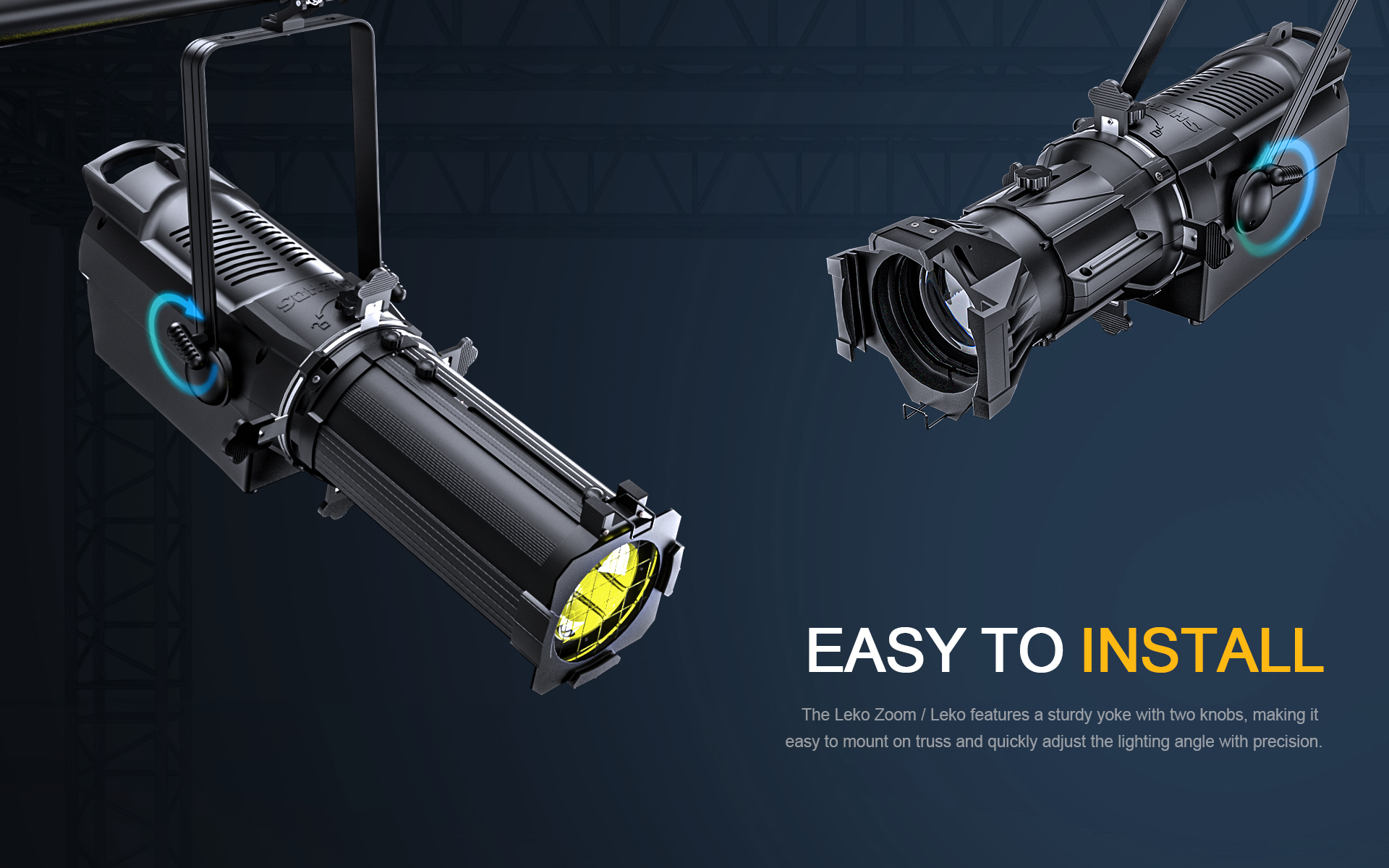

Easy to install
The LEKO Zoom 350W and LEKO 350W stage light features a sturdy yoke with two knobs,
making it easy to mount on truss and quickly adjust the lighting angle with precision.
Trusted by Real Creators
See how influencers put SHEHDS spotlights to the test , real scenes, real performance.
Full Spectrum Color
Six distinct color systems delivering different levels of richness, purity, and creative depth.

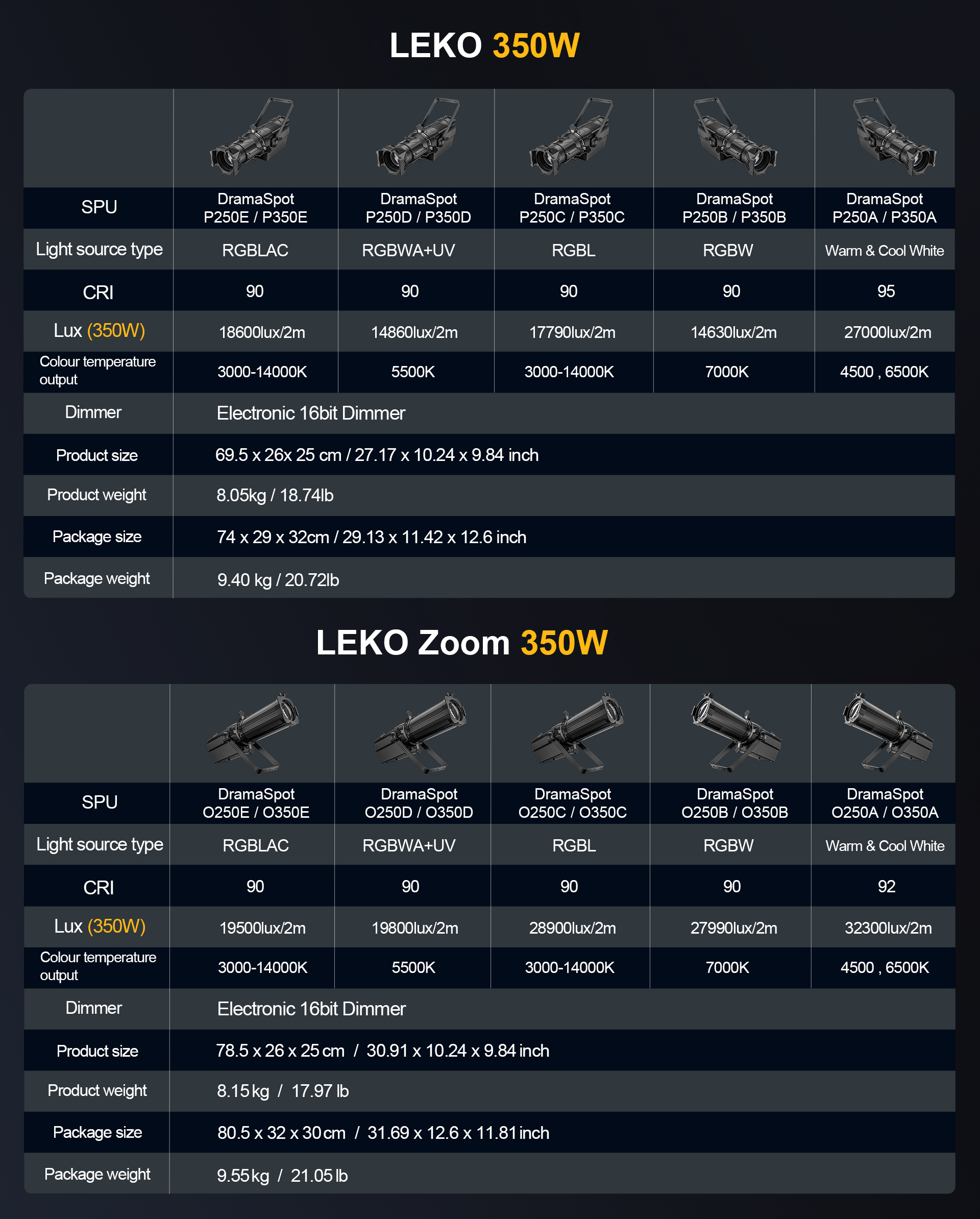

250W VS 350W
Choose the Perfect LEKO for Your Stage
A clear side-by-side comparison of color systems, brightness, and technical specifications.

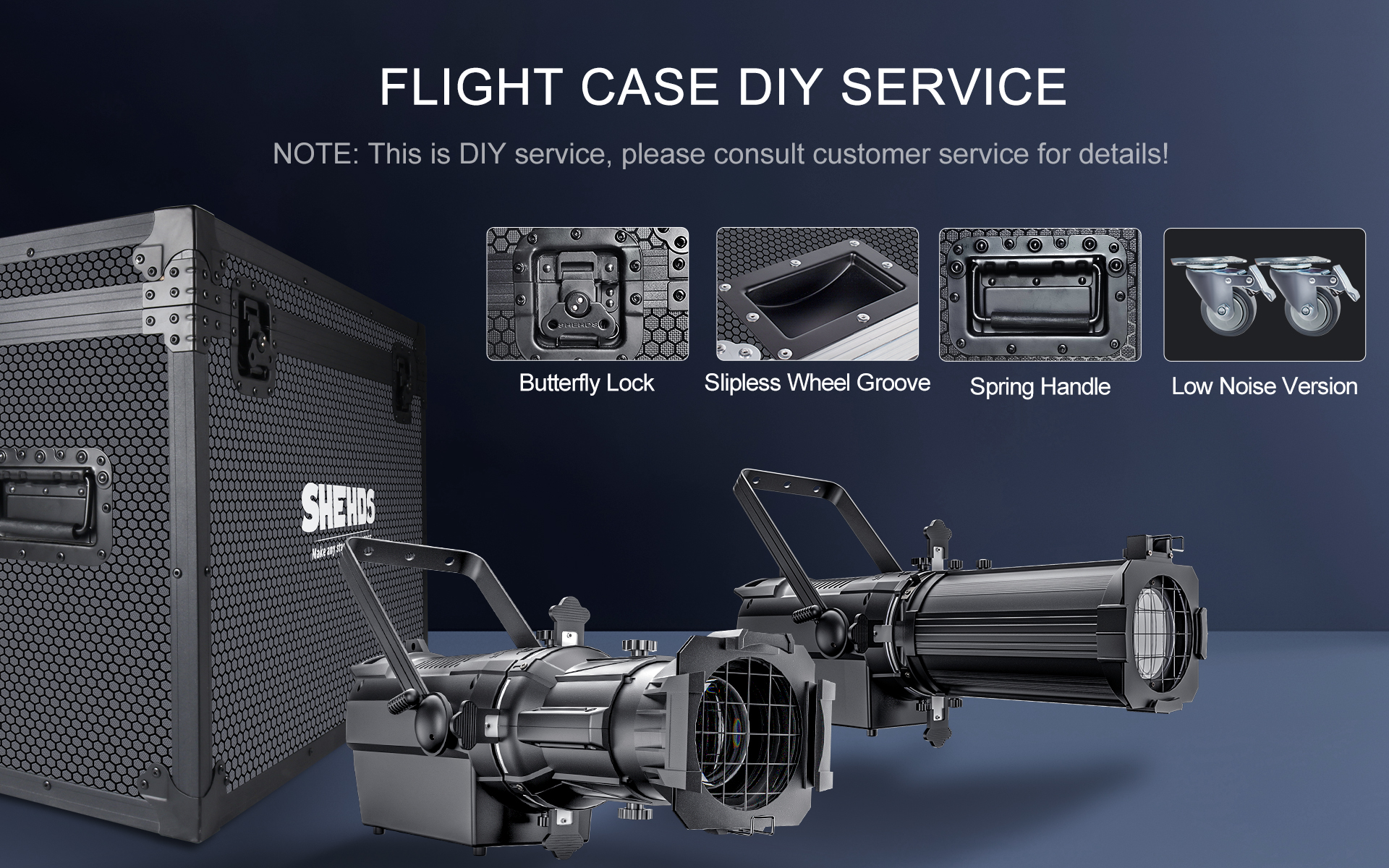

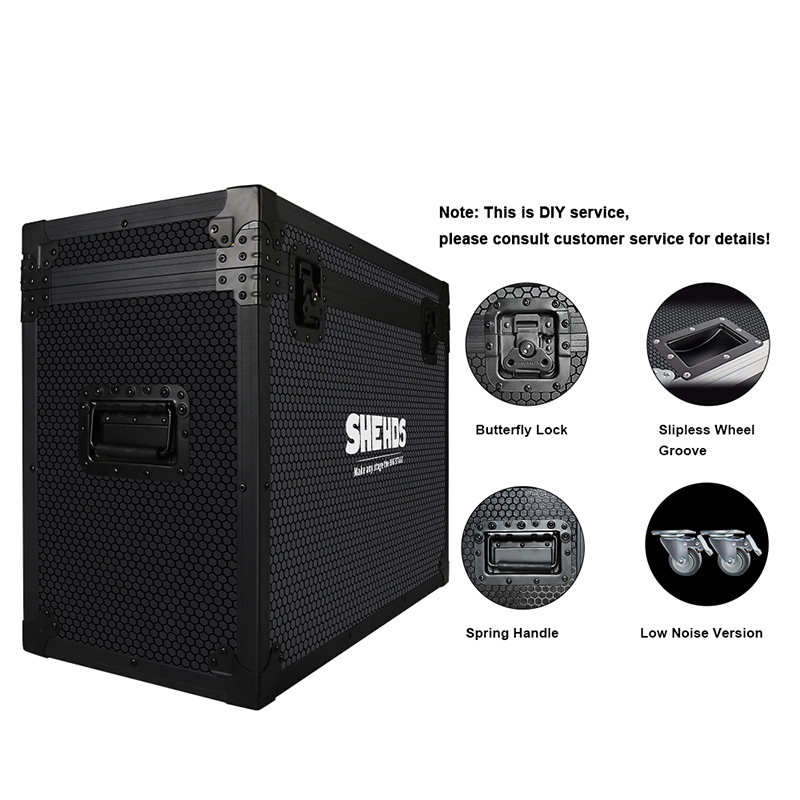

Flight Case DIY Service
It equipped with silent 360 degree wheels + brake locks.
We offer customized road cases that perfectly meet your needs. Whether precision equipment, fragile items, or valuable goods, our road case not only ensures safety protection,
but also adapts flexibly to various specifications and shapes. Each case is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products.
From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service, please consult customer service for details!

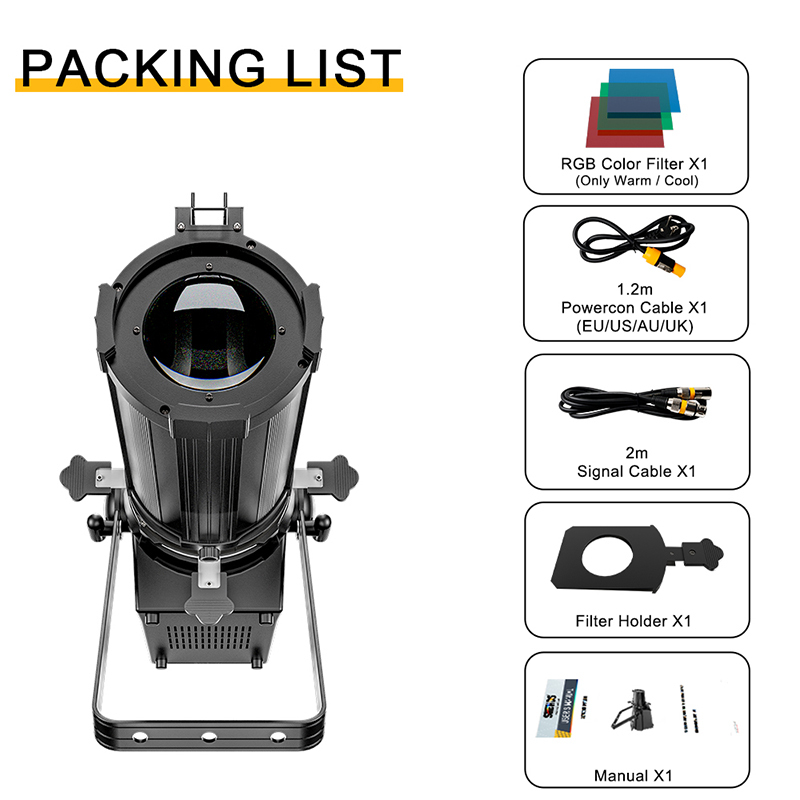

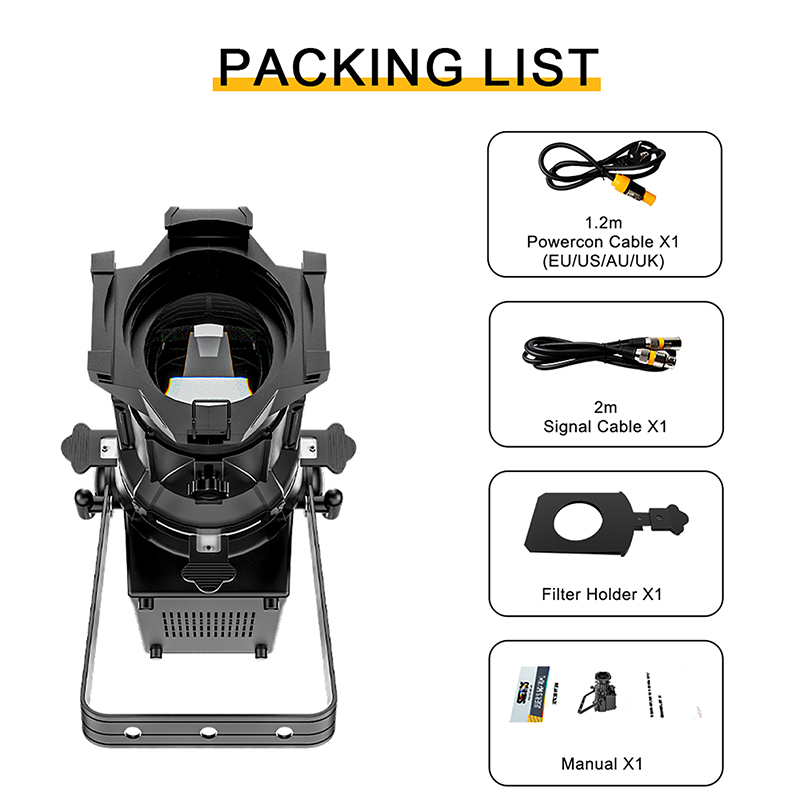

Packing List
Before leaving the factory, each of our products undergoes rigorous testing to ensure they are in perfect condition.
Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every detail.
Only those products that have gone through layers of checking can confidently leave our factory and arrive in your hands,
bringing you an excellent using experience.
Qualification Certificate
Our products comply with international safety standards and environmental requirements.
They have multiple voltage options to meet different voltage around the world.
In addition, we also provide comprehensive after-sales service and technical support to ensure that any problems you encounter during use can be promptly and effectively resolved.
