Technical Parameter
|
-Light source parameters
|
|
Laser wavelength:
|
R-638nm, G-520nm, B-450nm
|
|
Laser RGB power:
|
R-1000mW,G-2000mW,B-3000mW
|
|
Spot size (laser window spot):
|
5.5mm
|
|
Light source divergence angle :
|
＜1.2mrad
|
|
Modulation mode:
|
0~5V analog, up to 50khz/TTL
|
|
Laser class:
|
Class IV
|
|
-Imaging system
|
|
Imaging color:
|
Red, green, blue, yellow, purple, cyan, white mixed colors
|
|
Evenness:
|
>98%
|
|
Lens Horizontal Offset:
|
-30% to +30%
|
|
Lens Vertical Offset::
|
-30% to +30%
|
|
Imaging mode:
|
3D/2D pattern and animation (with software)
|
|
Projection distance:
|
＜50M The best distance is 18~60M
|
|
Galvanometer Scanner:
|
20 KPPS
|
|
Galvanometer Scanner angle:
|
Max60°
|
|
-Security system
|
|
Safety standard:
|
Follow the IEC-60825-1:2014 standard, FDA regulations and TUV Laser Safety
|
|
Laser safety features：
|
Remote interlock, emission delay,scan-fail safety, adjustable aperture masking plate
|
|
Safety item:
|
Overcurrentand voltage protection
|
|
Ingress Protection Rating
|
IP20
|
|
Operating temperature:
|
15℃~45℃
|
|
-Interface and Control System
|
|
Control interface:
|
ILDA In/Out , DMX In/Out ,RJ45 In/Out，
|
|
Control signal:
|
Ethernet, DMX/ArtNet, ILDA, Bluetooth
|
|
DMX channel:
|
10/18CH
|
|
Power interface:
|
PowerCon
|
|
-Cooling system
|
|
Cooling method:
|
Air cooled
|
|
Structure:
|
60mm plug-in heat dissipation layer
|
|
Ventilation fan:
|
60mm fan in*1 , 60mm fan out* 1
|
|
-Power consumption
|
|
Working power:
|
100~240V AC 50/60HZ
|
|
Power consumption:
|
Max 150W
|
|
-Physical parameters
|
|
Product size :
|
12.99x11.81x8.66 inch / 33x30x22 cm
|
|
Product weight:
|
5.16 Kg
|
|
Package size:
|
14.57x13x9.45 inch / 37x33x24 cm
|
|
Package weight:
|
7 Kg
|

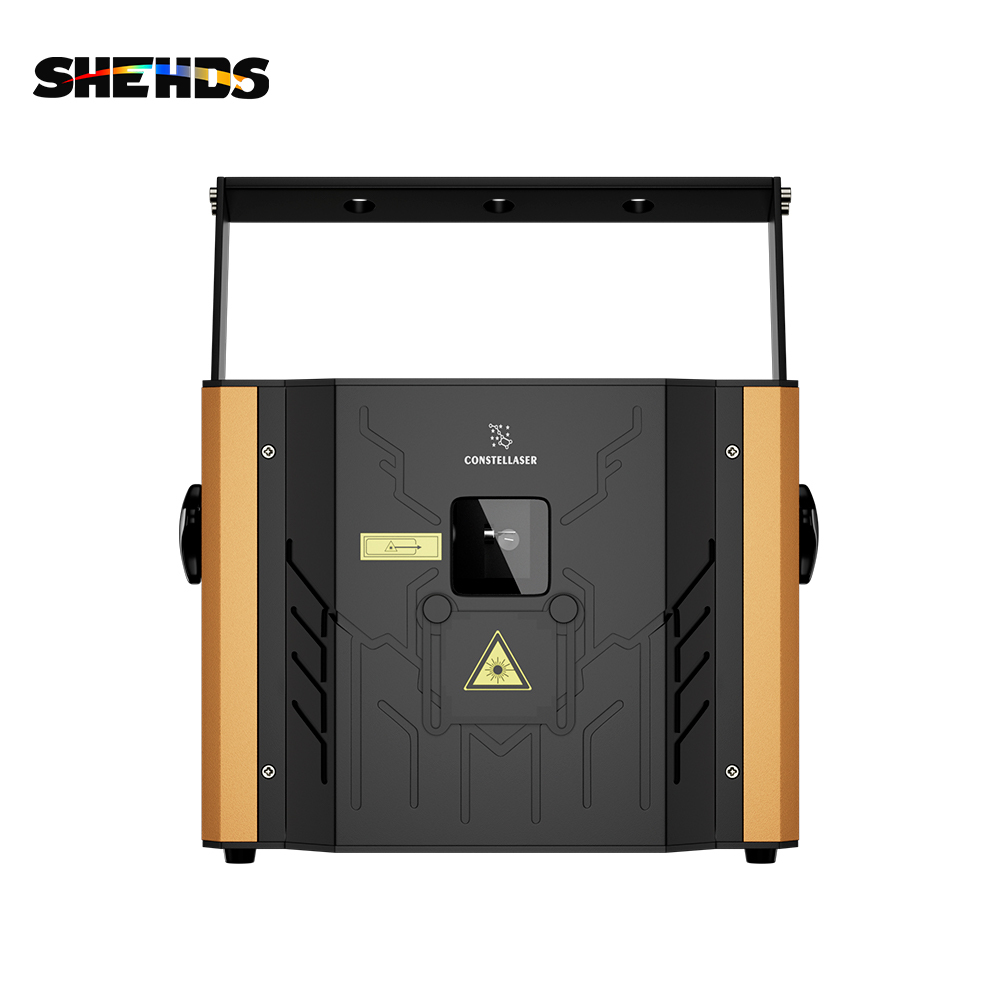

6W RGB Animation Laser LightAll the laser equipment produced by our company complies with IEC 60825-1 and U S. FDA standards which are used to ensure the safety use!
These products have obtained a deviation application from the performance standards for laser products in accordance with 21 CFR 1010.4 (c) (1) from the United States (CDRH)
which grants our company the assembly and production of Class IIIb (3B) and Class IV (4) laser lamps, and allows them to legally enter the commercial market.
Constellation Laser Series
The origin of constellations can be traced back to prehistoric times.
People use them to tell stories about their beliefs, experiences,
creations and myths. Our designers have created a variety of laser stage lights under the name of "Constellation Laser".
Like stars that light up nebula in the dark, our laser lights light up every stage.

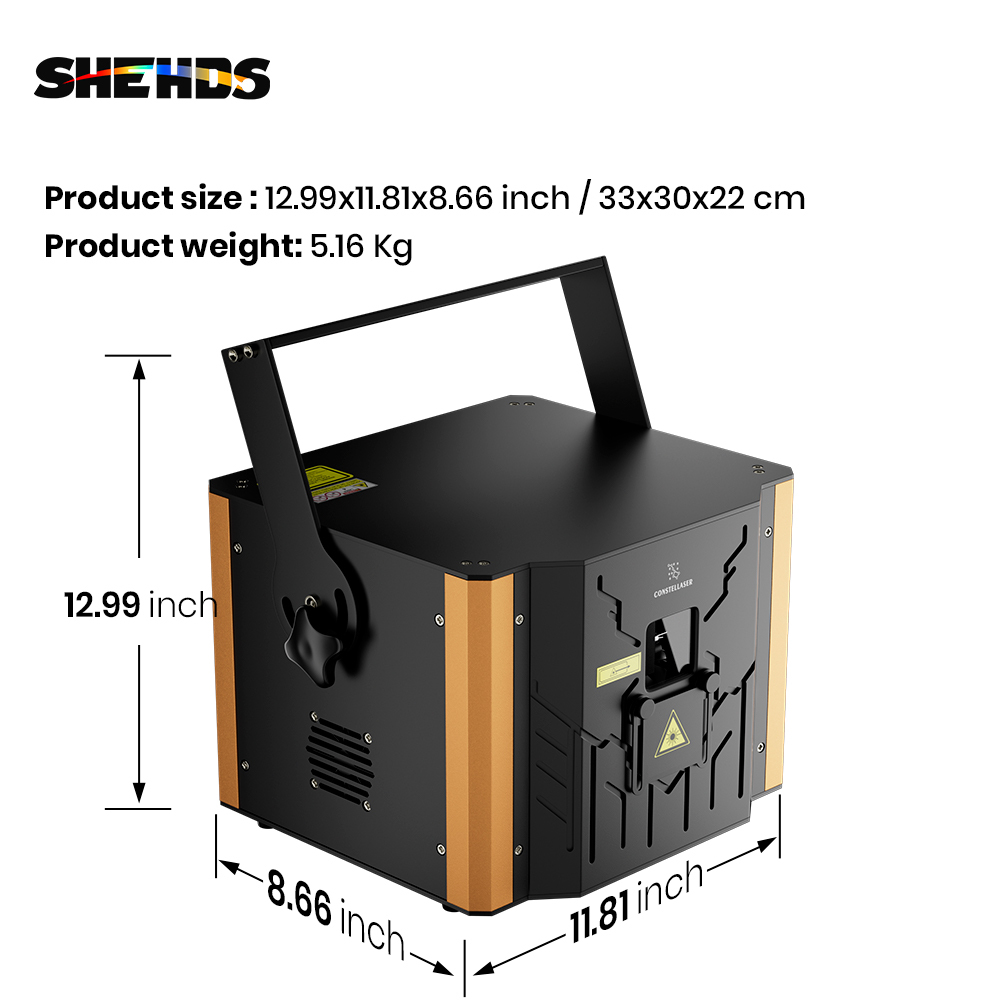

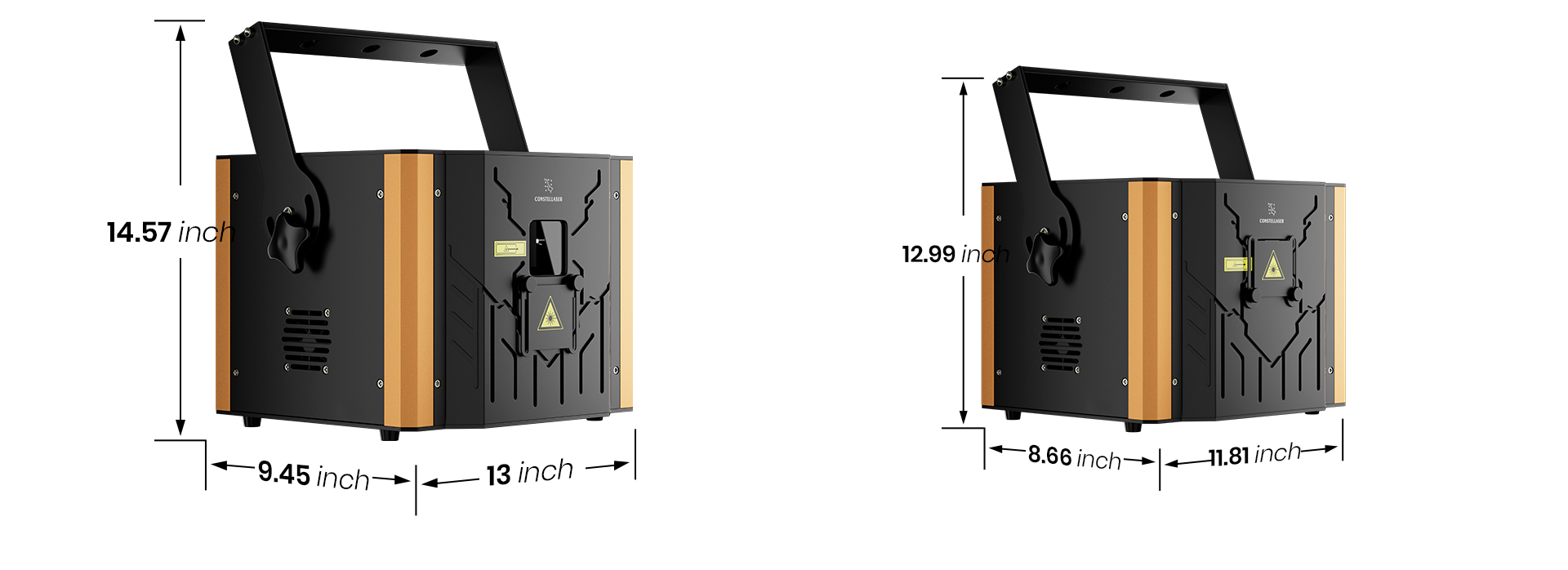

Product Size
Pack size: 14.57x13x9.45 inch /37x33x24 cm
Package weight: 7 Kg
Product size :12.99x1l.81x8.66 inch/33x30x22 cm
Product weight: 5.16 Kg

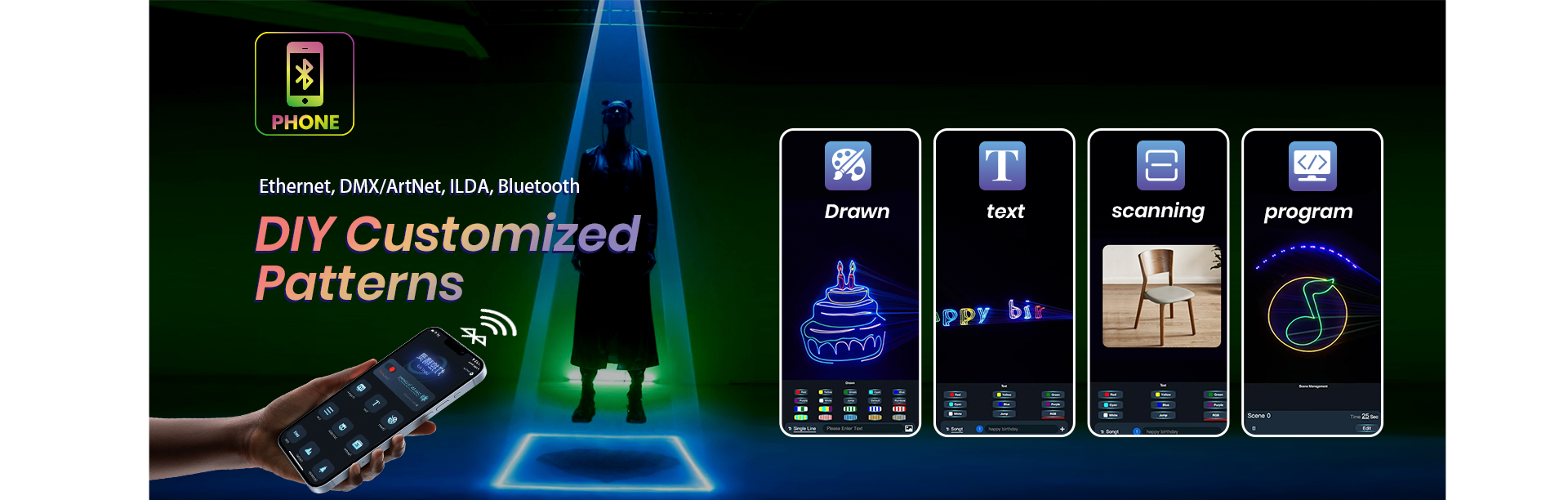

APP Control
The laser can be controlled by Android and Apple apps for most of the functions even without the DMX console.
Compatible With ILDA Protocol
This laser supports ILDA signal input. It can be controlled by laser software such as professional software Beyond QuickShow FB3/FB4!
With Beyond QuickShow FB3/FB4, you'll have access to a vast library of pre-programmed laser effects,
as well as the ability to customize and create your own unique visuals.
From captivating beam shows to intricate graphics, the possibilities are endless with our ILDA-compatible laser lights.

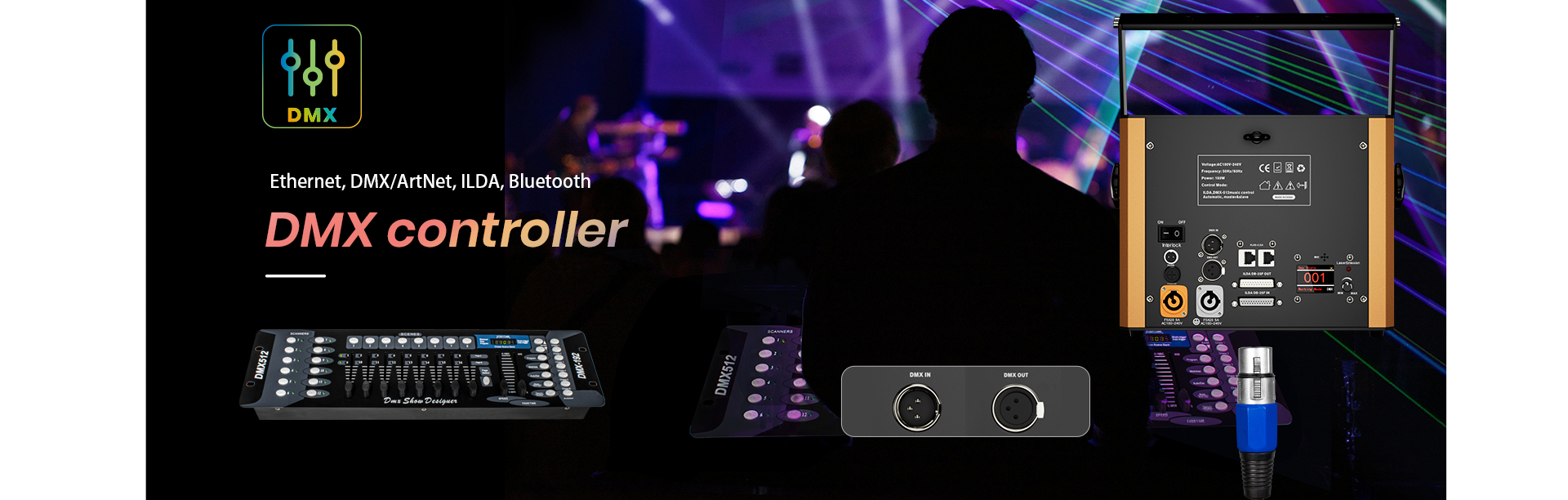

Control Model
The best feature of this laser light is its programmable ability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
It also supports voice control and automatic mode,
which can change freely according to the music and environment to bring more outstanding effects to the stage performance.

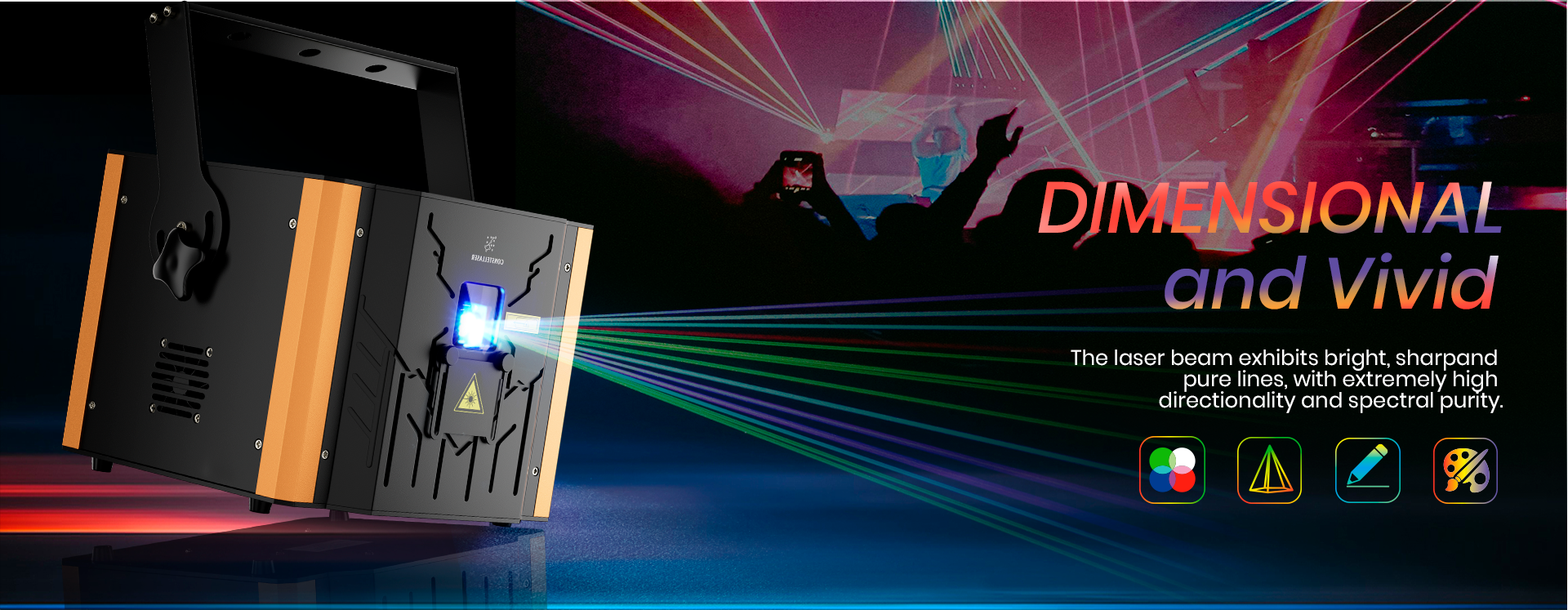

Laser Effect
The laser beam exhibits bright, sharp, and pure lines, with extremely high directionality and spectral purity. These beams can present stunning visual effects through precise beam manipulation and multi-dimensional projection in specific stage environments, creating intoxicating interweaving effects of light and shadow. Whether in large-scale performances, exhibitions, or events, the application of laser technology will bring unparalleled visual impact, enhance the overall atmosphere, and immerse the audience in dreamlike audio-visual enjoyment.
RGB Laser Source
Using semiconductor laser diode light source, the standard full-color analog laser uses three primary colors: red, green, and blue.
The RGB can be mixed to create multiple brilliant colors,
like Magenta, Yellow，Cyan，White!
High Speed Galvanometer
20 KPPS with high precision
High frequency scanning galvanometer technology can accurately capture every detail through fast and continuous laser scanning,
achieving smooth transitions and seamless connections of patterns. This technology not only enhances the smoothness of visual effects,
but also makes the presentation of patterns more three-dimensional and vivid, as if taking the audience into a dreamlike world where light and shadow intertwine.
The Aurora Effects
Presenting a dreamy and colorful visual effect like the northern light,
providing more possibilities and creative space for various performance occasions.

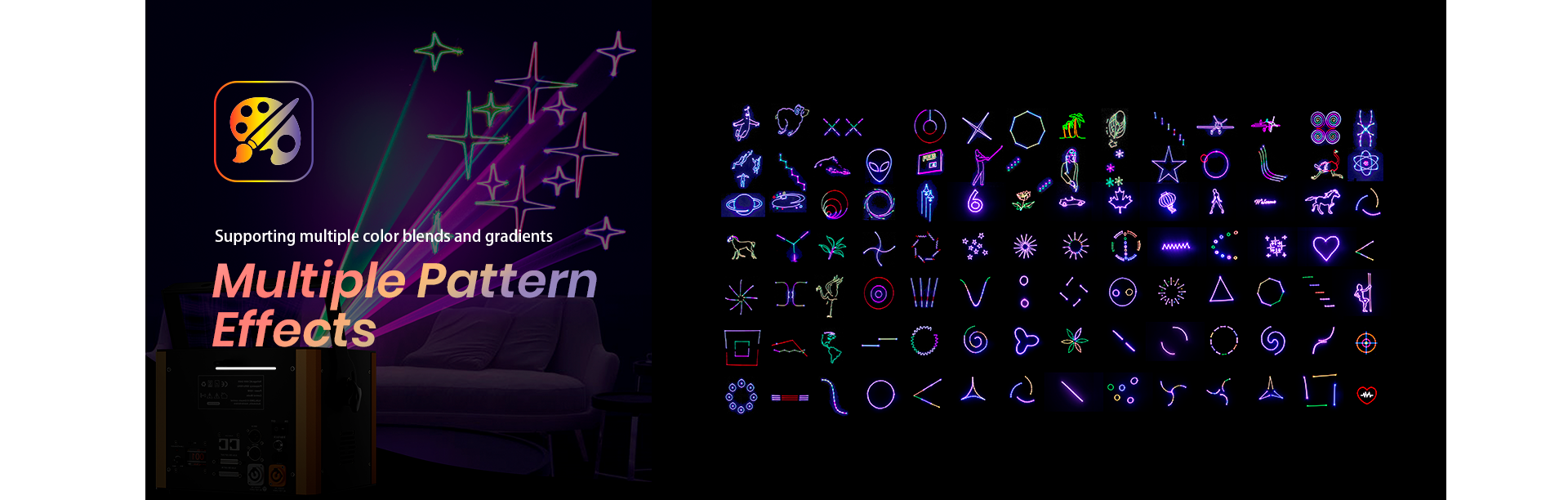

Multiple Pattern Effects
Supporting color mixing and color breathing, making patterns more colorful and vibrant in color.
Dynamic effects such as rapid transformation, rotation, and scaling of patterns can be achieved according to preset programs or voice commands, bringing audience more vivid visual experiences.

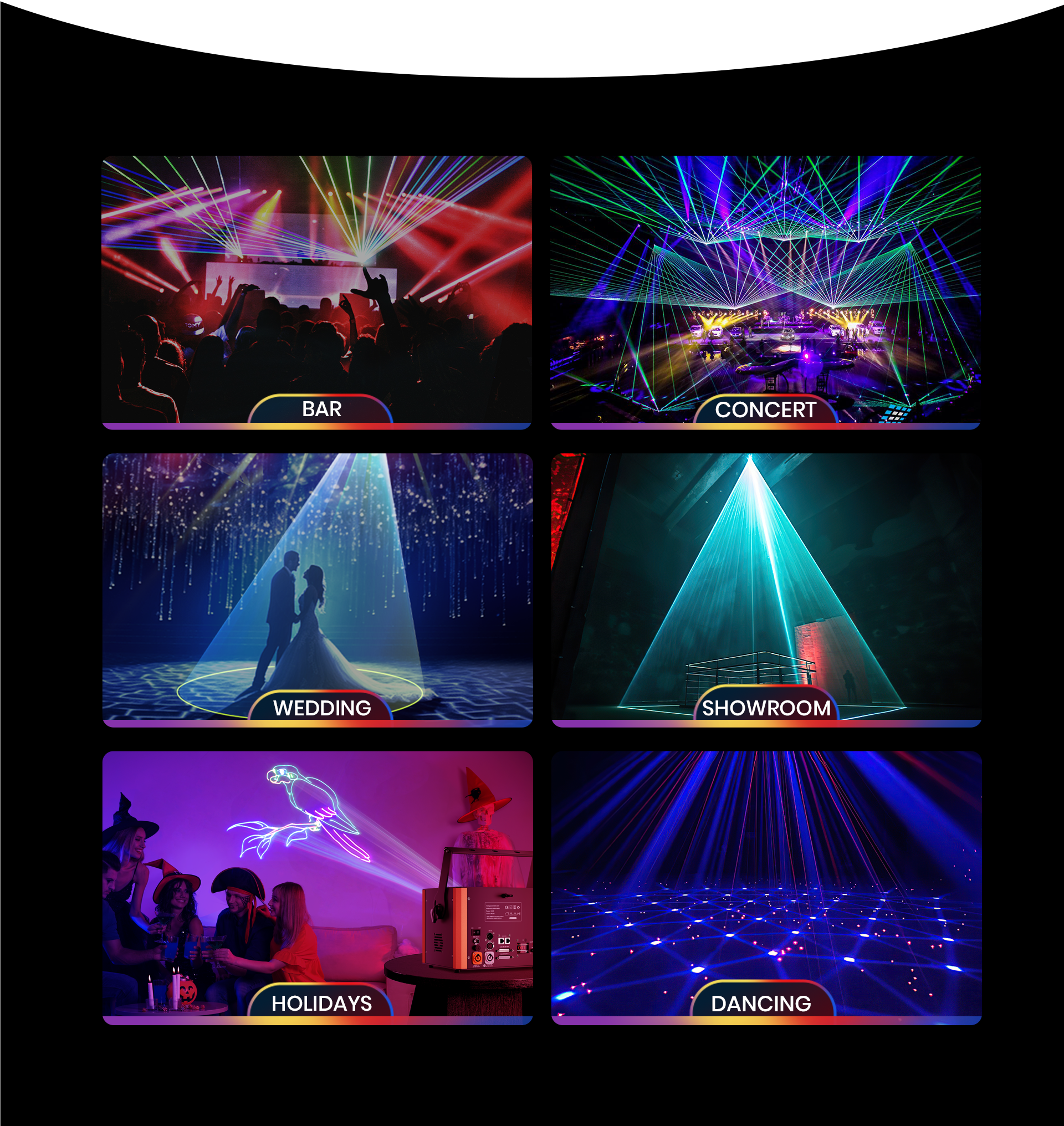

Applicable Scene
The 6W laser lights are perfect for creating stunning visual effects in bars and clubs,
enhancing the vibrant atmosphere of any venue.
SAFETY TIPS
During the use of a laser source,
Do not look directly at the light source.
The effect of stage laser lights is formed by high-speed scanning of the laser
beam through high-speed galvanometers or low-speed stepper motors.
The harm to the human body is mainly reflected in the harm to the eyes,
and prolonged exposure can lead to blindness.

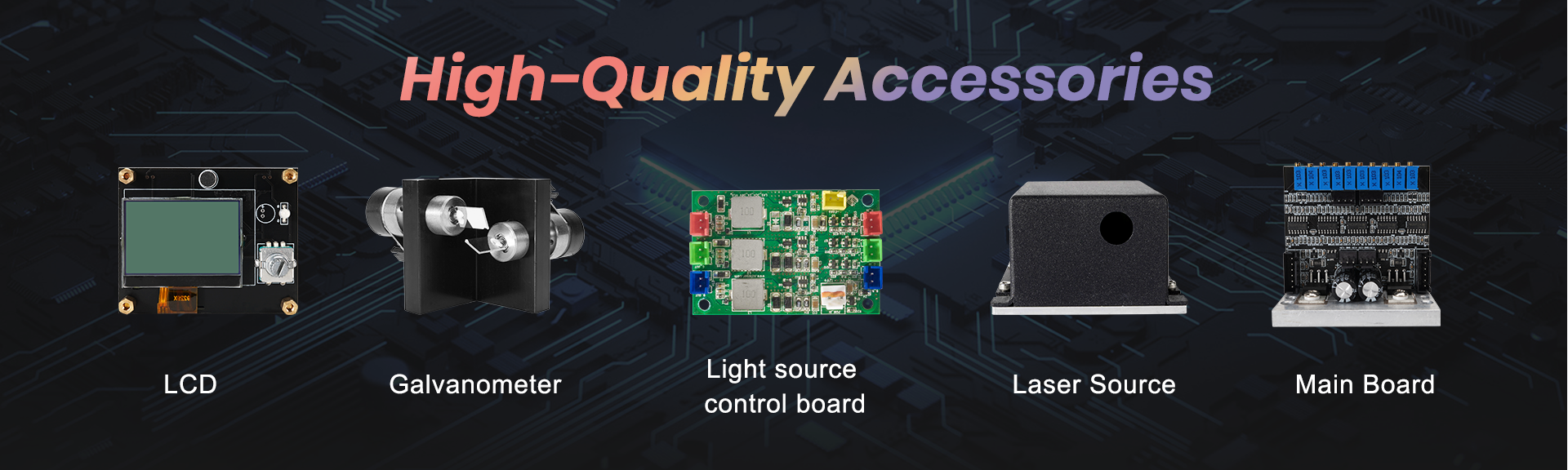

Carefully Select Excellent Accessories
The laser lamp production undergoes carefully crafting process in every detail, using high-quality accessories.
Every beam of light embodies our ingenuity, ensuring that every light and shadow experience is as dazzling as magic.
We believe that excellent products stem from a persistent pursuit of details.
It is these high-quality accessories that make our laser lights shine with unique brilliance in the night sky, igniting every wonderful moment!

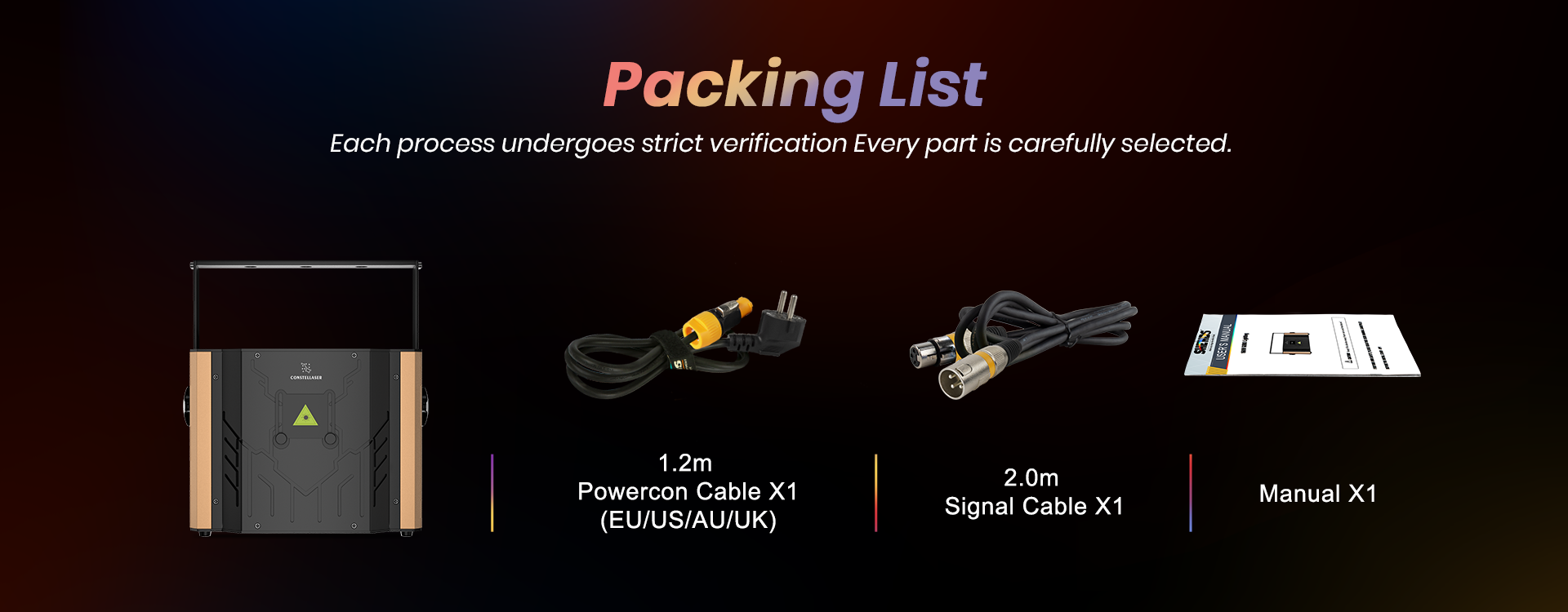

Additional Accessories
Before packing, each of our products undergoes rigorous testing to ensure they are in perfect condition. Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every details. Only products that have gone through layers of scrutiny can confidently leave our factory and arrive in your hands with unparalleled quality, bringing you an excellent user experience.

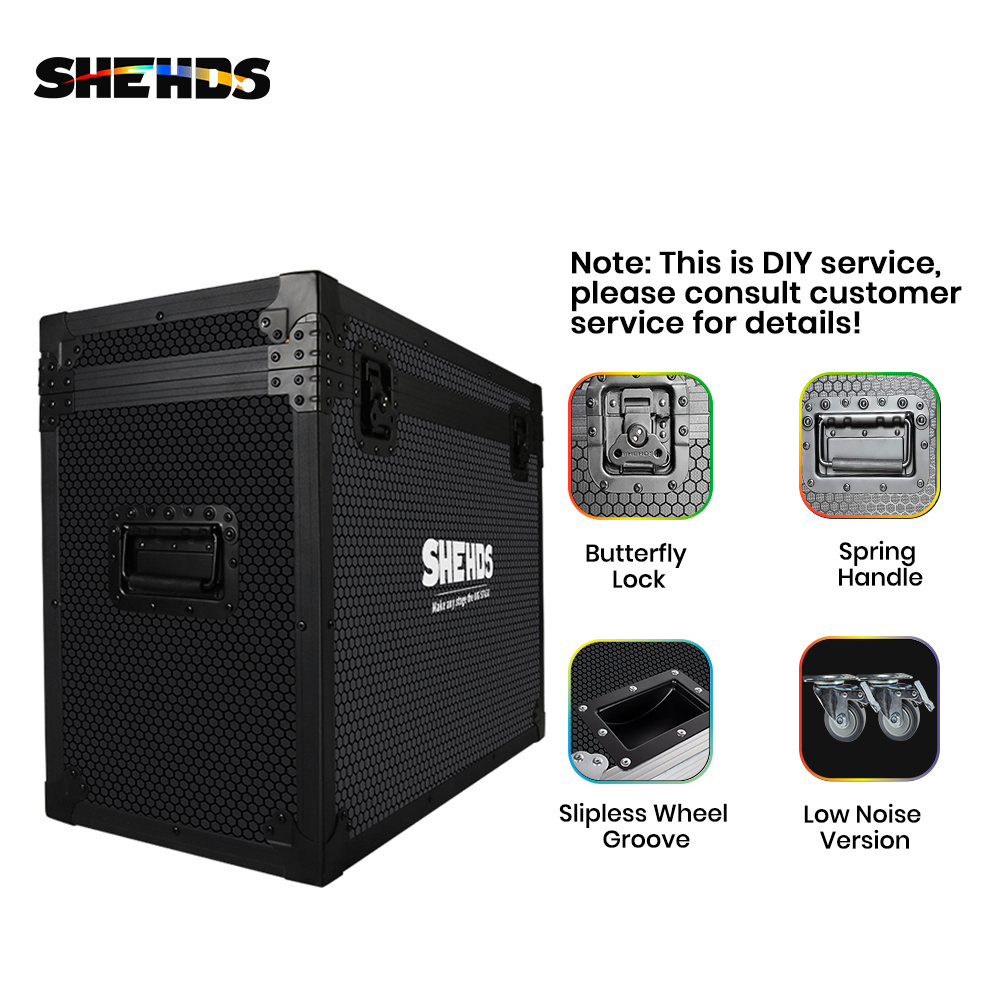

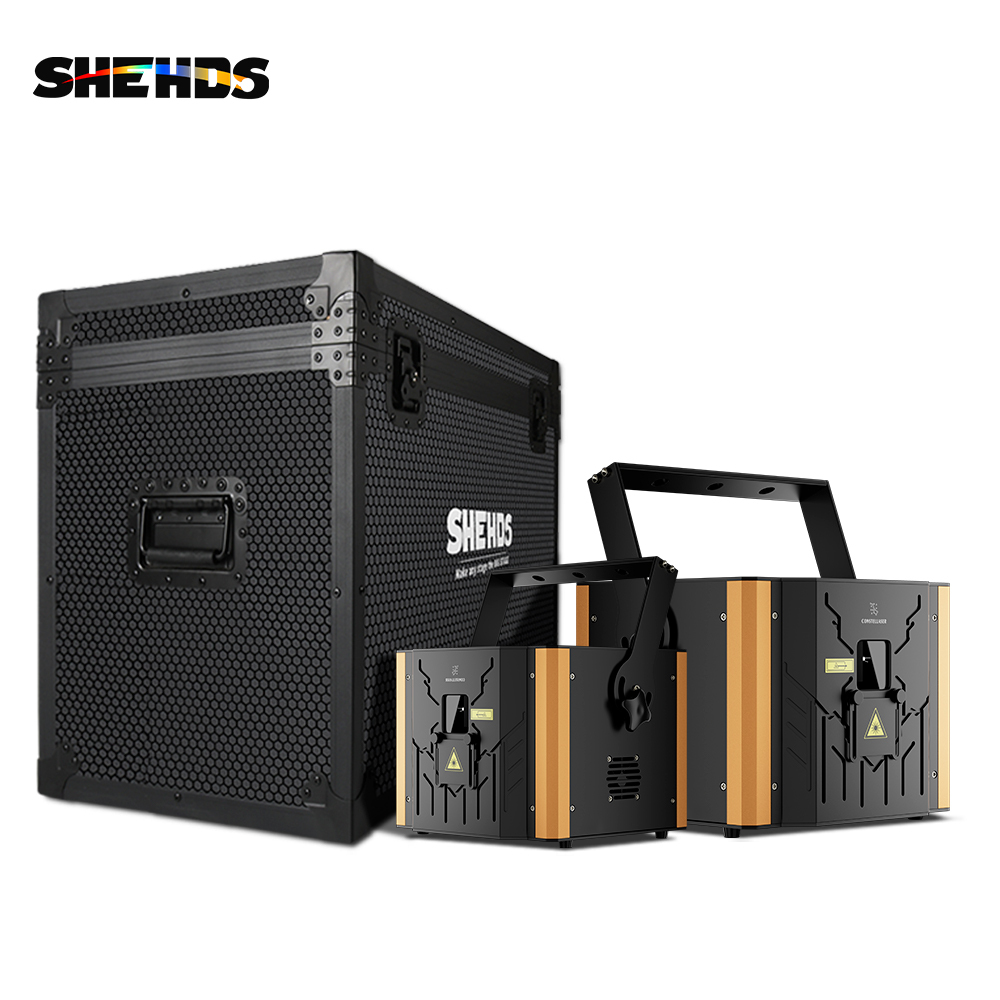

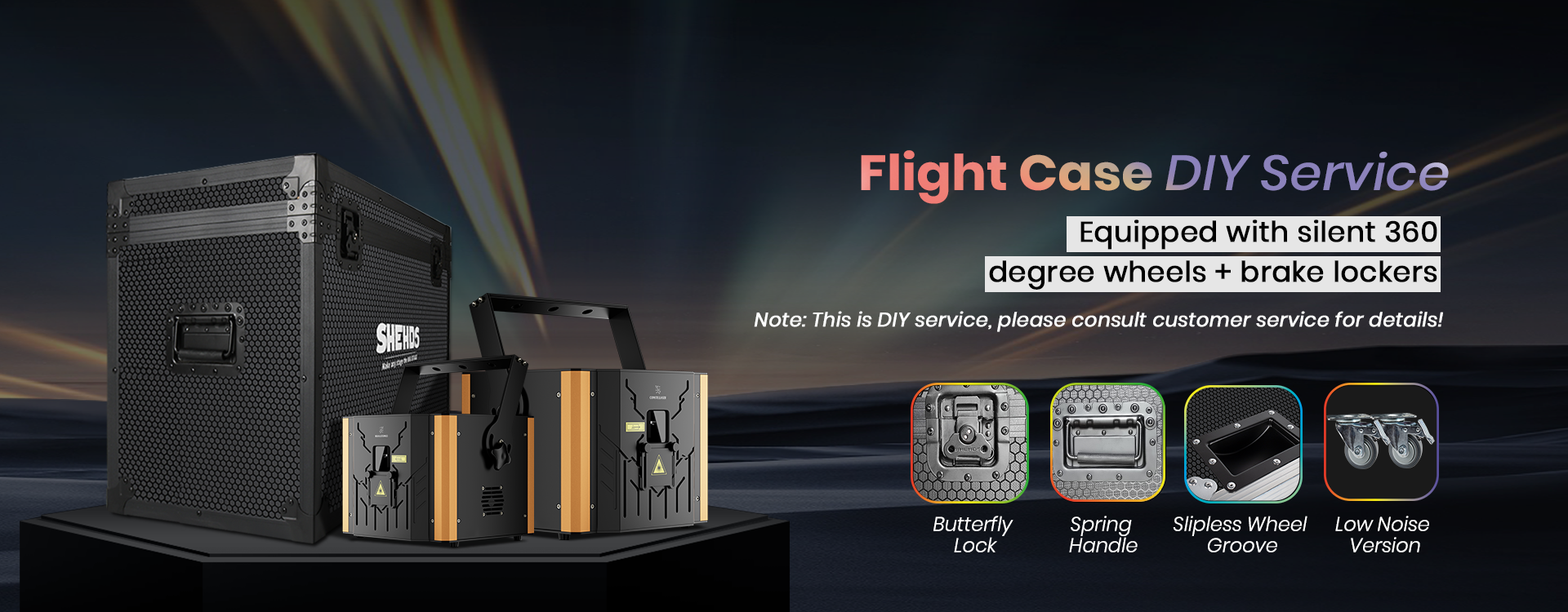

Flight Case DIY Service
Equipped with silent 360 degree wheels + brake lockers
We offer customized aviation cases that perfectly meet your product needs. Whether it's precision equipment, fragile items, or valuable goods, our aviation box design not only ensures safety protection, but also adapts flexibly to various specifications and shapes. Each box is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products. From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service, please consult customer service for details!
Qualification Certificate
Our laser equipment has not only obtained certification from the international authoritative organization FDA, but also passed the deviation application authorization certification for laser special equipment, ensuring that every device meets the strictest safety standards. This is not only a recognition of our technical strength, but also a commitment to your peace of mind when using it. Behind every laser beam is our pursuit of quality and safety, allowing you to feel at ease and enjoy efficiency and excellence when using it.
