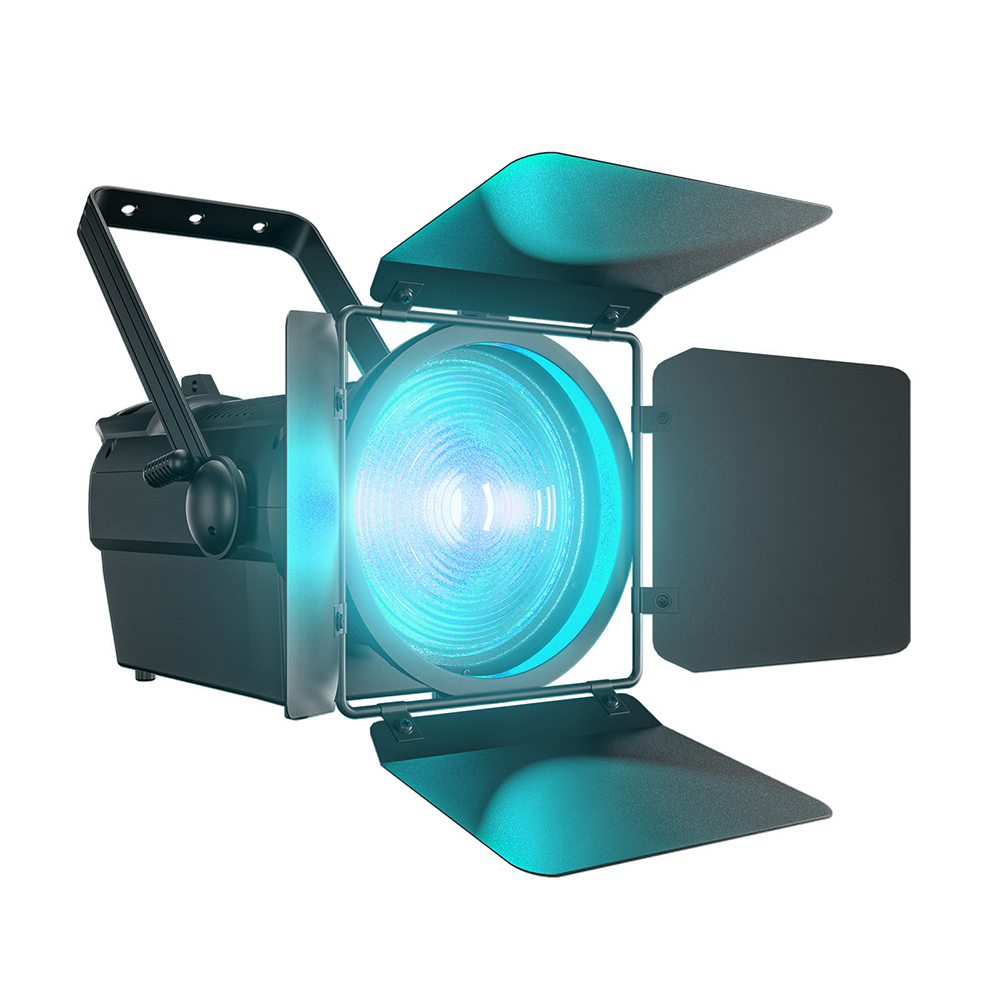

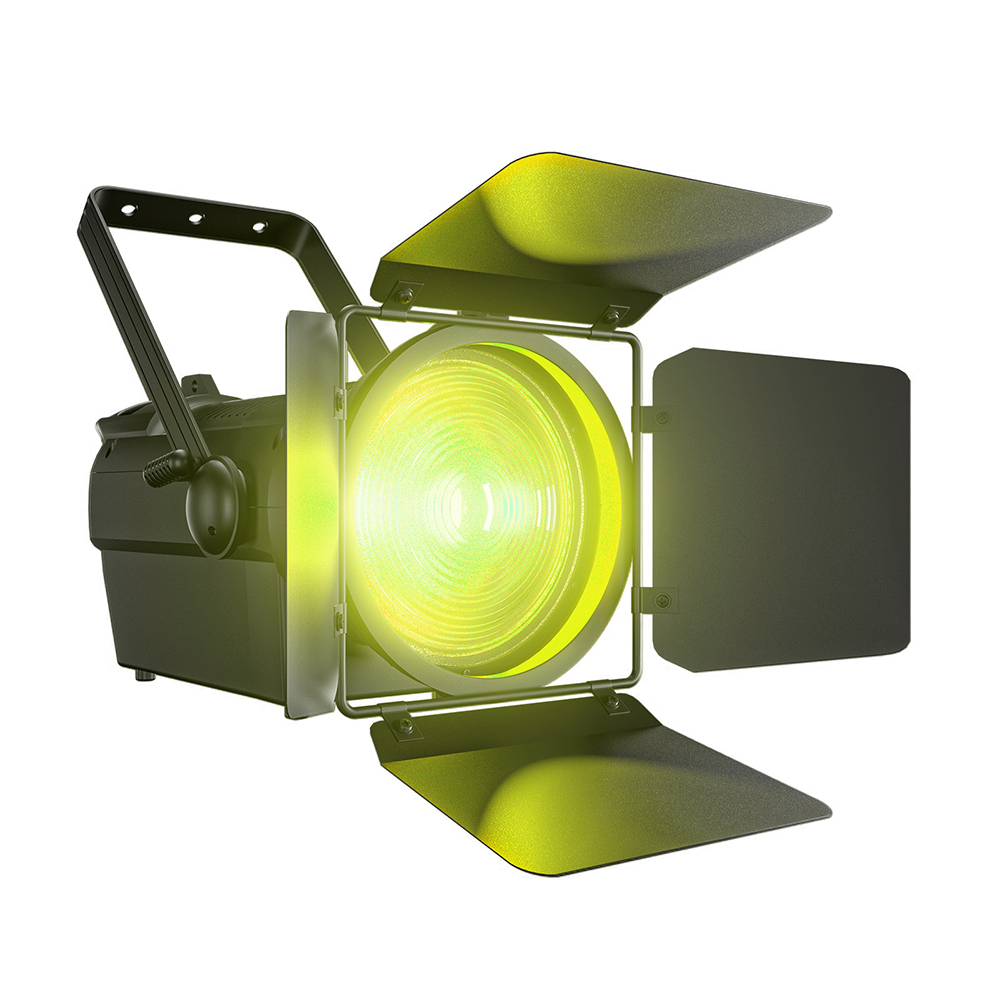

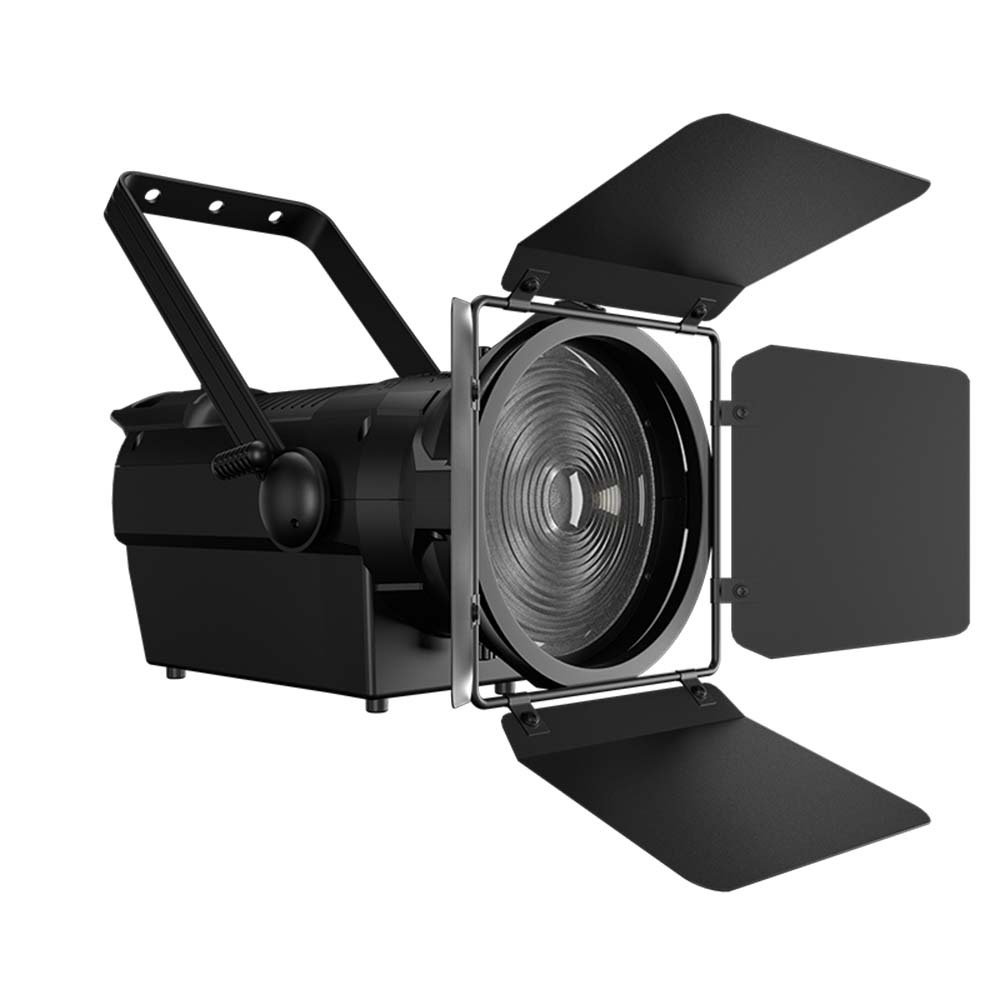

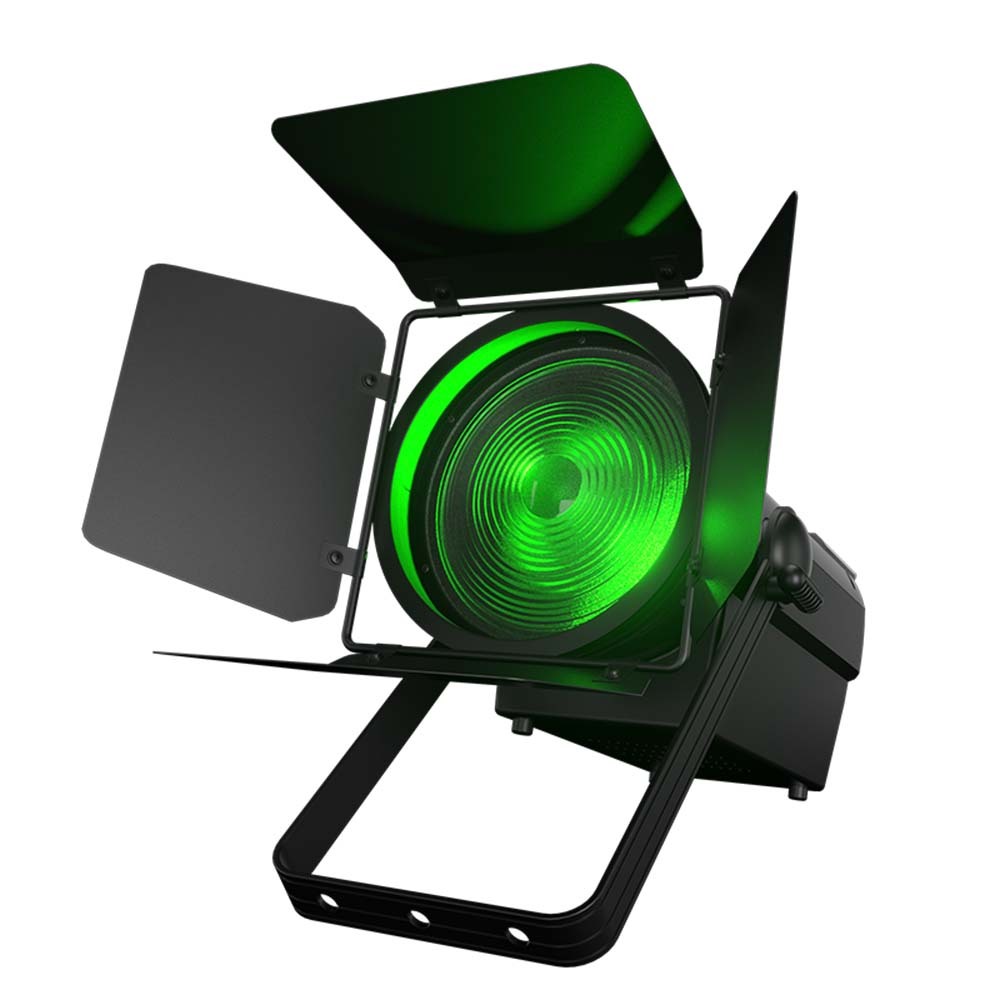

Spot Zoom250W
The new Spot Zoom250W Fresnel Zoom Spotlight delivers exceptional performance with cutting-edge color technology.
Featuring a high CRI of 96, it ensures vivid, natural color rendering,
while its advanced color and CCT management system covers a wide range from 2800K to 10,000K.
With a powerful output of 6400 lux at 5 meters, a versatile zoom range of 15°–60°,
and smooth 16-bit dimming, this fixture adapts seamlessly to any stage application.
Equipped with RDM support, two channel modes (7ch/11ch), and operating at 62 dB,
it combines precision, flexibility, and reliability—perfect for professional theater, broadcast, and live events.
Product Features
The Spot Zoom250W features a powerful color system,
delivering an expansive color gamut with rich, saturated hues and seamless transitions.
This advanced color mixing technology ensures vibrant and precise color rendering,
perfect for broadcast, film, and theatre.
The Spot Zoom250W/350W boasts a high Color Rendering Index (CRI) of 96,
ensuring natural and accurate color reproduction across all lighting conditions.

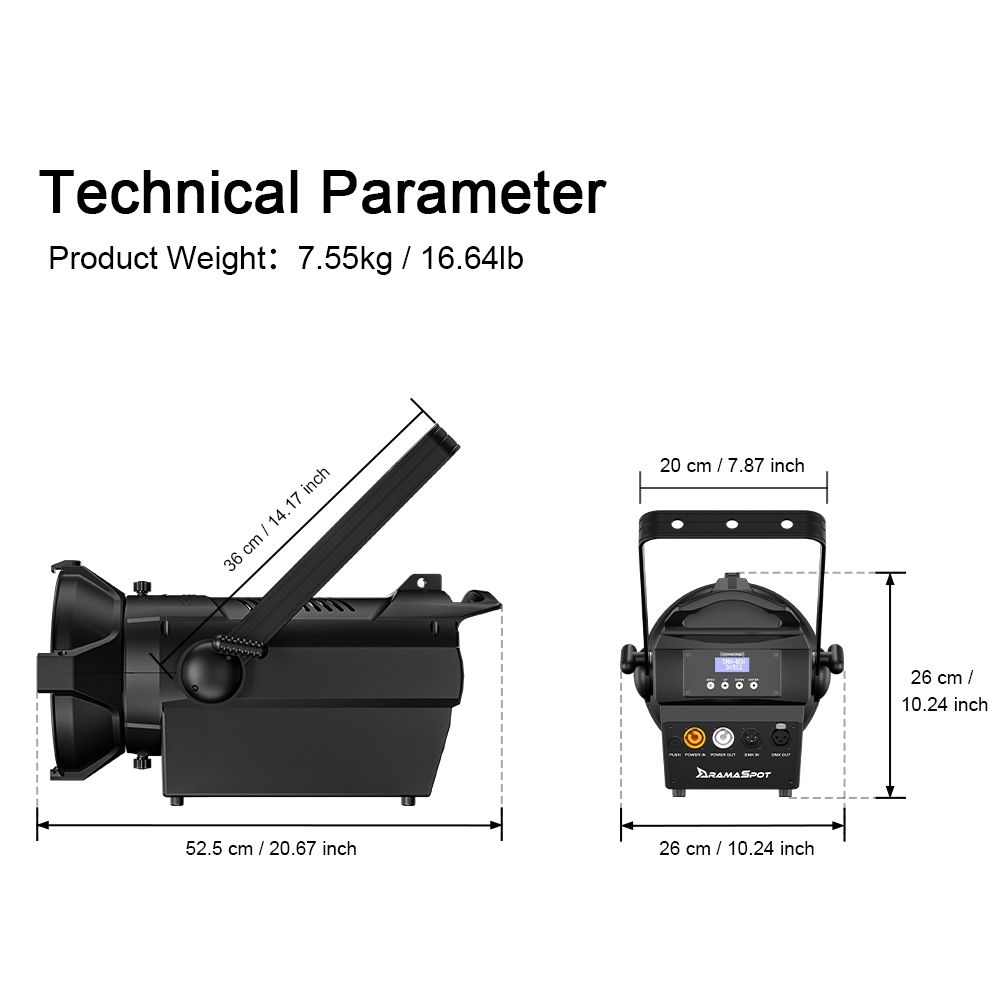

Technical Parameter
|
Parameters
|
Spot Zoom250W
|
|
Light source type:
|
RGBLAC
|
RGBWA+UV
|
RGBL
|
RGBW
|
Warm & Cool White
|
|
Colour temperature:
|
3,000-14,000K
|
7,000K
|
3,000-14,000K
|
7,000K
|
2700K, 6500K
|
|
CRI:
|
90
|
90
|
90
|
90
|
96
|
|
Lux（250W）:
|
5300x@5m
|
4447x@5m
|
7500x@5m
|
3800x@5m
|
6600x@5m
|
|
Lux（350W）:
|
6400x@5m
|
6000x@5m
|
5973x@5m
|
3943x@5m
|
9700x@5m
|
|
LED Life expectancy:
|
min. 30000 hrs
|
|
Zoom Range:
|
15°-60°
|
|
Dimmer:
|
Electronic 16bit Dimmer
|
|
|
|
|
Lens diameter:
|
190mm High Resolution Fresnel Glass
|
|
Protocols:
|
DMX512,RDM
|
|
DMX Channel Mode：
|
7/17 CH
|
7/11 CH
|
5/9 CH
|
5/9 CH
|
3/7 CH
|
|
XLR:
|
3 pin DMX connector
|
|
Feature：
|
Auto mode , Manual, Programming
|
|
Noise:
|
62db
|
|
Operating Voltage:
|
100-120V / 200-240V, 50/60Hz
|
|
Housing :
|
Magnesium alloy full die-casting
|
|
Product size：
|
52.5 x 26 x 26cm
|
|
Product weight:
|
7.55kg
|
|
Package size:
|
55x35x32cm
|
|
Package weight:
|
8.75 kg
|
|
Operating temperature:
|
-10-45°
|
Applicable Scene
The Spot Zoom250W is designed for professional environments requiring high-quality, color-accurate lighting.
Its versatility makes it ideal for use in theaters, television studios, film productions, and live events,
where precise color rendering and smooth, diffused lighting are essential.
Ventilation System
The spotlight is equipped with 6 copper heat pipes and a large fin stack,
efficiently transferring and dispersing heat through strong airflow.
Its intelligent temperature tracking system continuously monitors internal heat levels
and automatically adjusts the fan speed. This ensures stable performance while keeping
noise to a minimum during operation.
Dimmer
The Spot Zoom250W features a smooth 16-bit dimmer, providing precise and flicker-free brightness control from 0–100%.

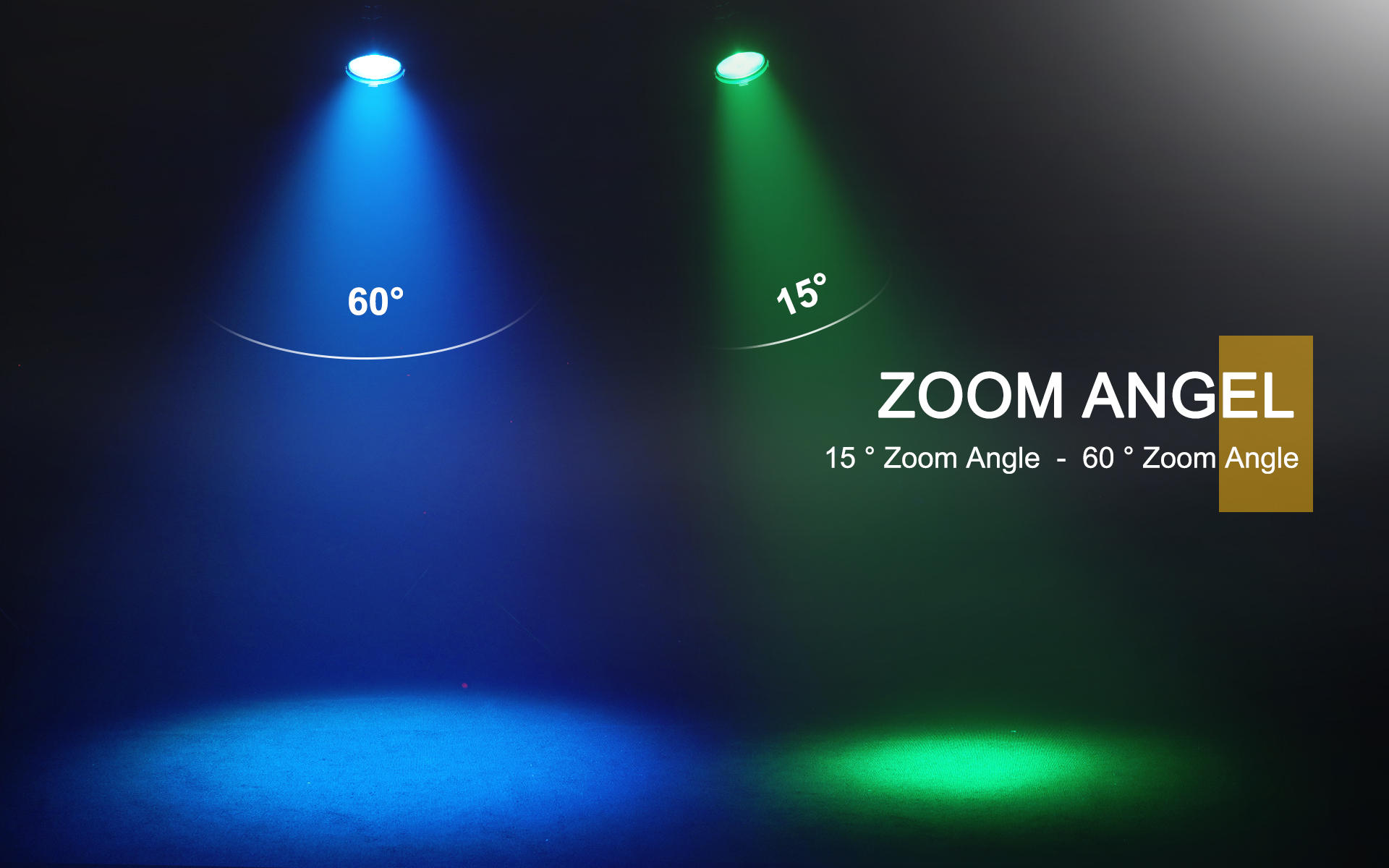

Spot Angle
The spotlight features a versatile zoom range of 15° to 60°, making it ideal for throw distances between 5 to 20 meters,
offering both focused beams and wide coverage for a variety of stage applications.

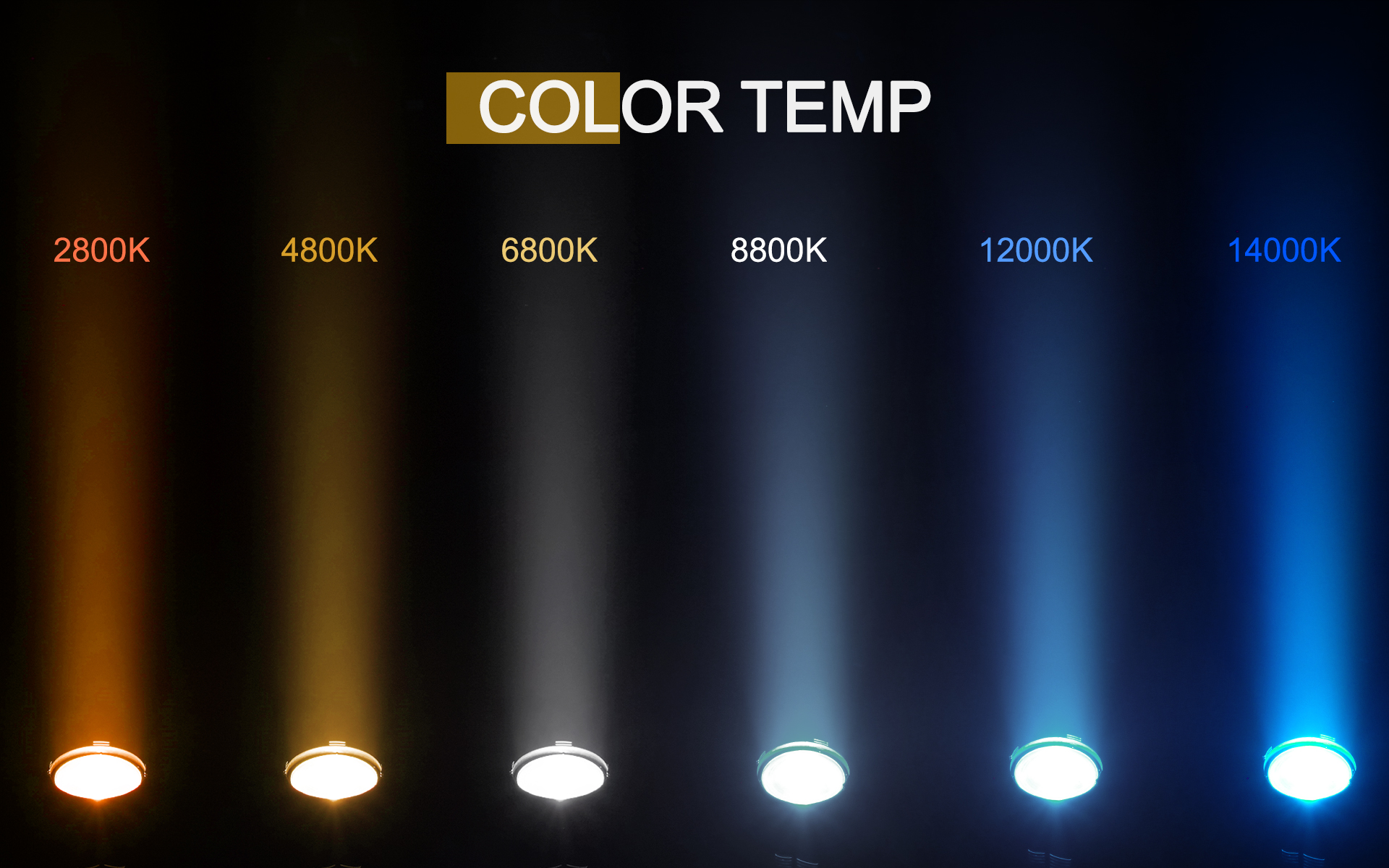

Color Temp
It offers an adjustable color temperature range from warm 3,000K to cool 14,000K,
providing versatile lighting for different atmospheres and scenes.
High PWM, Flickering Free
The spotlight features a high PWM frequency,
ensuring flicker-free performance when recording video or live streaming.
HD Fresnel Glass Lens
The spotlight is equipped with a large 15 cm high-resolution Fresnel front lens and a secondary dome lens with minimal distortion,
ensuring that both the spot and color remain perfectly sharp and accurate across the entire zoom range.

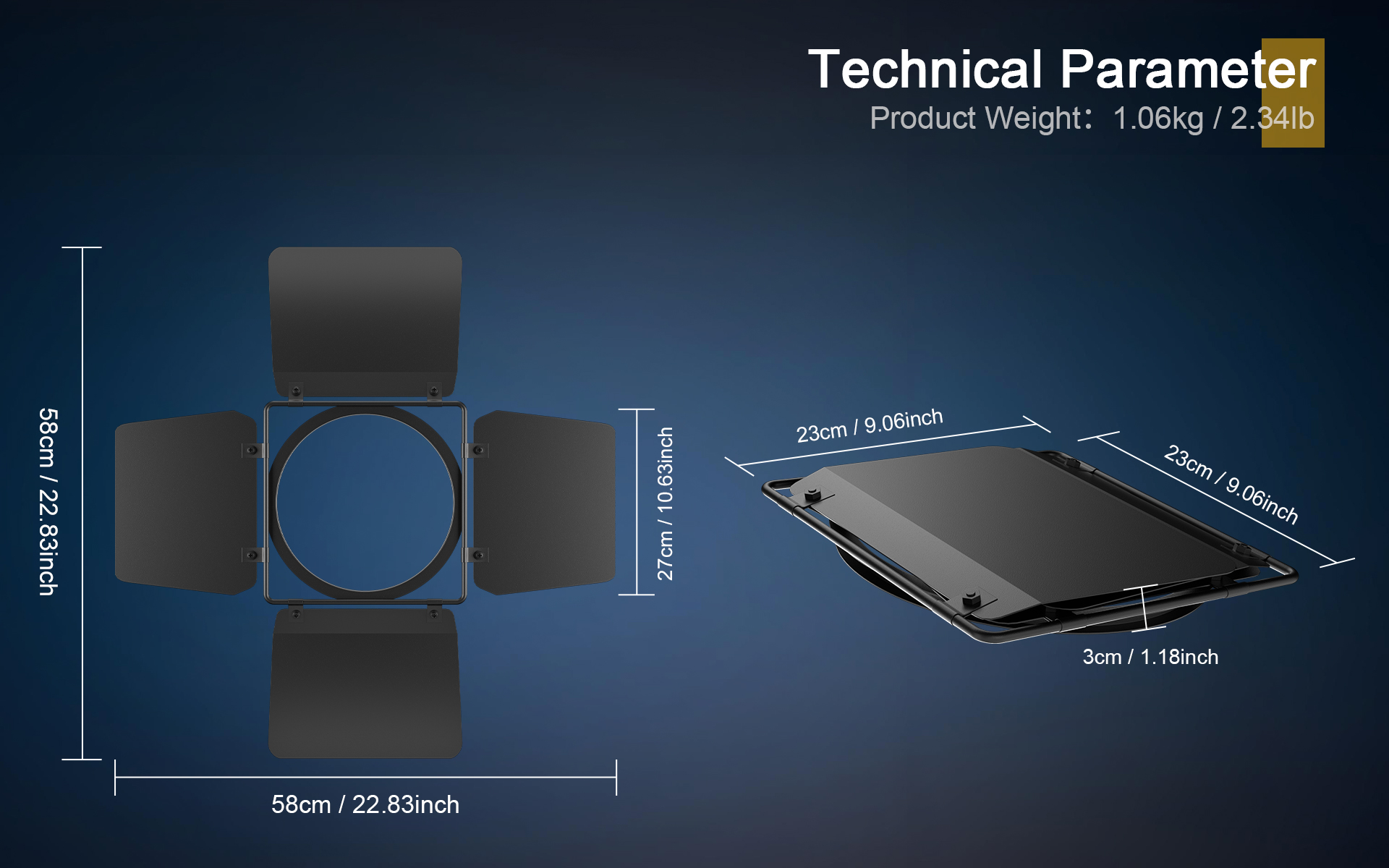

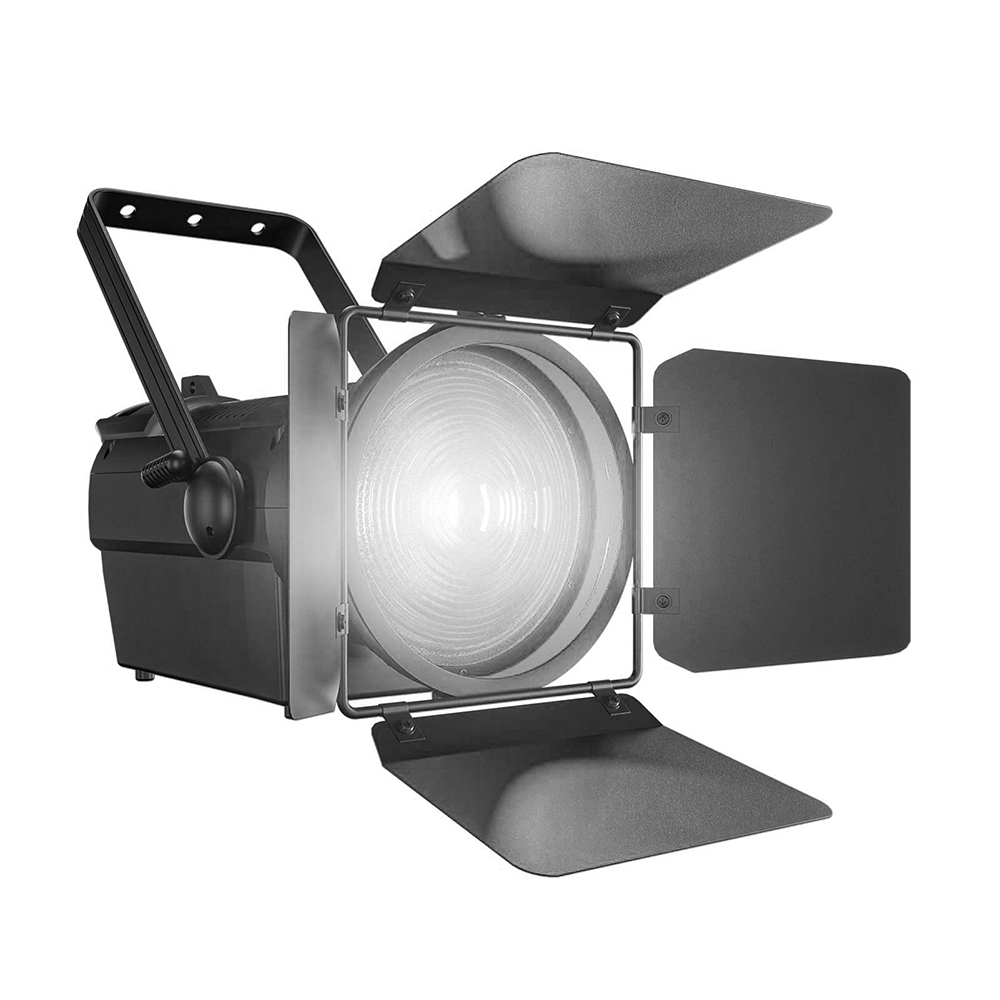

BarnDoor
The spotlight comes with an adjustable barndoor that can be mounted in front of its head,
allowing precise control over the angle and shape of the beam.

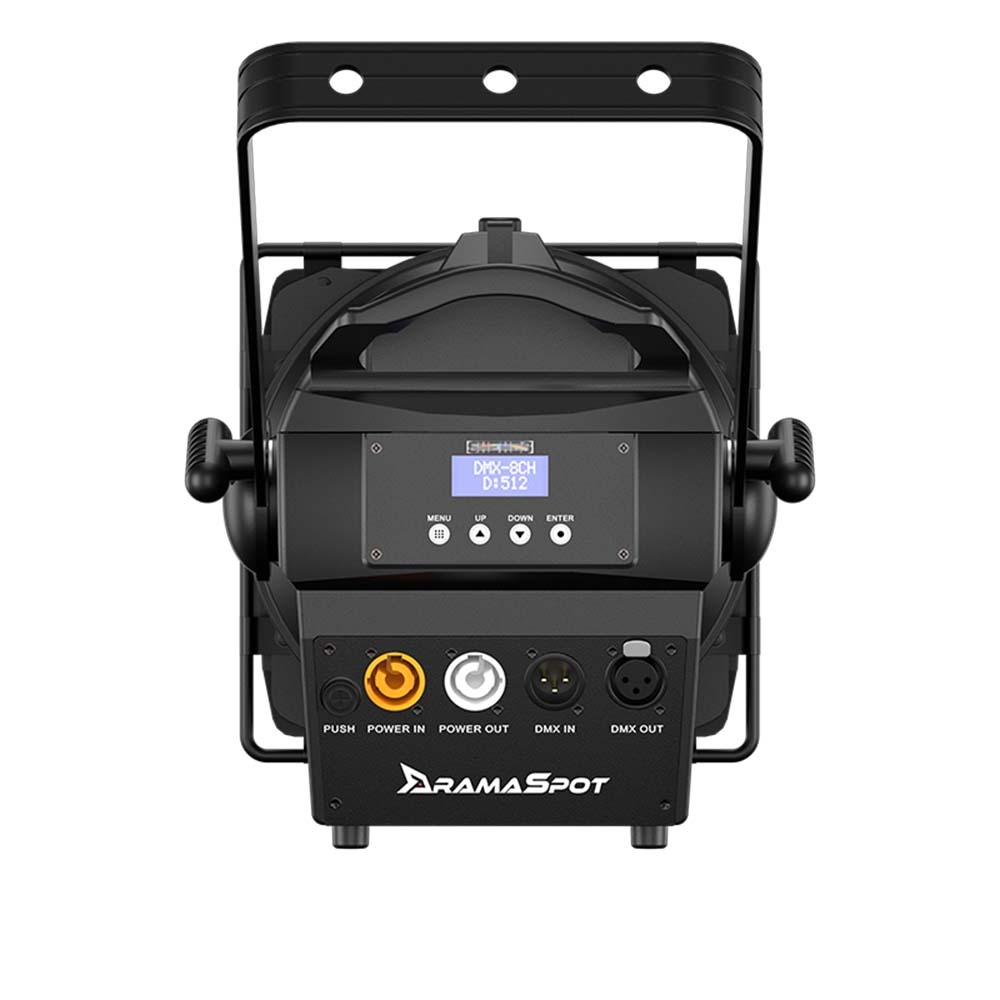

Close Up Of The Back
The back of the spotlight features a clear LCD display screen with
4 intuitive touch buttons for easy operation and settings adjustment.
It is equipped with power in/out and 3-pin DMX in/out ports,
ensuring reliable connections and durability in any environment.
Easy to install
The spotlight features a sturdy yoke with two knobs,
making it easy to mount on truss and quickly adjust the lighting angle with precision.
Trusted by Real Creators
See how influencers put SHEHDS spotlights to the test , real scenes, real performance.
Full Spectrum Color
Six distinct color systems delivering different levels of richness, purity, and creative depth.
250W VS 350W
Choose the Perfect LEKO for Your Stage
A clear side-by-side comparison of color systems, brightness, and technical specifications.

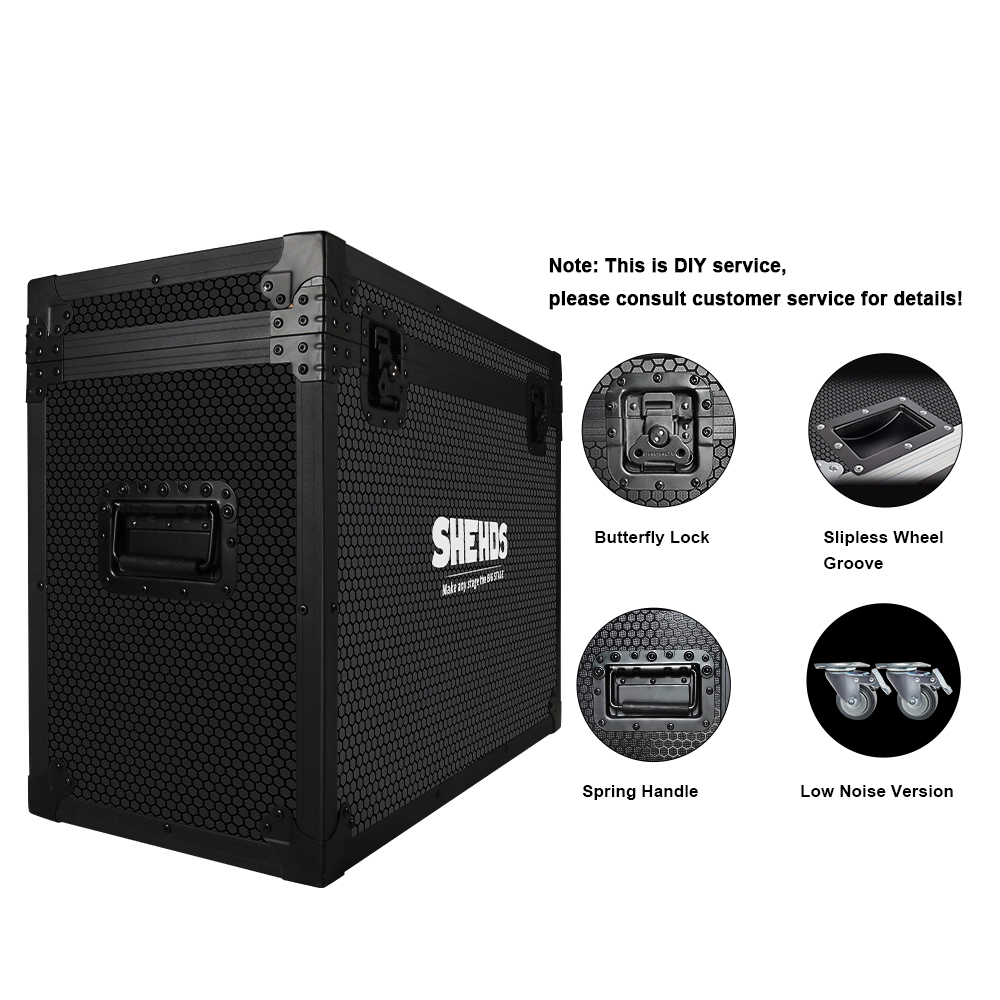

Flight Case DIY Service
It equipped with silent 360 degree wheels + brake locks.
We offer customized road cases that perfectly meet your needs. Whether precision equipment, fragile items, or valuable goods, our road case not only ensures safety protection,
but also adapts flexibly to various specifications and shapes. Each case is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products.
From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service, please consult customer service for details!

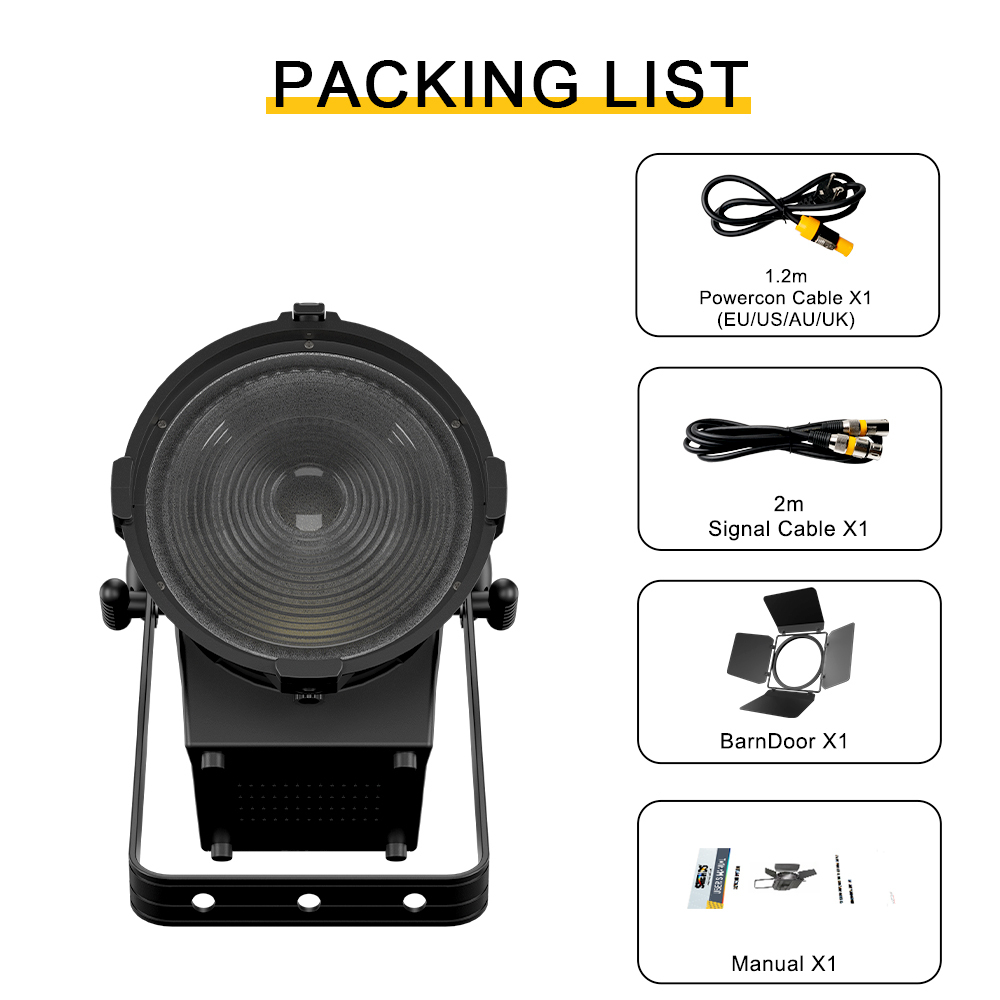

Packing List
