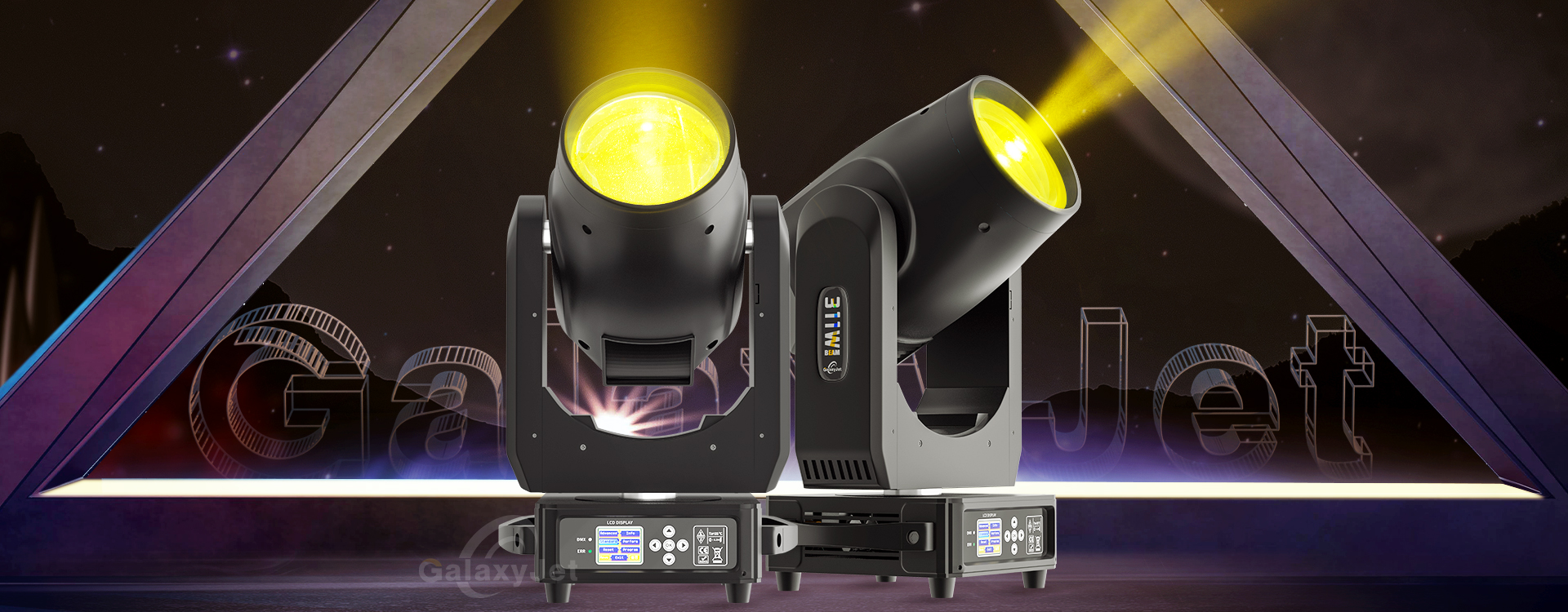

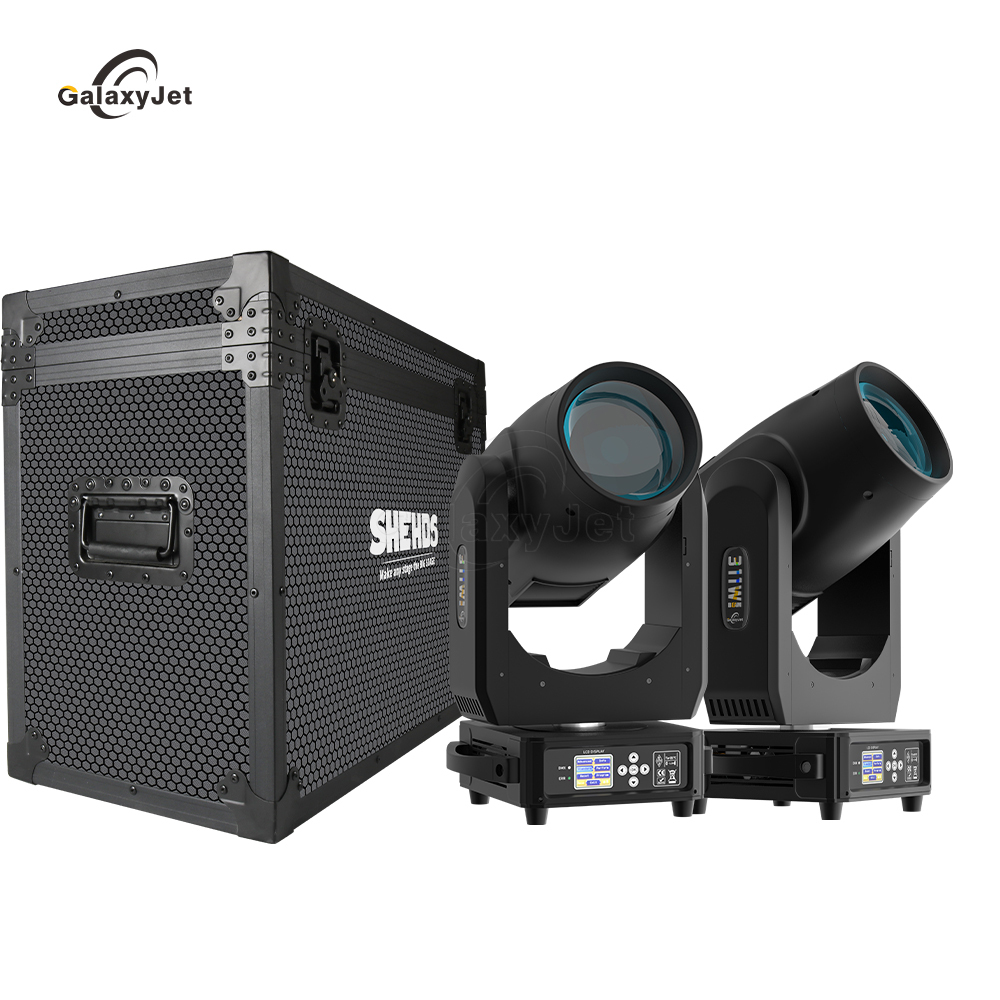

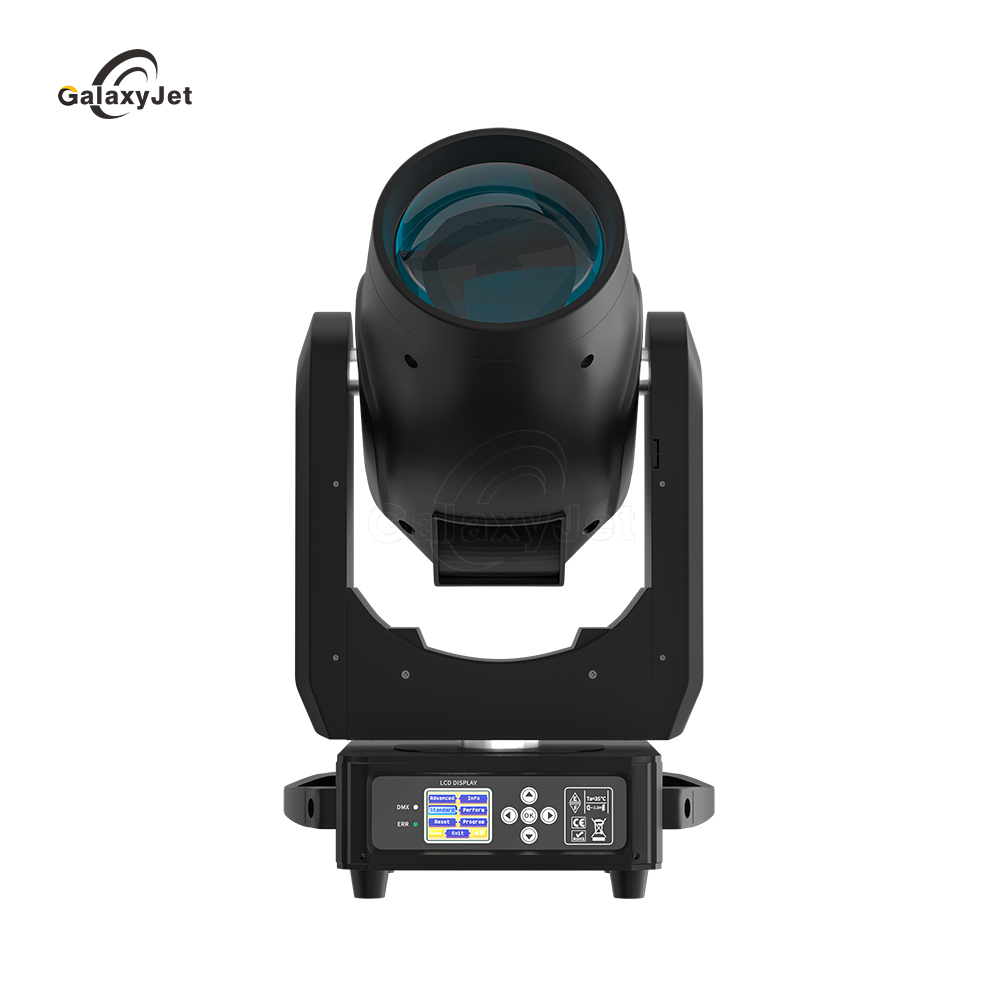

311W BEAM LIGHT
The 311W beam is straight and sharp, with fast movement speed.
The rich color and pattern plates, excellent beam and prism effects,
combined with various strobe speeds, create a colorful and ever-changing visual effect.
Product Features
Flexibly shaping uniform and colorful pattern effects, effortlessly showcasing exciting and colorful illusion lighting effects.
Uniform color mixing and excellent color reproduction can create a dazzling stage light and shadow visual experience,
Improve the level of stage performance in all aspects, providing high-quality choices
for various professional performance venues such as concerts, bars, evening parties, roadshows, etc.
Technical Parameter
|
-Electrical specification and connections
|
|
Power supply:
|
500W
|
|
Input voltage range:
|
100-240 V, 50/60 Hz
|
|
Power in connector:
|
Neutrik PowerCON
|
|
-Source
|
|
Light source type:
|
311W Bulb
|
|
Colour temperature output:
|
7000±500 K
|
|
10m/20m Illuminance:
|
365800 lux@5m
|
|
Life expectancy:
|
min. 2000 hours
|
|
-Optical system
|
|
Beam angle:
|
Beam 1.9°
|
|
Dimmer:
|
Mechanical shutter
|
|
-Dynamic Effects and Features
|
|

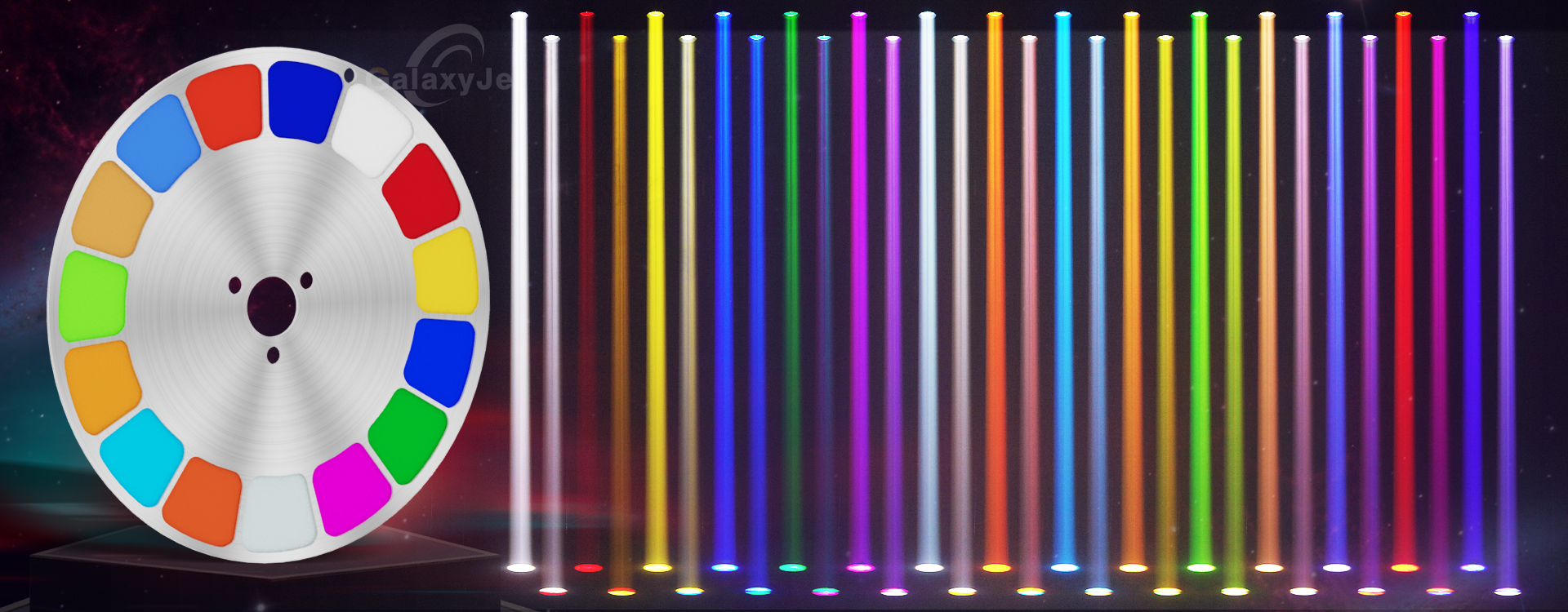

Colour wheel :
|
14 fixed dichroic colours + white
|
|

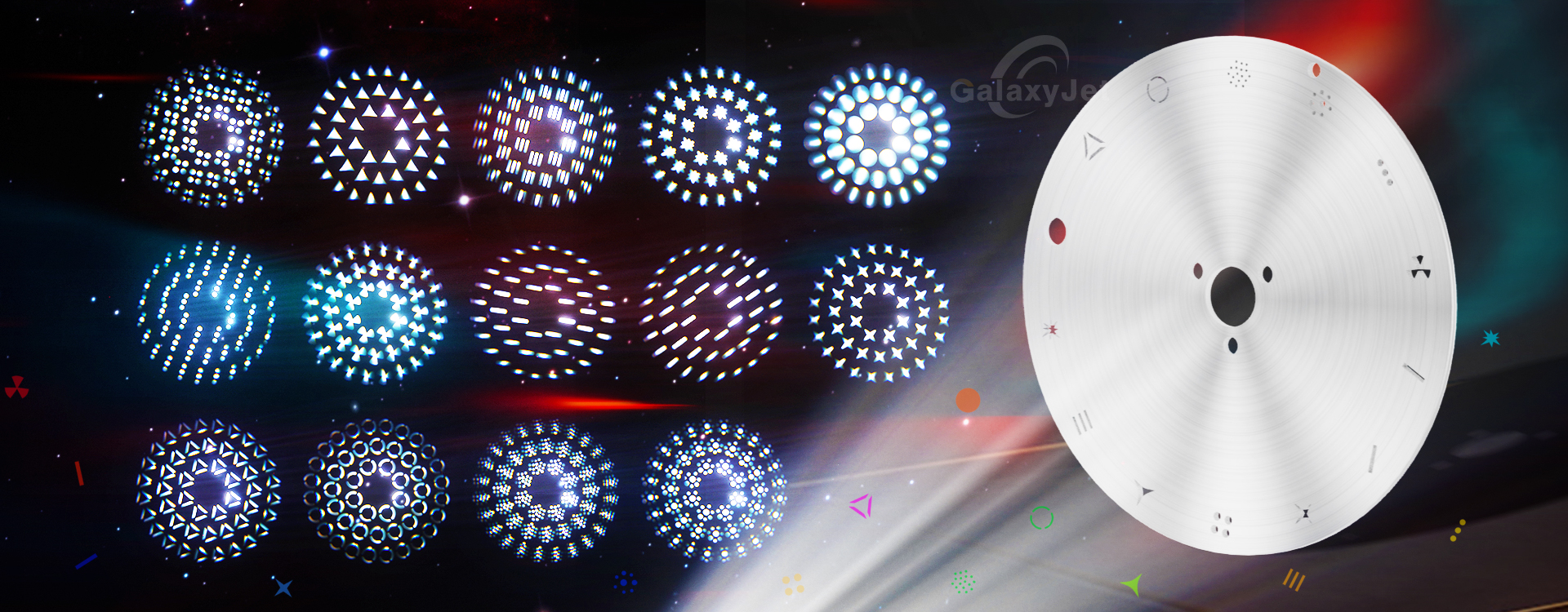

Static gobo wheel:
|
13 static gobos + open
|
|
Prism 1:
|
8-facet prism rotating in both directions at variable speed
|
|
Prism 2:
|
48-facet prism rotating in both directions at variable speed
|
|
Frosts:
|
Fast change frosts for instant softening of the projected gobo or framing shutters
|
|
Raimbow wheel:
|
6 colors
|
|
-Control and programming
|
|
Protocols:
|
DMX512,RDM
|
|
Movement：
|
Pan：540°；Tilt：270°
|
|
DMX Channel Mode：
|
16 CH
|
|
Feature：
|
Auto mode ,sound mode,Manual programming scenarios
|
|
-Mechanical specification
|
|
Housing :
|
High temperature resistant and flame retardant plastic housing
|
|

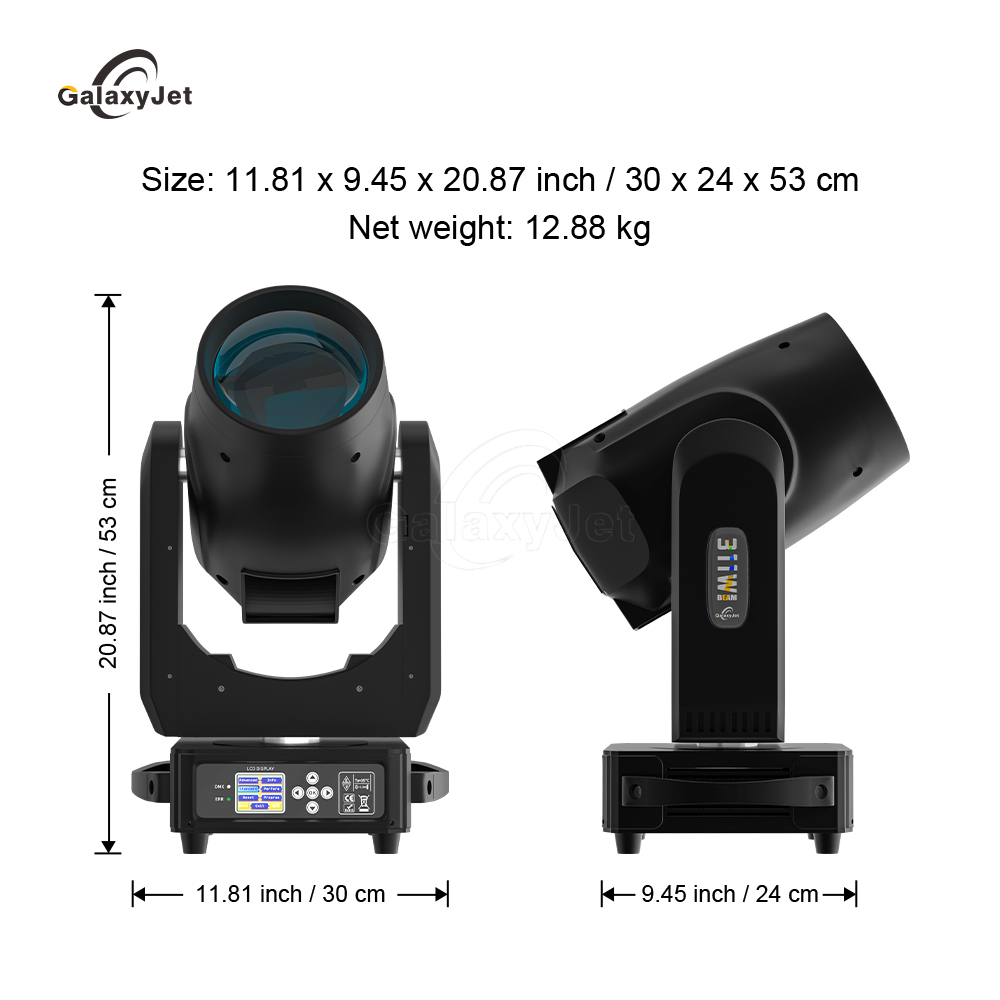

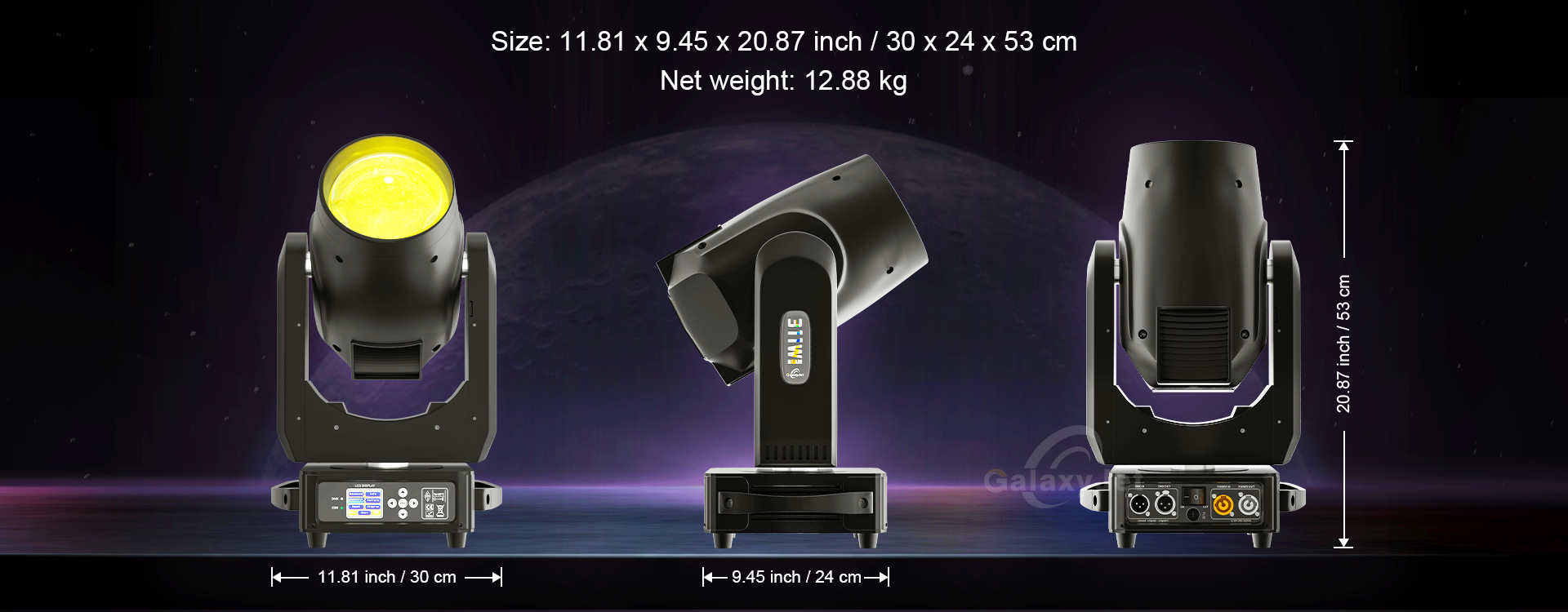

Product size：
|
30x24x53cm / 11.81x9.45x20.87inch
|
|
Product weight:
|
12.88kg
|
|
Package size:
|
57.5x42.5x41.5cm / 22.64x16.73x16.34inch
|
|
Package weight:
|
17.1kg
|
|
Operating temperature:
|
-20~60℃
|
|
Ingress protection rating:
|
IP20
|

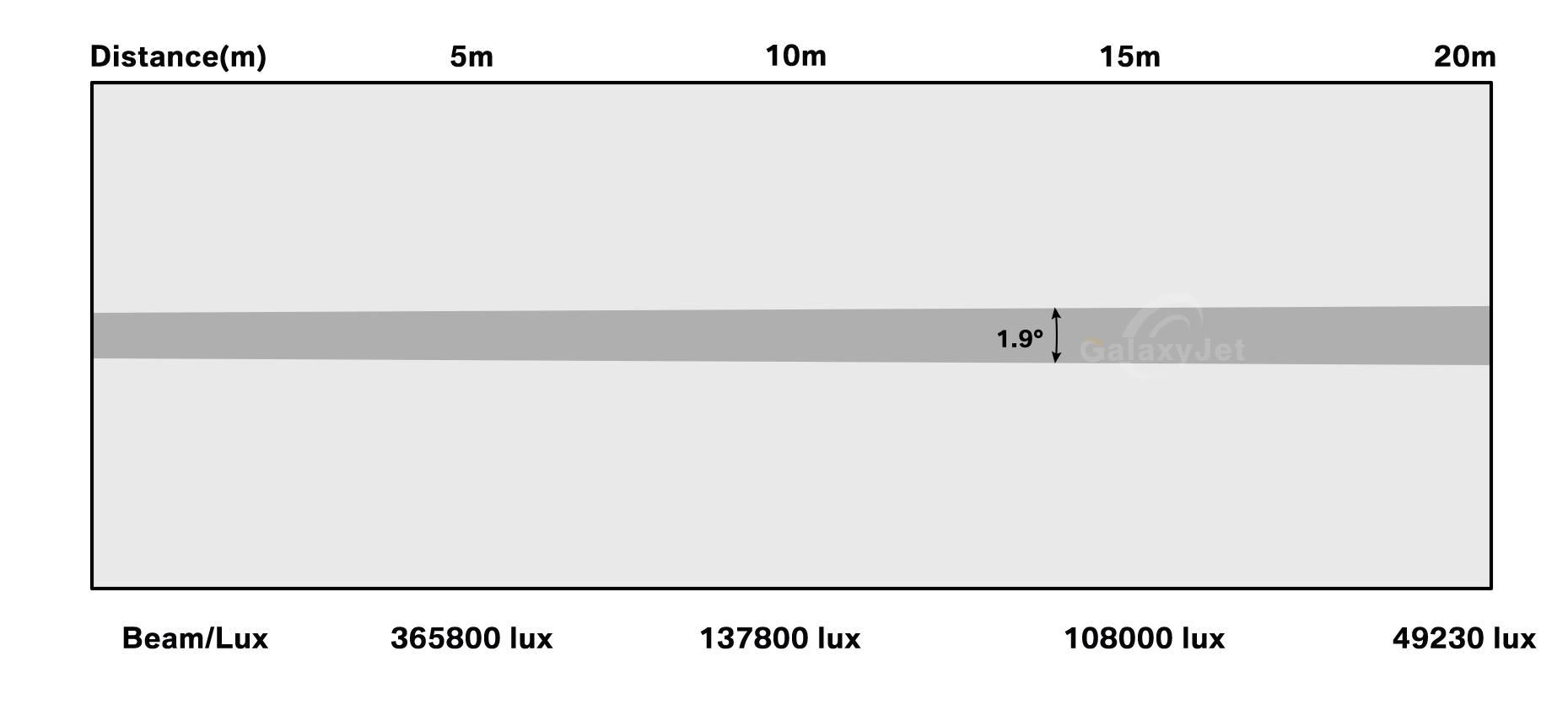

Beam Angle
1.9 ° beam angle
Effect Show
Frost Effect Display
Rendering the Stage Atmosphere
Prism Effect Display
Bright And Colorful
Beam Effect
Uniform and colorful pattern effects with uniform light spots

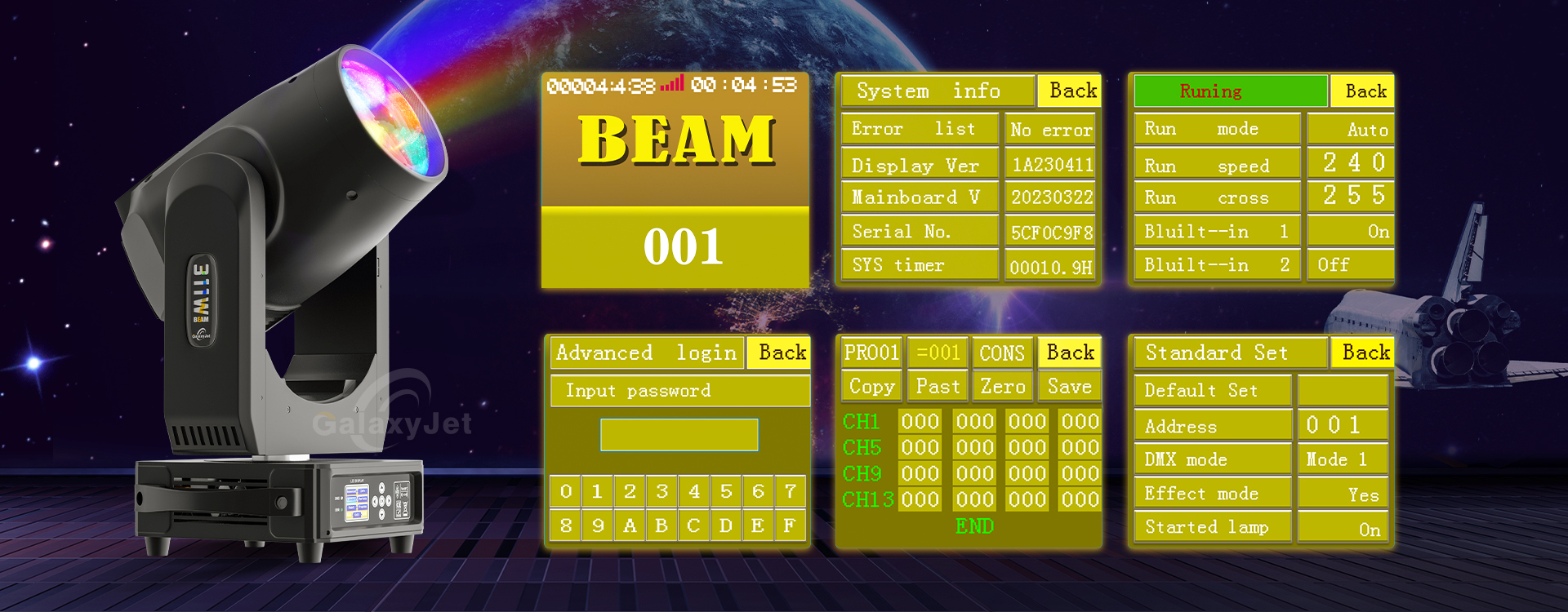

Introduction to Panel Functions
Contains multiple interactive function programs to visually display the operating status and mode of the lighting fixtures,
Built-in lamp operation status sensing and monitoring system,
which can check the operation status of the lamp at any time for easy parameter adjustment
Function Introduction

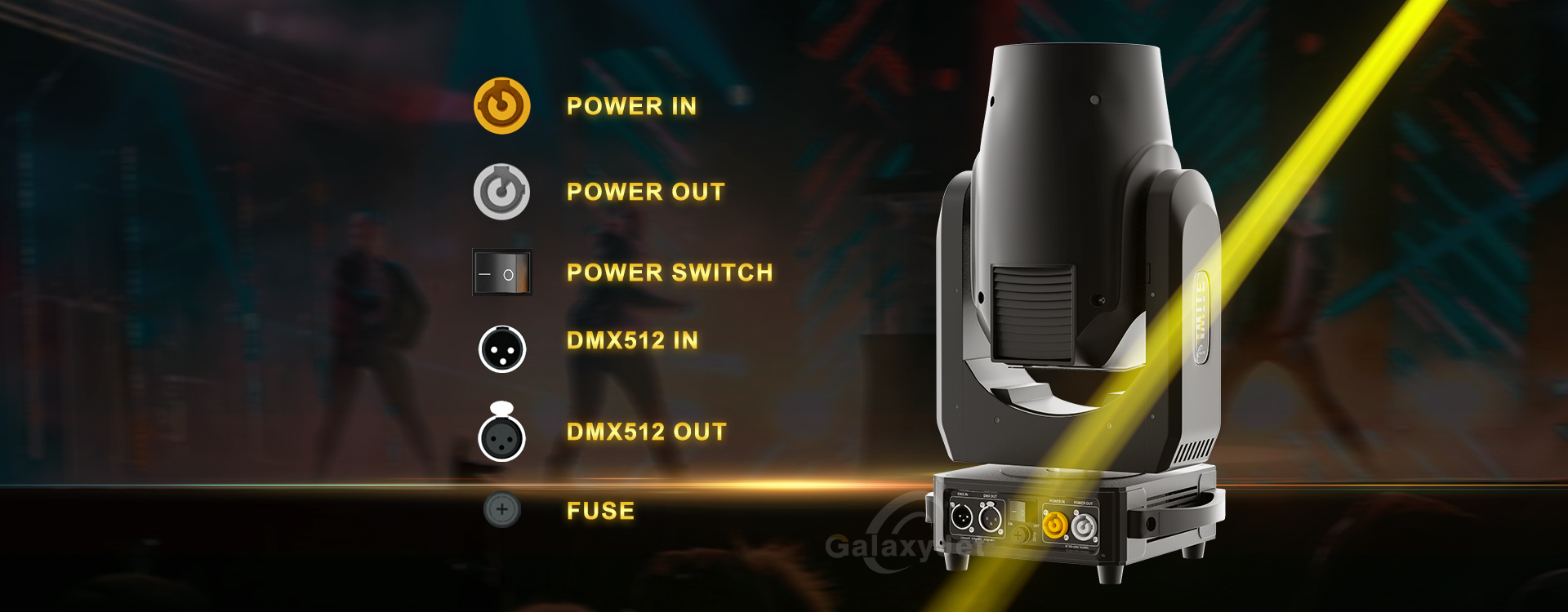

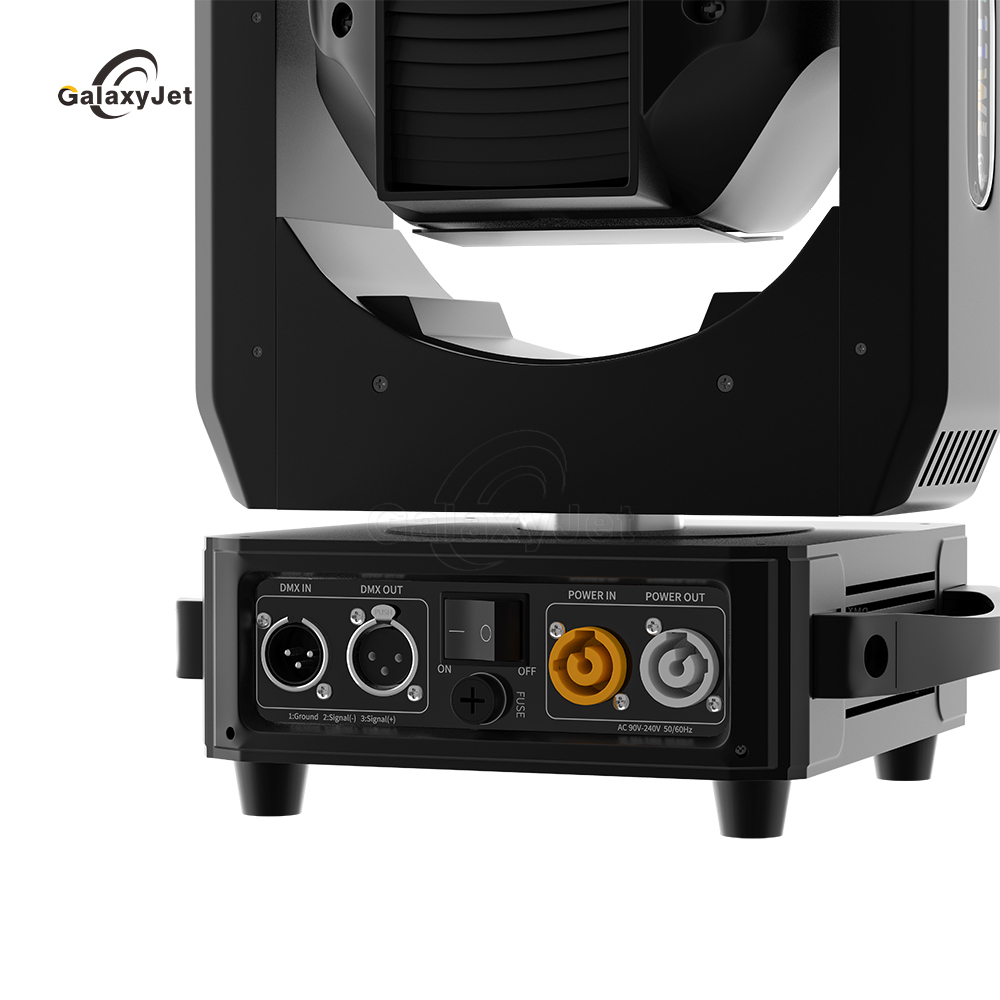

DMX512 signal/power cord interface

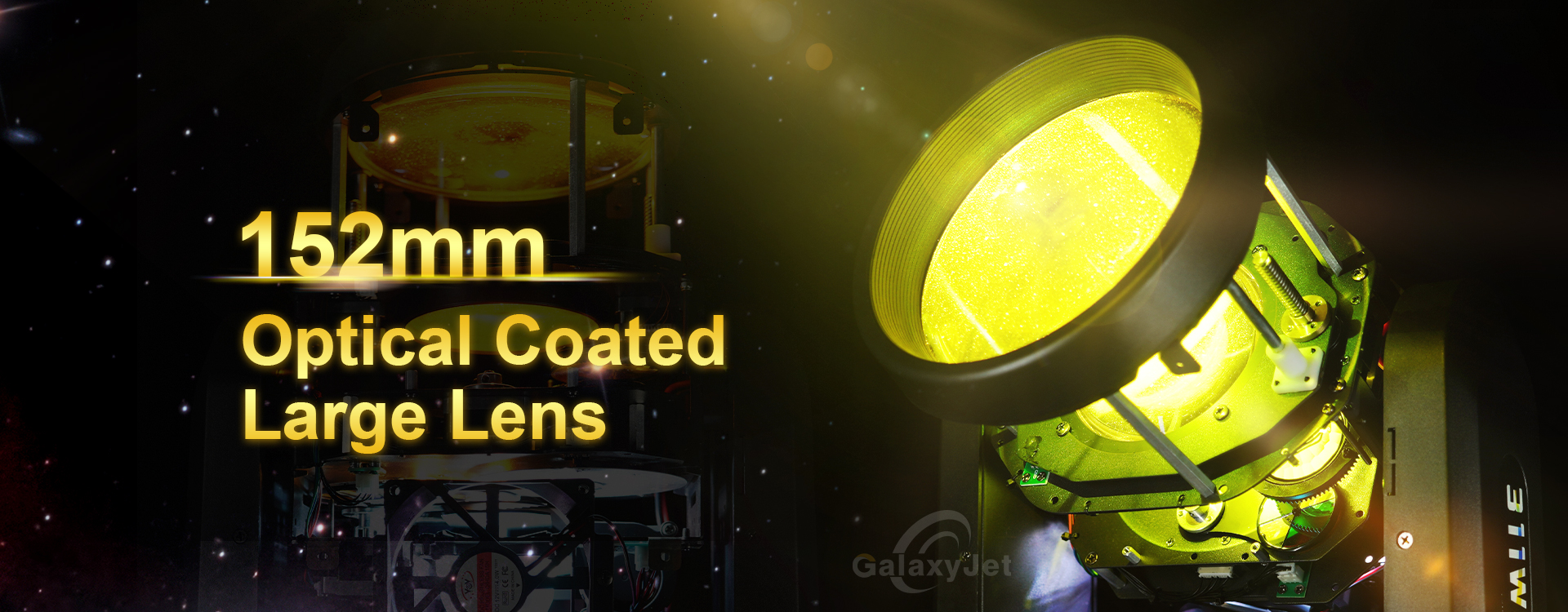

152mm Optical Coated Large Lens
More powerful and spectacular beam of light,
The pattern is clearer and more natural,
New Process Technology for Colorful Coating

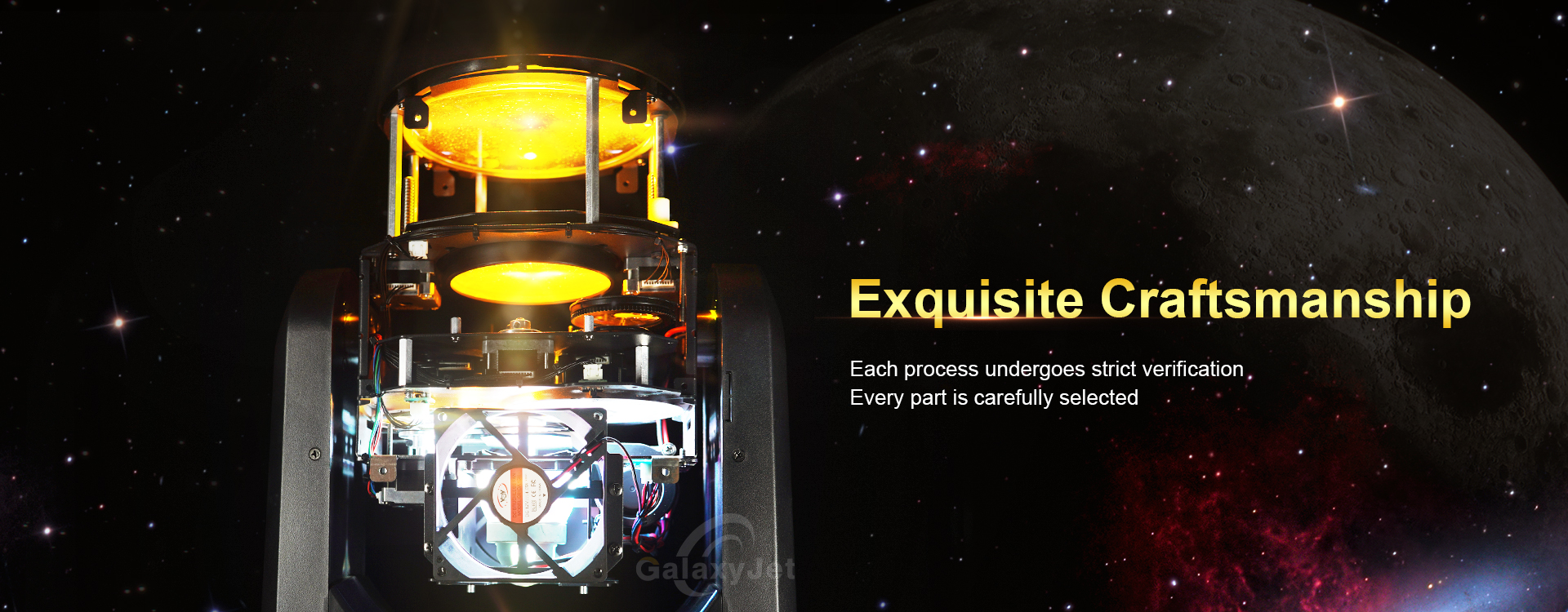

Exquisite Craftsmanship
Each process undergoes strict verification
Every part is carefully selected

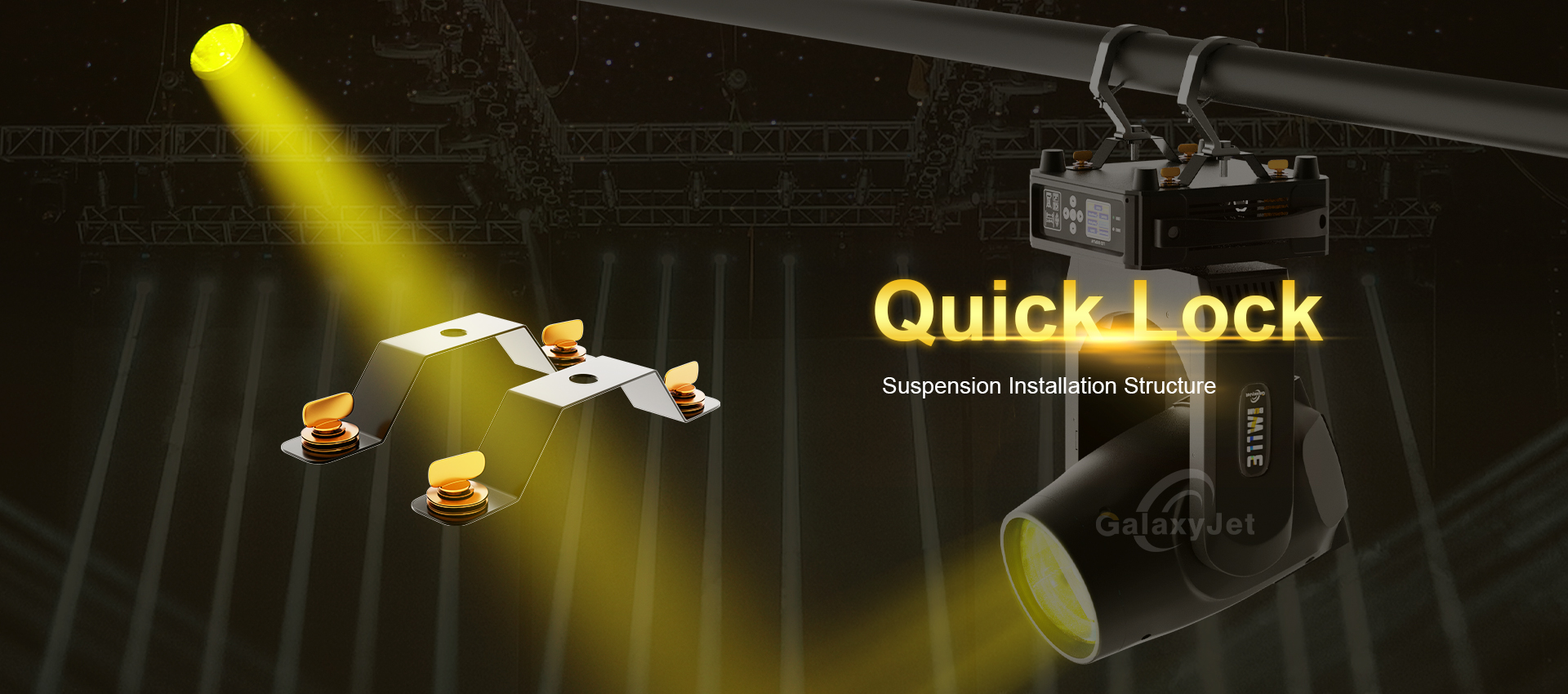

Suspension Installation Structure
Reserve installation position and quick lock for safety rope

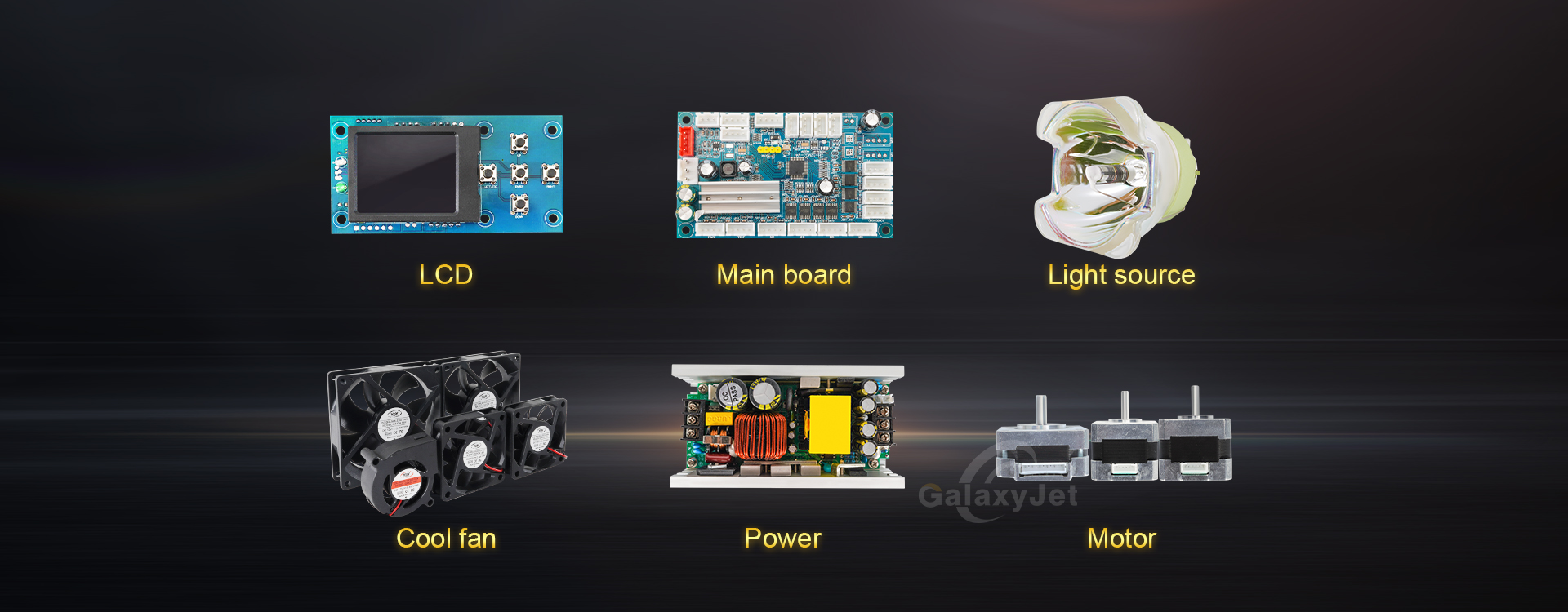

Carefully Select Excellent Accessories

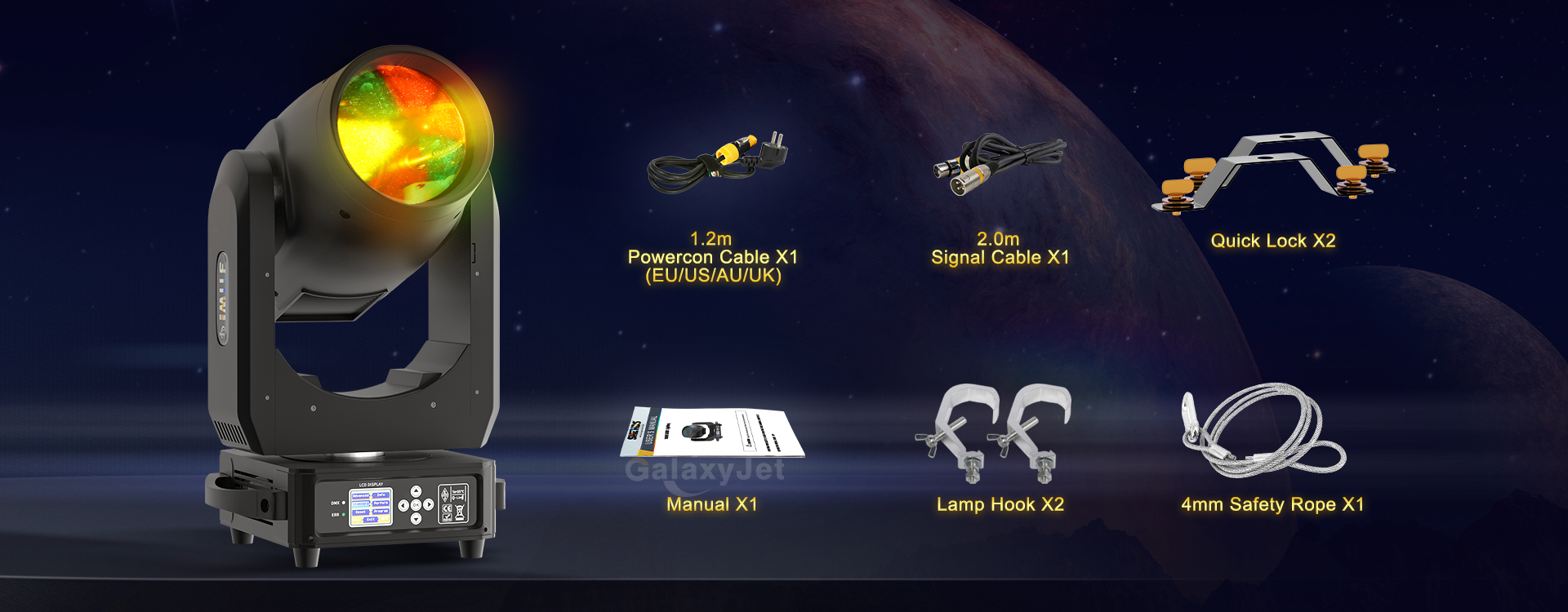

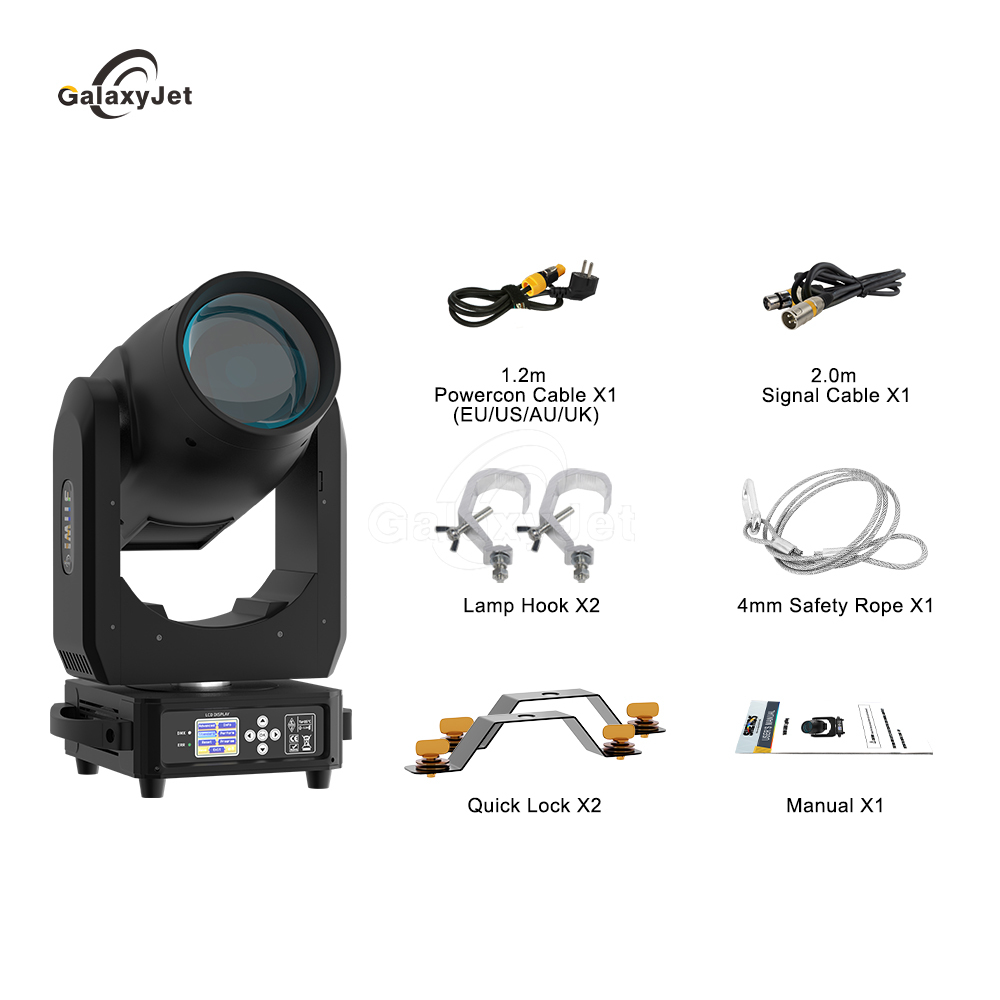

Packing List
Each process undergoes strict verification
Every part is carefully selected

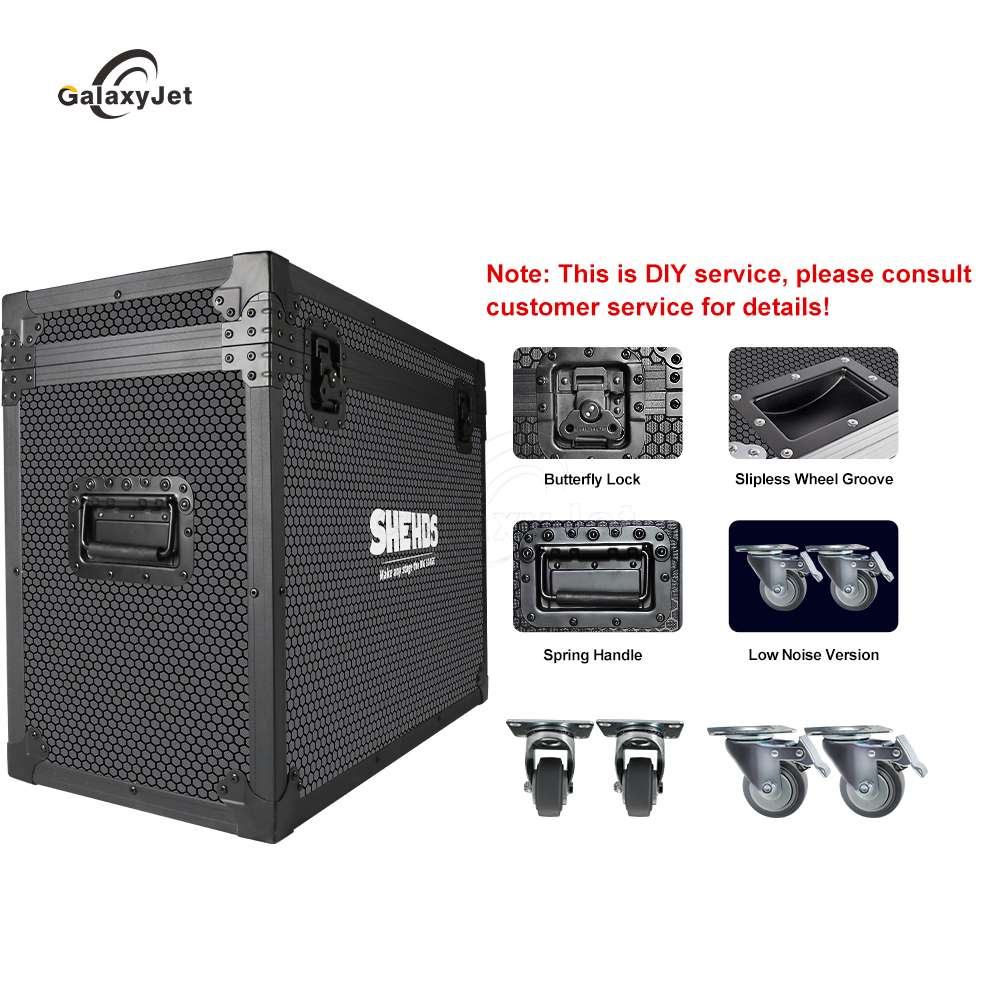

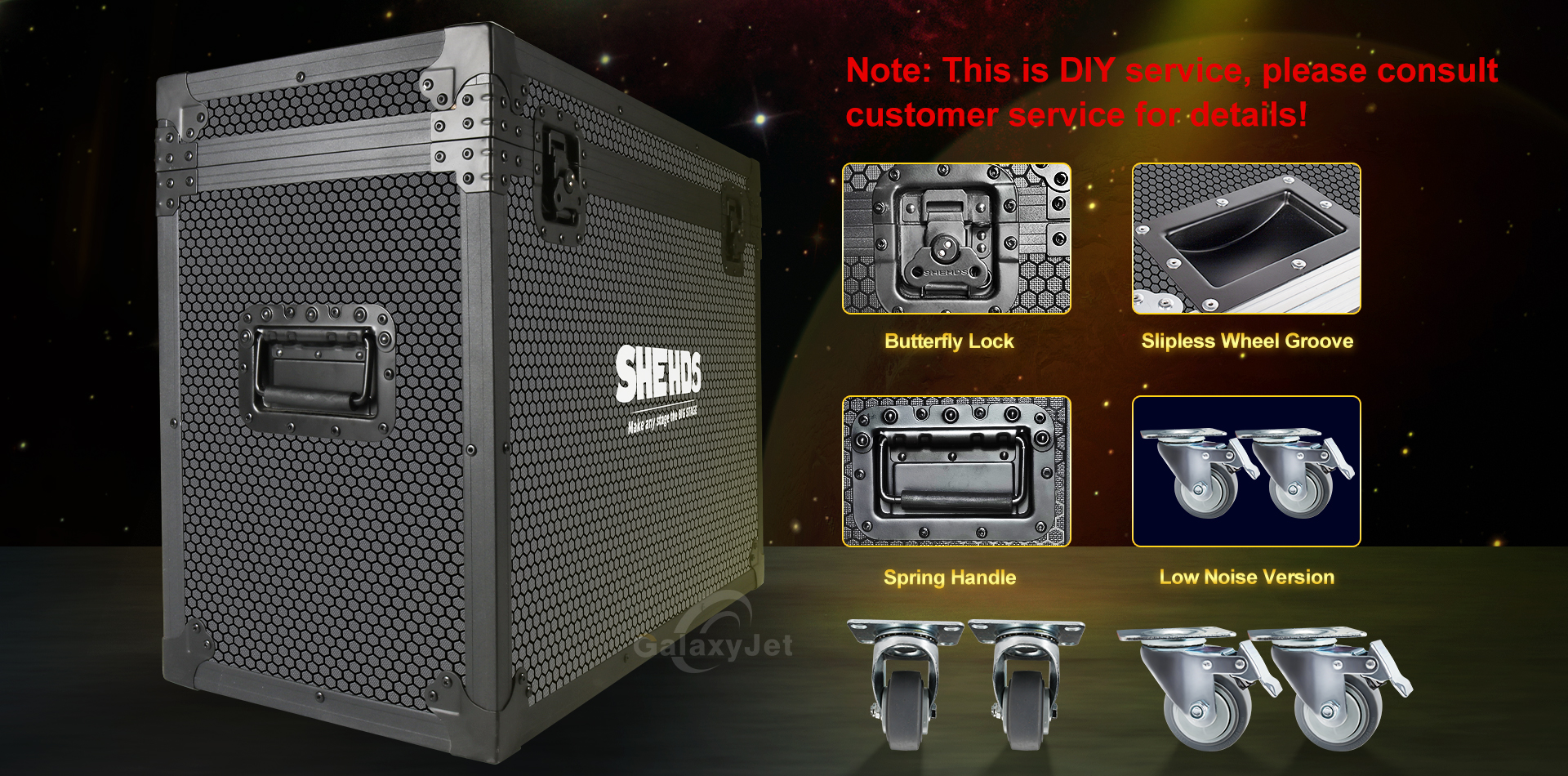

Flight Case DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service, please consult customer service for details!
Qualification Certificate
International organizations Authority certification
