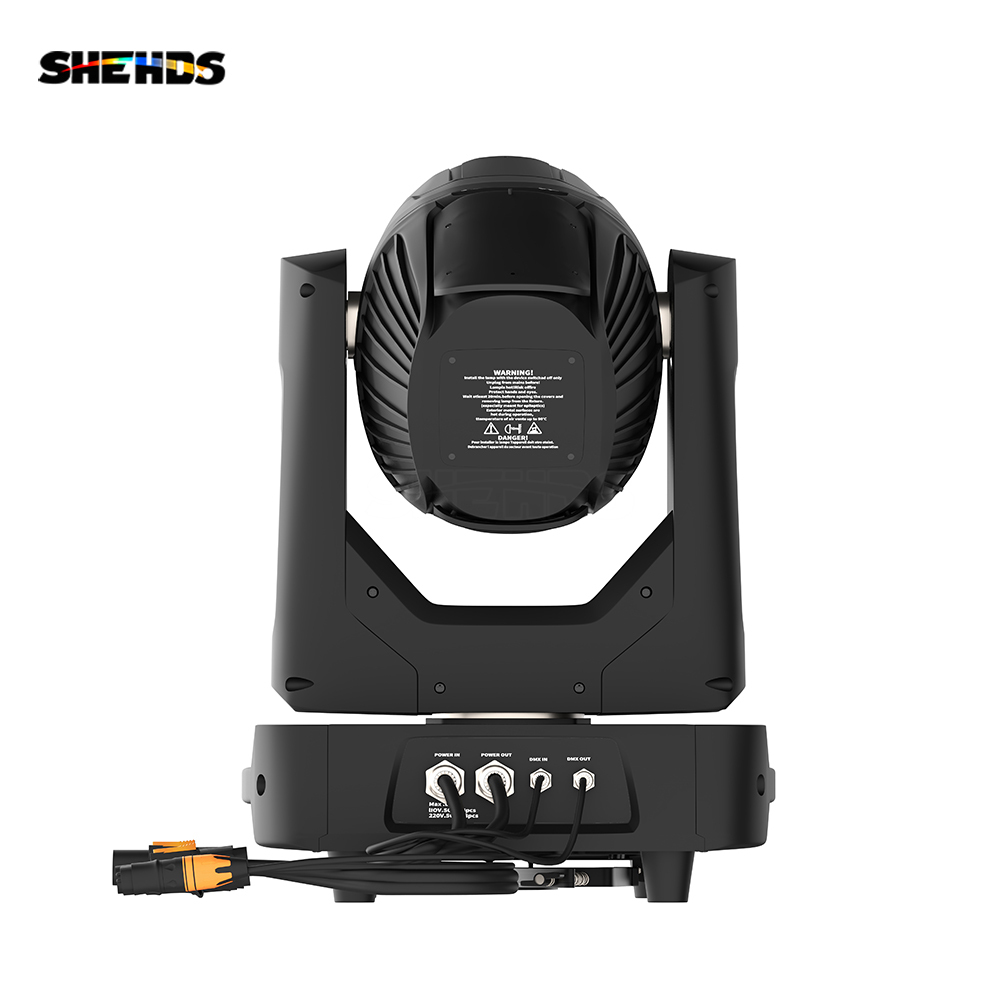

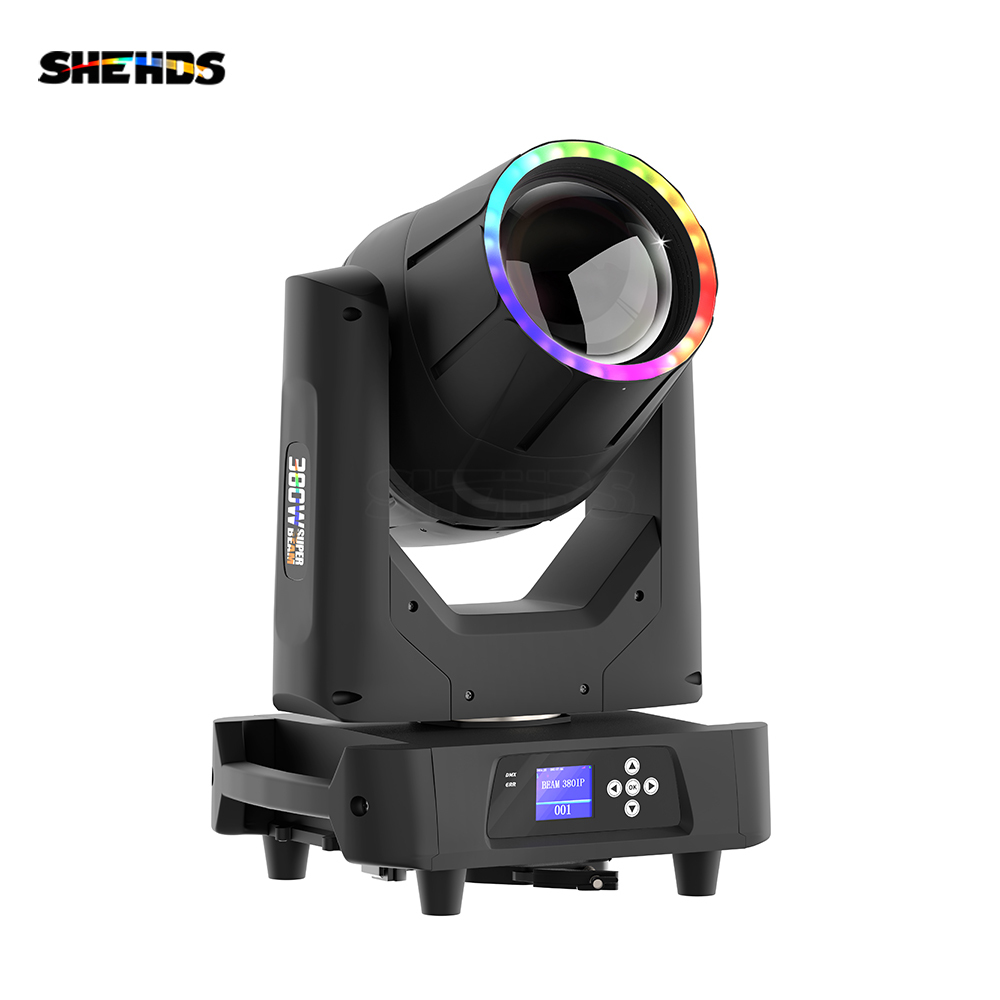

WATERPROOF 380W BEAM LIGHT
Waterproof IP 65 380W beam shake head lamp, equipped with a 380W light engine,
with high output and high display switching mode,
pure color and extremely high color reproduction.
Rich color and pattern plates, excellent dynamic wheel and prism effects,
combined with various strobe speeds,
create a colorful and ever-changing visual effect.
Waterproof grade up to IP65, available for 24/7 use.
It is very suitable for outdoor cultural tourism, night sightseeing, radio theaters
and other large-scale performance venues,
and is a professional "rain dancer" born for various performance activities.
Product Features
Flexibly shaping uniform and colorful pattern effects, effortlessly showcasing exciting and colorful illusion lighting effects.
Uniform color mixing and excellent color reproduction can create a dazzling stage light and shadow visual experience,
Improve the level of stage performance in all aspects, providing high-quality choices
for various professional performance venues such as concerts, bars, evening parties, roadshows, etc.
Technical Parameter
|
-Electrical specification and connections
|
|
Power supply:
|
450W-380V+12V+36V Electronic auto-ranging
|
|
Input voltage range:
|
100-240 V, 50/60 Hz
|
|
Power in connector:
|
Neutrik powerCON
|
|
-Source
|
|
Light source type:
|
380W Bulb
|
|
Colour temperature output:
|
7500±500 K
|
|
10m/20m Beam Illuminance:
|
475000 lux @ 10m / 125500 lux @20m
|
|
10m/20m frost Illuminance:
|
5300 lux@10m / 1300 lux @20m
|
|
Life expectancy:
|
min. 1500 hours
|
|
-Optical system
|
|
Beam angle:
|
Beam 1.8°- Frost 9.5°
|
|
Dimmer:
|
Mechanical shutter
|
|
Lens diameter:
|
160mm
|
|
-Dynamic Effects and Features
|
|

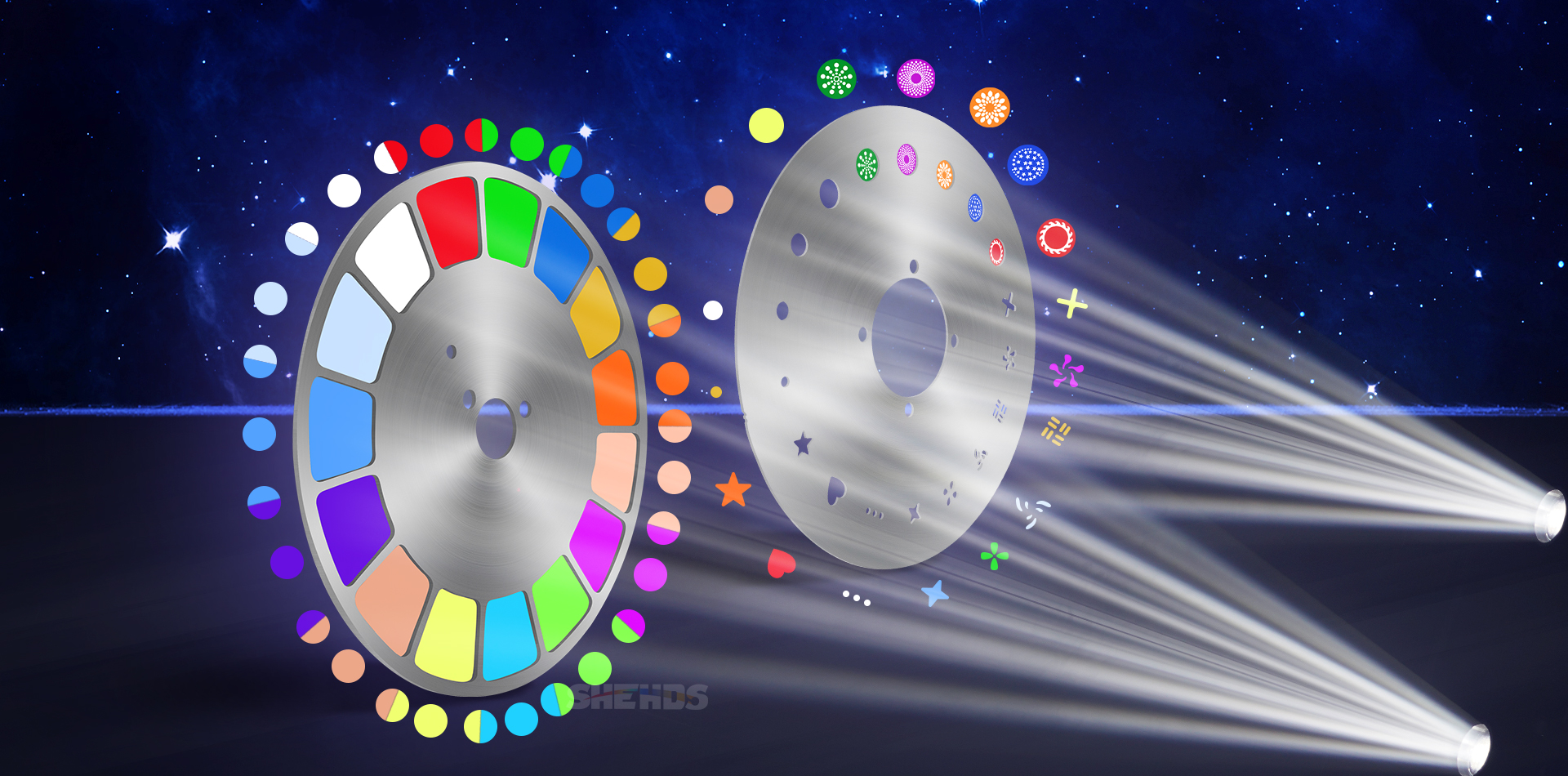

Colour wheel :
|
14 fixed dichroic colours + white
|
|
Static gobo wheel:
|
17 static gobos + open
|
|
Prism 1:
|
8-facet prism rotating in both directions at variable speed
|
|
Prism 2:
|
24-facet prism rotating in both directions at variable speed
|
|
Frosts:
|
Fast change frosts for instant softening of the projected gobo or framing shutters
|
|
Raimbow wheel:
|
6 colors
|
|
-Control and programming
|
|
Protocols:
|
DMX512,RDM
|
|
DMX Channel Mode：
|
19 CH;
|
|
Feature：
|
Auto mode ,Sound mode,Manual programming scenarios
|
|
-Mechanical specification
|
|
Housing :
|
High temperature resistant and flame retardant plastic housing
|
|

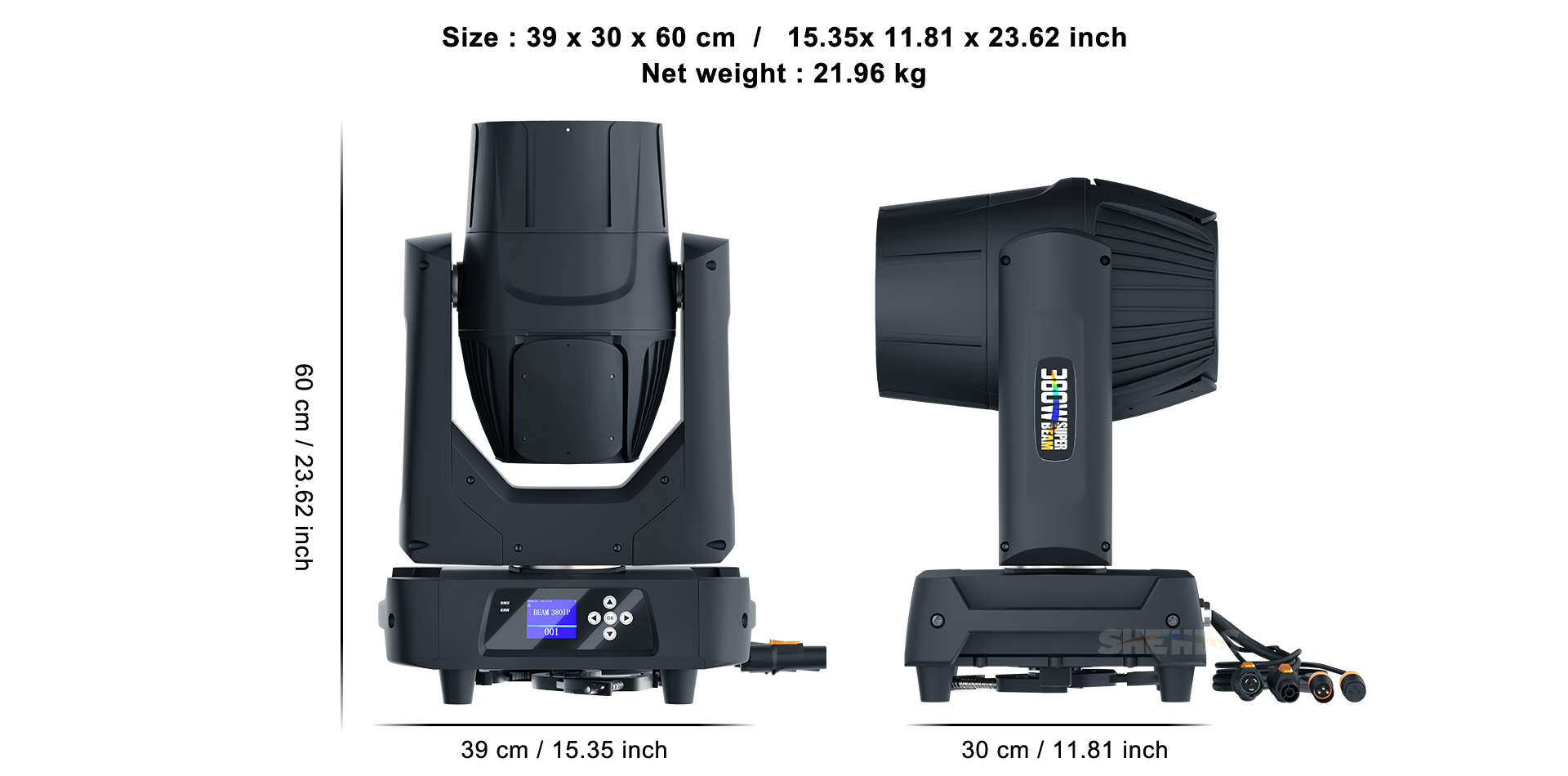

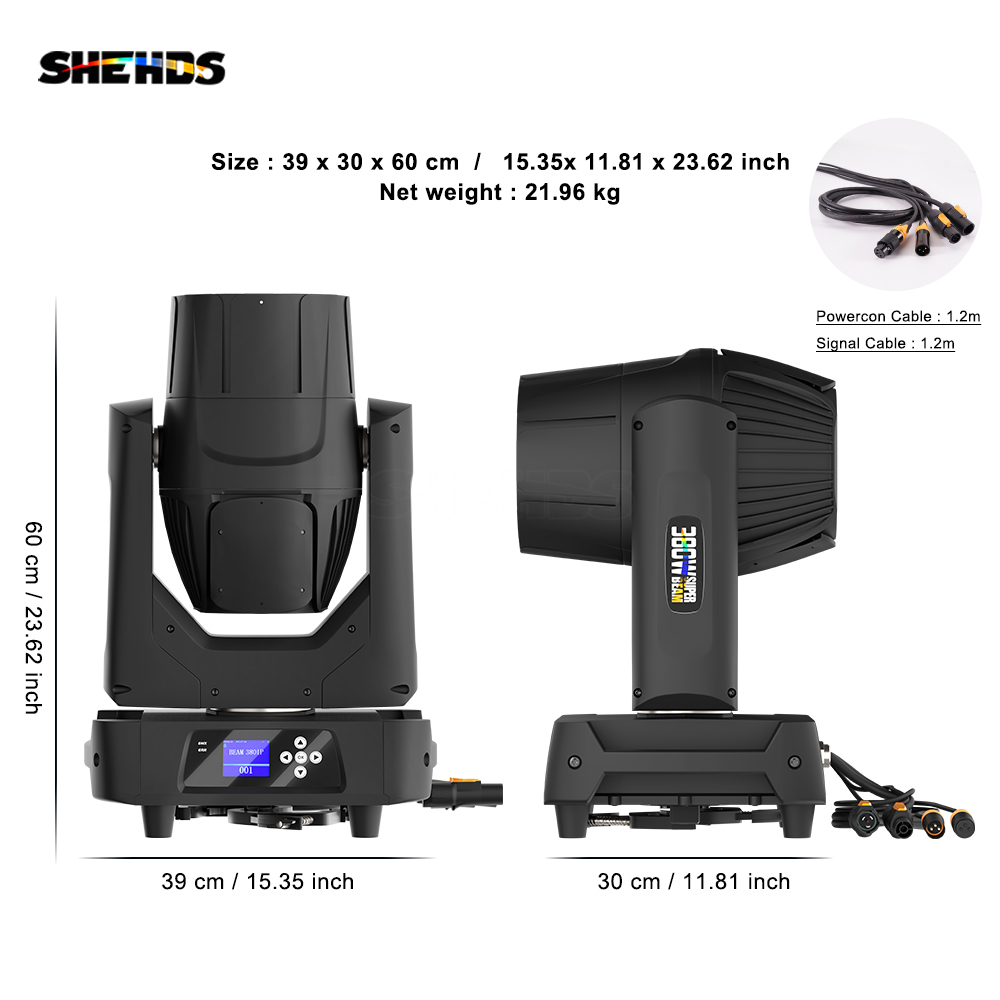

Product size：
|
39 x 30 x 60 cm / 15.35x 11.81 x 23.62 inch
|
|
Product weight:
|
21.96 kg
|
|
Package size:
|
77 x 52 x 75 cm / 30.3 x 20.4 x 29.5 inch
|
|
Package weight:
|
22 kg
|
|
Operating temperature:
|
-20~60℃
|
|
Ingress protection rating:
|
IP65
|

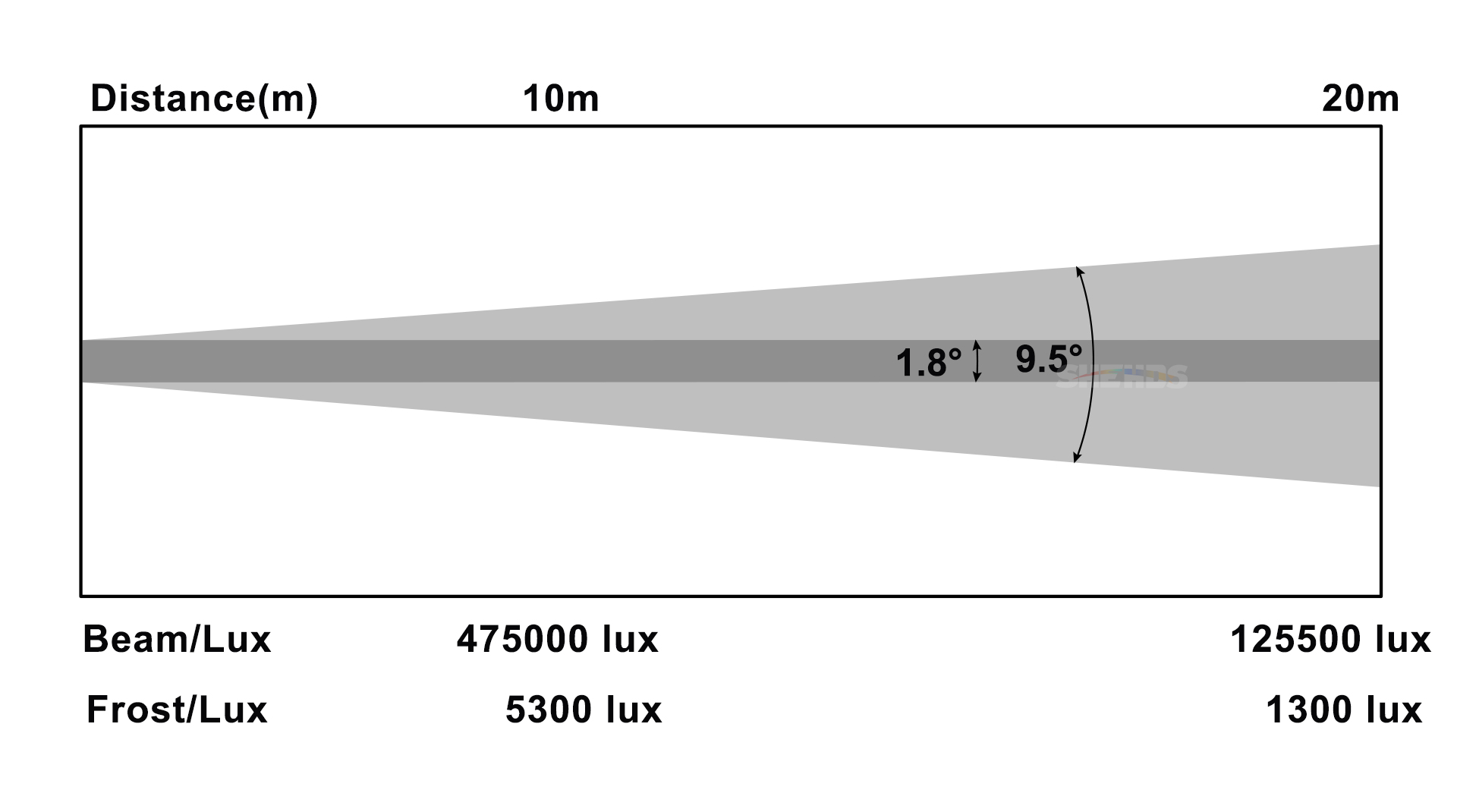

Beam angle
1.8 ° beam angle - linear focusing
Effect Show
Colors Effect
Prism Effect Display
Bright And Colorful
Frost Effect Display
Rendering the Stage Atmosphere
Beam Effect
Uniform and colorful pattern effects with uniform light spots
Function Introduction

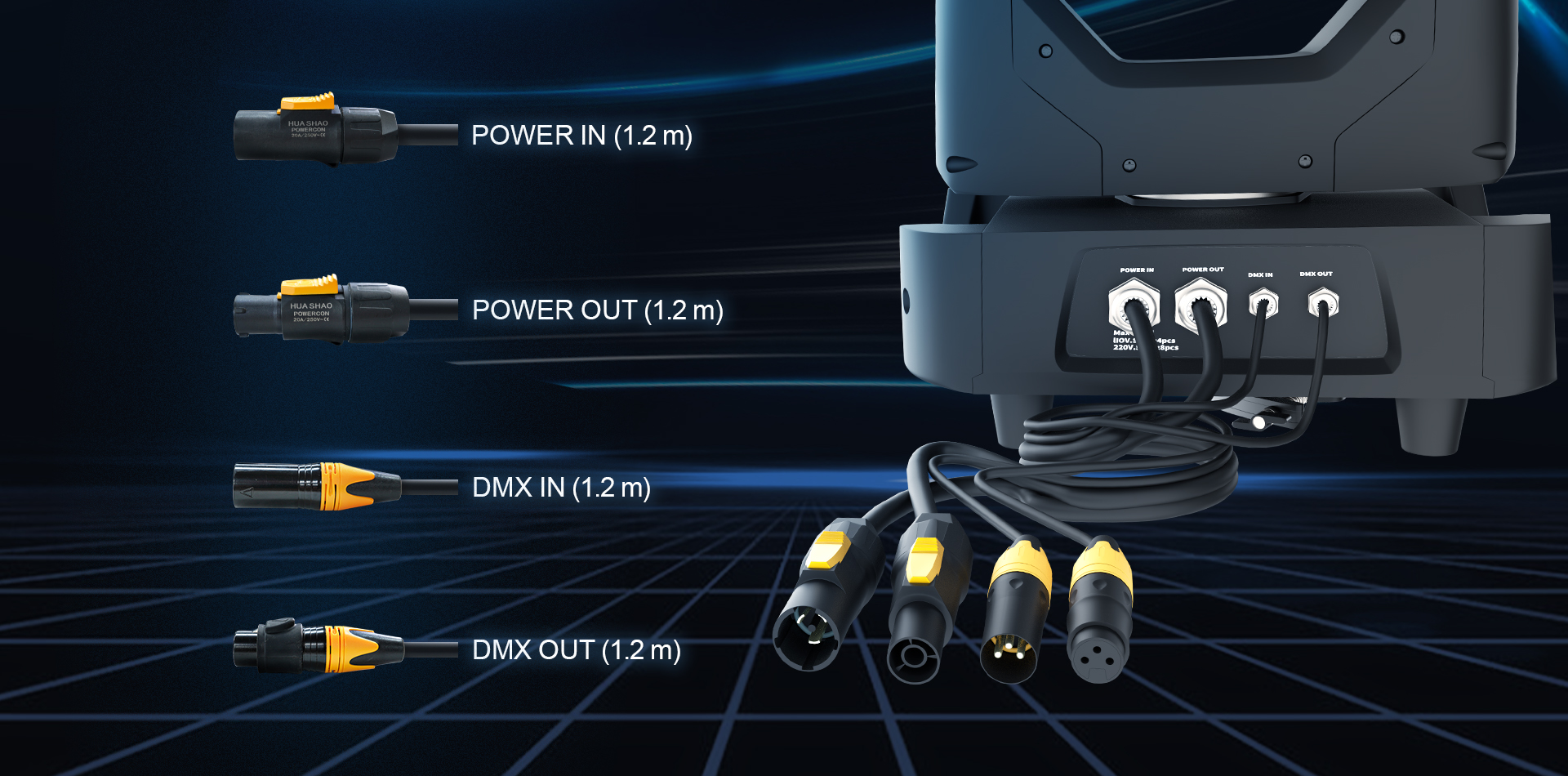

DMX512 signal/power cord interface

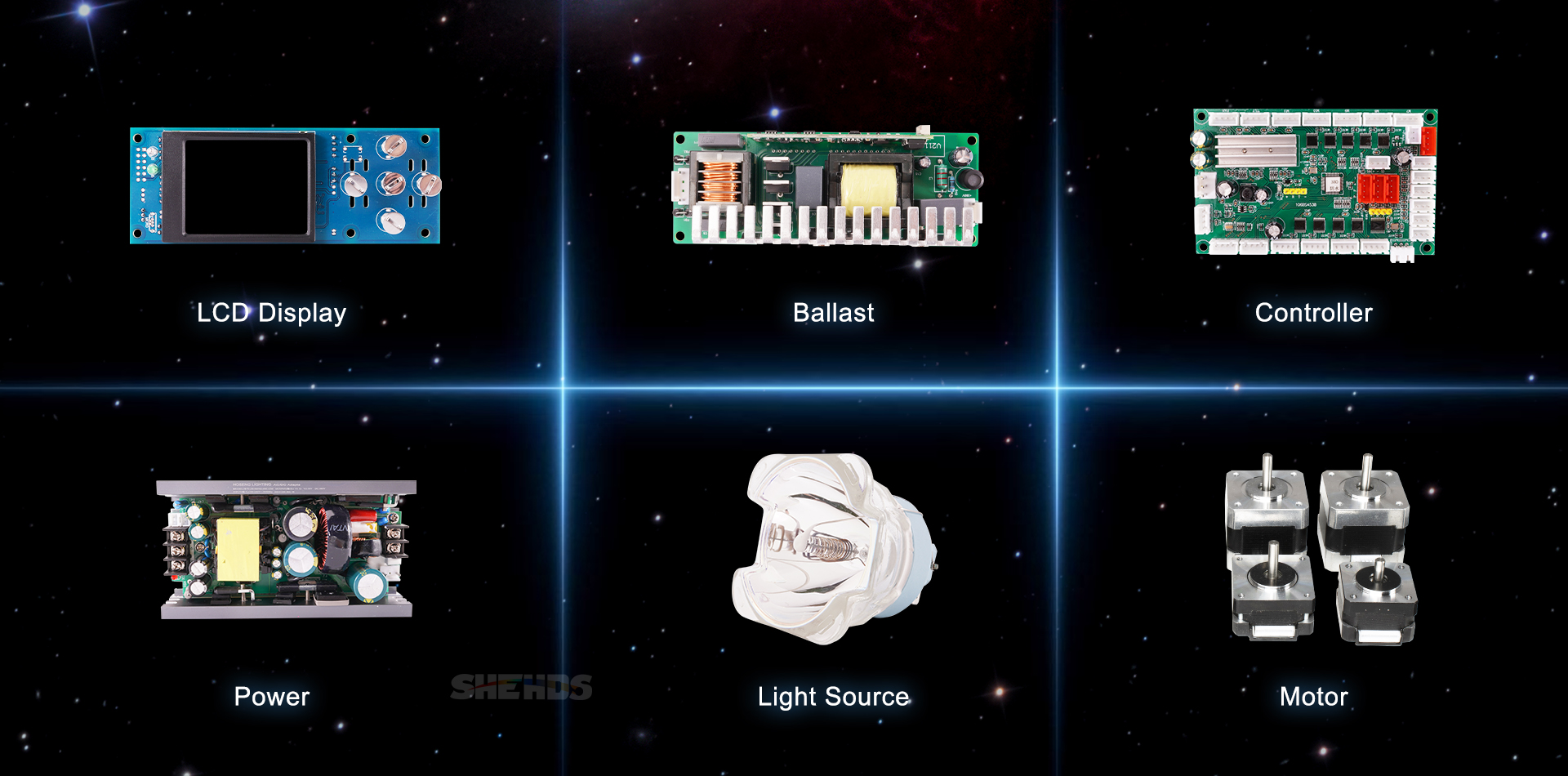

Exquisite Craftsmanship
Each process undergoes strict verification
Every part is carefully selected

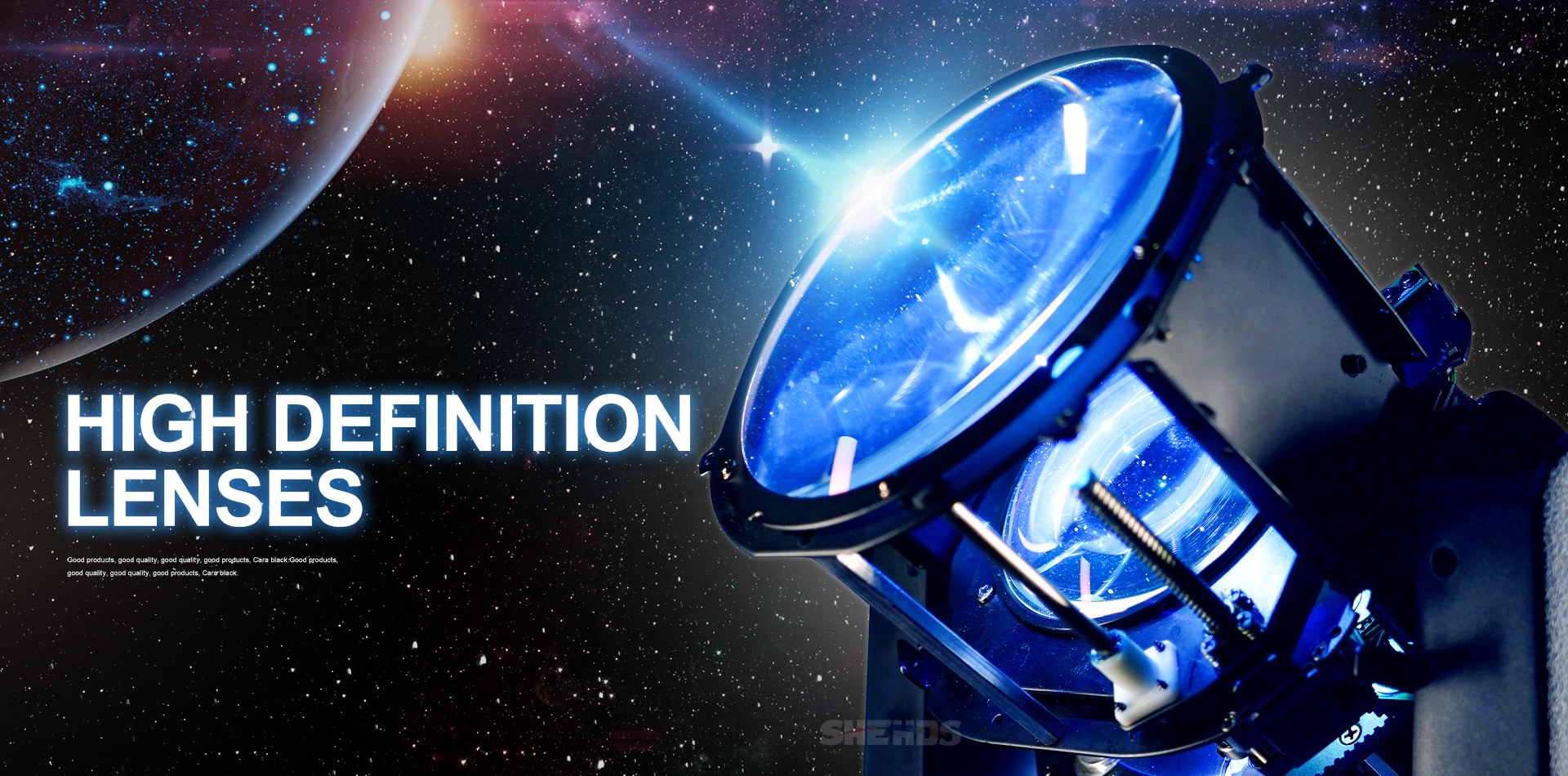

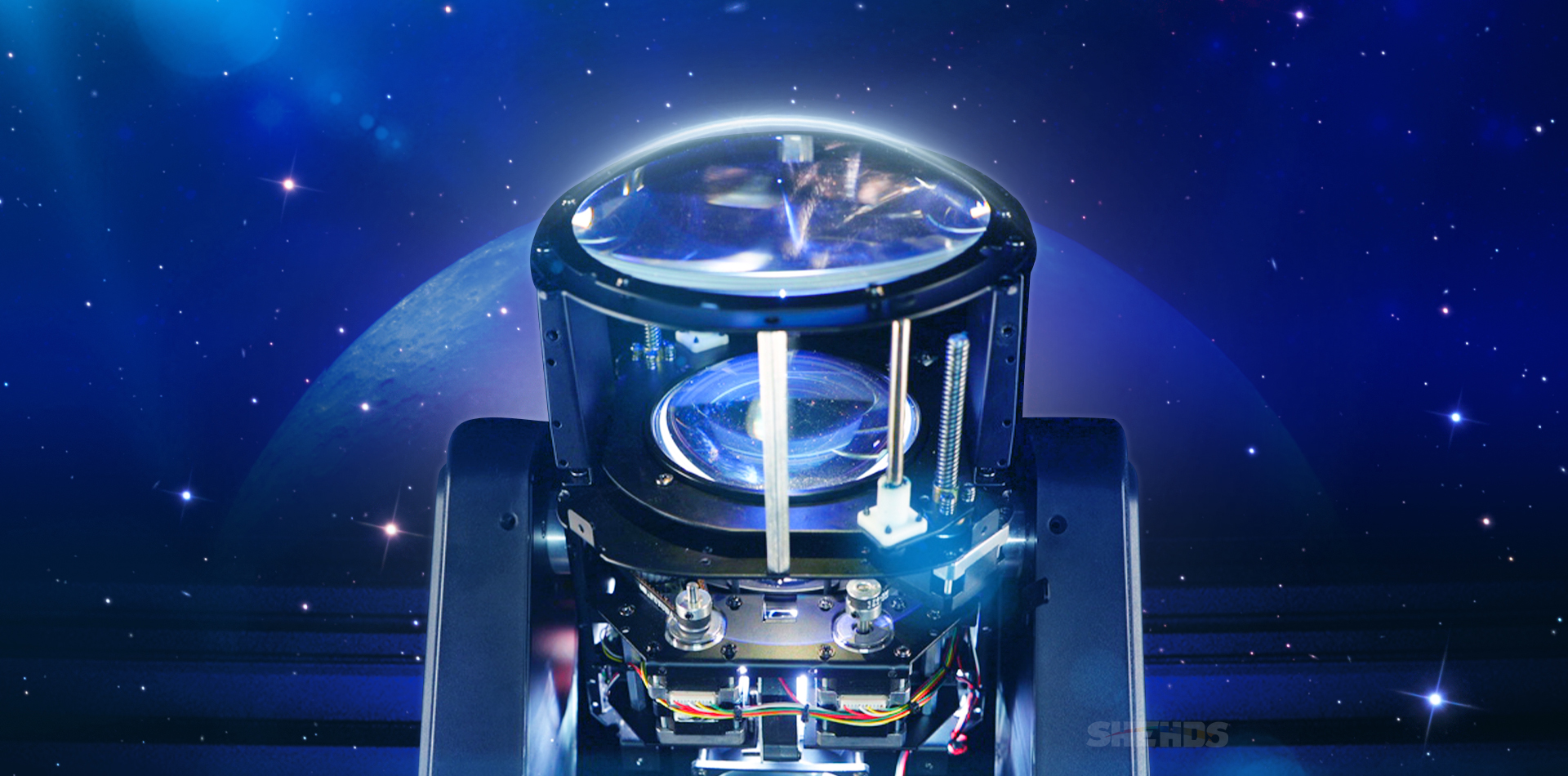

155mm Optical Coated Large Lens
More powerful and spectacular beam of light,
The pattern is clearer and more natural,New Process Technology for Colorful Coating

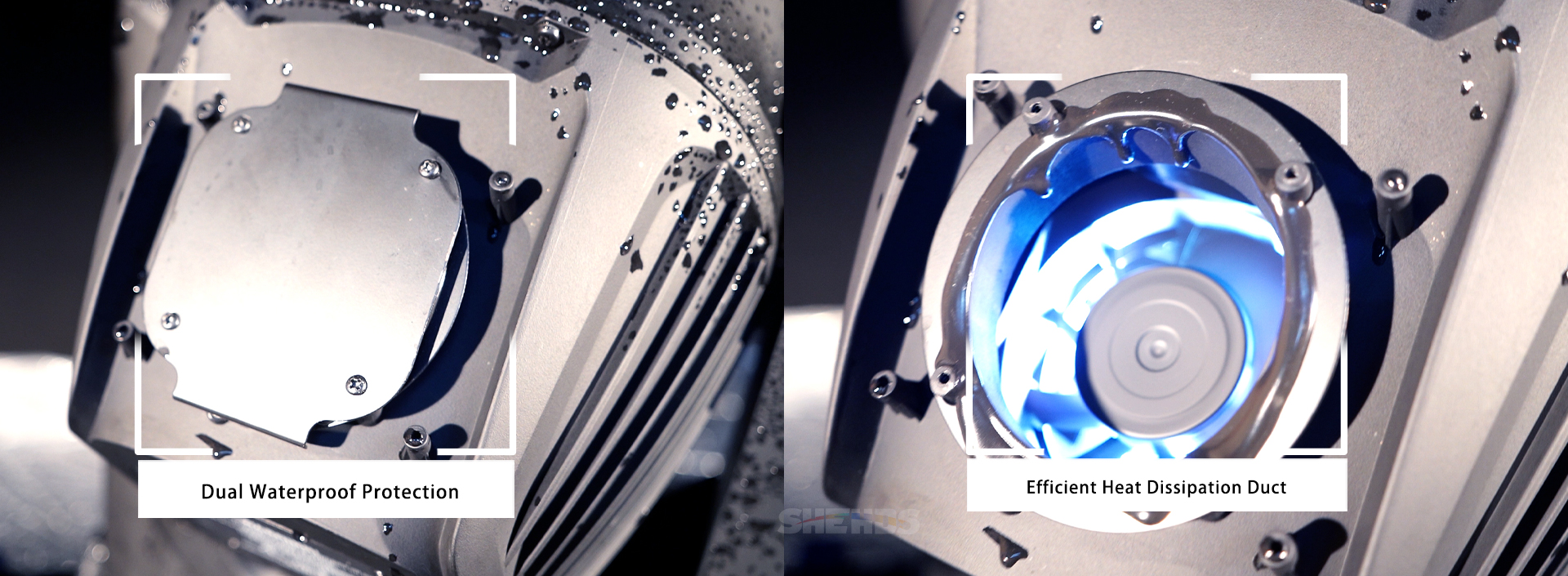

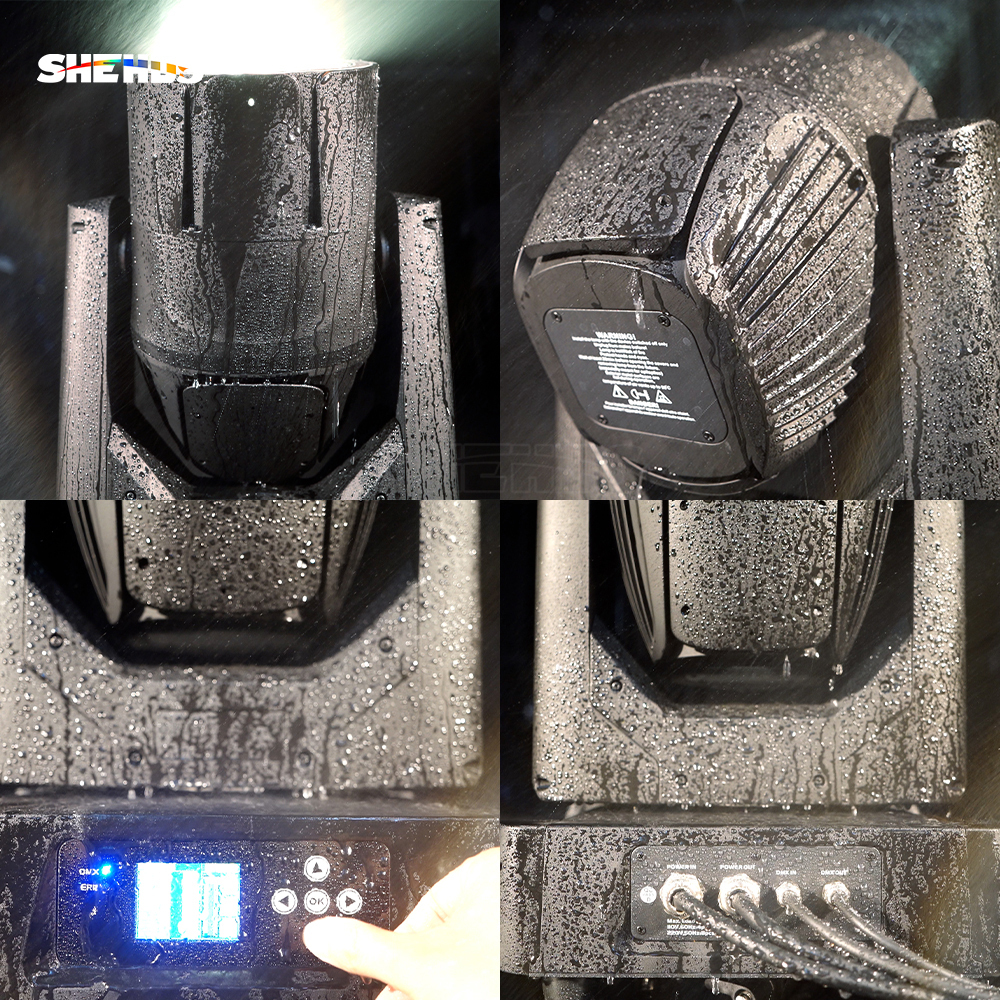

All Weather Protective Beam Light

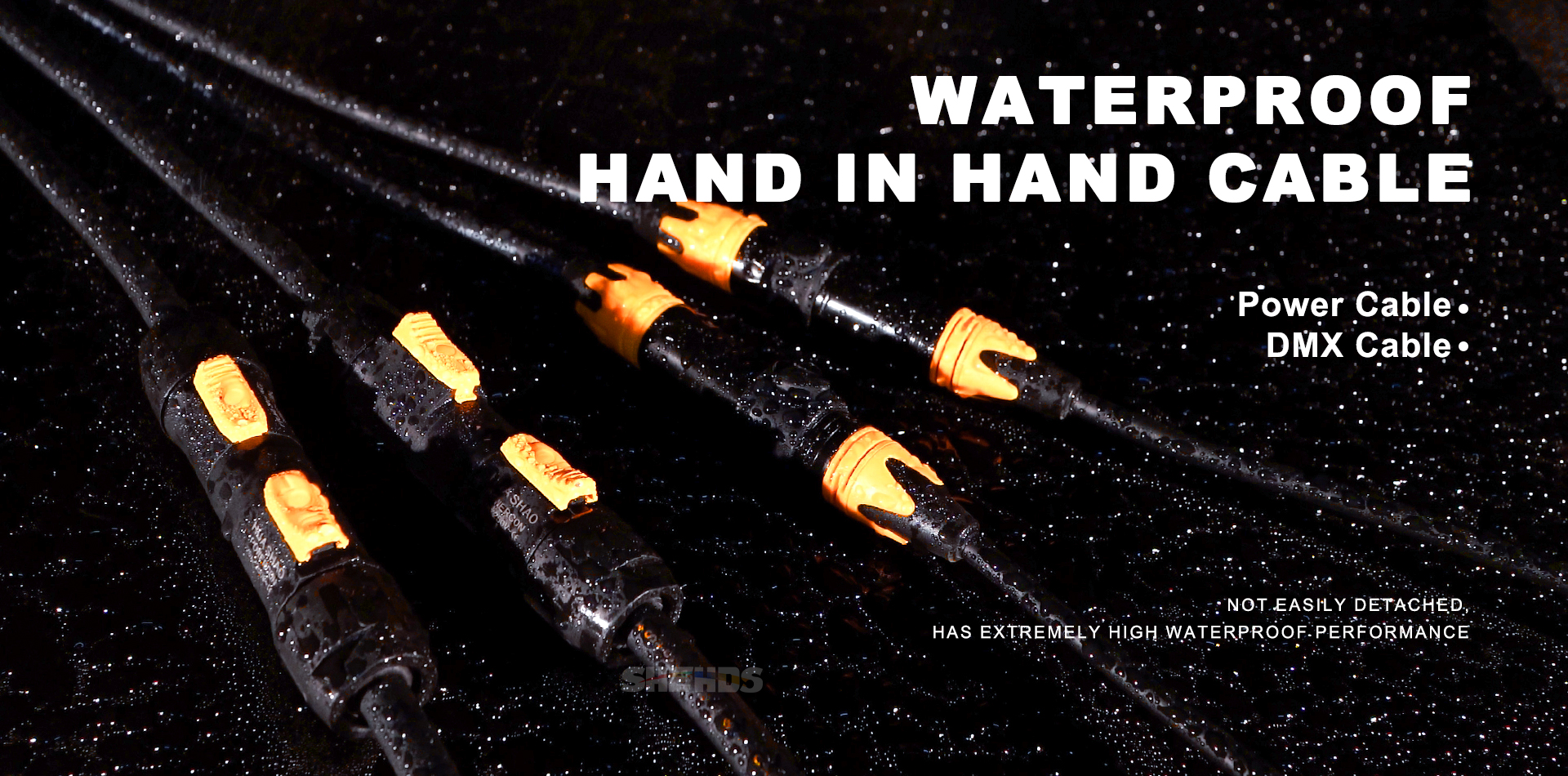

All weather protective beam light, waterproof power connector input/output, can be used outdoors all year round.
The carefully designed heat dissipation performance ensures the waterproofing and heat dissipation of high-power light bulbs,
ensuring the lifespan and smooth operation of the lamps.

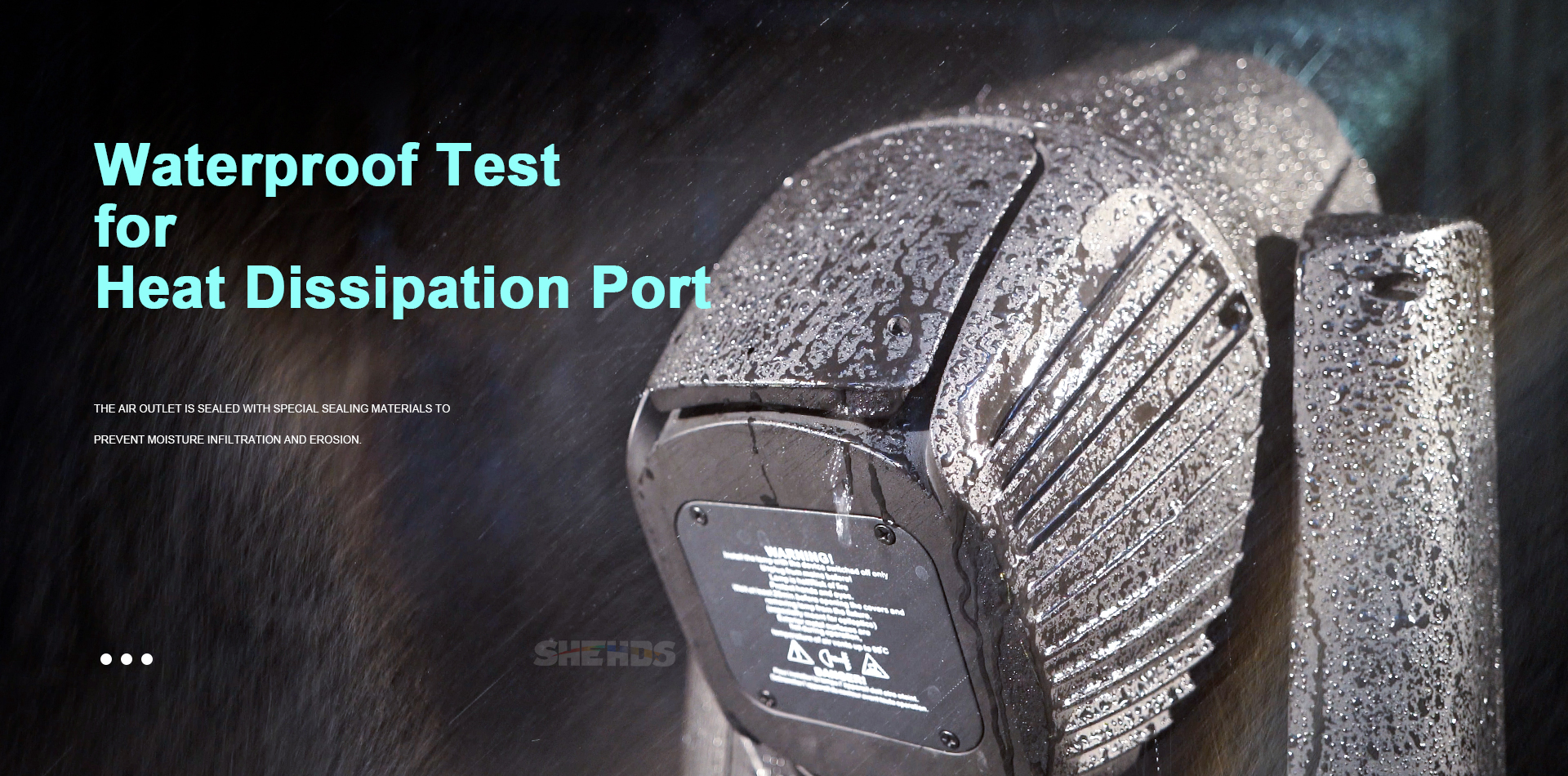

Heat Dissipation Performance
Not afraid of the erosion of scorching sun, smoke, wind and rain, standing firm 24/7,
very suitable for outdoor performances, theme parks, sports venues,
landscape lighting and many other activity venues,
creating a colorful beam effect for the night sky!

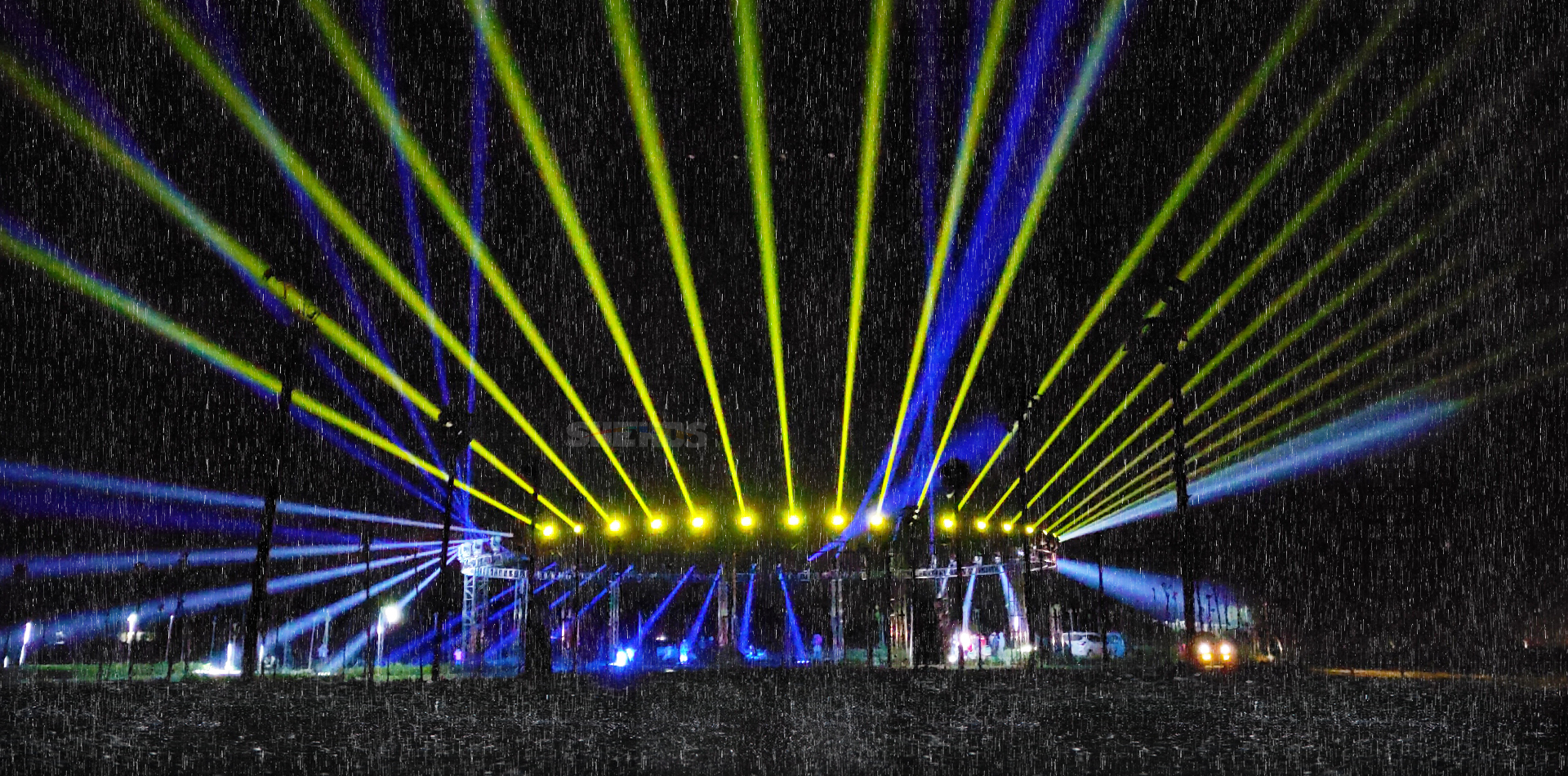

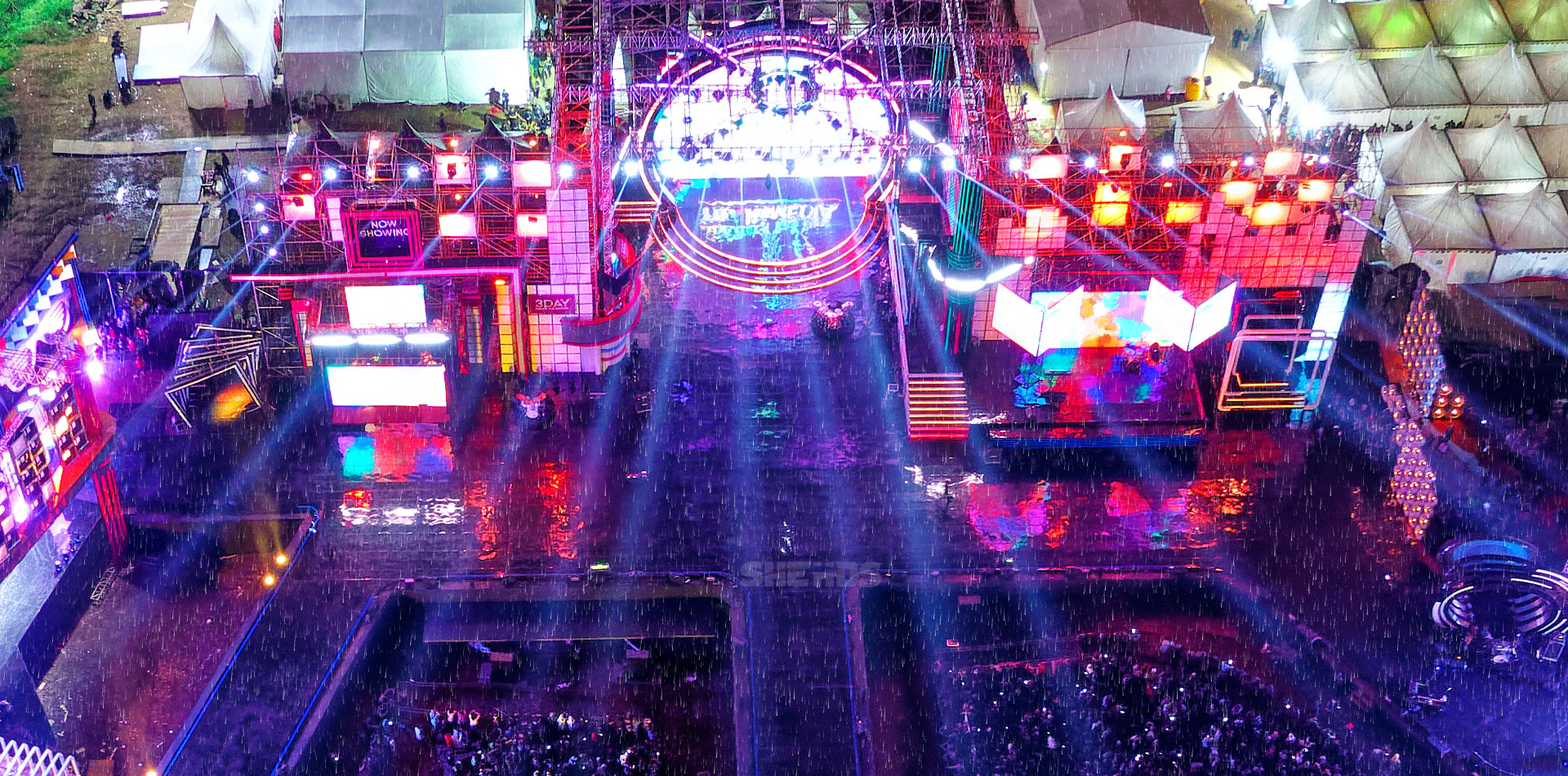

Outdoor Performance

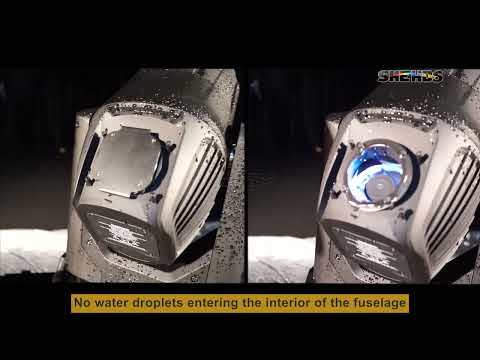

The lighting fixtures adopt IP 65 grade waterproof design to ensure normal use during rainy performances.
Control Program

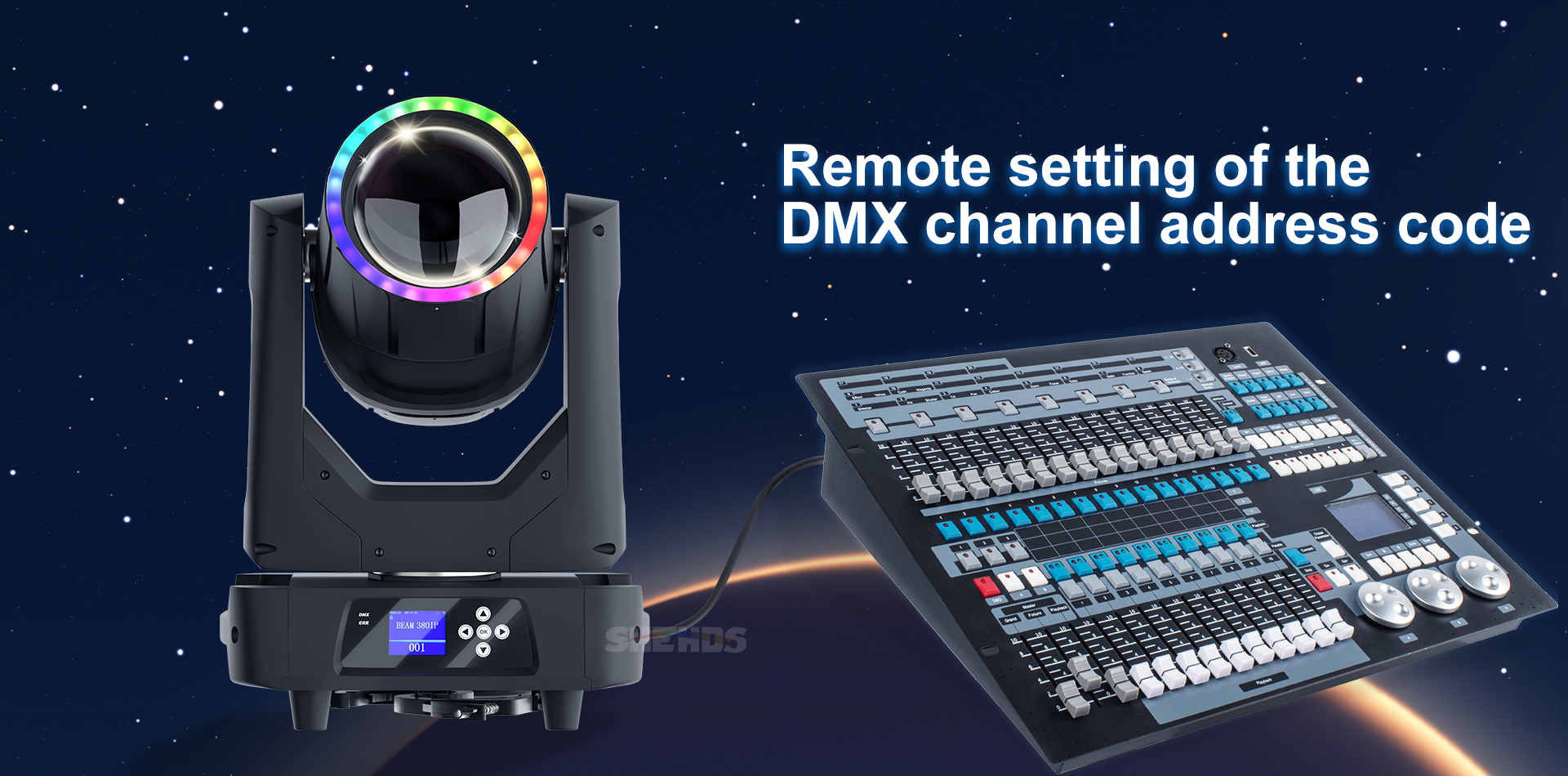

Remote setting of the DMX channel address code

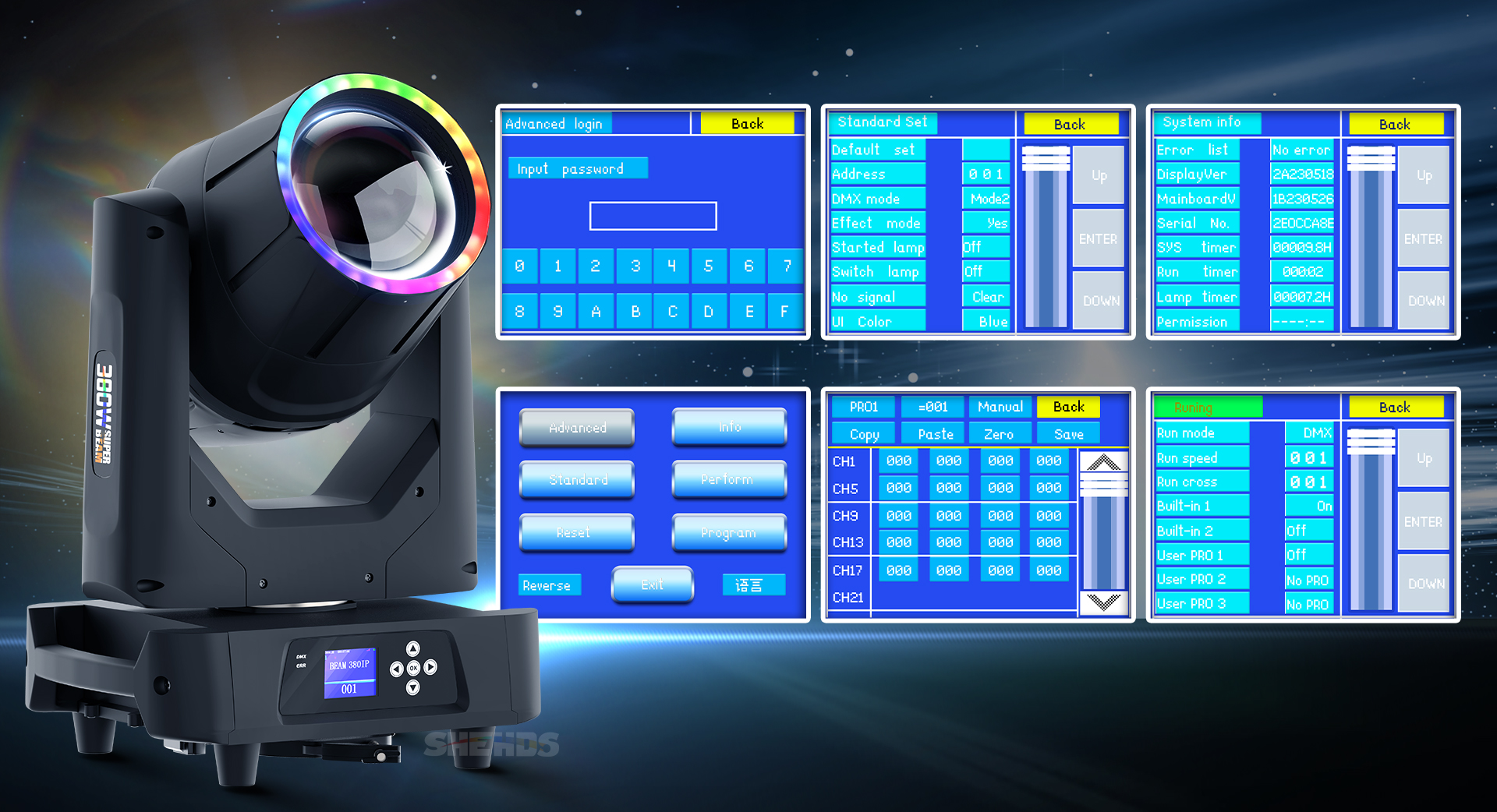

Introduction to Panel Functions
Contains multiple interactive function programs to visually display the operating status and mode of the lighting fixtures,
Built-in lamp operation status sensing and monitoring system,
which can check the operation status of the lamp at any time for easy parameter adjustment

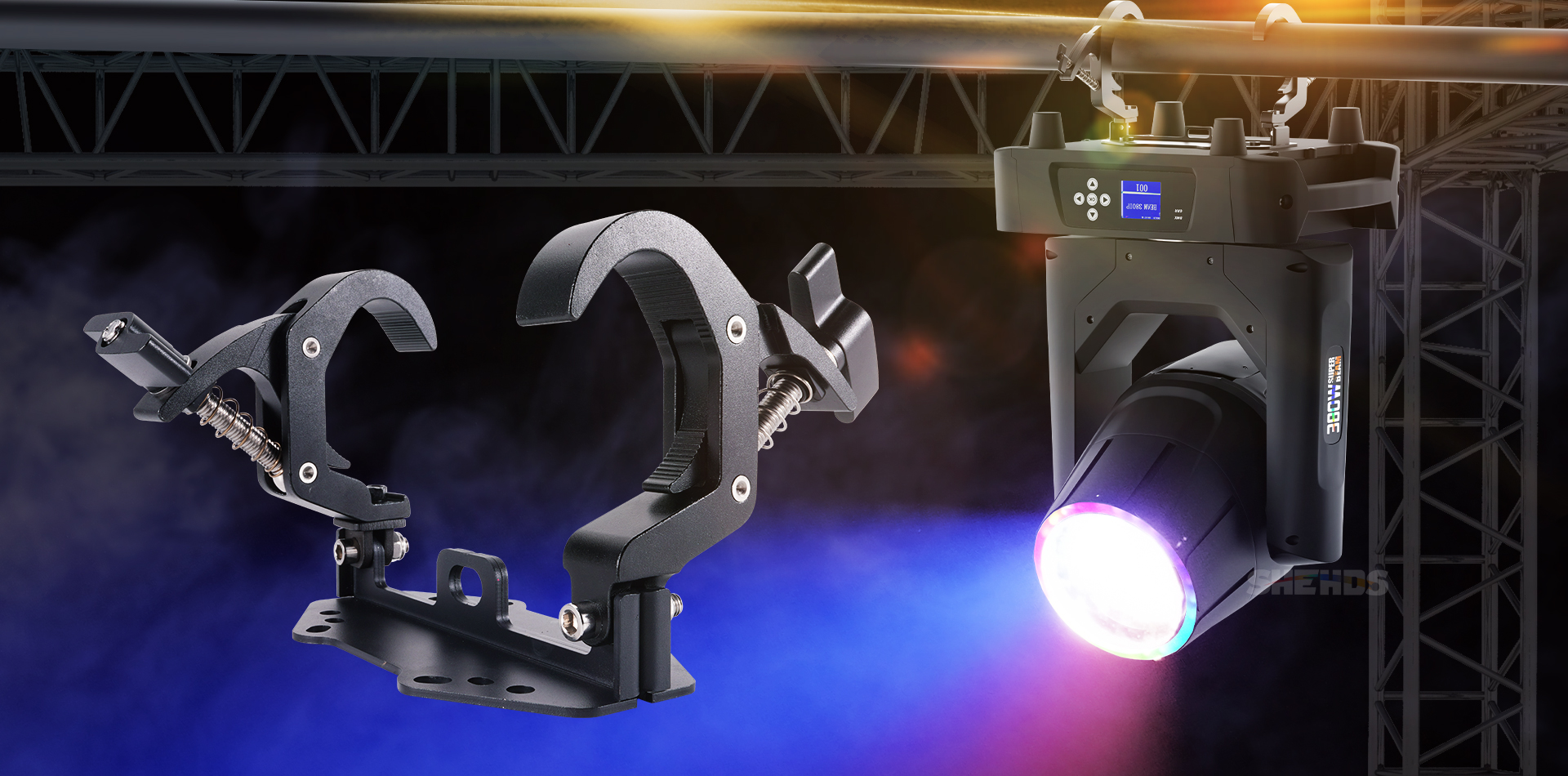

Suspension Installation Structure
Integrated folding hook with reserved safety rope position
Carefully Select Excellent Accessories

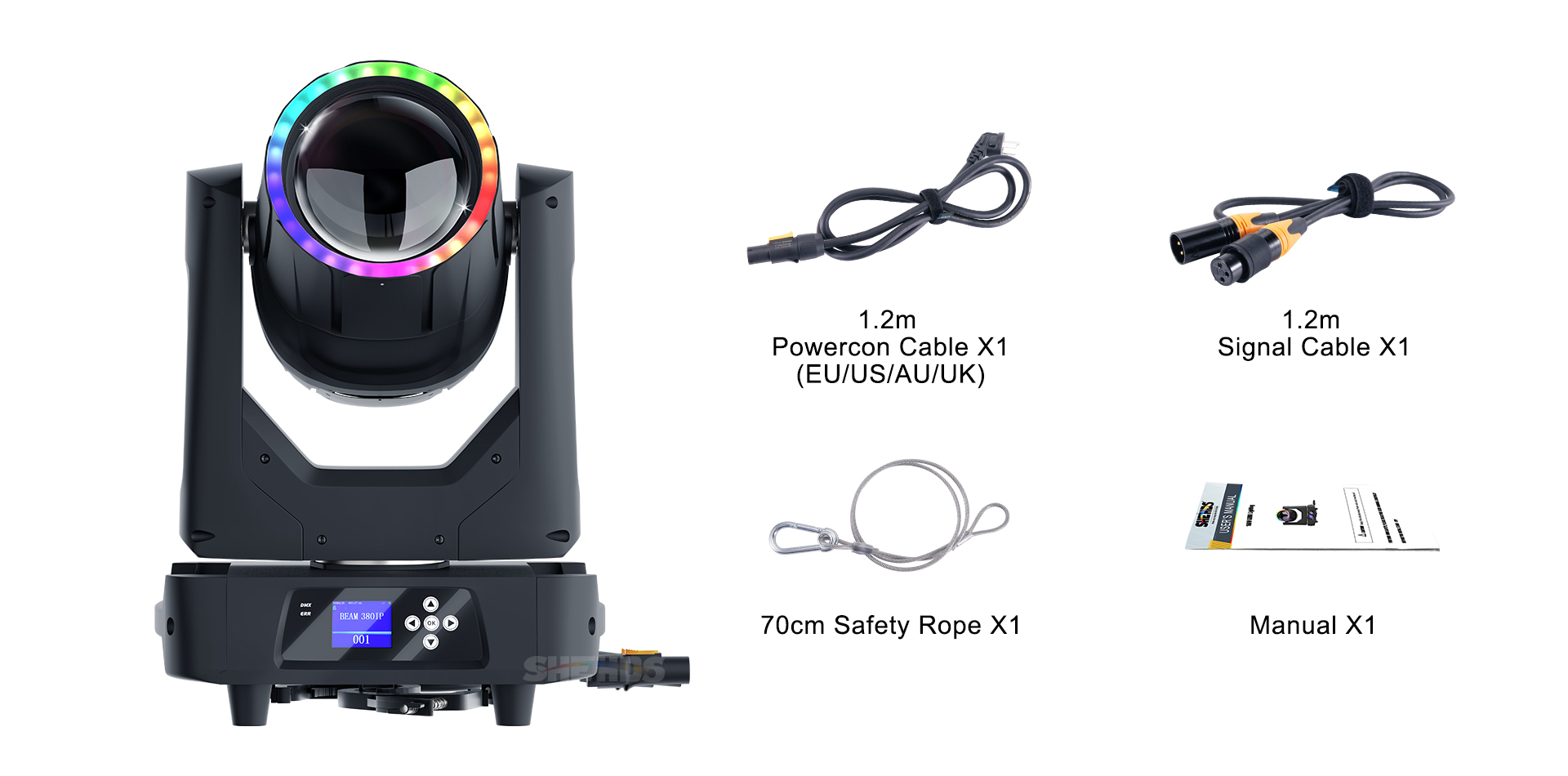

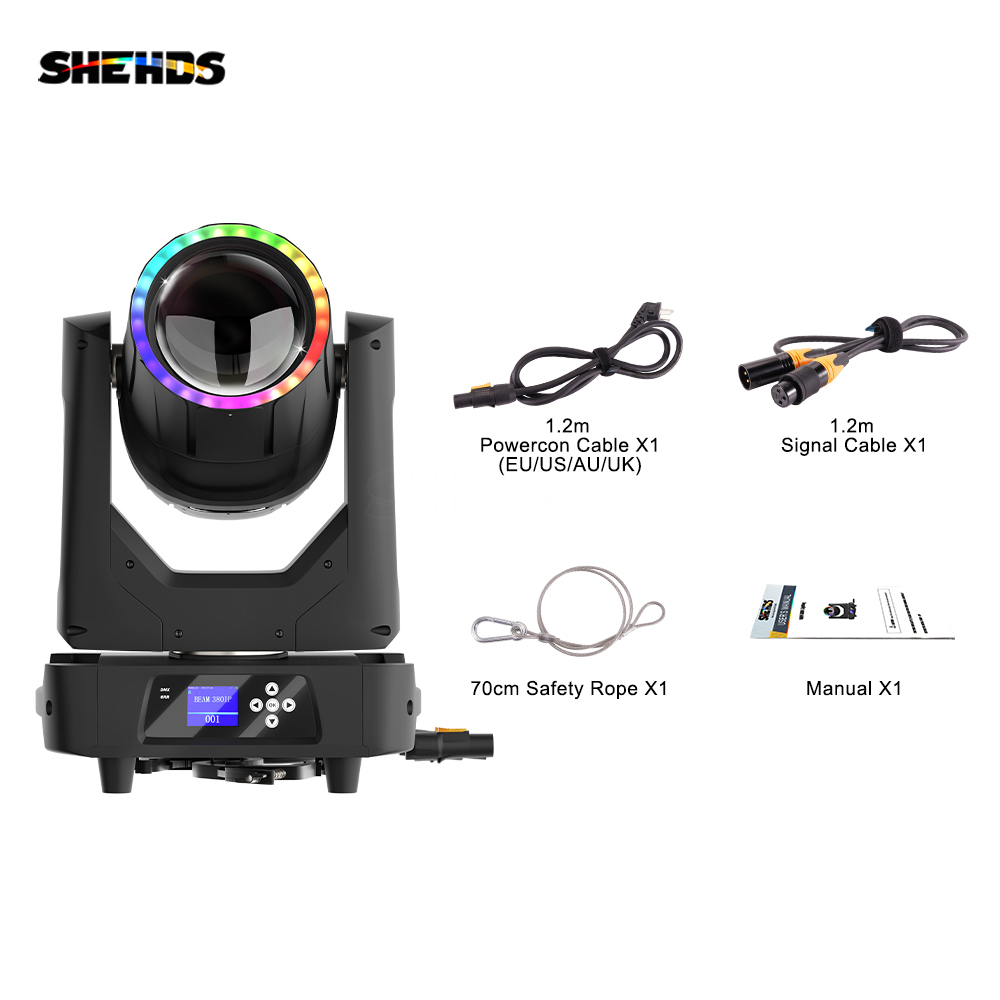

Packing List
Each process undergoes strict verification
Every part is carefully selected

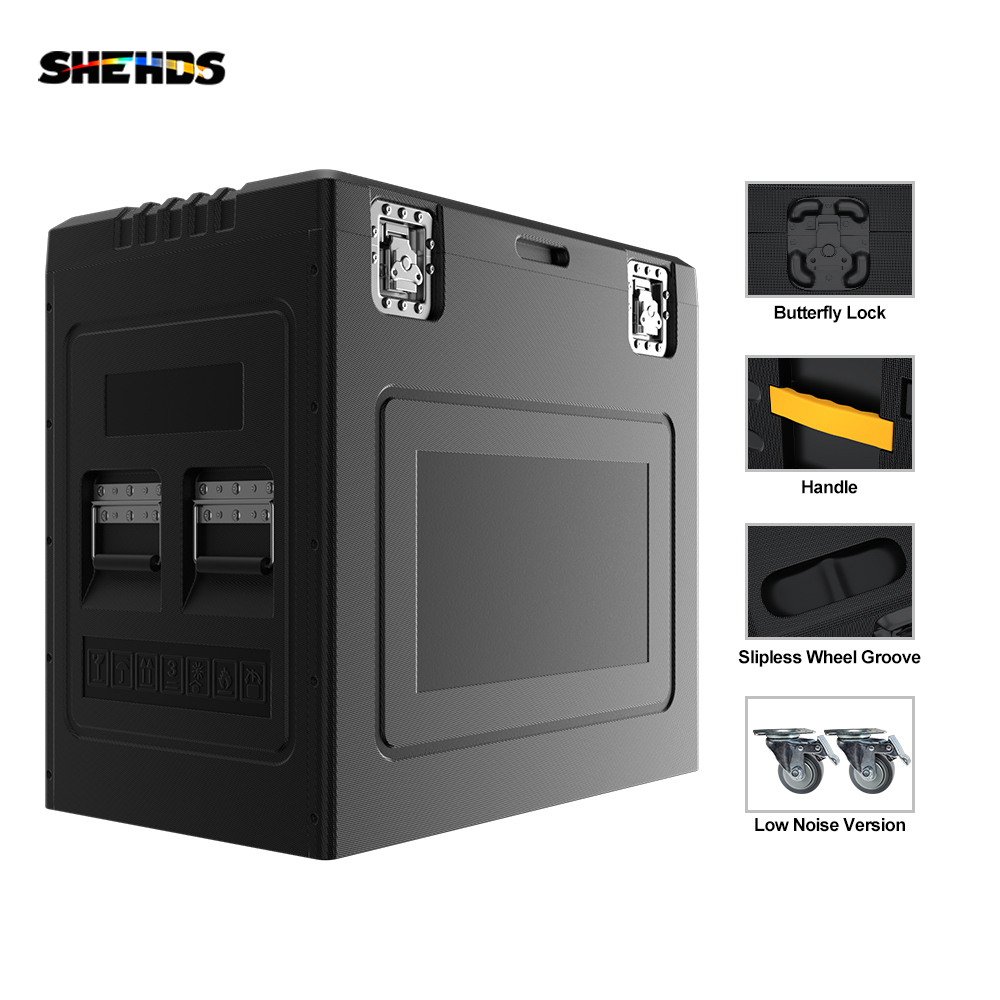

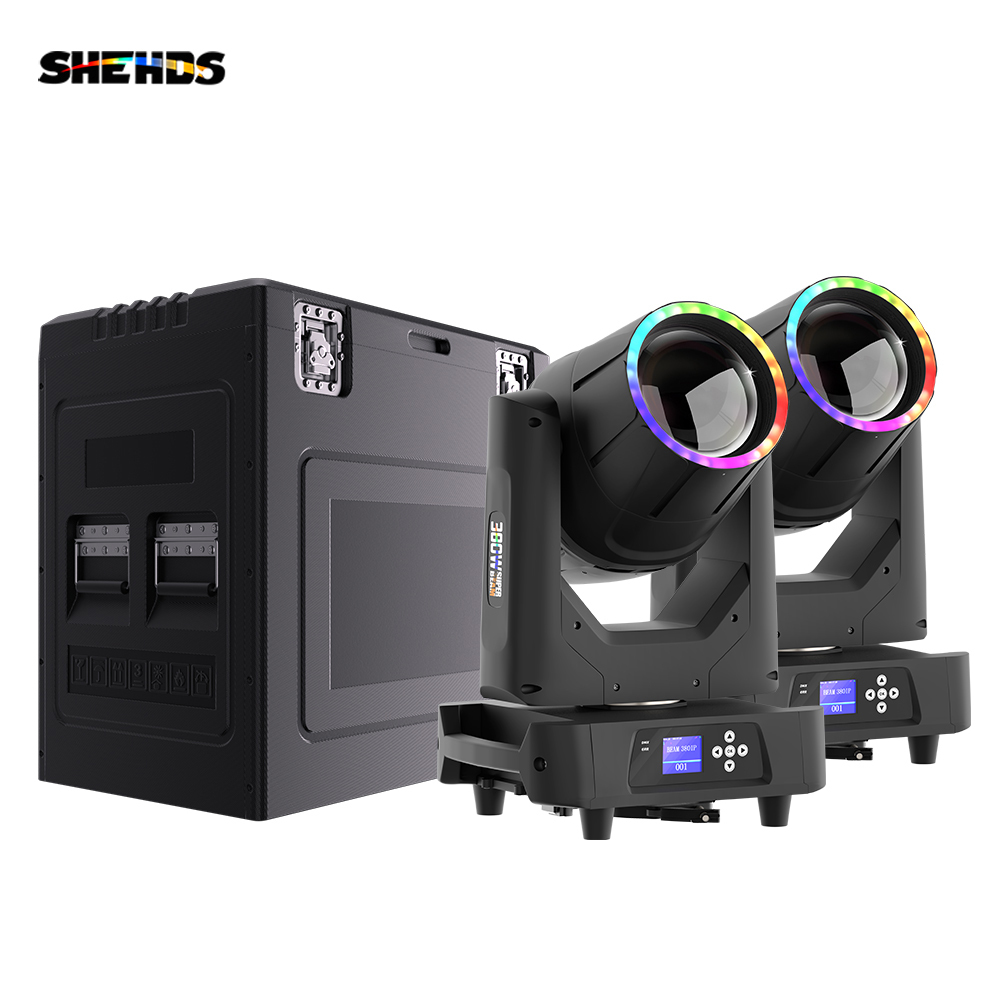

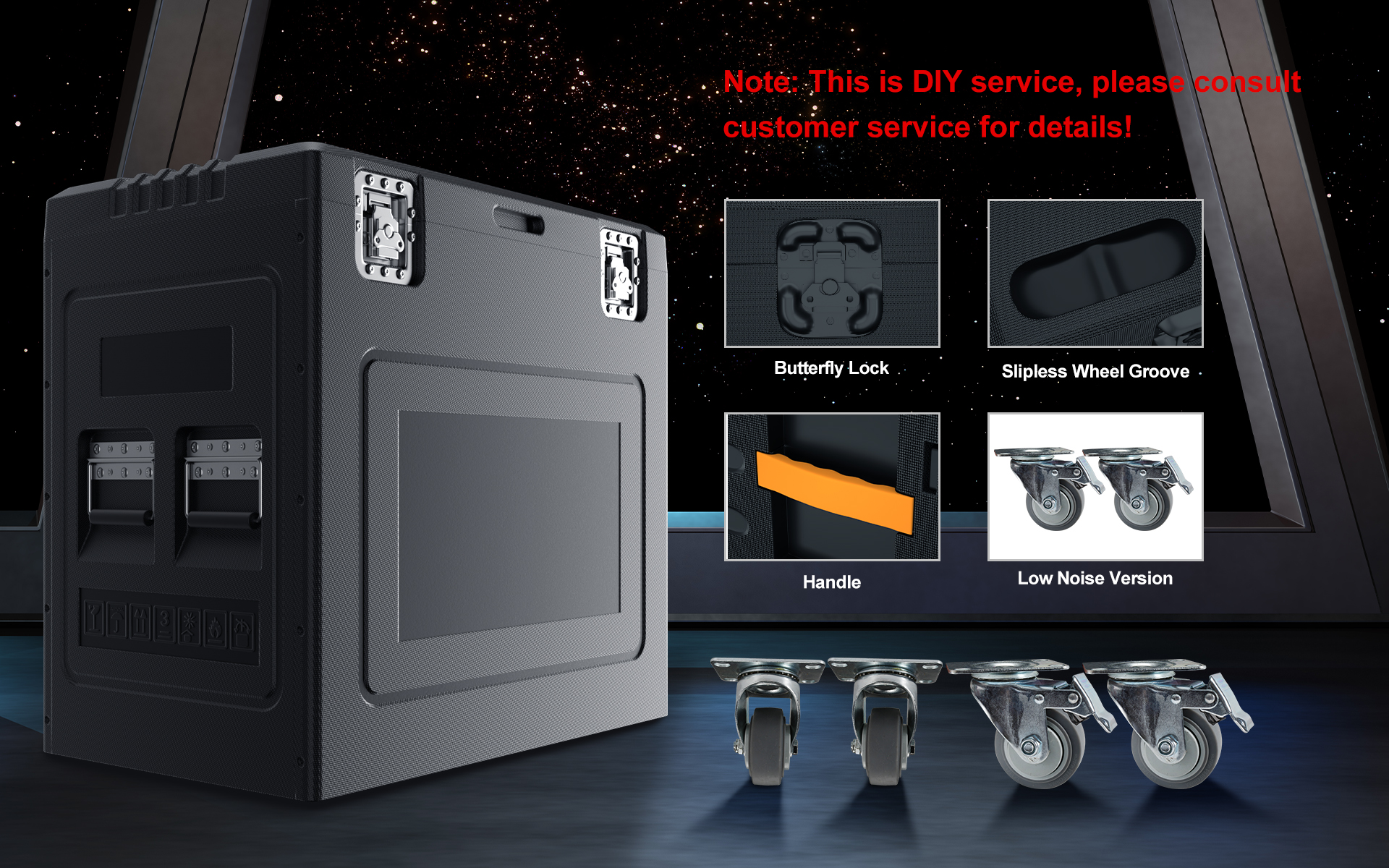

New Plastic Material Flight Case
Plastic boxes are more sturdy and wear-resistant;
Better waterproof and airtightness;
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service, please consult customer service for details!
Qualification Certificate
International organizations Authority certification
