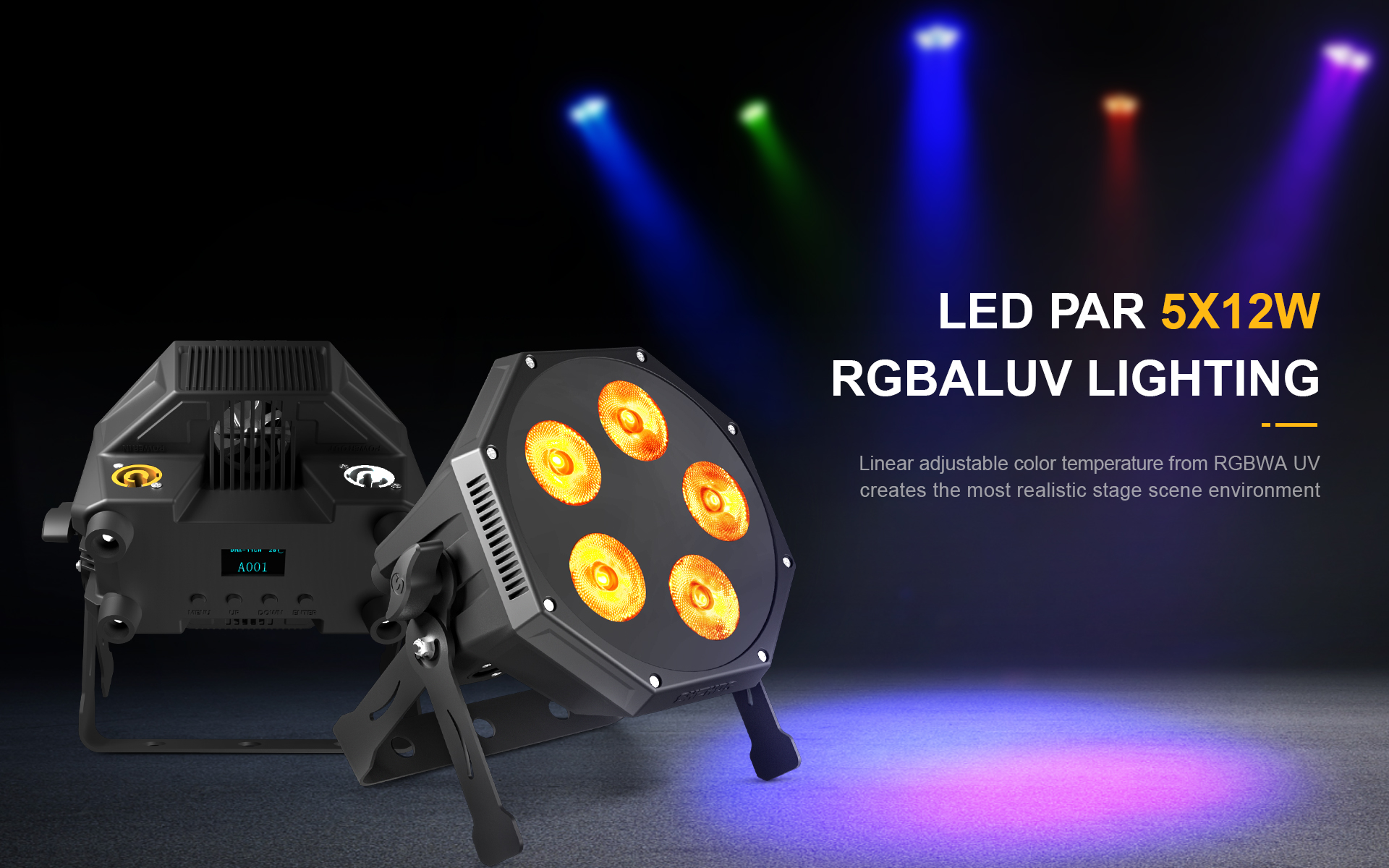

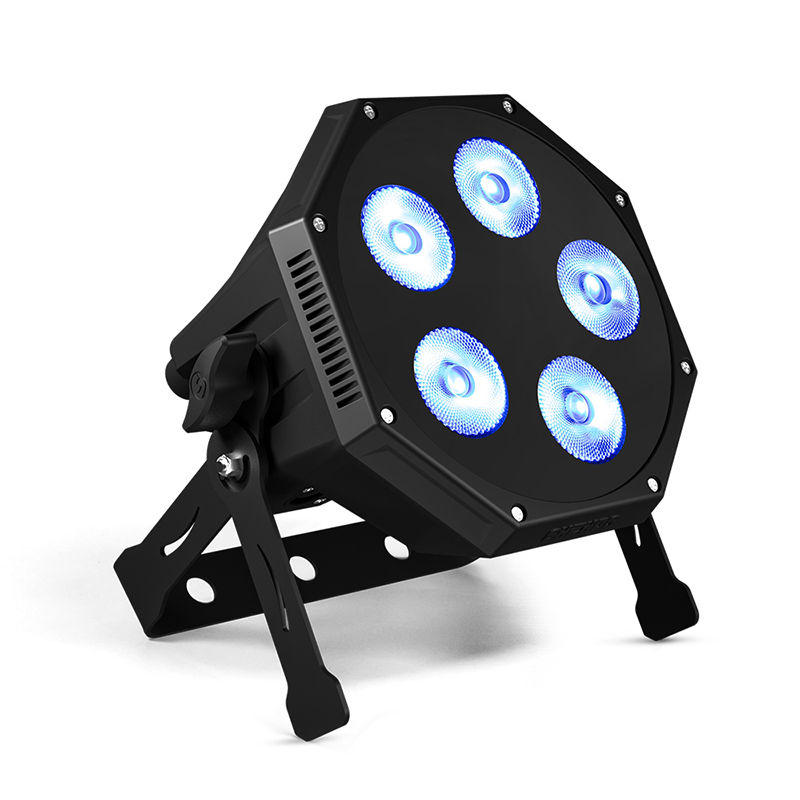

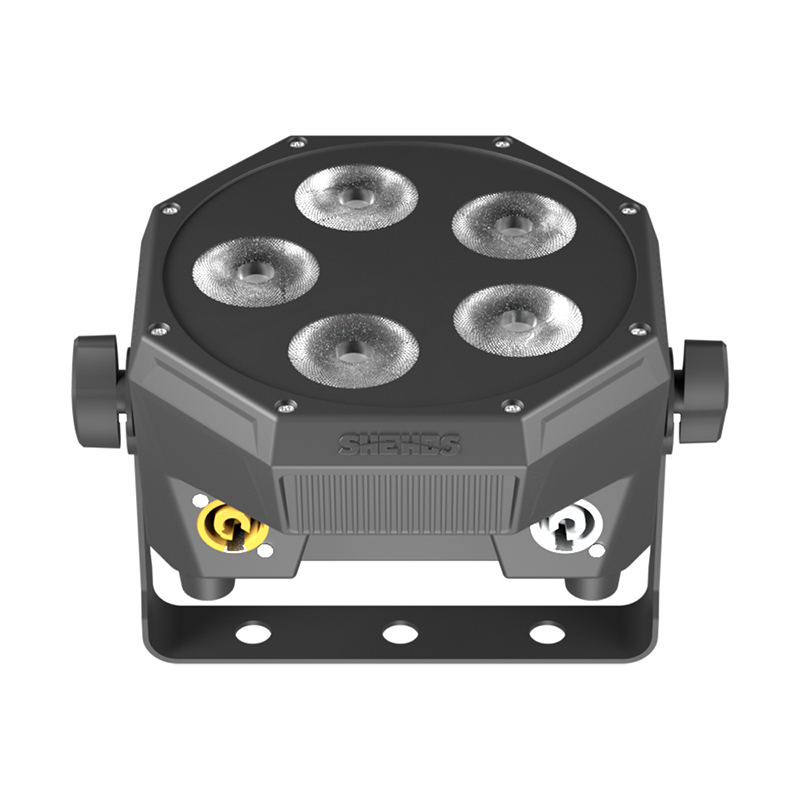

LED Par RGBALUV Lighting
Linear adjustable color temperature from RGBWA UV creates the most realistic stage scene environment,
creates a strong visual impact for the performance.
Product Features
Both automatic mode and voice control mode are available, allowing lights to dance to music,
Lighting engineers can flexibly switch colors, angles, and lighting effects.
Technical Parameter
|
Light source
parameters
|
LED 7x12W RGBWA UV 6in1 PAR Light
|
LED 7x12W RGBLAC- 6in1 PAR Light
|
LED Par 5x12W RGBALUV Lighting
|
|
Dimmer:
|
0-100% 16Bit mechanic
|
0-100% 16Bit mechanic
|
0-100% 16Bit mechanic
|
|
Light source:
|
7x12W RGBWA UV 6in1 mixing
|
7x12W RGBLAC 6in1 mixing
|
5x12W RGBAL UV 6in1 mixing
|
|
Beam Lux:
|
1130 Lux / 2m
|
1150 Lux / 2m
|
1340 Lux / 2m
|
|
Beam angle:
|
23°
|
23°
|
23°
|
|
Strobe:
|
Flash rate 0-25HZ
|
Flash rate 0-25HZ
|
Flash rate 0-25HZ
|
|
Security System
|
|
Safety Item
|
Over current and voltage protection
|
Over current and voltage protection
|
Over current and voltage protection
|
|
Degree Of Protection
|
IP20
|
IP20
|
IP20
|
|
Operating Temperature
|
-20℃~45℃
|
-20℃~45℃
|
-20℃~45℃
|
|
Interface And Control System
|
|
Control Interface
|
XLR In/Out
|
XLR In/Out
|
XLR In/Out
|
|
DMX Channel
|
11/6CH
|
11/6CH
|
11/6CH
|
|
Power Interface
|
PowerCon
|
PowerCon
|
PowerCon
|
|
Cooling System
|
|
Cooling Method
|
Passive heat dissipation
|
Passive heat dissipation
|
Passive heat dissipation
|
|
Coling system
|
Intelligent start stop temperature control
|
Intelligent start stop temperature control
|
Intelligent start stop temperature control
|
|
Power Consumption
|
|
Working Power
|
100~240V AC 50/60HZ
|
100~240V AC 50/60HZ
|
100~240V AC 50/60HZ
|
|
Power：
|
80W
|
80W
|
80W
|
|
Physical Parameters
|
|
Material:
|
High temperature resistant plastic shell
|
High temperature resistant plastic shell
|
High temperature resistant plastic shell
|
|

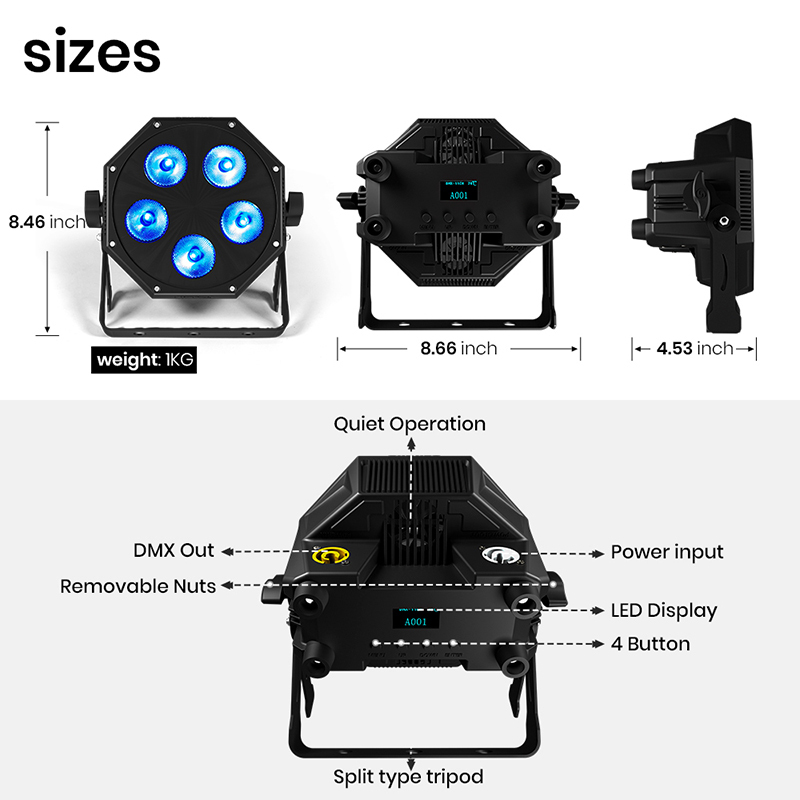

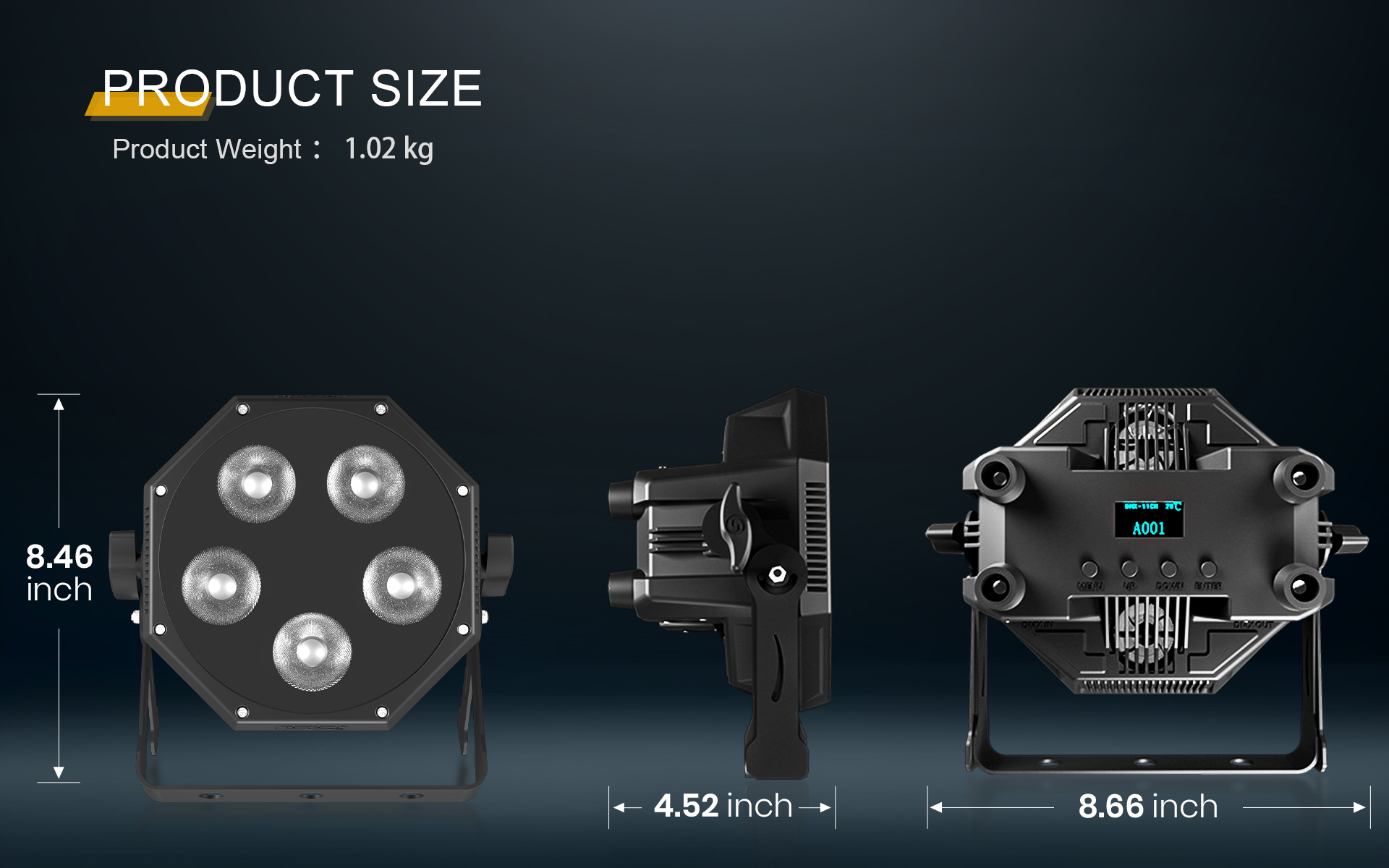

Product Size-W/H/THK：
|
22x21.5x11.5 cm / 8.66x8.46x4.52 inch
|
22x21.5x11.5 cm / 8.66x8.46x4.52 inch
|
22x21.5x11.5 cm / 8.66x8.46x4.52 inch
|
|
Product Weight
|
1.02 kg
|
1.02 kg
|
1.02 kg
|
|
Package Size
|
21.7x20x12.7cm
|
21.7x20x12.7cm
|
21.7x20x12.7cm
|

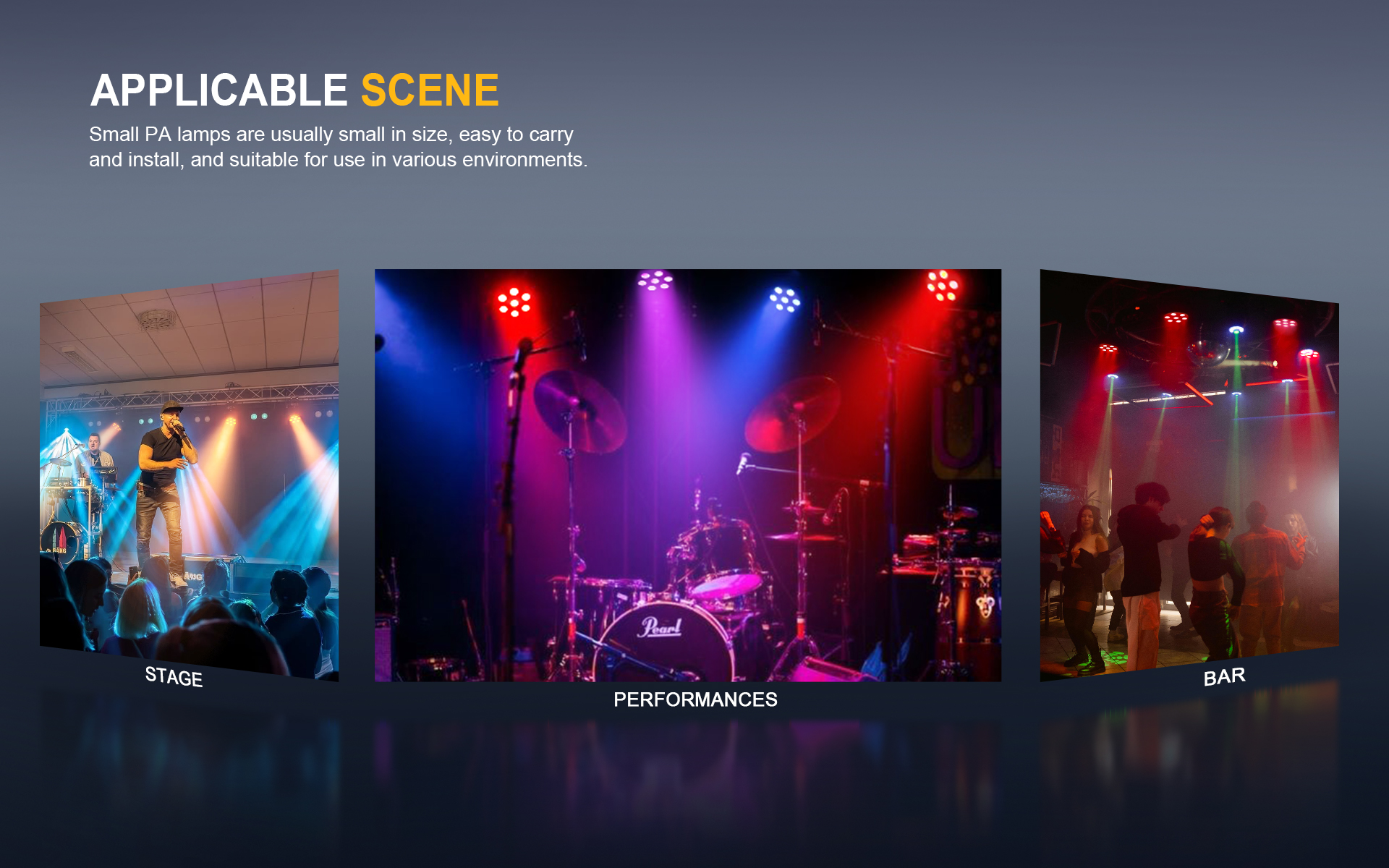

Applicable Scene
Suitable for various occasions: The small handkerchief lamp is suitable for stages, performances, bars, homes, and other occasions,
providing suitable lighting effects for various scenes.
Easy to carry: Small PA lamps are usually small in size, easy to carry and install,
and suitable for use in various environments.

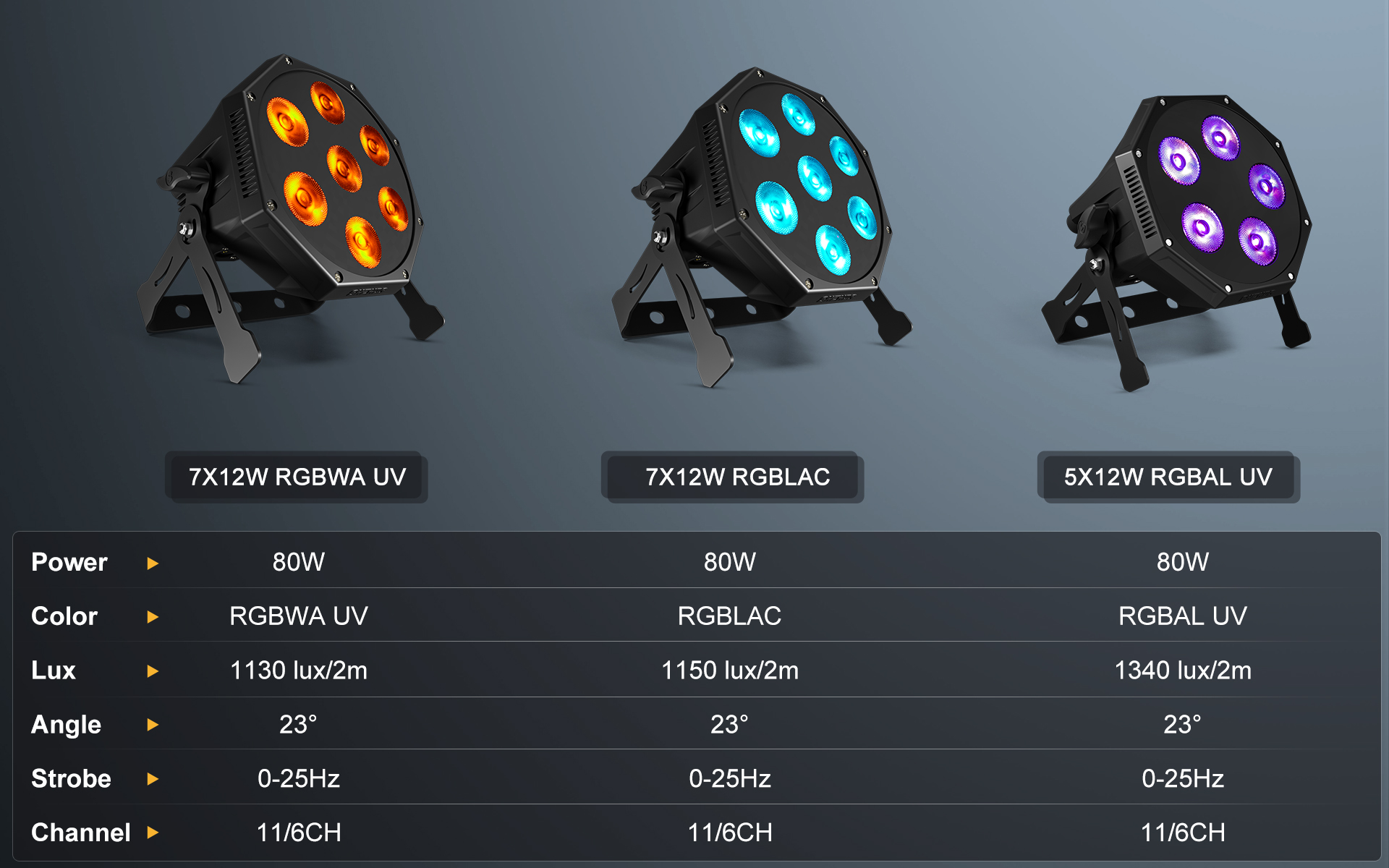

Parameter comparison

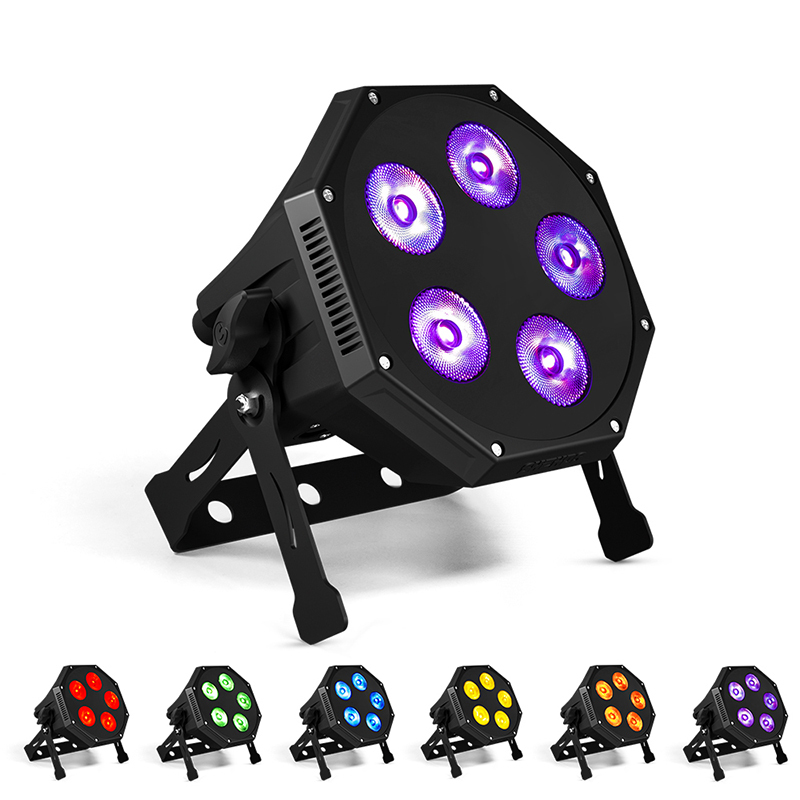

We offer multiple options of the same appearance but different colors for this series of PAR lights to meet different performance styles and personalized needs.
Color Mode
By integrating the basic colors of RGB (red, green, blue) with the essence of AL (amber and lemon light/),
coupled with the innovative integration of UV (ultraviolet light),
the range of color expression has been unprecedentedly expanded.
Optical System
Max 23° Beam Angel Covering a wider area can illuminate a larger space.
Adopting customized PMMA acrylic material lenses to achieve a 98% reflectivity and higher lighting efficiency

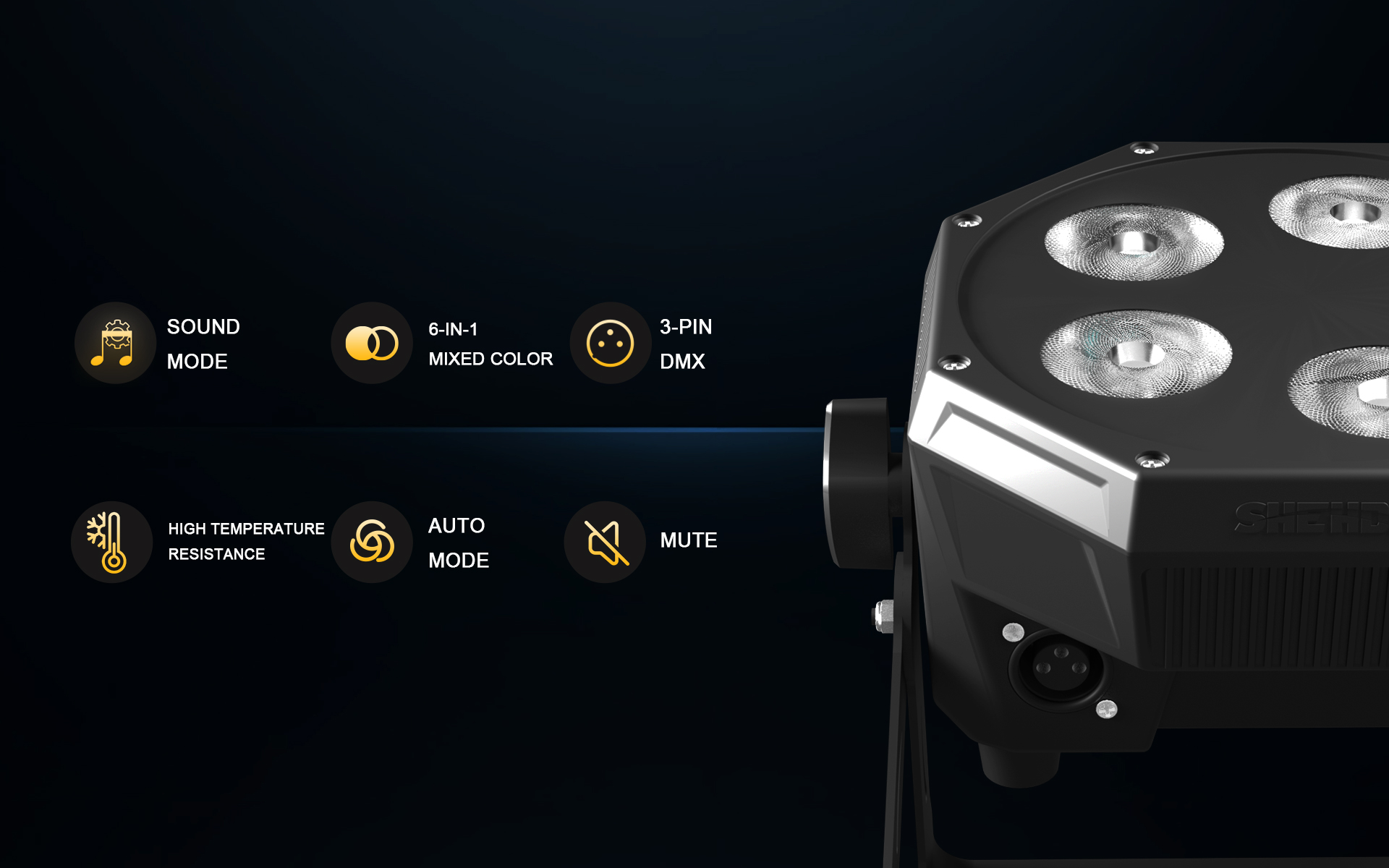

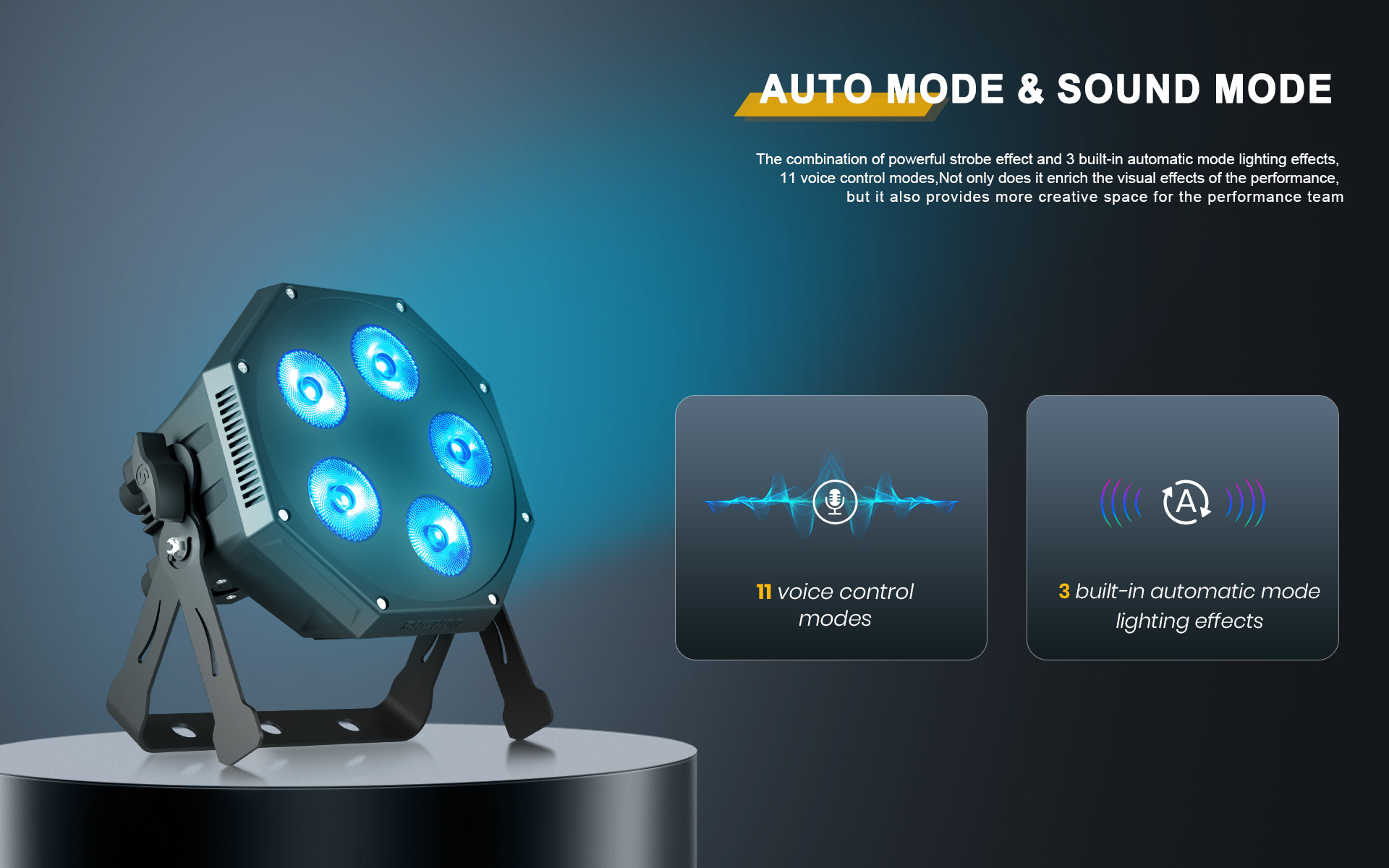

Auto Mode & Sound Mode
The combination of powerful strobe effect and 3 built-in automatic mode lighting effects, 11 voice control modes,
Not only does it enrich the visual effects of the performance,
but it also provides more creative space for the performance team.

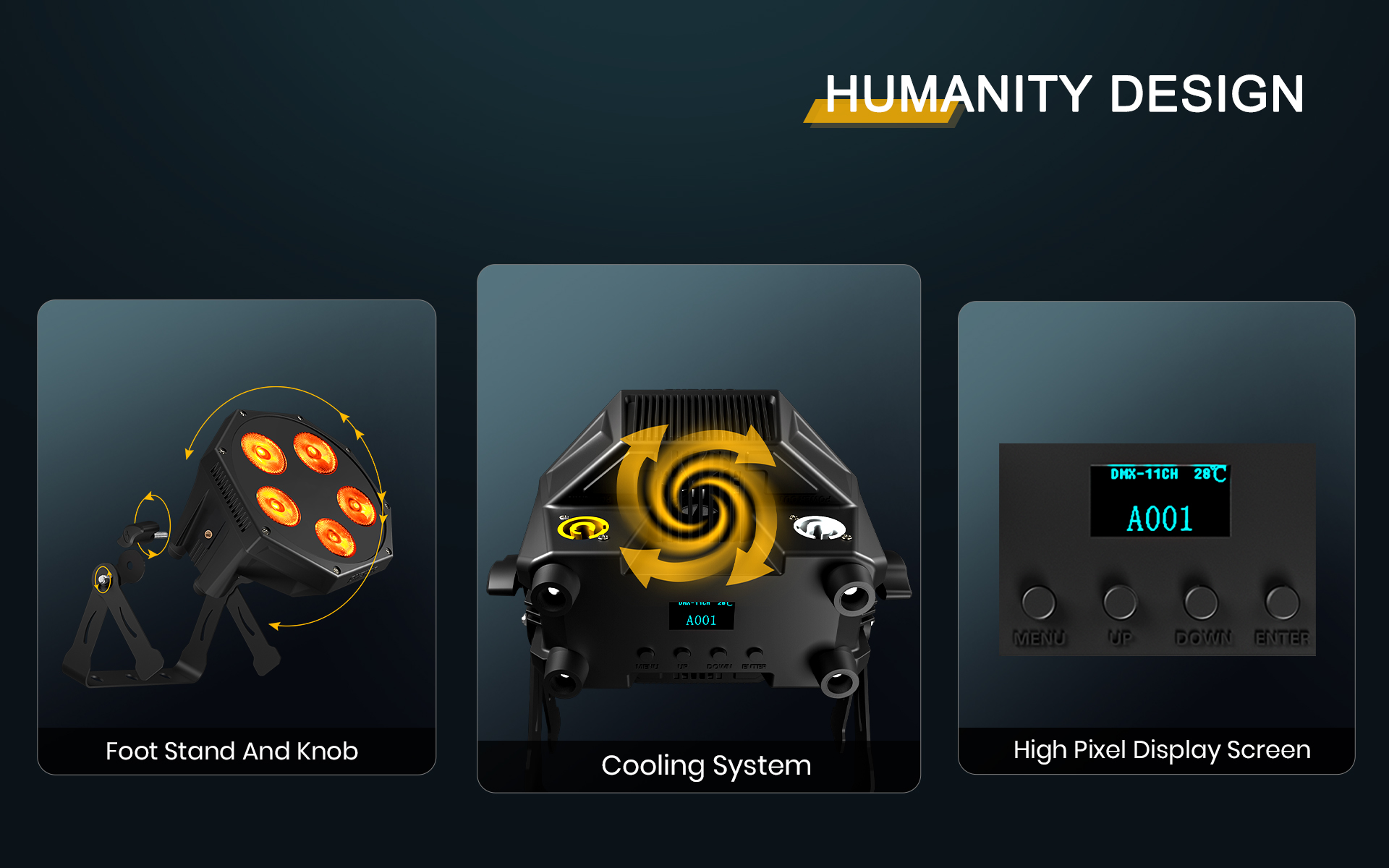

Humanity Design
Cooling system：Adopting a low-noise fan design and optimized airflow channel layout,
it achieves efficient heat dissipation while minimizing operating noise.
Even in high-end applications that are sensitive to noise,
it can maintain a quiet and comfortable lighting environment, allowing for uninterrupted focus and relaxation.
Menu ：High pixel display screen makes operation more convenient and intuitive.
Real time temperature feedback function: Real time display of temperature data inside the lamp through the display screen.

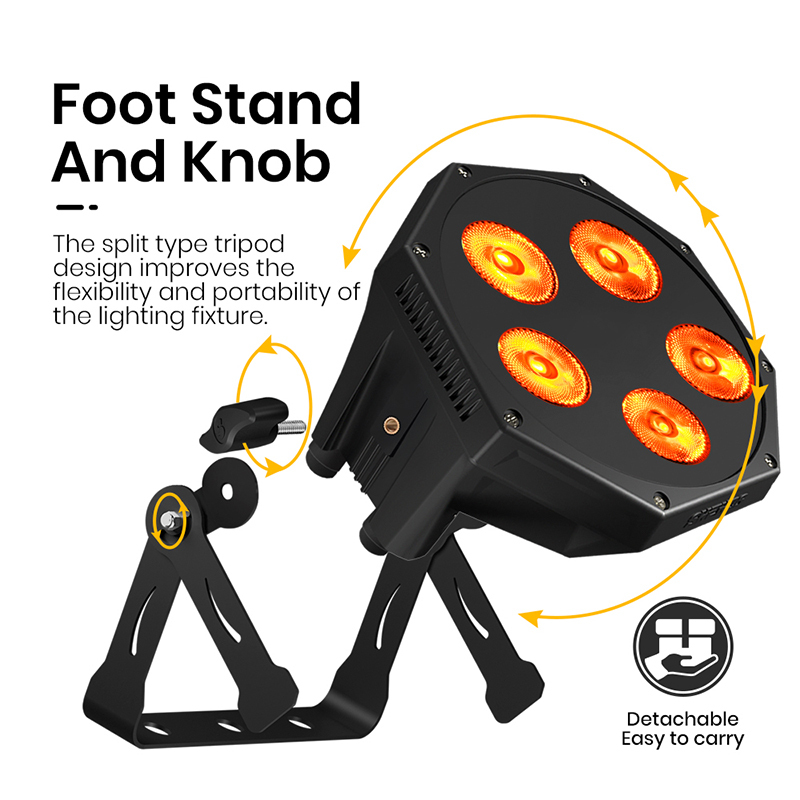

Foot Stand and Knob：The split type tripod design improves the flexibility and portability of the lighting fixture,
and also allows users to freely adjust the height and angle of the tripod according to different usage scenarios and needs,in order to achieve the best lighting effect.

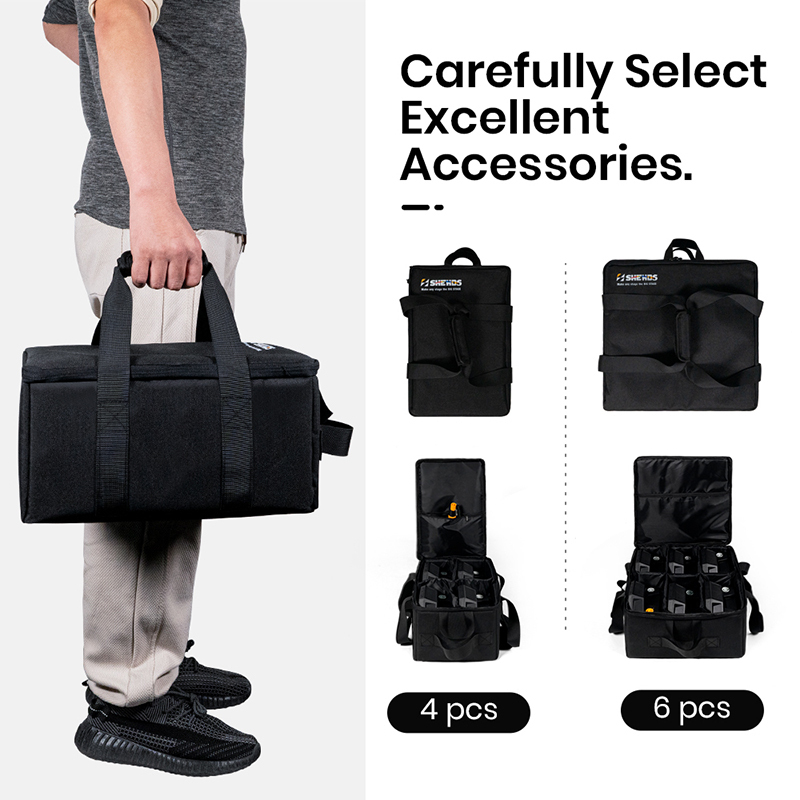

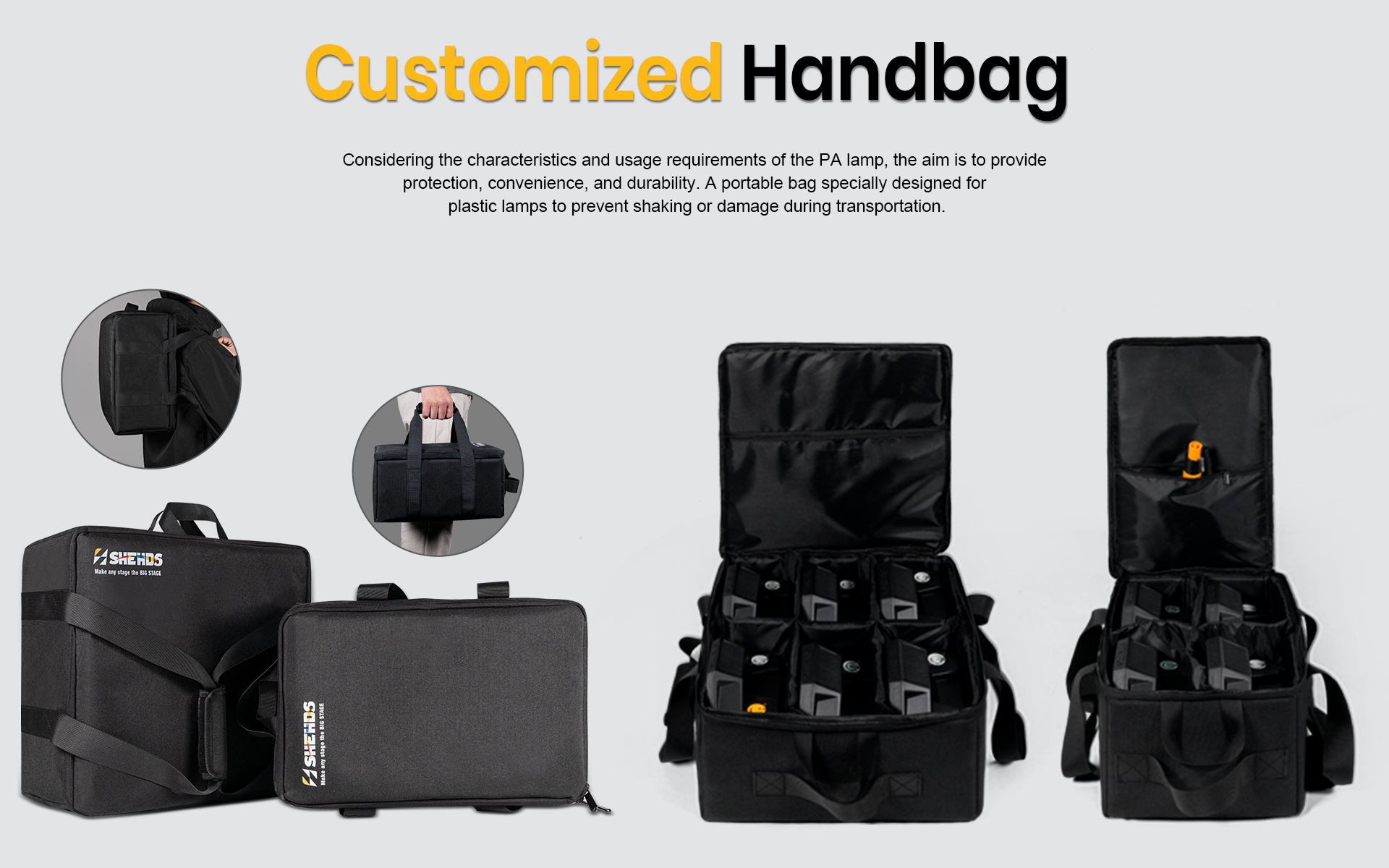

Customized Handbag
Considering the characteristics and usage requirements of the PA lamp,
the aim is to provide protection, convenience, and durability.
A portable bag specially designed for plastic lamps to prevent shaking or damage during transportation.

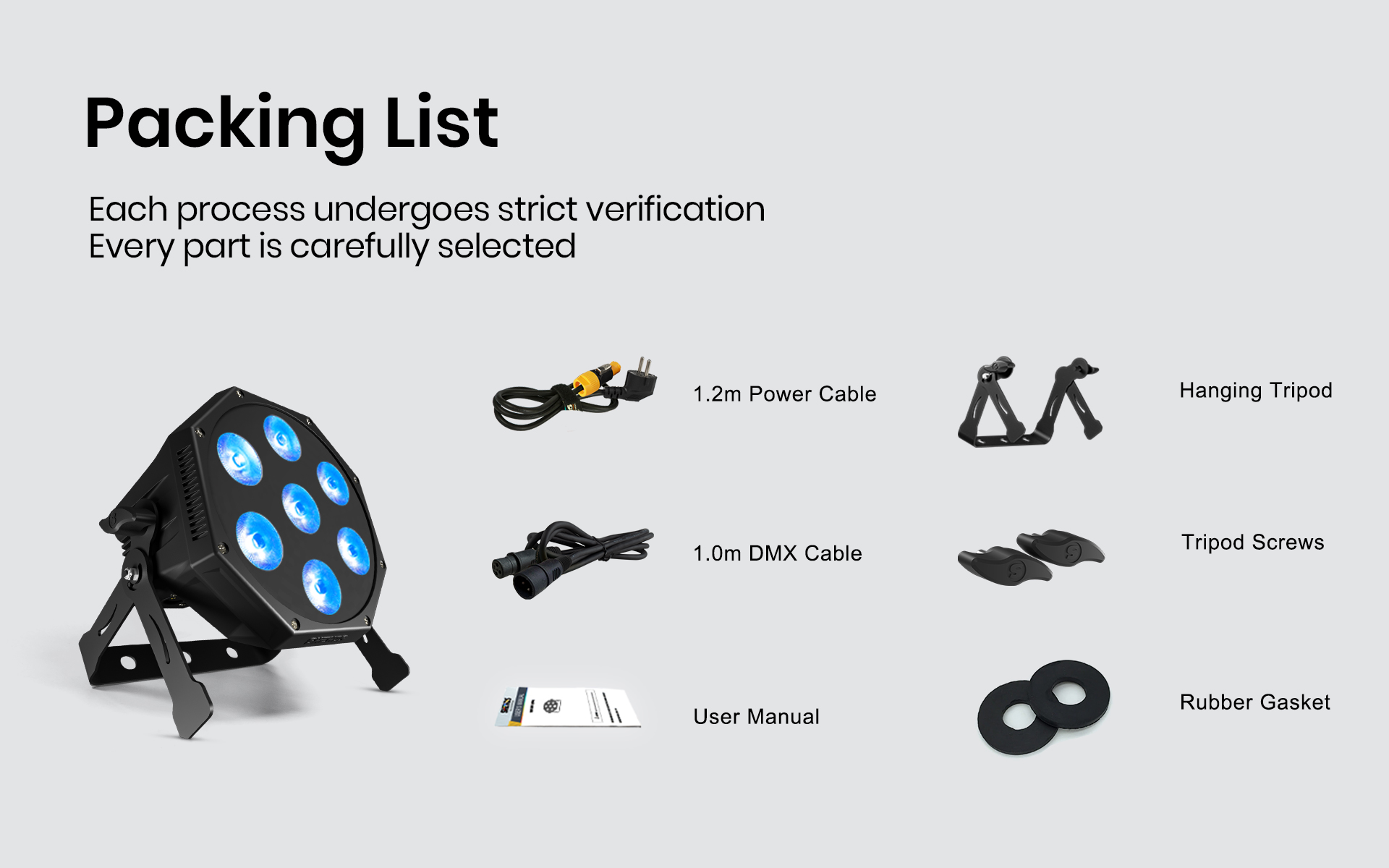

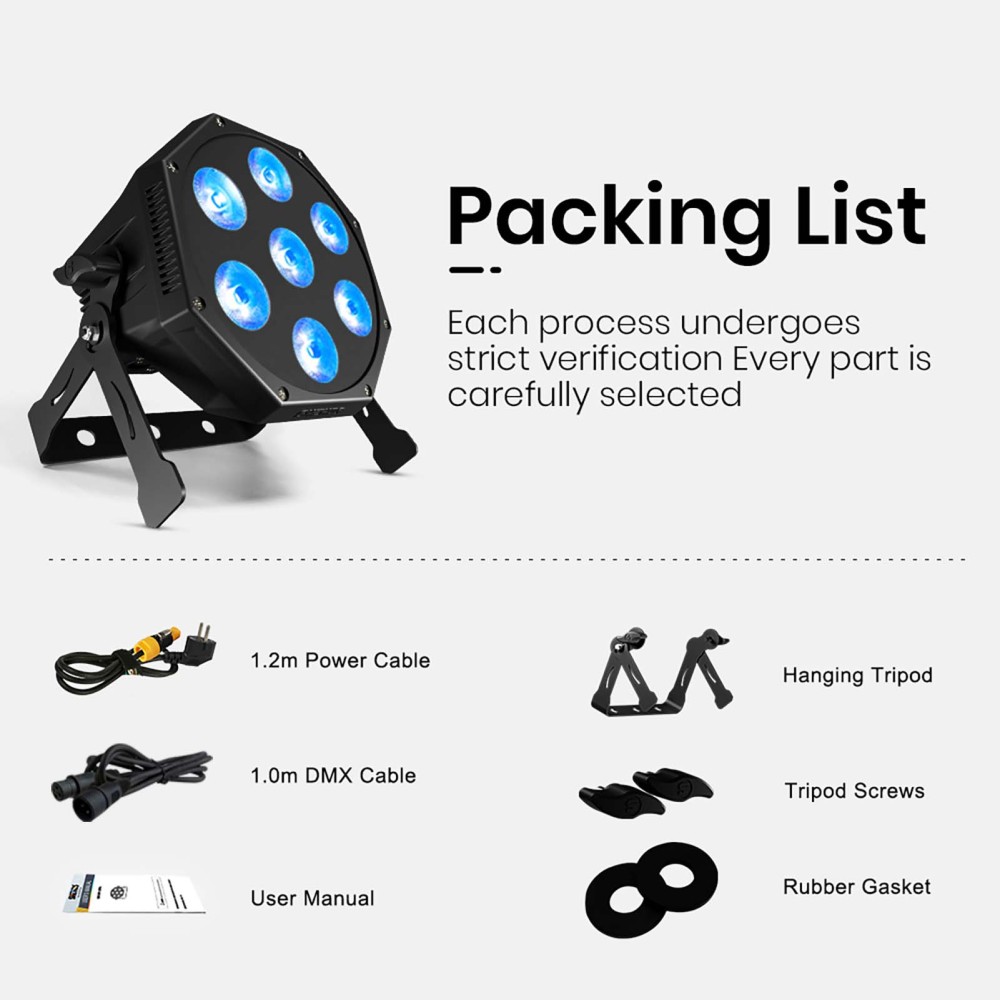

Packing List
Before leaving the factory, each of our products undergoes rigorous testing to ensure they are in perfect condition before being shipped out.
Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every detail.
Only products that have gone through layers of scrutiny can confidently leave our factory and arrive in your hands with unparalleled quality,
bringing you an excellent user experience.
Qualification Certificate
Our products comply with international safety standards and environmental requirements,
and also have multiple voltage options to meet the electricity needs of different regions around the world.
In addition, we also provide comprehensive after-sales service and technical support to ensure that any problems you encounter during use can be promptly and effectively resolved.
